Samsung VLUU PL100 User manual

User Manual
Basic Operation
PL100/PL101
This User Manual has been specially designed to guide you
through the basic functions and features of your device.
Please read this User Manual and the User Manual on the
CD-ROM carefully to ensure safe and correct use.
For more information, refer to
the User Manual included on the
supplied CD-ROM.
ENG / TUR
PL100_QSM_TUR.indb 3 2010-01-27 오후 3:19:11

2
Contents
Get answers to common questions …3
Health and safety information ……… 4
Camera layout ………………………… 6
Setting up your camera ……………… 8
Unpacking …………………………………8
Inserting the battery and memory card …9
Removing the battery and memory card… 9
Charging the battery …………………… 10
Turning on your camera………………… 10
Performing the initial setup …………… 11
Selecting options …………………… 12
Capturing photos or videos ……… 13

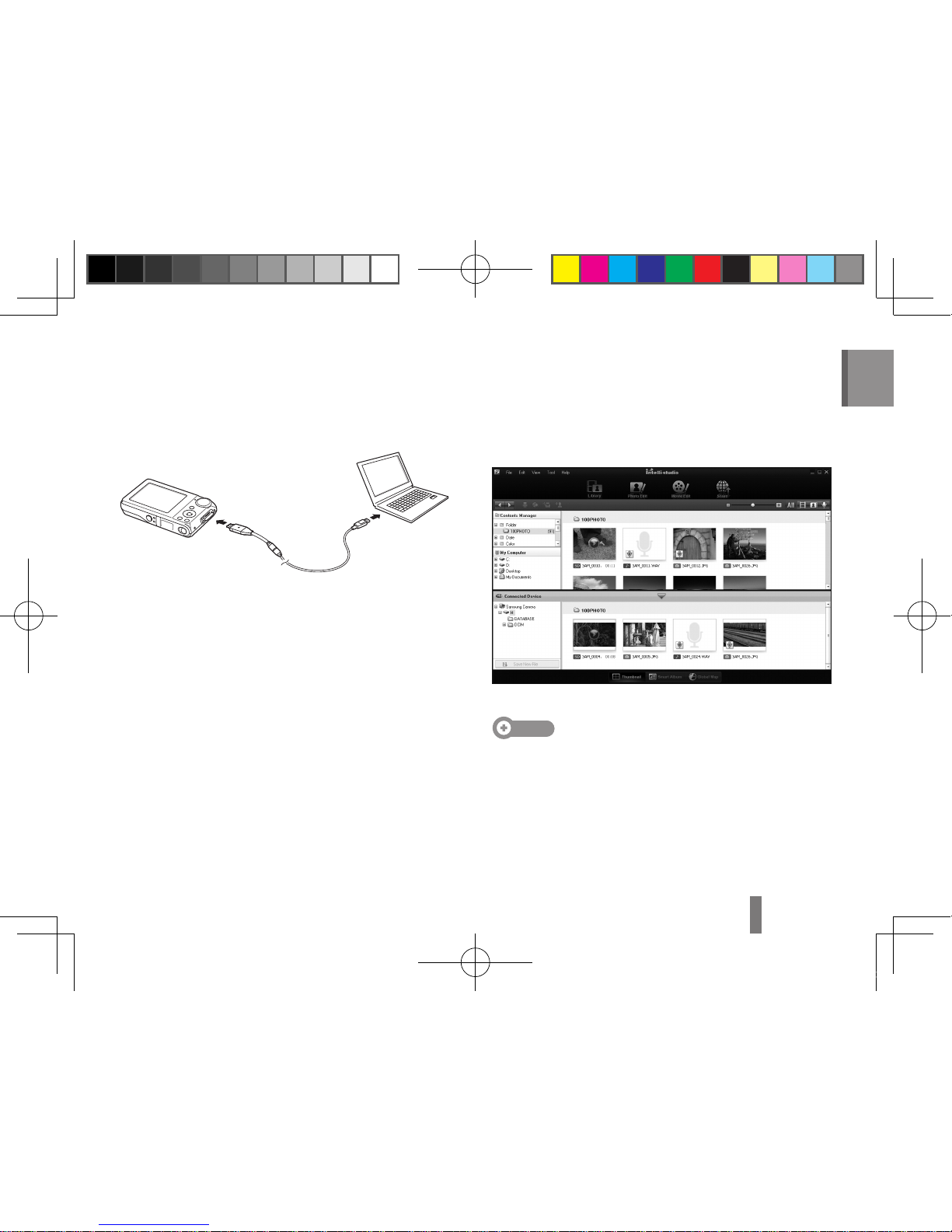

Transferring files to a PC (Windows) 17
Specifications ……………………… 18
Copyright information
Microsoft Windows and the Windows logo are registered•
trademarks of the Microsoft Corporation.
Mac is a registered trademark of the Apple Corporation.•
Camera specifications or contents of this manual may•
be changed without prior notice due to upgrade of
camera functions.
For Open Source License information, refer to the•
“OpenSourceInfo.pdf” in the provided CD-ROM.
PL100_QSM_TUR.indb 2 2010-01-27 오후 3:19:11

3
English

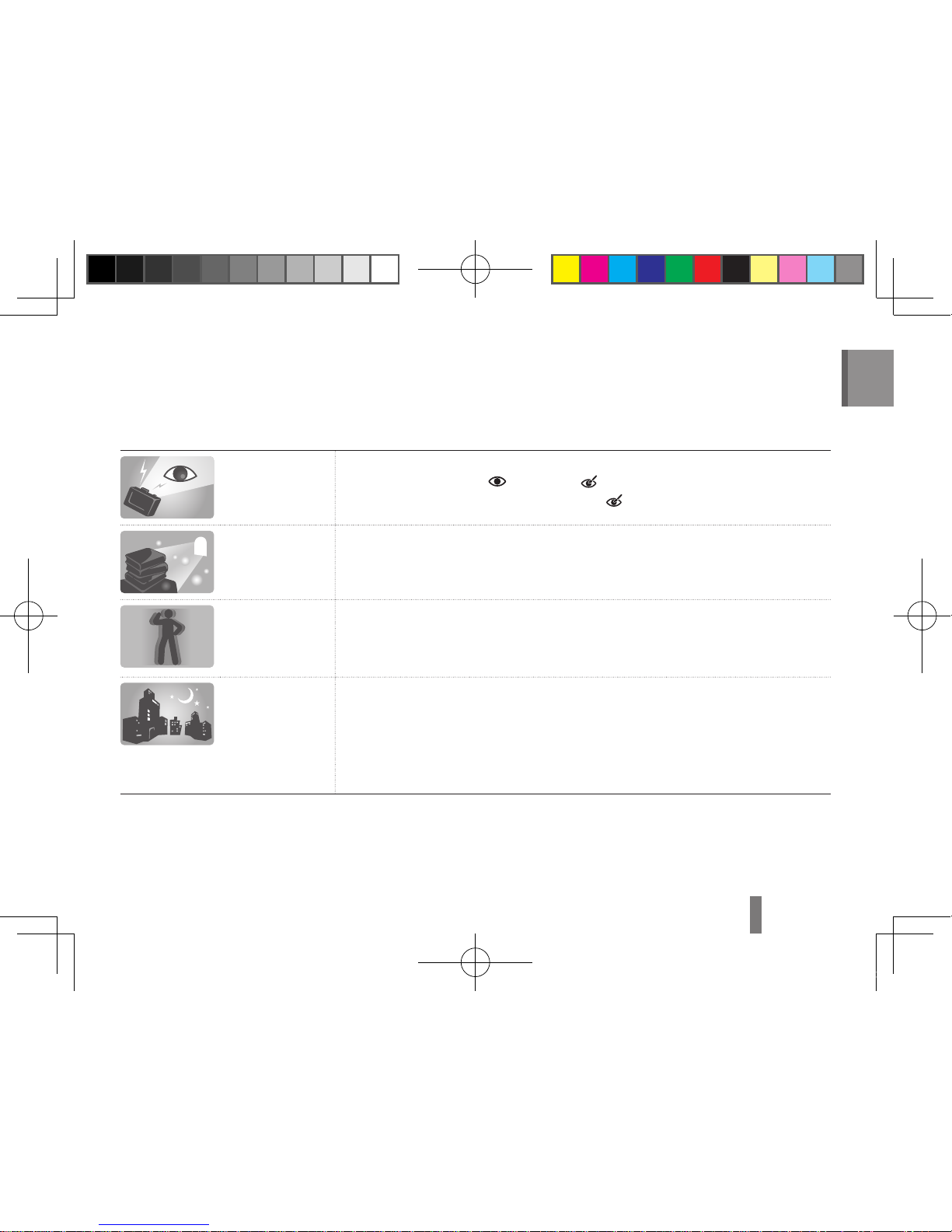

Get answers to common questions
You can easily solve most problems by setting shooting options.
There are more details about how to set shooting options in the CD version of the user manual.
The subject's
eyes appear red.
This is caused by a reflection from the camera flash.
Set the flash option to• Red-eye or Red-eye Fix.
If the photo has already been taken, select• Red-eye Fix in the edit menu.
Photos have
dust spots.
Dust particles floating in the air may be captured in photos when using the flash.
Turn off the flash or avoid taking photos in a dusty place.•
Set ISO speed options.•
Photos are
blurred.
This may be caused by taking photos in low light conditions or holding the camera
incorrectly.
Press [• Shutter] halfway down to make sure the subject is focused.
Use the• dmode.
Photos are
blurred when
shooting at night.
As the camera tries to let in more light, the shutter speed slows.
This can make it difficult to steady the camera and may result in camera shake.
Rotate the mode dial to• N.
Turn on the flash.•
Set ISO speed options.•
Use a tripod to prevent your camera from shaking.•
PL100_QSM_TUR.indb 3 2010-01-27 오후 3:19:14

4
Health and safety information
Comply with the following precautions to avoid dangerous
or illegal situations while operating the camera and keep
this manual handy for future reference.
Warnings
Do not use your camera near flammable or explosive
gases and liquids
Do not use your camera near fuels, combustibles, or
flammable chemicals. Do not store or carry flammable
liquids, gases, or explosive materials in the same
compartment as the camera or its accessories.
Keep your camera away from small children and pets
Keep your camera and all accessories out of the reach
of small children and animals. Small parts may cause
choking or serious injury if swallowed. Moving parts and
accessories may present physical dangers as well.
Prevent damage to subjects’ eyesight
Do not use the flash in close proximity (closer than 1m/3
ft) to people or animals. Using the flash too close to
your subject’s eyes can cause temporary or permanent
damage.
Handle and dispose of batteries and chargers
with care
Use only Samsung-approved batteries and chargers.•
Incompatible batteries and chargers can cause serious
injuries or damage to your camera.
Never dispose of batteries in a fire. Follow all local•
regulations when disposing of used batteries.
Never place batteries or cameras on or in heating•
devices, such as microwave ovens, stoves, or
radiators. Batteries may explode when overheated.
PL100_QSM_TUR.indb 4 2010-01-27 오후 3:19:14

5
English
Protect batteries, chargers, and memory cards from
damage
Avoid exposing batteries or memory cards to very cold•
or very hot temperatures (below 0° C/32° F or above
40° C/104° F). Extreme temperatures can reduce the
charging capacity of your batteries and can cause
memory cards to malfunction.
Prevent batteries from making contact with metal•
objects, as this can create a connection between the +
and – terminals of your battery and lead to temporary
or permanent battery damage.
Prevent memory cards from making contact with•
liquids, dirt, or foreign substances. If dirty, wipe the
memory card clean with a soft cloth before inserting in
your camera.
Use only Samsung-approved accessories
Using incompatible accessories may damage your
camera, cause injury, or void your warranty.
Protect your camera’s lens
Protect your lens from fingerprints and scratches. Clean
your lens with a soft, clean, debris-free lens cloth.
Cautions
Handle and store your camera carefully and sensibly
Do not allow your camera to get wet—liquids can•
cause serious damage. Do not handle your camera
with wet hands. Water damage to your camera can
void your manufacturer’s warranty.
Avoid using or storing your camera in dusty, dirty,•
humid, or poorly-ventilated areas to prevent damage
to moving parts and internal components.
Protect your camera from impact, rough handling, and•
excessive vibration to avoid serious damage.
Exercise caution when connecting cables or adapters•
and installing batteries and memory cards. Forcing
the connectors, improperly connecting cables, or
improperly installing batteries and memory cards can
damage ports, connectors, and accessories.
Do not insert foreign objects into any of your camera’s•
compartments, slots, or access points. This type of
damage may not be covered by your warranty.
PL100_QSM_TUR.indb 5 2010-01-27 오후 3:19:14

6

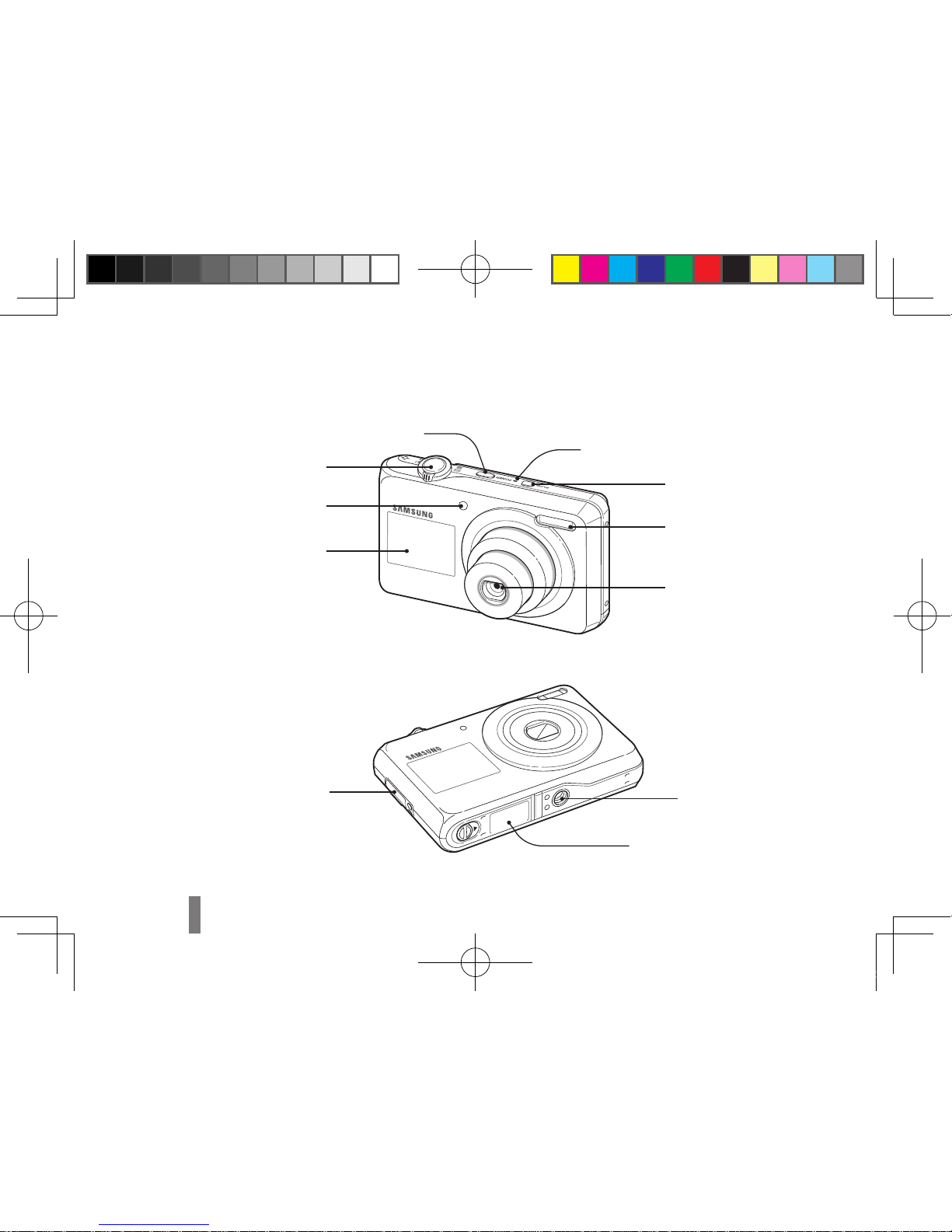

Camera layout
Battery chamber cover
Tripod mount
USB and A/V port
AF-assist light/timer lamp
Flash
Lens
Microphone
Front display
Front LCD button
Shutter button
POWER button
PL100_QSM_TUR.indb 6 2010-01-27 오후 3:19:14

7
English
Mode dial
Navigation button/OK button
Function button
Playback button
MENU button
Status lamp
Main display
Zoom button
Speaker
1
2
PL100_QSM_TUR.indb 7 2010-01-27 오후 3:19:14

8
Setting up your camera

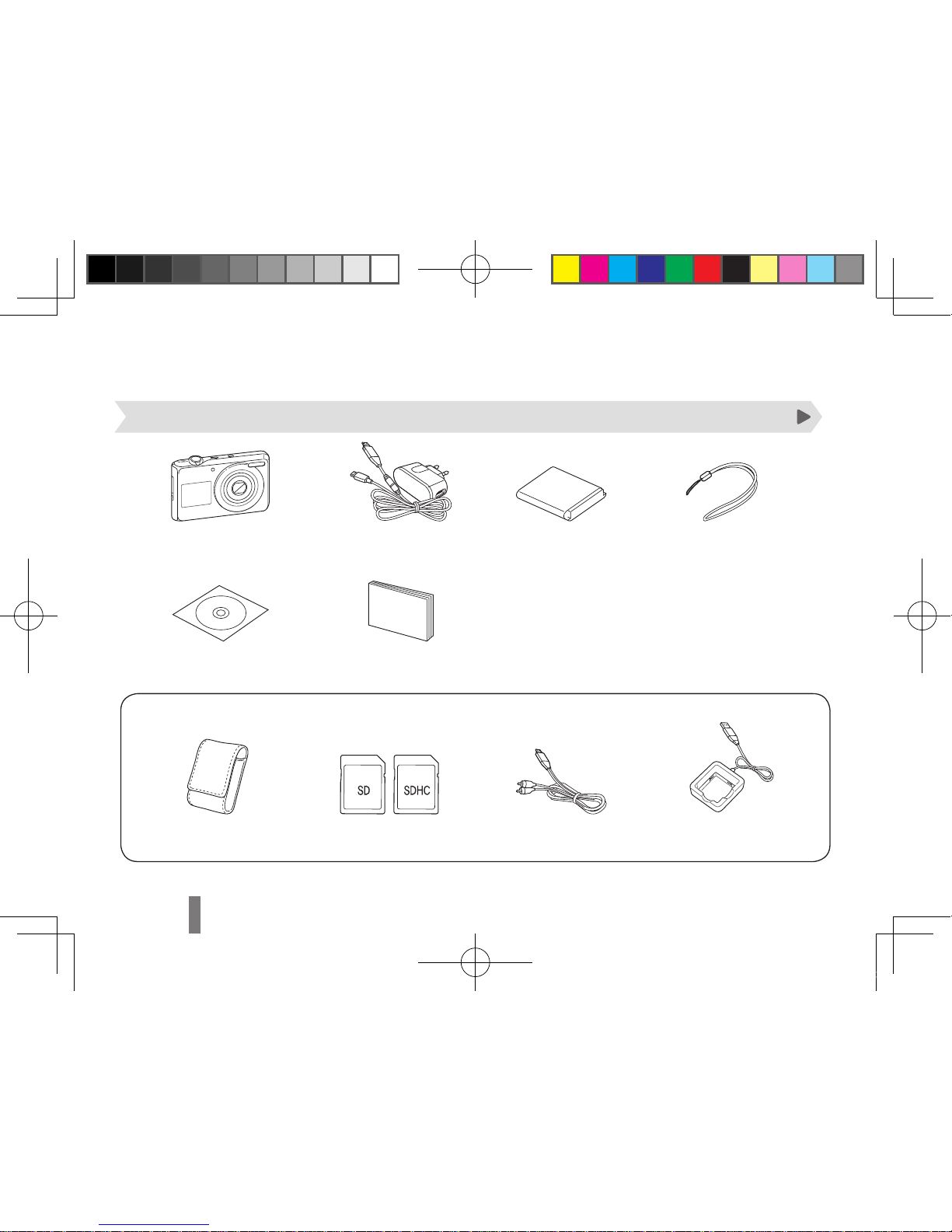

Unpacking
Camera AC adapter/USB cable Rechargeable battery Strap
Software CD-ROM
(User manual included)
User Manual
Basic Operation
Optional accessories
Camera case Memory card A/V cable Battery charger
PL100_QSM_TUR.indb 8 2010-01-27 오후 3:19:16

9
English

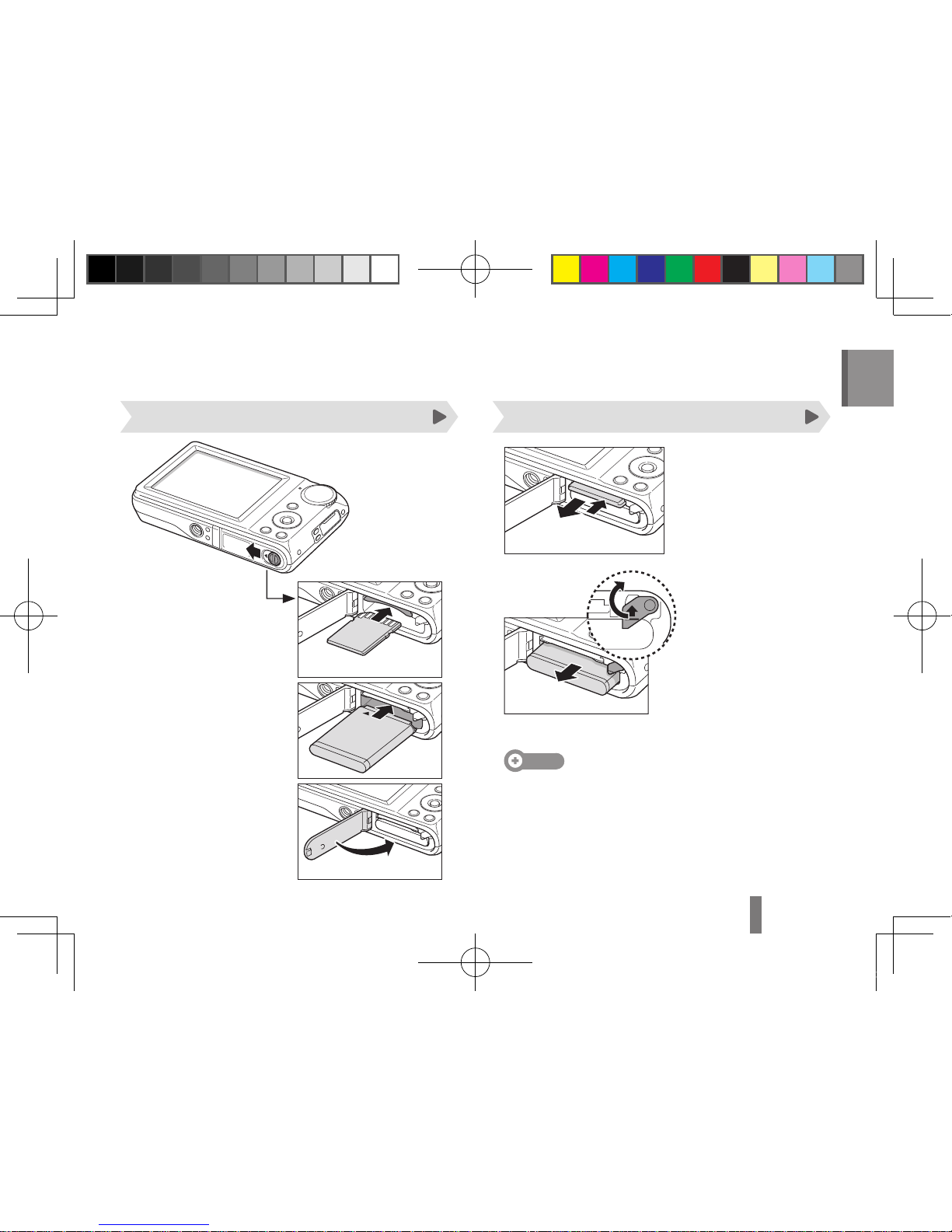

Inserting the battery and memory card Removing the battery and memory card
Note
The internal memory can be used as a temporary storage
device when the memory card is not inserted.
Insert a memory card
with the gold-coloured
contacts facing up.
Insert the battery with the
Samsung logo facing up.
Push gently until the card
disengages from the
camera and then pull it
out of the slot.
Push the lock up to
release the battery.
Battery
Battery lock
Memory card
PL100_QSM_TUR.indb 9 2010-01-27 오후 3:19:17

10
Press [POWER].
Setting up your camera

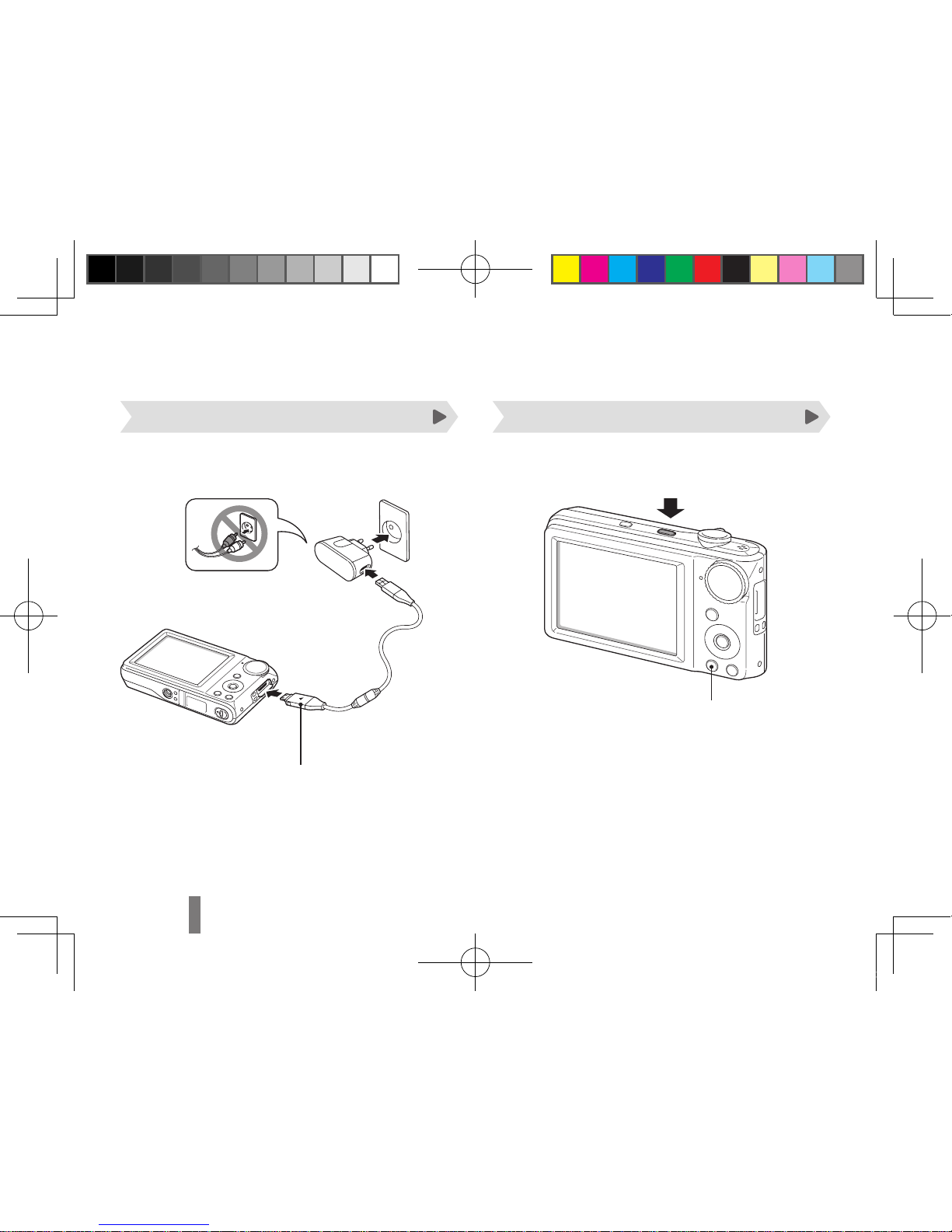

Turning on your cameraCharging the battery
Press [P] to turn on the camera
in Playback mode.
Indicator light
Red▪: Charging
Green▪: Fully charged
Before using the camera for the first time, you must
charge the battery.
PL100_QSM_TUR.indb 10 2010-01-27 오후 3:19:17

11
English
Press [
5
F] or [t] to select a time zone and
press [o].
To set the daylight-saving time, press [▪D].
Back DST
Press [
6
D] or [M] to select Date & Time
(Date & Time) and press [t] or [o].
Press [
7
F] or [t] to select an item.
Press [
8
D] or [M] to set the date and time or
select a date format, and press [o].
Press [
1
POWER].
The initial setup screen appears when you turn on▪
the camera for the first time.
Press [
2
t] to select Language and press [t]
or [o].
Press [
3
D] or [M] to select a language and
press [o].
Press [
4
D] or [M] to select Time Zone (Time
Zone) and press [t] or [o].
Performing the initial setup
PL100_QSM_TUR.indb 11 2010-01-27 오후 3:19:18

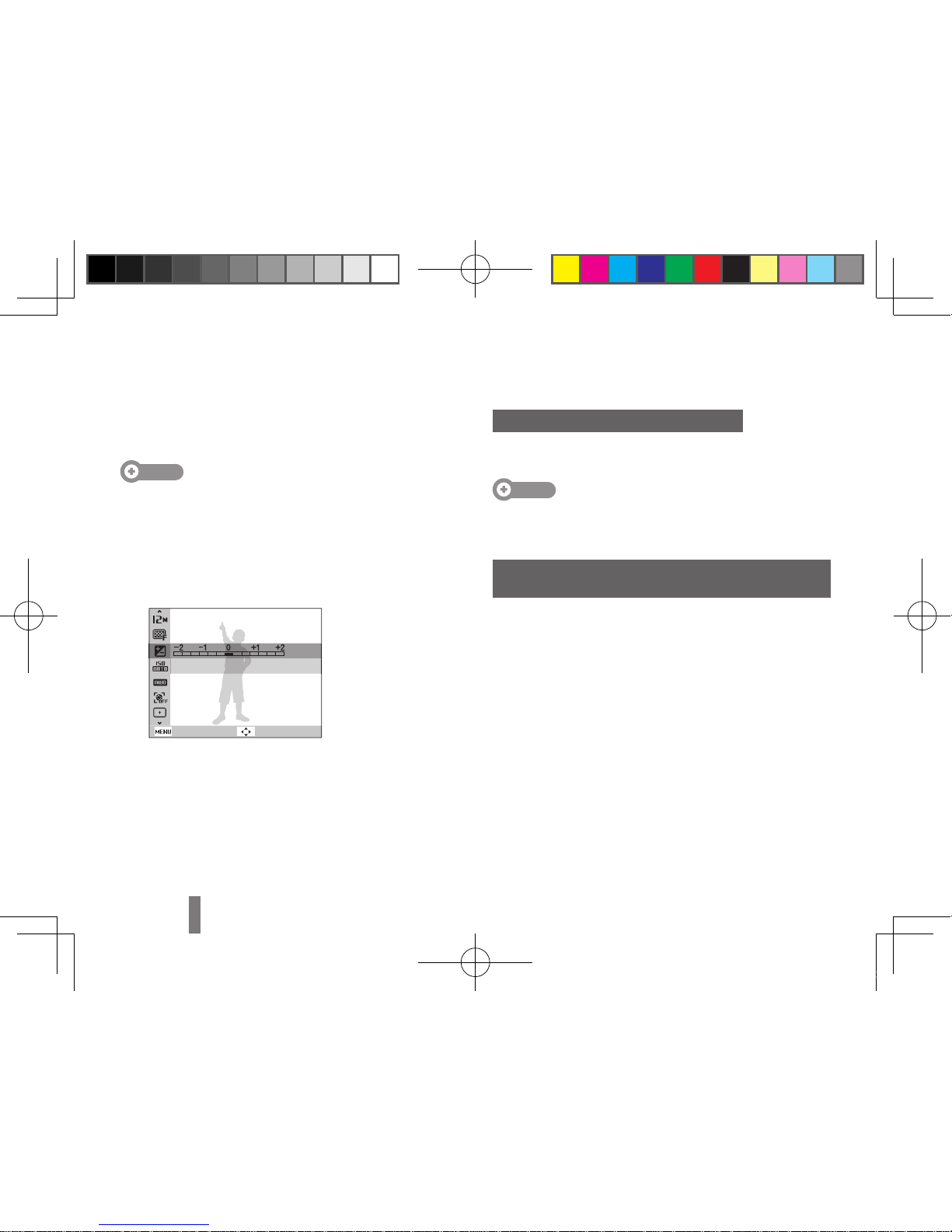

12
You can select options by pressing [m] and using the
navigation buttons ([D], [M], [F], [t]).
Note
You can also access shooting options by pressing [f] but
some options are not available.
In Shooting mode, press [
1
m].
Use the navigation buttons to scroll to an option
2
or menu.
Back
EV
Move
To move left or right, press [▪F] or [t].
To move up or down, press [▪D] or [M].
Press [
3
o] to confirm the highlighted option or
menu.
Going back to the previous menu
Press [m] again to go back to the previous menu.
Note
Press [Shutter] to return to Shooting mode.
E.g. Selecting a white balance option in the
P mode
Rotate the mode dial to
1
p.
Press [
2
m].
Press [
3
D] or [M] to scroll to Shooting and
then press [t] or [o].
Press [
4
D] or [M] to scroll to White Balance
and then press [t] or [o].
Press [
5
F] or [t] to scroll to a white balance
option.
Press [
6
o].
Selecting options
PL100_QSM_TUR.indb 12 2010-01-27 오후 3:19:18

13
English
Press [
3
Shutter] halfway down to focus
automatically.
A green frame means the subject in focus.▪
Press [
4
Shutter] all the way down to take the
photo.

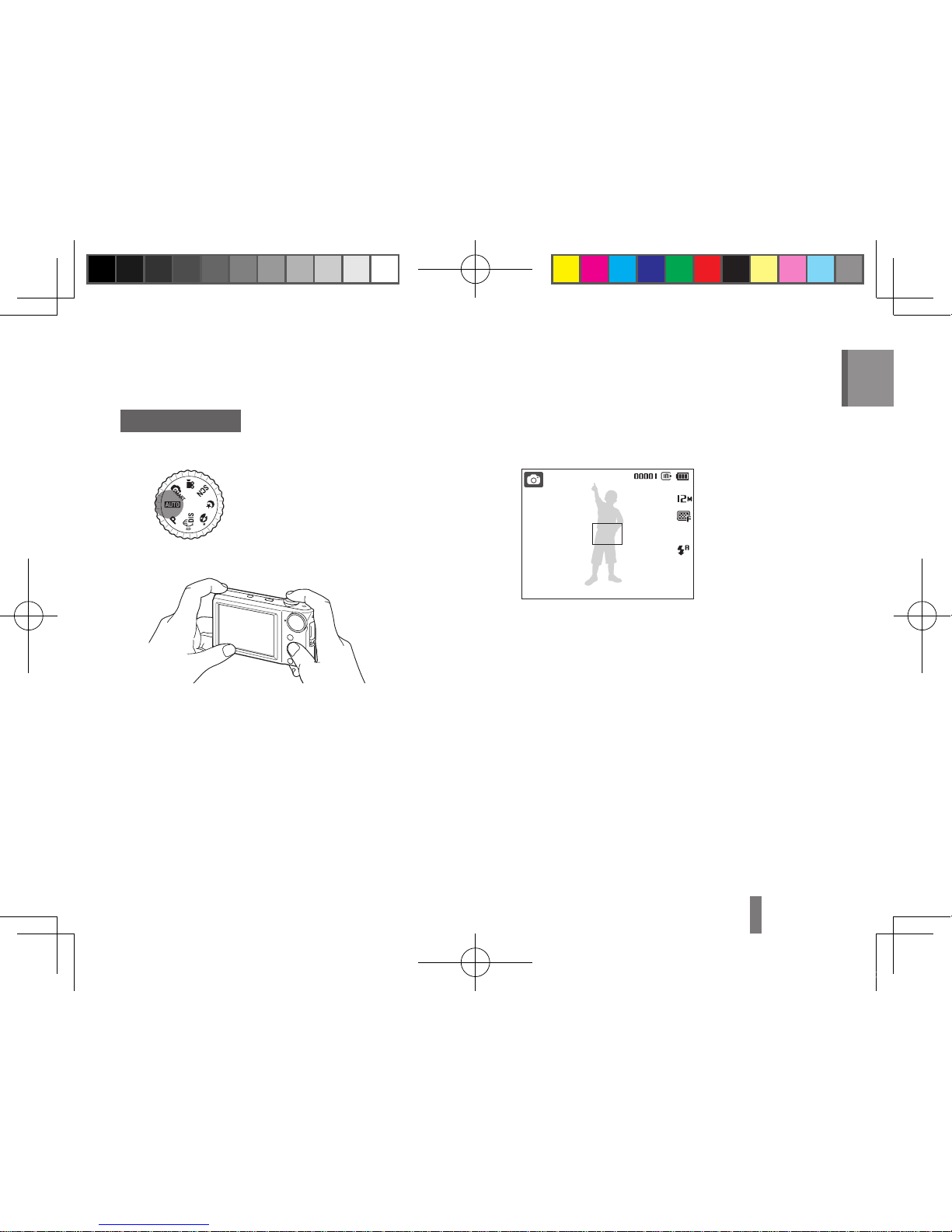

Taking a photo
Rotate the mode dial to
1
a.
Align your subject in the frame.
2
Capturing photos or videos
PL100_QSM_TUR.indb 13 2010-01-27 오후 3:19:19

14
Viewing photos
Press [
1
P].
If the camera is off, it will turn on.▪
Press [
2
F] or [t] to scroll through files.
Press and hold to scroll through files quickly.▪
Capturing photos or videos
Taking a photo of yourself using the
front display
The front display will help you take self-portraits.
In Shooting mode, press [
1
Front LCD] once.
The front display turns on in the Self-portrait mode.▪
Press [
2
Shutter] halfway down to focus.
Press [
3
Shutter] all the way down to take the
photo.
PL100_QSM_TUR.indb 14 2010-01-27 오후 3:19:19

15
English
Note
Number of photos by resolution (for 1 GB SD)
Resolution Super Fine Fine Normal
4000 X 3000 147 284 403
3984 X 2656 167 313 441
3840 X 2160 202 367 528
3264 X 2448 211 374 537
2560 X 1920 339 566 792
2048 X 1536 510 802 1,065
1920 X 1080 735 1,144 1,437
1024 X 768 1,287 1,670 1,872
These figures are measured under Samsung’s standard
conditions and may vary depending on shooting conditions
and camera settings.
Recording a video
Rotate the mode dial to
1
v.
Align your subject in the frame.
2
Press [
3
Shutter].
Press [▪o] to pause or resume.
Press [
4
Shutter] again to stop the recording.
PL100_QSM_TUR.indb 15 2010-01-27 오후 3:19:20

16

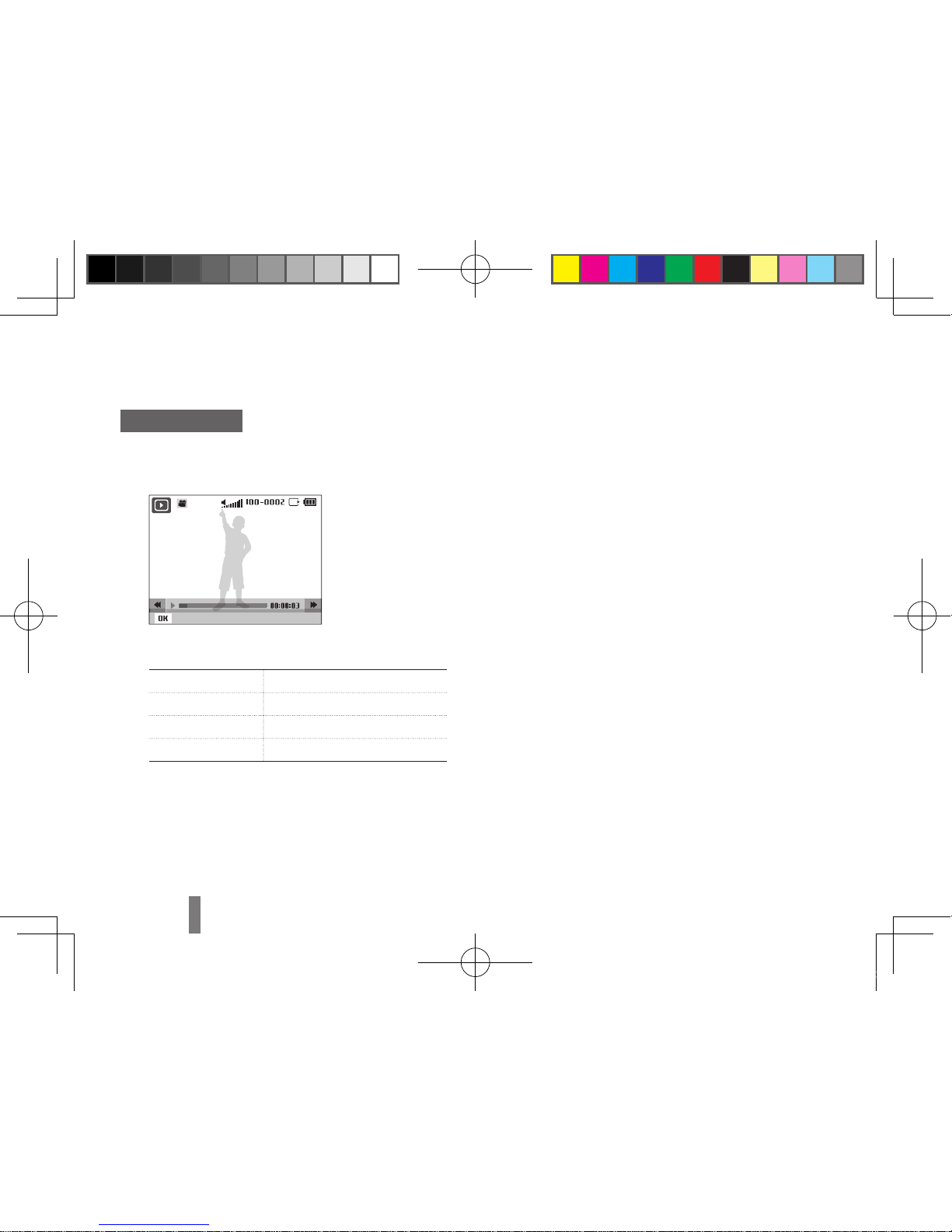

Viewing videos
Press [
1
P].
Press [
2
o].
Pause
Use the following buttons to control playback.
3
[F]Scan backward
[o]Pause or resume playback
[t]Scan forward
[Zoom] left or right Adjust the volume level
Capturing photos or videos
PL100_QSM_TUR.indb 16 2010-01-27 오후 3:19:21

17
English
Transferring files to a PC (Windows)
Connect the camera to your computer with the
1
USB cable.
Turn on the camera.
2
The computer recognizes the camera automatically.▪
For Windows Vista, select▪Run Installer.exe from
the AutoPlay window.
Select a folder on your computer to save new
3
files.
If your camera has no new files, the pop-up window▪
for saving new files will not appear.
Select
4
Yes.
New files will be transferred to your computer.▪
You can now use the Intelli-studio program.
Note
About Intelli-studio
Intelli-studio is a program that allows you to play back and
edit files. You can also upload files to websites, such as
Flickr or YouTube.
PL100_QSM_TUR.indb 17 2010-01-27 오후 3:19:21

18
Specifications
sensor
Type 1/2.33" (Approx. 7.79 mm) CCD
Pixels
Effective pixels: approx. 12.2 mega-
pixels, Total pixels: approx. 12.4
mega-pixels
Lens
Focal length Samsung lens f = 6.3 - 18.9 mm
(35 mm film equivalent: 35 - 105 mm)
F-stop range F3.0 (W) - F5.6 (T)
Display
Main Display: 2.7" (6.9 cm)•
QVGA (230 K)
Front Display: 1.5" (3.8 cm)•
61 K TFT LCD
Focusing
Type TTL auto focus (Multi AF, Center AF,
Face Detection AF, Tracking AF)
Range
Wide (W) Tele (T)
Normal 80 cm - infinity 1 m - infinity
Macro 10 cm - 80 cm 50 cm - 80 cm
Auto Macro 10 cm - infinity 50 cm - infinity
Shutter speed
Auto: 1/8 - 1/1,500 sec.•
Program: 1 - 1/1,500 sec.•
Night: 8 - 1/1,500 sec.•
Fireworks: 2 sec.•
Shake reduction DIS (Digital Image Stabilisation)
Storage
Internal memory: approx. 5 MB•
External memory (Optional):•
SD card (up to 4 GB guaranteed),
SDHC card (up to 8 GB
guaranteed)
Internal memory capacity may not match
these specifications.
Interface
Digital output Connector: USB 2.0
Audio output Mono (Internal speaker),
Mono (Microphone)
Video output NTSC, PAL (selectable) SCC-AV20
DC power
input
connector
20 pin, 4.2 V
Rechargeable
battery
Lithium-ion battery
(BP70A, 740 mAh)
Dimensions (W x H x D) 95.7 x 56 x 20.3 mm
Weight 111 g
(without battery and memory card)
Operating temperature 0 - 40° C
Operating humidity 5 - 85 %
PL100_QSM_TUR.indb 18 2010-01-27 오후 3:19:21

19
English
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other
European countries with separate collection
systems)
This marking on the product, accessories or literature
indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be
disposed of with other household waste at the end
of their working life. To prevent possible harm to the
environment or human health from uncontrolled waste
disposal, please separate these items from other types
of waste and recycle them responsibly to promote the
sustainable reuse of material resources. Household
users should contact either the retailer where they
purchased this product, or their local government office,
for details of where and how they can take these items
for environmentally safe recycling. Business users should
contact their supplier and check the terms and conditions
of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial
wastes for disposal.
Correct disposal of batteries in this product
(Applicable in the European Union and other
European countries with separate battery
return systems)
This marking on the battery, manual or packaging
indicates that the batteries in this product should not be
disposed of with other household waste at the end of
their working life. Where marked, the chemical symbols
Hg, Cd or Pb indicate that the battery contains mercury,
cadmium or lead above the reference levels in EC
Directive 2006/66. If batteries are not properly disposed
of, these substances can cause harm to human health or
the environment.
To protect natural resources and to promote material
reuse, please separate batteries from other types of
waste and recycle them through your local, free battery
return system.
Samsung Eco-mark
It is Samsung’s own symbol mark is used to effectively
communicate Samsung’s environmental friendly product
activities to the consumers. The mark represents
Samsung’s continuous effort on development of
environmental conscious products.
01_PL100_QSM_ENG.indd 19 2010-03-02 오전 10:35:58

TR-2
İçindekiler
Genel soruların yanıtları …………… 3
Sağlık ve Güvenlik Bilgileri ………… 4
Kamera yerleşimi …………………… 6
Kameranızı ayarlama………………… 8
Paketi açma ………………………………8
Pili ve hafıza kartını takma ………………9
Pili ve hafıza kartını çıkarma ……………9
Pili şarj etme …………………………… 10
Kameranızı açma ……………………… 10
Başlangıç kurulumunu yapma………… 11
Seçenekleri belirleme …………… 12
Fotoğraf veya video çekme ……… 13
Dosyaları bilgisayara aktarma
(Windows) ………………………… 17
Teknik Özellikler …………………… 18
Telif hakkı bilgileri
Microsoft Windows ve Windows logosu, Microsoft•
Corporation'ın tescilli ticari markalarıdır.
Mac, Apple Corporation'ın tescilli ticari markasıdır.•
Kameranın teknik özellikleri veya bu kılavuzun içeriği •
kamera işlevlerinin yükseltilmesi nedeniyle önceden
haber verilmeden değiştirilebilir.
Açık Kaynak Lisans bilgileri için birlikte verilen •
CD-ROM’daki “OpenSourceInfo.pdf” dosyasına bakın.
PL100_QSM_TUR.indb 2 2010-01-27 오후 3:19:21
