Samsung HT-D5100K User manual

5.1CH Blu-ray™
Home Entertainment System
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/register
HT-D5100K
HT-D5130K
HT-D5150K

2English
English 3
Safety Information

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lighting ash and Arrowhead within
Triangle Is awarning sign alerting you of
dangerous voltage Inside the product.
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The explanation point within the triangle
is a warning sign alerting you of
important instructions accompanying
the product.
WARNING
To reduce the risk of re or electric shock, do not
expose this appliance to rain or moisture.
•
CAUTION
Apparatus shall not be exposed to dripping or splashing and
no objects lled with liquids, such as vases, shall be placed on
the apparatus.
The Mains plug is used as a disconnect device and shall stay
readily operable at any time.
•
•
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LÁSER CLASE 1
CLASS 1 LASER PRODUCT
This product is classied as a CLASS 1 LASER
product.
Use of controls, adjustments or performance of
procedures other than those specied herein may result
in hazardous radiation exposure.
Complies with 21CFR 1040.10 except for deviations
pursuant to Laser Notice No. 50, dated June 24, 2007.
•
•
DANGER
VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID DIRECT EXPOSURE TO BEAM. (FDA 21 CFR)
CAUTION
CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION
WHEN OPEN. AVOID EXPOSURE TO THE BEAM (IEC
60825-1)
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS
OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN
COVER AND DO NOT REPAIR YOURSELF. REFER
SERVICING TO QUALIFIED PERSONNEL.
•
•

2English
English 3

Ensure that the AC power supply in your house complies with specications listed on the identication sticker
located on the back of your product.
Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation
(7.5~10cm / 20~25 inches).
Do not place the product on ampliers or other equipment which may become hot.
Make sure the ventilation slots are not covered.
Do not stack anything on top of the product.
Before moving the product, ensure the Disc Insert Hole is empty.
To disconnect the product completely from the power supply, remove its plug from the wall outlet.
- If you leave the product unused for a long period of time, disconnect the plug from the wall outlet.
During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks caused by lightning could
damage the product.
Do not expose the product to direct sunlight or other heat sources. This could cause the product to overheat
and malfunction.
Protect the product from moisture, excess heat, and equipment creating strong magnetic or electric elds (i.e.
speakers.).
Disconnect the power cable from the AC supply if the product malfunctions.
Your product is not intended for industrial use. It is for personal use only.
Condensation may occur if you store your product or a disc in cold temperatures. If transporting the product
during the winter, wait approximately 2 hours until the product has reached room temperature before using.
The batteries used with this product contain chemicals that are harmful to the environment.
Do not dispose of batteries in the general household trash.
•
•
•
•
•
•
•
•
•
•
•
•
•

4English
English 5

Small scratches on the disc may reduce sound
and picture quality or cause skipping.
Be especially careful not to scratch discs when
handling them.
Holding discs
Do not touch the playback side of the disc.
Hold the disc by the edges so that
ngerprints will not get on the
surface.
Do not stick paper or tape on the disc.
Disc Storage
Do not keep in direct sunlight
Keep in a cool ventilated area
Keep in a clean protection jacket and store
vertically.
NOTE
Do not allow the discs to become contaminated with
dirt.
Do not load cracked or scratched discs.
Handling and Storing Discs
If you get fingerprints or dirt on the disc, clean it with a
mild detergent diluted in water and wipe with a soft cloth.
When cleaning, wipe gently from the inside to
the outside of the disc
NOTE
Condensation may form if warm air comes into
contact with cold parts inside the product. When
condensation forms inside the product, it may not
operate correctly. If this occurs, remove the disc
and let the product stand for 1 or 2 hours with the
power on.
•
•
•
•
•
•
✎


•
✎


Dolby and the double-D symbol are registered trademarks
of Dolby Laboratories.
"ABOUT DIVX VIDEO: DivX® is a digital
video format created by DivX, Inc. This is an
ofcial DivX Certied® device that plays
DivX video. Visit www.divx.com for more information and
software tools to convert your les into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied®
device must be registered in order to play purchased DivX
Video-on-Demand (VOD) movies. To obtain your registration
code, locate the DivX VOD section in your device setup
menu. Go to vod.divx.com for more information on how to
complete your registration.
DivX Certied® to play DivX® video up to HD 1080p,
including premium content.
DivX®, DivX Certied® and associated logos are trademarks
of DivX, Inc. and are used under License."
Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274
HDMI, the HDMI Logo, and High-
Denition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
Oracle and Java are registered trademarks of Oracle and/or
its afliates. Other names may be trademarks of their
respective owners.
This item incorporates copy protection technology that is
protected by U.S. patents and other intellectual property
rights of Rovi Corporation. Reverse engineering and
disassembly are prohibited.
Blu-ray Disc™, Blu-ray™, and the logos are trademarks of
Blu-ray Disc Association.
iPod is a trademark of Apple
Inc., registered in the U.S. and
other countries. iPhone is a
trademark of Apple Inc.
< Open Source License Notice >
In the case of using open source software, Open Source
Licenses are available on the product menu.

© 2011 Samsung Electronics Co., Ltd. All rights
reserved.
•
•
•
•
•
•
•
•
Safety Information

4English
English 5
Contents

2
2 Safety Warnings
3 Precautions
4 Cautions on Handling and Storing Discs
4 License
4 Copyright

7
7 Key features of your new Blu-ray Home Theater
8 Icons that will be used in manual
9 Disc Types and Characteristics

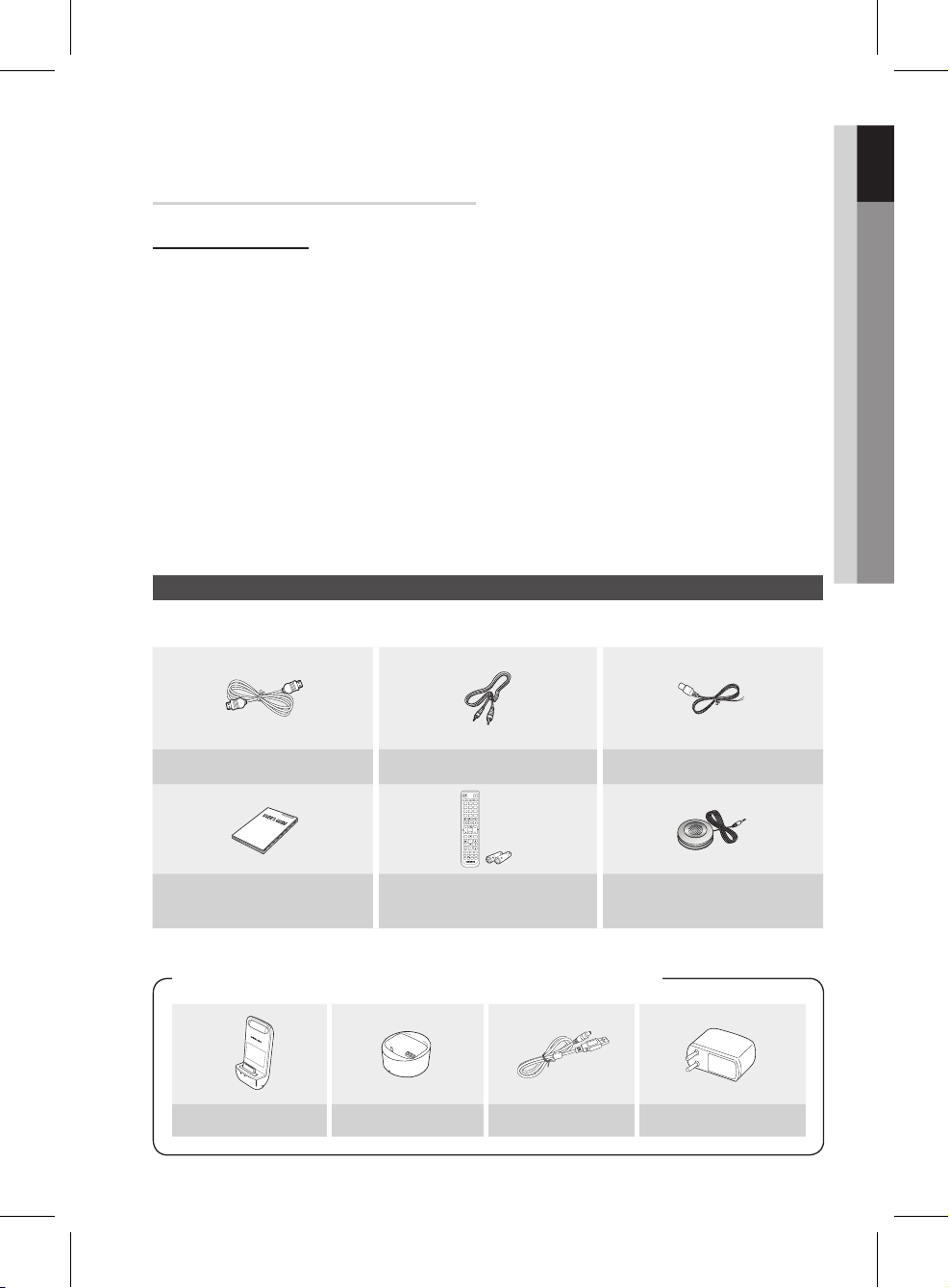

13 Accessories
14 Description
14 Front Panel

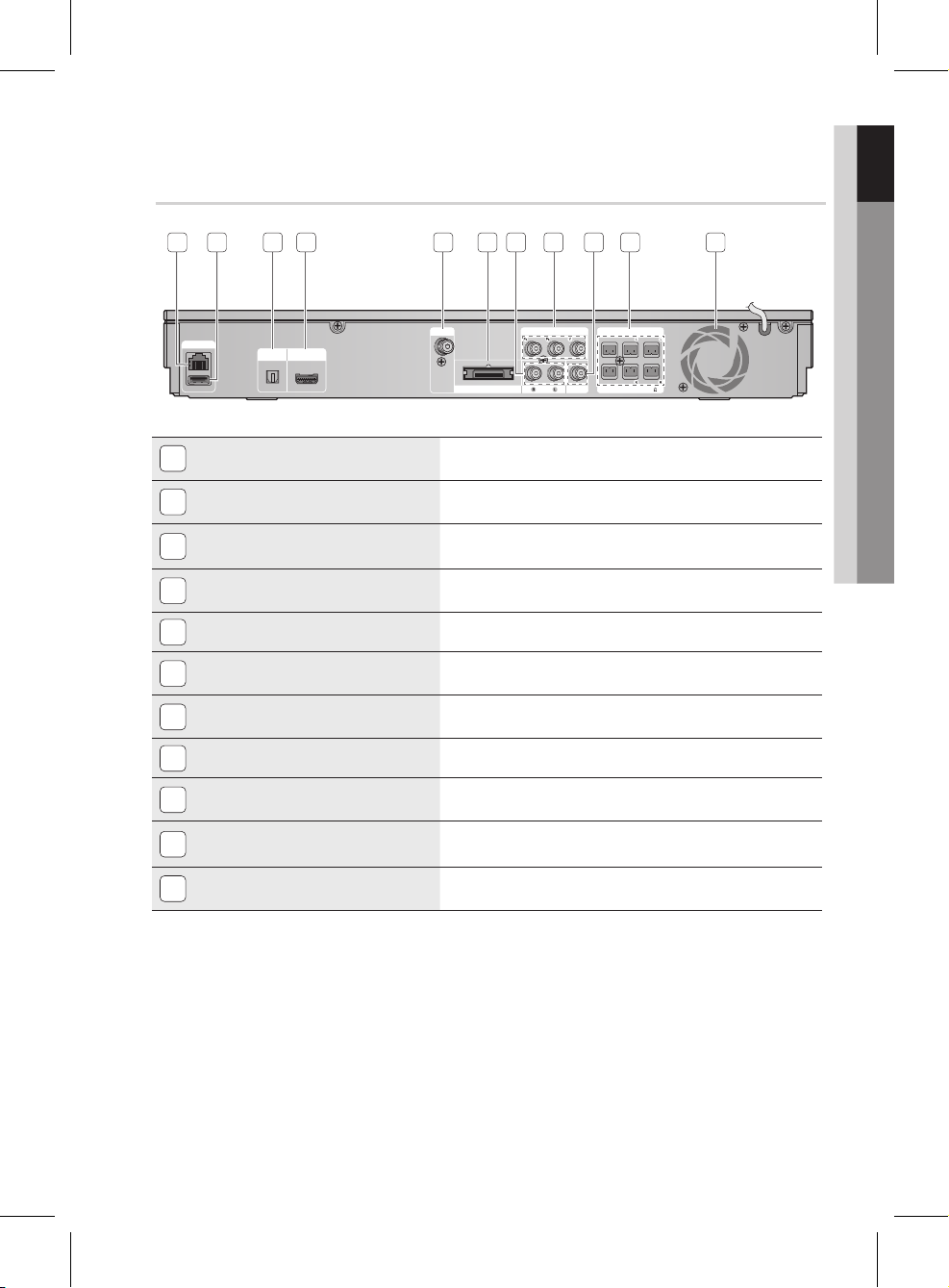

15 Rear Panel
16 Remote Control

18

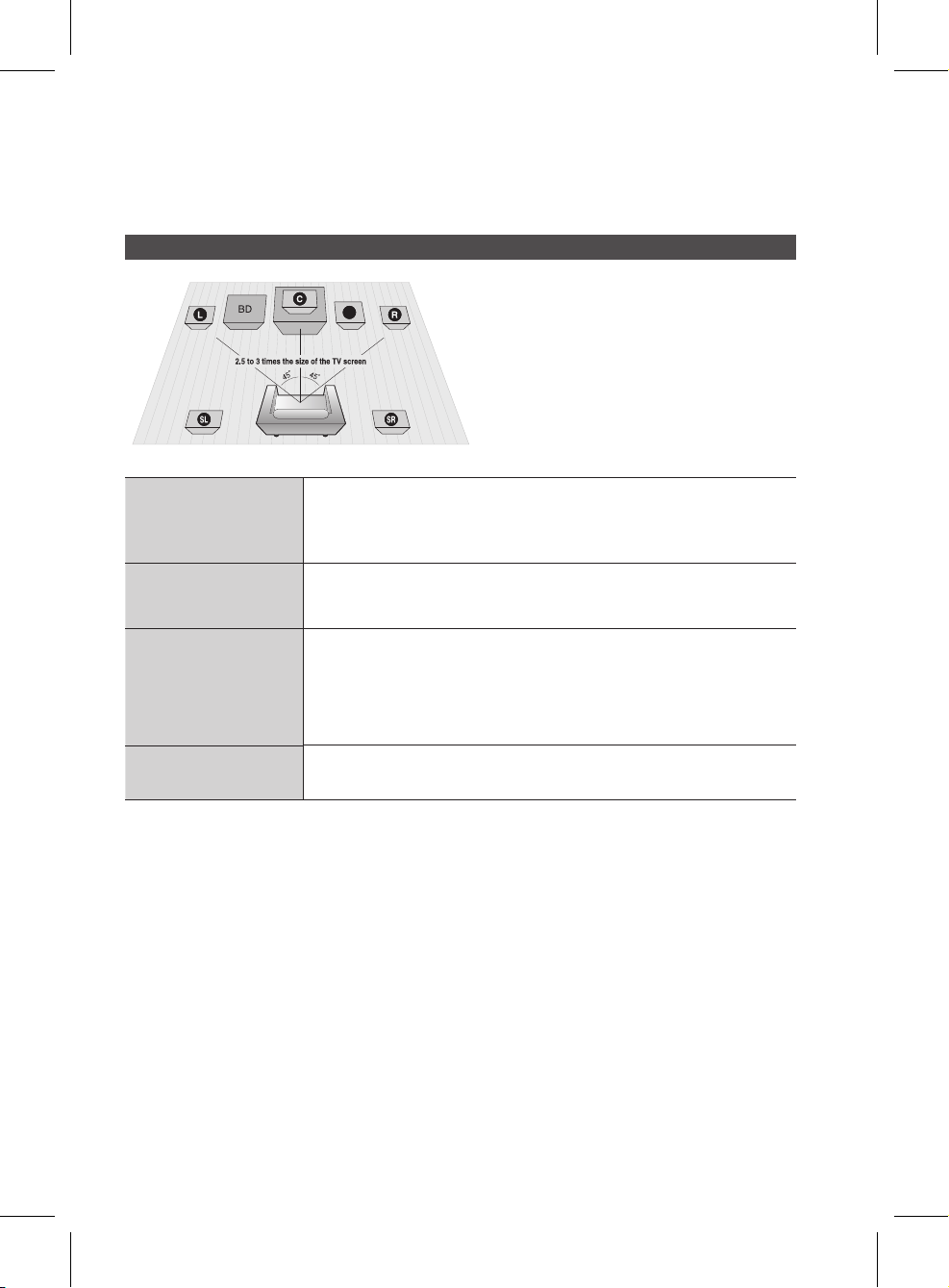

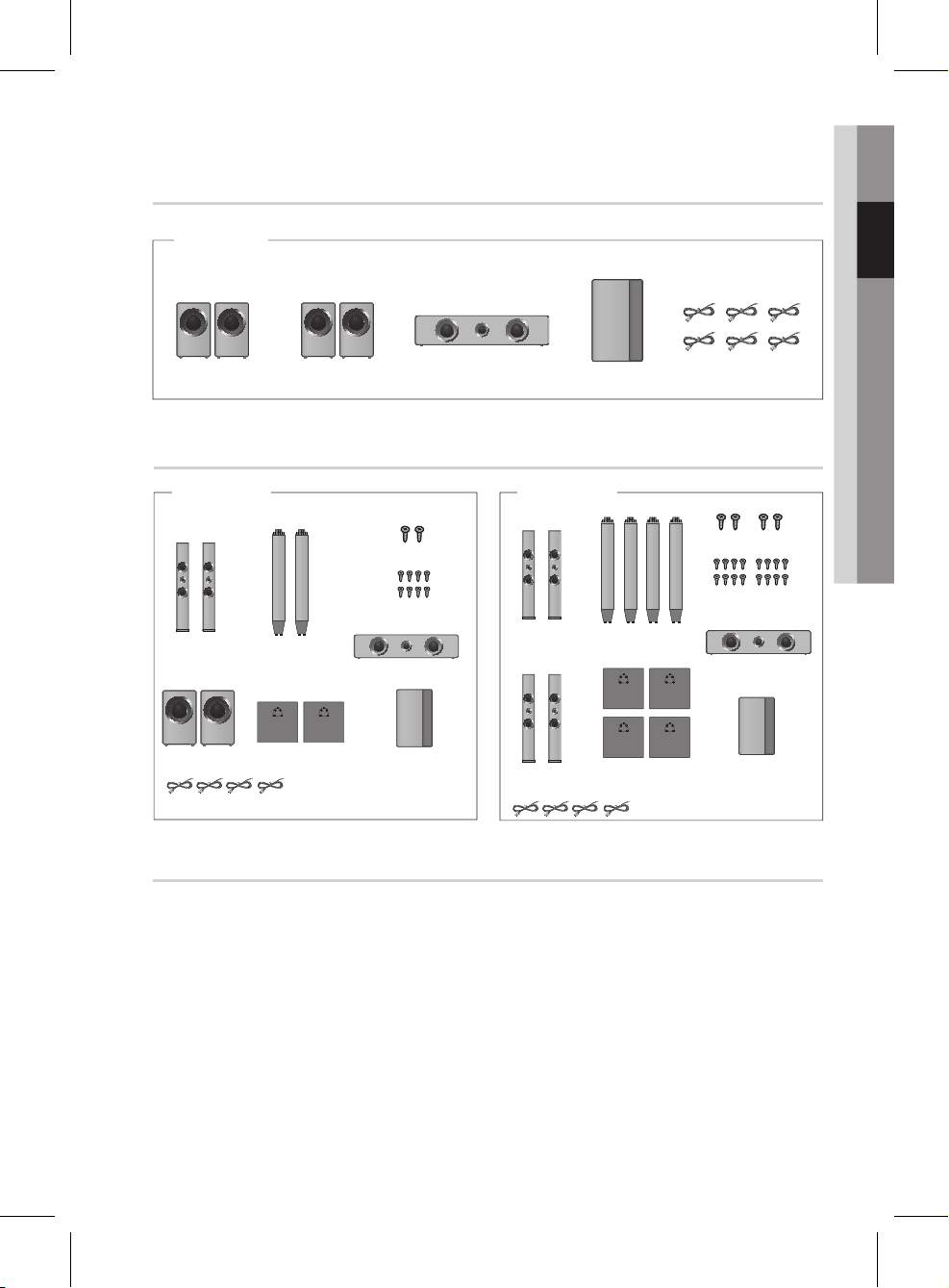

18 Connecting the Speakers
21 Connecting the Optional Wireless Receiver Module
23 Connecting the Video Out to your TV
25 Connecting Audio from External Components
26 Connecting to the Network
27 Connecting the FM Antenna

28
28 Initial Settings
29 Accessing the Settings Menu
30 Display
30 TV Aspect
30 Smart Hub Screen Size
30 BD Wise (Samsung Products only)
30 Resolution
32 HDMI Color Format
32 Movie Frame (24 Fs)
32 HDMI Deep Color
32 Still Mode
32 Progressive Mode
33 Audio
33 Speaker Settings
34 Musical Room Calibration
34 Karaoke Scoring
34 User EQ
35 HDMI Audio
35 Audio Return Channel
35 Digital Output
36 Dynamic Range Control
37 Audio Sync
37 Network
37 Network Settings
40 Network Status
40 BD-LIVE Internet Connection
41 System
41 Initial Settings
41 Anynet+ (HDMI-CEC)
41 BD Data Management
41 Time Zone
41 DivX® Video On Demand
41 Reset
42 Language
ENGLISH

6English
English 7
Contents

42
42 Security
42 BD Parental Rating
42 DVD Parental Rating
42 Change Password
42 General
42 Front Display
42 Network Remote Control
43 Support
43 Software Upgrade
44 Contact Samsung

45
45 Playing a Disc
45 Using the Disc menu / Title menu / Popup menu
46 Using the Search and Skip Functions
47 Slow Motion Play/Step Motion Play
47 Repeat Playback
48 Using the TOOLS button
50 Listening to Music
52 Sound Mode
53 Playing back a Picture
54 Playing back a USB Storage Device
55 Listening to Radio
55 Connecting an iPod/iPhone Using the USB Cable
55 Use iPod/iPhone with a Wireless Dock Cradle (sold
separately) for iPod/iPhone
56 iPod/iPhone Models You Can Use with This Product
57 How to Link the Wireless Transmitter with the Main Unit
58 Connecting Microphone

58
58 Using Smart Hub
65 Samsung Apps
67 BD-LIVE™
67 Using the AllShare Function

68
68 Troubleshooting
71 Specications
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product
appearance.
•

6English
English 7
01 Getting Started

Product Features
Smart Hub
You can download various for pay or free-of charge applications through a network connection. These
applications provide a range of Internet services and content including news, weather forecasts, stock
market quotes, games, movies, and music.
AllShare
You can play videos, music and photos saved on your devices (such as your PC, mobile phones or
NAS) through the home theater via a network connection.
Audio Sync function
Video may lag behind the audio if the product is connected to a digital TV.
To compensate for this, you can adjust the audio delay time to sync up with the video.
iPod & iPhone support
If you have connected an iPod player to the home theater using the iPod/iPhone specific USB cable
or wireless transmitter (sold separately), you can play the music files in the iPod/iPhone through the
connected speakers.
BD Wise
BD Wise automatically adjusts BD Wise-compliant Samsung products to their optimal settings.
This feature is enabled only if BD Wise-compliant Samsung products are connected to each other using
an HDMI cable.
Virtual 7.1
Applies the 7.1 CH sound effect using the 5.1 CH speaker system.
ARC (Audio Return Channel)
You can enjoy TV sound from the Home Theater speakers by using just one HDMI cable.
Getting Started

8English
Getting Started
English 9

Make sure you understand the following terms before reading the rest of the user manual.
Term Logo Icon Definition
BD-ROM
h
Indicates a function available on a BD-ROM.
BD-RE/-R
z
Indicates a function available on a BD-RE/-R disc recorded in the
BD-RE format.
DVD-VIDEO
Z
Indicates a function available on a DVD-VIDEO.
DVD-RW(V)
y
Indicates a function available on recorded DVD+RW or DVD-RW(V)/DVD-
R/+R discs that have been recorded and Finalized.
DVD-R
DVD+RW
DVD+R
Audio CD
o
Indicates a function available on an audio CD-RW/-R (CD-DA format).
MP3
WMA -
w
Indicates a function available in a CD-RW/-R, DVD-RW/-R disc or a USB
storage media containing MP3 or WMA contents.
JPEG -
G
Indicates a function available in a CD-RW/-R, DVD-RW/-R disc or a USB
storage media containing JPEG contents.
DivX
MKV
MP4 DivX
x
Indicates a function available in a CD-RW/-R, DVD-RW/-R disc or a USB
storage media containing DivX contents.
USB storage
device -
F
Indicates a function available on a USB storage device.
CAUTION -
!
Indicates a situation where a function does not operate or settings may be
cancelled.
NOTE -
✎
Indicates tips or instructions on the page that help each function operate.
Shortcut Key -Indicates this function provides direct and easy access pressing the
button on the remote control.
This product is compatible with the PAL Color system only.
NTSC discs will not play.
•
•

8English
English 9
01 Getting Started

Blu-ray Disc Compatibility
Blu-ray is a new and evolving format. Accordingly, disc
compatibility issues are possible. Not all discs are
compatible and not every disc will play back. For
additional information, refer to the Disc Types and
Characteristics section of this Manual.
NOTE
Playback may not work for some types of discs or
when you use specic functions such as angle
change and aspect ratio adjustment. Information
about the discs is written in detail on the box.
Please refer to this if necessary.
Do not allow discs to become dirty or scratched.
Fingerprints, dirt, dust, scratches, or deposits of
cigarette smoke on the recording surface may
make it impossible to playback a disc.
When you play a BD-Java title, loading may take
longer than a normal title, or some functions may
perform slowly.
Discs that cannot be played
HD DVD Disc
DVD-RAM
3.9 GB DVD-R Disc for Authoring.
DVD-RW(VR mode)
Super Audio CD(except CD layer)
DVD-ROM/PD/MV-Disc, etc CVD/CD-ROM/
CDV/CD-G/CD-I/LD
CDGs play audio only, not graphics.
NOTE
Some commercial discs and DVD discs purchased
outside your region may not play on this product.
If a DVD-R/-RW disc has not been recorded properly
in DVD video format, it will not play on this product.
✎



•
•
•
•
•
•
•
✎


Logos of Discs that can be played
Blu-ray Disc Dolby Digital Plus
PAL broadcast system in
U.K, France, Germany, etc. Dolby TrueHD
DTS-HD High Resolution
Audio Java
DTS-HD Master Audio |
Essential BD-LIVE

10 English
Getting Started
English 11
Region Code
Both the product and the discs are coded by
region. These regional codes must match for the
product to play the disc.If the codes do not
match, the disc will not play.
Disc Type Region
Code Area
Blu-ray
a
North America, Central America,
South America, Korea, Japan,
Taiwan, Hong Kong and South
East Asia.
b
Europe, Greenland, French
territories, Middle East, Africa,
Australia and New Zealand.
c
India, China, Russia, Central and
South Asia.
DVD-VIDEO
1
The U.S., U.S. territories and
Canada
2
Europe, Japan, the Middle East,
Egypt, South Africa, Greenland
3
Taiwan, Korea, the Philippines,
Indonesia, Hong Kong
4
Mexico, South America, Central
America, Australia, New Zealand,
Pacific Islands, Caribbean
5
Russia, Eastern Europe, India,
most of Africa, North Korea,
Mongolia
6
China
Disc Types
BD-ROM
Blu-ray discs can only be played back.
This product can play back pre-recorded
commercial BD-ROM discs.
BD-RE/-R
Blu-ray RE/-R discs can be recorded and played
back. This product can play back a BD-RE/-R disc
recorded by other compatible Blu-ray disc
recorders.
DVD-VIDEO
This product can play back pre-recorded commercial
DVD discs (DVD-VIDEO discs) with movies.
When switching from the rst layer to the second
layer of a dual-layered DVD-VIDEO disc, there
may be momentary distortion in the image and
sound. This is not a malfunction of the
product .
DVD-RW/-R/+R
This product can play back a DVD-RW/-R/+R disc
recorded and Finalized with a DVD video recorder.
The ability to play back may depend on recording
conditions.
DVD+RW
This product can play back a DVD+RW disc
recorded with a DVD Video recorder. The ability to
play back may depend on recording conditions.
Audio CD (CD-DA)
This product can play back CD-DA format audio
CD-RW/-R discs.
The product may not be able to play some CD-
RW/-R discs due to the condition of the
recording.
CD-RW/-R
Use 700MB (80 minute) CD-RW/-R discs. Do not
use 800MB (90 minutes) or larger discs, as these
discs may not play back.
If the CD-RW/-R disc was not recorded as a
closed session, you may experience delays when
playing back the beginning of the disc or all
recorded les may not play.
Some CD-RW/-R discs may not play on this
product, depending on the device which was
used to burn them. For contents recorded on CD-
RW/-R media from CDs for your personal use,
playability may vary depending on the contents
and discs.
•
•
•
•
•
•
•
•
