Samsung NT-Q70 Series User manual

If there are the Contents not included in this book, please refer to K-zone Service Manual
Q70
BEIJING
NT-Q70xxxx/xxx
SERVICEManual
FEATURES
SAMSUNG Q70
1. Simple & Essential Note PC
-. New Intel SantaRosa technology.
-. Internal 1.3M Camera
-. 12.1'' WXGA 200nit Glare LCD
-. Windows Vista Home/Premium Supportable.
2. High Performance
-. Intel Core™2 Duo processor
-. Powerful connectivity.
-. Convenient Multi-media.

-CONTENTS -
1. Precautions
1) General After-Sales Service Precautions..............................................................................................1-1
2) Safety Precautions..................................................................................................................................1-2
3) Ground.....................................................................................................................................................1-3
4) Static Electricity Precautions..................................................................................................................1-3
2. Introduction and Specification
1) Introduction.............................................................................................................................................2-1
2) Specification...........................................................................................................................................2-2
3) Key Feature...........................................................................................................................................2-7
4) Compare with competitor......................................................................................................................2-8
5) Option Partlist........................................................................................................................................2-9

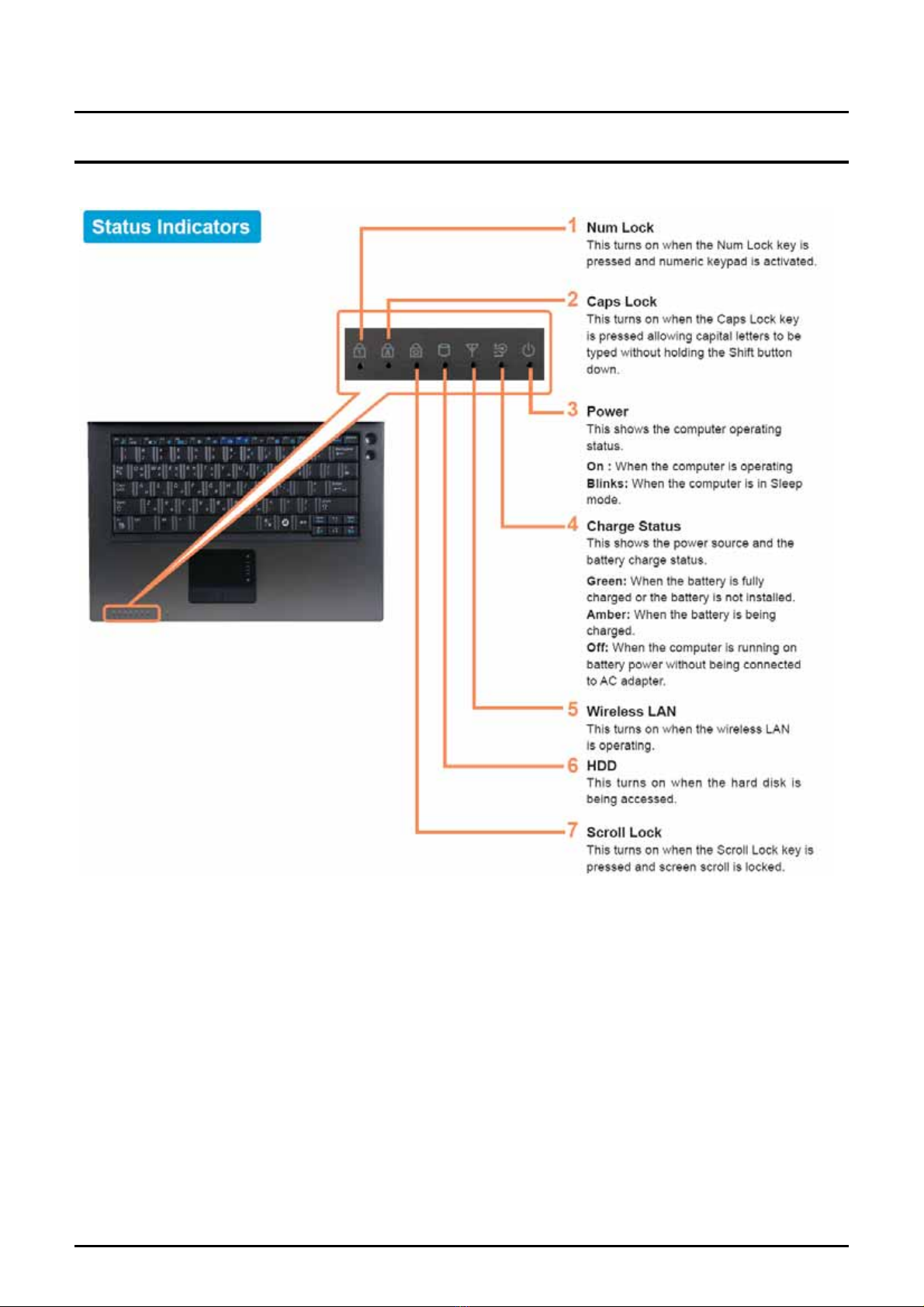

6) Product Feature....................................................................................................................................2-11
7) Software List.........................................................................................................................................2-21
8) System Setup (BIOS Setup)...............................................................................................................2-22
9) Description of Main board...................................................................................................................2-30
3. Disassembly and Reassembling
1) Disassembly and Reassembly of Q70.................................................................................................3-1
4. Troubleshooting
1) General...................................................................................................................................................4-1
2) Debugging Flow Chart..........................................................................................................................4-2
3) System Diagnosis..................................................................................................................................4-4
4) Use of diagnostic program...................................................................................................................4-8
5) Hardware Troubleshooting....................................................................................................................4-13
6) Device Settings Related Software Diagnosis......................................................................................4-22
7) Battery Use Time..................................................................................................................................4-28
8) Etc..........................................................................................................................................................4-33
9) Adding a Memory module....................................................................................................................4-34
5. Exploded View & Partlist
1) Exploded view of Q70..........................................................................................................................5-1
2) ODD.................................................................................................................................... .................5-12
6. Material list
1) Material list..........................................................................................................................................6-1
If there are the Contents not included in this book, please refer to K-zone Service Manual

-CONTENTS -
7. System Wire Diagram
1) Top......................................................................................................................................................7-1
1) Bottom.................................................................................................................................................7-2
1) LCD.....................................................................................................................................................7-3
8. Schematic
1) Block diagram.......................................................................................................................................8-1
2) Schematic..............................................................................................................................................8-2
If there are the Contents not included in this book, please refer to K-zone Service Manual

2 - 1
1) Introduction
(1) High Performance PC
- Intel®Core™ 2 Duo Processor and DDR II Memory
- nVIDIA Geforce 8400 G PCI-Express Graphic
- Intel Santa Rosa Platform
- Wireless LAN (option), Bluetooth (option)
(2)Convenientfeature
- Integrated DMB for mobility TV receiving
(3) Portable and wide screen 13.3” Note PC
- Thin and light smart design
-Highperformance
- Enhanced multi media system
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 2
2) Specification
Processor and Motherboard Description
CPU Intel® Core 2 Duo T7100 (1.8GHz) ~ T7700 (2.4G) and All CPU at
Q4'07.35W (64bit)
Speed
T7100 : 1.8GHz
T7300 : 2.0GHz
T7500 : 2.2GHz
T7700 : 2.4GHz
Cache 4MB/2MB L2 Cache in Merom
Chipset Intel PM965+ ICH8M
BIOS 8 Mbit, Flash upgradable, SPI type
Thermal Design Performance MAX. 35W
Memory
Memory/Max.Memory 512MB ~ 4GB
Memory type PC2-4200(533MHz) / PC2-5300(667MHz) DDR2 SODIMM
Memory Modules 512MB, 1GB, 2GB SODIMM
Sockets 2-slot SODIMM's
Display and Graphics
LCD 13.3" WXGA (250nits, Glare only)
LCD Vendor Samsung AMLCD WXGA (LTN133AT08-001)
AUO WXGA (B133EW01 V3)
12.1" WXGA
LCD Viewable Area 286.08 x 178.8mm (H x V)
LCD Resolution 1280 x 800 x 262,144 color ( 18 bit )
Dot Pitch 0.2235 x 0.2235mm (H x V)
Viewing angle Hor. +45/-45, Ver. +25/-35
Contrast Ratio typ.400 (CR)
Brightness min.210, typ.250 (cd/m2)
Response time Rising typ.12ms / max.16ms, Falling typ.4ms / max.9ms
Graphics Controller NVIDIA GeForce 8400M G (Physical 128MB + TurboCache)
Video Memory Physical 128MB GDDR3
TurboCache
Max.Resolution for LFP LVDS 1680 x 1050 x 18Bits color (WSXGA+)
Max.Resolution for External
Monitor 2048 x 1536 @85HZ (CRT)
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 3
Audio
Sound High Definition Audio
Controller HD Audio Codec, ALC262
Conversion Built-in high performance 20-bit ADC & 24-bit DAC
Internal Interfaces Embedded 2 stereo speakers, Internal microphone
Speaker Power Rating 2 Speakers x 2 Watt with enclosure each
External Interfaces Microphone, Headphone, S/PDIF
Controls Keyboard volume control
Microphone Mono Microphone
Microphone Mono
Sensitivity -44dB
Output Impedance 2.2KΩ
Storage
Hard Disk Drive 9.5mmH 2.5" HDD, Removable
Supports SMART Ultra DMA 33/66/100, DMA Mode 2/4 ; SATA
Average Access Time 13m sec.
Speed 5400 / 7200 RPM , Hybrid HDD, TMR/PMR Type
Capacity
80GB / 100GB / 120GB / 160GB / 2000GB / 250GB : HGST, Hitachi,
Samsung
- 80 ~ 250 GB SATA 5400rpm
- 80 ~ 200 GB SATA 7200rpm
- 80 ~ 160GB SATA 5400rpm, Hybride + 256MB
- 120 ~ 250GB SATA 5400rpm, Hybride + 5126MB
Optical Disk Drive DVD / Combo / Super Multi DL & w/LightScribe (12.7mm/PATA)

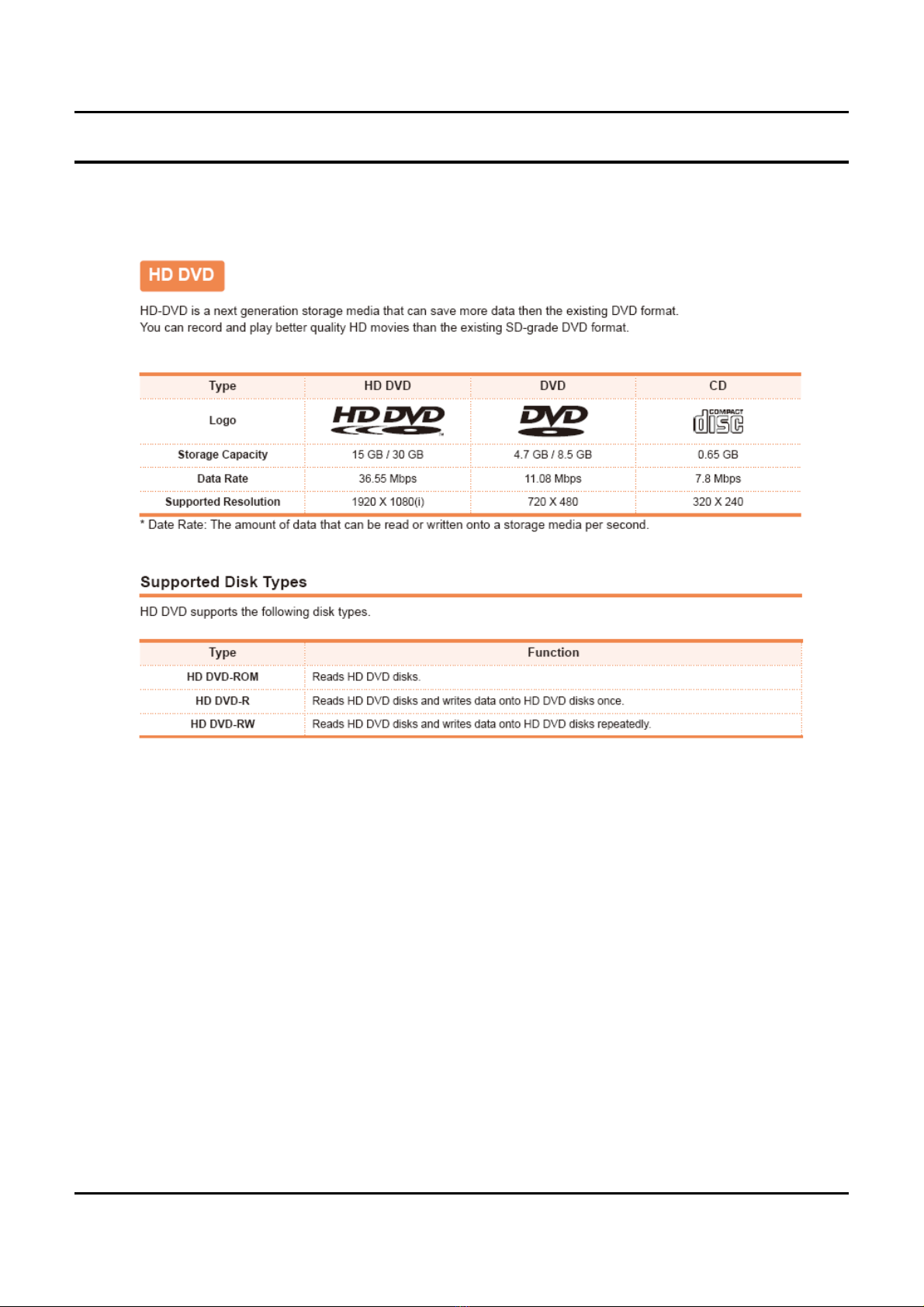

Blueray / HD-DVD
Type Fixed type (Factory Option)
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
Optical Driver Modules
Combo Drive 1 Factory Option
Module type Fixed 12.7mm Slim
Speed 8x DVD-ROM, 24x RW, 24x CD-R : TSST, TS-L332A
Average Access Time DVD 130ms Typ, CD 130ms Typ
Weight 176g or less
S/W Supplied Cyberlink DVD Solution
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 4
Security RPC-II Regional Encoding
Combo Drive 2 Factory Option
Module type Fixed 12.7mm Slim
Speed 8x DVD-ROM, 24x RW, 24x CD-R, 24x CD : TSST, TS-L462D
Average Access Time DVD 130ms Typ, CD 130ms Typ,.
Weight 176g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
SuperMultiDualLayer1 Factory Option
Module type Fixed 12.7mm Slim
Speed 5x DVD-RAM, 8x DVD±R 2.4x DVD+R DL, 4x DVD±RW, 24x CD-R,
16x CD-RW, 8x DVD, 24x CD : Panasonic UJ-850
Average Access Time DVD 130ms Typ., CD 130ms Typ.
Weight 190g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
SuperMultiDualLayer2 Factory Option
Module type Fixed 12.7mm Slim
Speed 5x DVD-RAM, 8x DVD±R, 6x DVD±R DL, 8x DVD+RW, 6x DVD-RW,
24x CD-R/RW, 8x DVD, 24x CD : TSSTTS-L632D
Average Access Time DVD 130ms Typ., CD 130ms Typ.
Weight 180g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
Super MultiDual Layer 3 Factory Option
Module type Fixed 12.7mm Slim
Speed 5x DVD-RAM, 8x DVD±R, 6x DVD±R DL, 8x DVD+RW, 6x DVD-RW,
24x CD-R/RW, 8x DVD, 24x CD : TeacDV-W28EC
Average Access Time DVD 130ms Typ., CD 130ms Typ.
Weight 180g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
Super MultiDual Layer
Lightscribe Factory Option
Module type Fixed 12.7mm Slim
Speed 5x DVD-RAM, 8x DVD±R, 6x DVD±R DL, 8x DVD+RW, 6x DVD-RW,
24x CD-R/RW, 8x DVD, 24x CD : TSST TS-L632M
Average Access Time DVD 130ms Typ., CD 130ms Typ.
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 5
Weight 180g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
Network Tools
Fax/Modem 56Kbps / V.92 Azalia Modem, DELPHI (D40) (Factory Option)
Chipset CSP1040 AGR A3 & A3 5V1
Features RJ11 Output
LAN 10/100 Ethernet
Chipset Marvell 88E8039
Features RJ45 Output
802.11g Wireless LAN Intel PRO/Wireless 3945BG:Intel 802.11b/g
Type Mini card (Factory Option)
Chipset Golan
Antenna Integrated 2 Antenna
802.11a/g Wireless LAN Intel PRO/Wireless 3945ABG:Intel 802.11a/b/g
Type Mini card (Factory Option)
Chipset Golan
Antenna Integrated 2 Antenna
802.11a/g/n Wireless LAN Intel PRO/Wireless 4965ABGN:Intel 802.11a/b/g/n
Type Mini card (Factory Option)
Chipset Kedron
Antenna Integrated 3 Antenna
Bluetooth BCM92045NMD : Factory Option
Type USB daughter card with integrated PIFA antenna
Chipset Broadcom BCM2045
Standard version 2.0
I/O Interface
PC CardBus Slots 1 PCMCIA Type II slot
Controller RICOH R5C843
Support 32bit CardBus cards

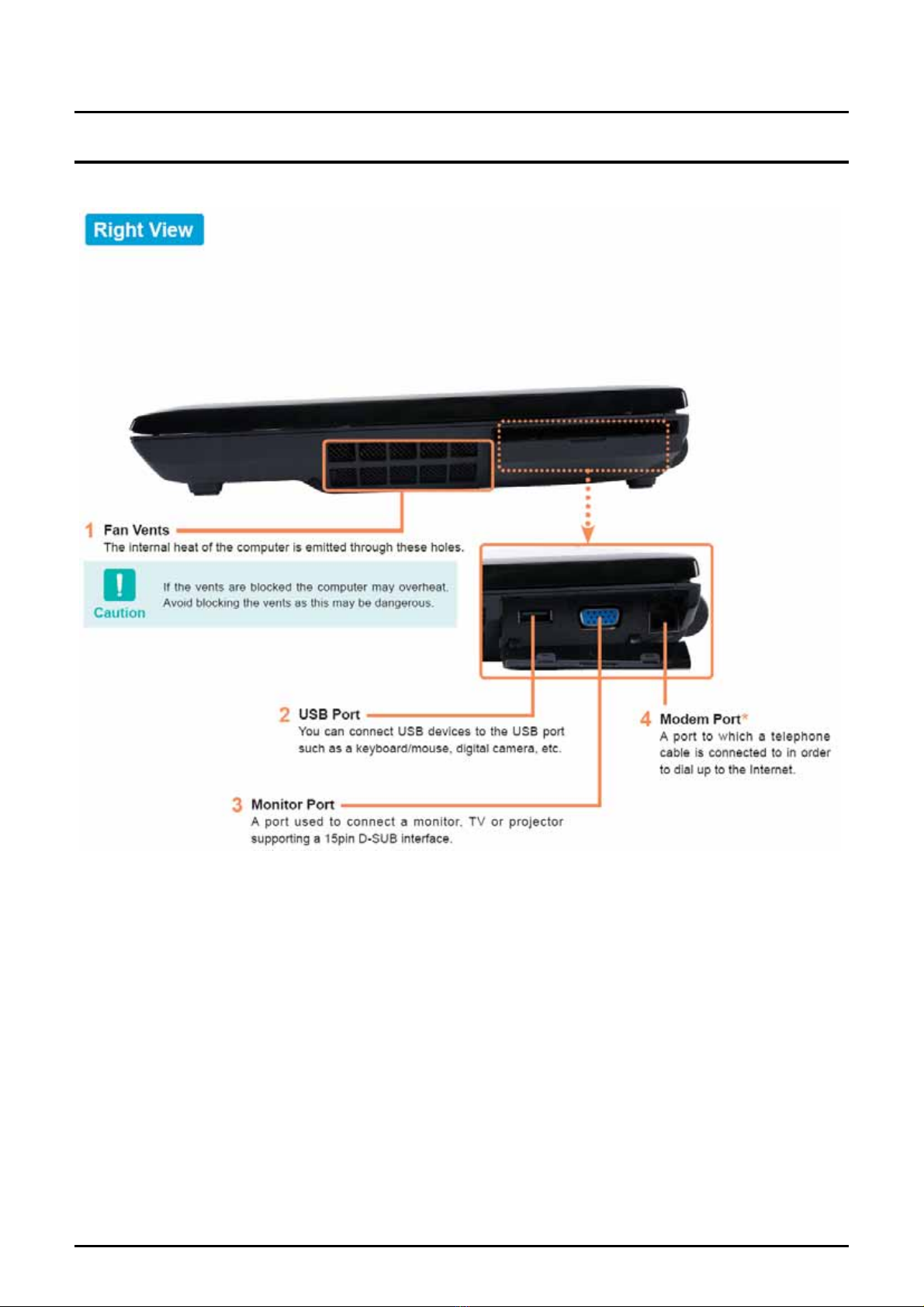

I/O Ports
USB Port 2(USB2.0)
Video (CRT) Port 1
Audio Jacks Headphone + S/PDIF, MIC-in
Modem / LAN RJ11, RJ45
Power 1(5pie)
TV Antenna Jack External DMB Antenna socket (Factory Option)
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 6
Security Kensington Lock
Input Devices
Key board 88KEY(KR/US), 89KEY(UK/FR/GM/SP)
Travel length 2.6mm/ Key Pitch 19.05mm
Touchpad Synaptics Touchpad (Plat type with Scroll area)
Easy Button Vista : Hot start, XP : AVS
Multi Memory Card Slot
Controller R5C843
Type Memory stick / Memory stick pro / SD / xD / MMC
Power and Power
Management
Battery SSB-Q30LS6 (6cells, Smart Li-Ion Battery)
Dimension 204 x 52.2 x 21mm
Weight 320g (max)
Recharge Time 2 hours to 100% with Windows on & off
Battery Life over 4hours ( Battery mark 4.01)
Details of Cell 6cells (2Parallel 3Serial)
Voltage 11.1Vdc
Battery Capacity 2400mAh/cell
Battery Rating 11.1V / 4800mAh (53.28Wh)
AC Adapter AD-6019S
Output Power 60Watts
Dimension 160 X 70 X 29mm
Weight (AC Adapter) 300g ± 50g
Worldwide Compatibility Auto-sensing 100 - 240VAC
Line Frequency 50 / 60Hz
Adapter Rating - Input 100V - 240V, 1.8A
Adapter Rating - Output 19.0VDC / 3.16A
Power Management Features ACPI 3.0 support, Standby(S3), Hibernate(S4)
System Dimensions
Dimensions (W X D X H) 312 x 220.7 x 32.2~39.2mm
Weight (Full system w/ 6cell
Battery) 2.03kg
Status : No options, 6cell battery, 13.3" LCD
Materials LCD back / Front : PC/ABS
Bottom / Top : PC/ABS
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 7
3) Key Feature
Q45 Q70
CPU FSB800MHz Intel Core 2 Duo Processor
(Merom)
FSB800MHz Intel Core 2 Duo Processor
(Merom)
Chipset 965GM/PM (Crestline) 965PM(Crestline)
Memory DDR2 533 / 667MHz DDR2 533 / 667MHz
Graphic Intel GMA X3000 Solution
nVIDIA Geforce 8400M G nVIDIA Geforce 8400M G
LCD 12.1" WXGA Glare 13.3” WXGA Glare
HDD SATA SATA
ODD 12.7mm 12.7mm
Port 2USB, VGA, Headphone, MIC, S/PDIF
1394(4pin), RJ45, RJ11, PC-Card, 5-in-1,
AC-IN, DMB Antenna, Kensington Lock
2USB, VGA, Headphone, MIC, S/PDIF
1394(4pin), RJ45, RJ11, PC-Card, 5-in-1,
AC-IN, DMB Antenna, Kensington Lock
Camera 1.3M Pixels N/A
Battery 6cell 6cell
Design 2nd Proto type 2nd Proto type
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
