Samsung SENS R60 Plus User manual

If there are the contents not included in this book, please refer to K-zone Service Manual
SENS R60 Plus Feature
SERVICEManual
U93 Soxv
SUDKD
QW0U93 Soxv{{{{2{{{
1. Simple & Essential Note PC
-. Intel Core2 Duo/Celeron M
Processor
-. AMD RS600ME + AMD SB600
-. ATI M64S Graphics
2. High Performance & Security
-. 15.4" WXGA/WXGA+ Super Bright
Glare LCD/Non Glare LCD
-. AVS now, Bluetooth.

- CONTENTS -
1. Precaution
1) General After-Sales Service Precaution............................................................. 1-1
2) Safety cautions............................................................................................ 1-2
3) Ground connection item................................................................................ 1-3
4) Static caution.................................................................................................1-3
2. Product Characteristic and Specification
1) Introduction...................................................................................................2-1
2) Specification..................................................................................................2-2
3) System Spec Comparison............................................................................... 2-7
4) Wireless LAN Specification.............................................................................. 2-9
5) Option List................................................................................................... 2-10
6) S/W List..................................................................................................... 2-13
7) Description of Main-Board............................................................................. 2-14
3. Disassembling and Reassembling
1) Main System..................................................................................................3-1
2) Top Ass'y......................................................................................................3-8
3) LCD Ass'y.................................................................................................... 3-8
4) Main Board................................................................................................. 3-12
4. Troubleshooting
1) General........................................................................................................ 4-1
2) Debugging Flow Chart................................................................................... 4-2
3) System Diagnosis........................................................................................ 4-4
4) Use of diagnostic program................................................................................4-8
5) H/W Troubleshooting....................................................................................... 4-13
6) Device Settings Related Software Diagnosis........................................................ 4-21
7) Battery Use Time............................................................................................ 4-24
8) Other.............................................................................................................4-29
5. Exploded View
1) System Main Ass'y (List).................................................................................. 5-1
2) LCD Front Ass'y (List)..................................................................................... 5-3
3) LCD Back Ass'y...............................................................................................5-4
4) Ass'y CAP-TOP (List)....................................................................................... 5-5
5) Housing Top Ass'y (List).................................................................................. 5-6
6) Housing Bottom Ass'y (List)............................................................................ 5-7
7) ODD (List)......................................................................................................5-9
6. Material List
1) Material List....................................................................................................6-1
7. System Wire Diagram
1) Top/Bottom.....................................................................................................7-1
2) LCD...............................................................................................................7-2
3) System Layout ................................................................................................7-3
8. Block-Diagram and Schematic
1) Block-Diagram................................................................................................8-1
2) Schematic.......................................................................................................8-7
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -

SENS R60 Plus < 2 - 1 >
2. Introduction and Specification
1) Introduction
(1) High Performance Note PC
- Intel® Core™ 2 Duo Processor
- Intel® Core™ Duo Processor
- Intel® Pentium Dual Core™ Processor
- Intel® Celeron® M Processor
-Wireless LAN (Option), Bluetooth (Option).
(2) Convenient AV
-Touch Pad Under Plastic
-Wireless On/Off indicator & Button
-ASF Solution Ready
(3) Communications
-Wireless Solution (F. Option)
-AtherosAR2423 (802.11bg)
-Bluetooth V2.0
-MDC (F. Option) .
Delphi(D40)
- This Document can not be used without Samsung's authorization -

SENS R60 Plus < 2 - 2 >
2. Introduction and Specification
2) Specification
Processor and Motherboard Description
CPU Intel® Core™ 2 Duo Processor
Intel® Pentium Dual Core™ Processor+ AMD RS600ME + AMD SB600
Intel® Celeron® M Processor
Speed
R60 :
Intel® Core™Duo Processor T2450 (2.0GHz) ~ Intel® Core™ 2 Duo
Processor T5600 (1.83GHz)
Intel® Pentium Dual Core Processor T2080 (1.73GHz) ~ T2130
(1.86GHz)
Intel® Celeron M Processor 430 (1.73GHz) ~ 530 (1.73GHz)
R60 Plus :
Intel® Core™ 2
Duo Processor T5250 (1.5GHz) ~ T7700 (2.4GHz)
Intel® Celeron Processor 530 (1.73GHz) ~ 550 (2.0GHz)
Cache
4MB (Intel® Core™ 2 Duo Processor T7700, T7500, T7300)
2MB (Intel® Core™ 2 Duo Processor)
1MB (Intel® Pentium Dual Core Processor, Intel® Celeron®M
Processor)
Chipset RS600ME + SB600
BIOS 8 Mbit, Flash upgradable, SPI ROM
Thermal Design Performance MAX. 35W
Memory
Memory / Max. Memory 1GB~MAX4GB
Memory type PC2-5300(667MHz) DDR2 SODIMM
Memory Modules 1GB, 2GB, 4GB SODIMM
Sockets 2-slot SODIMM's
Display and Graphics
LCD 15.4" WXGA (Glare/NonGlare)
LCD Vendor AMLCD/CPT
ATI External GFx ATI External GFx
Video Memory ATI Radeon Xpress 2300
ATI 32MB ~ Max. 256MB Shared Memory
Max.Resolution for LFP LVDS 1280 x 800 x 32Bits color (WXGA)
Max.Resolution for External
Monitor 2048 x 1536 @ 32bps (CRT)
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -

SENS R60 Plus < 2 - 3 >
2. Introduction and Specification
Storage
Hard Disk Drive 9.5mmH 2.5" HDD, Removable
Supports SMART Ultra DMA 33/66/100, DMA Mode 2/4 ; SATA
Average Access Time 13m sec.
Speed 5400 / 7200 RPM , Hybrid HDD, TMR/PMR Type
Capacity 80GB / 100GB / 120GB / 160GB / 200GB : HGST, Hitachi, Samsung
- 80 ~ 160GB SATA 5400rpm
- 200GB SATA 4200rpm (June '07)
Optical Disk Drive DVD/CD-ROM/Combo / Super Multi (12.7mm) ; Factory Option
Type Fixed type (Factory Option)
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
Optical Driver Modules
Combo Drive 1 Factory Option
Module type Fixed 12.7mm Slim
Speed 8x DVD-ROM, 24x RW, 24x CD-R : TSST, TS-L332A
Average Access Time DVD 130ms Typ, CD 130ms Typ
Weight 176g or less
S/W Supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
Combo Drive 2 Factory Option
Module type Fixed 12.7mm Slim
Speed 8x DVD-ROM, 24x RW, 24x CD-R, 24x CD : TSST, TS-L462D
Average Access Time DVD 130ms Typ, CD 130ms Typ,.
Weight 176g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
SuperMultiDualLayer1 Factory Option
Module type Fixed 12.7mm Slim
Speed 5x DVD-RAM, 8x DVD±R 2.4x DVD+R DL, 4x DVD±RW, 24x CD-R,
16x CD-RW, 8x DVD, 24x CD : Panasonic UJ-850
Average Access Time DVD 130ms Typ., CD 130ms Typ.
Weight 190g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
SuperMultiDualLayer2 Factory Option
Module type Fixed 12.7mm Slim
Speed 5x DVD-RAM, 8x DVD±R, 6x DVD±R DL, 8x DVD+RW, 6x DVD-RW,
24x CD-R/RW, 8x DVD, 24x CD : TSSTTS-L632D
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -

SENS R60 Plus < 2 - 4 >
2. Introduction and Specification
Average Access Time DVD 130ms Typ., CD 130ms Typ.
Weight 180g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
Super MultiDual Layer 3 Factory Option
Module type Fixed 12.7mm Slim
Speed 5x DVD-RAM, 8x DVD±R, 6x DVD±R DL, 8x DVD+RW, 6x DVD-RW,
24x CD-R/RW, 8x DVD, 24x CD : TeacDV-W28EC
Average Access Time DVD 130ms Typ., CD 130ms Typ.
Weight 180g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
Network Tools
Fax/Modem 56Kbps / V.92 Azalia Modem, DELPHI (D40) (Factory Opeion)
Chipset CSP1040 AGR A3 & A3 5V1
Features RJ11 Output
LAN 10/100 Ethernet UTP
Chipset Marvell 88E8039
Features Integrated PHY, MAC 10/100, RJ45 Output
802.11b/g Wireless LAN AtherosAR2423: Factory option
Type Mini card (Factory Option)
Chipset AR2423
Bluetooth BCM92045NMD : Factory Option
Type USB daughter card with integrated PIFA antenna
Chipset Broadcom BCM2045
Standard version 2.0
I/O Interface
PC CardBus Slots PCI Express Card Slot
I/O Ports
USB Port 3(USB2.0)
Video (CRT) Port 1
1
Audio Jacks HeadPhone-out
Modem / LAN RJ11, RJ45
Power 1 DC-in (5pie)
Input Devices
Key board 88KEY(KR/US)
Travel length 2.6mm / Key Pitch 19.05mm
Touchpad Synaptics Touchpad (Plat type with Scroll area)
Easy Button -
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -

SENS R60 Plus < 2 - 5 >
2. Introduction and Specification
2. 제품 특징 및 사양
AC Adapter AD-9019S(2.0GHz↑)
Output Power 90Watts
Dimension 126 X 51 X 30 mm
Weight (AC Adapter) 270g (typ)
Worldwide Compatibility Auto-sensing 100 - 240VAC
Line Frequency 50 / 60Hz
Adapter Rating - Input 100V - 240V, 1.5A(Min)
Adapter Rating - Output 19.0VDC , 4.74A
Power Management Features ACPI 3.0 support, Standby(S3), Hibernate(S4)
AC Adapter AD-6019S(2.0GHz↓)
Output Power 60 Watts
Dimension 108 x 46.5 x 28mm
Weight (AC Adapter) 320g (max)
Worldwide Compatibility Auto-sensing 100 - 240VAC
Line Frequency 50 / 60Hz
Adapter Rating - Input 100V - 240V, 1.4A
Adapter Rating - Output 19.0VDC / 3.16A
Power Management Features ACPI 1.0b support, Standby(S3), Hibernate(S4)
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -
Power and Power
Management
Battery (Standard) AA-PB3NC6B (6cells, Smart Li-Ion Battery)
Dimension 204 x 48 x 20mm
Weight 350g (max)
Recharge Time 2 hours to 100% with Windows on & off
Battery Life over 2.5hour ( Battery mark 4.01)
Details of Cell 6cells (2Parallel 3Serial) - Standard only
Voltage 11.1Vdc
Battery Capacity 2000mAh/cell
Battery Rating 11.1V / 4000mAh (44.4Wh)
Battery (LongLife) AA-PL2NC9B (9cells, Smart Li-Ion Battery)
Recharge Time 4 hours to 100% with Windows on & off
Battery Life over 5hour ( Battery mark 4.01)
Details of Cell 9cells (3Parallel 3Serial)
Voltage 11.1Vdc
Battery Capacity 2600mAh/cell
Battery Rating 11.1V / 7800mAh (86.58Wh)

SENS R60 Plus < 2 - 6 >
2. Introduction and Specification
System Dimensions
Dimensions (W X D X H) 358 x 265.2 x 31.3 ~ 35.8 (37.4)mm
Weight
(Full system w/4cell Battery) 2.68Kg
Status : Combo , 4cell battery, 2.5" 80GB HDD
Materials LCD Front: PC, Back: PC/ABS
Top: PC/ABS, Bottom: Mg
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -

SENS R60 Plus < 2 - 7 >
2. Introduction and Specification
3) Specification comparison
3-1) Subsidiary company model comparison
모델명
R40 plus R60 plus
Platform Intel Yonah (FSB667, 2MB L2) Intel Merom (FSB800, 2MB L2)
+ATI RS600ME+ATI SB600
LCD 15.4” WXGA 15.4” WXGA
Graphic
sInternal RadeonXPress 1250M RadeonXPress 2300
Network
Modem 56Kbps F.Option 56Kbps F.Option
Ethernet 10/100 10/100
Wireless bg bg
Port PCMCIA, 4USB, TV-out, VGA,
Audio PCI Express Card, 3USB, VGA, Audio
Size (cm) 340.4 x 259.6
31.1~38.7 358 x 265.2 x 31.3 ~ 35.8 (37.4)mm
Weight (kg) 2.46 2.68
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -

SENS R60 Plus < 2 - 8 >
2. Introduction and Specification
3) Specification comparison
3-2) Other firm model comparison
Model Name
ACER 5611-300 Sony (VGN-FE41E) Toshiba A100-733 Samsung(R60+)
CPU T2050 T5500 T5600 T7100
LCD 15.4" WXGA 15.4" WXGA 15.4" WXGA 15.4" WXGA
Graphics nVIDIA 7300 nVIDIA 7400 nVIDIA 7600 ATI X2300
Memory DDR2 1G DDR2 1G DDR2 2G DDR2 512MB
HDD 160GB 120GB 120GB 160GB
ODD Super-Multi Super-Multi Super-Multi Super-Multi
Network Modem 10/100
802.11a/b/g
Modem
10/100
802.11a/b/g
Modem
10/100
802.11a/b/g
Modem(56Kbps)
10/100
802.11b/g
Battery 6Cell 6Cell 6Cell 6Cell/9Cell
PC Card Slot 5-in-1 5-in-1 3-in-1 2-in-1
Port 4xUSB, VGA, 4xUSB, VGA 4xUSB, BT, VGA 3xUSB,,BT,
VGA,
Size (cm) 358 x 269 x
29~36 mm
360 x 274.5 x
26~35 mm
360x267x36.8
mm 358x265.2x 31.3~35.8(37.4)mm
Weight (kg) 2.89 2.8 2.72 2.68
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -

SENS R60 Plus < 2 - 9 >
2. Introduction and Specification

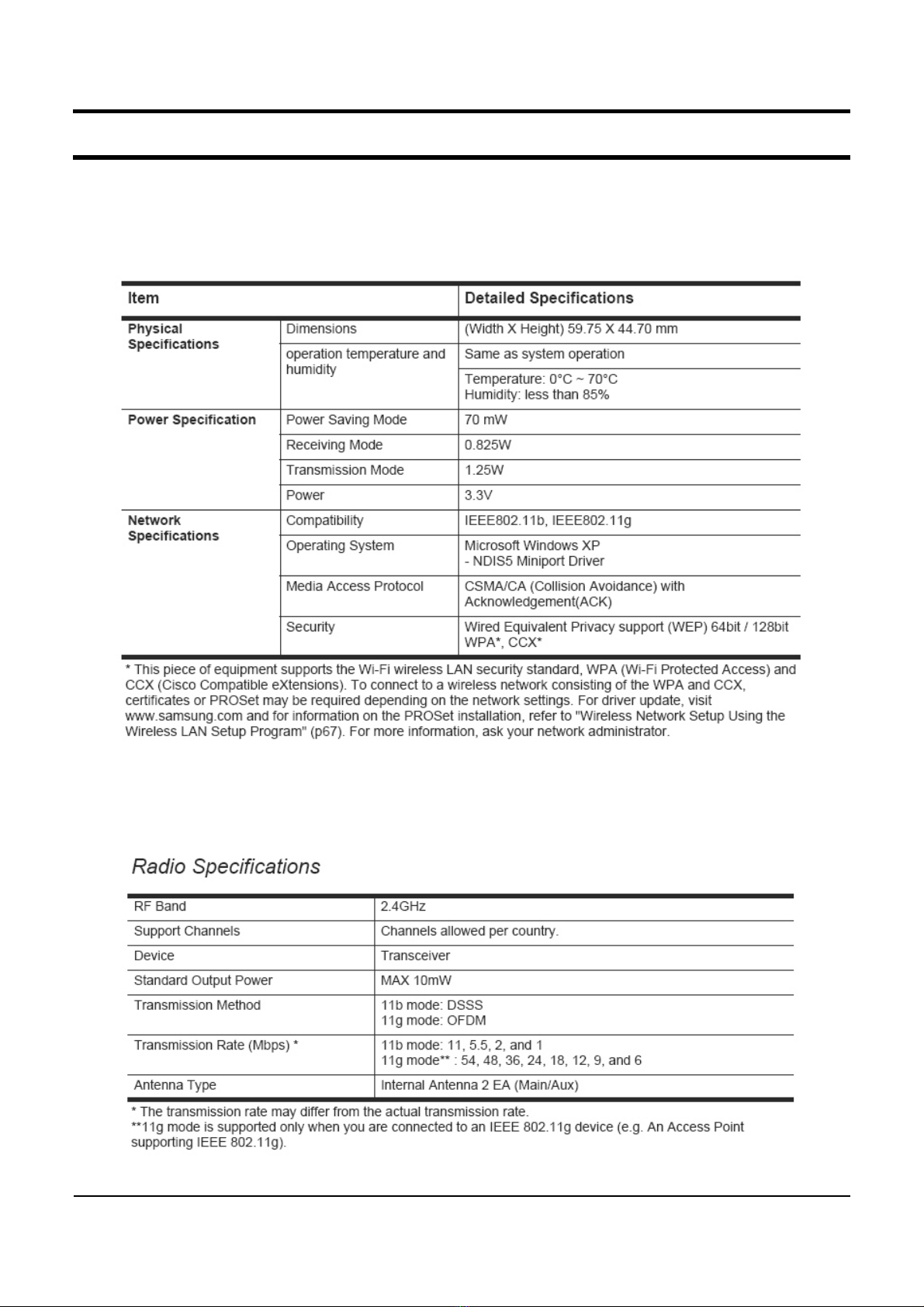

4) Wireless LAN Specification
(1) Wireless LAN Standard (802.11BG card)
Atheros Wireless Network Adapter
- This Document can not be used without Samsung's authorization -

SENS R60 Plus < 2 - 10 >
2. Introduction and Specification

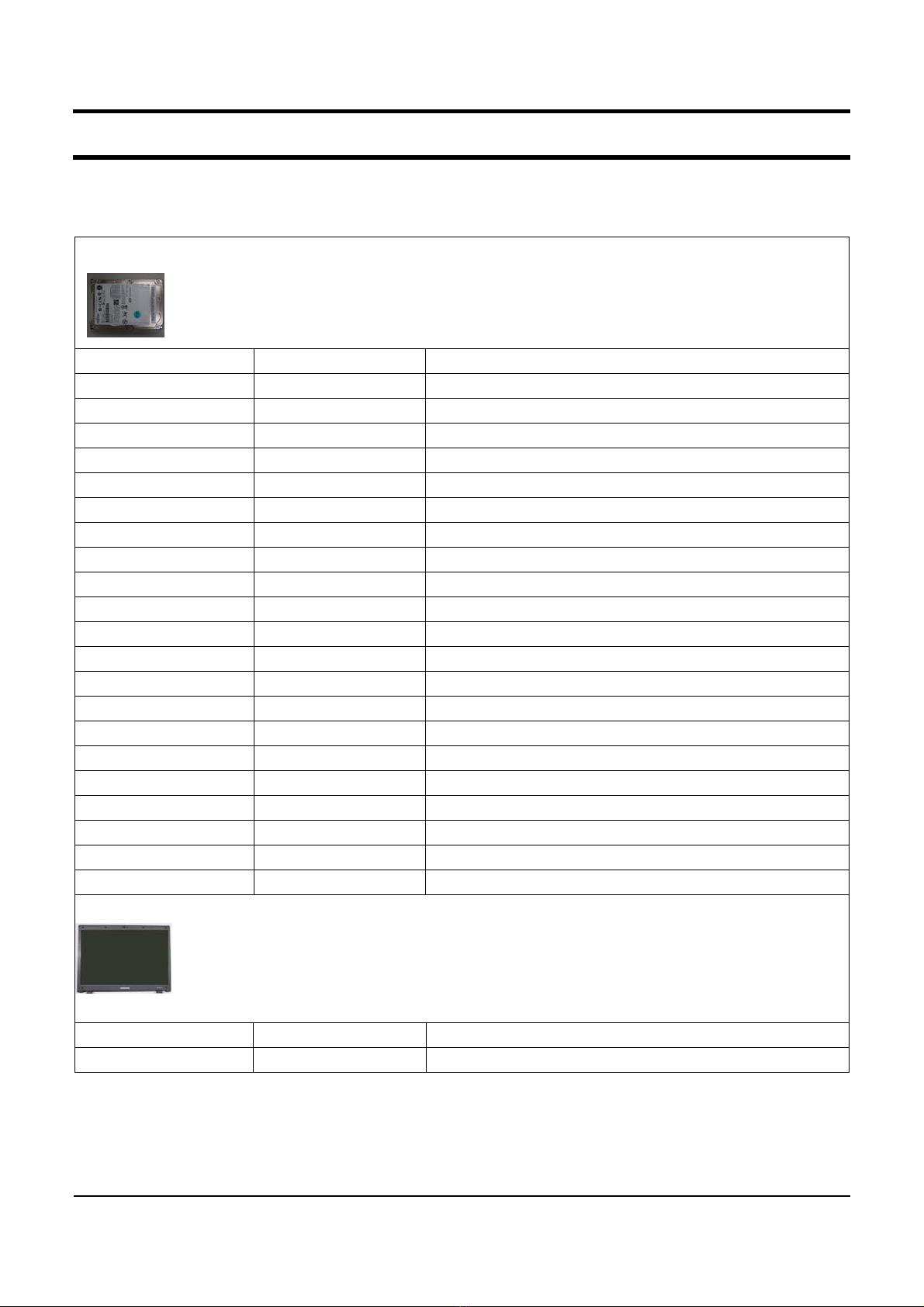

5) Option list
HDD
BA59-01999A HTS541660J9SA00 5400rpm, , 60G, SATA, 8M
BA59-01946A MHV2060BH-PL 5400rpm, , 60G, SATA, 8M
BA59-02084A MHW2060BH 5400rpm, , 60G, SATA, 8M
BA59-02038A HM060HI 5400rpm, , 60G, SATA, 8M
BA59-02001A HTS541680J9SA00 5400rpm, , 80G, SATA, 8M
BA59-01947A MHV2080BH-PL 5400rpm, , 80G, SATA, 8M
BA59-02085A MHW2080BH 5400rpm, , 80G, SATA, 8M
BA59-02009A ST980815AS 5400rpm, , 80G, SATA, 8M
BA59-01742A HTS541010G9SA00 5400rpm, , 100G,SATA , 8M
BA59-01948A MHV2100BH-PL 5400rpm, , 100G, SATA, 8M
BA59-02086A MHW2100BH 5400rpm, , 100G, SATA, 8M
BA59-02014A HM101JI 5400rpm, , 100G, SATA, FFS
BA59-02010A ST9100828AS 5400rpm, , 100G, SATA, 8M
BA59-02002A HTS541612J9SA00 5400rpm, , 120G, SATA, 8M
BA59-01957A MHV2120BH-PL 5400rpm, , 120G, SATA, 8M
BA59-02087A MHW2120BH 5400rpm, , 120G, SATA, 8M
BA59-02013A hm121JI 5400rpm, , 120G, SATA, FFS
BA59-02039A HM120JI 5400rpm, , 120G, SATA, 8M
BA59-02011A ST9120822AS 5400rpm, , 120G, SATA, 8M
BA59-02003A HTS541616J9SA00 5400rpm, , 160G, SATA, 8M
BA59-02012A ST9160821AS 5400rpm, , 160G, SATA, 8M
BA59-02110A MHW2160BH-PL 5400rpm, , 160G, SATA, 8M
LCD
BA59-01814A 15.4WXGA
BA59-02147A 15.4WXGA
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -

SENS R60 Plus < 2 - 11 >
2. Introduction and Specification
MEMORY
1105-001683 DDR2 667Mhz 512MB M470T6554CZ3-CE6
1105-001684 DDR2 667Mhz 1GB M470T2953CZ3-CE6
1105-001783 DDR2 667MHz 512MB NT512T64UH8B0FN-3C
1105-001790 DDR2 667MHz 1GB NT1GT64U8HB0BN-3C
1105-001825 DDR2 667MHz 2GB M470T5663CZ3
CPU
0902-002196 T_T7100(Merom Dual Core ) 1.8Ghz(FSB800) 2MB
0902-002197 T_T7300(Merom Dual Core ) 2.0Ghz(FSB800) 4MB
0902-002198 T_T7500(Merom Dual Core ) 2.2Ghz(FSB800) 4MB
0902-002199 T_T7700(Merom Dual Core ) 2.4Ghz(FSB800) 4MB
BATTERY
BA43-00155A BATTERY 6Cell
BA43-00162A BATTERY 6Cell
BA43-00151A BATTERY 9Cell
BLUETOOTH
BA59-01691A MODULE-BLUETOOTH Bluetooth V2.0,T60H928.01,Bluetooth Module,USB I/F,V2.0,C
BA59-01916A MODULE-BLUETOOTH Bluetooth Version 2.0,BTO2P0B2SA,Bluetooth Module,
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -

SENS R60 Plus < 2 - 12 >
2. Introduction and Specification
ODD
BA96-03223A S_MULTI(DV228EC) TEAC
BA96-03241A S_MULTI(UJ-850) MATSUHITA
BA96-03242A S_MULTI(TS-L632D) TSST
BA96-03222A ROM(DW-224E-R) TEAC
BA96-03239A COMBO(TS-L462D) TSST
WLAN
BA59-02154A 802.1 /b/g WLL3141
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -

SENS R60 Plus < 2 - 13 >
2. Introduction and Specification
6) S/W List (Driver & Application)
Item Specification Ver
Driver
ATI Graphic driver 8.383_RC2
Atheros Wireless LAN driver 7.3.0.64
Sound Driver 6.0.1.5433
Sound driver 6.0.1.5380
Touchpad Driver 9.1.22.0
Modem Driver 2.1.75.0
Bluetooth Driver 6.0.1.5000
LAN Driver 10.14.6.3
Application
Samsung Battery Manager 3.0 3.2.1.2
Samsung Recovery Solution 2 1.0.2.0
Samsung Update Plus 1.3.0.11
Samsung Magic Doctor 5.0 5.014
CyberLink DVD Solution 108-Vista
Adobe Reader(Others) 7.0.8.218
McAfee Anti-Virus 7.2.142.0
Screen Saver 1.0.2.0
Wallpaper 2.0.0.0
Play Camera 1.0.0.28
AV Station Movie/Music/Digioke 4.1.20.46
Set Display Resolution 1.2.0.0
Easy Speedup Manager 2.0.0.11
Easy Display Manager 2.1.5.3
Easy Network Manager 3.0.1.7
Easy Partition Manager 2.2.1.8
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -

SENS R60 Plus < 2 - 14 >
2. Introduction and Specification
7) Description of Main-Board
7)-1. Top
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -
1Power Button SW1
2AVSNow Button SW2
3CPU Support -
4Touchpad FFC Connector J5
5PCI Express Card Frame J6,J7
6FAN Connector J2
7LCD Connector J1
8Pre-FCT Connector J9
9Speaker Connector J3
10 Bluetooth Cable Connector J8
11 Keyboard Connector J4
12 Touch Pad Button SW3, SW4
13 SB600 U11

SENS R60 Plus < 2 - 15 >
2. Introduction and Specification
7)-2. Bottom
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -
1 DC-in Connector J500 11 Battery Connector J505
2 USB Connector (x2) J502 12 Mini Card Socket J506
3 RJ45/RJ11 Combo J501 13 SODIMM Socket (DDRII) DDR500, DDR501
4 VGA Port J503 14 ODD Connector J509
5 USB Connector (x1) U514 15 SATA HDD Connector J512
6 Mic-in J507 16 2-in-1 Connector J514
7 H/P-out J510 17 RTC Battery J511
8 CPU CPU500 18 Debug Card Connector J508
9 RS600ME U513 19 MDC J513
10 ATI Gfx U509 20 MDC Connector J504

Samsung
Confidential
THIS DOCUMENT CONTAINS CONFIDENTIAL
B
SAMSUNG ELECTRONICS CO’S PROPERTY.
DO NOT DISCLOSE TO OR DUPLICATE FOR OTHERS
GCE :BA41-00812A
Sheet39. HDD(SATA) & ODD(IDE)
Sheet32. CRT
RS600ME & SB600
ELECTRONICS
D
PRAHA EXT GFX
Sheet 12-16. RS600ME
Sheet34. 2 IN 1
EXCEPT AS AUTHORIZED BY SAMSUNG.
Sheet24. SPI ROM & DEBUG CARD CONN
2
Sheet 1. COVER
4
Sheet45. P3.3V_AUX & P5.0V_AUX
1
Sheet40. MICOM
Sheet51. P1.2V_NB / P2.5V POWER
Sheet53. EMI FINGER / ICT CAPACITOR
A
33
Sheet23. SB600 STRAPS
2007.06.24
2
Owner :
Remarks :
X
Sheet17. DDR II SODIMM
Sheet18. DDR II TERMINATION
APPROVAL
Sheet44. CHARGER
Mobility Platform
PR2 (8-Layer)
1
SAMSUNG PROPRIETARY
C
SAMSUNG
Sheet31. LCD
SEC Mobile R & D
Sheet36-38. AUDIO
Signature :
Sheet42. USB & MDC
NANYA:BA41-00806A
DRAW
Sheet 11. THERMAL SENSOR / FAN CONTROL
Model Name :
Sheet49. CPU VRM
T.R. Date :
2
C
Sheet33. EXPRESS CARD
Sheet46. P1.2V & P1.2V_AUX & VCCP
DO NOT DISCLOSE TO OR DUPLICATE FOR OTHERS
A
Table of Contents
3
4
Sheet19-22. SB600
Sheet41. LOM WITH COMBO JACK
PRAHA EXT GFX
4
Sheet35. MINICARD
1.0Revision :
4
CPU :
TPT :BA41-00814A
Sheet26-30. ATI M64S VIDEO CHIP
Sheet48. EXTERNAL GFX_POWER
B
Sheet47. DDR2 POWER
3
Dev. Step :
MAIN
Sheet 8-10. YONAH
Sheet43. LED & BLUETOOTH & TOUCHPAD & KEYBOARD & LID S/W
Sheet 2-6. DIAGRAM (Block/Power) & ANNOTATIONS
CHECK
THIS DOCUMENT CONTAINS CONFIDENTIAL
1
1
Sheet50. P1.5V POWER & SWITCHED POWER & MICOM RESET
D
PCB Code :
Sheet52. DISCHARGE & MOUNT HOLE
PROPRIETARY INFORMATION THAT IS
SAMSUNG ELECTRONICS CO’S PROPERTY.
Sheet50. ICT PORT
SAMSUNG PROPRIETARY
EXCEPT AS AUTHORIZED BY SAMSUNG.
Sheet54. TP
USE ICT PORT
PROPRIETARY INFORMATION THAT IS
Chip Set :
Sheet 7. CLOCK GENERATOR
2
PBA Name :
Intel Merom (800MHz)

Samsung
Confidential
AZALIA Secondary
Channel B
PG 12
R5C843
PG 46
PG 33
Charging
RS600ME
RTL8100CL
PG 33
A-Link Express
DMB (F/O)
PG 37
C
EXCEPT AS AUTHORIZED BY SAMSUNG.
PG 36
PG 12
PG 40
THIS DOCUMENT CONTAINS CONFIDENTIAL
Touch
PG 32
PG 18
PG 35
PG 39
4P
PG 45
DDR II
PG 41
PEG x16
LCD
PG 38
PG 40
Switched PWR
PG 26 ~ 31
PG 33
CRT
PG 12
10/100 LOM
PG 39
Ext. PEG
ATI GRAPHIC
100P X 2
SPI ROM
PG 44
PG 35
PG 32
30P
External Graphics
(533/667MHz)
AZALIA
56 PIN
R,G,B
PG 32 LVDS
Bluetooth
PG 39
VRM
12P
Codec
Connector
CARDBUS
SD/xD/MS
HP
PCMCIA
PG 30
PG 34
CARDBUS Module
USB4
CPU
Circuit
MDC 1.5
MICOM
DDR II
Yonah, Merom
ELECTRONICS
PG 9,10,11 L2 Cache : 2 MB, 4MB
North Bridge
South Bridge
2-Lane
CK-410 for ATI
DDR II
VRM
USB5
B
HDD
PATA
1
SPKR L
SPKR R
Thermistor
ANT
KBD
FAN
SODIMM 0
PAD
PG 8
PG 13 ~ 17
2
PG 20 ~ 23
PG 18
PG 40
3.3V LPC, 33MHz
PG 25
Sensor
Hitachi H8S
2110B
SATA
IMVP-6
Internal Graphics
RJ45
RJ11
System
ODD
DDR II
Channel A
PG 31
CPU
4
SAMSUNG ELECTRONICS CO’S PROPERTY.
4
ALC260
Wireless LAN
ANT
A
PG 29
564 BGA
Clocking
3
SAMSUNG PROPRIETARY
D
PG 28, 29
DO NOT DISCLOSE TO OR DUPLICATE FOR OTHERS
PROPRIETARY INFORMATION THAT IS
3
SAMSUNG
478pin
MIC-IN
CONN.
1
AMP
Mini PCI
AUDIO
C
PG 32
A
DDR II 667/533
2
33MHz, 3.3V PCI
B
SODIMM 1
Audio
AZALIA
USB 0,1,2,3
DC/DC
Thermal
PG 39
USB 0,1,2,3
AZALIA Primary
PCI
Mobile Processor
707 FCBGA
SB600
D

Samsung
Confidential
KBC3_PWRON
S3
P2.5V_LAN
P1.2V_AUX
S0
EGFX_CORE
P1.2V_PEG
P2.5V
P1.8V_GFX
2
H
P3.3V_GFX
MEM1_REF
S5
D
ON
B
H
A
ON
State
THIS DOCUMENT CONTAINS CONFIDENTIAL
P3.3V
(VCCP)
3
P1.5V
L
4
AC Adapter
MEROM
+V*AUX
ON
+V
EXCEPT AS AUTHORIZED BY SAMSUNG.
C
1
VDC
P1.8V
P1.05V
P3.3V_AUX
Full On
P5.0V_AUX
ON
VCC_CORE
H
P5.0V_ALW
H
Battery DC
4
S5 / S4
OFF L
KBC3_VRON
DO NOT DISCLOSE TO OR DUPLICATE FOR OTHERS
P1.2V
OFF
NB
L
P12.0V_ALW
PWRON
SAMSUNG PROPRIETARY
OFF
2
L
ELECTRONICS
ON
SAMSUNG
H
D
P0.9V
ON
SB
L
1
ON
ON OFF
S3 L
PROPRIETARY INFORMATION THAT IS
Rail VRON
S4
P1.2V_ALW
+V*Always
3
P2.5V_PWRGD
MICOM_P3.3V
A
P5.0V
SUSPWR
C
KBC3_SUSPWRON
B
Power Diagram
MEROM
SAMSUNG ELECTRONICS CO’S PROPERTY.
P1.8V_AUX
L
