Samsung ME11A7710 Series User manual

Microwave Oven
Installation manual
ME11A7510** / ME11A7710** / ME11CB7510**

2 English
Before you begin
Before you beginContents
Before you begin 2
General information 3
Important safety instructions 3
Electrical requirements 3
Hood exhaust 4
Damage - Shipment/Installation 6
Parts included 6
Tools you will need 7
Mounting space 7
Step-by-step installation guide 9
Step 1. Placement of the mounting plate 9
Step 2. Ventilation types (choose a, b or c) 12
Step 3. Installation 15
Step 4. Before you use your microwave 19
Before you begin
ABOUT THIS MANUAL
READ THESE INSTRUCTIONS COMPLETELY AND CAREFULLY.
Important
• Save these instructions for local inspector’s use.
• Observe all governing codes and ordinances.
Important note to the installer
Be sure to leave these instructions with the Consumer.
Important note to the consumer
Keep these instructions with your user manual for future reference.
Skill level
Installation of this appliance requires basic mechanical and electrical skills.
Proper installation is the responsibility of the installer
Product failure due to improper installation is not covered under
the Warranty

English 3
General information
General information
IMPORTANT SAFETY INSTRUCTIONS
This product requires a three-prong grounded outlet. The installer must perform a
ground continuity check on the power outlet box before beginning the installation
to ensure that the outlet box is properly grounded. If not properly grounded, or
if the outlet box does not meet electrical requirements noted (under ELECTRICAL
REQUIREMENTS), a qualied electrician should be employed to correct any
deciencies.
CAUTION
For personal safety, remove the house fuse or open the
circuit breaker before beginning the installation to avoid
severe or fatal shock injury.
CAUTION
• For personal safety, the mounting surface must be capable of supporting the
cabinet load in addition to the added weight of this 69 pound product, plus
additional oven loads of up to 50 pounds or a total weight of 119 pounds.
• For personal safety, do not install this product in cabinetry congured as an
island or a peninsula. The microwave oven must be mounted to BOTH a top
cabinet AND a wall.
NOTE
For easier installation and personal safety, we recommend that two people install
this product.
IMPORTANT – PLEASE READ CAREFULLY. FOR PERSONAL SAFETY,
THIS APPLIANCE MUST BE PROPERLY GROUNDED TO AVOID SEVERE
OR FATAL SHOCK.
Insure proper
ground exists
before use.
The power cord of this appliance is equipped with
a three-prong (grounding) plug which mates with a
standard three-prong (grounding) wall receptacle to
minimize the possibility of electric shock hazard from
this appliance.
You should have the wall receptacle and circuit checked by a qualied electrician
to make sure the receptacle is properly grounded.
If you have a standard two-prong wall receptacle, it is very important to have
it replaced with a properly grounded three-prong wall receptacle, installed by a
qualied electrician.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT, DEFORM OR REMOVE ANY OF THE
PRONGS FROM THE POWER CORD. DO NOT USE WITH AN EXTENSION CORD.
ELECTRICAL REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz. This product must be connected to a
supply circuit of the proper voltage and frequency. Wire size must conform to the
requirements of the National Electrical Code or the prevailing local code for this
kilowatt rating. The power supply cord and plug should be brought to a separate
branch circuit single grounded outlet of at least 15 A and max of 20 A. 20 A is
recommended for multifamily buildings. The outlet box should be located in the
cabinet above the microwave oven. The outlet box and supply circuit should be
installed by a qualied electrician and conform to the National Electrical Code or
the prevailing local code.

4 English
General information
General information

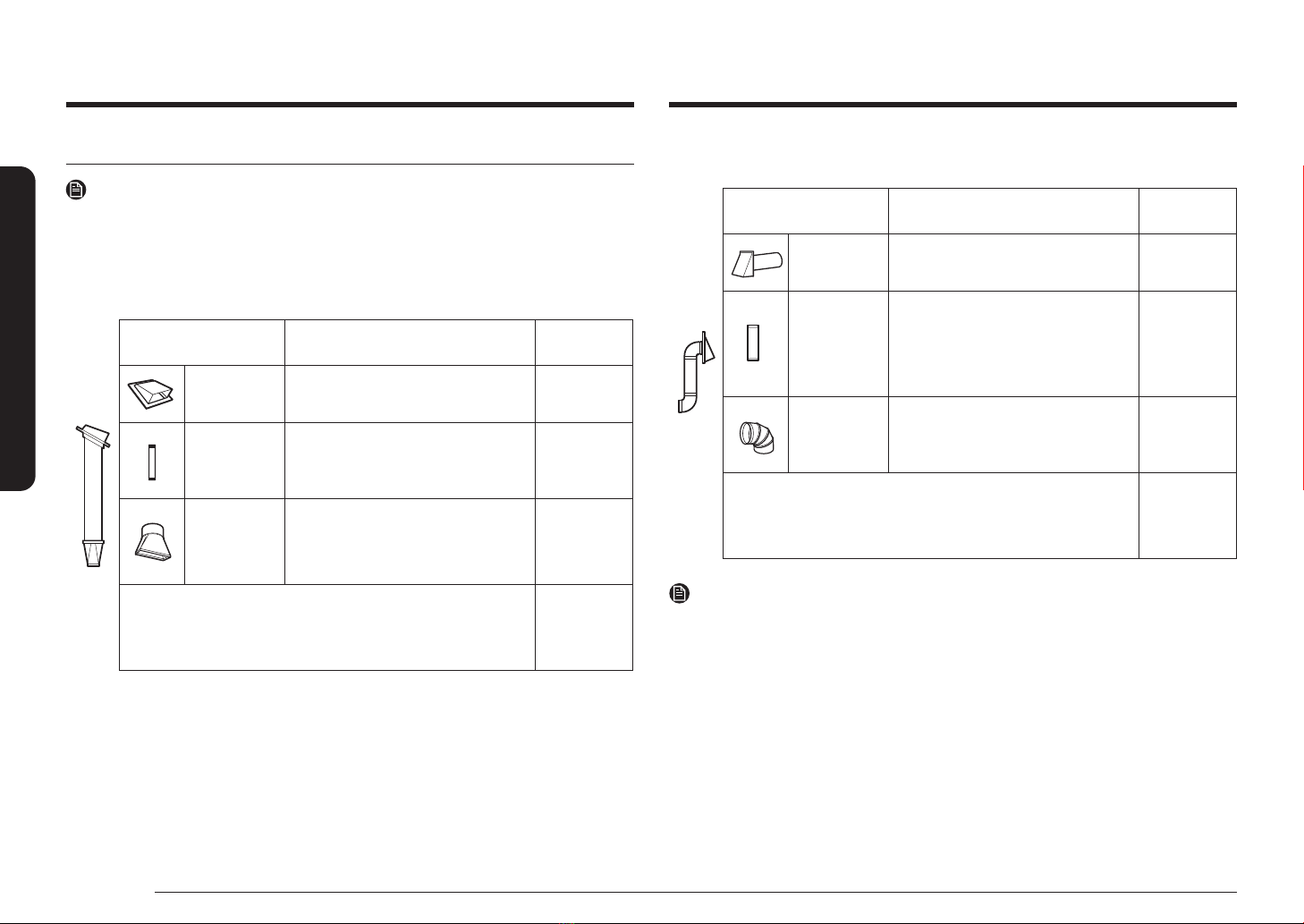

OUTSIDE BACK EXHAUST (EXAMPLE ONLY)
The following chart contains an example of one possible ductwork installation.
DUCT PIECES EQUIVALENT
LENGTH xNUMBER USED =EQUIVALENT LENGTH
Wall Cap 40 ft. x(1) =40 ft.
3 Ft.
Straight
Duct
(3 ¼˝ x 10˝
Rectangular)
3 ft. x(1) =3 ft.
90° Elbow 10 ft. x(2) =20 ft.
Equivalent lengths of duct pieces
are based on actual tests and reect
requirements for good venting
performance with any vent hood.
Total
Length =63 ft.
NOTE
For back exhaust, care should be taken to align the exhaust with the space
between studs, or the wall should be prepared at the time it is constructed by
leaving enough space between the wall studs to accommodate exhaust.
HOOD EXHAUST
NOTE
Read these next two pages only if you plan to vent your exhaust to the outside. If
you plan to recirculate the air back into the room, proceed to page 12.
OUTSIDE TOP EXHAUST (EXAMPLE ONLY)
The following chart contains an example of one possible ductwork installation.
DUCT PIECES EQUIVALENT
LENGTH xNUMBER USED =EQUIVALENT LENGTH
Roof Cap 24 ft. x(1) =24 ft.
12 Ft.
Straight Duct
(6˝ Round)
12 ft. x(1) =12 ft.
Rectangular-
to-Round
Transition
Adaptor*
5 ft. x(1) =5 ft.
Equivalent lengths of duct pieces
are based on actual tests and reect
requirements for good venting
performance with any vent hood.
Total Length =41 ft.
IMPORTANT:
If a rectangular-to-round transition adaptor is used, the bottom corners of the
damper will have to be cut to t, using the tin snips, in order to allow free
movement of the damper.

English 5
General information
DUCT PIECES EQUIVALENT
LENGTH xNUMBER USED =EQUIVALENT LENGTH
Rectangular-
to-Round
Transition
Adaptor*
5 ft. x( ) =ft.
Wall Cap 40 ft. x( ) =ft.
90 ° Elbow 10 ft. x( ) =ft.
45 ° Elbow 5 ft. x( ) =ft.
90 ° Elbow 25 ft. x( ) =ft.
45 ° Elbow 5 ft. x( ) =ft.
Roof Cap 24 ft. x( ) =ft.
Straight Duct
6˝ Round or
3 ¼˝ x 10˝
Rectangular
1 ft. x( ) =ft.
Total Ductwork =ft.
*IMPORTANT: If a rectangular-to-round transition adaptor is
used, the bottom corners of the damper will
have to be cut to t, using tin snips, to allow free
movement of the damper.
Equivalent lengths of duct pieces are based on
actual tests and reect the requirements for good
venting performance with any vent hood.
NOTE
If you need to install ducts, note that the total duct length of 3 ¼˝ x 10˝
rectangular or 6˝ diameter round duct should not exceed 140 equivalent feet.
Outside ventilation requires a HOOD EXHAUST DUCT. Read the following carefully.
NOTE
It is important that venting be installed using the most direct route and with as
few elbows as possible. This ensures clear venting of exhaust and helps prevent
blockages. Also, make sure dampers swing freely and nothing is blocking the
ducts.
Exhaust connection:
The hood exhaust has been designed to mate with a standard 3 ¼˝ x 10˝
rectangular duct.
If a round duct is required, a rectangular-to-round transition adaptor must be used.
Do not use less than a 6˝ diameter duct.
Maximum duct length:
For satisfactory air movement, the total duct length of 3 ¼˝ x 10˝ rectangular or 6˝
diameter round duct should not exceed 140 equivalent feet.
Elbows, transitions, wall and roof caps, etc. present additional resistance to airow
and are equivalent to a section of straight duct which is longer than their actual
physical size. When calculating the total duct length, add the equivalent lengths of
all transitions and adaptors plus the length of all straight duct sections. The chart
below shows you how to calculate total equivalent ductwork length using the
equivalent length in feet of some typical ducts.

6 English
General information
General information

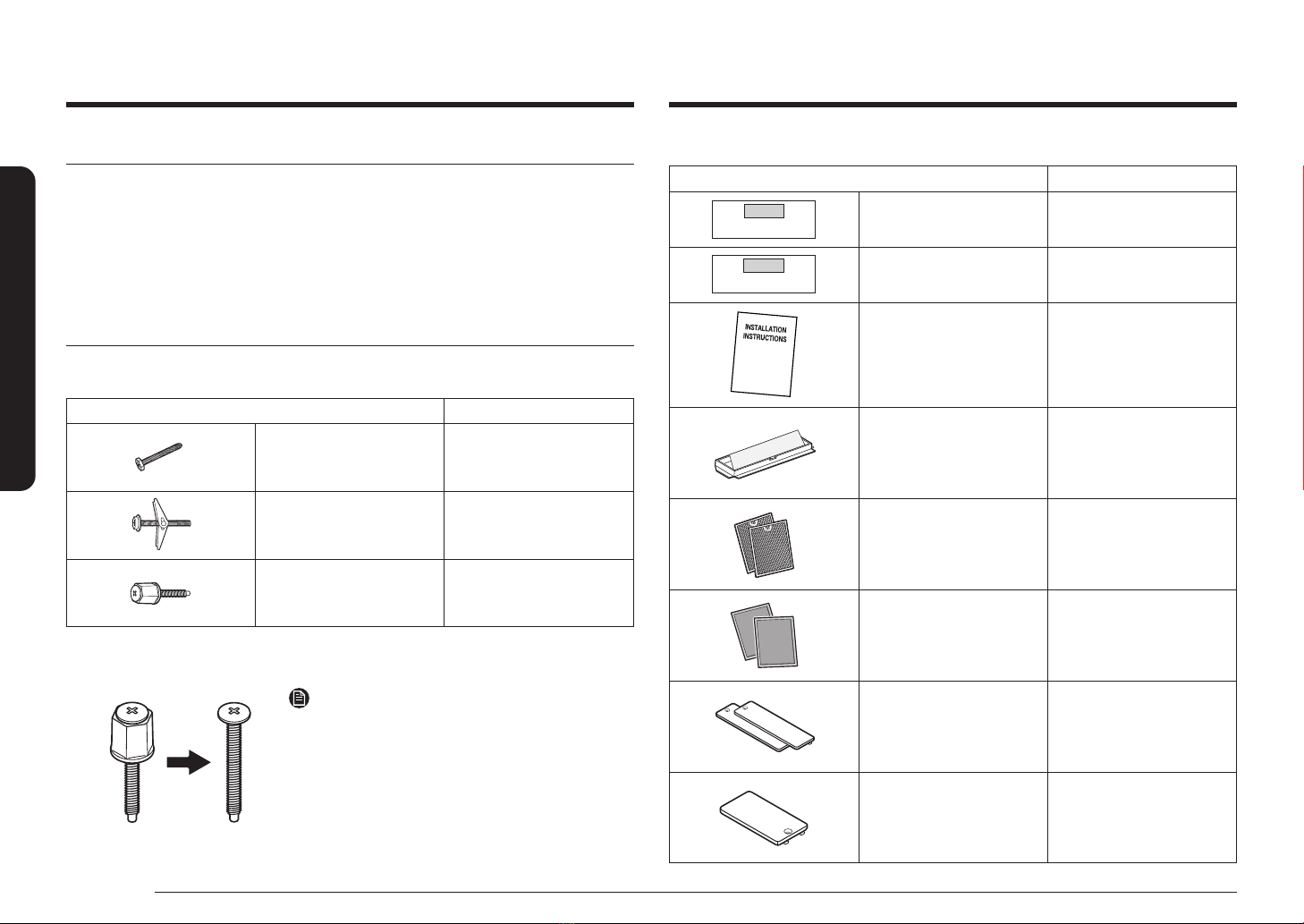

ADDITIONAL PARTS
PART QUANTITY
TOP CABINET TEMPLATE
REAR WALL TEMPLATE
Top Cabinet Template 1
TOP CABINET TEMPLATE
REAR WALL TEMPLATE Rear Wall Template 1
Installation Instructions 1
Template
INSTALLATION
INSTRUCTIONS
Exhaust Adaptor 1
Separately Packed
Grease Filters 2
Separately Packed
Charcoal Filters 2
Cover Air-Right 2
Cover Air-Left 1
DAMAGE  SHIPMENT/INSTALLATION
• If the unit is damaged in shipment, return the unit to the store in which it was
bought for repair or replacement.
• If the unit is damaged by the customer, repair or replacement is the
responsibility of the customer.
• If the unit is damaged by the installer (if other than the customer), repair
or replacement must be made by arrangement between the customer and
installer.
PARTS INCLUDED
HARDWARE PACKET
PART QUANTITY
Template
INSTALLATION
INSTRUCTIONS
Wood Screws 1
Template
INSTALLATION
INSTRUCTIONS
Toggle Bolts
(and wing nuts) 2
Self-aligning
Machine Screws
With Supporter
2
You will nd the installation hardware contained in a packet with the unit. Check to
make sure you have all these parts.
NOTE
If Cabinet Thickness is over 1 ˝, Remove
Supporter.

English 7
General information

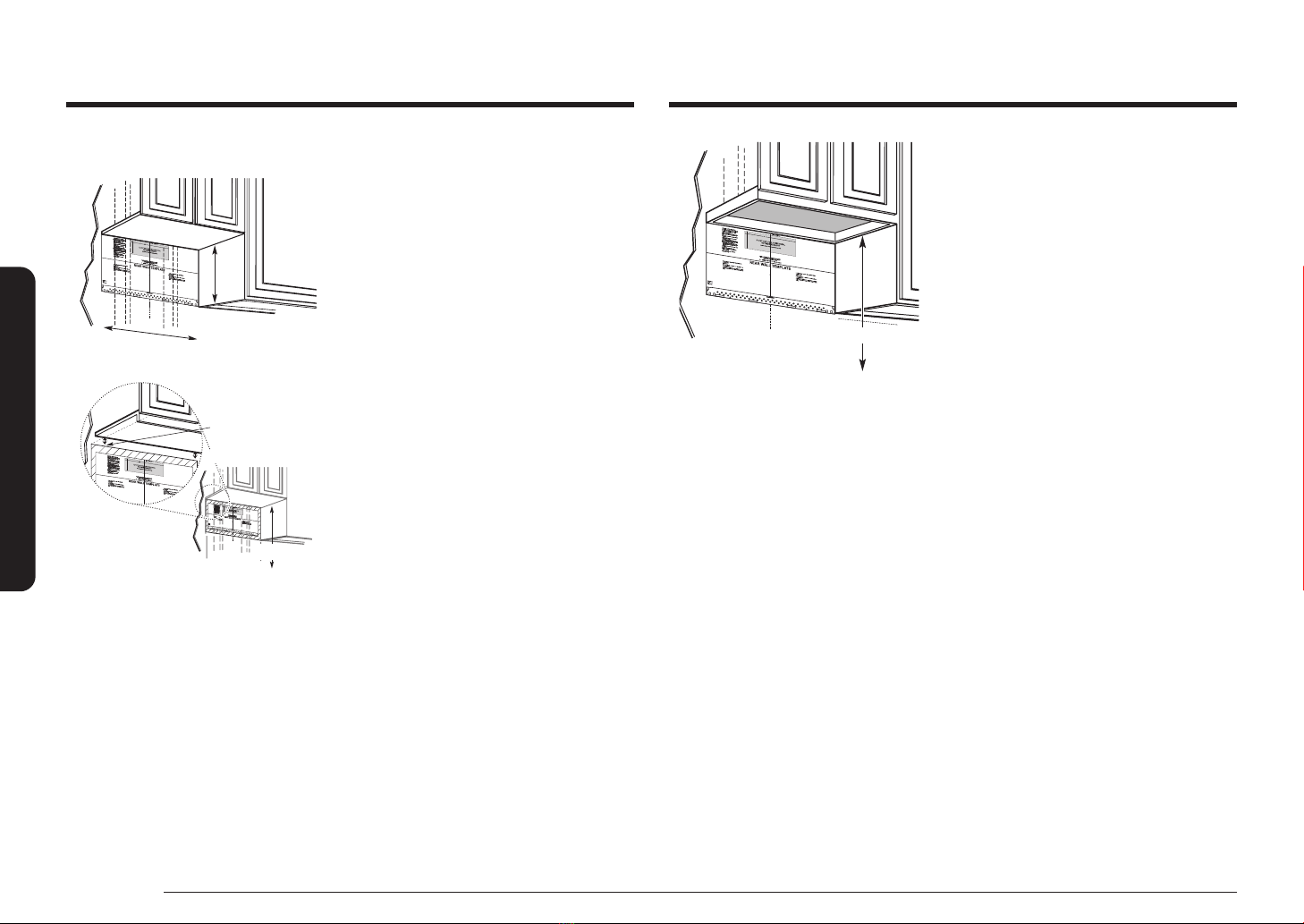

MOUNTING SPACE
10 11/16˝
24 1/5˝
30˝
5˝
Bottom edge of the cabinet
needs to be 24 1 /5˝or more
from the cooking surface.
Backsplash
12˝ max.
NOTE
• The space between the cabinets must be 30˝ wide and free of obstructions.
• This microwave oven is for installation over ranges up to 36˝ wide.
• If you are going to vent your microwave oven to the outside, see the Hood
Exhaust Section for exhaust duct preparation.
• If installing the microwave oven beneath smooth at cabinets, be careful to
follow the instructions on the top cabinet template for power cord clearance.
• Maximum cabinet depth above and beside the unit is 12˝.
• The dimensions provided are the minimum required for mounting the
microwave oven. Local codes and the practical use of the range will likely
require you to provide more than the 13.5˝ shown between the range and the
bottom of the microwave.
TOOLS YOU WILL NEED
#1 and #2 Phillips
screwdriver
Pencil Ruler or tape
measure and
straight edge
Carpenter square
(optional)
Tin snips (for cutting
damper, if required)
Scissors (to cut
template, if
necessary)
Electric drill with
3/16˝, 1/2˝ and 5/8˝
drill bits
Filler blocks or
scrap wood pieces,
if needed for top
cabinet spacing
(used on recessed
bottom cabinet
installations only)
Gloves Saw (saber, hole or
keyhole)
Stud nder or
Hammer (optional)
Safety goggles
Level Duct and masking
tape
10 11/16˝

8 English
General information
General information

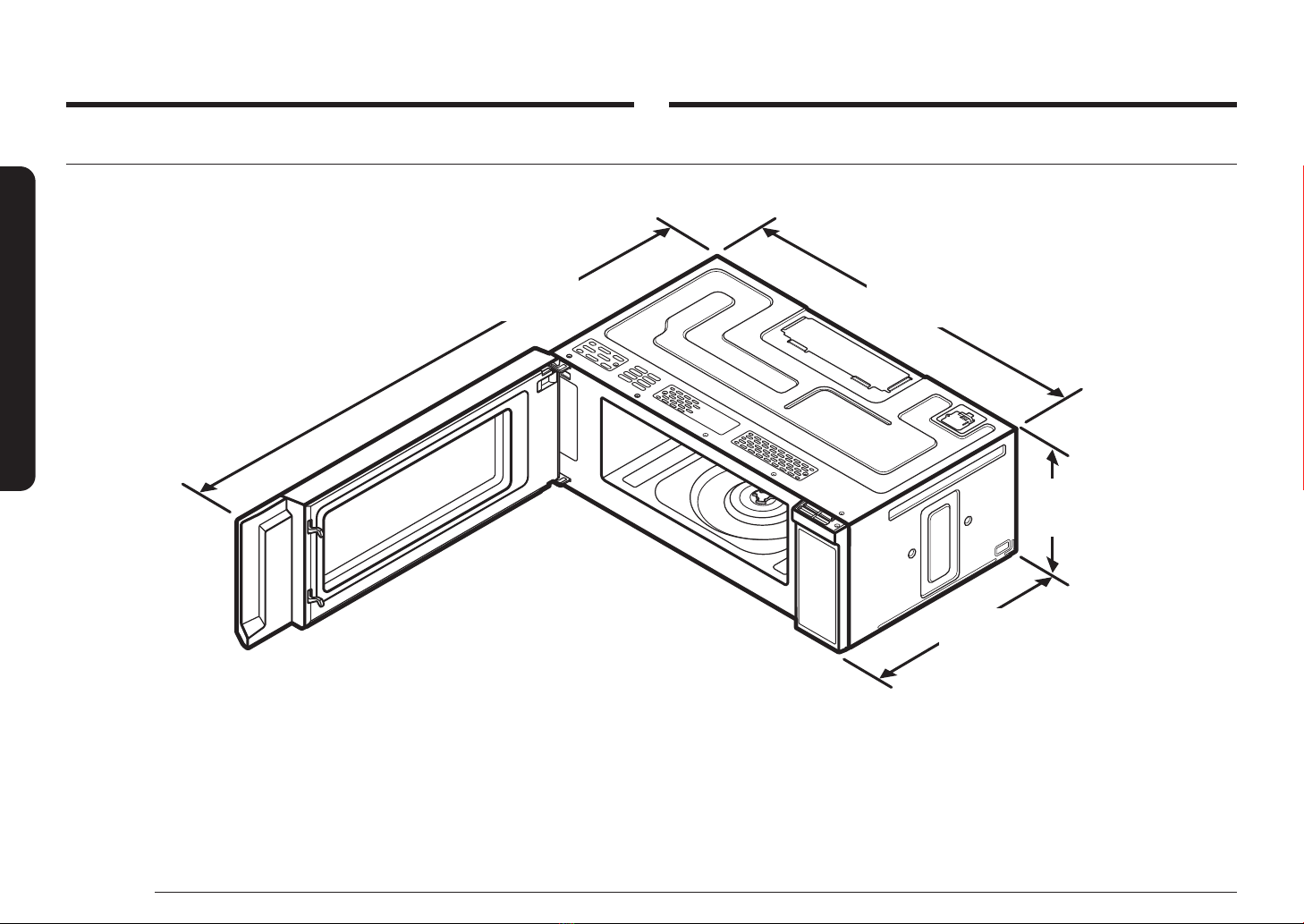

DIMENSION OF PRODUCT
46 11/16˝
(1185.9mm)
With Plate mounting 29 7/8˝
(758.8mm)
10 11/16˝
(272.0mm)
19 3/16˝
(486.7mm)
With Plate
mounting

English 9
Step-by-step installation guide

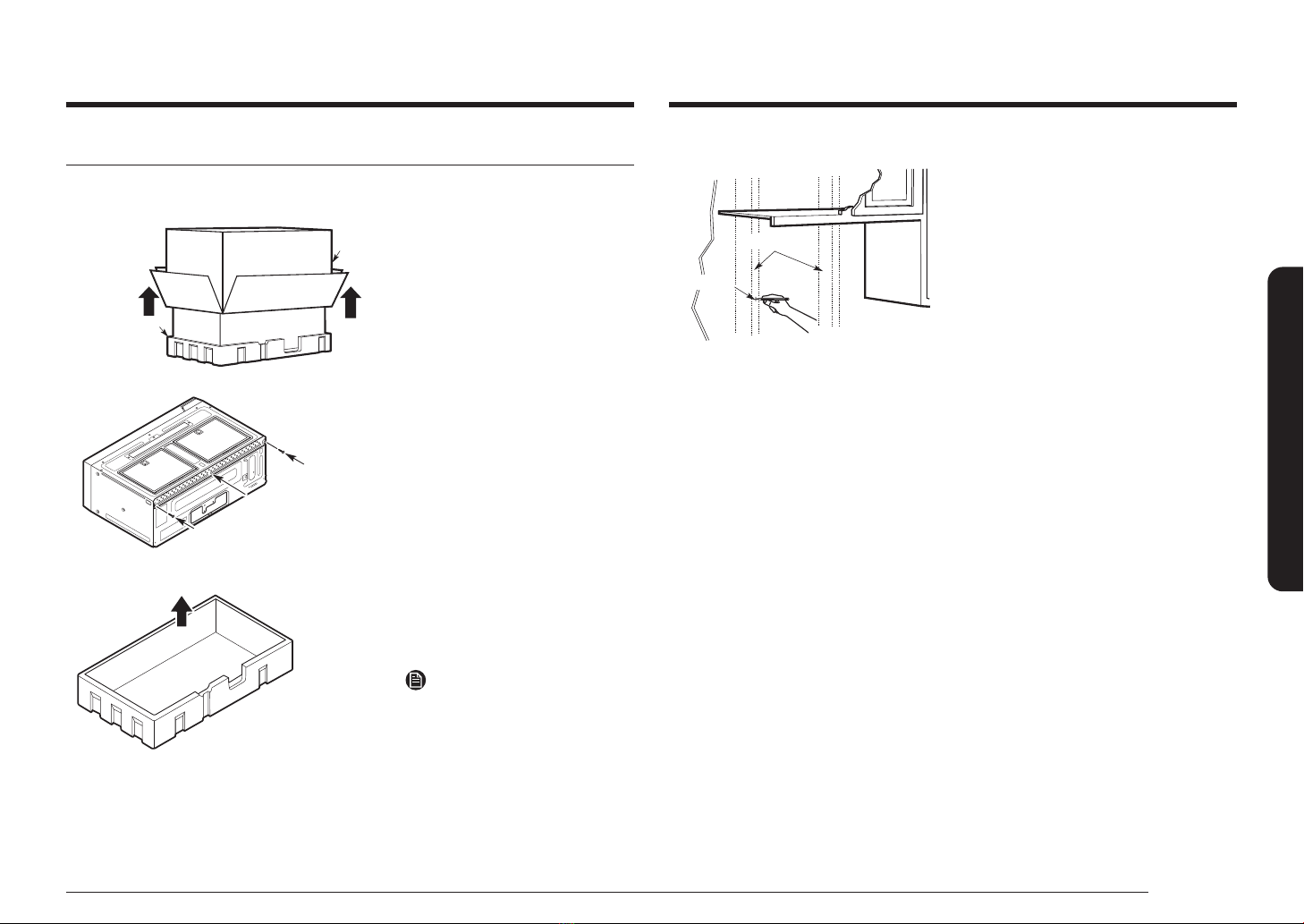

B. Finding the wall studs
Center
Wall Studs
1. Find the studs using one of the
following methods:
A. With a stud nder – a magnetic
device which locates nails.
OR
B. Use a hammer to tap lightly
across the mounting surface until
you hear a solid sound. This will
indicate a stud location.
2. After locating the stud(s), locate the
stud’s center by probing the wall
with a small nail to nd the edges of
the stud. Then, place a mark halfway
between the edges. The center of
any adjacent studs should be 16˝ or
24˝ from this mark.
3. Draw a line down the center of the
studs.
THE MICROWAVE MUST BE CONNECTED TO AT LEAST ONE WALL STUD.
Step-by-step installation guide
Step 1. Placement of the mounting plate
A. Removing the microwave oven from the carton/Removing the mounting plate
Carton
Styrofoam
Mounting Plate
Screws
Screws
1. Remove the installation
instructions, Exhaust
Adaptor, lters, glass tray,
and the small hardware
bag. Do not remove the
Styrofoam protecting the
front of the oven.
2. Fold back all 4 carton aps
fully against carton sides.
Then carefully roll the oven
and carton over onto the
top side. The oven should be
resting in the Styrofoam.
3. Pull the carton up and off
the oven.
4. Remove and properly
discard plastic bags.
5. Remove the 2 screws from
the mounting plate. This
plate will be used as the
rear wall template and for
mounting.
NOTE
Retain the two screws. You will
need to re-insert the screws in
their original locations after you
have removed the mounting
plate.

10 English
Step-by-step installation guide
Step-by-step installation guide

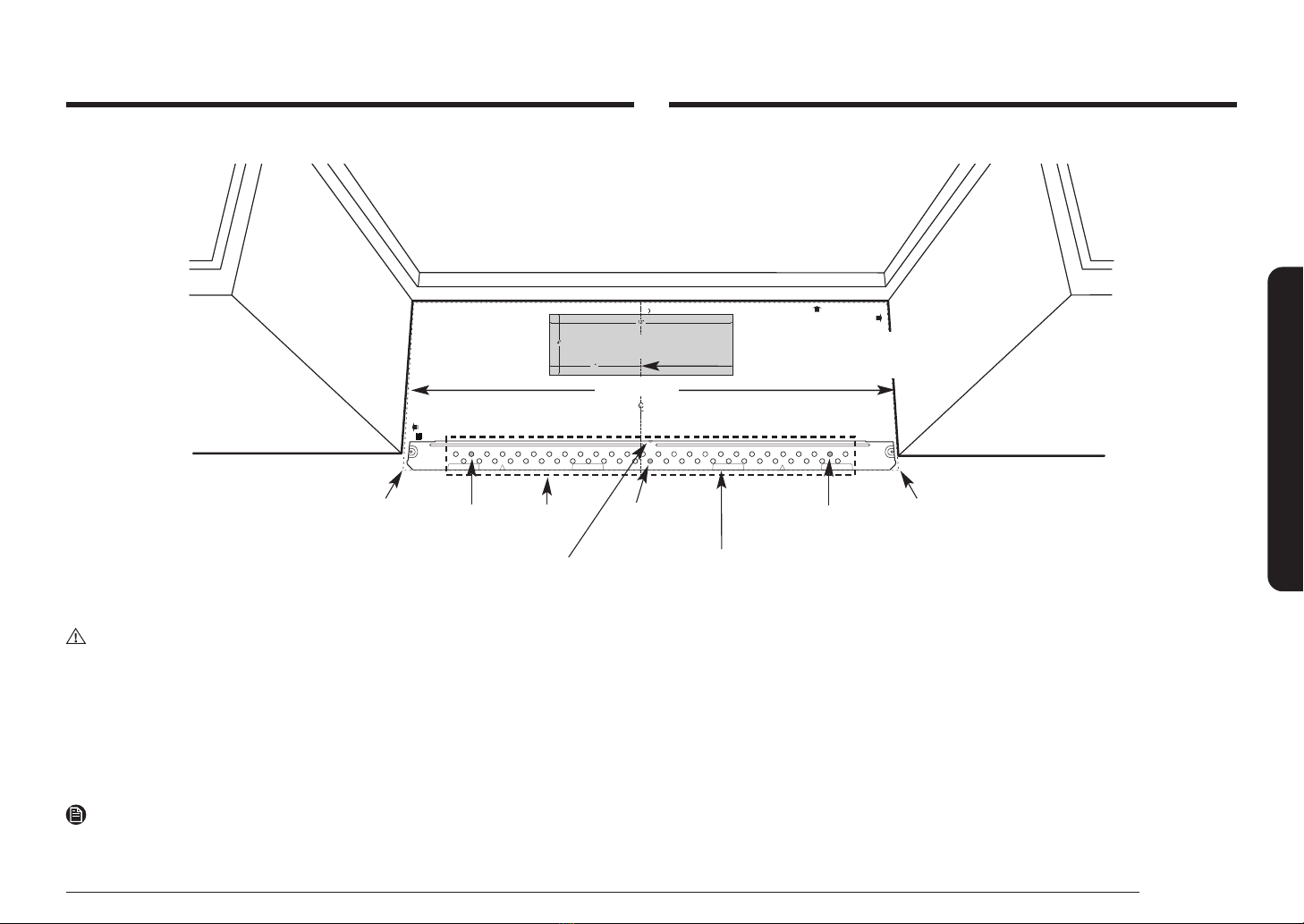

C. Determining wall plate location under your cabinet
C
L
At least 30˝
Plate position – beneath a at bottom
cabinet.
Draw a vertical line on the wall at the
center of the 30˝ wide space. Tape the Rear
Wall Template onto the wall so that the top
of the template touches the bottom of the
cabinet and the centerline on the template
lines up with the line you drew on the wall.
`
i
Plate position – beneath recessed bottom
cabinet with front overhang
Draw a horizontal
line to mark how
far the inside of
the front overhang
descends below
the cabinet.
24 1/5˝
Plate position – beneath a recessed bottom
cabinet with a front overhang.
Draw a vertical line on the wall at the
center of the 30˝ wide space. Draw a
second, horizontal line on the wall below
the cabinet to mark how far the inside of
the front overhang descends below the
cabinet. Tape the Rear Wall Template onto
the wall so that the top of the template
touches the bottom of the horizontal line
and the centerline on the template lines up
with the vertical line.
C
L
24 1/5˝
Plate position – beneath a framed recessed
cabinet bottom.
Draw a vertical line on the wall at the
center of the 30˝ wide space. Tape the Rear
Wall Template onto the wall so that the top
of the template touches the bottom of the
cabinet frame and the centerline on the
template lines up with the line you drew
on the wall.
Your cabinets may have decorative trim that interferes with the microwave
installation. Remove the decorative trim to install the microwave properly and to
make it level.
THE MICROWAVE MUST BE LEVEL.
Use a level to make sure the cabinet bottom is level.

English 11
Step-by-step installation guide
1. Draw a horizontal line on the wall at the bottom of the “Rear Wall Template”.
2. Drill 5/8˝ holes for toggle bolts in 2 locations (Hole A, Hole B) as shown in the
illustration above. If the location of a hole lines up with a stud, drill a 3/16˝ hole
for a wood screw. You cannot use a toggle bolt to attach the wall plate to a
stud.
NOTE
DO NOT MOUNT THE PLATE AT THIS TIME.
D. Aligning the wall plate
NOTE: IT IS VERY IMPORTANT TO
READ AND FOLLOW THE DIRECTIONS
IN THE INSTALLATION INSTRUCTIONS
BEFORE PROCEEDING WITH THIS
REAR WALL TEMPLATE.
This Rear Wall Template serves to position the bottom
mounting plate and to locate the horizontal exhaust outlet
1. Use a level to check that the template is positioned accurately.
2. Locate and mark at least one stud on the left or right side of the centerline.
NOTE: It is important to use at least one wood screw mounted rmly in a stud to support
the weight of the microwave. Mark two additional, evenly spaced locations for
the supplied toggle bolts.
3. Drill holes in the marked locations. Where there is a stud, drill a 3/16” hole for wood screws,
for holes that do not line up with a stud, drill 5/8” holes for toggle bolts
NOTE: DO NOT INSTALL THE MOUNTING PLATE AT THIS TIME.
4. Remove the template from the rear wall.
5. Review the Installation Instruction book for your installation situation.
Français au verso.
3/8
"
TO EDGE
F. CUT OUT FOR HORIZONTAL
OUTSIDE EXHAUSE
CUT HOLE THROUGH REAR WALL FOR EXHAUST ADAPTOR
REAR WALL TEMPLATE
CAUTION - IF EXHAUST ADAPTOR IS POSITIONED OUTSIDE
RECOMMENDED DIMENSION, GREASE-LADEN AIR WILL
DISCHARGE INTO HOUSE STRUCTURE.
Locate and mark holes to align with holes in the mounting plate.
IMPORTANT:
LOCATE AT LEAST ONE STUD ON EITHER SIDE OF THE CENTERLINE.
MARK THE LOCATION FOR 2 ADDITIONAL, EVENLY SPACED TOGGLE
BOLTS IN THE MOUNTING PLATE AREA.
IT IS RECOMMENDED TO INSTALL BOLTS IN A, B, AND C HOLES. THE LOCATION
MAY BE SUBJECT TO CHANGE ACCORDING TO CIRCUMSTANCES BUT IT IS
RECOMMENDABLE TO INSTALL THEM NEAR THE THREE HOLES MENTIONED.
Trim the rear wall template along the dotted line.
Trim the rear wall template along the dotted line.
Locate and mark holes to align with holes in the mounting plate.
IMPORTANT:
LOCATE AT LEAST ONE STUD ON EITHER SIDE OF THE CENTERLINE.
MARK THE LOCATION FOR 2 ADDITIONAL, EVENLY SPACED TOGGLE
BOLTS IN THE MOUNTING PLATE AREA.
IT IS RECOMMENDED TO INSTALL BOLTS IN A, B, AND C HOLES. THE LOCATION
MAY BE SUBJECT TO CHANGE ACCORDING TO CIRCUMSTANCES BUT IT IS
RECOMMENDABLE TO INSTALL THEM NEAR THE THREE HOLES MENTIONED.
Printed in Malaysia
DE68-04707A-00
30" MINIMUM WIDTH REQUIRED
Draw a horizontal line on the wall along the
bottom of the “Rear Wall Template”.
Draw a vertical line on the
wall to mark the center of
the cabinet above.
Horizontal Line
Area E
Centerline
notches
Hole A Hole B
Hole C
Horizontal Line
CAUTION
Wear gloves to avoid cutting ngers on sharp edges.
3. Holes A and B are inside area E. If none of these holes line up with a stud,
nd a stud in area E that lines up with a hole circle in Area E, and then drill
a 3/16˝ hole into it for a wood screw. You must have at least one wood screw
mounted rmly into a stud to support the weight of the microwave. Set the
mounting plate aside.

12 English
Step-by-step installation guide
Step-by-step installation guide
Step 2. Ventilation types (choose A, B or C)
This microwave oven is compatible with the following three types of ventilation:
A. Outside top exhaust
(vertical duct)
B. Recirculating
(non-vented ductless)
Bracket
C. Outside back exhaust
(horizontal duct)
NOTE
This microwave is shipped assembled for Recirculating. An Exhaust Adaptor is
shipped assembled and attached to the ller-upper. Select the type of ventilation
required for your installation and proceed to that section.

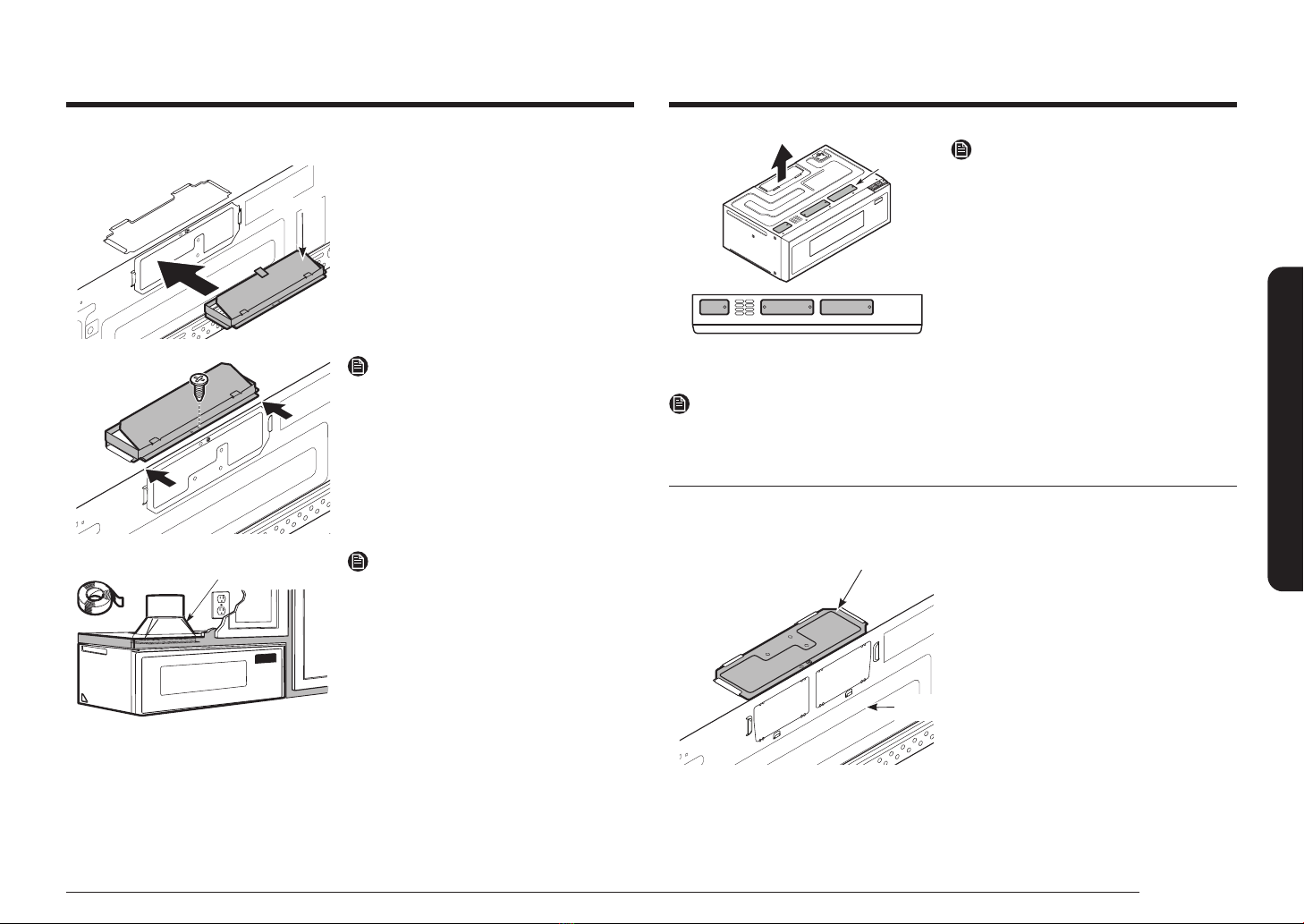

A. Outside top exhaust (vertical duct)

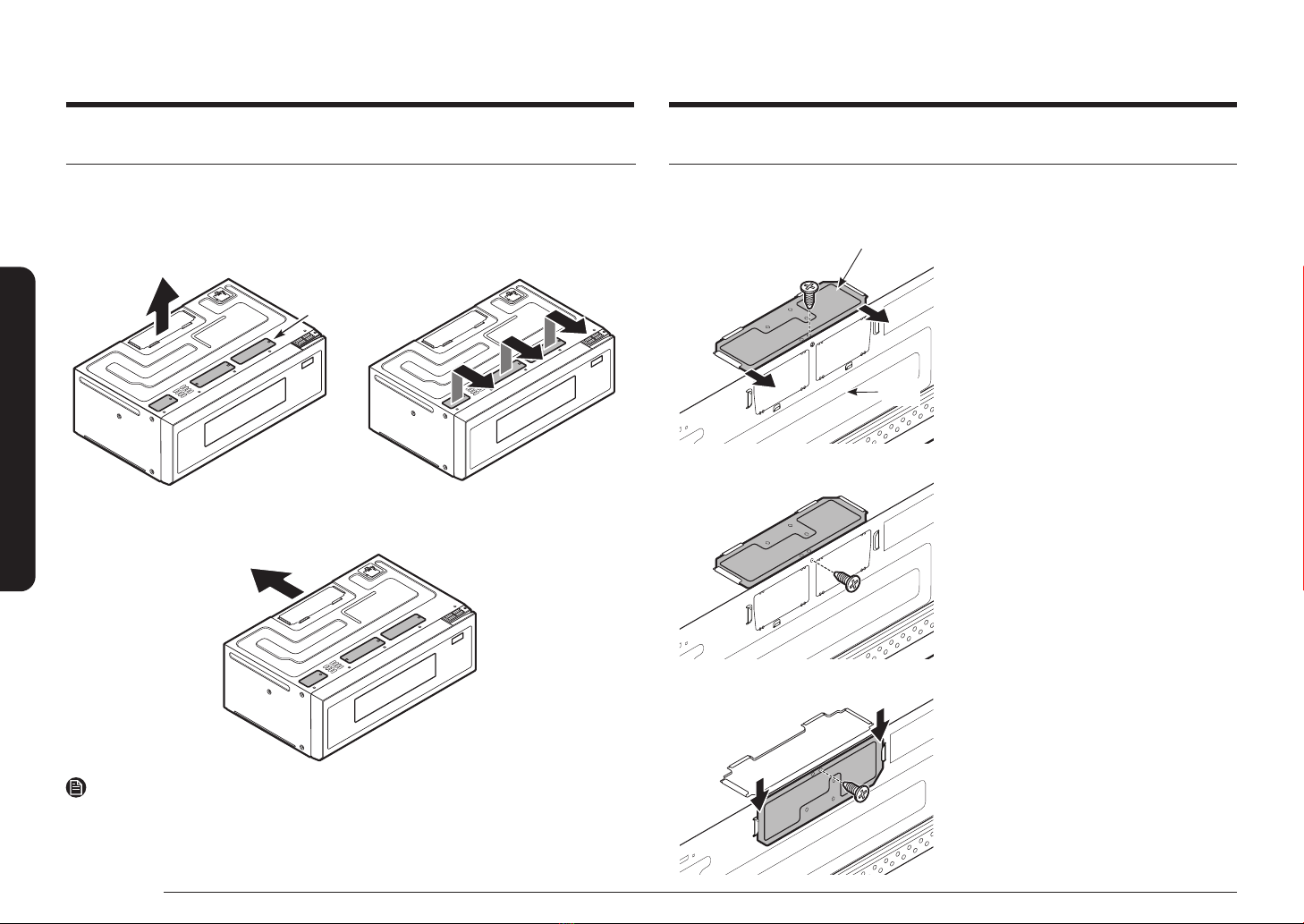

A1. ADAPTING THE COVER PANEL FOR THE EXHAUST ADAPTOR
Cover
Panel
Back
Panel
1. Remove 1 screw from Cover Panel
and take off Cover Panel.
2. Remove 1 screw from Back Panel.
3. Assemble the Cover Panel as sliding
from top to bottom and the screw
that was removed from Back Panel.

English 13
Step-by-step installation guide
Bracket
The marked Brackets should not
have Vent holes.
NOTE
You must check bracket picture according
to ventilation type at page 12.
NOTE
Apply A1 and A2 equally.
B. Recirculating (non-vented ductless)
B1. Adapting the COVER PANEL for recirculation
Cover
Panel
Back
Panel
1. Make sure the Cover Panel is
assembled properly. (Top assembly)
A2. INSTALLATION DAMPER
Damper
1. Remove the tape securing the
Damper.
2. Assemble the Damper as sliding from
back to front until stopped.
NOTE
Make sure Dampers swing freely.
House Duct
House Duct NOTE
• You must attach the House Duct to
the Exhaust Adaptor after installation
is complete.
• You must seal Exhaust Duct joints
using Duct Tape.

14 English
Step-by-step installation guide
Step-by-step installation guide
Plate
8EA
After removing Plates
2. Cut 8 area to remove plates using
nipper.
The marked Brackets should not
have Vent holes.
NOTE
You must check bracket picture according
to ventilation type at page 12.
The marked Brackets should have
Vent holes.
NOTE
• The Exhaust Adaptor with
the Damper is not needed for
recirculating type. You may want to
save them for possible future use.
• You must check bracket picture
according to ventilation type at page
12.
C. Outside back exhaust (horizontal duct)
C1. Adapting the COVER PANEL for outside back exhaust
1. Make sure the Cover Panel is
assembled properly. (Top assembly)

English 15
Step-by-step installation guide
Dim. Comparison
13
9
14
12
12
5
34
6
12
6
14
13
3 32
(332.4mm)
9 14
(235mm)
13
3
32
(332.4mm)
9 14
(235mm)
1
12
115 32
(37.3mm)
34
4
34
4
6
31 64
(164.5mm)
CUT OUT SLOT
FOR SMOOTH
FLAT BOTTOM
CABINETS ONLY
POWER
CORD
CUT OUT SLOT
FOR SMOOTH
FLAT BOTTOM
CABINETS ONLY
Screw exposure length
(Cabinet bottom to End of bolt)
without the Supporter.
2832 1
2632
~
(46mm)(22mm)
Screw exposure length
(Cabinet bottom to End of bolt)
when using the Supporter.
2832 1
3032
~
(49mm)(22mm)
NOTE
After assembling the screws in the D and E holes,
check the dimensions.
11
716
(290.75mm)
6
31 64
(164.5mm)
DE68-04708A-00
3 1/2˝
(88.7mm)
1 27/32˝
(47mm)
9 1/4˝
(235mm)
1 15/32˝
(37.3mm)
26 3/16˝
(664.8mm) 1 27/32˝
(47mm)
3. Remove the tape securing the
Damper.
4. Assemble the Damper as sliding from
top to bottom until stopped.
NOTE
Make sure Dampers swing freely.
Step 3. Installation
INSTALLATION OVERVIEW
F.CUT OUT FOR HORIZONTAL
OUTSIDEEXHAUSE
REAR WALL TEMPLATE
A. Prepare the Rear Wall (for outside
back exhaust/horizontal duct only).
B. Attach the Mounting Plate to the
Wall.
C. Prepare the Cabinet above.
D. Mount the Microwave Oven.
E. Connect the Ductwork (for outside
top exhaust/vertical duct only).

16 English
Step-by-step installation guide
Step-by-step installation guide
Bolt End
Mounting
Plate Toggle
Bolt
Wall
Toggle Wings
3. Place the mounting plate against
the wall, pinch the wings of each
toggle together, and then insert the
toggle wings of each toggle into and
through the holes in the wall.
NOTE
Before tightening the toggle bolts and
wood screw, make sure the bottom
of the Mounting plate runs along the
bottom Horizontal line of the “Rear wall
Template” and the Mounting plate is
properly centered under the cabinet.
CAUTION
Be careful to avoid pinching your ngers
between the back of the mounting plate
and the wall.
4. Tighten all bolts. Pull the plate away
from the wall to help tighten the
bolts. Tighten the screw.

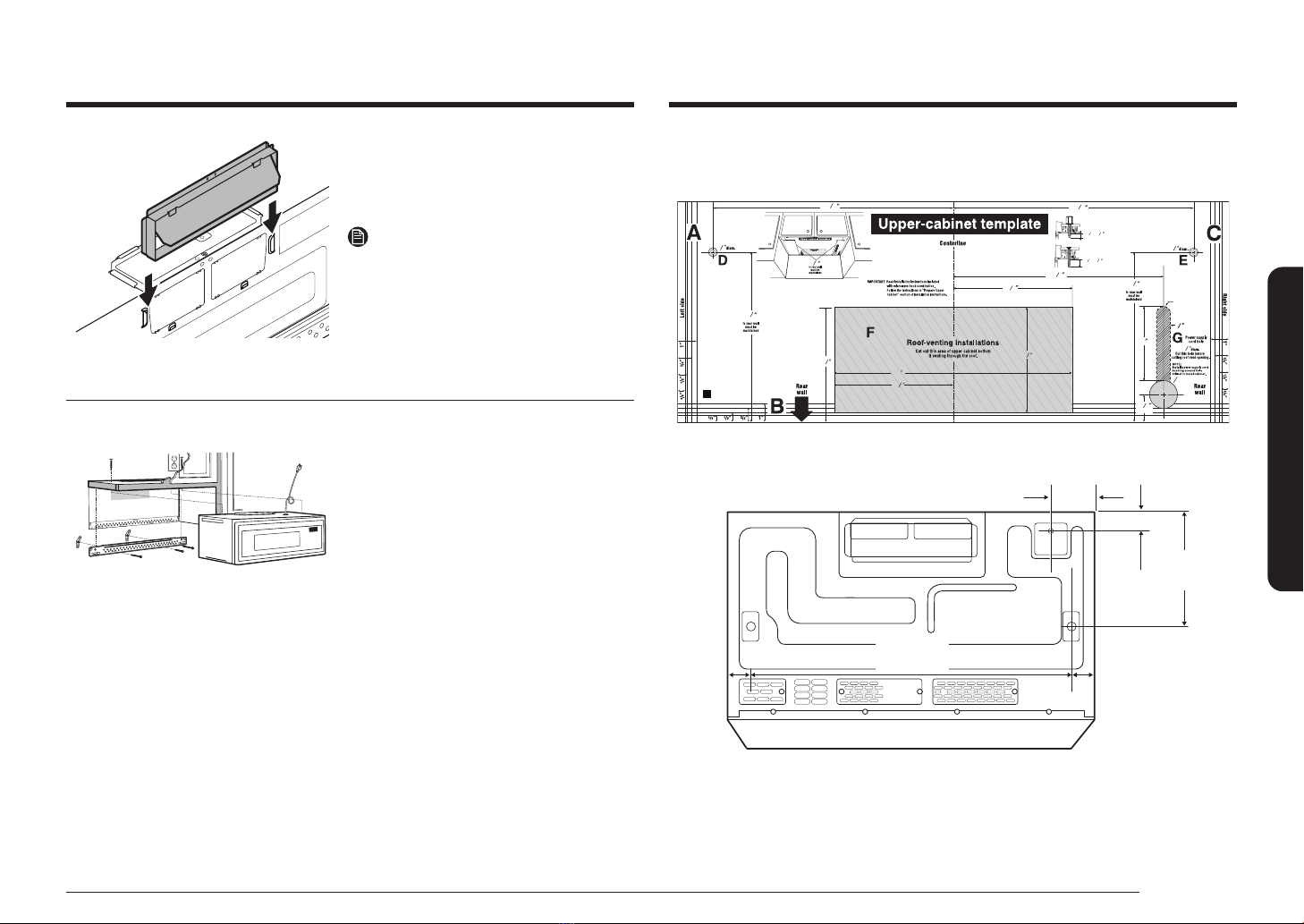

C. Use the top cabinet template to prepare the cabinet above
You need to drill holes for the top support screws and a hole large enough for the
power cord to t through.
• Read the instructions on the TOP
CABINET TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the
instructions on the TOP CABINET
TEMPLATE.
CAUTION
Wear safety goggles when drilling holes
in the cabinet bottom.
A. Prepare the rear wall for outside back exhaust
You need to cut an opening in the rear wall for outside exhaust.
C
L
• Read the instructions for outside
back exhaust on the REAR WALL
TEMPLATE.
• Tape the REAR WALL TEMPLATE to
the rear wall.
• Cut the opening, following the
instructions on the REAR WALL
TEMPLATE.
CAUTION
Do not cut an opening in the rear wall
if you are installing the microwave with
vertical duct or non-vented ductless
ventilation.
B. Attach the mounting plate to the wall
Attach the plate to the wall using toggle
bolts. At least one wood screw must be
used to attach the plate to a wall stud.
1. Remove the toggle wings from the
bolts.
2. Insert the bolts into the mounting
plate through the holes designated
to go into drywall, and then reattach
the toggle wings so that ¾˝ of the
bolt protrudes beyond the wing.

English 17
Step-by-step installation guide
Equivalent
to Depth
of Cabinet
Recess
Cabinet Bottom Shelf
Microwave Oven Top
Cabinet Front
Filler Block
Self-Aligning
Screw
1. Lift the microwave, tilt it forward,
and hook the slots at the back
bottom edge onto the four lower
tabs of the mounting plate.
2. Rotate the front of the oven up
against the cabinet bottom.
3. Insert a self-aligning screw
through the top center cabinet
hole. Temporarily secure the oven
by turning the screw at least two
full turns after the threads have
engaged. (It will be completely
tightened later.) Be sure to keep
the power cord tight. Be careful not
to pinch the cord, especially when
mounting ush to the bottom of
cabinet.
Thickness of cabinet
¹/~
15
/”
1
/16
~15/16 ˝
Supporter
NOTE
If Cabinet Thickness is
Under 1 ˝, Use Supporter.
1
~
2”
1~2˝
NOTE
If Cabinet Thickness
is over 1 ˝, Remove
Supporter from the Self-
Aligning Screw.
NOTE
The self-aligning screw can be installed up to 1 15/16 ˝ (49mm).
D. Mount the microwave oven
FOR EASIER INSTALLATION AND
PERSONAL SAFETY, WE RECOMMEND
THAT TWO PEOPLE INSTALL THIS
MICROWAVE OVEN.
IMPORTANT:Do not grip or use the
handle during installation.
NOTE
• If your cabinet is metal, use the
nylon grommet in the power cord
hole to prevent the cord from being
cut.
• Filler blocks are required when
mounting this unit under any cabinet
with a recessed bottom or front
overhang. (See page 10.)
IMPORTANT:The case damage that will
occur from over tightening
screws if you do not use
ller blocks is not covered
under warranty.
IMPORTANT:Be careful not to damage
the lower Lamp Glass during
handling.
NOTE
When mounting the microwave oven, thread the power cord through hole in the
bottom of the top cabinet. Keep it tight throughout Steps 1–3. Do not pinch the
cord or lift the oven by pulling cord.

18 English
Step-by-step installation guide
Step-by-step installation guideStep-by-step installation guide
E2. Grease Filter assembly method
1. Push the Grease Filter backward and
insert the Grease Filter until atness
with bottom surface of products.
F. Connect the ductwork for outside top exhaust
House Duct
House Duct 1. Extend the House Duct down to
connect to the Exhaust Adaptor.
2. Seal the exhaust duct joints using
duct tape.
4. Attach the microwave oven to the
top cabinet.
5. Insert the 2 self-aligning screws
through the cabinet bottom shelf and
ller block into the outer top cabinet
of the unit. Continue to support the
unit until both screws are inserted
and engaged at least two full turns,
then fully tighten all screws until the
unit is secure.
E. Installing the charcoal lters and Grease Filters
E1. Charcoal Filter assembly method
1. Insert the Charcoal Filter from the
back.
2. Raise the front of the Charcoal Filter
until it is at with the bottom, and
then pull it forward to lock it in
place.

English 19
Step-by-step installation guide
7. Keep installation instructions for the
local inspector’s use.
Step 4. Before you use your microwave
1. Make sure the microwave oven
has been installed according to
instructions.
2. Remove all packing material from the
microwave oven.
3. Install the turntable and ring in the
cavity.
4. Replace the house fuse or turn the
breaker back on.
Insure proper
ground exists
before use.
5. Plug the power cord into a dedicated
15 amp electrical outlet.
6. Read the Owner’s Manual.

Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or
maintenance.
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
U.S.A
Consumer Electronics 1-800-SAMSUNG (726-7864) www.samsung.com/us/support
CANADA 1-800-SAMSUNG (726-7864) www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
DE68-04709A-02
Scan the QR code* or visit
www.samsung.com/spsn
to view our helpful
How-to Videos and Live Shows
* Requires reader to be installed on your
smartphone
