Installation Instructions
Over The Range Microwave Oven
BEFORE YOU BEGIN (Read these instructions completely and carefully.)
IMPORTANT Save these instructions for local inspector’s use.
IMPORTANT Observe all governing codes and ordinances.
• Note to Installer - Be sure to leave these instructions with the Consumer.
• Note to Consumer - Keep these instructions for future reference.
• Skill level - Installation of this appliance requires basic mechanical and electrical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
READ CAREFULLY. KEEP THESE INSTRUCTIONS.
SMH1927_XAC_DE68-04108D-02_EN+CFR.indb 1SMH1927_XAC_DE68-04108D-02_EN+CFR.indb 1 2022-01-20 오전 10:26:092022-01-20 오전 10:26:09

2
Contents
1. Placement of the mounting plate. . . . . . 8
A. Removing the microwave oven from the
carton/Removing the mounting plate. . . . 8
B. Finding the wall studs . . . . . . . . . . . . . . . . 8
C. Determining wall plate location under your
cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
D. Aligning the wall plate. . . . . . . . . . . . . . . 10
2. Ventilation types (choose a, b or c) . . . 11
A. Outside top exhaust (vertical duct) . . . . 12
A1. Installation procedure for the exhaust
adaptor and proper damper operation
check . . . . . . . . . . . . . . . . . . . . . . . . . . 12
A2. Adjust the exhaust adaptor . . . . . . . . 12
B. Recirculating (non-vented ductless). . . . 12
B1. Adapting the microwave blower for
recirculation . . . . . . . . . . . . . . . . . . . . . 12
B2. Installing the charcoal filter. . . . . . . . . 13
C. Outside back exhaust (horizontal duct) . 14
C1. Adapting the microwave blower for
outside back exhaust . . . . . . . . . . . . . 14
3. Installation . . . . . . . . . . . . . . . . . . . . . . . 15
A. Preparing the rear wall for outside back
exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . 15
B. Attach the mounting plate to the wall . . 15
C. Use the top cabinet template to prepare the
top cabinet. . . . . . . . . . . . . . . . . . . . . . . . 16
D. Mount the microwave oven . . . . . . . . . . 16
E. Connecting ductwork for outside top
exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4. Before you use your microwave . . . . . 18
Step-by-step installation guide
Important safety instructions. . . . . . . . . . . 3
Electrical requirements. . . . . . . . . . . . . . . . 3
Hood exhaust. . . . . . . . . . . . . . . . . . . . . . . . 4
Damage - Shipment/Installation . . . . . . . . 6
Parts included . . . . . . . . . . . . . . . . . . . . . . . 6
Tools you will need . . . . . . . . . . . . . . . . . . . 7
Mounting space. . . . . . . . . . . . . . . . . . . . . . 7
General information
SMH1927_XAC_DE68-04108D-02_EN+CFR.indb 2SMH1927_XAC_DE68-04108D-02_EN+CFR.indb 2 2022-01-20 오전 10:26:092022-01-20 오전 10:26:09

3
General information

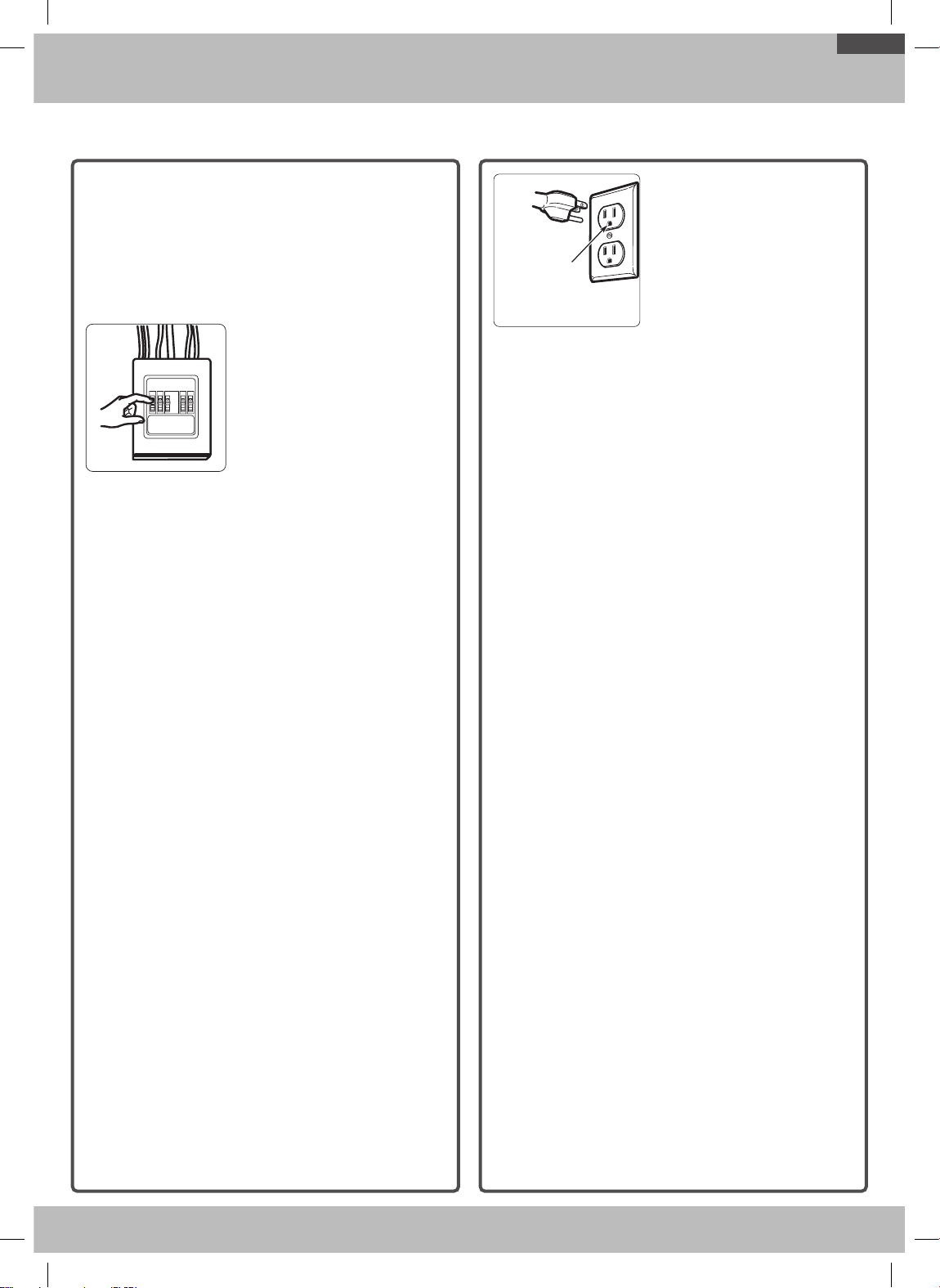

IMPORTANT SAFETY INSTRUCTIONS
This product requires a three-prong grounded outlet.
The installer must perform a ground continuity check on
the power outlet box before beginning the installation
to insure that the outlet box is properly grounded. If
not properly grounded, or if the outlet box does not
meet electrical requirements noted (under ELECTRICAL
REQUIREMENTS), a qualified electrician should be
employed to correct any deficiencies.
Insure proper
ground exists
before use
CAUTION: For personal
safety, remove house fuse or
open circuit breaker before
beginning installation to
avoid severe or fatal shock
injury.
CAUTION: For personal safety, the mounting
surface must be capable of supporting the cabinet
load, in addition to the added weight of this 69
pound product, plus additional oven loads of up to
50 pounds or a total weight of 109 pounds.
CAUTION: For personal safety, this product cannot
be installed in cabinet arrangements such as an
island or a peninsula. It must be mounted to BOTH
a top cabinet AND a wall.
NOTE: For easier installation and personal safety,
it is recommended that two people install this
product.
IMPORTANT – PLEASE READ CAREFULLY. FOR
PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED TO AVOID SEVERE OR
FATAL SHOCK.
Insure proper
ground exists
before use
Insure proper
ground exists
before use.
The power cord of this
appliance is equipped with a
three-prong (grounding) plug
which mates with a standard
three-prong (grounding) wall
receptacle to minimize the
possibility of electric shock
hazard from this appliance.
You should have the wall receptacle and circuit
checked by a qualified electrician to make sure the
receptacle is properly grounded.
If you have a standard two-prong wall receptacle,
it is very important to have it replaced with a
properly grounded three-prong wall receptacle,
installed by a qualified electrician.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT,
DEFORM OR REMOVE ANY OF THE PRONGS
FROM THE POWER CORD. DO NOT USE WITH AN
EXTENSION CORD.
ELECTRICAL
REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz. This product
must be connected to a supply circuit of the proper
voltage and frequency. Wire size must conform to the
requirements of the National Electrical Code or the
prevailing local code for this kilowatt rating. The power
supply cord and plug should be brought to a separate
branch circuit single grounded outlet of at least 15 A
and max of 20 A. 20 A is recommended for multifamily
buildings. The outlet box should be located in the
cabinet above the microwave oven. The outlet box and
supply circuit should be installed by a qualified electrician
and conform to the National Electrical Code or the
prevailing local code.
