Samsung XNO-6080R User manual

NETWORK CAMERA
User Manual
XNO-6080R/XNO-8080R

Copyright
©2017Hanwha Techwin Co., Ltd. All rights reserved.
Trademark
Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their
respective company.
Restriction
Copyright of this document is reserved. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without
formal authorization.
Disclaimer
Hanwha Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be
provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Hanwha Techwin reserves the
right to change the contents of this document without prior notice.
Design and specications are subject to change without prior notice.
The initial administrator ID is“admin”and the password should be set when logging in for the rst time.
Please change your password every three months to safely protect personal information and to prevent the damage of the information
theft.
Please, take note that it’s a user’s responsibility for the security and any other problems caused by mismanaging a password.
Network Camera
User Manual

English _3
●●OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean the contaminated area on the product surface with a soft, dry cloth or a damp cloth.
(Do not use a detergent or cosmetic products that contain alcohol, solvents or surfactants or oil constituents
as they may deform or cause damage to the product.)
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
15. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” and rated
from 24 Vac (50/60 Hz) min.1.05 A or 12 Vdc, min.1.12 A.
16. If you use excessive force when installing the product, the camera may be damaged and malfunction.
If you forcibly install the product using non-compliant tools, the product may be damaged.
17. Do not install the product in a place where chemical substances or oil mist exists or may be generated. As
edible oils such as soybean oil may damage or warp the product, do not install the product in the kitchen or
near the kitchen table.
This may cause damage to the product.
18. When installing the product, be careful not to allow the surface of the product to be stained with chemical
substance.
Some chemical solvents such as cleaner or adhesives may cause serious damage to the product’s surface.
19. If you install/disassemble the product in a manner that has not been recommended, the production functions/
performance may not be guaranteed.
Install the product by referring to “Installation & connection” in the user manual.
20. Installing or using the product in water can cause serious damage to the product.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE
VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
To prevent injury, this apparatus must be securely attached to the Wall/ceiling in accordance
with the installation instructions.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the product.
overview

overview
4_ overview
Class construction
An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a
protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as
sunshine, fire or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call a repair man in
your location.
When used outside of the U.S., it may be used HAR code with fittings of an approved
agency is employed.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than that contained in
the operating instructions unless you are qualified to do so.
The CVBS out terminal of the product is provided for easier installation, and is not
recommended for monitoring purposes.
Please use the input power with just one camera and other devices must not be connected.
The ITE is to be connected only to PoE networks without routing to the outside plant.
Please read the following recommended safety precautions carefully.
yDo not place this apparatus on an uneven surface.
yDo not install on a surface where it is exposed to direct sunlight, near heating equipment or
heavy cold area.
yDo not place this apparatus near conductive material.
yDo not attempt to service this apparatus yourself.
yDo not place a glass of water on the product.
yDo not install near any magnetic sources.
yDo not block any ventilation openings.
yDo not place heavy items on the product.
yPlease wear protective gloves when installing/removing the camera.
The high temperature of the product surface may cause a burn.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
yReference : In case of providing information for helping of product’s usages
yNotice : If there’s any possibility to occur any damages for the goods and human caused by
not following the instruction
Please read this manual for the safety before using of goods and keep it in the safe place.

English _5
●●OVERVIEW
CONTENTS
overview
3
3Important Safety Instructions
6Product Features
6Recommended PC Specifications
6Recommended Micro SD/SDHC/SDXC
Memory Card Specifications
6NAS recommended specs
7What’s Included
8At a Glance
installation & connection
9
9Installation
10 Inserting/Removing a Micro SD Memory
Card
10 Memory Card Information (Not Included)
11 Connecting with other Device
network connection and
setup
14
14 Connecting the Camera Directly to Local
Area Networking
14 Connecting the Camera Directly to a DHCP
Based DSL/Cable Modem
15 Connecting the Camera Directly to a
PPPoE Modem
15 Connecting the Camera to a Broadband
Router with the PPPoE/Cable Modem
16 Buttons used in IP Installer
16 Static IP Setup
18 Dynamic IP Setup
18 Port Range Forward (Port Mapping) Setup
19 Connecting to the Camera from a Shared
Local PC
19 Connecting to the Camera from a Remote
PC via the Internet
web viewer
20
20 Connecting to the Camera
21 Password setting
21 Login
21 Plug-in support specifications for each
browser
22 Installing WebViewer Plugin
22 Using a Plug-in Free Webviewer
22 Using the Live Screen
25 Playing the recorded video
setup screen
27
27 Setup
27 Basic Setup
31 PTZ setup
32 Video & Audio setup
38 Network Setup
41 Event Setup
43 NAS (Network Attached Storage) guide
46 Configure analysis settings
50 System Setup
52 Open Platform Setup
appendix
53
53 Specification
55 Product Overview
56 Troubleshooting
57 Open Source Announcement

overview
6_ overview
PRODUCT FEATURES
•Dustproof/Waterproof (IP67, IP66)
The dustproof and waterproof design makes you feel at ease when installing the product outdoors or exposing
it to rain.
•IR mode
If the IR indicator turns on, the product switches to the IR mode for preventing an object from being too bright,
which helps you identify the object in near distance.
•Supports 2M pixel resolution videos (XNO-6080R)
•Supports 5M pixel resolution videos (XNO-8080R)
•Multi-Streaming
This network camera can display videos in different resolutions and qualities simultaneously using different
CODECs.
•Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
•Alarm
When an event occurs, video is either sent to the email address registered by the user, sent to the FTP server,
saved in a Micro SD card or NAS, or a signal is sent to the alert output terminal.
•Tampering Detection
Detects tempering attempts on video monitoring.
•Defocus detection function
Detects the defocus phenomenon of the camera lens.
•Motion Detection
Detects motion from the camera’s video input.
•Audio Detection
Detects sound louder than a certain level specified by user.
•Smart Codec
Adaptively applies codecs for a portion of the camera’s field of view to improve the quality of such area specified
by user.
•Auto Detection of Disconnected Network
Detects network disconnection before triggering an event.
•Fog detection
Detects fog that is heavier than the detection level.
•Face Detection
Detects faces in the specified area from the camera’s video input.
•IVA (Intelligent Video Analysis) function
Detects a motion or situation that meets the configured event rules.
•Sound source classification
Detects a sound source specified by the user.
•ONVIF Compliance
This product supports ONVIF Profile S&G.
For more information, refer to www.onvif.org.
RECOMMENDED PC SPECIFICATIONS
•CPU : Intel(R) Core(TM) i7 3.4 GHz or higher
•RAM : 8G or higher
•Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
•Plug-in free web viewer
Supported web browsers : Google Chrome, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari 9 (Mac
OS X only)
•Plug-in Webviewer
Supported web browsers : MS Explorer 11, Apple Safari 9 (Mac OS X only)
RECOMMENDED MICRO SD/SDHC/SDXC MEMORY CARD
SPECIFICATIONS
•Recommended capacity : 16GB to 256GB (MLC type)
•The following types of memory cards from the following manufacturers are recommended for this camera.
- Manufacturer : SanDisk, Transcend
- Product family : High endurance
NAS RECOMMENDED SPECS
•Recommended capacity : 200GB or higher is recommended.
•Simultaneous access : One unit of NAS can accept a maximum of sixteen camera accesses.
•For this camera, you are recommended to use a NAS with the following manufacturer’s specs.
Recommended products Available sizes
QNAP NAS A maximum of 16 cameras can access simultaneously.
Synology NAS A maximum of 16 cameras can access simultaneously.
J
`If you use NAS equipment for purposes other than video saving, the number of accessible cameras may be reduced.

English _7
●●OVERVIEW

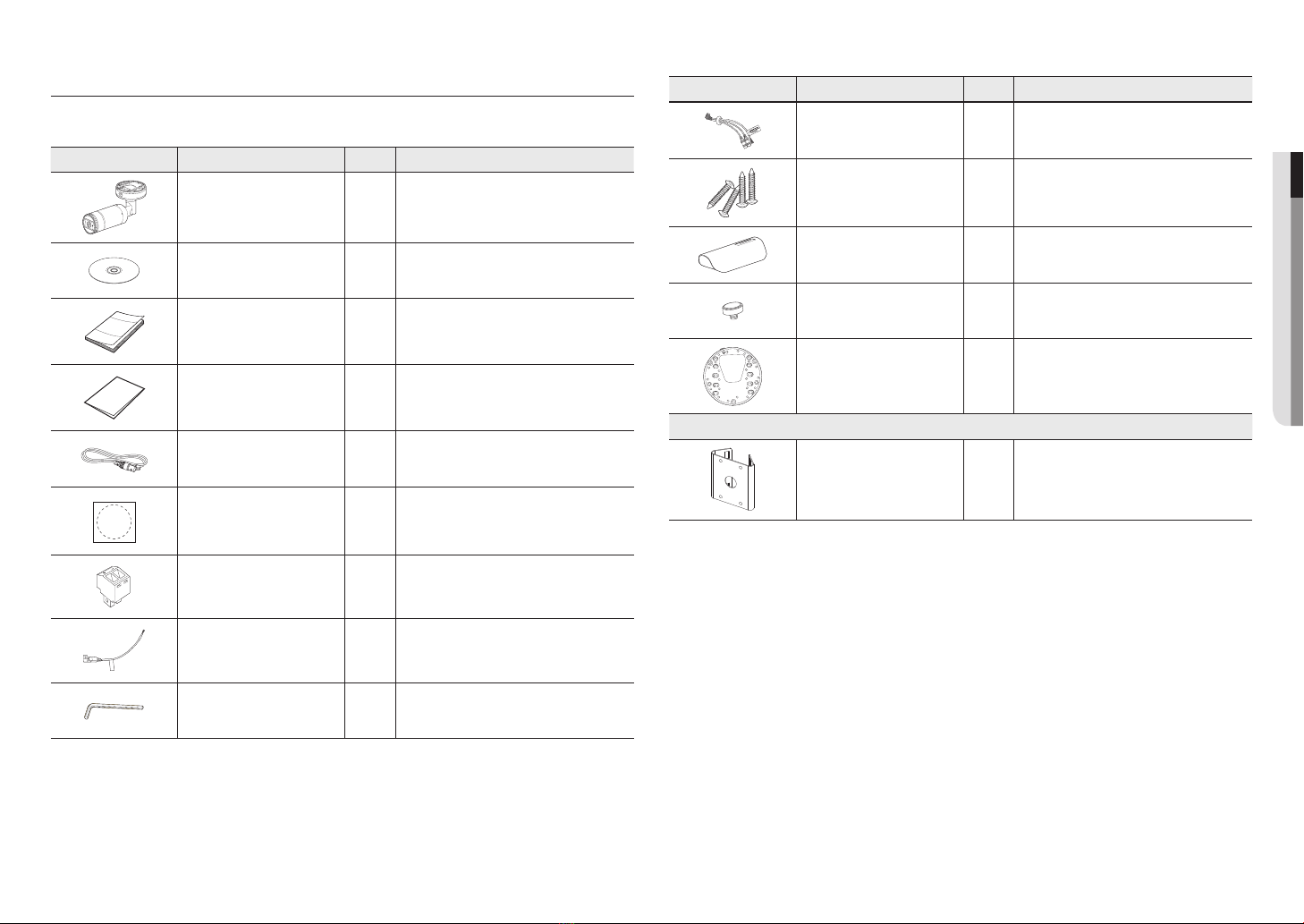

WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
(As for each sales country, accessories are not the same.)
Appearance Item Name Quantity Description
Camera 1
Instruction book,
Installer S/W CD
1
Quick Guide
(Optional)
1
Warranty card
(Optional)
1
Cable for the testing monitor 1
Used to test the camera connection to a portable
display device
Template 1 Product installation guide
Power Terminal Block 1 Plugged in the power plug
CAUTION: Be ware of th e
RatedVol tage and Po larity
ofthe pow er connec tion.
Power Cable 1 Used to plug into the power port
L Wrench 1 Used to control the direction of the camera
Appearance Item Name Quantity Description
Audio/alarm cable 1 Used to connect with the audio and alarm port
Tapping Screw 4 Used for installation on the wall or ceiling
Sunshield 1 It protects the camera from the direct sunlight.
Sunshield Hold 1 It fixes the sunshield with the camera.
CONDUIT
BASE WALL MOUNT 1
Options (not included)
Pole mount bracket Cylindrical pole mounting bracket

overview
8_ overview

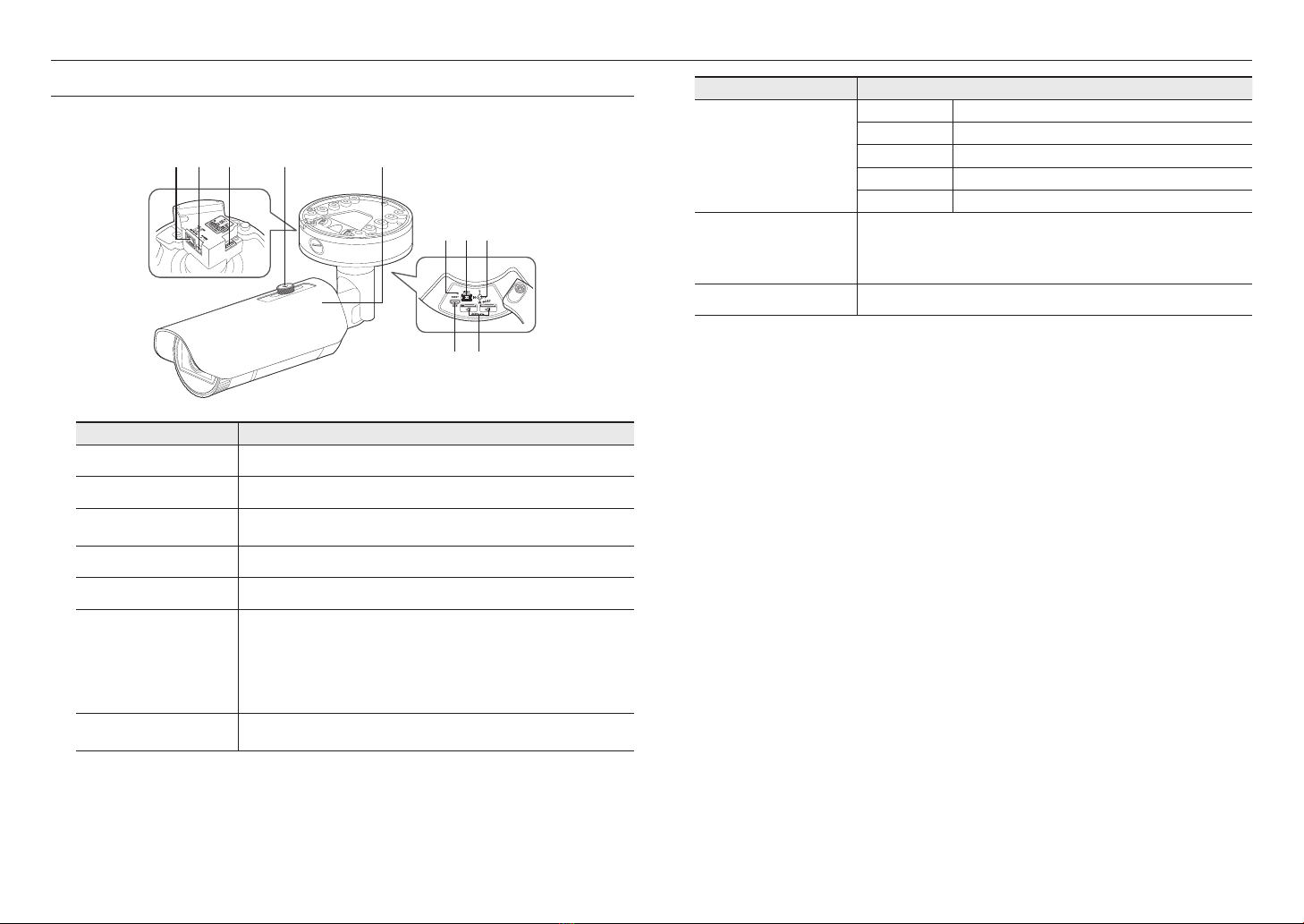

AT A GLANCE
Appearance & Components
Item Description
a
Network Port Used to connect the PoE or Ethernet cable for network connection.
b
Power Port Used to plug the power cable.
c
Audio and alarm cable port Plug in the audio and alarm cable to this port to connect with external alarm device/
microphone/speaker.
d
Sunshield Hold It fixes the sunshield with the camera.
e
Sunshield It protects the camera from the direct sunlight.
f
Reset Button
The button restores all camera settings to the factory default.
Press and hold for about 5 seconds to reboot the system.
JIf you reset the camera, the network settings will be adjusted so that DHCP can be
enabled. If there is no DHCP server in the network, you must run the IP Installer
program to change the basic network settings such as IP address, Subnet mask,
Gateway, etc., before you can connect to the network.
g
Test Monitor Out Output port for test monitoring the video output. Use the test monitor cable to connect to a
mobile display and check the test video.
Item Description
h
Zoom/Focus Control Button
T Zoom in (Tele)
W Zoom out (Wide)
N Focusing on a near object (Near)
F Focusing on a far object (Far)
Focus Control Press this button for automatic focus control.
i
MICRO USB port
Port to connect the Wi-Fi dongle.
You can check the installation video through the applications installed in the smartphone.
Refer to “Connect to WiFi dongle” on page 11.
`Wifi dongle and OTG gender are sold separately.
j
Micro SD card slot This is a slot in which you can insert a Micro SD card.
M
`Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied ethanol.
d e
fgh
b ca
i j

English _9
●●INSTALLATION & CONNECTION
installation & connection
INSTALLATION
J
`This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are
recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
Precautions before installation
Ensure you read out the following instructions before installing the camera:
•It must be installed on the area (ceiling or wall) that can withstand 5 times the weight of the camera
including the installation bracket.
•Stuck-in or peeled-off cables can cause damage to the product or a fire.
•For safety purposes, keep anyone else away from the installation site.
And put aside personal belongings from the site, just in case.
•Do not use the sunshield hole for any purpose other than for connecting the sunshield.
•If you use excessive force when installing the product, the camera may be damaged and malfunction.
If you forcibly install the product using non-compliant tools, the product may be damaged.
Installation
1. Fix the Bottom cover using the 4 tapping screws provided.
2. Hang the safety cable up on a hook that looks like an arrow in the
Bottom cover.
3. Connect the appropriate cables with camera terminals.
4. Tighten the 3 screws on the Top cover using the L wrench
provided.
5. Adjust the camera direction using the L wrench provided.
J
`When you adjust the camera position using a bracket, please loosen the
bracket screw, adjust the camera, and tighten it. If you attempt to adjust it
forcibly while the screw is tight, it may result in a scratch or other problems.
Outdoor installation
When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be
purchased in stores) so that water does not leak from the gap of the cable connected to the outside.
1. Connect to cables, such as I/O and audio.
2. Wrap the black cable jacket (Area A) and the cable connection
area with waterproof (butyl rubber) tape so that more than half of
the butyl rubber tape is overlapped.
J
`If the cable jacket is not waterproofed properly, then it can directly cause
leakage. Make sure to protect the cable with a dense layer of taping.
`Waterproof butyl tape is made of butyl rubber that can be stretched to twice its normal length.
CONDUIT
Camera
Camera
Camera
System
System
System
AA

installation & connection
10_ installation & connection
INSERTING/REMOVING A MICRO SD MEMORY CARD
J
`Disconnect the power cable from the camera before inserting the Micro SD memory card.
`Do not insert the Micro SD memory card while it’s upside down by force.
Otherwise, it may damage the Micro SD memory card.
`When it rains or the humidity is high, insertion or ejection of a Micro SD card is not recommended.
Inserting a Micro SD Memory Card
Insert a Micro SD card in the arrow direction shown in the figure.
Removing a Micro SD Memory Card
Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory
card from the slot.
J
`Pressing too hard on the Micro SD memory card can cause the card to shoot out uncontrollably from the slot when released.
`Before removing your Micro SD memory card, turn off the camera or go to <Storage>, turn the device off, and press the
[Apply] button. (Page 42)
`If you turn off the camera or remove the Micro SD memory card that contains data from the product, the data may be lost or
damaged.
MEMORY CARD INFORMATION (NOT INCLUDED)
What is a memory card?
The memory card is an external data storage device that has been developed to offer an entirely new way to
record and share video, audio, and text data using digital devices.
Selecting a memory card that’s suitable for you
Your camera supports Micro SD/SDHC/SDXC memory cards.
You may, however, experience compatibility issues depending on the model and make of the memory card.
The following types of memory cards from the following manufacturers are recommended for this camera.
- Manufacturer : SanDisk, Transcend
- Product family : High endurance
It is recommended to use a 16GB to 256GB (MLC type) memory card for this camera.
Playback performance can be affected depending on the speed of memory card.
Memory Card Components
Micro SD/SDHC/SDXC
Contacts

English _11
●●INSTALLATION & CONNECTION

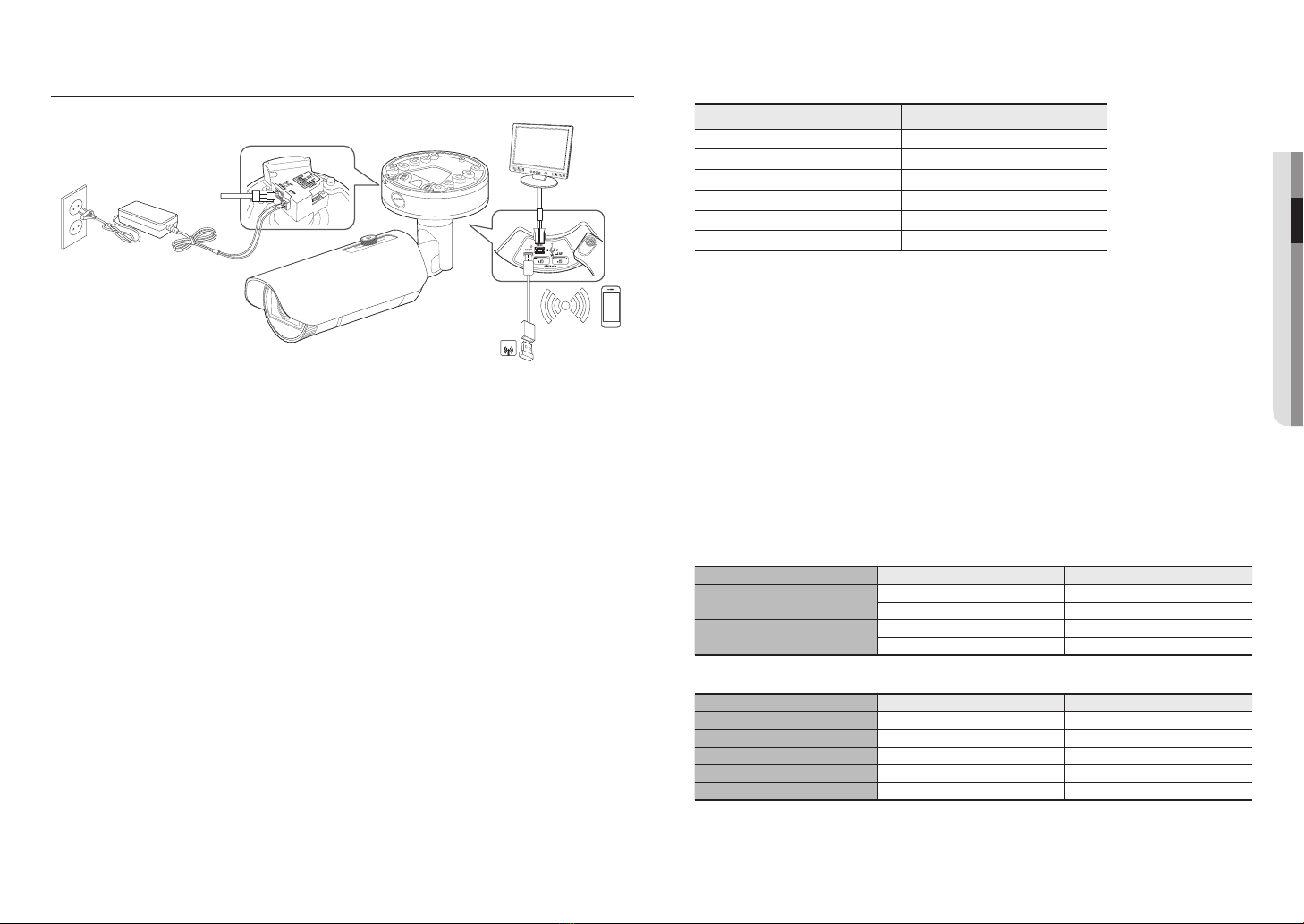

CONNECTING WITH OTHER DEVICE
J
`The CVBS out terminal of the product is provided for easier installation, and is not recommended for monitoring purposes.
`The Micro USB out terminal of the product is provided for easier installation, and is not recommended for monitoring
purposes.
Ethernet Connection
Connect the Ethernet cable to the local network or to the Internet.
Connecting Wi-Fi
Camera Setup
1. Connect OTG gender (5-pin) and WiFi dongle to the micro USB terminal.
Smartphone Setup
1. Install the Wisenet Installation application.
2. Select the camera SSID after turning on the WiFi.
3. Run the Wisenet Installation application.
4. When you log in to the camera, the video will be connected. (initial password: 4321)
`The video will be played without being logged in during the initial connection.
5. The camera angle can be adjusted through the smartphone video.
SOFT AP
Monitor to install
Ethernet
Power
Wi-Fi dongle
Recommended dongle manufacturer
Manufacturer Model
NETIS WF2123 n300
EDIMAX EW-7811Un
IP Time N100mini
TP-LINK TL-WN823N V1
ASUS USB-N13
NETGEAR WNA3100M
Power Supply
Use the screwdriver to connect each line (+, –) of the power cable to the corresponding power port of the
camera.
J
`When supplying PoE and DC 12V or PoE and AC 24V power at the same time, the equipment is powered by the external
source (AC 24V, DC 12V).
-You can also use a router featuring PoE to supply power to the camera.
-Use PoE that is compliant with the IEEE 802.3af protocols.
-It is recommended to use a single source for powering the equipment among PoE, DC 12V and AC 24V.
`Be careful not to reverse the polarity when you connect the power cable.
`AC 24V can be connected in non-polar union.
`If you want to connect an external device, you must turn off the external device before proceeding.
`Connect the set and the adapter power line first, and then connect the power cable to the outlet on the wall.
Power Cable Specification for Each Model
Input power Wire Type (AWG) Cable Length (Max.)
DC 12V #18 19m
#16 30m
AC 24V #20 26m
#18 40m
Network Cable Specification
Item Contents Remark
Connector RJ45
Ethernet 10/100Base-T 10/100 Mbps
Cable UTP Category 5e
Max Distance 100M
PoE Support IEEE 802.3af

installation & connection
12_ installation & connection

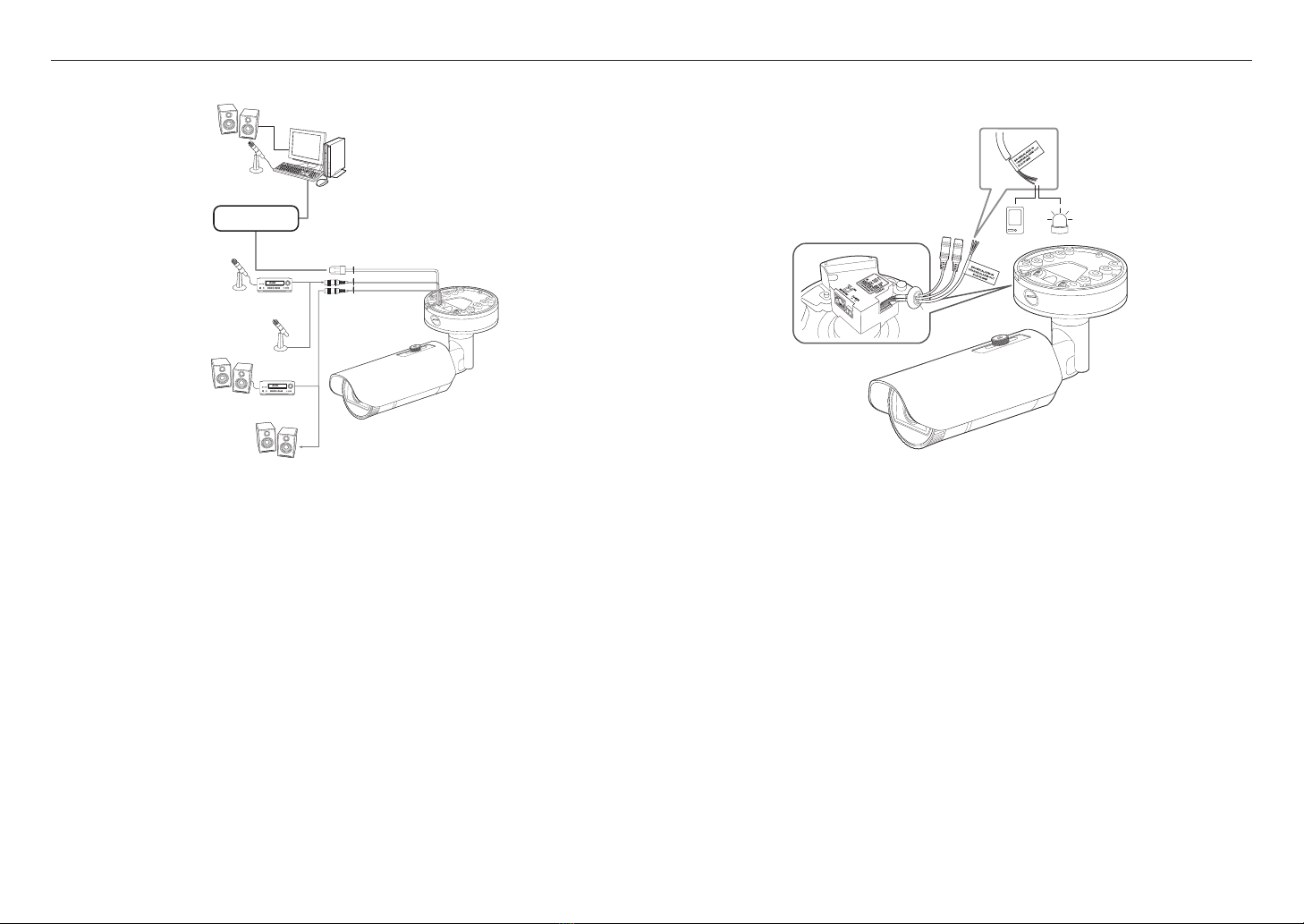

Connecting to Audio Input/Output
1. Connect the AUDIO IN port of the camera with the microphone or LINE OUT port of the amplifier that the
microphone is connected to.
2. Connect the AUDIO OUT port of the camera with the speaker or LINE IN port of the amplifier that the
speaker is connected to.
3. Check the specifications for audio input.
•Audio Codec
- Audio In : G.711 PCM (Bit Rate: 64kbps / Sampling Frequency: 8kHz), G.726 ADPCM (Bit Rate:
16Kbps, 24Kbps, 32Kbps, 40Kbps / Sampling Frequency: 8kHz), AAC (Bit Rate: 48Kbps / Sampling
Frequency: 16kHz)
- Audio Out : G.711 PCM (Bit Rate: 64kbps / Sampling Frequency: 8kHz)
•Full duplex Audio
•Audio in : Selectable (microphone/Line-in), Supported voltage: 2.5VDC (4mA), Input impedance: 2K Ohm
•Audio out : Line-out (3.5mm mono jack), Maximum output: 1Vms
•Line out impedance : 600Ω
Connecting to the I/O port box
Connect the Alarm I/O cable to the corresponding port of the port box.
•ALARM-IN : Used to connect the alarm input sensor or external day/night sensor.
•ALARM-OUT : Used to connect the alarm output signal.
•GND : Common port for alarm in/output signal.
J
`If devices (e.g., flashing light and siren) that exceed the voltage and current specifications are connected by using the open
collector method, it may cause malfunction.
Refer to the “Alarm Out Wiring Diagram” when connecting devices that exceed the voltage and current specifications. (page 13)
To connect the external sensor
Connect one strand of each signal line (2-strand) of the sensors to the [ALARM IN] port, and connect the
other strand to the [GND] port.
Network
Speaker
Microphone
Microphone
Microphone
Amp
AmpSpeaker
Speaker
PC
Sensor
Alarm
(Warning lamp)

English _13
●●INSTALLATION & CONNECTION
Alarm In Wiring Diagram
To connect the alarm out
If devices (e.g., flashing light and siren) that exceed the voltage and current specifications are connected by
using the open collector method, it may cause malfunction.
Refer to the alarm out connection diagram below when connecting devices that exceed the voltage and
current specifications.
Alarm Out Wiring Diagram
Sensor
GND
RESISTORALARM IN (5mA SINK)
RESISTOR RESISTOR
VCC_3.3V
DIODE
GND
MLCC TRANSISTOR
External
connection
Inside of the camera
Warning lamp /
Siren power
Warning lamp /
Siren
( - ) ( + )
ALARM OUT (12VDC 20mA MAX)
RESISTOR 10K ohm
DIODE
RELAY
DC 5V or 3.3V
TRANSISTOR
GND
GND
TRANSISTOR
External connection Inside of the camera
GND
RESISTOR

14_ network connection and setup
network connection and setup

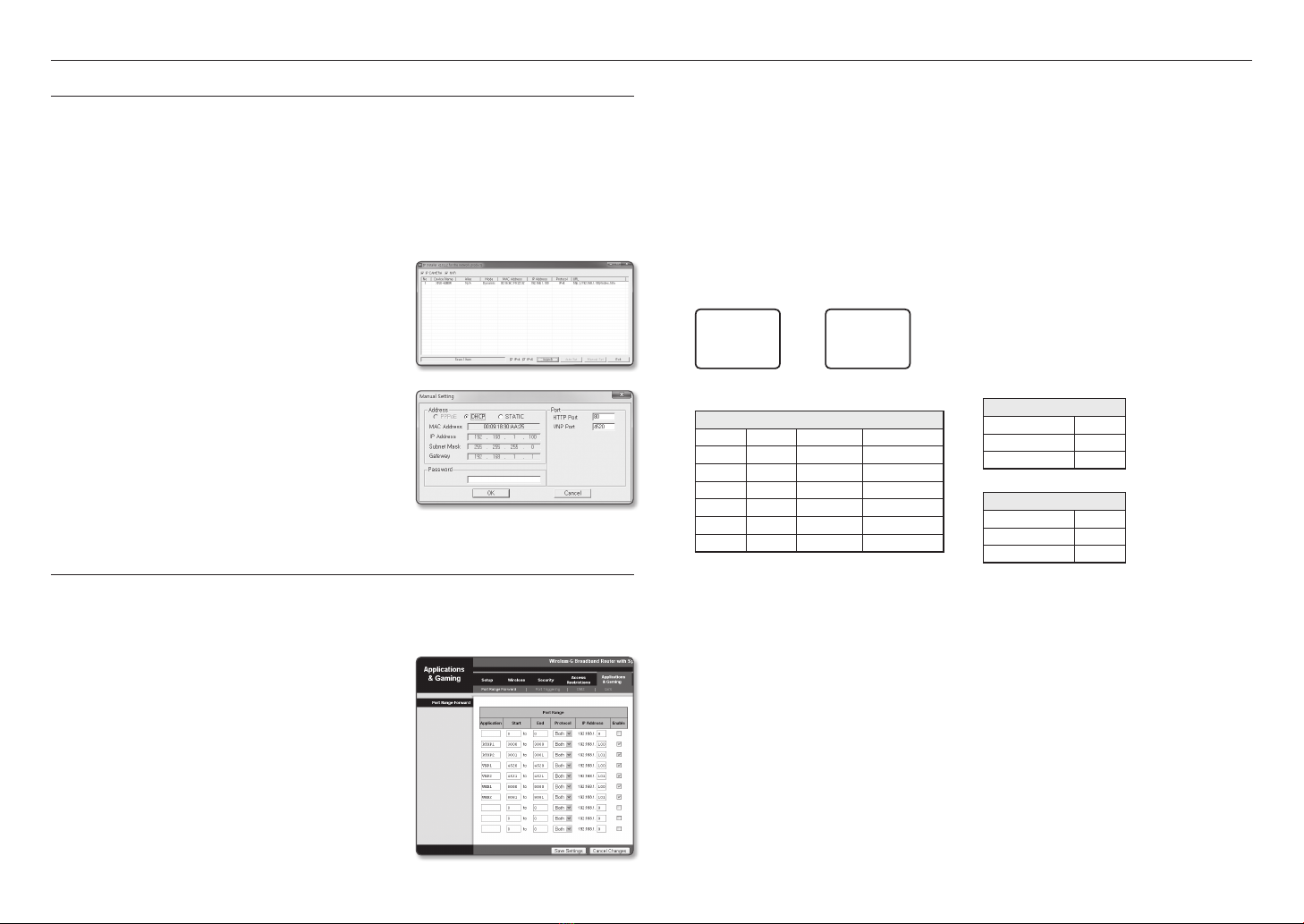

You can set up the network settings according to your network configurations.

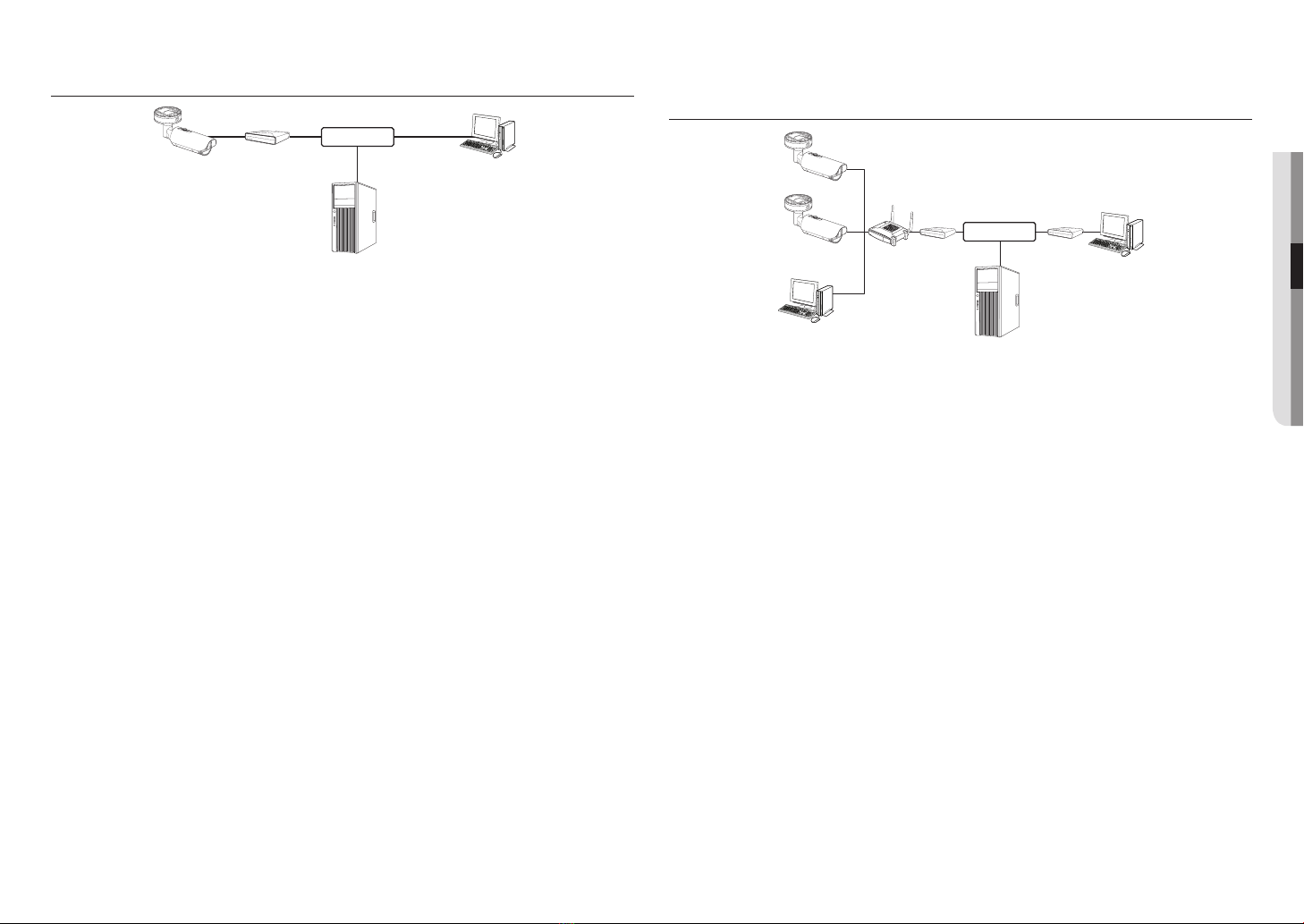

CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING
Connecting to the camera from a local PC in the LAN
1. Launch an Internet browser on the local PC.
2. Enter the IP address of the camera in the address bar of the browser.
M
`A remote PC in an external Internet out of the LAN network may not be able to connect to the camera installed in the intranet
if the port-forwarding is not properly set or a firewall is set.
In this case, to resolve the problem, contact your network administrator.
`In the IP installer, you can use the initial password, “4321” to set IP Address, Subnet Mask, Gateway, HTTP Port, VNP Port, IP
type. After changing the network interface, for better security, access the web viewer and change the password.
`By factory default, the IP address will be assigned from the DHCP server automatically.
If there is no DHCP server available, the IP address will be set to 192.168.1.100.
To change the IP address, use the IP Installer.
For further details on IP Installer use, refer to “Static IP Setup”. (Page 16)
CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE
MODEM
1. Connect the user PC directly with the network camera.
2. Run the IP Installer and change the IP address of the camera so that you can use the web browser on
your desktop to connect to the Internet.
3. Use the Internet browser to connect to the web viewer.
4. Move to [Setup] page.
5. Move to [Network] – [DDNS] and configure the DDNS settings.
6. Move to [Basic] – [IP & Port], and set the IP type to [DHCP].
7. Connect the camera, which was removed from your PC, directly to the modem.
8. Restart the camera.
M
`For configuring the DDNS settings, refer to “DDNS”. (page 38)
`For registering the DDNS settings, refer to “Registering with DDNS”. (page 38)
`Refer to “IP & Port” for how to setup IP. (page 30)
<Local Network>
Camera
Camera
Local PC
INTERNET
External Remote PC
DDNS Server
(Data Center, KOREA)
Camera External Remote PC
DDNS Server
(Data Center, KOREA)
DSL/Cable Modem
INTERNET

English _15
●●NETWORK CONNECTION AND SETUP
CONNECTING THE CAMERA DIRECTLY TO A PPPoE MODEM
1. Connect the user PC directly with the network camera.
2. Run the IP Installer and change the IP address of the camera so that you can use the web browser on
your desktop to connect to the Internet.
3. Use the Internet browser to connect to the web viewer.
4. Move to [Setup] page.
5. Move to [Network] – [DDNS] and configure the DDNS settings.
6. Move to [Basic] – [IP & Port] Setup Page, set the IP type to [PPPoE], and enter the network service’s ID
and password.
7. Connect the camera, which was removed from your PC, directly to the modem.
8. Restart the camera.
M
`For configuring the DDNS settings, refer to “DDNS”. (page 38)
`For registering the DDNS settings, refer to “Registering with DDNS”. (page 38)
`Refer to “IP & Port” for how to setup IP. (page 30)
CONNECTING THE CAMERA TO A BROADBAND ROUTER WITH THE
PPPoE/CABLE MODEM
This is for a small network environment such as homes, SOHO and ordinary shops.
Configuring the network settings of the local PC connected to a Broadband Router
Configuring the network settings of the local PC connected to a Broadband Router, follow the instructions
below.
•Select : <Network> <Properties> <Local Area Connection> <General> <Properties> 
<Internet Protocol (TCP/IP)> <Properties> <Obtain an IP address automatically> or <Use the
following IP address>.
•Follow the instructions below if you select <Use the following IP address>:
ex1) If the address (LAN IP) of the Broadband Router is 192.168.1.1
IP address : 192.168.1.100
Subnet Mask : 255.255.255.0
Default Gateway : 192.168.1.1
ex2) If the address (LAN IP) of the Broadband Router is 192.168.0.1
IP address : 192.168.0.100
Subnet Mask : 255.255.255.0
Default Gateway : 192.168.0.1
ex3) If the address (LAN IP) of the Broadband Router is 192.168.xxx.1
IP address : 192.168.xxx.100
Subnet Mask : 255.255.255.0
Default Gateway : 192.168.xxx.1
M
`For the address of the Broadband Router, refer to the product’s documentation.
`For more information about port forwarding of the broadband router, refer to “Port Range Forward (Port Mapping) Setup”.
(Page 18)
Camera
Camera
Local PC
Broadband
Router
PPPoE or
Cable Modem
PPPoE or
Cable Modem External Remote PC
DDNS Server
(Data Center, KOREA)
INTERNET
Camera External Remote PC
DDNS Server
(Data Center, KOREA)
PPPoE Modem
INTERNET

network connection and setup
16_ network connection and setup
BUTTONS USED IN IP INSTALLER
Item Description
a
Device Name
Model name of the connected camera.
Click the column to sort the list by model name.
However, search will be stopped if clicked during the search.
b
Alias This function is not currently implemented.
c
Mode Displays either <Static>, <Dynamic> or <PPPoE> for the current network connection
status.
d
MAC(Ethernet) Address
Ethernet address for the connected camera.
Click the column to sort the list by Ethernet address.
However, search will be stopped if clicked during the search.
e
IP Address
IP address.
Click the column to sort the list by IP address.
However, search will be stopped if clicked during the search.
f
Protocol
Network setting for the camera.
The factory default is “IPv4”.
Cameras with the IPv6 setting will be displayed “IPv6”.
g
URL
DDNS URL address enabling access from the external Internet.
However, this will be replaced with the <IP Address> of the camera if DDNS registration
has failed.
h
IPv4 Scans for cameras with the IPv4 setting.
Item Description
i
IPv6 Scans for cameras with the IPv6 setting.
Activated in an IPv6 compliant environment only.
j
Search Scans for cameras that are currently connected to the network.
However, this button will be grayed out if neither IPv4 nor IPv6 is checked.
k
Auto Set The IP Installer automatically configures the network settings.
l
Manual Set You should configure the network settings manually.
m
Exit Exits the IP Installer program.
M
`
For the IP installer, use only the installer version provided in the installation CD or use the latest one if available. You can download
the latest version from the Hanwha Techwin web site.
`If the supporting OS is Windows 8.1, it is recommended that you use the Wisenet Device Manager instead of the IP Wisenet.
The Wisenet Device Manager Program can be downloaded by visiting the Hanwha Techwin website (http://www.hanwha-
security.com) under the menu <Customer Support> - <Technical Guides> - <Online Tool>.
STATIC IP SETUP
Manual Network Setup
Run <IP Installer_v2.XX.exe> to display the camera search list.
At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.
M
`For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not support this function.
1. Select a camera in the search list.
Check the MAC address of the camera on the camera’s label.
Both the [Auto Set] and [Manual Set] buttons will be
activated.
2. Click [Manual Set].
The Manual Setting dialog appears.
<IP Address>, <Subnet Mask>, <Gateway>, <HTTP
Port>, and <VNP Port> of the camera are displayed in the
preset values.
3. In the <Address> pane, provide the necessary information.
•MAC (Ethernet) Address : The MAC address imprinted on
the camera label is automatically displayed and requires no
user setting.
M
`IP related parameters can be set only when DHCP is not checked.
a b c d e f g
h i j k l m

English _17
●●NETWORK CONNECTION AND SETUP
If not using a Broadband Router
For setting <IP Address>, <Subnet Mask>, and <Gateway>, contact your network administrator.
4. In the <Port> pane, provide necessary information.
•HTTP Port : Used to access the camera using the Internet
browser, defaulted to 80.
•VNP Port : Used to control the video signal transfer,
defaulted to 4520.
5. Enter the password.
Enter the password of “admin” account, which was used to
access the camera.
J
`For the security purposes, you are recommended to use a combination of numbers, alphabets uppercase and lowercase and
special characters for your password.
`If you want to change the password, refer to “Administrator password change” of the user setup. (page 29)
6. Click [OK].
Manual network setup will be completed.
If using a Broadband Router
•IP Address : Enter an address falling in the IP range provided
by the Broadband Router.
ex) 192.168.1.2~254, 192.168.0.2~254,
192.168.XXX.2~254
•Subnet Mask : The <Subnet Mask> of the Broadband Router
will be the <Subnet Mask> of the camera.
•Gateway : The <Local IP Address> of the Broadband Router
will be the <Gateway> of the camera.
M
`The settings may differ depending on the connected Broadband
Router model.
For more information, refer to the user manual of the applicable router.
`For more information about port forwarding of the broadband router, refer to “Port Range Forward (Port Mapping) Setup”.
(Page 18)
If the Broadband Router has more than one camera connected
Configure the IP related settings and the Port related settings distinctly with each other.
ex)
Category Camera #1 Camera #2
IP related settings
IP Address
Subnet Mask
Gateway
192.168.1.100
255.255.255.0
192.168.1.1
192.168.1.101
255.255.255.0
192.168.1.1
Port related settings HTTP Port
VNP Port
8080
4520
8081
4521
M
`If the <HTTP Port> is set other than 80, you must provide the <Port> number in the address bar of the Internet browser
before you can access the camera.
ex) http://IP address : HTTP Port
http://192.168.1.100:8080
Auto Network Setup
Run <IP Installer_v2.XX.exe> to display the camera search list.
At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.
M
`For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not support this function.
1. Select a camera in the search list.
Check the MAC address of the camera on the camera’s label.
Both the [Auto Set] and [Manual Set] buttons will be
activated.
2. Click [Auto Set].
The Auto Setting dialog appears.
The <IP Address>, <Subnet Mask>, and <Gateway> will
be set automatically.
3. Enter the password.
Enter the password of “admin” account, which was used to
access the camera.
J
`For the security purposes, you are recommended to use a
combination of numbers, alphabets uppercase and lowercase and
special characters for your password.
`If you want to change the password, refer to “Administrator
password change” of the user setup. (page 29)
4. Click [OK].
Auto network setup will be completed.

network connection and setup
18_ network connection and setup
DYNAMIC IP SETUP
Dynamic IP Environment Setup
•Example of the Dynamic IP environment
- If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server
- If connecting the camera directly to modem using the DHCP protocols
- If IPs are assigned by the internal DHCP server via the LAN
Checking the Dynamic IP
1. Run the IP Installer on the user’s local computer.
Cameras allocated with <Dynamic IP> address are shown in
the list.
2. Select a camera from the search result.
3. Click the [Manual Set] button and check the camera’s
<Dynamic IP> address.
If you uncheck <DHCP>, you can change IP to <Static>.
PORT RANGE FORWARD (PORT MAPPING) SETUP
If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the
Broadband Router so that a remote PC can access the camera in it.
Manual Port Range Forwarding
1. From the Setup menu of the Broadband Router, select
<Applications & Gaming> - <Port Range Forward>.
For setting the port range forward for a third-party Broadband
Router, refer to the user guide of that Broadband Router.
2. Select <TCP> and <UDP Port> for each connected camera
to the Broadband Router.
The number of each port to be configured to the IP router
should be set according to the port number designated
in <Setup> - <Basic> - <IP & Port> on the camera web
viewer.
3. When done, click [Save Settings].
Your settings will be saved.
M
`Above sample instructions are based on the CISCO’s Broadband Router.
`The settings may differ depending on the connected Broadband Router model.
For more information, refer to the user manual of the applicable router.
Setting up Port Range Forward for several network cameras
•You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page.
•A user can change each port using the camera setting screen.
When Camera1 and Camera2 are connected to a router :
M
`Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function.
After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in
“Settings -> Network -> DDNS”.
User Internet

Broadband Router
Start End Protocol IP Address
3000 3000 TCP/UDP 192.168.1.100
3001 3001 TCP/UDP 192.168.1.101
4520 4520 TCP/UDP 192.168.1.100
4521 4521 TCP/UDP 192.168.1.101
8080 8080 TCP/UDP 192.168.1.100
8081 8081 TCP/UDP 192.168.1.101
Camera1 (192.168.1.100)
HTTP port 8080
Device port 4520
RTSP port 3000

Camera2 (192.168.1.101)
HTTP port 8081
Device port 4521
RTSP port 3001


English _19
●●NETWORK CONNECTION AND SETUP
CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC
1. Run the IP Installer.
It will scan for connected cameras and display them as a list.
2. Double-click a camera to access.
The Internet browser starts and connects to the camera.
M
`Access to the camera can also be gained by typing the camera’s IP
address in the address bar of the Internet browser.
CONNECTING TO THE CAMERA FROM A REMOTE PC VIA THE
INTERNET
Since using the IP Installer on a remote computer that is not in the Broadband Router’s network cluster is not
allowed, users can access cameras within a Broadband Router’s network by using the camera’s DDNS URL.
1. Before you can access a camera in the Broadband Router network, you should have set the port range
forward for the Broadband Router.
2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the
IP address of the Broadband Router in the address bar.
ex) http://ddns.hanwha-security.com/ID
M
`For registering the DDNS settings, refer to “Registering with DDNS”. (page 38)

20_ web viewer
web viewer
CONNECTING TO THE CAMERA
Normally, you would
1. Launch the Internet browser.
2. Type the IP address of the camera in the address bar.
ex) •IP address (IPv4) : 192.168.1.100 
http://192.168.1.100
- the Login dialog should appear.
•IP address (IPv6) : 2001:230:abcd: ffff:0000:0000:ffff:1111
http://[2001:230:abcd:ffff:0000:0000:ffff:1111] - the Login
dialog should appear.
If the HTTP port is other than 80
1. Launch the Internet browser.
2. Type the IP address and HTTP port number of the camera in the address bar.
ex) IP address : 192.168.1.100:HTTP Port number(8080)
http://192.168.1.100:8080 - the Login dialog should appear.
Using URL
1. Launch the Internet browser.
2. Type the DDNS URL of the camera in the address bar.
ex) URL address : http://ddns.hanwha-security.com/ID
- the Login dialog should appear.
J
`Network connection is disabled in the LAN only environment.
Connecting via UPnP
1. Run the client or operating system in support of the UPnP protocol.
2. Click the camera name for search.
In the Windows operating system, click the camera name searched from the network menu.
- The login window is displayed.
Connecting via Bonjour
1. Run the client or operating system in support of the Bonjour protocol.
2. Click the camera name for search.
In the Mac operating system, click the camera name searched from the Bonjour tab of Safari.
- The login window is displayed.
To check the DDNS address
If the camera is connected directly to the DHCP cable modem, DSL modem, or PPPoE modem, the IP
address of your network will be changed each time you try to connect to the ISP (Internet Service Provider)
server.
If this is the case, you will not be informed of the IP address changed by DDNS.
Once you register a dynamic IP-based device with the DDNS server, you can easily check the changed IP
when you try to access the device.
To register your device to the <DDNS> server, visit http://ddns.hanwha-security.com and register your device
first, and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing
<Product ID> that had been used for DDNS registration.
