Samsung SND-7080 User manual

NETWORK CAMERA
User Manual SND-7080/SND-7080F

Copyright
©2011 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this
document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of
Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but
no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on
the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document
without prior notice.
Warranty
If the product does not operate properly in normal conditions, please let us know. Samsung Techwin will
resolve the problem for free of charge. The warranty period is 3 years. However, the followings are excluded:
If the system behaves abnormally because you run a program irrelevant to the system operation.
Deteriorated performance or natural worn-out in process of time
•
•
Network Camera
User Manual

English _3
●OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/ accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
Unplug this apparatus during lighting storms or when unused for
long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
overview

overview
4_ overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

English _5
●OVERVIEW
Class construction
An apparatus with CLASS construction shall be connected to a MAINS
socket outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call
a repair man in your location.
When used outside of the U.S., it may be used HAR code with fittings of
an approved agency is employed.
CAUTION
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
The BNC Out terminal of the product is provided for easier installation, and is
not recommended for monitoring purposes.
If you keep the BNC cable connected, a risk of lightening may cause damage
or malfunction to the product.
Please use the input power with just one camera and other devices must not
be connected.

overview
6_ overview
Please read the following recommend safety precautions carefully.
Do not place this apparatus on an uneven surface.
Do not install on a surface where it is exposed to direct sunlight, near
heating equipment or heavy cold area.
Do not place this apparatus near conductive material.
Do not attempt to service this apparatus yourself.
Do not place a glass of water on the product.
Do not install near any magnetic sources.
Do not block any ventilation openings.
Do not place heavy items on the product.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
Reference : In case of providing information for helping of product’s usages
Notice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
ÚPlease read this manual for the safety before using of goods and keep it in
the safe place.
y
y
y
y
y
y
y
y
y
y

English _7
●OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
9Product Features
9Recomended PC Specifications
10 Recomended SD/SDHC Memory
Card Specifications
10 What’s Included
11 At a Glance (SND-7080)
13 At a Glance (SND-7080F)
INSTALLATION &
CONNECTION
15
15 Installation (SND-7080)
17 Installation (SND-7080F)
19 Inserting/Removing an SD
Memory Card
20 Memory Card Information
(Not Included)
21 Connecting with other Device
NETWORK CONNECTION
AND SETUP
24
24 Connecting the Camera Directly
to Local Area Networking
25 Connecting the Camera Directly
to a DHCP Based DSL/Cable
Modem
26 Connecting the Camera Directly
to a PPPoE Modem
27 Connecting the Camera to a
Broadband Router with the
PPPoE/Cable Modem
28 Buttons used in IP Installer
29 Static IP Setup
32 Dynamic IP Setup
33 Port Range Forward (Port Mapping)
Setup
35 Connecting to the Camera from a
Shared Local PC
35 Connecting to the Camera from a
Remote PC via the Internet

overview
8_ overview
SETUP SCREEN
46
46 Setup
46 Audio & Video Setup
56 Network Setup
62 Event Setup
68 System Setup
APPENDIX
73
73 Specification
78 Product Overview
80 Troubleshooting
82 Open Source Announcement
84 GPL/LGPL Software License
WEB VIEWER
36
36 Connecting to the Camera
37 Login
38 Installing ActiveX
39 Installing Silverlight Runtime
41 Using the Live Screen
44 Playback

English _9
●OVERVIEW
PRODUCT FEATURES
Full HD Video Quality
Multi-Streaming
This network camera can display videos in different resolutions and qualities
simultaneously using different CODECs.
Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
Alarm
If an event occurs, the event-related video will be transferred to the email specified by the
user or saved to the SD memory, or the event signal will be sent to the Alarm Out port.
Video Motion Detection
Detects a motion from the video before triggering an event.
Face Detection / Smart Codec
Recognizes a face from the camera input video, or transfers a clearer image of your specified area.
Auto Detection of Disconnected Network
Detects network disconnection before triggering an event.
ONVIF (Spec 1.02) Compliance
This product supports ONVIF Core Spec. 1.02.
For more information, refer to www.onvif.org.
RECOMENDED PC SPECIFICATIONS
CPU : Intel Core 2 Duo 2.4GHz or higher
Operating System : Windows XP, VISTA, 7
Mac OS
Resolution : 1280X1024 pixels or higher
RAM : 2GB or higher
Web Browser : Internet Explorer 7.0 or higher, Firefox, Chrome, Safari
Neither a beta test version unlike the version released in the company website nor the developer version will
be supported.
On Firefox v3.5 or higher, displaying warning message dialog may cause an error.
If connecting to IPv6 in Windows XP, it can cause some problem.
It is recommended to connect to IPv6 in Windows 7.
Video Memory : 256MB or higher
If the driver of the video graphic adapter is not installed properly or is not the latest version, the
video may not be played properly.
•
•
•
•
•
•
•
•
•
•
•
•
•



•
J

overview
10_ overview
RECOMENDED SD/SDHC MEMORY CARD
SPECIFICATIONS
2GB ~ 32GB
To ensure proper recording of video data, it is recommended you use a memory card that
supports at least read/write speed 10Mbps and Class 6.
WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
Appearance Item Name Quantity Description Model Name
User Manual,
Installer S/W DVD,
CMS S/W DVD
2
SND-7080/
SND-7080F
Quick Guide 1
Iron Screw 3 Used for fixing to an iron plate
Cable for the testing
monitor 1
Used to test the camera
connection to a portable display
device
Dustproof Plate 1 Preventing dust inflow SND-7080
Template 1 Product installation guide
SND-7080F
Tapping Screw 1Used to fix the safety bracket
Bracket Safety 1Safety Bracket
•
•

English _11
●OVERVIEW
AT A GLANCE (SND-7080)
Appearance
Item Description

Top cover Case cover used to protect the lens and the main unit.
b
Camera Case Covers the lens and camera body.
c
Power Port Used to plug the power cable.

Alarm In /
Out terminals
ARM-IN BLUE : Used to connect the alarm input signal.
ARM-OUT WHITE : Used to connect the alarm output signal.
A-COM GRAY : Common port where the alarm output signal is
connected.
GND YELLOW : Used for earth-grounding.

Network Port Used to connect a PoE or LAN cable.

Video Out Port Analog video output port. (for installation)

Audio In Jack Used to connect to a microphone.

Audio Out Jack Used to connect to speakers.
8

overview
12_ overview
Inside
Item Description

Monitor Out Using the test monitor cable, you can connect to a mobile display for camera
test.
b
Reset Button
Resets the camera settings to the default. Press and hold it for about 5
seconds to turn off the system indicator and restart the system.
J
If you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
c
SD Memory Card
Compartment Compartment for the SD memory card.

Wiring Cover
If you drill a hole in the wiring cover for wiring,
remove the cover and attach the provided dustproof
plate to it, and arrange the cables through the plate.
The dust-proof plate is to prevent outside dust from
inflow to the wiring compartment.

Lock Release
To separate the bracket from the main unit for the installation or to separate
the camera from an installed camera, push this release and turn the main
unit in the marked direction of <UNLOCK>.

English _13
●OVERVIEW
AT A GLANCE (SND-7080F)
Appearance
Item Description

Top cover Case cover used to protect the lens and the main unit.
b
Camera Case Covers the lens and camera body.
c
Power Port Used to plug the power cable.

Alarm In /
Out terminals
ARM-IN BLUE : Used to connect the alarm input signal.
ARM-OUT WHITE : Used to connect the alarm output signal.
A-COM GRAY : Common port where the alarm output signal is
connected.
GND YELLOW : Used for earth-grounding.

Network Port Used to connect a PoE or LAN cable.

Video Out Port Analog video output port. (for installation)

Audio In Jack Used to connect to a microphone.

Audio Out Jack Used to connect to speakers.
8

overview
14_ overview
Inside
Item Description

Monitor Out Using the test monitor cable, you can connect to a mobile display for camera
test.
b
Reset Button
Resets the camera settings to the default. Press and hold it for about 5
seconds to turn off the system indicator and restart the system.
J
If you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
c
SD Memory Card
Compartment Compartment for the SD memory card.

English _15
●INSTALLATION & CONNECTION
installation & connection
INSTALLATION (SND-7080)
Precautions before installation
Ensure you read out the following instructions before installing the camera:
Select an installation site (ceiling or wall) that can endure at least 5 times of the
camera weight.
Stuck-in or peeled-off cables can cause damage to the product or a fire.
For safety purposes, keep anyone else away from the installation site. And put aside
personal belongings from the site, just in case.

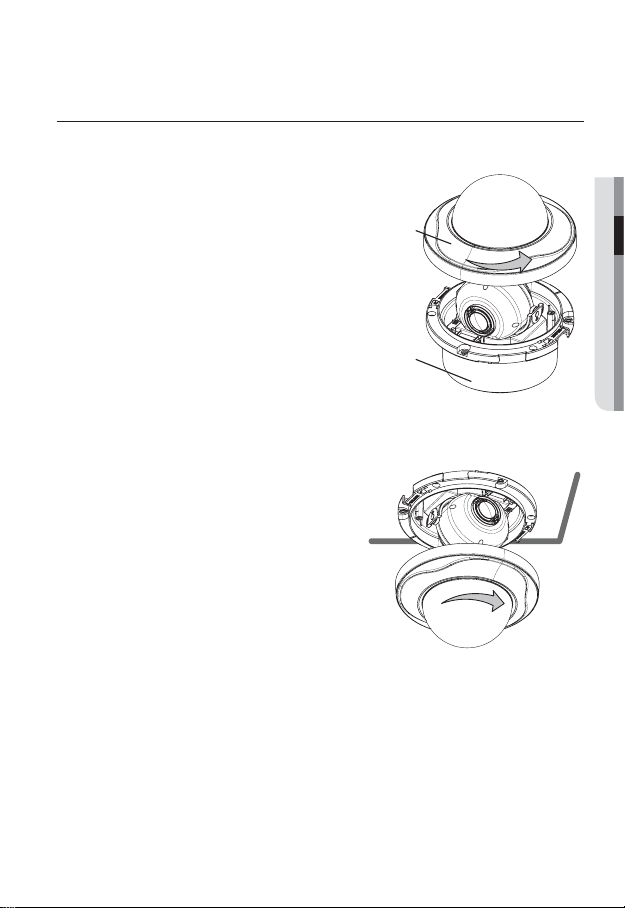

Disassembling
Take the camera body with one hand and take the top
cover with the other hand. Then, turn the cover counter
clockwise to remove it.
Hold down the lock lever in the outer direction as shown
and turn the camera body in the <UNLOCK> direction
(counter clockwise) to remove the bracket from the
body.
If it fails, take the bottom hole of the bracket and turn the
bracket in the <LOCK> direction (clockwise) to remove it.
•
•
•
1.
2.

Top cover
Camera Body
Bracket
Camera Body

installation & connection
16_ installation & connection
Installation
Use the provided screws (x3) to fix the bracket to a desired position (ceiling or wall).
Ensure that the <CAMERA FRONT> label on the bracket faces the direction for camera monitoring.
Arrange the cables through the bracket to
the ceiling or wall.
If you drill a hole in the ceiling cover for wiring, press
hard to remove the cover and attach the dust-proof
plate to it, and arrange the cables through the plate.
If you intend to arrange the cables without drilling a
hole, use the empty area opposite to the <CAMERA
FRONT> label side for the wiring purpose.
Mount the camera body onto the bracket.
Align the marking hole of the camera body
with the <CAMERA FRONT> label of the
bracket, and turn the body in the <LOCK>
direction.
Refer to “Adjusting the monitoring direction
for the camera” to adjust the lens in a desired
direction.
Close the top cover.
Fit the top cover into the fixing tips of the camera
body and turn the cover clockwise.
1.

2.

3.
4.
5.

Wiring Cover

English _17
●INSTALLATION & CONNECTION
INSTALLATION (SND-7080F)
Disassembling
Take the camera body with one hand and take the
top cover with the other hand. Then, turn the cover
counter clockwise to remove it.
Installation
Use the provided template to drill one hole for
the camera, and one for the screw (5 mm in
diameter, at least 35 mm in depth), and insert
the plastic anchor (HUR 5) to the end of the
screw hole.
Connect and arrange the necessary cables
lest that they should be damaged or twisted
while installing the camera.
Insert the camera body into the hole so that it
fits to the camera hole, and fix the body using
the ASSY tapping screws (TH M4xL30). (x3)
Refer to “Adjusting the monitoring direction for the camera” to adjust the lens in a
desired direction.
Close the top cover.
Fit the top cover into the fixing tips of the camera body and turn the cover clockwise.
1.
1.
2.
3.
4.
5.

Top cover
Camera Body

installation & connection
18_ installation & connection
Adjusting the monitoring direction for the camera
Adjusting the monitoring direction
You can adjust the camera direction only when the camera is fixed on the ceiling.
Where, rotating the camera unit to the left or right is called Pan, adjusting the tilt is called
Tilt, and turning the lens on its axis is called Rotate.
The effective range of pan is a total of 355 degrees.
The effective range of rotation is a total of 355 degrees.
The effective range of tilt is a total of 90 degrees.
In some angles, the top cover may cause cutting some part of the monitoring object.
Do not rotate the focus/zoom lens by force after removing the cover front.
Otherwise, it may cause an incorrect focus due to a motor failure.
Methods of adjustment
After installing the camera, adjust the panning angle in consideration of the
monitoring direction.
When tilting the camera, you should adjust the horizontal angle lest that the image
be displayed reversely.
Adjust the rotation angle to correct the image display position (up/down/left/right).
Rotating means rotation on the basis of the rear lens unit.
Adjust the tilt angle so that the camera faces toward the monitoring object.
❖
-
-
-
J

❖
1.
2.

3.
Panning
Tilting
Lens rotation
Cover Front

English _19
●INSTALLATION & CONNECTION
INSERTING/REMOVING AN SD MEMORY CARD
Disconnect the power cable from the camera before inserting the SD memory card.
Inserting an SD Memory Card
Push the SD memory card in the direction of the arrow shown in the diagram.
Do not insert the SD memory card while it’s upside down by force. Otherwise, it may damage the
SD memory card.
Removing an SD Memory Card
Gently press down on the exposed end of the memory card as shown in the diagram to
eject the memory card from the slot.
Pressing too hard on the SD memory card can cause the card to shoot out uncontrollably from the
slot when released.
To remove the SD memory card, set <Record> to <Off> from <SD record> and press
[Apply ()]. (page 63)
J
J
J


installation & connection
20_ installation & connection
If you have saved data in the SD memory card, removing the SD memory card prior to setting
record to OFF will cause damage to the data stored in the card.
MEMORY CARD INFORMATION (NOT INCLUDED)
What is a memory card?
The memory card is an external data storage device that has been developed to offer an
entirely new way to record and share video, audio, and text data using digital devices.
Selecting a memory card that’s suitable for you
Your camera supports SD/SDHC memory cards.
You may, however, experience compatibility issues depending on the model and make of
the memory card.
For your camera, we recommend you use a memory card from the following
manufacturers:
SD/SDHC Memory Card : Sandisk, Transcend, Kingston
Playback performance can be affected depending on the speed of memory card, so use
the high-speed memory card.
Memory Card Use
SD and SDHC memory cards feature a switch that disables writing data on to the media.
Having this switch to the Lock position will prevent accidental deletion of data stored in the
memory card but at the same time will also prevent you from writing data on to the media.
Memory Card Components
SD/SDHC
Lock Switch
Contacts

❖
