NETWORK CAMERA
User Manual SNB-6010

Copyright
©2014 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall
be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no
formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own
responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.
The initial administrator ID is “admin” and the password should be set when logging in for the first time.
Please change your password every three months to safely protect personal information and to prevent
the damage of the information theft.
Please, take note that it’s a user’s responsibility for the security and any other problems caused by
mismanaging a password.
Network Camera
User Manual

English _3
●OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. This product is intended to be supplied by a Listed power supply unit marked “Class 2”
and rated from 12 V dc, min 0.9A.
overview

overview
4_ overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
To prevent injury, this apparatus must be securely attached to the Wall/ceiling
in accordance with the installation instructions.

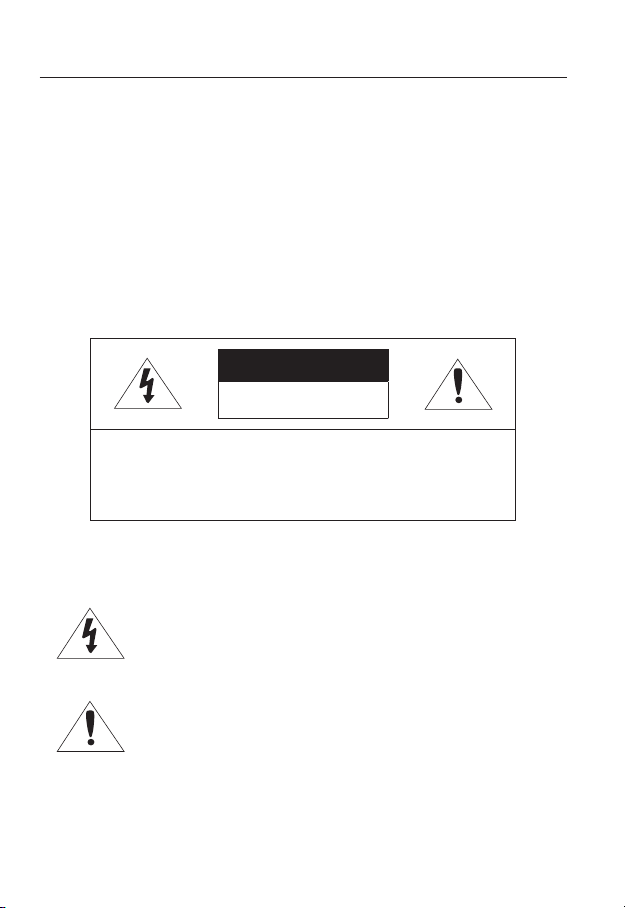

CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

English _5
●OVERVIEW
Class construction
An apparatus with CLASS construction shall be connected to a MAINS
socket outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call
a repair man in your location.
When used outside of the U.S., it may be used HAR code with fittings of
an approved agency is employed.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
Please use the input power with just one camera and other devices must not
be connected.
The ITE is to be connected only to PoE networks without routing to the
outside plant.

overview
6_ overview
Please read the following recommended safety precautions carefully.
yDo not place this apparatus on an uneven surface.
yDo not install on a surface where it is exposed to direct sunlight, near
heating equipment or heavy cold area.
yDo not place this apparatus near conductive material.
yDo not attempt to service this apparatus yourself.
yDo not place a glass of water on the product.
yDo not install near any magnetic sources.
yDo not block any ventilation openings.
yDo not place heavy items on the product.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
yReference : In case of providing information for helping of product’s usages
yNotice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
Please read this manual for the safety before using of goods and keep it in
the safe place.

English _7
●OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
9Product Features
10 Recommended PC Specifications
10 Recommended Micro SD/
SDHC/SDXC Memory Card
Specifications
11 NAS recommended specs
11 What’s Included
13 At a Glance
INSTALLATION &
CONNECTION
16
16 Installation

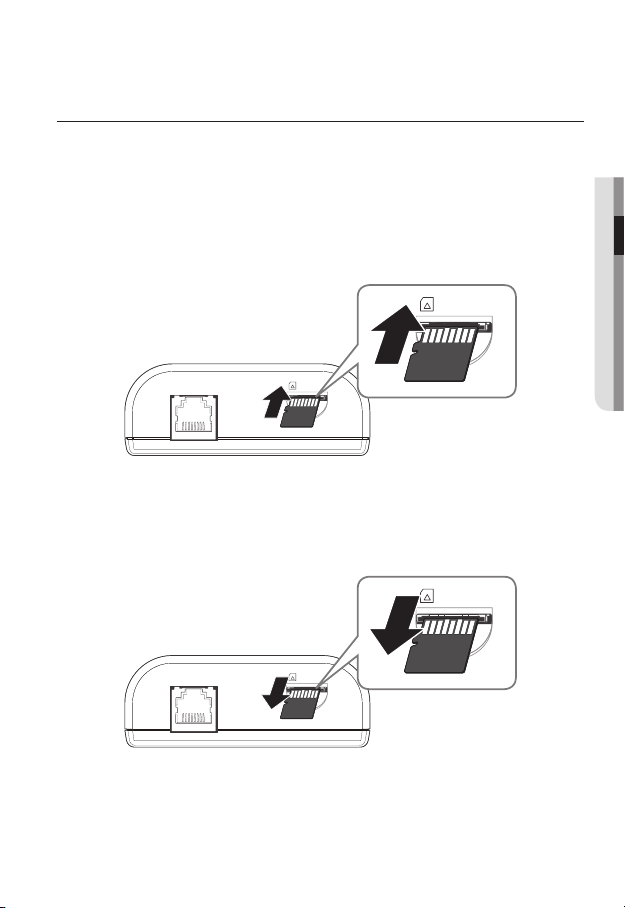

19 Inserting/Removing a Micro SD
Memory Card
20 Memory Card Information
(Not Included)
21 Connecting with other Device
NETWORK CONNECTION
AND SETUP
24
24 Connecting the Camera Directly
to Local Area Networking
25 Connecting the Camera Directly
to a DHCP Based DSL/Cable
Modem
26 Connecting the Camera Directly
to a PPPoE Modem
27 Connecting the Camera to a
Broadband Router with the
PPPoE/Cable Modem
28 Buttons used in IP Installer
29 Static IP Setup
33 Dynamic IP Setup
34 Port Range Forward (Port Mapping)
Setup
36 Connecting to the Camera from a
Shared Local PC
36 Connecting to the Camera from a
Remote PC via the Internet

overview
8_ overview
SETUP SCREEN
54
54 Setup
54 Video Setup
70 Network Setup
81 Event Setup
86 NAS (Network Attached Storage)
guide
102 System Setup
APPENDIX
111
111 Specification
116 Product Overview
118 Troubleshooting
120 Open Source Announcement
WEB VIEWER
37
37 Connecting to the Camera
39 Password setting
39 Login
40 Installing Silverlight Runtime
43 Installing STW WebViewer Plugin
45 Using the Live Screen
47 Playing the recorded video

English _9
●OVERVIEW
PRODUCT FEATURES
•Full HD Video Quality
•Multi-Streaming
This network camera can display videos in different resolutions and qualities
simultaneously using different CODECs.
•Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
•Alarm
When an event occurs, an image is sent to the email address registered by a user and
the FTP server or saved in micro SD card or NAS or the signal is outputted to the alarm
output terminal.
•Tampering Detection
Detects tempering attempts on video monitoring.
•Motion Detection
Detects motion from the camera’s video input.
•Intelligent Video Analysis
Analyzes video to detect logical events of specified conditions from the camera’s video
input.
•Face Detection
Detects faces from the camera’s video input.
•Smart codec
A clearer version of image of the area set by a user is transmitted.
•Auto Detection of Disconnected Network
Detects network disconnection before triggering an event.
•ONVIF Compliance
This product supports ONVIF Profile-S.
For more information, refer to www.onvif.org.

overview
10_ overview
RECOMMENDED PC SPECIFICATIONS
•CPU : Intel Core 2 Duo 2.4 GHz or higher (for using 1920x1080 30 fps)
`Web Plug-in is optimized to SSE 4.1 Instruction Set.
•Resolution : 1280X1024 pixels or higher (32 bit color)
•RAM : 2GB or higher
•Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
•Supported Browser : Microsoft Internet Explorer (Ver. 7~10),
Mozilla Firefox (Ver. 9~19), Google Chrome (Ver. 15~25),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7)
`Windows 8 is supported only in the Desktop mode.
`Neither a beta test version unlike the version released in the company website nor the developer version will
be supported.
`For IPv6 connection, Window 7 or higher is recommended.
`For Mac OS X, only the Safari browser is supported.
•Video Memory : 256MB or higher
J
`If the driver of the video graphic adapter is not installed properly or is not the latest version, the
video may not be played properly.
`For a multi-monitoring system involving at least 2 monitors, the playback performance can be
deteriorated depending on the system.
RECOMMENDED MICRO SD/SDHC/SDXC MEMORY CARD
SPECIFICATIONS
•4GB ~ 64GB
•For your camera, we recommend you use a memory card from the following
manufacturers:
Micro SD/SDHC/SDXC Memory Card : Sandisk, Transcend
•It is recommended to use the specification memory card of Class 6 or higher.

English _11
●OVERVIEW
NAS RECOMMENDED SPECS
•Recommended capacity : 200GB or higher is recommended.
•Simultaneous access : One unit of NAS can accept a maximum of sixteen camera
accesses.
•For this camera, you are recommended to use a NAS with the following manufacturer’s
specs.
Recommended products Available sizes
Netgear NAS A maximum of 16 cameras can access simultaneously.
Synology NAS A maximum of 16 cameras can access simultaneously.
J
`When you use Netgear’s NAS equipment, do not allocate the capacity for use.
`If you use NAS equipment for purposes other than video saving, the number of accessible
cameras may be reduced.
WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
Appearance Item Name Quantity Description
Camera Unit 1Length: 8M
Main Unit 1
Instruction book,
Installer S/W CD,
CMS S/W DVD
2
Quick Guide
(Optional) 1

overview
12_ overview

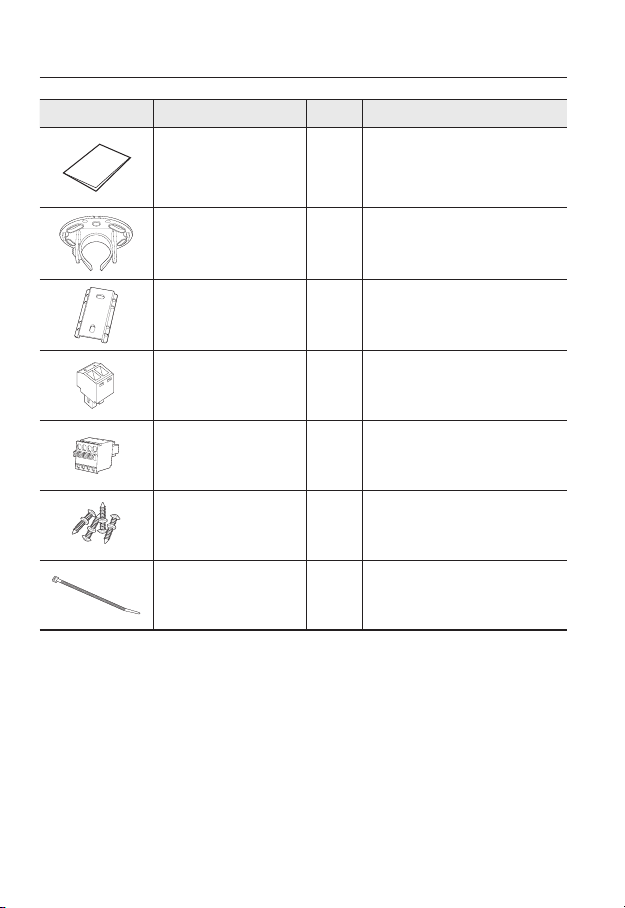

Appearance Item Name Quantity Description
Warranty card
(Optional) 1
Camera header installation
bracket 1Used to fix the camera header on the ceiling/wall.
Main unit installation bracket 1Used to install the main unit on the wall/
ceiling.
Power terminal block 1Used by inserting it into the power terminal.
Alarm terminal block 1Used by inserting it into the alarm output
terminal.
Installation screw 4Used to install the bracket on the
wall/ceiling.
Cable tie 1Used to arrange the cable.

English _13
●OVERVIEW
AT A GLANCE

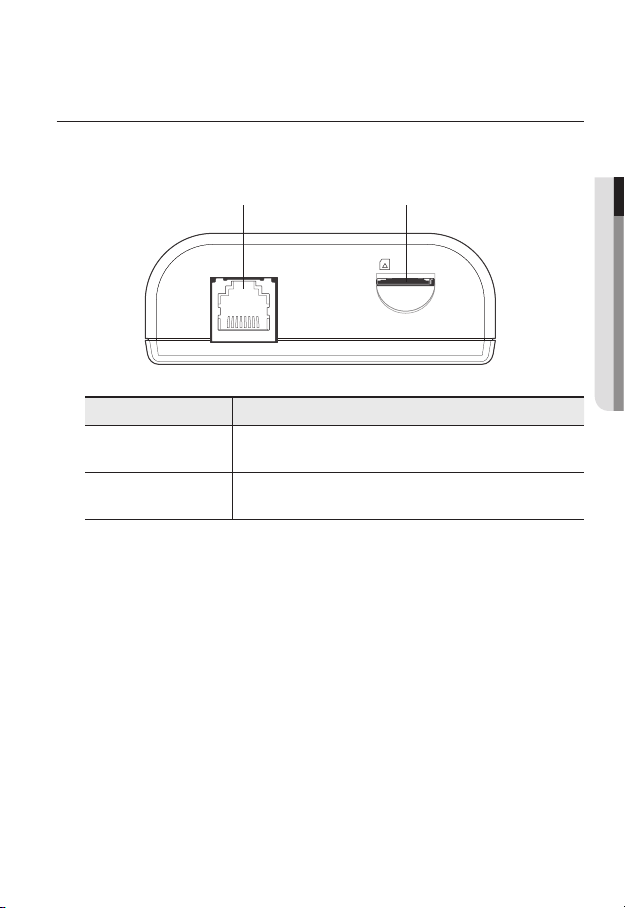

Front of the main unit
Item Description
a
Camera unit
connection terminal Using the RJ-12 cable, the terminal connects to the camera unit.
b
Micro SD Memory
Card Compartment Compartment for the Micro SD memory card.
CAM
micro SD
a b

overview
14_ overview
Rear of the main unit
Item Description
a
Power supply
terminal Terminal used to connect to the DC12V power adaptor.
b
Network connection
terminal Terminal used to connect to PoE or LAN via the RJ-45 cable.
c
In/out terminal
GND Ground terminal.
ALARM OUT Terminal to connect the alarm output signal.
ALARM IN Terminal to connect the alarm input signal.
d
Reset Button
The button restores all camera settings to the factory default.
Press and hold for about 5 seconds to reboot the system.
JIf you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
e
Power indicators POWER ON : While the power is on
OFF : If the power is off
DC 12V
NETWORK
LINK 4 3 2 1ACT
RESET POWER
GND : 1, 2
ALARM OUT : 3
ALARM IN : 4
a b c d e

English _15
●OVERVIEW
Exterior of the camera unit
Item Description
a
Camera header Camera header used to record an image.
b
RJ-12 Jack Connect the main unit to the camera unit.
a b

16_ installation & connection
installation & connection
INSTALLATION
Precautions before installation
Ensure you read out the following instructions before installing the camera:
•Select an installation site that can hold at least 5 times the camera’s weight.
•Stuck-in or peeled-off cables can cause damage to the product or a fire.
•For safety purposes, keep anyone else away from the installation site.
And put aside personal belongings from the site, just in case.
Installing the main unit
1. Using the two screws provided, install the main
unit bracket.
2. Align the main unit’s groove to the bracket groove
and firmly press it.
3. If you want to separate the main unit from the
bracket, press the marked area in the figure.

English _17
●INSTALLATION & CONNECTION
Installing the camera unit
1. Using the two screws provided or removing the
double sided tape protector below the camera
header bracket, install the header bracket.
2. Make sure that [TOP] shown in the lens head is
faced upward, and then push the bracket in.
3. Considering the direction of monitoring, adjust
the lens to make it face the desired direction.
4. Fasten the screw next to the bracket and fix the
lens direction.
5. After installation, pull the cable. Make sure that
the camera unit does not move by fixing it to the
bracket with the cable tie.
T
O
P

installation & connection
18_ installation & connection
Installing the camera unit in the main unit
Connect the [CAM] terminal in the front of the main unit to the camera unit cable.
CAM
micro SD

English _19
●INSTALLATION & CONNECTION
INSERTING/REMOVING A MICRO SD MEMORY CARD
J
`Disconnect the power cable from the camera before inserting the Micro SD memory card.
`Do not insert the Micro SD memory card while it’s upside down by force.
Otherwise, it may damage the Micro SD memory card.
Inserting a Micro SD Memory Card
Push the Micro SD memory card in the direction of the arrow shown in the diagram.
Removing a Micro SD Memory Card
Gently press down on the exposed end of the memory card as shown in the diagram to
eject the memory card from the slot.
CAM
micro SD
CAM
micro SD
CAM
micro SD
CAM
micro SD

installation & connection
20_ installation & connection
J
`Pressing too hard on the Micro SD memory card can cause the card to shoot out uncontrollably
from the slot when released.
`Before removing your Micro SD memory card, turn off the camera or go to <Storage>, turn the
device off, and press the [Apply ( )] button. (Page 82)
`If you turn off the camera or remove the Micro SD memory card that contains data from the
product, the data may be lost or damaged.
MEMORY CARD INFORMATION (NOT INCLUDED)
What is a memory card?
The memory card is an external data storage device that has been developed to offer an
entirely new way to record and share video, audio, and text data using digital devices.
Selecting a memory card that’s suitable for you
Your camera supports Micro SD/SDHC/SDXC memory cards.
You may, however, experience compatibility issues depending on the model and make of
the memory card.
For your camera, we recommend you use a memory card from the following
manufacturers:
Micro SD/SDHC/SDXC Memory Card : Sandisk, Transcend
Memory cards of 4GB ~ 64GB is recommended for using with this camera.
Playback performance can be affected depending on the speed of memory card, so use
the high-speed memory card.
You are recommended to use memory card with class 6 or higher for this camera.
Memory Card Components
Micro SD/SDHC/SDXC
Contacts
