Samsung 650 Series User manual

imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please
register your product at
www.samsung.com/global/register
Model Serial No. _

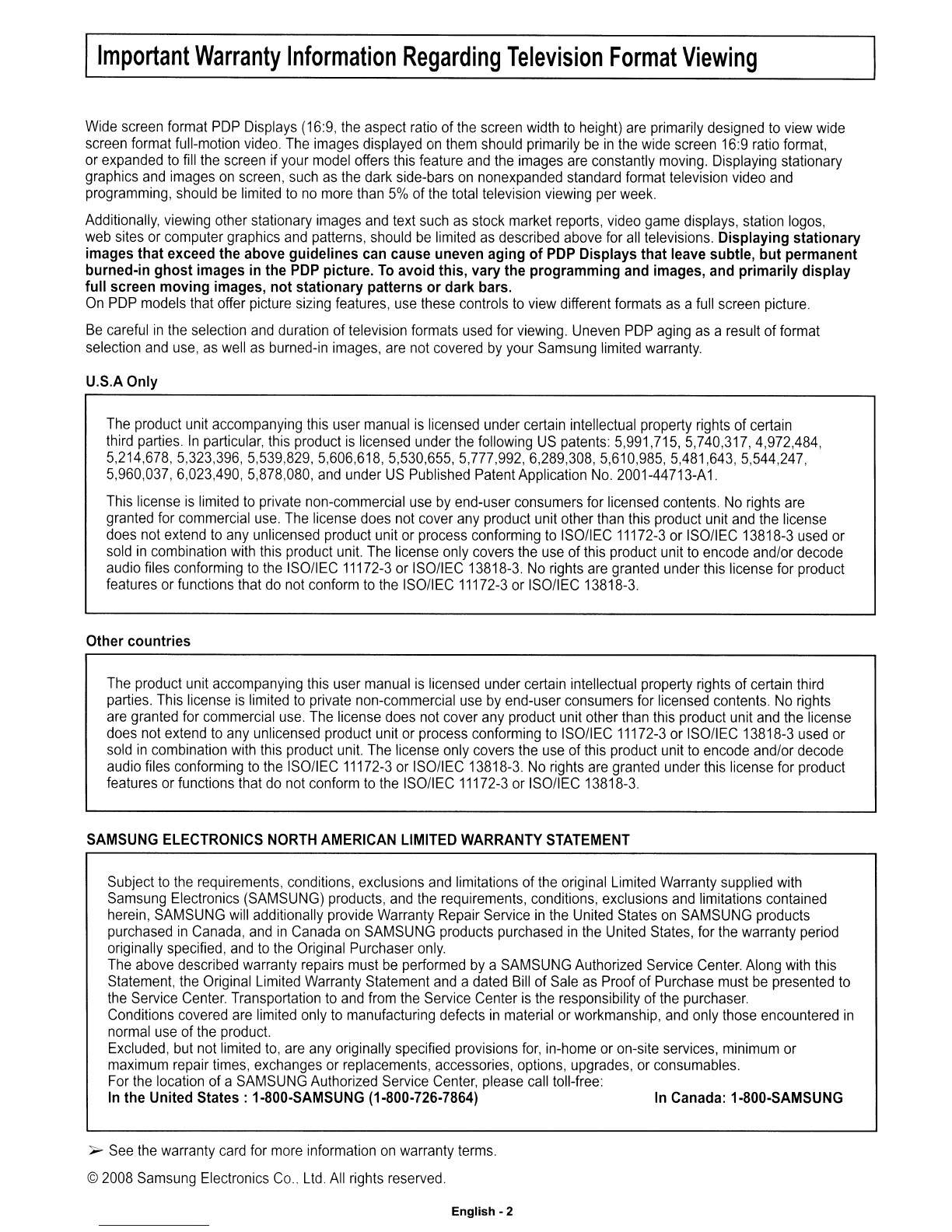

I Important Warranty Information Regarding Television Format Viewing
Wide screen format PDP Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide
screen format full-motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format,
or expanded to fill the screen if your model offers this feature and the images are constantly moving. Displaying stationary
graphics
and images on screen, such as the dark side-bars on nonexpanded standard format television video and
programming, should be limited to no more than 5% of the total television viewing per week.
Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos,
web sites or computer graphics and patterns, should be limited as described above for all televisions. Displaying stationary
images that exceed the above guidelines can cause uneven aging of PDP Displays that leave subtle, but permanent
burned-in ghost images in the PDP picture. To avoid this, vary the programming and images, and primarily display
full screen moving images, not stationary patterns or dark bars.
On PDP models that offer picture sizing features, use these controls to view different formats as a full screen picture.
Be careful in the selection and duration of television formats used for viewing. Uneven PDP aging as a result of format
selection and use, as well as burned-in images, are not covered by your Samsung limited warranty.
U.S.A Only
The product unit accompanying this user manual is licensed under certain intellectual property rights of certain
third parties. In particular, this product is licensed under the following US patents: 5,991,715, 5,740,317, 4,972,484,
5,214,678,5,323,396,5,539,829,5,606,618,
5,530,655, 5,777,992, 6,289,308, 5,610,985, 5,481,643, 5,544,247,
5,960,037,
6,023,490, 5,878,080, and under US Published Patent Application No. 2001-44 713-A 1.
This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are
granted for commercial use. The license does not cover any product unit other than this product unit and the license
does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or
sold in combination with this product unit. The license only covers the use of this product unit to encode andlor decode
audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product
features or functions
that do not conform to the ISOII EC 11172-3 or ISOII EC 13818-3.
Other countries
The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third
parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights
are granted for commercial use. The license does not cover any product unit other than this product unit and the license
does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISOIIEC 13818-3 used or
sold in combination with this product unit. The license only covers the use of this product unit to encode andlor decode
audio files conforming to the ISOIIEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product
features
or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.
SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT
Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with
Samsung Electronics (SAMSUNG) products, and the requirements, conditions, exclusions and limitations contained
herein, SAMSUNG will additionally provide Warranty Repair Service in the United States on SAMSUNG products
purchased in Canada, and in Canada on SAM SUNG products purchased in the United States, for the warranty period
originally specified, and to the Original Purchaser only.
The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this
Statement, the Original Limited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to
the Service Center. Transportation to and from the Service Center is the responsibility of the purchaser.
Conditions covered are limited only to manufacturing defects in material or workmanship, and only those encountered in
normal use of the product.
Excluded, but not limited to, are any originally specified provisions for, in-home or on-site services, minimum or
maximum repair times, exchanges or replacements, accessories, options, upgrades, or consumables.
For the location of a SAM SUNG Authorized Service Center, please call toll-free:
In the United States: 1-800-SAMSUNG (1-800-726-7864) In Canada: 1-800-SAMSUNG
:-> See the warranty card for more information on warranty terms.
© 2008 Samsung Electronics Co. Ltd. All rights reserved.
English - 2

IUser Instructions
oScreen Image retention
Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can
cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, refer to
page 32 of this manual to reduce the degree of brightness and contrast of the screen when displaying a still image.
oAltitude
The PDP can only operate normally at heights under 6500ft.
oHeat on the top of the Plasma TV
The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in
the upper part of the product.
This is normal and does not indicate any defect or operation failure of the product.
However, children should be prevented from touching the upper part of the product.
oThe product is making a'cracking' noise.
A'cracking' noise may occur when the product contracts or expands due to a change of surrounding environment such as
temperature or humidity. This is normal and not adefect of the unit.
oCell Defects
The PDP uses a panel consisting of 1 ,230,OOO(SD-level) to 3, 150,OOO(HD-level) pixels which require sophisticated
technology
to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact
on the performance of the product.
oAvoid operating the TV at temperatures below 5°C (41°F)
oAstill image displayed too long may cause permanent damage to the PDP Panel.
Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders
displayed on the left, right and center of the screen caused by the difference of light emission on
the screen.
Playing a DVD or a game console may cause similar effects to the screen.
Damages caused by the above effect are not covered by the Warranty.
oAfter-images on the Screen.
Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.
To prevent this effect, reduce the 'brightness' and 'contrast' when displaying still images for a long time.
oWarranty
Warranty does not cover any damage caused by image retention.
Burn-in is not covered by the warranty.
English-3

I Contents
General Information
•List of Features 5
•Accessories 5
•
Viewing the Control PaneL 6
•
Viewing the Connection Panel 7
•
Remote Control 8
•Installing Batteries in the Remote ControL 9
Connections
•Connecting VHF and UHF Antennas 9
•Connecting
Cable TV 10
•Connecting a DVD Player or Cable Box /Satellite
receiver
(Set-Top Box) via HDMI 11
•Connecting a DVD Player or Cable Box /Satellite
receiver
(Set-Top Box) via DVI. 11
•Connecting a DVD Player or Cable Box /Satellite
receiver
(Set-Top Box) via Component cables 12
•Connecting aCamcorder 12
•Connecting a VCR 13
•Connecting aDigital Audio System 14
•Connecting an Amplifier / DVD Home Theater 14
•Connecting a PC 15
Operation
• Turning the TV On and Off 16
• Plug & Play Feature 16
•Changing Channels 18
•Adjusting the Volume 19
• Viewing the Display 19
• Viewing the Menus 19
• Using the Remote Control Backlight Buttons 20
• Using the TOOLS Button 20
•Memorizing the Channels 20
• To Select the Source 22
• To Edit the Input Source Name 22
Picture Control
•Changing the Picture Standard 23
•Customizing the Picture Settings 23
•Adjusting the Detailed Settings 24
•Configuring Picture Options 27
•Resetting the Picture Settings to the Factory Defaults34
•
Viewing Picture-in-Picture 34
Sound Control
•Changing the Sound Standard 36
•Customizing the Sound 36
•Setting the TruSurround XT 37
•Choosing Preferred Language 38
• Choosing a Multi-Channel Sound (MTS) Track - Analog. 38
•Automatic Volume Control 39
• Setting the TV Speakers On/Off............................... 39
•Listening to the Sound of the Sub (PIP) Picture .........40
•
Resetting the Sound Settings to the Factory Defaults 40
•Connecting Headphones (Sold separately) .40
Channel Control
•Managing Channels 41
•Clearing Scrambled Channels - Digital 47
• Fine Tuning Analog Channels 47
•Checking the Digital-Signal Strength .48
PC Display
• Using Your TV as aComputer (PC) Display 49
•Display Modes .49
•Setting up the TV with your PC 50
Time Setting
• Setting the Time 52
Function Description
•Selecting a Menu Language 56
• Using the V-Chip 57
• Vie~ing Closed Captions (On-Screen Text Messages)
-Digital
65
• Viewing Closed Captions (On-Screen Text Messages)
-
Analog 66
•Adjusting the TV On/Off Melody Sound 67
• Setting the Entertainment mode 68
• Using the Energy Saving Feature 68
•Upgrading the Software 69
WISELINK
• Using the WISELINK Function 70
• Using the Photo List... 71
• Viewing a Photo or Slide Show 77
• Using the Music List.. 81
• Playing a Music File 86
• Using the Setup Menu 88
Network Settings and InfoLink
•Network Connection -Cable............ .............89
•Network Connection -Wireless
91
•Network selection 91
•Cable Network Setup............................................ 92
•Wireless Network Setup 94
• Using InfoLink 97
• InfoLink Setup 100
Abollt Anynet+
•What is Anynet+? 101
•Connecting Anynet+ Devices................................. 101
•Setting Up Anynet+ 102
•Scanning and Switching between Anynet+ Devices. 102
•Recording 103
•Listening through aReceiver (Home theater) 104
•Troubleshooting for Anynet+ 104
Appendix
•Troubleshooting 105
• Auto Wall-mount adjustment (Sold separately)
(PN50A650T1 F) 106
• Wall Mount Kit Specifications (VESA) 107
• How to attach the Stand-Base 108
•Specifications 108
•Dimensions (PN50A650T1 F) 109
•Dimensions (PN58A650T1 F) 110
Symbols
-
Press One-Touch
Button Note
English -4

I General Information
Please make sure the following items are included with your TV. If any items are missing, contact your dealer.
Accessories
• Adjustable picture settings that can be stored in the TV's memory.
• Automatic timer to turn the TV on and off.
• A special sleep timer.
• V-Chip function.
• Excellent Digital Interface & Networking:
With a built-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Cable Box/Satellite receiver (Set-
Top Box) needed.
• HDMI/DVI connection of your PC to this TV.
• Excellent Picture Quality
- DNle technology provides life-like clear images.
• SRS TruSurround XT
- SRS TruSurround XT provides a virtual surround system.
List of Features
I
I
Remote Control (BN59-00695A) I
AM Batteries (4301-000103)
o
Power Cord
(3903-000144 )
Owner's Instructions I
Quick Setup Guide
warranty Card I
Registration Card I
Safety Guide Manual
(Not available in all locations)
Cleaning Cloth Cover-Bottom I
Screws (2ea)
(Refer to page 108)
Ferrite Core for Power Cord
(3301-001305)
PN50A650T1F:5ea
PN58A650T1F:3ea
~ See the bottom of the page for Ferrite Core usage.
The following parts are sold separately and are available at most electronics stores.
~ If you do not use a good quality cable, some noise may appear on the screen.
S-VIDEO Cable (BN39-00149A) HDMI Cable (BN39-00641A)
HDMI/DVI cable (BN39-00643A)
Component Cables (RCA)
(BN39-00279A)
PC Cable (BN39-00115A)
PC Audio Cable (eN39-:00.o61B~. _ _ _ _ Q~tical Cable_
_ Ant~ona Cable <BN39.:0Q.333A) ,
~ Ferrite Core
The ferrite cores are used to shield the
cables from interference.
When connecting a cable, open the
ferrite core and clip it around the cable
near the plug.

The buttons on the lower-right panel control your TV's basic features, including the on-screen menu.
To use the more advanced features, you must use the remote control.
,
·
·
·
,
,
,
,
,
,
,
·
,
·
,
,
,
,
,
,
·
·
,
,
,
,
,
,
,
,
·
·
,
,
,
·
,
·
,
,
,
,
,
,
,
,
,
·
,
·
,
,
,
,
,
·
,
,
·
,
,
,
·
·
,
,
·
,
,
]}-o
10
:JL-0
uttons
Touch each button to
operate.
SOURCE
I
'"
.I
M{NU
.I
+I
VOL
-I
......
::'1
CH I
i.l~
...,
I
0I
L~J
<!>
SIIMSUNG IPOWUl
'---
\ /
$
Front Panel b
~ The product color and shape may vary depending on the model.
o SOURCEG
Toggles between all the available input sources
(TV, AV1, AV2, S-Video, Component1, Component2,
PC, HDMI1, HDMI2/DVI, HDMI3, HDMI4, USB).
~ In the on-screen menu, use this button as you
would use the ENTER button on the remote control.
f) MENU
Press to see an on-screen menu of your TV's features.
o POWER INDICATOR
Lights up when the power is on.
e <!>POWER
Press to turn the TV on and off.
o REMOTE CONTROL SENSOR
Aim the remote control towards this spot on the TV.
9 SPEAKERS
e +VOL-
Press to increase or decrease the volume. In the on-
screen menu, use the + VOL - buttons as you would
use the'" and ~ buttons on the remote control.
e ACHv
Press to change channels.
In the on-screen menu, use the A CH v buttons as
you would use the • and T buttons on the remote
control.

I.
.
.Viewing the Connection Panel
Rear Panel Jacks
Use the rear panel jacks to connect AN components that will be connected continuously, such as VCR or DVD players. For
more information on connecting equipment, see pages 9-15. The product color and shape may vary depending on the model.
o POWER IN
Connect the supplied power cord.
eLAN
Connect a LAN cable to this port to connect to the
Network (SAMSUNG's InfoLink Service). (See page 89)
e AUDIO OUT (RlL)
Audio outputs to external devices.
o PC IN[PC]/[AUDIO]
Connect to the video and audio output jack on your PC.
eDVIIN (HDMI 2) (AUDIO-RlL)
Connect to the DVI audio output jack of an external device.
oHDMIIN 1, 2, 3
Connect to the HDMI jack of adevice with an HDMI
output. (HDMI 2supports HDMI-DVIIN and connection
from a PC.)
- This input can also be used as a DVI connection with
separate analog audio inputs. An optional HDMI/DVI
cable will be necessary to make this connection.
- When using an optional HDMI/DVI adapter, the DVI
analog audio inputs on your TV allow you to receive left
and right audio from your DVI device.
Side Panel Jacks
8 ANT IN
Uses a750 Coaxial connector for an Air/Cable
Network.
9 DIGITAL AUDIO OUT (OPTICAL)
Connect to a Digital Audio component.
(1) COMPONENT IN 1, 2 / AV IN 1
Connects Component video/audio.
The COMPONENT IN 1 jack is also used as the AV IN 1
jack.
- Connect the video cable to the COMPONENT IN 1 [Y/
VIDEO] jack and the audio cable to the COMPONENT IN 1
[R-AUDIO-L] jacks.
G!) EX·L1NK
Connect this to the jack on the optional wall mount
bracket. This will allow you to adjust the TV viewing
angle using your remote control.
Use the left side panel jacks to connect acomponent that is used only occasionally, such as acamcorder or video game.
The product color and shape may vary depending on the model.
o HDMIIN4
Connect to the HDMI jack of adevice with an HDMI output.
eWISELINK
Connect a USB mass storage device to view photo files (JPEG) and play audio files (MP3).
eS-VIDEO (AV IN 2)
S-Video input for external devices with an S-Video output.
o AVIN2
Video and audio inputs for external devices.
eHEADPHONE
You can connect a set of headphones if you wish to watch atelevision program without
disturbing other
people in the room.

I

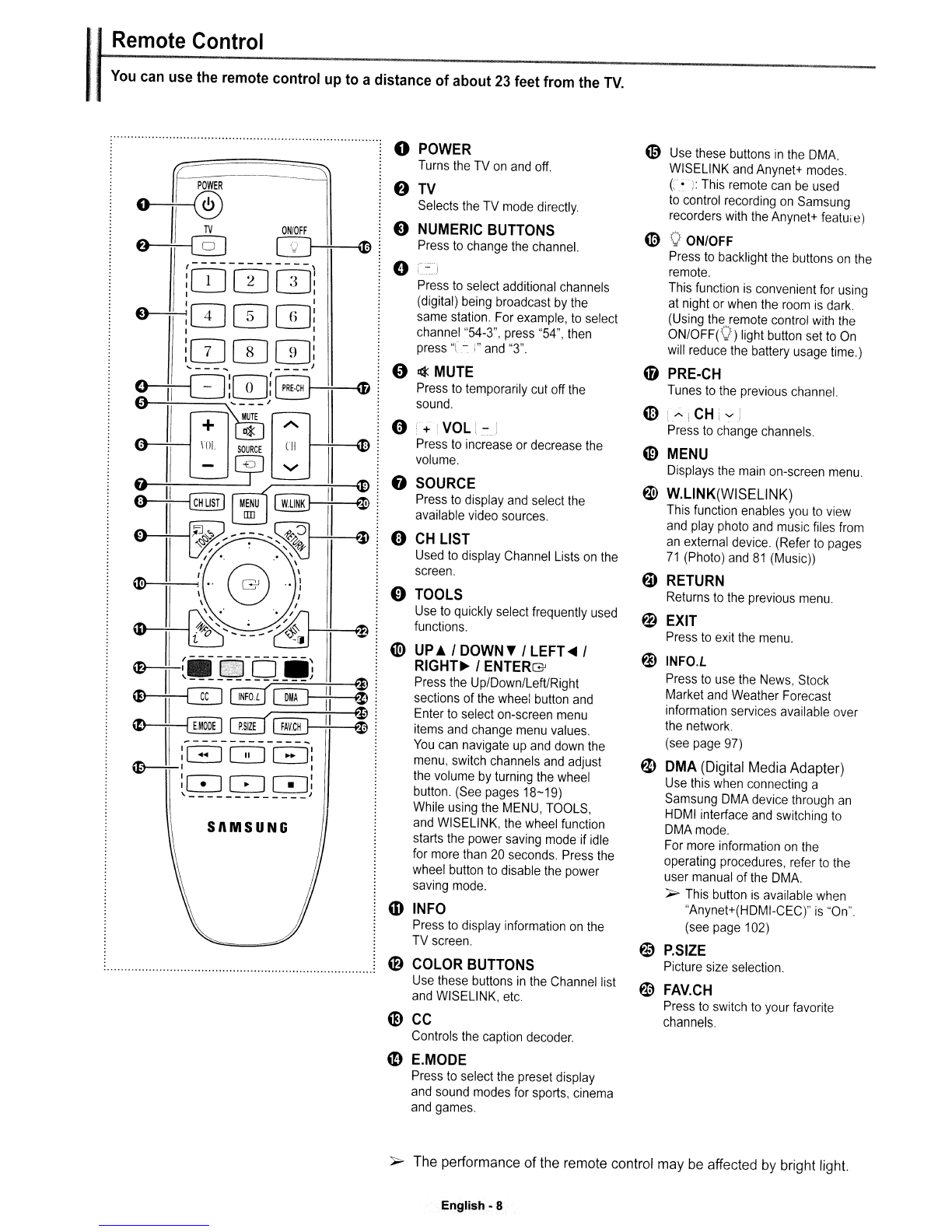

:, Remote Control
You can use the remote control up to adistance of about 23 feet from the TV.
ONiOFF
~
~
SnMSUNG
0
POWER
Turns the TV on and off.
0
TV
Selects the TV mode directly.
e
NUMERIC BUTTONS
Press to change the channel.
0
Press to select additional channels
(digital) being broadcast by the
same station. For example, to select
channel "54-3", press "54", then
press 'r-_ I" and "3".
0«<MUTE
Press to temporarily cut off the
sound.
0
1+ ! VOL l-J
Press to increase or decrease the
volume.
8
SOURCE
Press to display and select the
available video sources.
0
CH LIST
Used to display Channel Lists on the
screen.
0
TOOLS
Use to quickly select frequently used
functions.
~ UP,. IDOWN,. I LEFT~ I
RIGHT~ I ENTERG'
Press the Up/Down/LeftlRight
sections of the whee: button and
Enter to select on-screen menu
items and change menu values.
You can navigate up and down the
menu, switch channels and adjust
the volume by turning the wheel
button (See pages 18-19)
While using the MENU, TOOLS,
and WISELINK, the wheel function
starts the power saving mode if idle
for more than 20 seconds. Press the
wheel button to disable the power
saving mode.
m INFO
Press to display information on the
TV screen.
o COLOR BUTTONS
Use these buttons in the Channel list
and WISELlNK, etc
~ CC
Controls the caption decoder
m E.MODE
Press to select the preset display
and sound modes for sports, cinema
and games.
@ Use these buttons in the DMA,
WISELINK and Anynet+ modes.
(,' ): This remote can be used
to control recording on Samsung
recorders with the Anynet+ featuie)
'9 \1 ON/OFF
Press to backlight the buttons on the
remote.
This function is convenient for using
at night or when the room is dark
(Using the remote control with the
ON/OFFCV) light button set to On
will reduce the battery usage time.)
(f) PRE-CH
Tunes to the previous channel.
ID I" I CH ivJ
Press to change channels.
~ MENU
Displays the main on-screen menu.
W W.L1NK(WISELlNK)
This function enables you to view
and play photo and music files from
an external device. (Refer to pages
71 (Photo) and 81 (Music))
fl) RETURN
Returns to the previous menu.
~ EXIT
Press to exit the menu.
~ INFO.L
Press to use the News, Stock
Market and Weather Forecast
inforrnation services available over
the network.
(see page 97)
~ DMA (Digital Media Adapter)
Use this when connecting a
Samsung DMA device through an
HDMI interface and switching to
DMAmode.
For more information on the
operating procedures, refer to the
user manual of the DMA.
~ This button is available when
"Anynet+(HDMI-CEC)" is "On".
(see page 102)
~ P.SIZE
Picture size selection.
~ FAV.CH
Press to switch to your favorite
channels.
~ The performance of the remote control may be affected by bright light.
English· 8

I
', 11nstalling Batteries in the Remote Control
Lift the cover at the back of the remote control upward as shown in the figure.
2Install two AAA size batteries.
~ Make sure to match the "+" and "-" ends of the batteries with the diagram inside the
compartment.
~ Using the remote control with the ON/OFF(V) light button set to On will reduce the
battery usage time.
3 Close the cover as shown in the figure.
~ Remove the batteries and store them in a cool, dry place if you won't be using the
remote control for a long time. The remote control can be used up to about 23 feet
from the TV (Assuming typical TV usage, the batteries last for about one year.)
~ If the remote control doesn't work, check the following:
1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power cut, or is the power cord unplugged?
5. Is there aspecial fluorescent light or a neon sign nearby?
IConnections
I:
Connecting VHF and UHF Antennas
If your antenna has aset of leads that look like this, see "Antennas with 300 nFlat
Twin Leads" below.
If your antenna has one lead that looks like this, see "Antennas with 75 nRound
Leads".
If you have two antennas, see "Separate VHF and UHF Antennas".
Antennas with 300 nFlat Twin Leads
If you are using an oft-air antenna (such as aroof antenna or "rabbit ears") that
has 300 ntwin flat leads, follow the directions below.
1 Place the wires from the twin leads under the screws on a 300-75 0adapter (not
supplied).
Use ascrewdriver to tighten the screws.
2 Plug the adaptor into the ANT IN terminal on the back of the TV
Antennas with 75 nRound Leads
1 Plug the antenna lead into the ANT IN terminal on the back of the TV
Separate VHF and UHF Antennas
If you have two separate antennas for your TV (one VHF and one UHF), you must
combine the two antenna signals before connecting the antennas to the TV. This
procedure requires an optional combiner-adaptor (available at most electronics
shops).
1Connect both antenna leads to the combiner.
2 Plug the combiner into the ANT IN terminal on the bottom of the back panel.
English - 9
(
-.. ~
l:~··
UHF .:
-.:- __ VHF
-

I

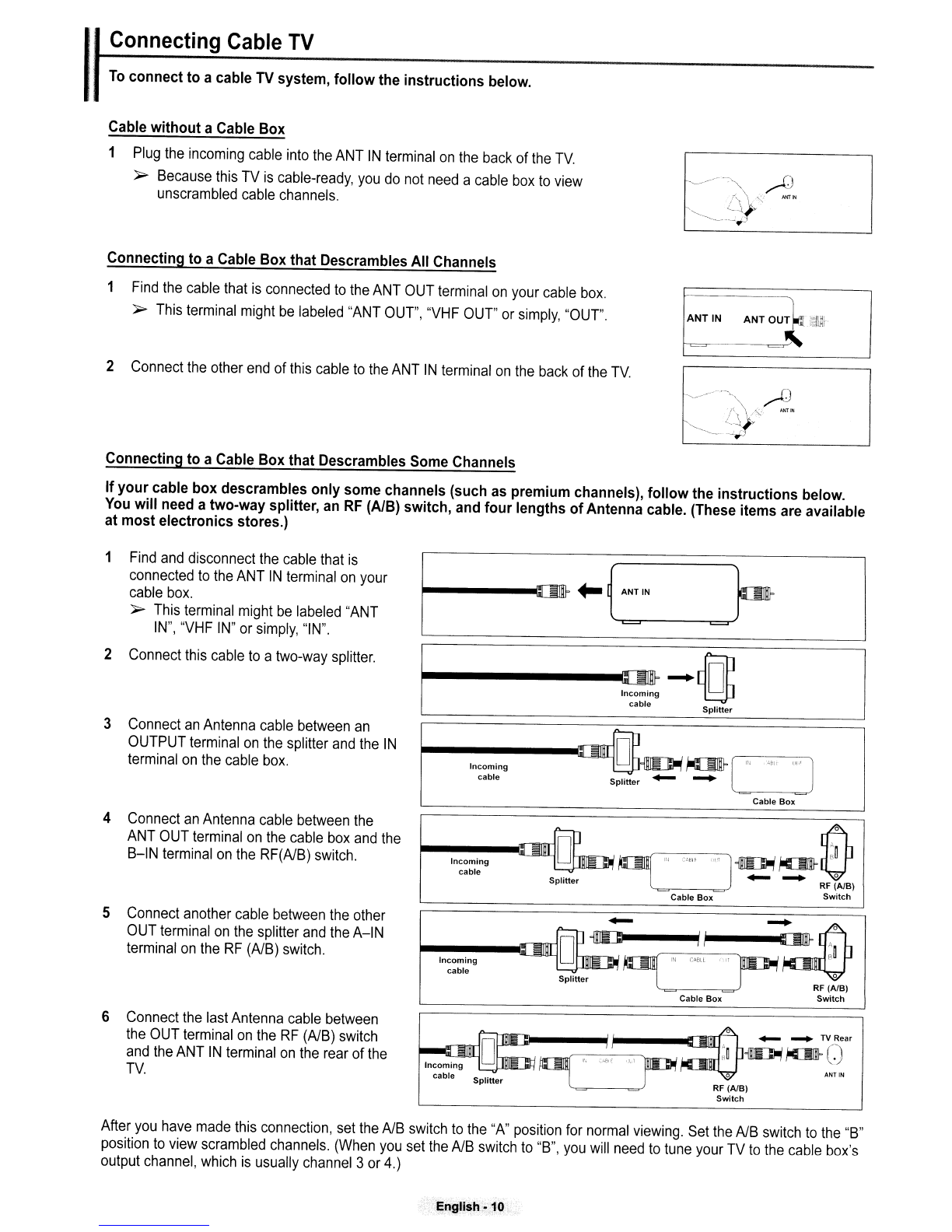

Connecting Cable TV
To connect to acable TV system, follow the instructions below.
Cable without aCable Box
1 Plug the incoming cable into the ANT IN terminal on the back of the TV
~ Because this TV is cable-ready, you do not need a cable box to view
unscrambled cable channels.
Connecting to aCable Box that Descrambles All Channels
1 Find the cable that is connected to the ANT OUT terminal on your cable box.
~ This terminal might be labeled "ANT OUT", "VHF OUT" or simply, "OUT".
2 Connect the other end of this cable to the ANT IN terminal on the back of the TV
ANT IN ANT OUT ':J. l~illl
I--c=--~~
Connecting to aCable Box that Descrambles Some Channels
If your cable box descrambles only some channels (such as premium channels), follow the instructions below.
You will need atwo-way splitter, an RF (AlB) switch, and four lengths of Antenna cable. (These items are available
at most electronics stores.)
1 Find and disconnect the cable that is
connected to the ANT IN terminal on your
cable box.
~ This terminal might be labeled "ANT
IN", "VHF IN" or simply, "IN".
2 Connect this cable to a two-way splitter.
----...-..~-rO
cable Splitter
3 Connect an Antenna cable between an
OUTPUT terminal on the splitter and the IN
terminal on the cable box.
Incoming
cable
Splitter
~[~ ,,\<, 'J
Cable Box
4 Connect an Antenna cable between the
ANT OUT terminal on the cable box and the
B-IN terminal on the RF(AlB) switch.
~-In~~-~~n-g~=-:J~~,o ,,]~~0
Splitter l_~_~=-, RF (AlB)
Cable Box Switch
Cable Box
5 Connect another cable between the other
OUT terminal on the splitter and the A-IN
terminal on the RF (AlB) switch.
Incoming
cable
"-~~~~I_I_,,- ~Ia
l-sp-rilitt-er~-' ~ <N "BLL ~ RF (:'B)
Switch
6 Connect the last Antenna cable between
the OUT terminal on the RF (AlB) switch
and the ANT IN terminal on the rear of the
TV ~
__ TVRear
~
, ... , .~, ro ;~ ~ I-UJID- 0
l-,jl-'ll""'-"'l 0 ANT IN
Splitter '"'=~_~ RF (AlB)
Switch
After you have made this connection, set the AlB switch to the "A" position for normal viewing. Set the AlB switch to the "B"
position to view scrambled channels. (When you set the AlB switch to "B", you will need to tune your TV to the cable box's
output channel, which is usually channel 3 or 4.)
English ·10

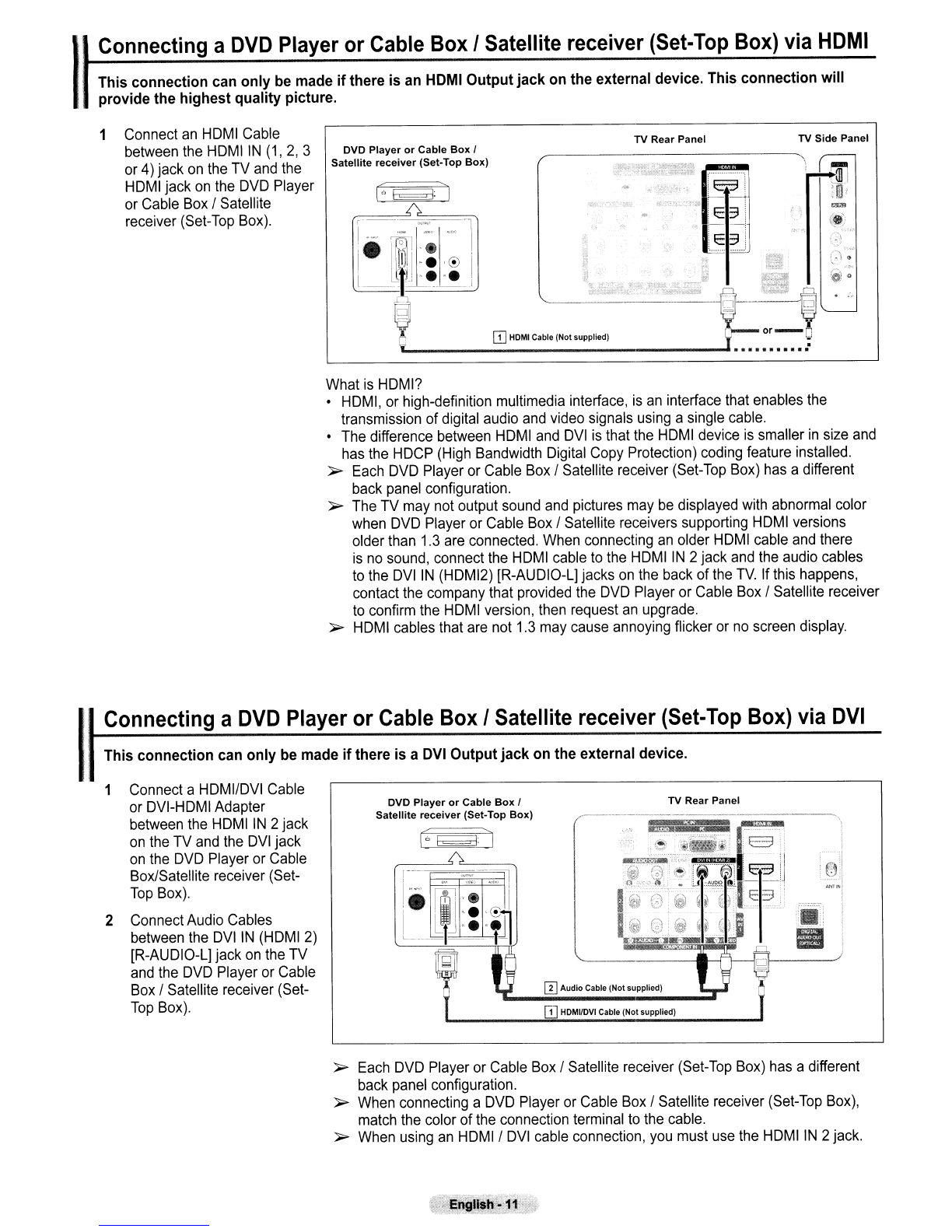

IConnecting a
DVe Player or Cable Box ISatellite receiver (Set-Top Box) via HDMI
.This connection can only be made if there is an HOMI Output jack on the external device. This connection will
provide the highest quality picture.
1Connect
an HDMI Cable
between the HDMI IN (1, 2, 3
or 4) jack on the TV and the
HDMI jack on the DVD Player
or Cable Box ISatellite
receiver
(Set-Top Box).
eve Player or Cable Box I
Satellite receiver (Set-Top Box)
[!] HOMI Cable (Not supplied)
TV Rear Panel TV
Side Panel
What is HDMI?
• HDMI, or high-definition multimedia interface, is an interface that enables the
transmission of digital audio and video signals using a single cable.
• The difference between HDMI and DVI is that the HDMI device is smaller in size and
has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed.
;... Each DVD Player or Cable Box ISatellite receiver (Set-Top Box) has adifferent
back panel configuration.
;...
The TV may not output sound and pictures may be displayed with abnormal color
when DVD Player or Cable Box ISatellite receivers supporting HDMI versions
older than 1.3 are connected. When connecting an older HDMI cable and there
is no sound, connect the HDMI cable to the HDMIIN 2jack and the audio cables
to the DVI IN (HDMI2) [R-AUDIO-L] jacks on the back of the TV. If this happens,
contact the company that provided the DVD Player or Cable Box ISatellite receiver
to confirm the HDMI version, then request an upgrade.
;... HDMI cables that are not 1.3 may cause annoying flicker or no screen display.
This connection can only be made if there is a OVI Output jack on the external device.
Connecting a eve Player or Cable BoxISatellite receiver (Set-Top Box) via eVI
TV Rear Panel
[!] HOMUOVI Cable (Not supplied)
illAudio Cable (Not supplied)
eve Player or Cable Box I
Satellite receiver (Set-Top Box)
1 Connect a HDMI/DVI Cable
or DVI-HDMI Adapter
between the HDMI IN 2jack
on the TV and the DVI jack
on the DVD Player or Cable
Box/Satellite receiver (Set-
Top Box).
2 Connect Audio Cables
between the DVI IN (HDMI 2)
[R-AUDIO-L] jack on the TV
and the DVD Player or Cable
Box ISatellite receiver (Set-
Top Box).
I
;... Each DVD Player or Cable Box /Satellite receiver (Set-Top Box) has adifferent
back panel configuration.
;...
When connecting a DVD Player or Cable Box ISatellite receiver (Set-Top Box),
match the color of the connection terminal to the cable.
;... When using an HOMII DVI cable connection, you must use the HDMIIN 2 jack.

I.
' Connecting a DVD Player or Cable Box I Satellite receiver (Set-Top Box) via Component cables
The rear panel jacks on your TV make it easy to connect a DVD Player/Cable Box/Satellite receiver (Set-Top Box)
to your TV.
TV Rear Panel

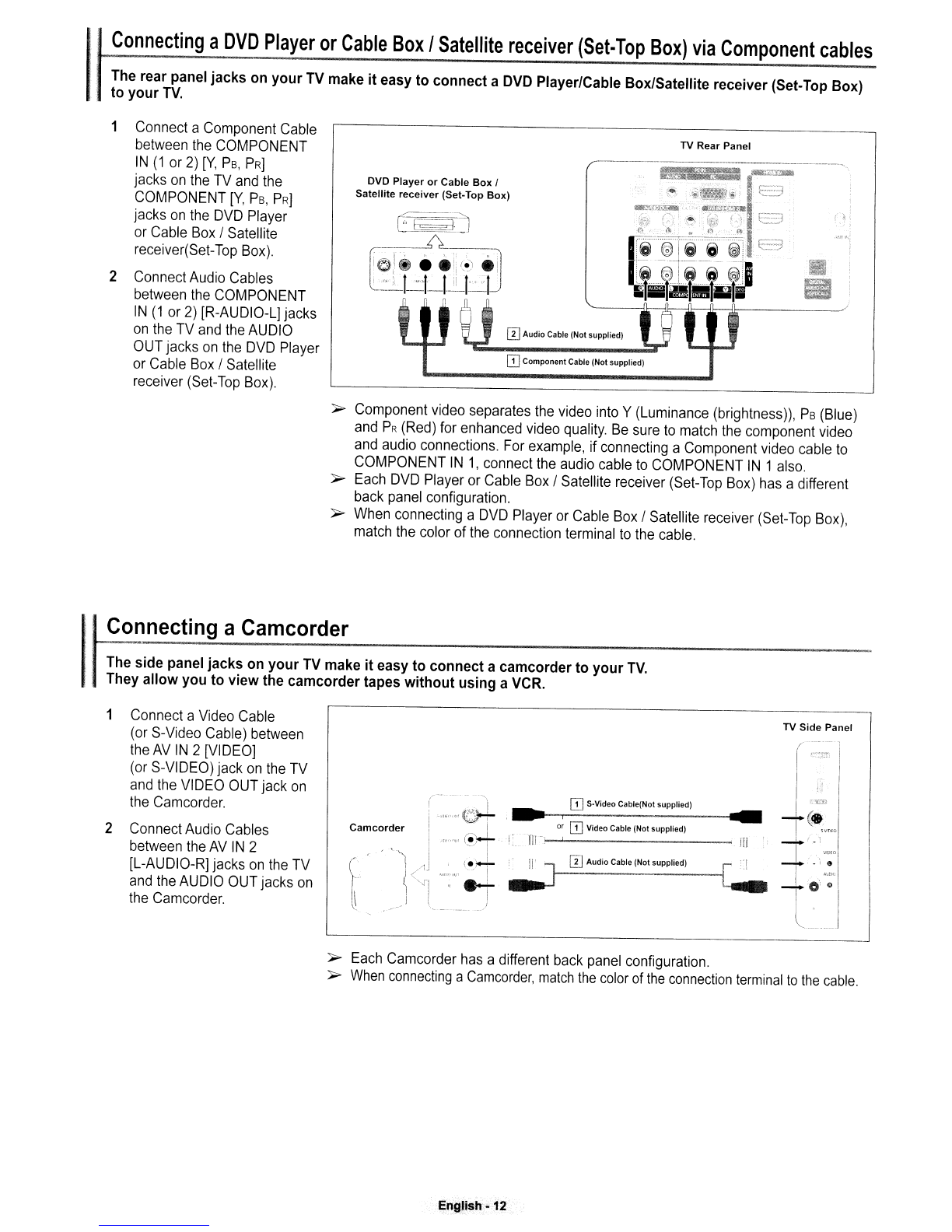

1 Connect a Component Cable
between the COMPONENT
IN (1 or 2) [Y, PB, PRJ
jacks on the TV and the
COMPONENT [Y, PB, PRJ
jacks on the DVD Player
or Cable Box ISatellite
receiver(Set-Top Box).
2 Connect Audio Cables
between the COMPONENT
IN (1 or 2) [R-AUDIO-L] jacks
on the TV and the AUDIO
OUT jacks on the DVD Player
or Cable Box ISatellite
receiver
(Set-Top Box).
DVD Player or Cable Box I
Satellite receiver (Set-Top Box)
I~J
[I] Audio Cable (Not supplied)
OJ Component Cable (Not supplied)
\.
~ Component video separates the video into Y(Luminance (brightness)), PB (Blue)
and PR (Red) for enhanced video quality. Be sure to match the component video
and audio connections. For example, if connecting a Component video cable to
COMPONENT IN 1, connect the audio cable to COMPONENT IN 1 also.
~ Each DVD Player or Cable Box ISatellite receiver (Set-Top Box) has adifferent
back panel configuration.
~ When connecting a DVD Player or Cable Box ISatellite receiver (Set-Top Box),
match the color of the connection terminal to the cable,
I
... ,Connecting aCamcorder
The side panel jacks on your TV make it easy to connect acamcorder to your TV.
They allow you to view the camcorder tapes without using a VCR.
Connect a Video Cable
(or S-Video Cable) between
the AV IN 2 [VIDEO]
(or S-VIDEO) jack on the TV
and the VIDEO OUT jack on
the Camcorder.
2Connect Audio Cables
between the AV IN 2
[L-AUDIO-R] jacks
on the TV
and the AUDIO OUT jacks on
the Camcorder.
( ')
I"''''(~
Camcorder j' J.
.. '\ .. ,,,0 I
~. \<I-,~q
OJ S·Video Cable(Not supplied)
• i •
oAudio Cable (Not supplied)
TV Side Panel
~ Each Camcorder has adifferent back panel configuration.
~ When connecting a Camcorder, match the color of the connection terminal to the cable.
English· 12

Connecting a VCR
Video Connection
These instructions assume that you have already connected your
TV to an antenna oracable TV system (according
to the instructions
on pages 9-10). Skip step 1 if you have not yet connected to an antenna or acable system.
1 Unplug the cable or antenna
from the back of the TV
2 Connect the cable or antenna
to the ANT IN terminal on the
back of the VCR.
3Connect an Antenna Cable
between the ANT OUT
terminal on the VCR and the
ANT IN terminal on the TV
4 Connect a Video Cable
between the VIDEO OUT
jack on the VCR and the AV
IN 1 [YIVIDEO] or AV IN 2
[VIDEO] jack on the TV.
5Connect Audio Cables
between the AUDIO OUT
jacks on the VCR and the AV
IN 1 (or AV IN 2) [R-AUDIO-L]
jacks
on the TV
TV Rear Panel
VCR Rear Panel
1Audio Cable (Not supplied)
----~~------_ .
oVideo Cable (Not supplied)
TV Side Panel
· '.
.
..
·.
·.
·.
·.
·.
·.
·.
·.
·.
·.
:.
. ... . ... .. ... :
.
..•............
WAntenna cable (Not supplied)
~ If you have a "mono" (non-stereo) VCR, use a Y-connector (not supplied) to
connect to the right and left audio input jacks of the TV Alternatively, connect the
cable to the "R" jack.
If your VCR is stereo, you must connect two cables.
~ Each VCR has adifferent back panel configuration.
~ When connecting a VCR, match the color of the connection terminal to the cable.
~ When connecting to AV IN 1, the color of the AV IN 1 [YIVIDEO] jack (Green) does
not match the color of the video cable (Yellow).
~
ill
m,
""'"
~I
TV Side Panel
TV Rear Panel
W Audio Cable (No! supplied)
CD Antenna cable(Not supplied)
oS·Video Cable(No! supplied)
VCR Rear Panel
3Connect Audio Cables
between the AUDIO OUT
jacks on the VCR and the AV
IN 2 [R-AUDIO-L] jacks on
the TV
S-Video Connection
Your Samsung
TV can be connected to an S-Video jack on a VCR.
(This connection delivers abetter picture as compared to astandard VCR.)
1 To begin, follow steps 1-3
in the previous section to
connect the antenna or cable
to your VCR and your TV
2 Connect an S-Video Cable
between the S-VIDEO OUT
jack on the VCR and the AV
IN 2 [S-VIDEO] jack on the
TV
An S-Video cable may be included with your VCR. (If not, check your local electronics
store.)
~ Each VCR has adifferent back panel configuration.
~ When connecting a VCR, match the color of the connection terminal to the cable.
English _13'c<

I
Connecting a Digital Audio System
The rear panel jacks on your TV make it easy to connect aDigital Audio System(Home theater/Receiver) to your
TV.
TV Rear Panel
1 Connect an Optical Cable
between the DIGITAL AUDIO
OUT (OPTICAL) jacks on
the TV and the Digital Audio
Input (OPTICAL) jacks on the
Digital Audio System.
When a Digital Audio System
is connected to the "DIGITAL
AUDIO OUT (OPTICAL)"
jack:
Decrease the volume of the
TV, and adjust the volume
level with the system's
volume control.
Digital Audio System
I
0,1
JI
,
What is OPTICAL?
• An optical cable converts an electric signal into an optical light signal, and transmits
it through glass fibers. S/PoIF is atransmission system of digital audio in the form of
alight wave that uses a glass conductor.
~ 5.1 CH audio is possible when the TV is connected to an external device
supporting 5.1 CH.
~ Each Digital Audio System has adifferent back panel configuration.
~ When the receiver (home theater) is set to On, you can hear sound output from
the TV's Optical jack. When the TV is displaying aoTV(air) signal, the TV will send
out 5.1 channel sound to the Home theater receiver. When the source is a digital
component such as a OVO and is connected to the TV via HoMI, only 2 channel
sound will be heard from the Home Theater receiver.
If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT
(OPTICAL) jack on the oVD player or Cable/Satellite Box directly to an Amplifier or
Home Theater, not the TV.
Connecting an Amplifier I eve Home Theater
I1
Connect Audio Cables
between the AUDIO OUT
[R-AUoIO-L] jacks on the TV
and AUDIO IN [L-AUoIO-R]
jacks on the Amplifier/oVo
Home Theater.
When an audio amplifier is
connected to the AUDIO OUT
[R-AUDIO-L] jacks terminals:
Decrease the volume of the
TV, and adjust the volume
level with the Amplifier's
volume control.
Amplifier IDVD Home Theater
[1J Audio Cable (Not supplied)
TV Rear Panel
~ Each Amplifier / OVO Home Theater has adifferent back panel configuration.
~ When connecting an Amplifier / OVO Home Theater, match the color of the
connection terminal to the cable.

I
TV Rear Panel
[D D·Sub Cable (Not supplied)
PC
IT] PC Audio Cable (Not supplied)
Using the D-Sub Cable
Using the D-Sub Cable
1Connect a D-Sub Cable
between PC IN [PC] jack on
the TV and the PC output
jack
on your computer.
2Connect a PC Audio Cable
between the PC IN [AUDIO]
jack on the TV and the Audio
Out jack of the sound card on
your computer.
IConnecting a PC
Using the HDMIIDVI Cable
1Connect a HDMI/DVI cable
between the HDMIIN 2jack
on the TV and the PC output
jack
on your computer.
2 Connect a 3.5 mm Stereo plug
to 2RCA cable between the
DVI IN (HDMI2) [R-AUDIO-L]
jack on the TV and the Audio
Out jack of the sound card on
your computer.
Using the HDMIIDVI Cable
TV Rear Panel
PC
IT] 3.5 mm Stereo plug to 2RCA Cable (Not supplied)
[DHDMIIDVI Cable (Not supplied)
» Each PC has adifferent back panel configuration.
» When connecting a PC, match the color of the connection terminal to the cable.
» When using an HDMI/DVI cable connection, you must use the HDMIIN 2 terminal.

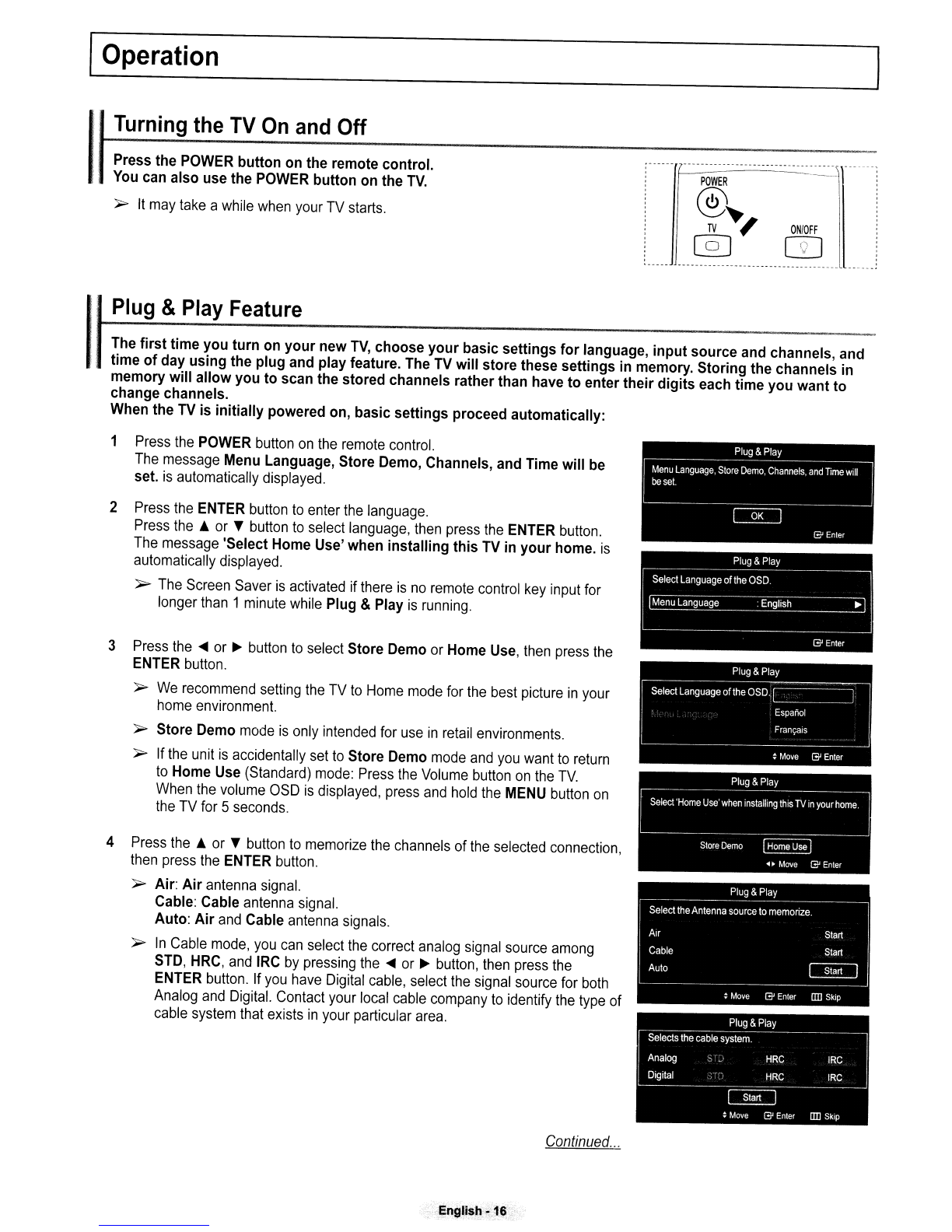

IOperation
,.Turning the
TV On and Off
Press the POWER button on the remote control.
You can also use the POWER button on the TV.
};> It may take awhile when your TV starts.
----------_._ .. _-------------------~
POWER ---I
@
TV ~, ON/OFF l
@J m
_.-----------------------------------
I
Plug & Play Feature
The first time you turn on your new TV, choose your basic settings for language, input source and channels, and
time
of day using the plug and play feature. The TV will store these settings in memory. Storing the channels in
memory will allow
you to scan the stored channels rather than have to enter their digits each time you want to
change channels.
When the
TV is initially powered on, basic settings proceed automatically:
1Press the POWER button
on the remote control.
The message Menu Language, Store Demo, Channels, and Time will be
set. is automatically displayed.
2Press the ENTER button to enter the language.
Press
the. or Tbutton to select language, then press the ENTER button.
The message 'Select Home Use' when installing
this TV in your home. is
automatically displayed.
~ The Screen Saver is activated if there is no remote control key input for
longer than 1minute while Plug &Play
is running.
3Press the
.... or ~ button to select Store Demo or Home Use, then press the
ENTER button.
};> We recommend setting the TV to Home mode for the best picture in your
home environment.
};> Store Demo mode is only intended for use in retail environments.
};> If the unit is accidentally set to Store Demo mode and you want to return
to Home Use (Standard) mode: Press the Volume button
on the TV.
When the volume OSD is displayed, press and hold the MENU button on
the TV for 5seconds.
4Press the. or Tbutton to memorize the channels of the selected connection,
then press the ENTER button.
};> Air: Air antenna signal.
Cable: Cable antenna signal.
Auto:
Air and Cable antenna signals.
};> In Cable mode, you can select the correct analog signal source among
STD, HRC,
and IRC by pressing the .... or ~ button, then press the
ENTER button. If you have Digital cable, select the signal source for both
Analog
and Digital. Contact your local cable company to identify the type of
cable system that exists
in your particular area.
Continued ...
English· t6

5The TV will begin memorizing all of the available channels.
After all the available channels are stored, the TV starts to remove scrambled
channels (see page 47). The Auto program menu then reappears.
Press the
ENTER button when channel memorization is complete.
The
Clock Mode menu is displayed.
~ To stop the search before it has finished, press the ENTER button with
stop selected.
6Press the
ENTER button.
Press
the. or "button to select Manual for setting the current time
manually, then press the ENTER button.
The message Set
current date and time. is displayed.
~ If you select Auto, Set to daylight saving time. is displayed, then go to
step
9.
7Press the .... or ~ button to move to Month, Day, Year, Hour, Minute, or
am/pm.
Set the date and time you want
by pressing the. or "button, then press the
ENTER button.
~ You can set the month, day, year, hour, and minute directly by pressing the
number buttons
on the remote control.
8The message
Enjoy your watching. is displayed.
When you have finished, press the
ENTER button.
~ Even if the ENTER button is not pressed, the message will automatically
disappear after several seconds.
Setting the Clock Automatically
9Press the ENTER button.
Press the. or "button to select Off or On, then the ENTER button.
The message Select
the time zone in which you live. is displayed.
10 Press the. or "button to highlight the time zone for your local area (and
to move the highlight to the appropriate time zone on the map ofthe United
States).
Press the
ENTER button.
If clock
is not automatically set, see page 53 to set the clock.
11 The message Enjoy your watching. is displayed.
When you have finished, press the ENTER button.
~ Even if the ENTER button is not pressed, the message will automatically
disappear after several seconds.
Continued ...
English -1'7-
Plug & Play
~---J
l ------===='~_ __ _
~
Plug& Play
L
------~
EnJoy your watchong
--- --------
OU

I

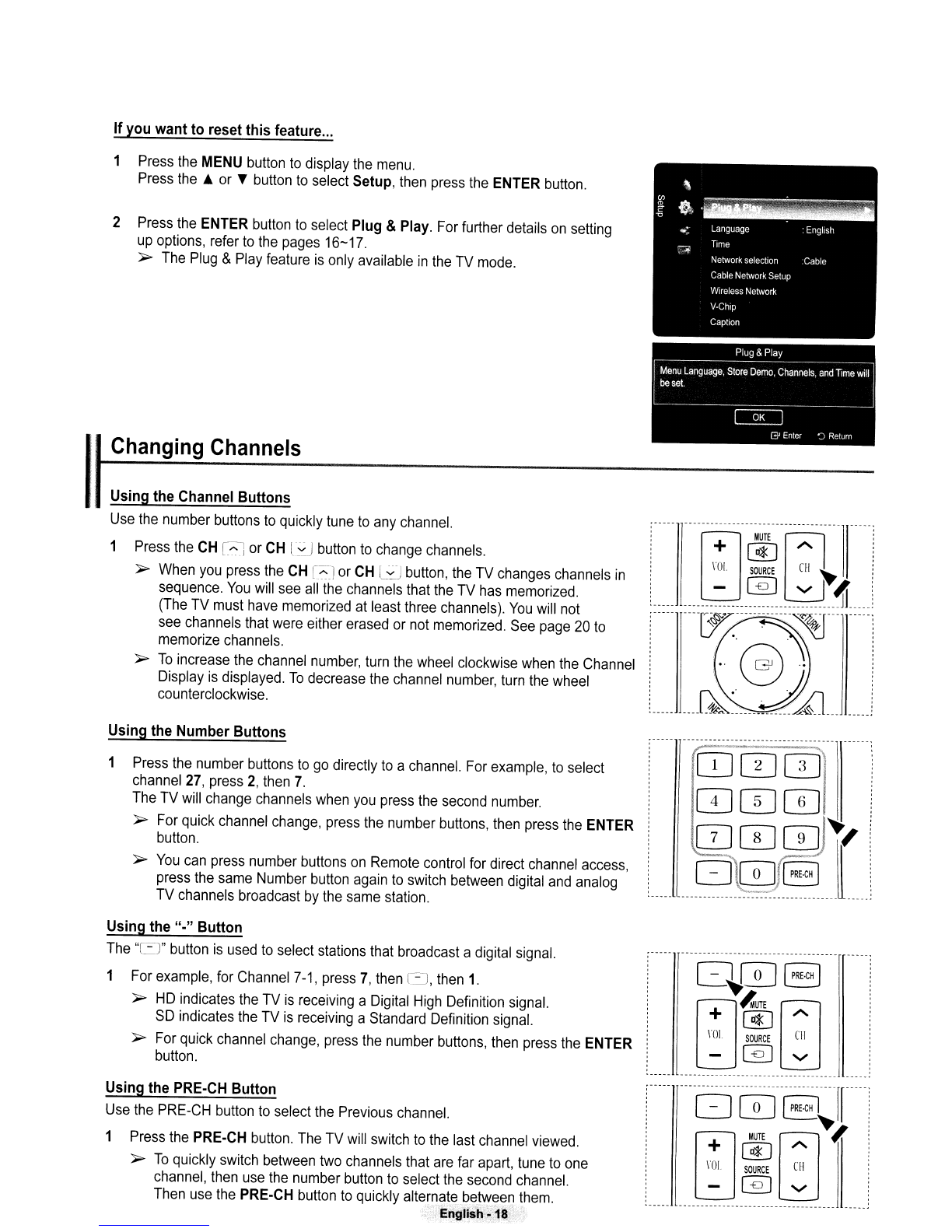

Ifyou want to reset this feature ...
1 Press the MENU button to display the menu.
Press the. or T button to select Setup, then press the ENTER button.
2 Press the ENTER button to select Plug &Play. For further details on setting
up options, refer to the pages 16-17.
~ The Plug & Play feature is only available in the TV mode.
Changing Channels
Using the Channel Buttons
Use the number buttons to quickly tune to any channel.
1 Press the CH A or CH I ~ button to change channels.
~ When you press the CH [~J or CH 8 button, the TV changes channels in
sequence. You will see all the channels that the TV has memorized.
(The TV must have memorized at least three channels). You will not
see channels that were either erased or not memorized. See page 20 to
memorize channels.
~ To increase the channel number, turn the wheel clockwise when the Channel
Display is displayed. To decrease the channel number, turn the wheel
counterclockwise.
Using the Number Buttons
Press the number buttons to go directly to a channel. For example, to select
channel 27, press 2, then 7.
The TV will change channels when you press the second number.
~ For quick channel change, press the number buttons, then press the ENTER
button.
~ You can press number buttons on Remote control for direct channel access,
press the same Number button again to switch between digital and analog
TV channels broadcast by the same station.
Using the
"." Button
The "0" button is used to select stations that broadcast adigital signal.
1 For example, for Channel 7-1, press 7, then 0, then 1.
~ HD indicates the TV is receiving a Digital High Definition signal.
SO indicates the TV is receiving aStandard Definition signal.
~ For quick channel change, press the number buttons, then press the ENTER
button.
Using the PRE-CH Button
Use the PRE-CH button to select the Previous channel.
1
Press the PRE-CH button. The TV will switch to the last channel viewed.
~ To qUickly switch between two channels that are far apart, tune to one
channel, then use the number button to select the second channel.
Then use the PRE·CH button to quickly alternate between them .
. Engnsh~18'
[;J
MUTE [J
[0* ] A-
101, SOURCE CII ~
-@]V~l
___________________________________ J _
----[f;~::-'-~~r
' .. ~ ..
____ ~:_: ~AO _
-------------_ .. -------------------
008
[;J
~~UTE D
[0*] A-
1"01. SOURCE CII
- @] v
------------------------------------rr---- .
o IT] [PRE-CH]
[;J
MUTE D~L
[0* ) A-
101, SOURCE CII
- @] v

I.Adjusting the Volume
Using the Volume Buttons
1Press the VOL [+"l or VOL c:J button to increase or decrease the volume.
~ To turn the volume up, turn the wheel clockwise when the Volume
Control window is displayed.
To turn the volume down, turn the wheel
counterclockwise.
[;j
MUlE l;]
+ [D*I A.
I'OL ~SOURCE (II
- LiJ v
The display identifies the current channel and the status of certain audio-video settings.
Viewing the Display
Using the Mute Button
At any time, you can cut off the sound using the MUTE button.
1Press
MUTE and the sound cuts off.
Mute will displayed on the screen.
2
To turn mute off, press the MUTE button again, or simply press the VOL CD or
VOL c:J button.
~
MUTE a
+@;1 A.
I'OL SOUR~ 'CH
-@] v
----~~--:~~~---
~.@ ..
, .. ~
----~~----~-------~---
Press the INFO button on the remote control.
The TV will display the channel, the type of sound, and the status
of certain
picture and sound settings.
I1
lB Press the INFO button once more or wait approximately 10 seconds and it disappears
automatically.
I
',. V
1
iewing the Menus
With the power on, press the MENU button.
The main menu appears
on the screen. The menu's left side has icons:
Picture, Sound, Channel, Setup, Input, Application.
2Press the •or ,. button to select one of the icons.
Then press the ENTER button to access the icon's sub-menu.
~ To move to alower menu, turn the wheel clockwise when the menu Display is on
the screen. To move to ahigher menu, turn the wheel counterclockwise.
--------\::;------------';7--------
~~ciJ
t-IJ
~
•
~"AD.
~
-0
"'"
.-
•Mode Standard
C
ttl~'·
(.
Cell Light 7
Contrast
95
\
Brightness
45
Jb
Sharpness
50
Color 50
..;: Tint(G/R) G50/R50
R1
Detailed Settings
3Press the EXIT button to exit.
~ It takes about one minute until the on-screen menu disappears.
~EOgUsh. 19 .

I
Using the Remote Control Backlight Buttons
Use this feature in dark surroundings and when you are unable to see the remote control buttons clearly.
1 Press the ON/OFF 0 light button
~ Pressing the ON/OFF 0light button toggles between ON and OFF.
>- When ON, the button backlight is turned on for a moment.
~ Pressing a remote control button when the remote control is on turns the button backlight on for a moment. If
you touch or move the remote control and the motion is detected by the sensor of the remote control, the button
backlight will be turned on for a moment.
~ The remote contains two small movement sensors that control the backlight function. If you shake or drop the
remote, you may hear the sensors rattle. This is normal and is not a defect.
~ The button backlight will not be turned on when the remote control is turned off.
Using the TOOLS Button
You can use the TOOLS button to select your frequently used functions quickly and easily. The TOOLS menu
changes depending on which external input mode you are viewing.
1 Press the TOOLS button.
The TOOLS menu will appear.
2 Press the .t" button to select a menu, then press the ENTER button.
3 Press the .t" t ... /~ tENTER buttons to display, change, or use the selected
items. For a more detailed description of each function, refer to the
corresponding page.
•Device List, see page 102
•Multi-Track Sound, see page 38
•Picture Mode, see page 23
•Sound Mode, see page
36
•Sleep Timer, see page 55
•Add to Favorite, see page 43
•Switch to Cable(or Switch to Air), see pages 20-21
•PIP: see pages 34-35
•Auto adjustment: see page 50
Memorizing the Channels
Your TV can memorize and store all of the available channels for both air and cable channels. After the available
channels are memorized, use the CH [-;;;:-1 or CH Cvj button to scan through the channels. This eliminates the need
to change channels by entering the channel digits. There are three steps for memorizing channels: selecting a
broadcast source, memorizing the channels (automatic) and adding and deleting channels (Channel Lists).
Selecting the Video Signal-source
Before your television can begin memorizing the available channels, you must
specify the type of signal source that is connected to the TV (i.e. an Air or a Cable
system).
1 Press the MENU button to display the menu.
Press the. or " button to select Channel, then press the ENTER button.
2 Press the ENTER button to select Antenna.
Press the. or " button to select Air or Cable, then press the ENTER button.
Press the EXIT button to exit.
Continued ...
English· 20
