Samsung PS-50P4H User manual

PLASMA DISPLAY TV
Chassis : D68A(P)Europe_50”
Model : PS50P4HX/BWT
PLASMA DISPLAY TV CONTENTS
Specifications
Alignment and Adjustments
Exploded View and Parts List
Service Item
Schematic Diagrams
1.
2.
3.
4.
5.
SERVICE Manual

Specifications
Samsung Electronics 1-1
1. Specifications
MODEL
Screen Size
PS-50P4H
Display
Remote Control
Display
Remote Control
Voltage
Power Consumption
Number of Pixels
ANTENNA input
VIDEO Input
AUDIO Intput
Monitor Output
Speaker Output
Accessory
Dimensions
Weight
127 Cm / 50 Inches (16:9)
1257(W) x 84(D) x 740(H)mm
59(W) x 22(D) x 209(H)mm
44 Kg
164g (Including batteries)
AC 110V~, 240V/50,60Hz
460 W
1366(H) X 768(V)
VHF, UHF (75Ωunbalanced)
Ext.1 Ext.2 Ext.3
AV1, AV2, AV3(Side)
S-VIDEO1, S-VIDEO2(Side)
COMPONENT1 (480i/480p/576i/576p/720p/1080i)
COMPONENT2 (480i/480p/576i/576p/720p/1080i)
PC (MINI D-SUB 15P)
DVI-D
AV1
AV2 / S-VIDEO1
AV3(Side) / S-VIDEO2(Side)
COMPONENT1, COMPONENT2
PC
DVI-D
VIDEO, AUDIO(L/R)
15W + 15W (8Ω)
Remote Control/AAA Batteries, Power Cord
Antenna Cable, Owner’s Instructions

1-2 Samsung Electronics
MEMO

Alignment and Adjustments
Samsung Electronics 2-1
2. Alignment and Adjustments
2-1 Service Mode
2-1-1 SERVICE MODE Entry Method (General Transmitter)
■Using the Customer Remote
1. Turn the power off and set to stand-by mode.
2. Press the remote bottons in this order; INFO-MENU-MUTE-POWER ON to turn the set on.
3. The set turns on and enters service mode.
2-1-2 Initial SERVICE MODE DISPLAY State
2-1-2(A) OSD DISPLAY
2-1-2(B) Button Operations in SERVICE MODE
♣♣While in Tuner mode, the direct access buttons can be used to select and change channels.
☞Indicates selected input mode
☞ Picture Adjustment
☞ Setting the Initial Values
☞Setting the Special Features
☞ Options-1 : Particular Product Options
☞ Options-2 : PDP Properties Options
☞ Initializing after saving the adjustments
☞ Software Version Information
Factory Mode Current Input Mode
01. Picture Improvement √
02. Initial Setting √
03. PIP/Test Pattern √
04. Option-1 √
05. Option-2 √
06. Reset √
Release : 2004-04-06-17:00
Version : T_NPL50PEU-0010
Menu Displays all menus
UP/DOWN Cursor moves to select items
LEFT/RIGHT To increase and decrease the data of the selected items
(ENTER) Confirm your choice(Store OR Enter)
SOURCE button Change input source

Alignment and Adjustments
2-2 Samsung Electronics
2-2 WHITE Balance Coordinates
2-2-1 PS-50P4H White Balance Adjustment
1. W/B Adjustment is required for the following six modes :
DVI →Component(1080i) →Component(720p) →PC →VIDEO (Video port) →VIDEO (Graphic port)
2. Adjustment Method (Signal equipment : MSPG-925LTH, Measurement equipment : CA210)
■MSPG-925LTH
Equipment that outputs analog and digital signals simultaneously
(Analog / Digital signal output / TV signal output (S-Video included) / HDTV signal output)
-. Digital Serial : TMDS (DVI24, SiI160) + DVI-I (Analog, Digital)
-. Monitor Signal (Analog): R, G, B, HS, VS, CS
-. TV Signal (CVBS) : NTSC M, NTSC J (7.5 IRE On/Off) (BNC or RCA), PAL B, D, G, H, I, PAL M, Nc
-. D-TV Signal (1080i, 720p, 480p)
♣♣MSPG-925 is used to adjust the W/B.
■CA210 : Color Analyzers adjusting brightness, chromaticity and etc.
-. R.G.B monochrome correction, brightness and gamma character adjustment
-. White Balance and flickering measurement
(a) DVI
1) Input Toshiba pattern (#16) at 720p resolution.
2) Select 02. Picture Improvement -> 01. White Balance.
3) Adjust items 07(Sub Contrast) & 08(Sub Brightness).
4) Adjust Items 01-03 (RGB Drives) and Items 04-06 (RGB Cutoffs).
(b) Component
1) Input Toshiba Pattern (#16) at 1080i resolution.
2) Select 01. Picture Improvement > 01. White Balance.
3) Adjust White Balance by selecting and adjusting Items 01. - 08. as performed in DVI mode.
4) Change input to Toshiba Pattern (#16) at 720p resolution.
5) Adjust White Balance by selecting and adjusting Items 01. - 08. as performed in DVI mode.
(c) PC
1) Input Toshiba Pattern (#16) in PC input at 1024 x 768 @ 60Hz.
2) Select 01. Picture Improvement -> 01. White Balance.
3) Adjust White Balance by selecting and adjusting Items 01 - 08 as performed in DVI mode.
(d) Video
The video signal uses the video port when there is no other input signal.
However, signal uses the graphic port in PIP mode, which includes other input signals (PC, DVI, Component, etc.), Video
adjustment should be performed with Video portand Graphic port separately.

1) Input Toshiba Pattern (#16) to Video Input.
2) Select 04. Option-1 -> 10. Video Port.
3) Set 10. Video Port equal to Video.
4) At Main SVC Menu, select 01. Picture Improvement -> 01. White Balance.
5) Adjust Items 01 - 08 as performed in DVI mode.
6) Return to Main SVC menu and select 04. Option-1 -> 10. Video Port.
7) Set 10. Video Port equal to Graphic.
8) At Main SVC Menu, select 01. Picture Improvement -> 01. White Balance.
9) Adjust Items 01 -> 08 as performed in DVI Mode.
* Thus, Micom saves the W/B data separately for each memory mode of the block (See the block diagram given below) during
W/B adjustment.
Alignment and Adjustments
Samsung Electronics 2-3
PC
(A-RGB)
DVI
(D-RGB)

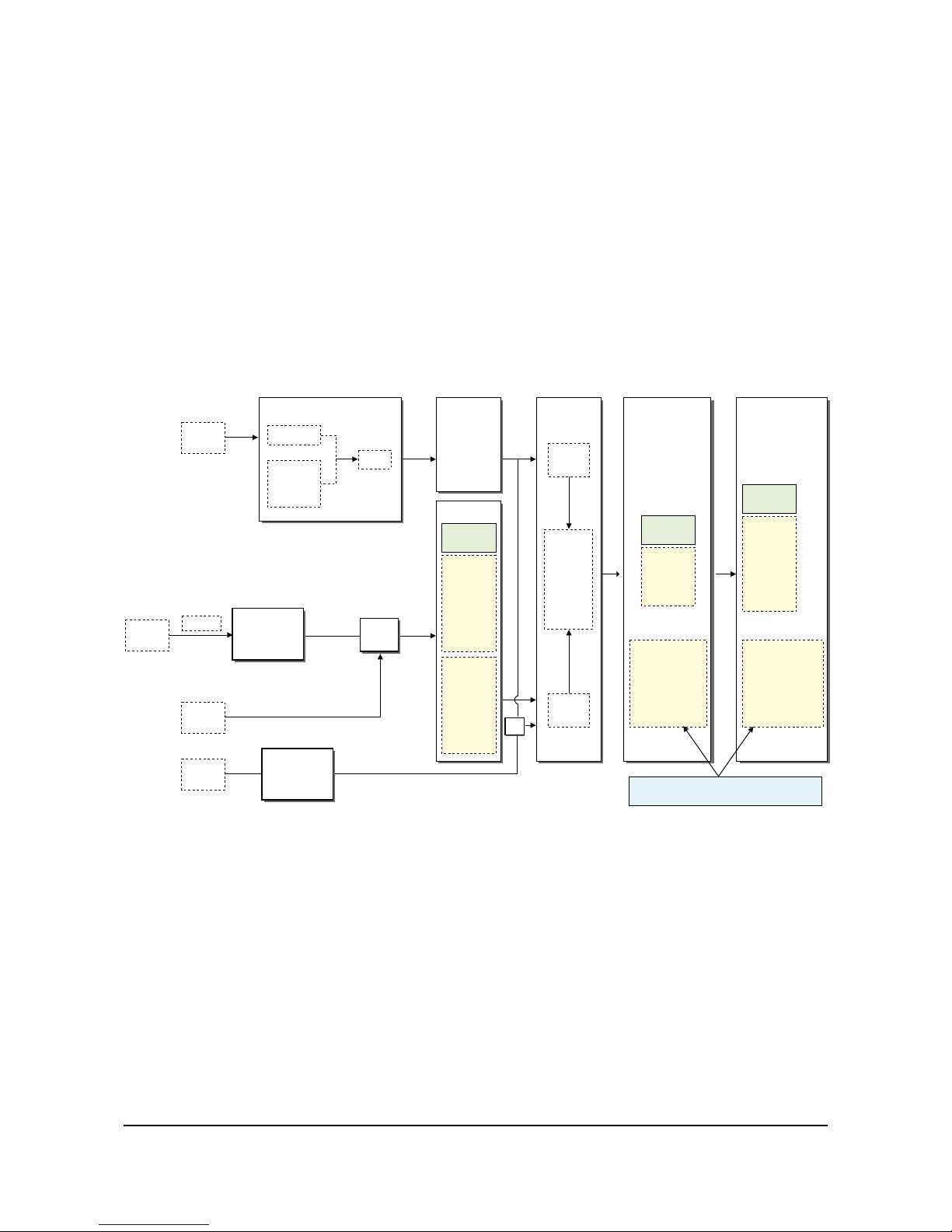

VSP9437 FLI2310
V-PEAKING Y-Delay
C-Delay
Brightness
Contrast
Saturation
RF
VIDEO
RGB
RGB
Scaler
RGB/YUV
CONTRAST
BRIGHT
ASI510
RGB-cont
RGB-bri
R-gamma
G-gamma
B-gamma
DNIe
Bri-offset
Con-offset
Different adjustment values will be applied
to DVI, PC ,DTV(Component) and Video mode.
Adjustment
Reg
Memory
Mode
- DVI
- PC
- Video
- Component(DTV)
Y/R-gain
Cr/B-gain
Cb/G-gain
Y/R-offset
Cr/b-offset
Cb/G-offset
Adjustment
Reg
Memory
Mode
Analog PC
- Auto Color
value(RGB)
DTV Mode
Logic
SIL169
SW
IC
S/W
R-dri
G-dri
B-dri
R-cutoff
G-cutoff
B-cutoff
Adjustment
Reg
AD9883
CXA2151
YPbPr
DTV
COMP1,2
Graphic
Port
Memory
Mode
- DVI
- PC
- Video
- Component(DTV)
Video
Port

Alignment and Adjustments
2-4 Samsung Electronics
2-3-1 Factory OSD Main Menu
2-3 Factory Data
☞Indicates selected input mode
☞ Picture Adjustment
☞ Setting the Initial Values
☞Setting the Special Features
☞ Setting particular product options
☞ Setting PDP Properties Options
☞ Initializing after saving the adjustments
☞ Software Version Information
01.Picture Improve
Factory Mode Current Input Mode
01. Picture Improvement √
02. Initial Setting √
03. PIP/Test Pattern √
04. Option-1 √
05. Option-2 √
06. Reset √
Release : 2004-04-06-17:00
Version : T_NPL50PEU-0010
☞White Balance Adjustment
☞ Color Adjustment
☞ Contrast & Brightness Enhancement
☞Detail Enhancement Sharpness Adjustment
☞ Y/C Delay Setting according to the System and
Input Modes
☞ Motion Enhancing Adjustment
☞ DNIe Registers
☞ Logic Registers of the Panel
☞ Picture Size Registers
01.Picture Improvement Current Input Mode
01. White Balance √
02. Color √
03. Cont/Bri Enhancement √
04. Detail Enhancement √
05. Y/C Delay √
06. Motion √
07. DNIe √
08. Logic √
09. Picture Size √
H/L
L/L
x
y
Y(fL)
x
y
Y(fL)
VIDEO
285
290
32
280
295
1.8
Component
285
295
34
285
295
0.9
PC
285
295
30
285
295
1.0
DVI
285
295
32
285
295
1.0
2-2-2 White Balance Coordinates by Mode

Alignment and Adjustments
Samsung Electronics 2-5
01.Picture Improve => 01.White Balance Adjustment
01.White Balance
01.R Drive
02.G Drive
03.B Drive
04.R Cutoff
05.G Cutoff
06.B Cutoff
07.Sub Contrast
08.Sub Brightness
09.R Gain
10.G Gain
11.B Gain
12.R/Cr Offset
13.G/Y Offset
14.B/Cb Offset
15.Auto color
TV
140
128
120
128
128
128
37
54
X
X
X
X
X
X
on/off
Mode-1
W/B
W/B
W/B
W/B
W/B
W/B
W/B
W/B
x
x
x
x
x
x
x
Mode-2
W/B
W/B
W/B
W/B
W/B
W/B
W/B
W/B
142
142
142
60
48
64
O
Mode-3
W/B
W/B
W/B
W/B
W/B
W/B
W/B
W/B
142
142
142
60
48
64
O
Mode-4
W/B
W/B
W/B
W/B
W/B
W/B
W/B
W/B
x
x
x
x
x
x
x
Initial Values of Input Modes
Video Component PC DVI
Relevant IC
Logic
DNIe
AD9883
ITEM
❈Input modes require respective storing the changes after adjustment.
01~06 : Logic
07~08 : DNIe
09~15 : AD9883

Alignment and Adjustments
2-6 Samsung Electronics
01.Picture Improve => 02.Color Adjustment
02.Color
01. U-Saturation
02. V-saturation
03. RGB/YUV U-SAT
04. RGB/YUV V-SAT
05. RGB/YUV Tint
06. FLI-saturation
07. R Gamma
08. G Gamma
09. B Gamma
10. Gain-Sel
11. Cr Gain
12. Cb Gain
13. Y Gain
14. FLI-Y/G Bir
15. FLI-Cr/R Bir
16. FLI-Cb/B Bir
TV
36
36
22
22
3
132
30
30
30
1
7
7
1
0
0
0
Mode-1
36
36
22
22
3
132
30
30
30
1
7
7
1
0
0
0
Mode-2
x
x
x
x
x
x
30
30
30
x
x
x
x
x
x
x
Mode-3
x
x
x
x
x
x
30
30
30
x
x
x
x
x
x
x
Mode-4
x
x
x
x
x
x
30
30
30
x
x
x
x
x
x
x
Initial Values of Input Modes
PC DVI
Relevant IC
VSP9437
FLI2310
ASI510
CXA2151Q
FLI2310
ITEM
01 ~05 : VSP9437
07~09 : ASI510
06 , 14~16 : FLI2310
10~13 : CXA2151Q
Video Component

Alignment and Adjustments
Samsung Electronics 2-7
01.Picture Improve => 03.Contrast & Brightness Enhancement
03.Cont/Bri Enhancement
01.Contrast
02.Brightness
03.RGB/YUV Contrast
04.RGB/YUV Brightness
05.FLI-Contrast
06.FLI-Brightness
07.R Contrast
08.G Contrast
09.B Contrast
10.R Brightness
11.G Brightness
12.B Brightness
TV
32
48
32
15
128
128
32
32
32
0
0
0
Mode-1
32
48
32
15
128
128
32
32
32
0
0
0
Mode-2
x
x
x
x
x
x
32
32
32
0
0
0
Mode-3
x
x
x
x
x
x
32
32
32
0
0
0
Mode-4
x
x
x
x
x
x
32
32
32
0
0
0
Initial Values of Input Modes
PC DVI
Relevant IC
VSP9437
FLI2310
ASI510
ITEM
01~04 : VSP9437
07~12 : ASI510
05~06 : FLI2310
Video Component

Alignment and Adjustments
2-8 Samsung Electronics
01.Picture Improve => 04.Detail Enhancement
04.Detail Enhancement
01.VAPGAIN
02.VAPINV
03.YPFT
04.YPFG
05.APK-1st-BPM
06.APK-2nd-BPM
07.Denoise-BPM
08.APK-1st-HPM
09.APK-2nd-HPM
10.Denoise-HPM
11.HenhGain
12.HLEGain
13.HChrEnGain
TV
0
0
3
6
1
0
0
6
3
0
64
64
32
Mode-1
0
0
3
6
1
0
0
6
3
0
64
64
32
Mode-2
x
x
x
x
x
x
x
x
x
x
x
x
x
Mode-3
x
x
x
x
x
x
x
x
x
x
x
x
x
Mode-4
x
x
x
x
x
x
x
x
x
x
x
x
x
Initial Values of Input Modes
PC DVI
Relevant IC
uPD64083
VSP9437
FLI2310
ITEM
01~04 : uPD64083
05~10 : VSP9437
11~13 : FLI2310
Video Component

Alignment and Adjustments
Samsung Electronics 2-9
01.Picture Improve => 05.Y/C Delay Setting according to the System and Input Modes
05.Y/C Delay
01. PAL-B/G
02. PAL-D/K/L
03. PAL-I
04. SECAM-B/G
05. SECAM-D/K/L
06. NTSC
07. PAL-AV
08. SECAM-AV
09. NTSC-AV
10. RGB/YUV-Y
11. RGB/YUV-UV
12. FLI-Y
13. FLI-C
TV
254
254
254
254
251
254
254
252
254
90
90
5
11
Mode-1
254
254
254
254
251
254
254
252
254
90
90
5
11
Mode-2
x
x
x
x
x
x
x
x
x
x
x
x
x
Mode-3
x
x
x
x
x
x
x
x
x
x
x
x
x
Mode-4
x
x
x
x
x
x
x
x
x
x
x
x
x
Initial Values of Input Modes
PC DVI
Relevant IC
VSP9437
ITEM
01.Picture Improve => 06.Motion Enhancing Adjustment
06.Motion
01.HPLL Speed-1
02.HPLL Speed-2
03.V-motion Tresh
TV
0
0
42
Mode-1
0
0
42
Mode-2
x
x
x
Mode-3
x
x
x
Mode-4
x
x
x
Initial Values of Input Modes
PC DVI
Relevant IC
VSP9437-M
VSP9437-S
FLi2310
ITEM
01~11 : VSP9437
12~13 : FLI2310
01 : VSP9437-M
02 : VSP9437-S
03 : FLI2310
Video Component
Video Component
FLI2310

Alignment and Adjustments
2-10 Samsung Electronics
01.Picture Improve => 07.DNIe Registers
07.DNIe
01.SUB BRIGHT
02.SUB CONT
03.SCALE MAX
04.SCALE MIN
05.TH HPF
06.TH EDGE
07.NR SEL
08.CE UPPER
09.CE CUTOFF
10. CE GAIN
11. DCE GAIN
12. SKIN ON
13. CTI GAIN
14. DE NOISE GAIN
15. TH CORING
16. PATT SEL
17. NOISE TH2
18. H CONT
19. V CONT
20. BLACK GAIN
21. WHITE GAIN
22. WTE GAIN
23. CTE GAIN
TV
W/B
W/B
48
16
0
4
2
240
32
64
75
0
0
8
3
0
100
63
63
2
31
300
176
Mode-1
W/B
W/B
48
16
0
4
2
220
32
64
75
0
0
8
3
0
100
63
32
6
31
300
176
Mode-2
W/B
W/B
48
16
0
4
2
240
32
80
75
0
0
8
2
0
100
63
63
6
31
300
176
Mode-3
W/B
W/B
48
16
0
4
2
240
32
64
75
0
0
8
3
0
100
63
63
2
31
300
176
Mode-4
W/B
W/B
48
16
0
4
2
240
32
64
75
0
0
8
3
0
100
63
63
2
31
300
176
Initial Values of Input Modes
PC DVI
Relevant IC
DNIe
ITEM
01~23 : DNIe
Video Component

Samsung Electronics 2-11
01.Picture Improve => 08.Logic Registers
08.Logic
01.R DRIVE
02.G DRIVE
03.B DRIVE
04.R CUTOFF
05.G CUTOFF
06.B CUTOFF
07.GAMMA
08.GTS SET
09.ERD MODE
10.RANDOM NOISE
11.DIFF FILTER
12.APC
13.APC SET
14.APC VALUE
15.ACTIVE VPOS
16.ACTIVE HPOS
17.VSYNC POS
18.HSYNC POS
19.VSYNC WIDTH
20.HSYNC WIDTH
TV
W/B
128
W/B
W/B
128
W/B
1
1
2
0
1
1
0
127
12
19
3
32
2
12
Mode-1
W/B
128
W/B
W/B
128
W/B
1
0
2
0
1
1
0
127
12
19
3
32
2
12
Mode-2
W/B
128
W/B
W/B
128
W/B
1
0
2
0
1
1
0
127
12
19
3
32
2
12
Mode-3
W/B
128
W/B
W/B
128
W/B
1
0
2
0
1
1
0
127
12
19
3
32
2
12
Mode-4
W/B
128
W/B
W/B
128
W/B
1
0
2
0
1
1
0
127
12
19
3
32
2
12
Initial Values of Input Modes
PC DVI
Relevant IC
Logic
ITEM
01~20 : Logic
Video Component

Alignment and Adjustments
2-12 Samsung Electronics
01.Picture Improve => 09.Picture Size Registers
09.Picture Size
01. H START OFFSET
02. V START OFFSET
03. H END OFFSET
04. V END OFFSET
05.OVERSCAN B
06.OVERSCAN G
07.OVERSCAN R
TV
0
0
0
0
38
38
38
Mode-1
0
0
0
0
38
38
38
Mode-2
0
0
0
0
38
38
38
Mode-3
0
0
0
0
38
38
38
Mode-4
0
0
0
0
38
38
38
Initial Values of Input Modes
PC DVI
Relevant IC
ASI510
ITEM
02.Initial Setting Current Input Mode
01. Initial P-Mode √
02. P-Mode Value √
03. Initial Color Tone √
04. Color Tone Value √
02.Setting the Initial Values
01.Initial P-Mode Current Input Mode
01. Dynamic
02. Standard
03. Movie
04. Custom
02.Initial Setting => 01.Initial P-Mode
02. P-Mode Value Current Input Mode
01. Dynamic √
02. Standard √
03. Movie √
04. Custom √
02.Initial Setting => 02.P-Mode Value
☞Indicates selected input mode
☞ Reset after saving the P-Mode adjustments
☞ P-MODE the data Values
☞ Reset after saving the color tone adjustments
☞ Color tone the data Values
01~07 : ASI510
Video Component
Available options for the PC/DVI Mode are High,Middle,
Low and Custom.
Available options for the PC/DVI Mode are High,Middle,
Low and Custom.

Alignment and Adjustments
Samsung Electronics 2-13
02.Initial Setting Current Input Mode
01. Cool2
02. Cool1
03. Normal
04. Warm1
05. Warm2
❈Available Settings for the PC Mode are
Custom,Color Tone 1, Color Tone 2, Color Tone 3
❈ Available options for the DVI Mode are
ColorTone1, ColorTone2, ColorTone3
02.Initial Setting => 03.Initial Color Tone
01.Dynamic Current Input Mode
01. Contrast œ100 √
02. Brightness œ45 √
03. Sharpness œ75 √
04. Color œ55 √
05. Tint œ50 √
02.Initial Setting => 02.P-Mode Value => 01.Dynamic
02.Standard Current Input Mode
01. Contrast œ80 √
02. Brightness œ50 √
03. Sharpness œ50 √
04. Color œ50 √
05. Tint œ50 √
02.Initial Setting => 02.P-Mode Value => 02.Standard
03.Movie Current Input Mode
01. Contrast œ50 √
02. Brightness œ55 √
03. Sharpness œ25 √
04. Color œ40 √
05. Tint œ50 √
02.Initial Setting => 02.P-Mode Value => 03.Movie
04.Custom Current Input Mode
01. Contrast œ80 √
02. Brightness œ50 √
03. Sharpness œ50 √
04. Color œ50 √
05. Tint œ50 √
02.Initial Setting => 02.P-Mode Value => 04.Custom

Alignment and Adjustments
2-14 Samsung Electronics
04.Color Tone Value Current Input Mode
01. Cool2
02. Cool1
03. Normal
04. Warm1
05. Warm2
❈Adjusting and Storing the Changes:
Change the White Balance (Color Temperature)
1. Selecting an item will display the same options to
those of the White Balance.
2. Available options for the PC Mode are Custom,Color
Tone 1, Color Tone 2, Color Tone 3
3. Available options for the DVI Mode are ColorTone1,
ColorTone2, ColorTone3.
4. Data Storing is classifled according to the PC
Mode & Other Modes.
02.Initial Setting => 04.Color Tone Value
03.PIP/TTX/Test Pattern
03.PIP/Test Pattern
01.PIP R CONT
02.PIP G CONT
03.PIP B CONT
04.PIP R BRIGHT
05.PIP G BRIGHT
06.PIP B BRIGHT
07.PIP FILTER LC
08.PIP FILTER ML
09.PIP FILTER MR
10.PIP FILTER UC
11. TTX CONT
12. TTX BRIGHTNESS
13.LOG PATTERN
14.LOG HIGH LEVEL
15.LOG LOW LEVEL
16.ASI COLORBAR
TV
32
32
32
0
0
0
0
0
0
0
0
0
0
255
0
1
Mode-1
32
32
32
0
0
0
0
0
0
0
0
0
0
255
0
1
Mode-2
32
32
32
0
0
0
0
0
0
0
0
0
0
255
0
1
Mode-3
32
32
32
0
0
0
0
0
0
0
0
0
0
255
0
1
Mode-4
32
32
32
0
0
0
0
0
0
0
0
0
0
255
0
1
Initial Values of Input Modes
PC DVI
Relevant IC
ASI510
SDA6001
Logic
ASI510
ITEM
01~10 : ASI510
11~12 : SDA6001
13~16 : Logic, ASI510
Video Component

Alignment and Adjustments
Samsung Electronics 2-15
04.Option-1 Current Input Mode
00. AGC œOff √
01. TTX Off
02. CW/CS CW
03. TELE-WEB OFF
04. LANGUAGE GROUP EUROPE
05. LANGUAGE ENGLISH
06. ATM ON
07. Melody Volume 10
08. LNA Search Off
09. LNA ON
10. CHILD LOCK ON
11. TOP TTX ON
12. TTX GROUP WEST EUROPE
13. HIGH DEVIATION Off
14. SD Delay 3
15. HD Delay 2
16. Video Port Graphic
04.Option-1
00. Off => On
01. Off => On
02. CW(EUROPE) => CS(SOUTHASIA)
03. Off => On
04. Europe => Asia
05. English => 18 Language(Europe)
06. On => Off
07. 0~ 20
08. Off => On
09. On => Off
10. On => Off
11. On => Off
12. W.Europe => 6 Group
13. Off => On
14. 0(1.8ms), 1(38ms), 2(75ms), 3(150ms)
15. 0(1.8ms), 1(38ms), 2(75ms), 3(150ms)
16. Graphic <-> Video
02. CW/CS : CW => CS
- CW : PAL, SECAM-B/G, D/K, I, L/L', NTSC4.43 = West Europe
- CS : PAL, SECAM-B/G, D/K, I, NTSC3.58/4.43 = Countries except West Europe.
Ex) Southeast Asia,the Middle East,Russia,China, etc.
03. Tele-Web
- Off : TeleWeb non-broadcasting Country
- On : TeleWeb broadcasting Country
04. Language Group : Europe => Asia
-. Europe : 18 languages
-. Asia : 7 languages
05. Language : Select language
- Language Group is Europe : 18 languages
(English=>Bulgarian=>Croatian=>Czechoslovak=>Netherlandish=>French=>German=>Greek=>Hungarian=>
Italian=>Poland=>Portuguese=>Rumanian=>Russian=>Spanish=>Swedish=>Turki=>Yugoslave)
- Language Group is Asia : 7 languages
(English=>Arabic=>French=>Indonesian=>Malay=>Persian=>Chinese)
06. ATM : On => Off
-. ATM available region : On
-. ATM non-available region : Off

Alignment and Adjustments
2-16 Samsung Electronics
05.Option-2 Current Input Mode
00. Pixel Shift œV √
01. Shift Test 0
02. Pixel Number 1
03. Shift Line 1
04. Shift Time 4
05. Number Range 4
06. Line Range 4
07. Temp Protection On
08. DNIe DEMO On
09. PILOT HIGH 21
10. PILOT LOW 16
11. CHECKSUM 0000
05.Option-2
00. OFF <-> V <-> G <-> V/G
01. 0: minute , 1: SEC
02. Left,right movement Pixel
03. Upper, low movement Pixel
04. Shift Test
09. LNA
- On : Using LNA built-in Tuner
- Off : Not in use LNA built-in Tuner
10. Child Lock
-. On : TV Model
-. Off : Model has deletion of Child Lock function
11. Top TTX
- On : Only Top broadcasting region set 'On'
Ex) Germany, Switzerland, etc
- Off : Country except Top broadcasting region.
12. TTX Group : TTX Language Group and National Option Code
- By language, Select at the factory option table.
- TTX language will be displayed by National Option code.
- TTX Language Group by each country : 6 Groups
West Europe => East Europe => Turkish/Greek => Cyrillic => Arabic/Hebrew => Farsi/Hebrew
13. High Deviation : To prevent the Sound Buzz according to the regional characteristics of the input signal.
- Set to ‘Off’ for the standardized sound input signal, in the region such as Europe.
- Set to ‘On’ for the over-modulated sound input signal, in the region such as Southeast Asia.
14. SD Delay : AV mode Delay
1.8ms delay --------- delay0
38ms delay --------- delay1
75ms delay --------- delay2
150ms delay (max) --------- delay3
15. HD Delay : DTV/PC/DVI mode Delay
16. Video Port : Setting of Aurora Input Port for VIDEO signal
- Graphic : Input Video Signal though Grapgic port of Aurora (In case of NON-PIP VIDEO)
- Video : Input Video Signal though Grapgic port of Aurora (In case of PIP VIDEO)

Alignment and Adjustments
Samsung Electronics 2-17

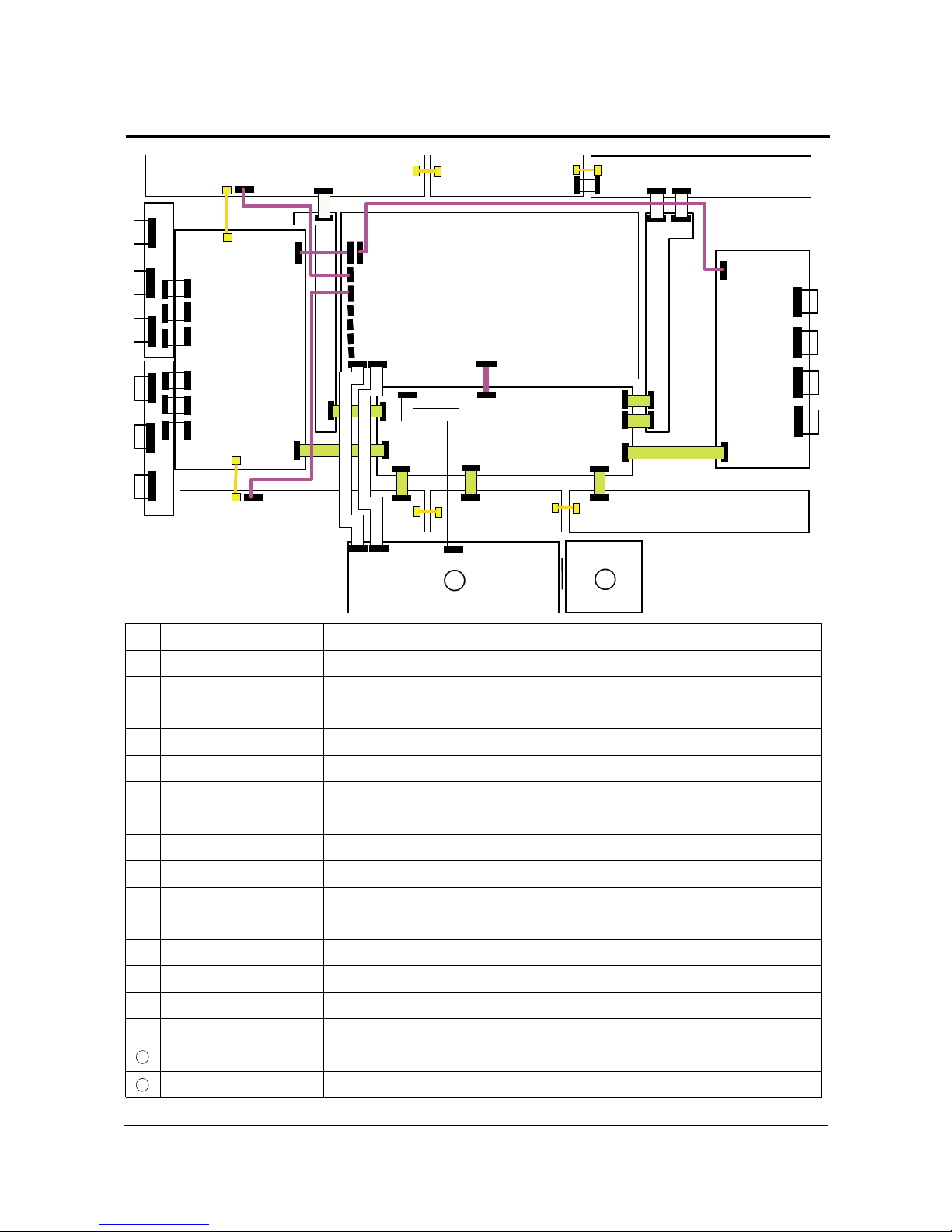

2-4 Module Block
@
Y
!
X
#
LOGIC
$
%
^*
2
SMPS
CN4000
CN5012
CN5006
CN5005
CN5004
CN5000
CN5001
CN5002
CN5003
CN2010
(
&
)1
34
CN3109
CN3000 CN3001
CN3411
CN3409
CN3508
CN3500
CN804
CN812
CN806
CN5010
CN3410
CN3501 CN3609
CN3400
CN3700
CN1304 CN1301 JA1101
CN2011
CN8 03
CN3600
CN807
CN808
CN809
CN810
CN3003
CN3002
CN2005
CN2006
CN2014 CN4004
CN2009
CN2008
CN2007
CN2013
CN2004
CN3701
CN8 01CN8 02
a b
No
-
!
@
#
$
%
^
&
*
(
)
1
2
3
4
Description
ASSY PDP P-MODULE
ASSY PDP P-X MAIN
ASSY PDP P-Y MAIN
ASSY PDP P-LOGIC MAIN
ASSY PDP P-Y BUFFER(UPPER)
ASSY PDP P-Y BUFFER(DOWN)
ASSY PDP P-E BUFFER
ASSY PDP P-F BUFFER
ASSY PDP P-G BUFFER
ASSY PDP P-H BUFFER
ASSY PDP P-I BUFFER
ASSY PDP P-J BUFFER
ASSY PCB MISC-SMPS
ASSY PDP P-LOGIC SUB(LEFT)
ASSY PDP P-LOGIC SUB(RIGHT)
ASSY PCB MISC-DIGITAL
ASSY PCB MISC-TUNER
Code No
BN96-00985A
BN96-00999A
BN96-01001A
BN96-01012A
BN96-01002A
BN96-01003A
BN96-01004A
BN96-01005A
BN96-01006A
BN96-01007A
BN96-01008A
BN96-01009A
BN94-00494U
BN96-01010A
BN96-01011A
BN94-00551A
BN96-00518C
Specification
M3,S50HW-XD03,D66A,D3.0,1366 X 768,NTSC/PAL,50 INCH,V3
LJ92-00852A,S50HW-XD03,D66A,D3.0,1366 X 768,X MAIN BOARD,NTSC/PAL,50 INCH,LJ92-0
LJ92-00853A,S50HW-XD03,D66A,D3.0,1366 X 768,Y MAIN BOARD,NTSC/PAL,50 INCH,LJ92-0
LJ92-00949A,S50HW-XD03,D66A,D3.0,1366 X 768,Logic main board,NTSC/PAL,50 INCH,LJ
LJ92-00880A,S50HW-XD03,D66A,D3.0,1366 X 768,Y buff upper BOARD,NTSC/PAL,50 INCH,
LJ92-00881A,S50HW-XD03,D66A,D3.0,1366 X 768,Y buff down BOARD,NTSC/PAL,50 INCH,L
LJ92-00917A,S50HW-XD03,D66A,D3.0,1366 X 768,E buffer BOARD,NTSC/PAL,50 INCH,LJ92
LJ92-00918A,S50HW-XD03,D66A,D3.0,1366 X 768,F buffer BOARD,NTSC/PAL,50 INCH,LJ92
LJ92-00919A,S50HW-XD03,D66A,D3.0,1366 X 768,G buffer BOARD,NTSC/PAL,50 INCH,LJ92
LJ92-00920A,S50HW-XD03,D66A,D3.0,1366 X 768,H buffer BOARD,NTSC/PAL,50 INCH,LJ92
LJ92-00921A,S50HW-XD03,D66A,D3.0,1366 X 768,I buffer BOARD,NTSC/PAL,50 INCH,LJ92
LJ92-00922A,S50HW-XD03,D66A,D3.0,1366 X 768,J buffer BOARD,NTSC/PAL,50 INCH,LJ92
SPD-50P4HD,D66A,DAVINCI
LJ92-00923A,S50HW-XD03,D66A,D3.0,1366 X 768,Logic sub(left)BOARD,NTSC/PAL,50 INC
LJ92-00959A,S50HW-XD03,D66A,D3.0,1366 X 768,Logic sub(right) bd,NTSC/PAL,50 INCH
PS50P4HX/XEC,D68A,NAPOLEON
PS50P4HX/XEC,D68A,NAPOLEON
a
b
