Samsung HW-K550 User manual

For further information, refer to the Web Manual.
Web manual : www.Samsung.com →Support →
Product name search →HW-K550 or HW-K551
User Manual
HW-K550
HW-K551

· 2 · English
SAFETY INFORMATION
SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that high voltage is
present inside. It is dangerous to make any
kind of contact with any internal part of this
product.
This symbol indicates that important literature
concerning operation and maintenance has
been included with this product.
Class II product : This symbol indicates that it does not require a safety connection to electrical
earth (ground).
AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC
voltage.
DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC
voltage.
Caution, Consult instructions for use : This symbol instructs the user to consult the user
manual for further safety related information.
WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the
mains plug shall be readily operable.
CAUTION
• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on
the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the
power plug must be easily and readily accessible at all times.

· 3 · English
PRECAUTIONS
1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification
sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with
enough space around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the
unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn
off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long
period of time.
2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage
the unit.
3. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit
to malfunction.
4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong
magnetic or electric fields. Disconnect the power cable from the AC supply if the unit malfunctions. Your product is
not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored
in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached
room temperature before using.
5. The batteries used with this product contain chemicals that are harmful to the environment.
Do not dispose of batteries in the general household trash. Do not dispose of batteries in a fire. Do not short circuit,
disassemble, or overheat the batteries. There is a danger of explosion if the battery is incorrectly replaced. Replace
only with the same or equivalent type.
WARNING, DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD,
The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is
swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries
away from children. If the battery compartment does not close securely, stop using the product and keep it away from
children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate
medical attention.

· 4 · English
CHECKING THE COMPONENTS
Right Side of the Soundbar
Soundbar Main Unit
Top
2AC/DC Adapter
3Power Cord
Remote Control / Battery Subwoofer Optical Cable
1Power Cord
cMicro USB to USB adapter and HDMI cables are sold separately.
To purchase, contact a Samsung Service Centre or Samsung Customer Care.
CONNECTING ELECTRICAL POWER
Use the power components (1, 2, 3) to connect the power supplies in the following order:
Subwoofer Soundbar Main Unit
cFor more information about the power supply and power consumption, refer to the label attached to the
product. (Label : Bottom of Soundbar main unit)
POWER
POWER
Connecting
electrical power
D
MI IN
I OUT
-
ARC)
DC 24V
DC 24V
2 AC/DC Adapter
DC 24V (Power Jack)
3Power Cord
Bottom of the Soundbar Main UnitRear of Subwoofer
1Power Cord
cMake sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it is
hanging with the AC cord input facing upwards, water or other foreign substances could enter the Adapter
and cause the Adapter to malfunction.
Y
T

· 5 · English
CONNECTING THE SUBWOOFER TO THE SOUNDBAR
MAIN UNIT
You can enjoy rich bass tones and better sound quality by linking the subwoofer to the Soundbar main unit.
Soundbar Main Unit
Subwoofer
i
t
So
S
The Soundbar main unit and subwoofer should link (connect wirelessly) automatically when the Soundbar main
unit and subwoofer are turned on. When auto-connection is complete, the blue indicator on the front of the
subwoofer stops blinking and glows blue continuously.
cIf the indicator on the front of the subwoofer displays in red or flashes in blue, the subwoofer has not
automatically connected. If this occurs, follow the directions below to connect the subwoofer manually.
cImportant: Before you begin, put the battery into the remote. See page 14 for instructions.
POWER
1. Plug the power cords of the Soundbar main unit and subwoofer into an AC wall outlet.
2. Press the ID SET button on the back of the subwoofer for 5 seconds.
The red indicator on the front of the subwoofer turns off and the blue indicator flashes rapidly.
3. Press the button on your remote control for 5 seconds while the Soundbar main unit is turned OFF.
4. The ID SET message appears on the display of the Soundbar main unit for a short period of time, and then
disappears.
ID SET

· 6 · English
5. While the subwoofer's indicator is flashing blue, press the button on your remote control or on the right
side of Soundbar main unit to turn on the Soundbar main unit.
6. The connection is complete if the indicator on the front of the subwoofer stops flashing and glows
continuously.
cIf the connection process fails, the blue indicator will flash continuously. Go to Step 2 and start again.
Expand to true wireless surround sound by connecting the Samsung Wireless Rear
Speaker Kit (SWA-8000S) to your Soundbar. (Sold separately)
cFor further information, refer to the Web Manual.
CONNECTING TO YOUR TV
You can enjoy TV sound after connecting the Soundbar to your TV with or without a cable.
cImportant: Before you begin, put the battery into the remote. See page 14 for instructions.
Method 1. Connecting with a Cable
DIGITAL AUDIO IN
(OPTICAL)
Soundbar
Bottom of Soundbar
OPTICAL OUT
Optical Cable
Check the DIGITAL AUDIO IN
(OPTICAL) port of the
Soundbar main unit.
Check the OPTICAL OUT
port of your TV.
1. Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV with
a digital optical cable.
2. Press the button on the right side of the Soundbar or the SOURCE button on the remote control to
select the D.IN mode.
D.IN
cIf TV sound is not output, press the button on the right side of your Soundbar or the SOURCE button
on the remote control to select the D.IN mode on Soundbar main unit display.
cIf the Soundbar main unit display does not change to D.IN, disconnect the HDMI cable.
cPress the button on the remote control for 5 seconds to turn Auto Power Link on or off.
(Auto Power Link is set to ON by default.)

· 7 · English
Method 2. TV SoundConnect (Linking to a Samsung TV with Bluetooth)
1. Turn on your Samsung TV and the Soundbar.
2. Select TV mode in your Soundbar display by pressing the button on the right side of the Soundbar or
the SOURCE button on your remote control. (Modes are displayed in the following order: D.IN →AUX →
HDMI →BT →TV →USB.)
3. When the connection message shown below appears on the TV screen, select <Yes> with your TV remote
control.
Samsung Audio Device detected.
Do you want to hear TV sound
through this device?
Yes No
Select <Yes> with your TV remote control.
4. The Soundbar outputs TV sound.
cIf the TV SoundConnect linking process fails, navigate to SoundConnect in the TV's Sound menu, select
Add New Device, and set Add New Device to ON. Then, try again.
cIf your Soundbar is connected to your TV through TV SoundConnect, you can conveniently control the
volume with the Soundbar's remote or the TV's remote. You can also have the Soundbar turn on and off
automatically when you turn the TV on or off by setting the Bluetooth POWER On function to On.
See page 15.
cThe TV SoundConnect (Soundshare) function is only available in some Samsung TV products released since
2012.
cIf you want to disconnect the existing connection to your TV and establish a new connection to another TV,
press the &button on your remote control for more than 5 seconds.
cIn the TV SoundConnect mode, the Soundbar cannot be paired to another Bluetooth device.
cDo not place electronic devices or metallic objects on top of the product.
e.g., Wired/wireless router, set-top box, or modem.
cPlacing the product on the floor may degrade wireless network performance, depending on the floor material.

· 8 · English
CONNECTION VIA BLUETOOTH
You can connect a Bluetooth device to the Soundbar and enjoy music with stereo sound, all without wires!
cIt is not possible to connect multiple Bluetooth devices at the same time.
Connect
Bluetooth device
1. Press the button on the right side of the Soundbar or the SOURCE button on the remote control to
select BT.
2. Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device's
user manual.)
3. Select "[AV] Samsung Soundbar Kxxx K-Series" from the list.
• When the connection is established between the Soundbar and Bluetooth device, the front display
window of the Soundbar displays [Bluetooth device name] → BT.
4. Play music on the connected device.
[If failed to connect to the Bluetooth device / If device searching is needed again]
• Delete the previous "[AV] Samsung Soundbar Kxxx K-Series" found by the Bluetooth device and have it
search for the Soundbar again.
cIf asked for a PIN code when connecting a Bluetooth device, enter <0000>.
cIn Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar
and the Bluetooth device exceeds 10 meters.
cThe Soundbar automatically turns off after 5 minutes in the Ready state.
cThe Soundbar may not perform Bluetooth search or connection correctly under the following
circumstances:
–If there is a strong electrical field around the Soundbar.
–If several Bluetooth devices are simultaneously paired with the Soundbar.
–If the Bluetooth device is turned off, not in place, or malfunctions.
cElectronic devices may cause radio interference. Devices that generate electromagnetic waves must be
kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.
Disconnecting the Soundbar from the Bluetooth device
Press the SOURCE button on the remote control or the button on the product's rig ht side to switch from
BT to another mode or turn off the Soundbar.
• The connected Bluetooth device will wait a certain amount of time for a response from the Soundbar before
terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)

· 9 · English
CONNECTING TO AN EXTERNAL DEVICE
Optical Cable
You can enjoy sound from separate external devices such as a BD player/game console/set-top box, etc. by
connecting them to your Soundbar.
DIGITAL AUDIO IN
(OPTICAL)
Soundbar
Bottom of Soundbar
External Device OPTICAL OUT
Optical Cable
1. Connect an Optical Cable as in the picture above.
2. Press the button on the right side of your Soundbar or the SOURCE button on your remote control to
select D.IN mode.
3. The Soundbar shows D.IN on its display and output sound.
USB
You can play music files located on USB storage devices through the Soundbar.
Wi-FiSETUP SPKADD
DIGITALAUDIO IN
(OPTICAL)
USB(5V 0.5A)
AUXIN
HDMIIN
HDMIOUT
(TV-ARC)
DC24V
USB (5V 0.5A)
Micro USB to USB
adapter Cable
(not supplied)
USB port Display
1. Connect a Micro USB to USB adapter cable with a male USB 2.0 Micro USB plug (Type B) on one end and a
standard female 2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar.
cThe Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre or
Samsung Customer Care.
2. Connect your USB device to the female end of the adapter cable.
3. Press the button on the Soundbar main unit’s right side or the SOURCE button on the remote control to
select the USB mode.
4. USB appears on the display screen.
●The Soundbar connection to the USB device is complete.
●The Soundbar automatically turns off (Auto Power Off) if no USB device has been connected for more
than 5 minutes.

· 10 · English
SOFTWARE UPDATE
Samsung may offer updates for the Soundbar's system firmware in the future.
Wi-FiSETUP SPK ADD
DIGITALAUDIO IN
(OPTICAL)
USB(5V 0.5A)
AUXIN
HDMIIN
HDMIOUT
(TV-ARC)
DC24V
USB (5V 0.5A)
Micro USB to USB adapter Cable
(not supplied)
If an update is offered, you can update the firmware by connecting a USB device with the firmware update
stored on it to the USB port on your Soundbar.
For more information about how to download update files, go to the Samsung Electronics website at
(samsung.com/sec) search for the model name download the firmware from the customer support menu
option. The option name can vary.
INSTALLING THE WALL MOUNT
You can use the wall mount bracket to mount this unit on a wall.
Installation Precautions
• Install on a vertical wall only.
• Do not install the Soundbar system in a location with high temperature and/or humidity. Install the system on a
stable wall that can bear the weight of the Soundbar main unit.
• Check the strength of the wall. To install the Soundbar system on a wall that may not bear the Soundbar main
unit weight, reinforce the wall before installation. If this is not possible, install the system on another wall, one
stable enough to bear the weight of the Soundbar main unit.
• Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron
board, wood, etc.). If possible, fix the support screws into wall studs.
• Purchase wall mounting screws according to the type and thickness of the wall you will mount the Soundbar
on.
–Diameter : M5
–Length: 35 mm or longer recommended.
• Connect cables from the unit to external devices before you install it on the wall.
• Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

· 11 · English
Wallmount Components
(Wall Mount L) (Wall Mount R)
Bracket-Wall Mount (2 EA)
Holder-Screw (2 EA) Screw (2 EA)
A-TYPE : 616mm
B-TYPE : 360mm
CENTER LINE
A B B A
Wall Mount Guide
1. Place the Wall Mount Guide against the wall
surface.
●The Wall Mount Guide must be level.
●If your TV is mounted on the wall, install the
Soundbar at least 5 cm below the TV.
5 cm or more
2. Align the Paper Template's Centre Line with the
centre of your TV (if you are mounting the
Soundbar below your TV), and then fix the Wall
Mount Guide to the wall using tape.
cIf you are not mounting below a TV, place the
Centre Line in the centre of the installation area.
Centre Line
A-TYPE : 616mm
B-TYPE : 360mm
CENTER LINE
A B B A
3. Push a pen tip or sharpened pencil tip through the
centre of the A-TYPE images on each end of the
Guide to mark the holes for the supporting
screws, and then remove the Wall Mount Guide.
4. Using an appropriately sized drill bit, drill a hole in
the wall at each marking.
cIf the markings do not correspond to the
positions of studs, make sure you insert
appropriate anchors or mollies into the holes
before you insert the support screws. If you use
anchors or mollies, make sure the holes you drill
are large enough for the anchors or mollies you
use.
A-TYPE : 616mm
B-TYPE : 360mm
CENTER LINE
A B B A
A-TYPE : 616mm
B-TYPE : 360mm
CENTER LINE
A B B
A

· 12 · English

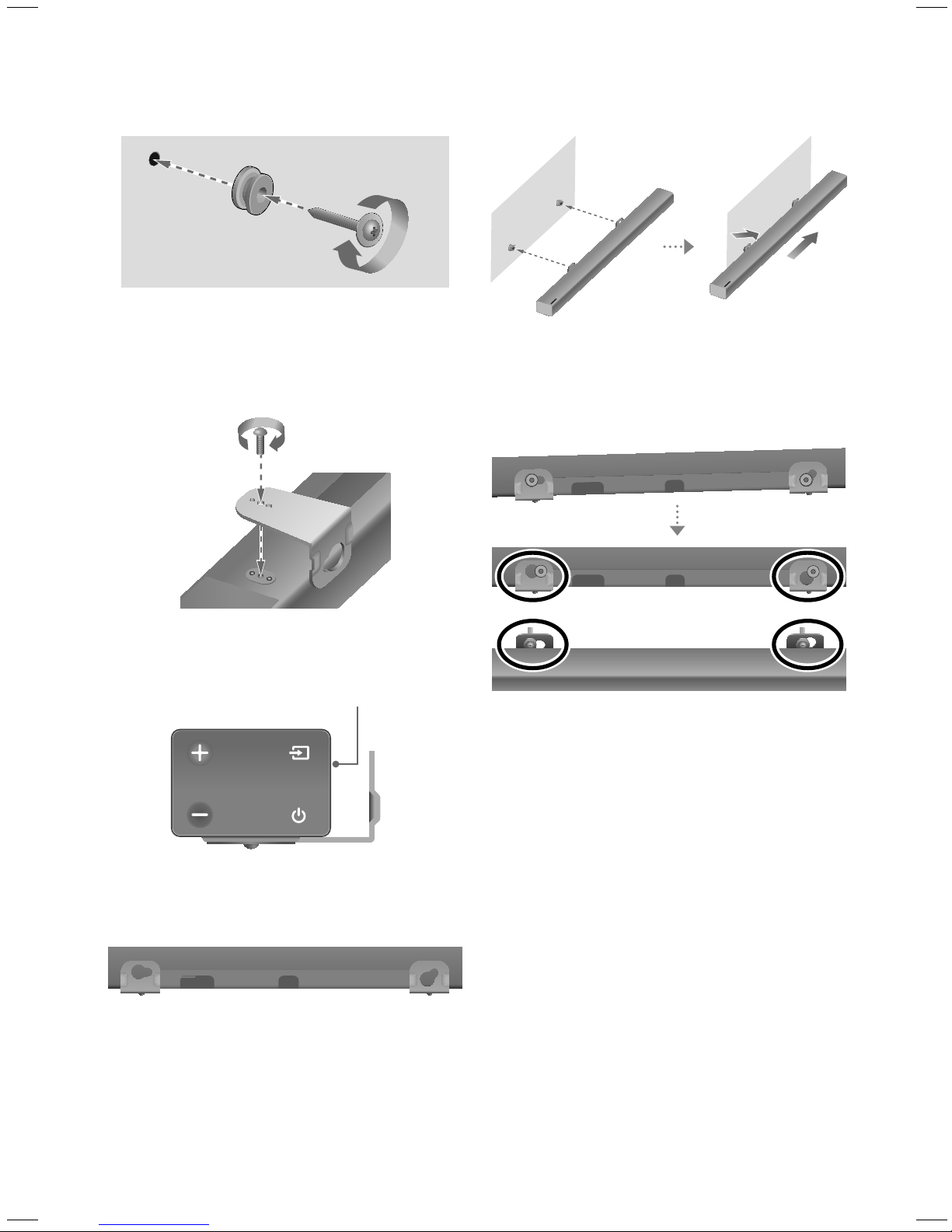

5. Push a screw (not supplied) through each
Holder-Screw, and then screw each screw
firmly into a support screw hole.
6. Use the two Screws (M4 x L12) to attach both
Bracket-Wall Mount L and Rto the Soundbar's
bottom. For a proper fit, make sure to align the
bumps on the Soundbar to the holes on the
brackets.
●When assembling, make sure the hanger part
of Bracket-Wall Mounts faces backwards.
Rear side of Soundbar
Right end of Soundbar
●The left and right mounts are different shapes.
Make sure to position them correctly.
Wall Mount LWall Mount R
7. Install the Soundbar with the attached Bracket-
Wall Mounts by hanging the Bracket-Wall
Mounts on the Holder-Screws on the wall.
●Slightly tilt the Soundbar to insert both
Holder-Screw heads into Bracket-Wall
Mount holes. Push the Soundbar in the
direction of the arrow to make sure both sides
are firmly fixed.

· 13 · English
DETACHING THE SOUNDBAR
FROM THE WALL
1. To separate the Soundbar from the wall mount,
push it in the direction of the arrow, and then pull it
away from the wall as shown.
cDo not hang onto the installed unit and avoid
striking or dropping the unit.
cSecure the unit firmly to the wall so that it does
not fall off. If the unit falls off, it may cause an
injury or damage the product.
cWhen the unit is installed on a wall, please make
sure that children do not pull any of the
connecting cables, as this may cause it to fall.
cFor the optimal performance of a wall mount
installation, install the speaker system at least
5 cm below the TV, if the TV is mounted on the
wall.
cFor your safety, if you do not mount the unit on
the wall, install it on a secure, flat surface where it
is unlikely to fall.

· 14 · English
REMOTE CONTROL BUTTONS & FEATURES
Inserting Battery before using the Remote Control
1. Use a suitable coin to turn the remote control's battery cover
counterclockwise to remove it as shown in the figure below.
2. Insert a 3V lithium battery. Keep the positive (+) pole facing up when
inserting the battery. Put the battery cover on, and then align the '●'
marks side by side as shown in the figure below.
3. Use a suitable coin to turn the remote control battery cover clockwise
as far as it will go to fix it in place.
 
Controlling the Soundbar using Your TV Remote
Control
1. Press and hold the SOUND button for more than 5 seconds while
the Soundbar is turned on.
2. "ON - TV REMOTE" appears on the Soundbar's display.
3. In the TV's menu, set the TV speaker to external speaker.
cNot available if the TV ARC function or HDMI mode is in use.
cAll buttons are not available except the VOL +/- and the buttons in
this function.
cTV menus differ by manufacturer and model. Refer to the TV's user
manual for further information.
cManufacturers supporting this function:
●VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA,
GRUNDIG, Hisense, RCA
●This function may not be compatible with your TV's remote
depending on the remote control's manufacturer.
cTo turn off this function, press the SOUND button for 5 seconds.
"OFF - TV REMOTE" appears on the Soundbar's display.
󱂓
Power
Turns the Soundbar on and off.
󱂔
SOURCE
Press to select a source connected to the Soundbar.
󱂕
󱂔
󱂓
󱂙
󱂚
󱂗
󱂖
󱂘
󱂛

· 15 · English
󱂕
Mute
Sets the volume temporarily to 0.
Press again to cancel.
󱂖
Volume
Adjusts the volume level of the unit.
󱂗
Play / Pause
Press the
& button to pause a music temporarily.
Press the & button again to play the selected music.
Skip Forward
Selects the next file.
Skip Back
Selects the previous file.
Repeat
Press to set the Repeat function during music playback from a USB device.
• OFF-REPEAT : Cancels Repeat Playback.
• TRACK-REPEAT : Plays a track repeatedly.
• ALL-REPEAT : Plays all tracks repeatedly.
• RANDOM-REPEAT : Plays tracks in random order.
󱂘
Surround Sound
The Surround Sound function adds depth and a sense of space to sound.
When this button is pressed, ON or OFF is repeatedly alternated.
󱂙
Bluetooth POWER
Press to turn the Bluetooth POWER On function on and off. When the Bluetooth
POWER On function is on, ON - BLUETOOTH POWER appears in the Soundbar’s
display.
󱂚
SOUND EFFECT
You can select from 6 sound modes: STANDARD, MUSIC, CLEAR VOICE,
SPORTS, MOVIE, and NIGHT.
cNIGHT Mode
When changing a channel or music source, the volume difference between
different music input sources is automatically adjusted to be suitable for
listening.
󱂛
SOUND CONTROL
You can select from TREBLE, BASS, SUBWOOFER LEVEL or AUDIO SYNC.
• Press to select TREBLE, BASS,
SUBWOOFER LEVEL or AUDIO SYNC.
Then, use the , buttons to adjust the TREBLE or BASS volume from -6 ~ +6,
SUBWOOFER LEVEL volume from -12, -6 ~ +6.
• If the video and audio between the TV and your Soundbar are not
synchronized, select AUDIO SYNC in Sound Settings, and then set audio delay
between 0~300 milliseconds by using the , buttons.

· 16 · English
TROUBLESHOOTING
Before seeking assistance, check the following.
The unit will not turn on.
Is the power cord plugged into the outlet?
Connect the power plug to the outlet.
A function does not work when the button is
pressed.
Is there static electricity in the air?
Disconnect the power plug and connect it again.
Sound is not produced.
Is the Mute function on?

Press the (Mute) button to cancel the function.
Is the volume set to minimum?
Adjust the Volume.
The remote control does not work.
Is the battery drained?
Replace with new battery.
Is the distance between the remote control and
Soundbar main unit too far?
Move the remote control closer to the Soundbar
main unit.
The TV SoundConnect (TV pairing) failed.
Does your TV support TV SoundConnect?
TV SoundConnect is supported by some
Samsung TVs released from 2012 on. Check
your TV to see if it supports TV SoundConnect.
Is your TV firmware the latest version?
Update your TV with the latest firmware.
Does an error occur when connecting?
Contact the Samsung Call Centre.
 Reset TV SoundConnect and connect again.
To reset the TV SoundConnect connection,
press and hold the &button for 5 seconds.
The red LED on the subwoofer blinks and the
subwoofer is not producing sound.
This issue can occur if the subwoofer is not
connected to the Soundbar main unit.
Try to connect your subwoofer again.
See page 5.
LICENCE
Manufactured under licence from Dolby
Laboratories. Dolby, Dolby Audio and the double-D
symbol are trademarks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com.
Manufactured under licence from DTS Licencing
Limited. DTS, the Symbol, & DTS and the Symbol
together are registered trademarks, and DTS 2.0
Channel is a trademark of DTS, Inc. © DTS, Inc.
All Rights Reserved.
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licencing LLC in the United States and other
countries.
T

· 17 · English
OPEN SOURCE LICENCE NOTICE
To send inquiries and requests regarding open sources, contact Samsung via Email (oss.r[email protected]).
IMPORTANT NOTE ABOUT SERVICE
• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product
appearance.
• An administration fee may be charged if either
a. an engineer is called out at your request and there is no defect with the product (i.e. where the user manual
has not been read).
b. you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has
not been read).
• You will be informed of the administration fee amount before a technician visits.
SPECIFICATIONS
GENERAL
USB 5V / 0.5A
Weight
Soundbar Main Unit 2.6 kg
Subwoofer
(PS-WK550 / PS-WK551) 6.8 kg
Dimensions
(W x H x D)
Soundbar Main Unit 1010.5 x 54.0 x 87.5 mm
Subwoofer
(PS-WK550 / PS-WK551) 452.0 x 335.0 x 154.0 mm
Operating Temperature Range +5°C to +35°C
Operating Humidity Range 10 % to 75 %
AMPLIFIER Rated Output
Power
Soundbar Main Unit 30W x 6, 6 ohm, THD≦10%
Subwoofer
(PS-WK550 / PS-WK551) 160W, 3 ohm, THD≦10%
Supported play formats LPCM 2ch, Dolby Digital, DTS
• DTS 2.0 sound is played in DTS format.
• Nominal specification
–Design and specifications are subject to change without prior notice.
–Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
–Weight and dimensions are approximate.
–For more information about the power supply and power consumption, refer to the label attached to the
product. (Label : Bottom of Soundbar main unit)

· 18 · English
Wireless Models (including the frequency of 5.15GHz-5.35GHz)
• Hereby, Samsung Electronics, declares that this equipment is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
The original Declaration of Conformity may be found at http://www.samsung.com,
go to Support > Search Product Support and enter the model name.
This equipment may be operated in all EU countries.
This equipment may only be used indoors.
Wireless Models (excluding the frequency of 5.15GHz-5.35GHz)
• Hereby, Samsung Electronics, declares that this equipment is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
The original Declaration of Conformity may be found at http://www.samsung.com,
go to Support > Search Product Support and enter the model name.
This equipment may be operated in all EU countries.
[Correct disposal of batteries in this product]
(Applicable in countries with separate collection systems)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other
household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery
contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.
If batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them
through your local, free battery return system.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger,
headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm
to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and
recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where
and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for disposal.
For information on Samsung’s environmental commitments and product specific regulatory obligations e.g.
REACH visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html

· 2 · Français
INFORMATIONS RELATIVES À LA SÉCURITÉ
AVERTISSEMENTS
POUR ÉVITER LES RISQUES DE CHOC ÉLECTRIQUE, NE DÉMONTEZ PAS LE CAPOT.
L’APPAREIL NE CONTIENT PAS DE PIÈCES RÉPARABLES PAR L’UTILISATEUR ; S’ADRESSER À UN
SERVICE APRÈS-VENTE QUALIFIÉ.
ATTENTION
RISQUE DE CHOC
ÉLECTRIQUE. NE PAS
OUVRIR
Ce symbole indique la présence d’une haute
tension à l’intérieur. Il est dangereux de mettre
en contact quoi que ce soit avec une partie
interne de ce produit.
Ce symbole indique la présence d’importantes
instructions concernant le fonctionnement et la
maintenance jointes avec ce produit.
Produit de classe II : ce symbole indique qu'aucun branchement de sécurité à la terre (prise de
terre) n'est requis.
Tension CA : ce symbole indique que la tension nominale indiquée par le symbole est une
tension CA.
Tension CC : ce symbole indique que la tension nominale indiquée par le symbole est une
tension CC.
Mise en garde, Consulter le mode d'emploi : ce symbole avertit l'utilisateur qu'il doit consulter le
manuel d'utilisation pour en savoir plus sur les informations relatives à la sécurité.
AVERTISSEMENT : Afin de diminuer les risques d’incendie ou de choc électrique, n’exposez pas cet appareil
à la pluie ou à l’ humidité.
ATTENTION : POUR PRÉVENIR LES CHOCS ÉLECTRIQUES, BRANCHEZ LA FICHE AU FOND, EN
PRENANT SOIN D'INSÉRER LA TIGE LARGE DANS LA FENTE LARGE.
• Cet appareil doit toujours être branché à une prise terre.
• Pour déconnecter l’appareil du circuit principal, la prise doit être débranchée de la prise principale ; il est de
ce fait nécessaire que la prise principale soit facile d'accès.
ATTENTION
• Évitez toute projection d’eau sur l’appareil. Ne posez jamais d’objet contenant un liquide (ex : un vase)
dessus.
• Pour éteindre complètement l'appareil, vous devez retirer le cordon d'alimentation de la prise murale. Par
conséquent, le cordon d'alimentation doit être facilement accessible à tout moment.

· 3 · Français
PRÉCAUTIONS
1. Assurez-vous que l'alimentation électrique de votre maison est conforme à la plaque d'identification située au
dos de votre produit. Posez votre produit à plat sur un meuble stable en veillant à laisser un espace de 7 à
10 cm autour de l'appareil afin d’assurer une ventilation correcte de celui-ci. Faites attention à ne pas
obstruer les orifices de ventilation. Ne posez pas l'ensemble sur un amplificateur ou un autre appareil
susceptible de chauffer. Cet ensemble est conçu pour une utilisation en continu. Pour entièrement éteindre
l'appareil, débranchez la fiche CA de la prise murale. Débranchez l'appareil si vous envisagez de ne pas
l'utiliser durant une longue période.
2. En cas d'orage, débranchez la fiche de l'appareil de la prise murale. Les surtensions occasionnées par
l'orage pourraient endommager votre appareil.
3. N'exposez pas l'ensemble aux rayons directs du soleil ou à toute autre source de chaleur.
Ceci pourrait entraîner une surchauffe et un dysfonctionnement de l’appareil.
4. Protégez le produit de l'humidité (comme les vases) et d'une chaleur excessive (comme une cheminée) ou
de tout équipement capable de créer des champs magnétiques ou électriques. Débranchez le câble
d'alimentation en cas de dysfonctionnement. Votre produit n'est pas prévu pour un usage industriel. Ce
produit ne peut être utilisé qu'à des fins personnelles.
Une condensation peut se former si le produit ou un disque a été stocké à basse température.
Si vous devez transporter l'ensemble pendant l'hiver, attendez environ 2 heures que l'appareil ait atteint la
température de la pièce avant de l'utiliser.
5. Les piles utilisées dans ce produit peuvent contenir des produits ch miques dangereux pour l'environnement.
Ne jetez pas les piles dans votre poubelle habituelle. Ne vous débarrassez pas des piles en les faisant brûler.
Ne court-circuitez pas, ne désassemblez pas ni ne faites pas surchauffer les batteries. Le remplacement
incorrect de la batterie entraîne un risque d'explosion.
Ne la remplacez que par une batterie du même type.
ATTENTION, NE PAS INGÉRER LA BATTERIE, RISQUE DE BRÛLURE CHIMIQUE,
[Télécommande fournie avec] Ce produit contient une pile par pièce/bouton.
Si vous avalez la pile par pièce/bouton, cela peut entraîner des brûlures internes graves en seulement
2 heures et vous pouvez mourir. Maintenez les piles neuves et usagées hors de portée des enfants.
Si le compartiment de la pile ne se ferme pas correctement, arrêter d'utiliser l'appareil et maintenez-le hors de portée
des enfants. Si vous pensez qu'il est possible que les piles aient été avalées ou placées à l'intérieur d'une partie du
corps, consultez immédiatement un médecin.
