Samsung SWV-600F User manual

Washing Machine
Owner’s Instructions
P6091
SWV-600F

Safety Precautions
Congratulations on your purchase of the new Samsung washing machine.
These Owner’s Instructions contain valuable information on the installation,
use, and care of this appliance. Please take the time to read these instructions
so that you can take full advantage of the washing machine’s features and
enjoy this appliance for many years to come.
Before using the appliance
• Packing materials can be dangerous to children; keep all packing mater-
ial (plastic bags, polystyrene, etc.) well out of the reach of children.
• The appliance is designed for home use only.
• Make sure that water and electrical connections are made by qualified
technicians, observing the manufacturer’s instructions (see, “Installing
the washing machine,” page 2) and local safety regulations.
• All packaging and shipping bolts must be removed before the appliance
is used. Serious damage may occur if they are not removed. See
“Removing the shipping bolts” on page 3.
• First wash cycle without laundry (See on page 8).
Safety instructions
• Before cleaning or carrying out maintenance, unplug the appliance from
the electrical outlet.
• Make sure that the pockets of all clothing to be washed are empty.
Hard, sharp objects, such as coins, safety pins, nails, screws, or stones
can cause extensive damage to the appliance.
• Always unplug the appliance and turn off the water after use.
• Before you open the door of the appliance, check that the water has
drained. Do not open the door if you can still see water.
• Pets and small children may climb into the appliance. Check the appli-
ance before each use.
• The glass door becomes very hot during the washing cycle. Keep chil-
dren away from the appliance while it is in use.
• Do not attempt to repair the appliance yourself. Repairs made by inex-
perienced or unqualified persons may cause injury and/or make more
serious repairs to the appliance necessary.
• If the plug (power supply cord) is damaged, it must be replaced by the
manufacturer or its service agent or a similar qualified person in order
to avoid a hazard.
• This appliance should only be serviced by an authorized service center,
and only genuine spare parts should be used.
●SAVE THESE INSTRUCTIONS

Safety Precautions inside cover
Installing the Washing Machine 2
Unpacking the washing machine 2
Overview of the washing machine 2
Selecting a location 3
Adjusting the leveling feet 3
Removing the shipping bolts 3
Connecting the water supply hose 4
Positioning the drain hose 4
Plugging in the machine 5
Washing a Load of Laundry 6
Overview of the control panel 6
Washing for the first time 7
Putting detergent in the washing machine 7
Washing clothes using fuzzy logic 8
Setting prewash 9
Washing clothes manually 9
Washing tips and hints 10
Maintaining the Washing Machine 11
Repairing a frozen washing machine 11
Cleaning the exterior 11
Cleaning the detergent drawer and recess 12
Cleaning the debris filter 13
Cleaning the water hose mesh filter 13
Troubleshooting 14
Problems and solutions 14
Program Chart 15
Appendix 16
Fabric care chart 16
Electrical warnings 16
Protecting the environment 17
Declaration of conformity 17
Specification 18
Table of Contents
1
SAMSUNG Washing Machine Owner’s Instructions

Unpacking the washing machine
Unpack your washing machine and inspect it for shipping damage. Also make
sure that you have received all of the items shown below. If the washing
machine was damaged during shipping or you do not have all of the items,
contact your Samsung dealer immediately.
Overview of the washing machine
Worktop
Control panel
Detergent
drawer
Door
Adjustable feet
Base cover
Debris filter
Door release
Emergency drain
tube
Cold
ater
supply
hose(Blue)
* (Option)
Hot
Water
supply
hose(Red)
Plug Bolt hole
covers
Wrench
Hose guide
Drain hose
Installing the Washing Machine
2SAMSUNG Washing Machine Owner’s Instructions

Selecting a location
Before you install the washing machine, select a location with the following
characteristics:
• A hard, level surface (if the surface is uneven, see “Adjusting the level-
ing feet,” below)
• Away from direct sunlight
• Adequate ventilation
• Room temperature that will not fall below 0° C
• Away from sources of heat such as coal or gas
Make sure that the washing machine does not stand on its power cord.
Ventilation openings must not be obstructed by carpeting when the washing
machine is installed on a carpeted floor.
Adjusting the leveling feet
If the floor is uneven, adjust the feet (do not insert pieces of wood,or any
other objects the feet):
1. Loosen the leg bolt by turning it with your hand until it is at the desired
height.
2. Tighten the locking nut by turning it with the supplied wrench.
•Place the washer on a sturdy flat Surface.
If the washer is placed on an uneven or weak surface, noise or vibration
occurs.(Allowable is 1 °)
Removing the shipping bolts
Before using the washing machine, you must remove the five shipping bolts
from the back of the unit. To remove the bolts:
1. Loosen all bolts with the supplied wrench before removing them.
2. Take each bolt head and pull it through the wide part of the hole.
Repeat for each bolt.
3. Fill the holes with the supplied plastic covers.
4. Keep the shipping bolts for future use.
Installing the Washing Machine
3
SAMSUNG Washing Machine Owner’s Instructions

Installing the Washing Machine
4SAMSUNG Washing Machine Owner’s Instructions
Connecting the water supply hose
The water supply hose must be connected to the washing machine at one end and to the water faucet at
the other. Do not stretch the water supply hose. If the hose is too short and you do not wish to move the
water faucet, replace the hose with a longer, high pressure hose.
To connect the water supply hose:
1. Connect the cold water supply hose(Blue) fitting with the L-shaped arm to the cold water supply
intake(Blue) on the back of the washing machine and hand tighten.
2. Connect the other end of the cold water supply hose to your sink’s cold water faucet and tighten it
by hand. If necessary, you can reposition the water supply hose at the washing machine end by
loosening the fitting, rotating the hose, and retightening the fitting.
Option : 1
. Connect the hot water supply hose(Red) fitting with the L-shaped arm to the hot water supply intake(Red)
on the back of the washing machine and hand tighten.
2. Connect the other end of the hot water supply hose to your sink’s hot water faucet and tighten it by hand.
3. If you want to use only cold water, useY-piece.
Positioning the drain hose
The end of the drain hose may be positioned in three ways:
Over the edge of a sink
The drain hose must be placed at a height of between 60 and 90 cm. To keep the drain hose spout bent,
use the supplied plastic hose guide. Secure the guide to the wall with a hook or to the faucet with a piece
of string to prevent the drain hose from moving.
In a sink drain pipe branch
The drain pipe branch must be above the sink siphon so that the end of the hose is at least 60
cm above the ground.
90 cm
60 cm
a
b
a
b
c
1.Remove the adaptor
from the water
supply hose.
2.First,using a "+" type screw driver,
loosen the four screws on the adap-
tor. Next,take the adaptor and turn
part(b) following the arrow for gap
about 5mm between them.
3. Connect adaptor to the water tap by
tightening the screws firmly.
Then,turn part (b) following the
arrow and put (a) and (b)together.
5. Connect the other end of the water supply
hose to the inlet water valve at the top of
the washer. Screw the hose clockwise all
the way in.
● If the water tap is a screw type,assemble a
water supply hose that fits to the tap as
shown.
4. Connect the water supply hose to the adap-
tor. Pull down the part (c) of the water
supply hose. When you release part (c) the
hose is automatically connects to the adap-
tor making a 'click' sound.
NOTICE After completing connection,if water leaks from the hose,then repeat the same steps. Use the most conventional type of faucet
for water supply. In case the faucet is square or too big,remove the spacing ring before inserting the faucet into the adaptor.
Connecting the water supply hose (Option)

In a drain pipe
Samsung recommends you use a 65 cm high vertical pipe; it must be no
shorter than 60 cm and no longer than 90 cm.
The inside of the drain pipe must be wider than the diameter of the drain.
The drain hose can be extended to a length of up to 180 cm. Use an extension
with an internal diameter at least equal to the diameter of the original hose
and a suitable fitting. The hose extension will run along the floor and only the
part near the drainage point will be raised.
Plugging in the machine
For European Users. You will NOT need to ground the plug of the
washing machine.
For U.S. Users. You MUST ground the plug of the washing machine.
Check with a licensed electrician before using the machine to make sure it is
properly grounded.
For U.K. Users.
Wiring Instructions
WARNING THIS APPLIANCE MUST BE EARTHED.
This appliance must be earthed. In the event of an
electrical short circuit, earthing reduces the risk of
electric shock providing an escape wire for the
electric current. The appliance is equipped with
a mains lead which includes an earth wire for
connecting to the earth terminal of your mains plug.
The plug must be plugged into a socket that is
properly installed and earthed.
*The wires in this mains lead are coloured in
accordance with the following code:
•Green-and yellow :Earth
•Blue :Neutral
•Brown :Live
• As the colours of the wires in the mains lead
of this appliance may not correspond with the
coloured markings indentifying the terminals
in your plug, proceed as follows.
• Connect the green-and yellow wire to the
terminal in the plug marked with the letter E or
the earth symbol ( ) or coloured green or
green-and-yellow.
• Connect the blue wire to the terminal marked
with the letter N or coloured black.
• Connect the brown wire to the terminal marked
with the letter L or coloured red.
*Consult a qualified electrician or service technician
if in doubt about any of these instructions.
The manufacturer of this washing machine will not accept any
liability for damage to persons or material for non
observance of these requirements.There are no
user+serviceable parts inside the washing machine and if the
mains lead of this appliance is damaged, it must only be
replaced by qualified service personnel approved by the
manufacturer because special tools are required.
Installing the Washing Machine
5
SAMSUNG Washing Machine Owner’s Instructions

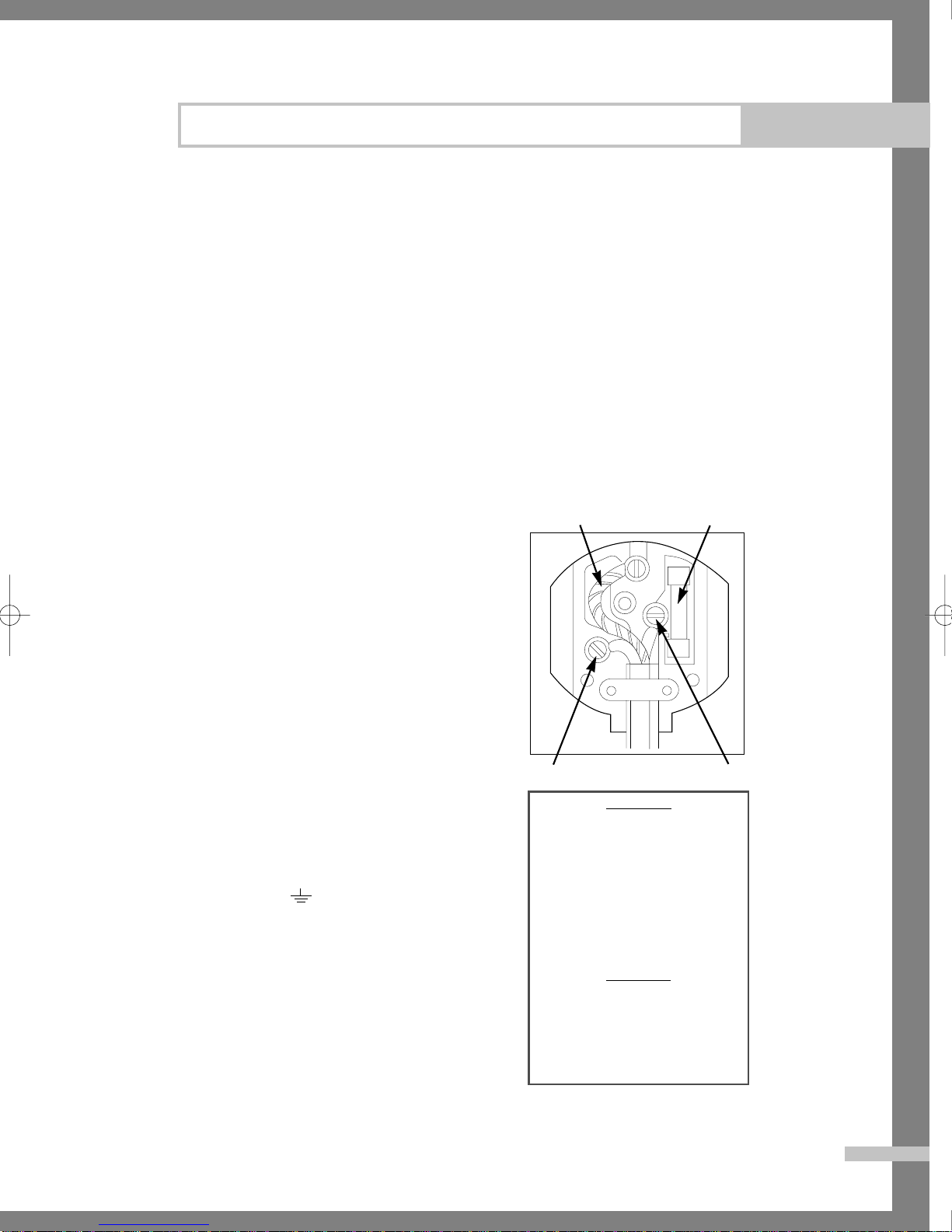

GREEN AND
YELLOW
BLUE BROWN
13 AMP
FUSE
WARNING
Ensure that the plug and power
cord are not damaged before use.
If you have any reason to remove
the moulded plug from this
appliance, immediately remove the
fuse and dispose of the plug.
Do not connect the plug to a mains
socket under any circumstances as
there is a danger of electric shock.
CIRCUITS
Your washing machine should be
operated on a separate circuit from
other appliances. Failure to do this
may cause the circuit breaker to
trip, the fuse to blow.

Washing a Load of Laundry
6SAMSUNG Washing Machine Owner’s Instructions
Overview of the control panel
1. Detergent dispenser
2. Display panel
3. No Spin button
Press to no spin program.
4. Rinse Hold button
Press to rinse hold program.
5. Temperature button
Press the button repeatedly to cycle through th available water tempera-
ture (Cold, 30°, 40°, 60°, 95°C).
6. Manual button
Press the button repeatedly to cycle through the available partial wash
options {Wash+Rinse+Spin ➔Prewash+Wash+Rinse+Spin ➔Spin➔
Rinse (1 time)+Spin➔Rinse (2 times)+Spin} .
Note : Prewash is only available when washing cotton, synthetic or
delicate.
7. Course button
Press the button repeatedly to select one of the right available programs
(Cotton, Synthetic, Delicate, Wool, Drain).
8. Start/Pause button
Press to pause and restart programs.
9. (On/Off) button
Press once to turn the washing machine on, press again to turn the wash-
ing machine off. If the washing machine power is left on for longer than
10 minutes without any buttons being touched, the power automatically
turns off.
21 3 4 5 6 7 8 9
Pre
Wash
Rinse
Spin
95˚C
60˚C
40˚C
30˚C
Synthetic
Wool
Drain
Cotton
Delicate
Rinse Hold
No Spin
NO SPIN RINSE HOLD TEMP MANUAL COURSE
START/PAUSE

Washing a Load of Laundry
7
SAMSUNG Washing Machine Owner’s Instructions
Washing for the first time
Before washing clothes for the first time, you must run a complete cycle
without clothes. To do this:
1. Press the (On/Off) button .
2. Pour a little detergent into compartment in the detergent drawer.
3. Turn on the water supply to the washing machine.
4. Press the Temperature button repeatedly until 40° C.
5. Press the Start/Pause button.
•This will remove any water remaining in the machine from the manu-
facture’s test run .

Washing a Load of Laundry
8SAMSUNG Washing Machine Owner’s Instructions
Washing clothes using fuzzy logic
Your new washing machine makes washing clothes easy, using Samsung’s "fuzzy
logic" automatic control system. When you select an automatic wash program, the
machine will automatically set the correct temperature, washing time, and rinse
speed according to the weight of the clothes.
To wash clothes using the fuzzy logic programs:
1. Open the door and put the laundry in the machine.
2. Turn on your sink's water faucet.
3. Press the (On/Off) button.
4. Add the detergent, softener, and prewash detergent (if necessary) into
the appropriate compartment.
Note: Prewash is only available when washing cotton, synthetic,
delicate garments. It is only necessary if your cotton clothing is heavily
soiled. If you wish to use prewash, please see "Setting prewash" on
page 9.
5. Choose the Course program to the type of clothes you are washing:
Cotton, Synthetic, Delicate, Wool, Drain.
You will see the indicators light up on the control panel.
6. At this time, you can control the wash temperature.
7. Press the Start/Pause button and the wash cycle will begin.
8. To pause the wash cycle, press the Start/Pause button again.
When the cycle is finished:
1. Open the door.
Note: The door is opened about 2-3 minutes after power off.
2. Remove laundry.

Washing a Load of Laundry
9
SAMSUNG Washing Machine Owner’s Instructions
Setting prewash
Prewash is only available when washing cotton, synthetic, delicate clothes. To
use prewash:
1. Load the prewash detergent into compartment of the detergent drawer.
2. Select the wash program (cotton, synthetic or delicate)..
3. Press the Manual button until the "Prewash" indicator lights up on the
control panel.
4. Press Start/Pause to begin the cycle.
Washing clothes manually
You can wash clothes manually without using the fuzzy logic feature. To do so:
1. Turn on the water at the water source sink.
2. Press the (On/Off) button on the washing machine.
3. Open the door.
4. Put the detergent and, if necessary, softener or prewash detergent, in the
appropriate compartments.
5. Press the Temperature button to select the temperature (cold water, 30°,
40°, 60°, or 95°) .
6. Repeatedly press the Manual button to select the cycle you prefer:
7. Press the Start/Pause button and the machine will begin the cycle.
Pre
Wash
Rinse
Spin
95˚C
60˚C
40˚C
30˚C
Synthetic
Wool
Drain
Cotton
Delicate
Rinse Hold
No Spin
NO SPIN RINSE HOLD TEMP MANUAL COURSE
START/PAUSE
Pre
Wash
Rinse
Spin
95˚C
60˚C
40˚C
30˚C
Synthetic
Wool
Drain
Cotton
Delicate
Rinse Hold
No Spin
NO SPIN RINSE HOLD TEMP MANUAL COURSE
START/PAUSE

Washing a Load of Laundry
10 SAMSUNG Washing Machine Owner’s Instructions
Washing tips and hints
Sorting your laundry: Sort your laundry according to the following
characteristics:
•Type of fabric care label symbol: Sort laundry into cottons, mixed
fibers, synthetics, silks, wools and rayon.
•Color: Divide whites and colors. Wash new, colored items separately.
•Size: Placing items of different sizes in the same load will improve the
washing action.
•Sensitivity: Wash delicate items separately, using the Delicate wash
program for pure new wool, curtains and silk articles. Check the labels
on the items you are washing or refer to the fabric care chart in the
appendix.
Emptying pockets: Coins, safety pins and similar items can damage
linen, the washing machine drum, and the water tank.
Securing fasteners: Close zippers and fasten buttons or hooks; loose
belts or ribbons should be tied together.
Prewashing cotton: Your new washing machine, combined with mod-
ern detergents, will give perfect washing results, thus saving energy, time,
water and detergent. However, if your cotton is particularly dirty, use a pre-
wash with a protein-based detergent.
Determining load capacity: Do not overload the washing machine or
your laundry may not wash properly. Use the chart below to determine the
load capacity for the type of laundry you are washing.
Fabric Type Load Capacity
Colored/cotton
– average/lightly soiled 5.0 kg
– heavily soiled 5.0 kg
Synthetics 2.5 kg
Delicates 2.0 kg
Wools 1.5 kg

Maintaining the Washing Machine
11
SAMSUNG Washing Machine Owner’s Instructions
Detergent tips: The type of detergent you use is based on the type of
fabric (cotton, synthetic, delicate items, wool), color, wash temperature,
degree and type of soiling. Always use “low suds” laundry soap, which is
designed for automatic washing machines.
Follow the detergent manufacturer’s recommendations based upon the weight
of the laundry, the degree of soiling, and the hardness of the water in your
area. If you do not know how hard your water is, ask your water authority.
Note;
Keep detergents and additives in a Safe, dry place out of the reach of chil
dren.
Repairing a frozen washing machine
If the temperature drops below freezing and your washing machine is frozen:
1. Unplug the washing machine.
2. Pour warm water on the source faucet to loosen the water supply hose.
3. Remove the water supply hose and soak it in warm water.
4. Pour warm water into the washing machine drum and let it sit for 10
minutes.
5. Reconnect the water supply hose to the water faucet and check if the
water supply and drain operations are normal.
Cleaning the exterior
1. Wipe the washing machine surfaces, including the control panel, with a
soft cloth and non-abrasive household detergents.
2. Use a soft cloth to dry the surfaces.
3. Do not pour water on the washing machine.

Maintaining the Washing Machine
12 SAMSUNG Washing Machine Owner’s Instructions
Cleaning the detergent drawer and recess
1. Press the release lever on the inside of the detergent drawer and pull it out.
2. Remove the cap from compartment .
3. Wash all of the parts under running water.
4. Clean the drawer recess with an old toothbrush.
5. Reinsert the cap (pushing it firmly into place) and replace the liquid
detergent divider into the drawer.
6. Push the drawer back into place.
7. Run a rinse program without any laundry in the drum.
Cleaning the debris filter

Maintaining the Washing Machine
13
SAMSUNG Washing Machine Owner’s Instructions
Clean the debris filter 2 or 3 times a year.
1. Remove the base cover from the front of the washing machine.
2. Place a rag under filter not to wet the floor.
3. Unscrew the filter cap and take it out.
4. Wash any dirt or other material from the filter. Make sure the drain
pump propeller behind the filter is not blocked. Replace the filter cap.
5. Replace the base cover.
Cleaning the water hose mesh filter
You should clean the water hose mesh filter once per year.
To do this:
1. Turn off the water source to the washing machine.
2. Unscrew the hose from the back of the washing machine.
3. With a pair of pliers, gently pull out the mesh filter from the end of the
hose and rinse it under water until clean. Also clean the inside and out-
side of the threaded connector.
4. Push the filter back into place.
5. Screw the hose back onto the washing machine.
6. Turn on the faucet and make sure the connections are watertight.
Problems and solutions

Troubleshooting
14 SAMSUNG Washing Machine Owner’s Instructions
The washing machine will not start
•Make sure the door is firmly closed.
•Make sure the washing machine is plugged in.
•Make sure the water source faucet is turned on.
•Make sure to press the Start/Pause button.
No water or insufficient water supply
•Make sure the water source faucet is turned on.
•Make sure the water source hose is not frozen.
•Make sure the water intake hose is not bent.
•Make sure the filter on the water intake hose is not clogged.
Detergent remains in the detergent drawer after the
wash program is complete
•Make sure the washing machine is running with sufficient water
pressure.
•Put the detergents in the inner parts of the detergent drawer (away
from the outside edges).
Washing machine vibrates or is too noisy
•Make sure the washing machine is set on a level surface. If the surface
is not level, adjust the washing machine feet to level the appliance (see
page 3).
•Make sure that the shipping bolts are removed (see page 3).
•Make sure the washing machine is not touching any other object.
•Make sure the laundry load is balanced.
The washing machine does not drain and/or spin
•Make sure the drain hose is not squashed or bent.
•Make sure the water hose mesh filter is not clogged (see page 13).
Before contacting After-Sales service;
1. Try to remedy the problem (See “Trouble shooting guide”).
2. Restart the programme to see if the fault is repeatedo.
3. If the malfunction persists, call After-sales service and specify.

Averagely or lightly soiled cottons, bed linen, table linen, underwear, towels, shirts, etc.
Lighly or averagely soiled blouses, shirts, etc. Made of polyester(Diolen, Trevira),
polyamide(perlon, Nylon) or similar blends.
Delicate curtains, dresses, skirts, shirts and blouses.
Only machine washable wollens with pure new wool label.
15
SAMSUNG Washing Machine Owner’s Instructions
PRO-
GRAM
PROGRAM
Cotton
Synthetic
Delicate
Wool
5.0
2.5
2.0
1.5
yes
yes
yes
yes
*
*
*
*
*
*
*
-
95
60
40
40
600
600
600
400
54
50
53
59
1.82
0.72
0.49
0.52
*
*
*
_
Max
load
(kg) Pre
wash Wash Sof
tener
DETERGENT
ANDADDITIVES Spin speed
(MAX) rpm
Water
(
l )
Electri-
city
(kWh)
Function
Pre wash
Temperature
(MAX)
˚C
Type of WASH
Cotton
Synthetic
Delicate
Wool
Pre
Wash
Rinse
Spin
95˚C
60˚C
40˚C
30˚C
Synthetic
Wool
Drain
Cotton
Delicate
Rinse Hold
No Spin
NO SPIN RINSE HOLD TEMP MANUAL COURSE
START/PAUSE
1. Programme with prewash last approx. 15 minutes longer.
2. The programme duration data have been measured in the condition specified in Standard IEC 456.
3. Consumption in individual homes may differ from the values given in the table due to variations in
the pressure and temperature of the water supply, the load and the type of laundry.
Programme Chart

Appendix
16 SAMSUNG Washing Machine Owner’s Instructions
Fabric care chart
Electrical warnings
To reduce the risk of fire, electrical shock, and other injuries, keep these safety pre-
cautions in mind:
•Operate the appliance only from the type of power source indicated on the
marking label. If you are not sure of the type of power supplied to your
home, consult your appliance dealer or local power company.
•Use only a grounded or polarized outlet. For your safety, this appliance is
equipped with a polarized alternating current line plug having one blade
wider than the other. This plug will fit into the power outlet only one way. If
you are unable to insert the plug fully into the outlet, try reversing the plug. If
the plug still doesn’t fit, contact your electrician to replace your outlet.
•Protect the power cord. Power supply cords should be routed so that they are
unlikely to be walked on or pinched by items placed on or against them. Pay
particular attention to cords at plugs, convenience receptacles, and the point
where they exit from the unit.
•Do not overload the wall outlet or extension cords. Overloading can result in
fire or electric shock.
Resistant material
Delicate fabric
Dry clean only
Can be bleached in cold water
Do not bleach
Can be ironed at 200oC max
Can be ironed at 150oC max
Can be ironed at 100oC max
Do not iron
Item may be hand washed
Item may be washed at 95oC
Item may be washed at 60oC
Item may be washed at 40oC
Item may be washed at 30oC
Can be dry cleaned using any
solvent
Do not dry clean
Dry on clothes hanger
Dry clean with perchloride, lighter
fuel, pure alcohol or R113 only
Dry clean with aviation fuel,
pure alcohol or R113 only
Dry flat
Can be hung to dry
Do not tumble dry
Tumble dry, normal heat
Tumble dry, reduced heat

Appendix
17
SAMSUNG Washing Machine Owner’s Instructions
Protecting the environment
•This appliance is manufactured from recyclable materials. If you decide to
dispose of this appliance, please observe local waste disposal regulations. Cut
off the power cord so that the appliance cannot be connected to a power
source. Remove the door so that animals and small children cannot get
trapped inside the appliance.
•Do not exceed the detergent quantities recommended in the detergent manu-
facturers’instructions.
•Use stain removal products and bleaches before the wash cycle only when
strictly necessary.
•Save water and electricity by only washing full loads (the exact amount
depends upon the program used).
Declaration of conformity
This appliance complies with European safety standards, EC directive 93/68 and
EN Standard 60335.

Appendix
18 SAMSUNG Washing Machine Owner’s Instructions
TYPE FRONT LOADING WASHER
DIMENTION W598mm XD550mm XH844mm
WATER PRESSURE 50 kPa ~ 800 kPa
WEIGHT 75 kg
WASH and SPIN CAPACITY 5.0kg (DRY LAUNDRY)
220 V 180 W
WASHING 240 V 180 W
WASHING AND 220 V 2000 W
POWER HEATING 240 V 2400 W
CONSUMPTION SPIN 220 V 380 W
240 V 380 W
PUMPING 34 W
WATER VOLUME 54 l(STANDARD COURSE)
SPIN REVOLUTION rpm 600
PAPER 2.6Kg
PACKAGE Wt. PLASTIC 0.9Kg
WOOD 0Kg
Specifications
