Samsung WA52M7750A Sereis User manual

Washer
User manual
WA52M7750A*/ WA52M7755A*
WA7700M_DC68-03774D-04_EN.indd 1 2019-02-14  6:24:02

2 English
Contents
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
CALIFORNIA PROPOSITION 65 WARNING 5
Important safety precautions 5
Installation 13
Unpacking your washer 13
Overview of your washer 14
Basic location requirements 16
Important note to installer 20
Step-by-step installation 20
Operating instructions 28
Loading your washer 28
Getting started 29
Washing a load of laundry 30
Control panel 30
Cycle overview 32
Options 34
Washing clothes using the cycle selector 38
ATC (Auto Temperature Control) 39
The basics 40
Detergent use 42
Features 43
Maintaining your washer 47
Cleaning the exterior 47
Cleaning the interior 47
Storing your washer 47
Preserving the top cover and the front frame 48
Cleaning mesh lter 48
Cleaning the dispensers 48
Self Clean 50
Troubleshooting 51
Checkpoints 51
Information codes 55
WA7700M_DC68-03774D-04_EN.indd 2 2019-02-14  6:24:02

English 3
Contents
Specications 59
Fabric care chart 59
Helping the environment 61
Declaration of conformity 61
Specication sheet 62
Cycle chart 63
WA7700M_DC68-03774D-04_EN.indd 3 2019-02-14  6:24:02

4 English
Safety information
SAVE THESE INSTRUCTIONS
Safety information
Congratulations on your new Samsung washer. This manual contains important information
on the installation, use and care of your appliance. Please take some time to read this manual
to take full advantage of your washer’s many benets and features.
What you need to know about the safety instructions
Please read this manual thoroughly to ensure that you know how to safely and efciently
operate the extensive features and functions of your new appliance. Please store the manual
in a safe location close to the appliance for future reference. Use this appliance only for its
intended purpose as described in this instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution and care when installing, maintaining and operating your washer.
Because the following operating instructions cover various models, the characteristics of your
washer may differ slightly from those described in this manual and not all warning signs
may be applicable. If you have any questions or concerns, contact your nearest service center
or nd help and information online at www.samsung.com.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or property
damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
WA7700M_DC68-03774D-04_EN.indd 4 2019-02-14  6:24:02

English 5
Safety information
SAVE THESE INSTRUCTIONS
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist. To
safely operate this appliance, familiarize yourself with its operation and exercise care when
using it.
CALIFORNIA PROPOSITION 65 WARNING
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Important safety precautions
WARNING
To reduce the risk of re, electric shock, or injury to persons when using your appliance,
follow basic precautions, including the following:
1. Read all instructions before using this appliance.
2. Do not wash or dry articles that have been previously cleaned in, washed in, soaked in, or
spotted with gasoline, dry-cleaning solvents, other ammable or explosive substances as
they give off vapors that could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the lid of the washing
or drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.
7. Do not tamper with the controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless it is
specically recommended in the user-maintenance instructions or in published user-
repair instructions that you understand and have the skills to carry out.
WA7700M_DC68-03774D-04_EN.indd 5 2019-02-14  6:24:02

6 English
Safety information
SAVE THESE INSTRUCTIONS
Safety information
9. Do not add gasoline, dry-cleaning solvents, or other ammable or explosive substances to
the wash water. These substances give off vapors that could ignite or explode.
10. Under certain conditions, hydrogen gas may be produced in a hot water system that
has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water
system has not been used for 2 weeks or more, before using a washer or combination
washer-dryer, turn on all hot water faucets and let the water ow from each for several
minutes. This will release any accumulated hydrogen gas. As the gas is ammable, do not
smoke or use an open ame during this time.
Critical installation warnings
WARNING
Plug the power cord into an AC 120 V / 60 Hz/wall socket rated at 15 amps or higher. Use
the socket for this appliance only. In addition, do not use an extension cord.
• Sharing a wall socket with other appliances, using a power strip, or extending the power
cord may result in electric shock or re.
• Do not use an electric transformer. It may result in electric shock or re.
• Ensure that the power voltage, frequency, and current match the product’s specications.
Failing to do so may result in electric shock or re.
Have this appliance installed by a qualied technician or service company.
• Failing to do so may result in electric shock, re, an explosion, problems with the product,
or injury.
Remove all foreign substances such as dust or water from the power plug terminals and
contact points using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failing to do so may result in electric shock or re.
Plug the power plug into the wall socket in the right direction so that the cord runs towards
the oor.
• If you plug the power plug into the socket in the opposite direction, the electric wires
within the cable may be damaged and this may result in electric shock or re.
WA7700M_DC68-03774D-04_EN.indd 6 2019-02-14  6:24:02

English 7
Safety information
SAVE THESE INSTRUCTIONS
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
• Improper grounding may result in electric shock, re, an explosion, or problems with the
product.
• Never plug the power cord into a socket that is not grounded correctly. Make sure the
socket you use is grounded in accordance with local and national codes.
Do not install this appliance near a heater or ammable material.
Do not install this appliance in a humid, oily, or dusty location, or in a location exposed to
direct sunlight or water (rain drops).
Do not install this appliance in a location where gas may leak.
• This may result in electric shock or re.
Plug the power plug into the wall socket rmly. Do not use a damaged power plug, damaged
power cord, or loose wall socket.
• This may result in electric shock or re.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord,
insert the power cord between objects, or push the power cord into the space behind the
appliance.
• This may result in electric shock or re.
Do not pull the power cord when unplugging the power plug.
• Unplug the power plug by holding the plug.
• Failing to do so may result in electric shock or re.
If the power plug or power cord are damaged, contact your nearest service center.
Installation cautions
CAUTION
Position the appliance so that the power plug is easily accessible.
• Failing to do so may result in electric shock or re due to electric leakage.
Install your appliance on a level and hard oor that can support its weight.
• Failing to do so may result in abnormal vibrations, noise, or problems with the product.
WA7700M_DC68-03774D-04_EN.indd 7 2019-02-14  6:24:02

8 English
Safety information
SAVE THESE INSTRUCTIONS
Safety information
Unplug the power plug when the appliance is not being used for long periods of time or
during a thunder/lightning storm.
• Failing to do so may result in electric shock or re.
Critical usage warnings
WARNING
If the appliance is ooded, cut the power immediately and contact your nearest service
center.
If the appliance emits a strange noise, a burning smell, or smoke, unplug the power plug
immediately and contact your nearest service center.
• Failing to do so may result in electric shock or re.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area immediately.
Do not turn any appliance or light on or off.
• Do not use a ventilating fan.
• A spark may result in an explosion or re.
Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or
other ammable or explosive substances.
• This may result in electric shock, re, or an explosion.
Do not force the washer lid open while the washer is operating (high-temperature washing/
drying/spinning).
• Water owing out of the washer may cause burns or cause the oor to be slippery.
This may result in injury.
• Forcing the lid open can damage the product or cause injury.
Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the
washer before using it.
Do not insert your hand under the washer.
• This may result in injury.
Do not touch the power plug with wet hands.
• This may result in electric shock.
Do not turn the appliance off by unplugging the power plug while the washer is in operation.
WA7700M_DC68-03774D-04_EN.indd 8 2019-02-14  6:24:02

English 9
Safety information
SAVE THESE INSTRUCTIONS
• Plugging the power plug into the wall socket again may cause a spark and result in
electric shock or re.
Keep all packaging materials well out of the reach of children, as packaging materials can be
dangerous to children.
• If a child places a bag over their head, the child may suffocate.
Do not let children or inrm persons use this washer unsupervised.
• Failing to do so may result in electric shock, burns or injury.
Do not insert your hand or a metal object under the washer while it is operating.
• This may result in injury.
Do not attempt to repair, disassemble, or modify the appliance yourself.
• Do not use any fuse (such as copper, steel wire, etc.) other than the standard fuse.
• If you need to repair or reinstall the appliance, contact your nearest service center.
• Failing to do so may result in electric shock, re, problems with the product, or injury.
If any foreign substance such as water enters the appliance in any area other than the tub,
unplug the power plug and contact your nearest service center.
• Failing to do so may result in electric shock or re.
If the water supply hose comes loose from the faucet and oods the appliance, unplug the
power plug.
• Failing to do so may result in electric shock or re.
For waterproof fabrics, only use the WATERPROOF cycle.
• Do not use other cycles for waterproof fabrics. This may result in injury or damage to the
washer, walls, oor, or clothing due to abnormal vibrations.
• Set the temperature and spin according to the attached care label.
• WARNING : Failure to closely follow these instructions may result in an abnormal
vibrating and out-of-balance condition that could result in physical injury, property
damage, and/or appliance damage.
WA7700M_DC68-03774D-04_EN.indd 9 2019-02-14  6:24:03

10 English
Safety information
SAVE THESE INSTRUCTIONS
Safety information
Usage cautions
CAUTION
If the washer is contaminated by a foreign substance such as detergent, dirt, food waste, etc.,
unplug the power plug and clean the washer using a damp, soft cloth.
• Failing to do so may result in discoloration, deformation, damage or rust.
The clear portion of the lid can be broken by a strong impact. Take care when using the
washer.
• If the clear portion is cracked or broken, it may result in injury.
After a water supply failure or when reconnecting the water supply hose, open the faucet
slowly.
Open the faucet slowly after a long period of non-use.
• The air pressure in the water supply hose or the water pipe may result in damage to a
part or in water leakage.
If a drain error occurs during an operation, check if there is a draining problem.
• If the washer is used when it is ooded because of a draining problem, it may result in
electric shock or re due to electric leakage.
Do not insert your hand under the washer.
• This may result in injury.
Insert the laundry into the washer completely so that laundry does not get caught in the lid.
• If laundry gets caught in the lid, it may result in damage to the laundry or the washer, or
result in water leakage.
Ensure that the faucet is turned off when the washer is not being used.
• Ensure that the water supply hose connectors are properly tightened.
• Failing to do so may result in property damage or injury.
Open the faucet and check if the water supply hose connector is rmly tightened and that
there is no water leaking before using the product.
• If the water supply hose connectors are loose, it may result in water leakage.
Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in electric shock, re, problems with the product, or injury.
WA7700M_DC68-03774D-04_EN.indd 10 2019-02-14  6:24:03

English 11
Safety information
SAVE THESE INSTRUCTIONS
Do not operate the appliance with wet hands.
• This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the appliance.
• As well as being harmful to humans, it may also result in electric shock, re, or problems
with the product.
Do not place an object that generates a electromagnetic eld near the washer.
• This may result in injury due to a malfunction.
Since the water drained during a high-temperature wash or drying cycle is hot, do not touch
the water.
• This may result in burns or injury.
Do not operate the washer when the detergent dispenser is removed.
• This may result in electric shock or injury due to water leakage.
Do not insert your hand into the detergent dispenser after opening it.
• This may result in injury as your hand may be caught.
Do not place any non-laundry objects, such as shoes, food waste, or animals into the washer.
• This can cause abnormal vibrations that can damage the washer, and, in the case of pets,
cause severe injury or death.
Do not press the buttons using sharp objects such as pins, knifes, ngernails, etc.
• This may result in electric shock or injury.
Do not wash laundry contaminated by oils, creams, or lotions usually found in skincare shops
or massage clinics.
• This may result in the rubber seal becoming deformed and water leakage.
Do not leave metal objects (safety pins, hair pins, etc.) or bleach in the tub for long periods of
time.
• This may cause the tub to rust.
• If rust appears on the surface of the tub, apply a neutral cleansing agent to the surface
and use a sponge to clean it. Never use a metal brush.
Do not use dry cleaning detergent directly in the tub and do not wash, rinse, or spin laundry
contaminated by dry cleaning detergent.
• This may result in spontaneous combustion or ignition due to heat from the oxidation of
the oil.
WA7700M_DC68-03774D-04_EN.indd 11 2019-02-14  6:24:03

12 English
Safety information
SAVE THESE INSTRUCTIONS
Safety information
Do not use hot water from water cooling/heating devices.
• This may result in problems with the washer.
Do not use natural hand-washing soap in the washer.
• If it hardens and accumulates inside the washer, it may cause problems with the product,
discoloration, rust, or bad odors.
Do not wash large laundry items such as bedding in the washing net.
• Failing to do so may result in injury due to abnormal vibrations.
• Place smaller items, such as lace socks and lingerie in the washing net.
Do not use hardened detergent.
• If it accumulates inside the washer, it may result in water leakage.
Do not wash throw rugs or doormats.
• If you wash throw rugs or doormats, the sand will accumulate inside the washer. It may
result in error such as no draining.
Critical cleaning warnings
WARNING
Do not clean the appliance by spraying water directly onto it.
Do not use the strong acid cleaning agent.
Do not use benzene, paint thinner, or alcohol to clean the appliance.
• This may result in discoloration, deformation, damage, electric shock, or re.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failing to do so may result in electric shock or re.
WA7700M_DC68-03774D-04_EN.indd 12 2019-02-14  6:24:03

English 13
Installation
Installation
Follow these instructions carefully to ensure proper installation of the washer and to prevent
accidents when using it.
WARNING
Certain internal parts are intentionally not grounded and may present a risk electric shock
only during servicing. Service personnel – Do not contact the following parts while the
appliance is energized: Control board, heat sink, motor, inlet valve, heater and pump.
Unpacking your washer
Unpack your washer and inspect it for shipping damage. Make sure you have received all the
items shown below. If your washer was damaged during shipping, or you do not have all of
the items, contact 1-800-SAMSUNG (1-800-726-7864).
To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the
unit.
WARNING
Packing materials can be dangerous to children; Keep all packing material (plastic bags,
polystyrene, etc.) well out of children’s reach.
CAUTION
When unpacking the washer, 2 person
collaboration is needed. To remove the
cushion bottom of the packing materials,
forward dumping is strictly prohibited.
When you lay the washer down to remove
carton base, should protect the side of
washer and lay it carefully. Never lay your
washer on its back or front.
WA7700M_DC68-03774D-04_EN.indd 13 2019-02-14  6:24:03

14 English
Installation
Installation
Overview of your washer
Make sure all the parts are included in the product package. If you have a problem with
the washer or the parts, contact a local Samsung customer center or the retailer.
03
08
10
11
09
07
05
06
02
01
04
12
WA7700M_DC68-03774D-04_EN.indd 14 2019-02-14  6:24:03

English 15
Installation
01 Drain hose 02 Hose guide 03 Lid
04 Built-in sink 05 Tub 06 Water Jet
07 Leveling feet 08 Water hose (Cold) 09 Water hose (Hot)
10 Control panel 11 Detergent drawer 12 Power cord
Parts supplied
Hose guide User manual Plastic zip hose tie Water intake cap
Parts not supplied
Water supply hoses
Tools needed for installation
Wrench Flat screwdriver Leveller
Adjustable Plier Measuring tape
NOTE
• If you lose an accessory and want to purchase a replacement, contact the Samsung
service center (1-800-SAMSUNG (1-800-726-7864)).
• The design of the parts and accessories may differ from the pictures above.
Their design is subject to change without notice for product improvement.
• Do not reuse old hoses. Only use new water supply hoses when you install the washer.
Old water supply hoses can leak or burst causing ooding and property damage.
• Conrm that there are rubber washers inside each coupling of the water supply hoses.
WA7700M_DC68-03774D-04_EN.indd 15 2019-02-14  6:24:04

16 English
Installation
Installation
Basic location requirements
Electrical
• 120 Volt 60 Hz 15 AMP fuse or circuit
breaker.
• Individual branch circuit serving only
your Washer is recommended.
• Your washer is equipped with a power
cord.
CAUTION
Never use an extension cord.
Grounding
Electrical grounding is required for this
appliance.
This appliance must be grounded. In
the event of malfunction or breakdown,
grounding will reduce the risk of electric
shock by providing a path of least resistance
for electric current.
This appliance is equipped with a power
cord having a three-prong grounding plug
for use in a properly installed and grounded
outlet.
The plug must be plugged into an
appropriate outlet that is properly installed
and grounded in accordance with all local
codes and ordinances.
WARNING
An improperly connected equipment-
grounding conductor can increase the risk
of electrical shock. Check with a qualied
electrician or serviceman if you are not sure
whether the appliance is properly grounded.
Do not modify the plug provided with the
appliance – if it does not t the outlet, have
a proper outlet installed by a qualied
electrician.
Important safety precautions
To prevent unnecessary risk of re,
electrical shock or personal injury, all wiring
and grounding must be done in accordance
with the National Electrical Code ANSI/
FNPA, No.70 Latest Revision and local
codes and ordinances. It is the personal
responsibility of the appliance owner to
provide adequate electrical service for this
appliance.
CAUTION
Never connect the ground wire to plastic
plumbing lines, gas lines, or hot water pipes.
Water
To correctly ll your Washer in the proper
amount of time, water pressure of 20 to
116psi (137 to 800kPa) is required.
Water pressure less than 20 psi may cause
water valve failure, or may not allow the
water valve to shut off completely, or may
extend the ll time beyond what your
Washer controls allow, causing your Washer
to turn off. A time limit is built into the
controls to prevent ooding in your home if
a hose becomes loose.
WA7700M_DC68-03774D-04_EN.indd 16 2019-02-14  6:24:05

English 17
Installation
The water faucets must be within 4 feet
(122 cm) to the back of your Washer to
match the inlet hoses provided with your
Washer.
NOTE
Accessory inlet hoses are available in
various lengths up to 10 feet (275 cm) for
faucets that are further away from the back
of your washer.
To avoid the possibility of water damage:
• Have water faucets easily accessible.
• Turn off faucets when the washer is not
in use.
• Periodically check that there is no
leakage from the water inlet hose
ttings.
WARNING
Check all connections at the water valve and
faucet for leaks
Drain facility
The recommended height of the standpipe
is 39 in (99 cm). The drain hose must be
routed through the drain hose clip to the
standpipe. The standpipe must be large
enough to accept the outside diameter of
the drain hose. The drain hose is attached to
the washer at the factory.
Flooring
For best performance, you must install
your washer on a solidly constructed oor.
Wood oors may need to be reinforced to
minimize vibration and/or unbalanced load
situations. Carpeting and soft tile surfaces
are contributing factors to vibration which
can cause your washer to move slightly
during the spin cycle.
Never install your washer on a platform or
weakly supported structure.
Location considerations
Do not install your washer in areas where
water may freeze, since your washer will
always retain some water in its water valve,
pump, and hose areas. Frozen water can
damage the belts, the pump, hoses, and
other components.
Alcove or closet installation
Minimum clearances for closet and alcove
installations:
Sides 1 in /
25 mm
Closet
front
2 in /
51 mm
Rear 6 in /
152 mm Top 21 in / 533 mm
If the washer and dryer are installed
together, the closet front must have at least
a 72 in² (465 cm²) unobstructed air opening.
Your washer alone does not require a
specic air opening.
WA7700M_DC68-03774D-04_EN.indd 17 2019-02-14  6:24:05

18 English
Installation
Installation
Recessed area
A
B B
AA
A1 in (2.5 cm)
B27.0 in (68.6 cm)
Side view - closet or conned area
A
BCD
E
A21 in (53.3 cm)
B2 in (5.1 cm)
C29 7/16 in (74.4 cm)
D6 in (15.2 cm)
E
Gap between end of water
valve and the wall
• Case 1. Assemble supply
hose after installing : Over
4 in (10 cm).
• Case 2. Assemble supply
hose before installing :
Over 3 in (8 cm).
WA7700M_DC68-03774D-04_EN.indd 18 2019-02-14  6:24:05

English 19
Installation

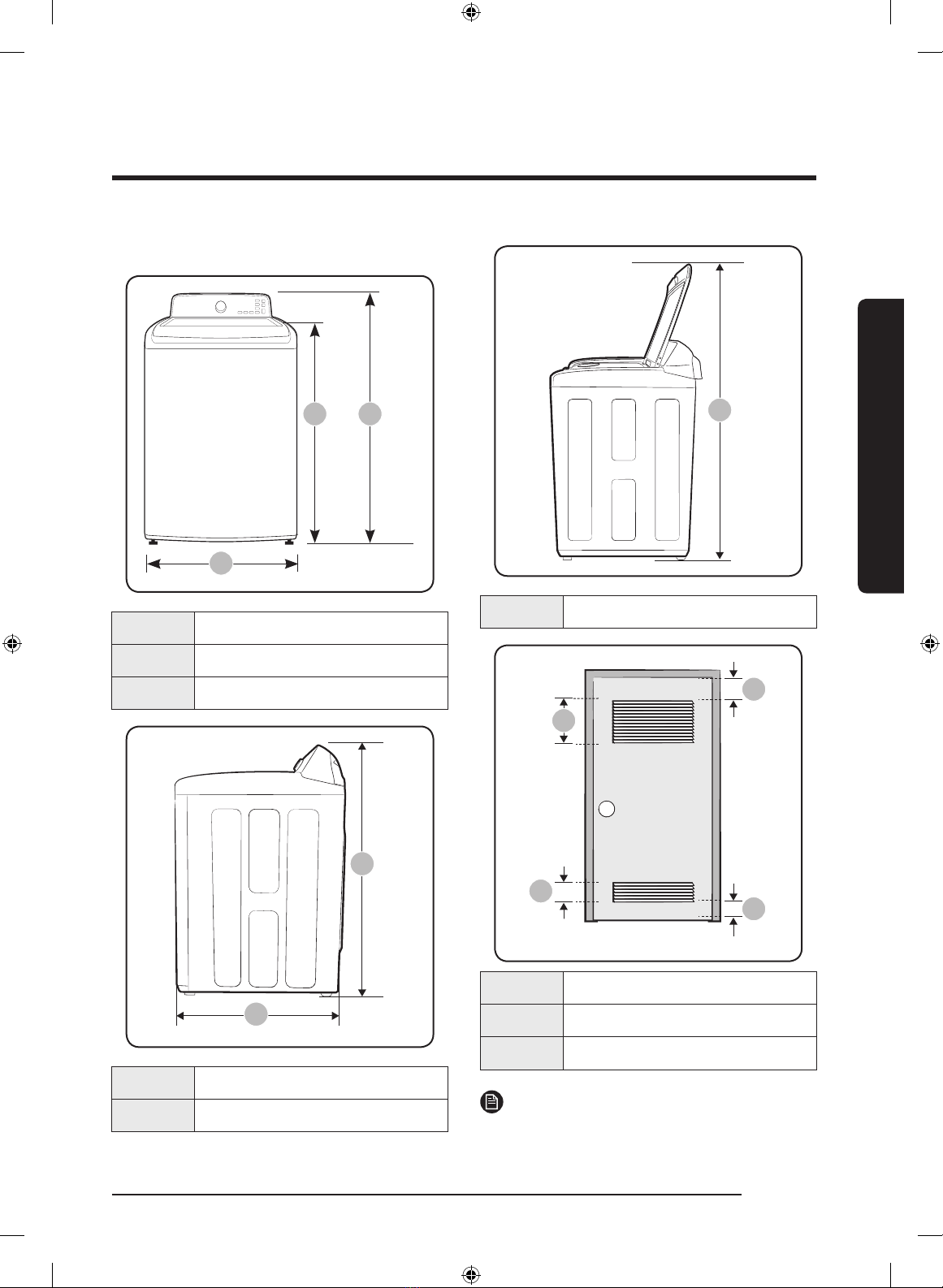

Required dimensions for Installation
C
B
A
A27.0 in (68.6 cm)
B39.2 in (99.5 cm)
C46.0 in (116.8 cm)
B
A
A29.3 in (74.4 cm)
B46.0 in (116.8 cm)
A
A59.8 in (152.0 cm)
B
A
C
C
A* 48.0 in2(310.0 cm2)
B* 24.0 in2(155.0 cm2)
C3.0 in (7.6 cm)
NOTE
* Required spacing
WA7700M_DC68-03774D-04_EN.indd 19 2019-02-14  6:24:05

20 English
Installation
Installation
Important note to installer
Please read the following instructions carefully before installing your washer.
These instructions should be retained for future reference.
We recommend you hire a professional to install this washer.
Installation ow chart
Removing the
shipping bolts
(Front loading
washers only)
Connecting the
water and drain
Adjusting the
leveling feet
Selecting a
location
Powering your
washing machine
Running a test cycle
Run Rinse+Spin with
small amount of
laundry (about 4~5
towels) as a test cycle
Running
Calibration Mode
Finishing the
installation
Does your washer
vibrate?
NO
YES
Check again before steps.
Step-by-step installation
STEP 1 Selecting a location
NOTE
Before you install the washer, make sure the location:
• Has a hard, level surface without carpeting or ooring that may obstruct ventilation.
• Is away from direct sunlight.
• Has adequate ventilation.
• Is not exposed to freezing temperatures (temperatures under 32 °F or 0 °C).
• Is away from heat sources such as oil or gas.
• Has enough space so that the washer doesn’t rest on its power cord.
WA7700M_DC68-03774D-04_EN.indd 20 2019-02-14  6:24:05
