Samsung WA95BWP User manual

WA95BWP
WA95BWB
WA75F4H
WAS0BWQ
WAS0BWM
WA70F4H
WA85BWP
WA85BWM
Washing Machine
user manual
imagine the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/global/register
WA65F4H
WA85BSỌ
WA85B4T
WA82BWK
WA82BSL
WA82B4T
WA82BWM
PANS UN

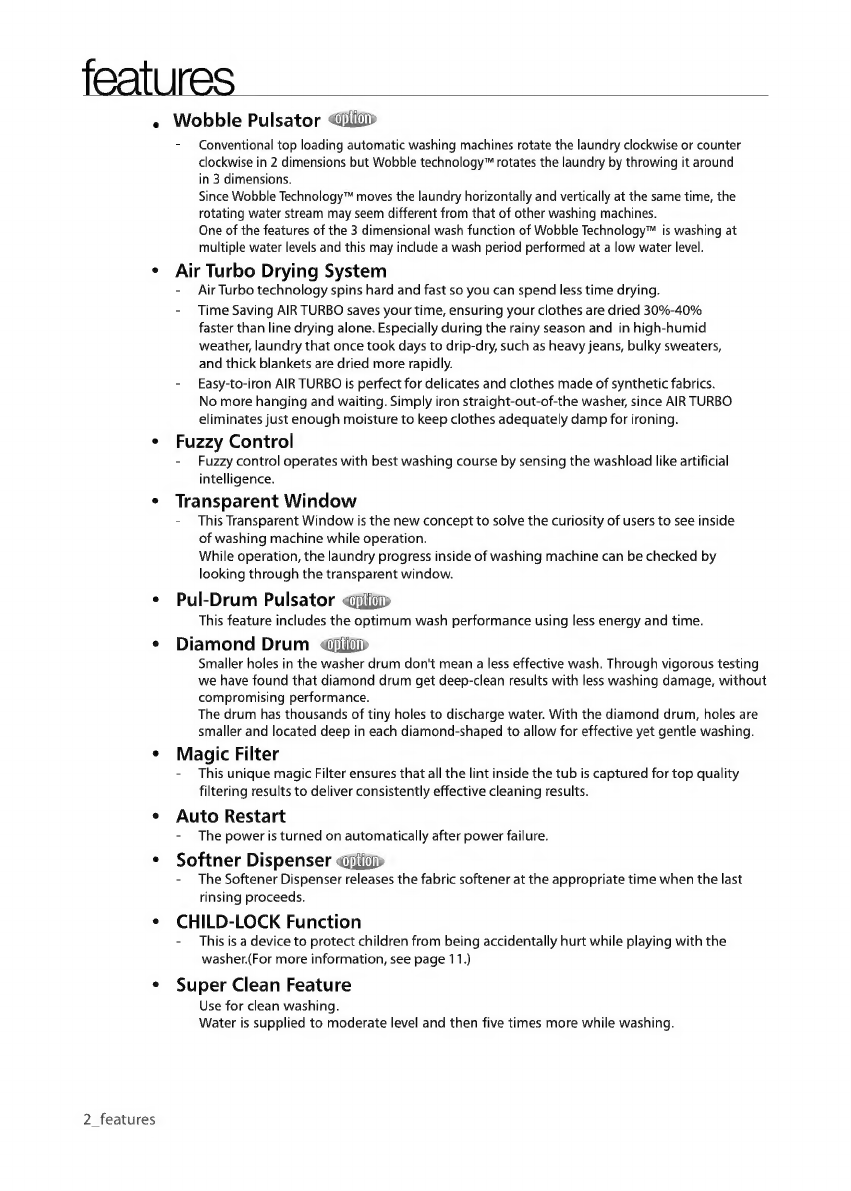

features
e Wobble Pulsator “ifiap
2_ features
- Conventional top loading automatic washing machines rotate the laundry clockwise or counter
clockwise in 2 dimensions but Wobble technology™ rotates the laundry by throwing it around
in 3 dimensions.
Since Wobble Technology™ moves the laundry horizontally and vertically at the same time, the
rotating water stream may seem different from that of other washing machines.
One of the features of the 3 dimensional wash function of Wobble Technology™ is washing at
multiple water levels and this may include a wash period performed at a low water level.
Air Turbo Drying System
Air Turbo technology spins hard and fast so you can spend less time drying.
- Time Saving AIR TURBO saves your time, ensuring your clothes are dried 30%-40%
faster than line drying alone. Especially during the rainy season and in high-humid
weather, laundry that once took days to drip-dry, such as heavy jeans, bulky sweaters,
and thick blankets are dried more rapidly.
- Easy-to-iron AIR TURBO is perfect for delicates and clothes made of synthetic fabrics.
No more hanging and waiting. Simply iron straight-out-of-the washer, since AIR TURBO
eliminates just enough moisture to keep clothes adequately damp for ironing.
Fuzzy Control
- Fuzzy control operates with best washing course by sensing the washload like artificial
intelligence.
Transparent Window
- This Transparent Window is the new concept to solve the curiosity of users to see inside
of washing machine while operation.
While operation, the laundry progress inside of washing machine can be checked by
looking through the transparent window.
Pul-Drum Pulsator «itp
This feature includes the optimum wash performance using less energy and time.
Diamond Drum Gila
Smaller holes in the washer drum don't mean a less effective wash. Through vigorous testing
we have found that diamond drum get deep-clean results with less washing damage, without
compromising performance.
The drum has thousands of tiny holes to discharge water. With the diamond drum, holes are
smaller and located deep in each diamond-shaped to allow for effective yet gentle washing.
Magic Filter
- This unique magic Filter ensures that all the lint inside the tub is captured for top quality
filtering results to deliver consistently effective cleaning results.
Auto Restart
- The power is turned on automatically after power failure.
Softner Dispenser qiio
- The Softener Dispenser releases the fabric softener at the appropriate time when the last
rinsing proceeds.
CHILD-LOCK Function
- This is a device to protect children from being accidentally hurt while playing with the
washer.(For more information, see page 11.)
Super Clean Feature
Use for clean washing.
Water is supplied to moderate level and then five times more while washing.

safety information
Throughout this manual, you'll see Warning A and Caution A notes. These warnings, cautions,
and the important safety instructions that follow do not cover all possible conditions and
situations that may occur. It's your responsibility to use common sense, caution, and care when
installing, maintaining, and operating your washer. Samsung is not liable for damages resulting
from improper use.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
What the icons and signs in this user manual means:
warNinc in severe personal injury or death.
Hazards or unsafe practices that may result Do NOT attempt.
Do NOT disassemble.
caution Minor personal injury or property damage.
Do NOT touch.
Follow directions explicitly.
Hazards or unsafe practices that may result in
DEA Unplug the power plug from the wall socket.
caution Washer, follow these basic safety precautions:
Make sure the machine is grounded to prevent
electric shock.
Call the service center for help.
Notice
To reduce the risk of fire, explosion, electric
shock, or personal injury when using your
O
These warning signs are here to prevent injury to you and others. Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
©
A
CAUTION
Read all instructions before using the appliance.
As with all any equipment using electricity and moving parts, potential hazards exist. To safely
operate this appliance, become familiar with its operation and exercise care when using it.
Install and store your washer inside, away from exposure to weather.
Install and level your washer on a floor that can support its weight.
Your washer must be properly grounded. Never plug it into an ungrounded outlet.
Position the washer so that a wall plug is accessible after the installation is completed.
To reduce the risk of fire or explosion:
* Do not wash items that have been washed, soaked, or treated with gasoline, dry cleaning
solvents, or other flammable or explosive substances. They give off vapors that could ignite or
explode. Rinse by hand any material that has been exposed to cleaning solvent or other
flammable liquids or solids before putting in your washer. Be sure that all traces of such liquids,
solids, and fumes have been removed. Dangerous substances include acetone, denatured
alcohol, gasoline, kerosene, certain liquid household cleaners and spot removers, turpentine,
waxes, and wax removers.
* Do not put gasoline, dry cleaning solvents, or other flammable or explosive substances into
the washer.
* Under certain conditions, hydrogen gas may be produced in a hot water system - such as your
hot water heater - that has not been used for two weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If your hot water system has not been used for two weeks or more, turn on all hot
water faucets in your home, and let the water flow for several minutes before using your
washer. This will release any hydrogen gas build-up. Since hydrogen gas is flammable, do not
smoke or light an open flame during this time.
safety information _3

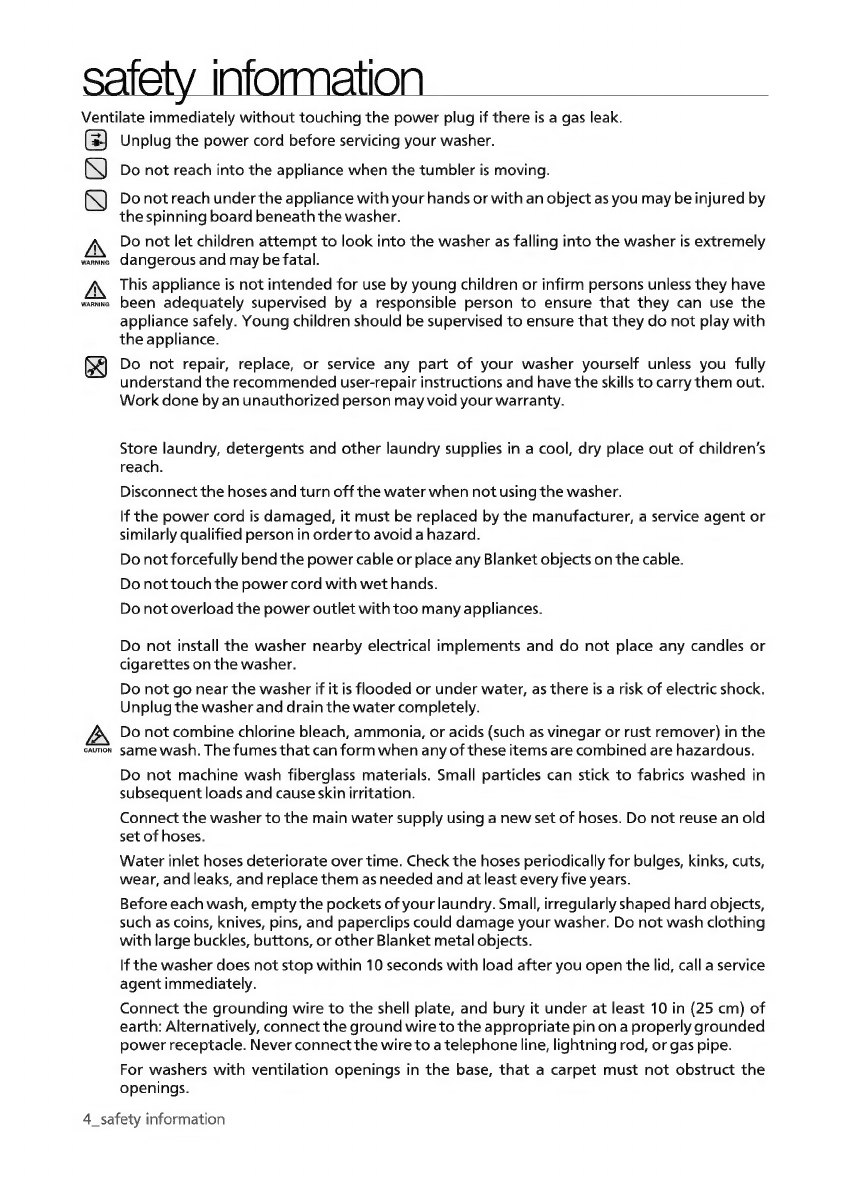

safety information
Ventilate immediately without touching the power plug if there is a gas leak.
N
N
WARNING
WARNING
CAUTION
Unplug the power cord before servicing your washer.
Do not reach into the appliance when the tumbler is moving.
Do not reach under the appliance with your hands or with an object as you may be injured by
the spinning board beneath the washer.
Do not let children attempt to look into the washer as falling into the washer is extremely
dangerous and may be fatal.
This appliance is not intended for use by young children or infirm persons unless they have
been adequately supervised by a responsible person to ensure that they can use the
appliance safely. Young children should be supervised to ensure that they do not play with
the appliance.
Do not repair, replace, or service any part of your washer yourself unless you fully
understand the recommended user-repair instructions and have the skills to carry them out.
Work done by an unauthorized person may void your warranty.
Store laundry, detergents and other laundry supplies in a cool, dry place out of children’s
reach.
Disconnect the hoses and turn off the water when not using the washer.
If the power cord is damaged, it must be replaced by the manufacturer, a service agent or
similarly qualified person in order to avoid a hazard.
Do not forcefully bend the power cable or place any Blanket objects on the cable.
Do not touch the power cord with wet hands.
Do not overload the power outlet with too many appliances.
Do not install the washer nearby electrical implements and do not place any candles or
cigarettes on the washer.
Do not go near the washer if it is flooded or under water, as there is a risk of electric shock.
Unplug the washer and drain the water completely.
Do not combine chlorine bleach, ammonia, or acids (such as vinegar or rust remover) in the
same wash. The fumes that can form when any of these items are combined are hazardous.
Do not machine wash fiberglass materials. Small particles can stick to fabrics washed in
subsequent loads and cause skin irritation.
Connect the washer to the main water supply using a new set of hoses. Do not reuse an old
set of hoses.
Water inlet hoses deteriorate over time. Check the hoses periodically for bulges, kinks, cuts,
wear, and leaks, and replace them as needed and at least every five years.
Before each wash, empty the pockets of your laundry. Small, irregularly shaped hard objects,
such as coins, knives, pins, and paperclips could damage your washer. Do not wash clothing
with large buckles, buttons, or other Blanket metal objects.
If the washer does not stop within 10 seconds with load after you open the lid, call a service
agent immediately.
Connect the grounding wire to the shell plate, and bury it under at least 10 in (25 cm) of
earth: Alternatively, connect the ground wire to the appropriate pin on a properly grounded
power receptacle. Never connect the wire to a telephone line, lightning rod, or gas pipe.
For washers with ventilation openings in the base, that a carpet must not obstruct the
openings.
4_safety information

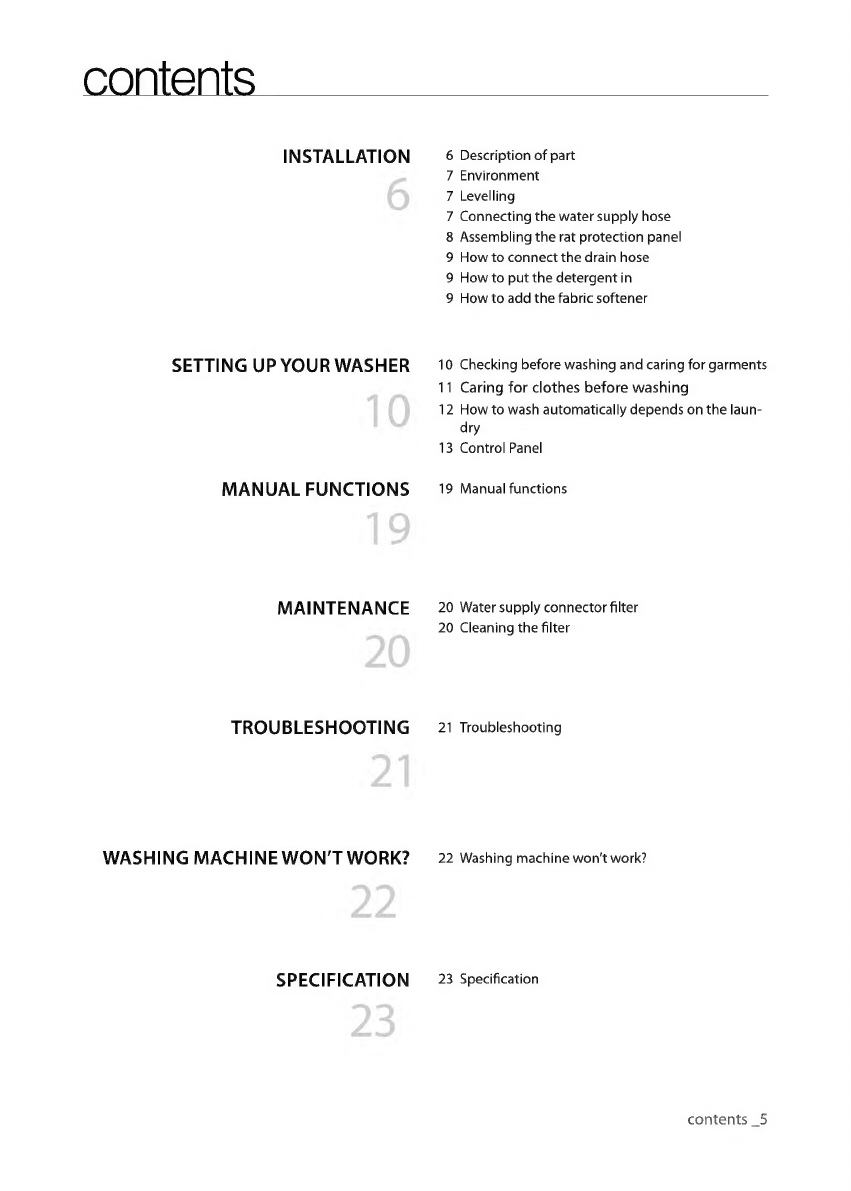

contents
INSTALLATION
SETTING UP YOUR WASHER
MANUAL FUNCTIONS
MAINTENANCE
TROUBLESHOOTING
WASHING MACHINE WON'T WORK?
SPECIFICATION
Description of part
Environment
Levelling
Connecting the water supply hose
Assembling the rat protection panel
How to connect the drain hose
How to put the detergent in
How to add the fabric softener ovo OwWAN NN AD
10 Checking before washing and caring for garments
11 Caring for clothes before washing
12 How to wash automatically depends on the laun-
dry
13 Control Panel
19 Manual functions
20 Water supply connector filter
20 Cleaning the filter
21 Troubleshooting
22 Washing machine won't work?
23 Specification
contents _5

installation

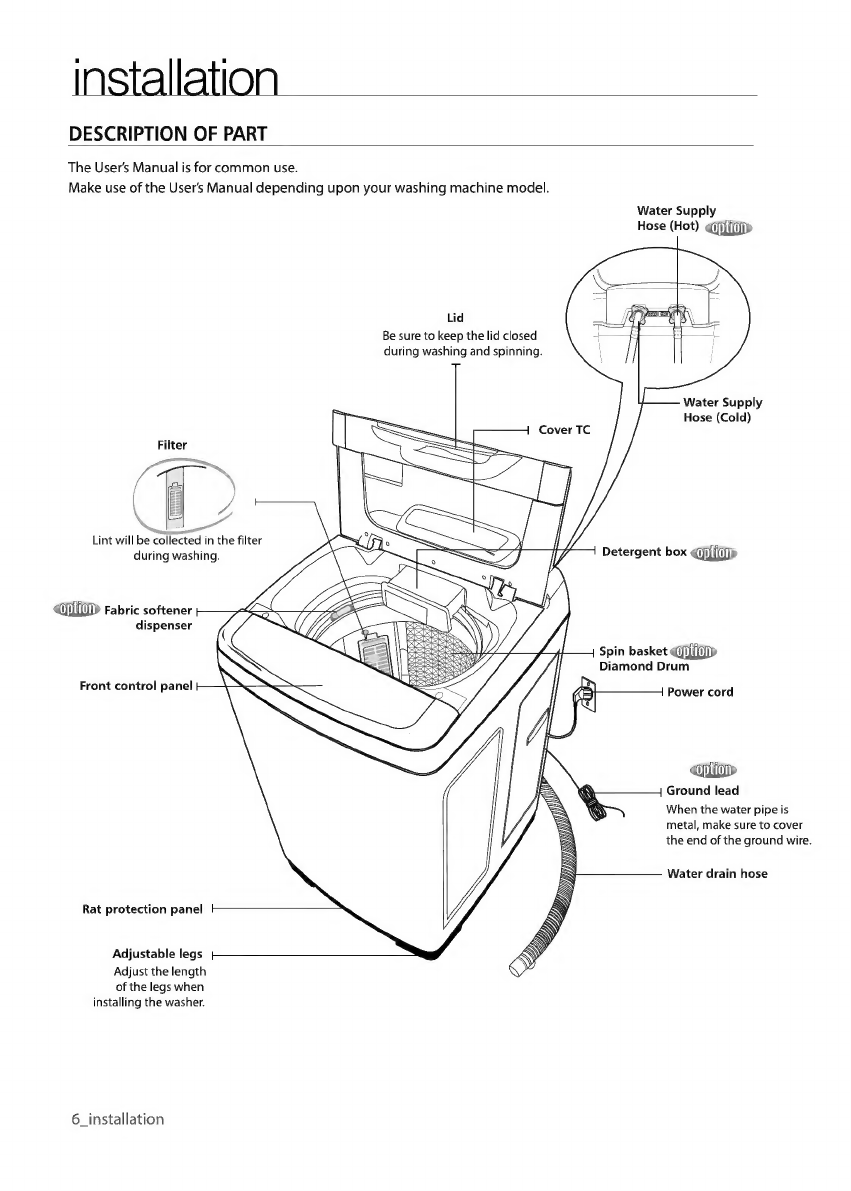

DESCRIPTION OF PART
The User's Manual is for common use.
Make use of the User's Manual depending upon your washing machine model.
Water Supply
Hose (Hot) opi ig D
Lid
Be sure to keep the lid closed
during washing and spinning.
Water Supply
Hose (Cold)
Cover TC
Filter
Lint will be collected in the filter
during washing.
1 Detergent box Optio D
Fabric softener
dispenser
Spin basket CAD
Diamond Drum
Front
control
panel
=
i
Power
cord
Ground lead
When the water pipe is
metal, make sure to cover
the end of the ground wire.
Water drain hose
Rat protection panel
Adjustable legs
Adjust the length
of the legs when
installing the washer.
6_installation

The User's Manual is for common use.
Make use of the User's Manual depending upon your washing machine model.
ENVIRONMENT
Leave some space
Maintain at least 10cm between the washer and the wall.
Place the washer on a sturdy flat surface.
If the washer is placed on an uneven or weak surface, noise or vibration occurs. (Allowable is 1°)
Adjust the legs for even placement.
Never install the washer near water.
Do not place the washer in steamy rooms or where the washer is directly exposed to rain. Moisture may
destroy the electrical insulation causing an electrical shock hazard.
Avoid direct sunlight or heaters.
As plastic an electrical components are affected by direct heat, never place the washer near furnaces,
boilers, etc. Do not place under direct sunlight.
LEVELLING
e = If the washer is not leveled with the ground, it makes the machine tremble more or be out of order. So,
make sure that the washer is leveled properly.
SEE IF THE MACHINE IS PLACED LEVEL BY CHECKING
THE POSITION OF THE WASHING TUB.
e Open the lid of the machine, pour water into the tub up
to the level just below the pulsator, and adjust the legs so 4
LOOSEN LOCK
that the pulsator is positioned at the center of the water as
shown in the figure.
e Place the machine more than 10cm away from the wall.
e Adjust the legs on feet for levelling (Leg position - Right Front).
e Do not use stand, trolly and bricks for Washing Machine Installation.
CONNECTING THE WATER SUPPLY HOSE
1. Remove the adaptor from the water supply hose.
2. First, using a “+” type screw driver, loosen the four screws
on the adaptor. Next, take the adaptor and turn part(b)
following the arrow for gap about 5 mm between them.
3. Connect adaptor to the water tap by tightening the screws
firmly. Then, turn part(b) following the arrow and put (a) and
(b) together.
installation _7

installation

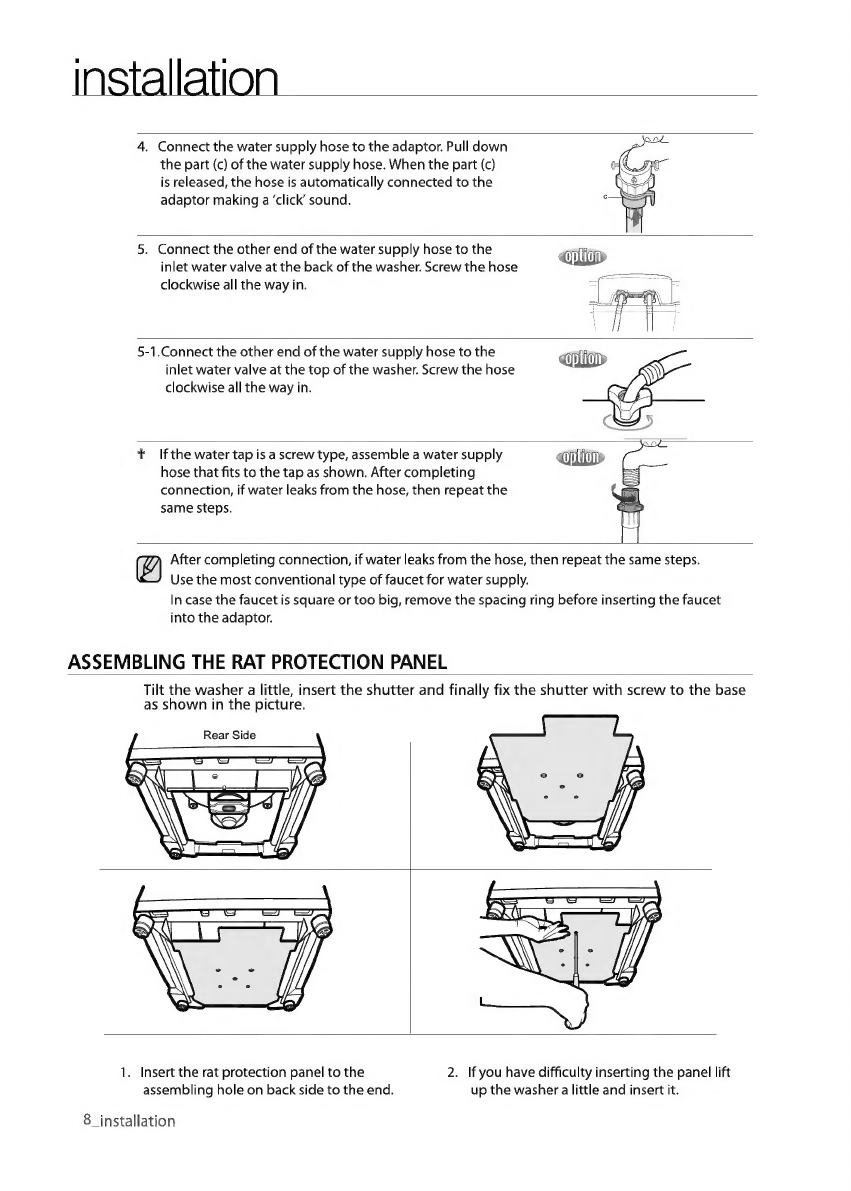

4. Connect the water supply hose to the adaptor. Pull down
the part (c) of the water supply hose. When the part (c)
is released, the hose is automatically connected to the
adaptor making a ‘click’ sound.
5. Connect the other end of the water supply hose to the
inlet water valve at the back of the washer. Screw the hose
clockwise all the way in.
5-1.Connect the other end of the water supply hose to the
inlet water valve at the top of the washer. Screw the hose
clockwise all the way in.
t
If the water tap is a screw type, assemble a water supply
hose that fits to the tap as shown. After completing
connection, if water leaks from the hose, then repeat the
same steps.
4 After completing connection, if water leaks from the hose, then repeat the same steps.
p>
Use the most conventional type of faucet for water supply.
In case the faucet is square or too big, remove the spacing ring before inserting the faucet
into the adaptor.
ASSEMBLING THE RAT PROTECTION PANEL
Tilt the washer a little, insert the shutter and finally fix the shutter with screw to the base
as shown in the picture.
Rear Side
1. Insert the rat protection panel to the If you have difficulty inserting the panel lift
assembling hole on back side to the end up the washer a little and insert it.
8_ installation
2.

installation
HOW TO CONNECT THE DRAIN HOSE
\
Les
Mt QN
1 After attaching clip ring to a drain 2. Be sure to join them tightly and 3, Adjust the clip ring over the pipe
hose, directing the drain hose to pushing it into the drain-outlet. hose (as shown in picture)
the drain outlet of the washing
machine.
HOW TO CHANGE THE DRAIN HOSE DIRECTION
e Change the direction of the drain hose and follow the above
guideline again.
CAUTIONS WHEN INSERTING THE DRAIN HOSE
Less than 3 m
m
1. Don't exceed more than 3m when the 2. Be careful to drain water out at the end of
drain hose is used by connecting whth the drain hose.
other hoses.
NOILYTIYLSNI
Less than 3 m
Less than
5cm
3. The doorsill shoudn't be more than 5cm. 4. Don't install the drain hose underneath the
wash machine.
HOW TO PUT THE DETERGENT IN a
1. Open the detergent box by pulling in the direction of the arrow as shown =
in the figure and then put the powder detergent in the detergent box.
2. Putin one-time amount of detergent evenly so the detergent may not brim
over the box.
If you spread a powder detergent over the laundry directly, it may result in discoloration.
Make sure to insert it into the detergent compartment.
CAUTION
If the water pressure is low, the detergent may remain in the detergent compartment.
HOW TO ADD THE FABRIC SOFTENER
Slide and open the cover in the direction of the arrow, insert the rinse detergent, and > a
slide and close it in the reverse direction. s
e When a proper amount (one time does) of fabric softener is stored in the softener
inlet, it is automatically put in at the last rinsing cycle.
e Do not use detergent, bleach or starch into the Softener Inlet. Tt
e Using too much softener may produce unsatisfactory results.
e Do not open the lid during the Spin Dry cycle. If added too early, its effectiveness
will decrease.
e Do not leave the softener into the Softener Dispenser for a long time. Because
softner became stiff.
installation _9

setting up your washer

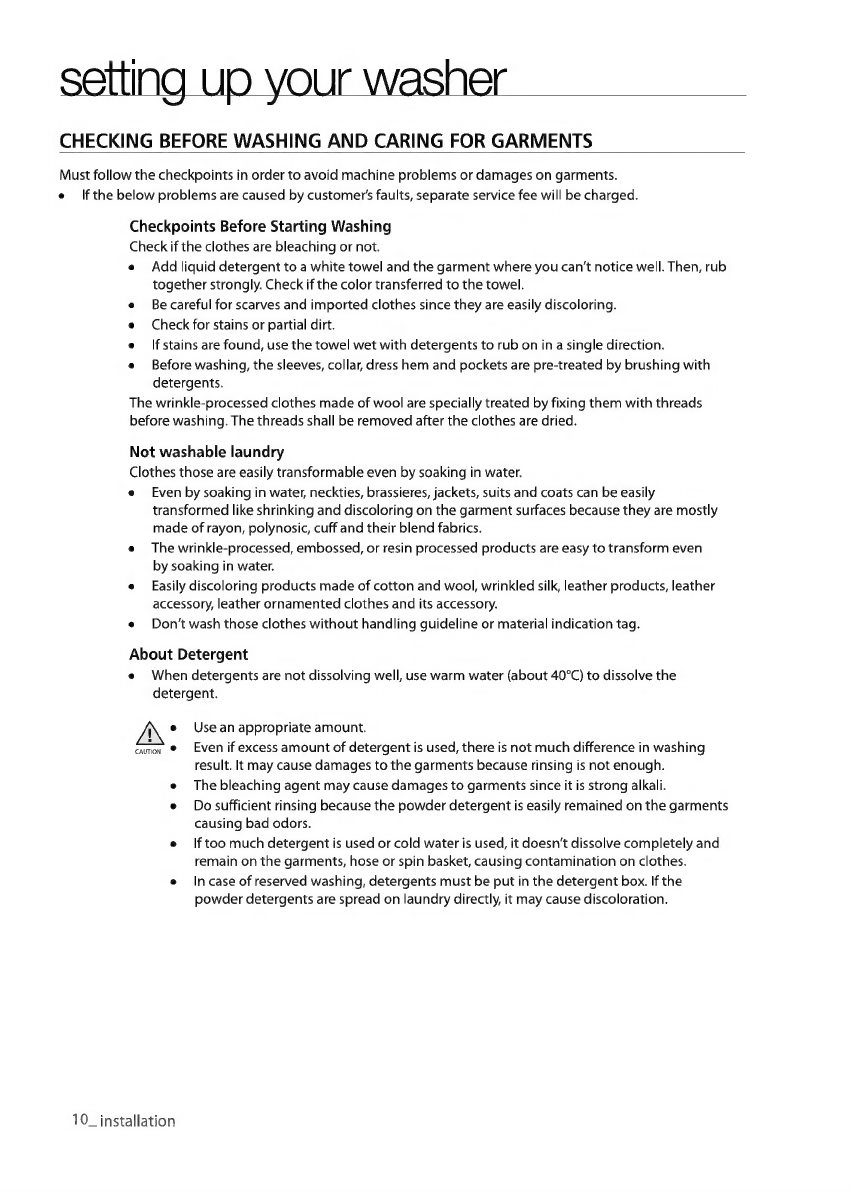

CHECKING BEFORE WASHING AND CARING FOR GARMENTS
Must follow
e Ifthe bel
the checkpoints in order to avoid machine problems or damages on garments.
ow problems are caused by customer's faults, separate service fee will be charged.
Checkpoints Before Starting Washing
Check if the clothes are bleaching or not.
Add liquid detergent to a white towel and the garment where you can’t notice well. Then, rub
together strongly. Check if the color transferred to the towel.
Be careful for scarves and imported clothes since they are easily discoloring.
Check for stains or partial dirt.
If stains are found, use the towel wet with detergents to rub on in a single direction.
Before washing, the sleeves, collar, dress hem and pockets are pre-treated by brushing with
detergents.
The wrinkle-processed clothes made of wool are specially treated by fixing them with threads
before washing. The threads shall be removed after the clothes are dried.
Not washable laundry
Clothes those are easily transformable even by soaking in water.
Even by soaking in water, neckties, brassieres, jackets, suits and coats can be easily
transformed like shrinking and discoloring on the garment surfaces because they are mostly
made of rayon, polynosic, cuff and their blend fabrics.
The wrinkle-processed, embossed, or resin processed products are easy to transform even
by soaking in water.
Easily discoloring products made of cotton and wool, wrinkled silk, leather products, leather
accessory, leather ornamented clothes and its accessory.
Don't wash those clothes without handling guideline or material indication tag.
About Detergent
10_ instal
When detergents are not dissolving well, use warm water (about 40°C) to dissolve the
detergent.
A e Use an appropriate amount.
amon @ Even if excess amount of detergent is used, there is not much difference in washing
result. It may cause damages to the garments because rinsing is not enough.
e The bleaching agent may cause damages to garments since it is strong alkali.
e Do sufficient rinsing because the powder detergent is easily remained on the garments
causing bad odors.
e If too much detergent is used or cold water is used, it doesn’t dissolve completely and
remain on the garments, hose or spin basket, causing contamination on clothes.
e Incase of reserved washing, detergents must be put in the detergent box. If the
powder detergents are spread on laundry directly, it may cause discoloration.
lation

setting up your washer

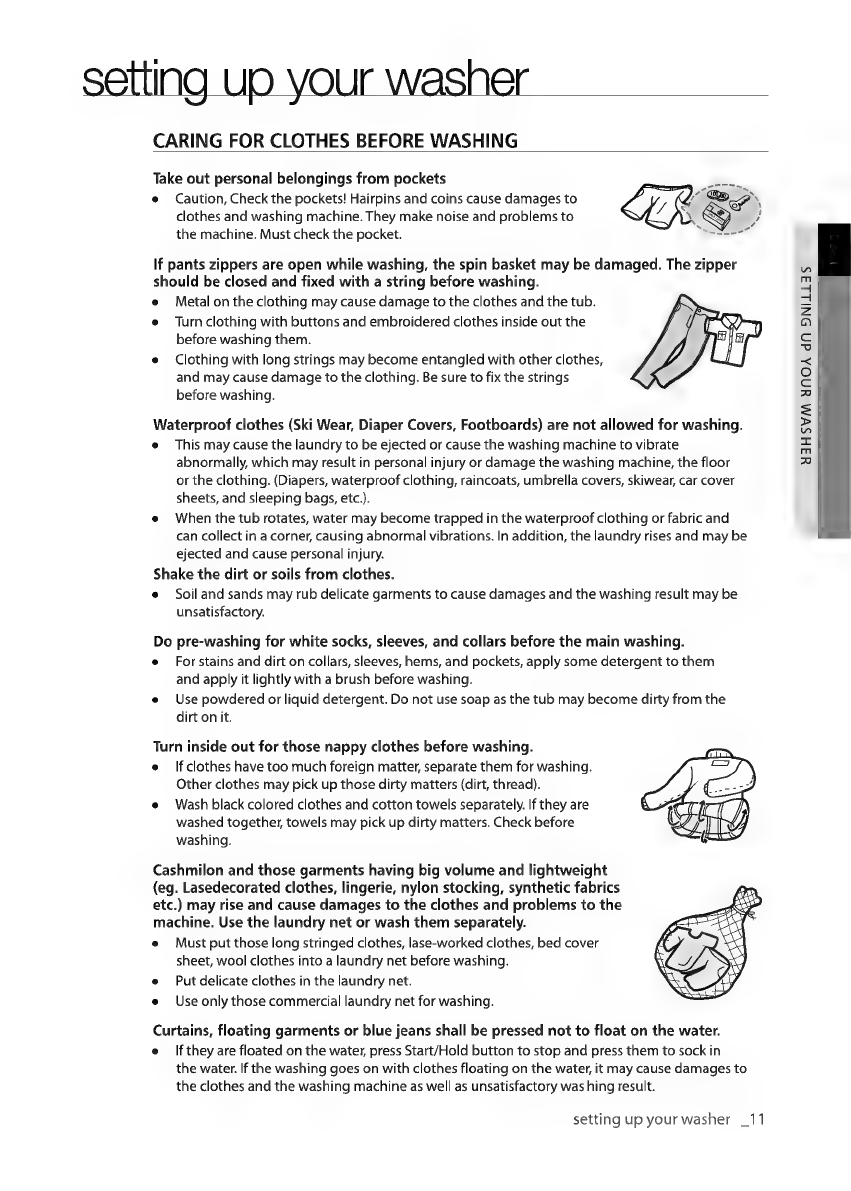

CARING FOR CLOTHES BEFORE WASHING
Take out personal belongings from pockets
e Caution, Check the pockets! Hairpins and coins cause damages to DF
clothes and washing machine. They make noise and problems to
the machine. Must check the pocket.
If pants zippers are open while washing, the spin basket may be damaged. The zipper
should be closed and fixed with a string before washing.
e Metal on the clothing may cause damage to the clothes and the tub.
e Turn clothing with buttons and embroidered clothes inside out the
before washing them.
e Clothing with long strings may become entangled with other clothes,
and may cause damage to the clothing. Be sure to fix the strings
before washing.
Waterproof clothes (Ski Wear, Diaper Covers, Footboards) are not allowed for washing.
e This may cause the laundry to be ejected or cause the washing machine to vibrate
abnormally, which may result in personal injury or damage the washing machine, the floor
or the clothing. (Diapers, waterproof clothing, raincoats, umbrella covers, skiwear, car cover
sheets, and sleeping bags, etc.).
e When the tub rotates, water may become trapped in the waterproof clothing or fabric and
can collect in a corner, causing abnormal vibrations. In addition, the laundry rises and may be
ejected and cause personal injury.
Shake the dirt or soils from clothes.
e Soil and sands may rub delicate garments to cause damages and the washing result may be
unsatisfactory.
YAHSVM YNOA dN ONILLAS
Do pre-washing for white socks, sleeves, and collars before the main washing.
e For stains and dirt on collars, sleeves, hems, and pockets, apply some detergent to them
and apply it lightly with a brush before washing.
e Use powdered or liquid detergent. Do not use soap as the tub may become dirty from the
dirt on it.
Turn inside out for those nappy clothes before washing.
e If clothes have too much foreign matter, separate them for washing.
Other clothes may pick up those dirty matters (dirt, thread).
e Wash black colored clothes and cotton towels separately. If they are
washed together, towels may pick up dirty matters. Check before
washing.
Cashmilon and those garments having big volume and lightweight
(eg. Lasedecorated clothes, lingerie, nylon stocking, synthetic fabrics
etc.) may rise and cause damages to the clothes and problems to the
machine. Use the laundry net or wash them separately.
e Must put those long stringed clothes, lase-worked clothes, bed cover
sheet, wool clothes into a laundry net before washing.
e Put delicate clothes in the laundry net.
e Use only those commercial laundry net for washing.
Curtains, floating garments or blue jeans shall be pressed not to float on the water.
e If they are floated on the water, press Start/Hold button to stop and press them to sock in
the water. If the washing goes on with clothes floating on the water, it may cause damages to
the clothes and the washing machine as well as unsatisfactory was hing result.
setting up your washer _11

HOW TO WASH AUTOMATICALLY DEPENDS ON THE LAUNDRY
Before starting washing, check the following;
e Connect the water supply hose to the water tap. Leave a tap open. Plug the power cord in. Make sure
to lay down the drain hose.
Washing for the first time
Before washing clothes for the first time, you must run a complete cycle without clothes.
To do this:
1.
2. Open the detergent drawer and insert a little detergent.
33
4. Press the Start/Hold button.
Press the Power button.
Turn on the water supply to the washing machine.
This will remove any water from the manufacturer's test run remaining in the machine.
Special Notes!
Automatic Sensing Function
At every course (except Sari, Jeans, Blanket, Clean tub, delicate course) the amount of
laundry is automatically sensed and then appropriate water level, washing time, rinsing
cycle, and spinning time are automatically selected for automatic washing.
After the power is on, a course is selected and Start/Hold button is pressed. Then, the
washing board starts spinning without water. This action senses how much laundry is in
the washing basket, not a machine problem. After this sensing process, water supplies
automatically.
Adding Detergent and Softener
It senses the amount of laundry and indicates the water level and amount of detergent. Then,
it starts water supply right away.
During the water supply, it is possible to open the detergent box and add detergent.
However, it is better to press Start/Hold button to stop water supply and add detergent.
Close the lid and press Start/Hold button again. This way is much more convenient.
If the softener is inserted in the softener dispenser, it automatically adds in at the last rinsing
cycle.
Put the laundry into the washer and add detergent, too.
Be careful not to overload. Use right detergent for the fabrics you are washing.
e) e Ifthe lid is open while running, the washing machine is stopped automatically for
safety. (Except, water supply continues while the lid is open.)
e When hot water is selected, both cold and hot water are supplied for the first 20
seconds in order to protect the clothes.
e Possible to control the washing time, rinsing cycle, and spinning time at every course
during the washing.
12_setting up your washer

setting up your washer

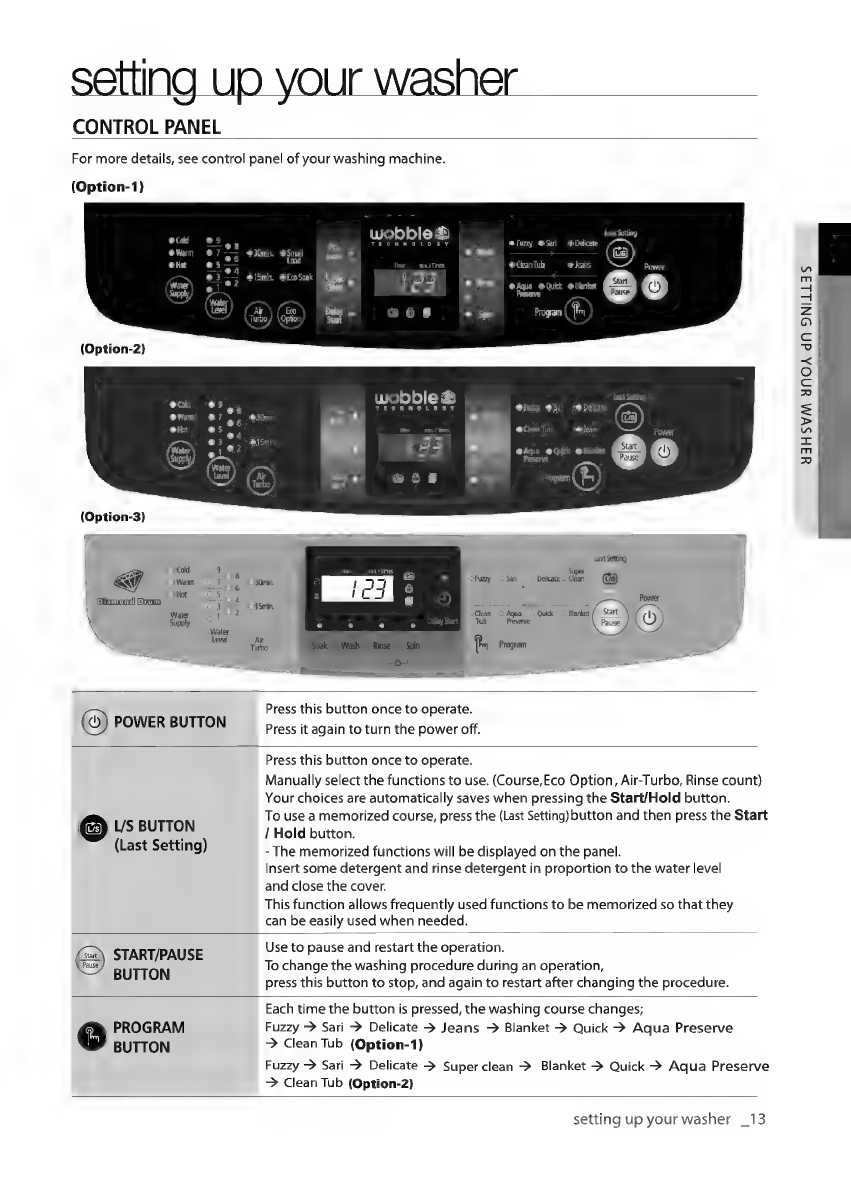

CONTROL PANEL
For more details, see control panel of your washing machine.
(Option-1)
webb le EN last Setting
Pre- muzy Sai © Delicate
@3Cmin, © Small wash . (v) )
= e Clean Tub oka Diet
4
n.
s
&ismin.
@
Lo
Soak
[S
1
)
Ar Eco Program Fn
Turto / \ Option, gi
(Option-2)
zy @5ai @Dekste
© 30min.
6
lean Tub @ Jeans
@ ismin.
(Option-3)
Power
Press this button once to operate.
Press it again to turn the power off.
(©) POWER BUTTON
Press this button once to operate.
Manually select the functions to use. (Course,Eco Option, Air-Turbo, Rinse count)
Your choices are automatically saves when pressing the Start/Hold button.
To use a memorized course, press the (Last Setting) button and then press the Start
eee I Hold button.
(Last Setting) - The memorized functions will be displayed on the panel.
Insert some detergent and rinse detergent in proportion to the water level
and close the cover.
This function allows frequently used functions to be memorized so that they
can be easily used when needed.
Ə START/PAUSE Use to pause and restart the operation. À
BUTTON To change the washing procedure during an operation,
press this button to stop, and again to restart after changing the procedure.
Each time the button is pressed, the washing course changes;
PROGRAM Fuzzy > Sari > Delicate > Jeans > Blanket > Quick > Aqua Preserve
BUTTON > Clean Tub (Option-1)
Fuzzy > Sari > Delicate > Super clean > Blanket > Quick > Aqua Preserve
> Clean Tub (Option-2)
setting up your washer _13
YAIHSVM YNOA dN ONILLAS

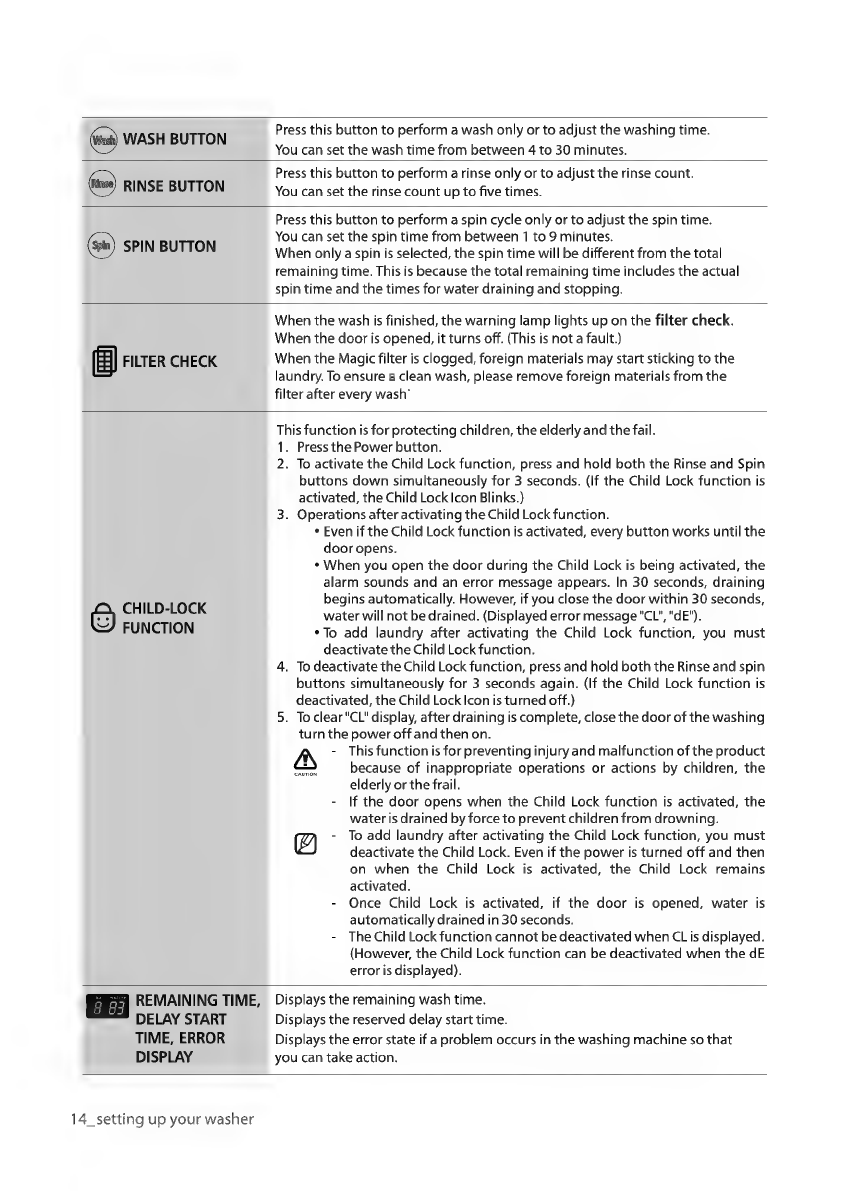

WASH BUTTON
Press this button to perform a wash only or to adjust the washing time.
You can set the wash time from between 4 to 30 minutes.
RINSE BUTTON
Press this button to perform a rinse only or to adjust the rinse count.
You can set the rinse count up to five times.
SPIN BUTTON
Press this button to perform a spin cycle only or to adjust the spin time.
You can set the spin time from between 1 to 9 minutes.
When only a spin is selected, the spin time will be different from the total
remaining time. This is because the total remaining time includes the actual
spin time and the times for water draining and stopping.
ER) Filter CHECK
When the wash is finished, the warning lamp lights up on the filter check.
When the door is opened, it turns off. (This is not a fault.)
When the Magic filter is clogged, foreign materials may start sticking to the
laundry. To ensure a clean wash, please remove foreign materials from the
filter after every wash’
A CHILD-LOCK
FUNCTION
This function is for protecting children, the elderly and the fail.
1.
2.
Press the Power button.
To activate the Child Lock function, press and hold both the Rinse and Spin
buttons down simultaneously for 3 seconds. (If the Child Lock function is
activated, the Child Lock Icon Blinks.)
. Operations after activating the Child Lock function.
e Even if the Child Lock function is activated, every button works until the
door opens.
e When you open the door during the Child Lock is being activated, the
alarm sounds and an error message appears. In 30 seconds, draining
begins automatically. However, if you close the door within 30 seconds,
water will not be drained. (Displayed error message "CL", "dE").
e To add laundry after activating the Child Lock function, you must
deactivate the Child Lock function.
. To deactivate the Child Lock function, press and hold both the Rinse and spin
buttons simultaneously for 3 seconds again. (If the Child Lock function is
deactivated, the Child Lock Icon is turned off.)
. Toclear"CL" display, after draining is complete, close the door of the washing
turn the power off and then on.
A - This function is for preventing injury and malfunction of the product
because of inappropriate operations or actions by children, the
elderly or the frail.
- If the door opens when the Child Lock function is activated, the
water is drained by force to prevent children from drowning.
Z - To add laundry after activating the Child Lock function, you must
deactivate the Child Lock. Even if the power is turned off and then
on when the Child Lock is activated, the Child Lock remains
activated.
- Once Child Lock is activated, if the door is opened, water is
automatically drained in 30 seconds.
- The Child Lock function cannot be deactivated when CL is displayed.
(However, the Child Lock function can be deactivated when the dE
error is displayed).
‘CAUTION
REMAINING TIME,
DELAY START
TIME, ERROR
DISPLAY
Displays the remaining wash time.
Displays the reserved delay start time.
Displays the error state if a problem occurs in the washing machine so that
you can take action.
14_setting up your washer

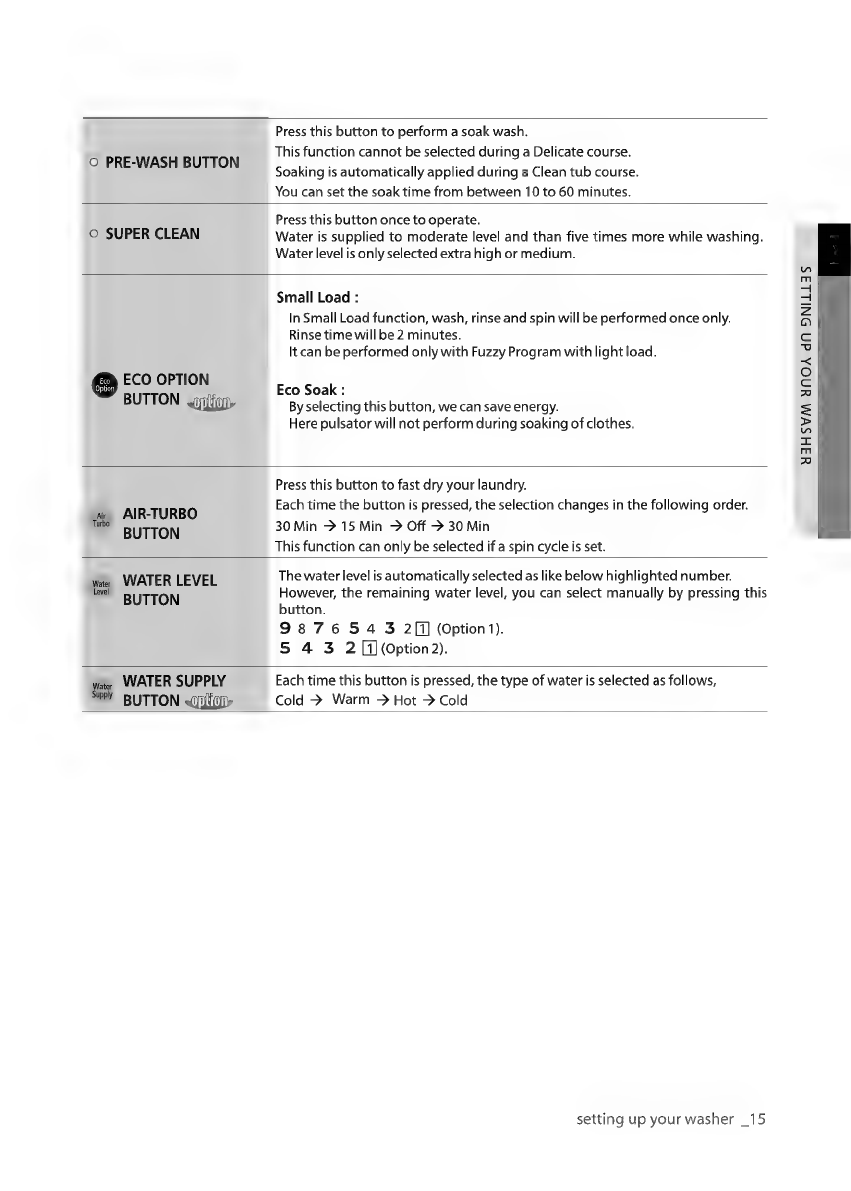

O PRE-WASH BUTTON
Press this button to perform a soak wash.
This function cannot be selected during a Delicate course.
Soaking is automatically applied during a Clean tub course.
You can set the soak time from between 10 to 60 minutes.
O SUPER CLEAN
Press this button once to operate.
Water is supplied to moderate level and than five times more while washing.
Water level is only selected extra high or medium.
ECO OPTION
BUTTON
Small Load :
In Small Load function, wash, rinse and spin will be performed once only.
Rinse time will be 2 minutes.
It can be performed only with Fuzzy Program with light load.
Eco Soak :
By selecting this button, we can save energy.
Here pulsator will not perform during soaking of clothes.
i, AIR-TURBO
BUTTON
Press this button to fast dry your laundry.
Each time the button is pressed, the selection changes in the following order.
30 Min > 15 Min > Off > 30 Min
This function can only be selected if a spin cycle is set.
Wate WATER LEVEL
BUTTON
The water level is automatically selected as like below highlighted number.
However, the remaining water level, you can select manually by pressing this
button.
987654 3 2[ (Option’).
5 4 3 2 [1] (Option 2).
ve. WATER SUPPLY
e BUTTON
Each time this button is pressed, the type of water is selected as follows,
Cold > Warm > Hot > Cold
setting up your washer _15
YAHSVM YNOA dN ONILLAS

setting up your washer

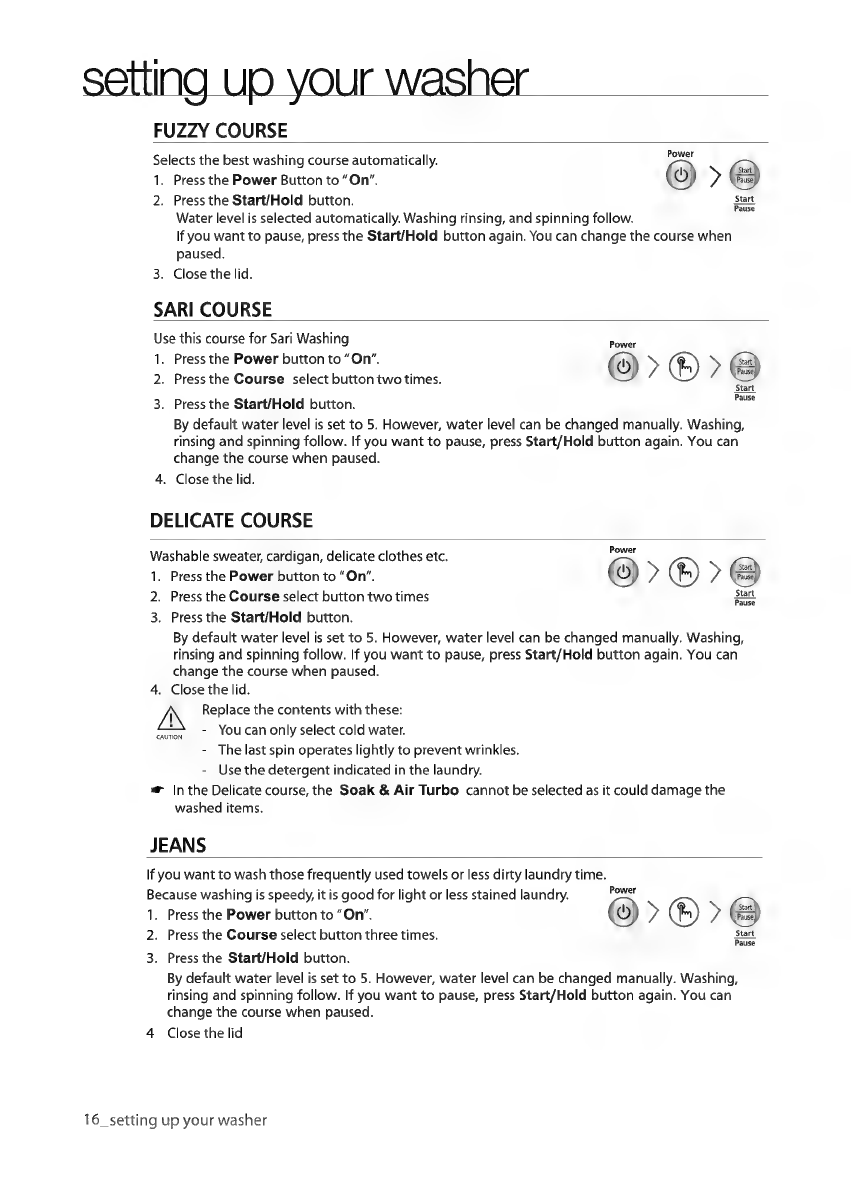

FUZZY COURSE
Selects the best washing course automatically. pe a
1. Press the Power Button to “On”. © >
2. Press the Start/Hold button. Start
Pause
Water level is selected automatically. Washing rinsing, and spinning follow.
If you want to pause, press the Start/Hold button again. You can change the course when
paused.
3. Close the lid.
SARI COURSE
Use this course for Sari Washing Power
1.
Press
the
Power
button
to
“On”.
©)
>
®
>
2.
Press
the
Course
select
button
two
times.
>
Pause
3. Press the Start/Hold button.
By default water level is set to 5. However, water level can be changed manually. Washing,
rinsing and spinning follow. If you want to pause, press Start/Hold button again. You can
change the course when paused.
4. Close the lid.
DELICATE COURSE
Power
Washable sweater, cardigan, delicate clothes etc.
Start
1. Press the Power button to “On”. © > O > Pause
2. Press the Course select button two times Start
3. Press the Start/Hold button.
By default water level is set to 5. However, water level can be changed manually. Washing,
rinsing and spinning follow. If you want to pause, press Start/Hold button again. You can
change the course when paused.
4. Close the lid.
Replace the contents with these:
You can only select cold water.
- The last spin operates lightly to prevent wrinkles.
- Use the detergent indicated in the laundry.
@ Inthe Delicate course, the Soak & Air Turbo cannot be selected as it could damage the
washed items.
CAUTION
JEANS
If you want to wash those frequently used towels or less dirty laundry time.
Because washing is speedy, it is good for light or less stained laundry. Power
1. Press the Power button to “On”. ©) > () > Pas
2. Press the Course select button three times. Start
Pause
3. Press the Start/Hold button.
By default water level is set to 5. However, water level can be changed manually. Washing,
rinsing and spinning follow. If you want to pause, press Start/Hold button again. You can
change the course when paused.
4 Close the lid
16_setting up your washer

setting up your washer

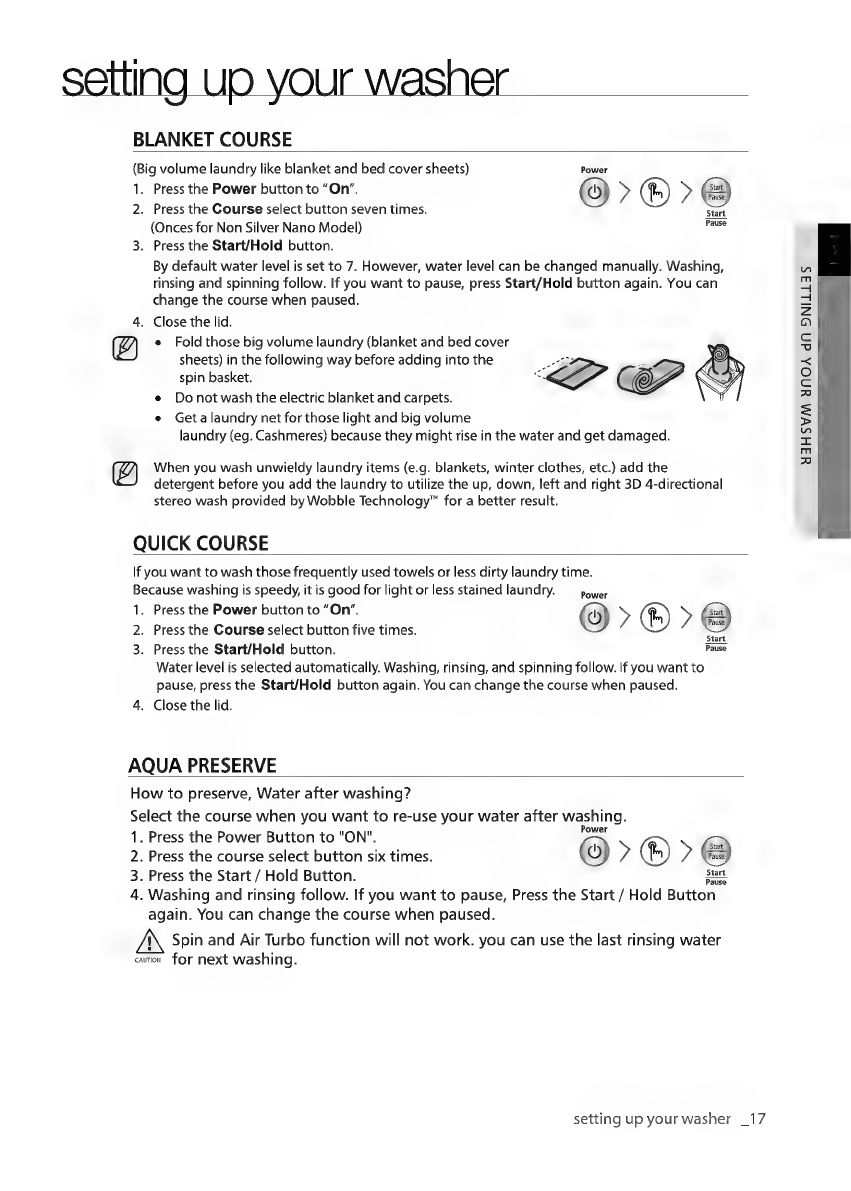

BLANKET COURSE
(Big volume laundry like blanket and bed cover sheets)
1. Press the Power button to “On”.
2. Press the Course select button seven times.
(Onces for Non Silver Nano Model)
3. Press the Start/Hold button.
By default water level is set to 7. However, water level can be changed manually. Washing,
rinsing and spinning follow. If you want to pause, press Start/Hold button again. You can
change the course when paused.
4. Close the lid.
Ø e Fold those big volume laundry (blanket and bed cover
sheets) in the following way before adding into the ps
spin basket. <P EC
e Do not wash the electric blanket and carpets.
e Geta laundry net for those light and big volume
laundry (eg. Cashmeres) because they might rise in the water and get damaged.
YAHSVM YNOA dN ONILLAS
Ø When you wash unwieldy laundry items (e.g. blankets, winter clothes, etc.) add the
detergent before you add the laundry to utilize the up, down, left and right 3D 4-directional
stereo wash provided by Wobble Technology™ for a better result.
QUICK COURSE
If you want to wash those frequently used towels or less dirty laundry time.
Because washing is speedy, it is good for light or less stained laundry. power
1. Press the Power button to “On”. ©) > @) >
2. Press the Course select button five times. pa
3. Press the Start/Hold button. Pause
Water level is selected automatically. Washing, rinsing, and spinning follow. If you want to
pause, press the Start/Hold button again. You can change the course when paused.
4. Close the lid.
AQUA PRESERVE
How to preserve, Water after washing?
Select the course when you want to re-use your water after washing.
Power
1. Press the Power Button to "ON". =
2. Press the course select button six times. © ? @) ?
3. Press the Start / Hold Button. Start
Pause
4. Washing and rinsing follow. If you want to pause, Press the Start / Hold Button
again. You can change the course when paused.
Spin and Air Turbo function will not work. you can use the last rinsing water
amon for next washing.
setting up your washer _17

CLEAN TUB COURSE
Use this course to clean the tub. It will keep the tub clean and sanitary.
1. Press the Power button to “On”. Power
2.
Press
the
Course
select
button
two
times.
©)
>
®
>
5
anse
(Three times for Non Silver Nano Model) —
3. Press the Start/Hold button. Pause
4. Adda delicated detergent and close the lid
E - Never place laundry in the tub when cleaning inside the tub, as this can cause
discoloration or damage to the laundry.
- When doing the laundry after cleaning the tub, you may find some impurities. These
are just detergent residues and impurities after the tub cleaning. Perform the rinse
cycle two to three times.
- The Soak function (20 minutes) is set automatically.
- The water level is set to 8 only. Air turbo function will not work.
KEEPING THE TUB CLEAN
When using the machine under humid conditions for an extended time, various bacteria from
the air may stick to the tub and form black dirt (fungi), causing damage to the human body.
To keep the tub clean and hygienic at all times, it is recommended reading “CLEAN TUB
COURSE” above and using only dedicated or recommended detergents to clean the tub
regularly at least once every one to three months.
DELAY START
How to reserve washing?
Select this course when you have to go out or do something else.
1. Press the Power button to “On”. Power
2. Press the Course select button. ©) > @) > >
3. Press the Delay Start button once. Delay Start ‘Start
Pause
You may change the delay start time with use the Delay
Start button. (from 3 hours to 18 hours)
4. Press the Start/Hold button and put the proper amount of detergent into tub.
5. Close the lid.
The washing finishes by the time you reserved. Add detergent and softener in proportion to
the water level. Then, close the lid.
e Must add the detergent in the detergent box.
e Ifthe detergent is spread on the laundry directly, some clothes may get discolored as the
start delays.
e Ifthe Delay Start needs to be canceled, press the Power button.
e The reserved finish time may be changed depends on the water pressure.
SUPER CLEAN COURSE
Use for cleaner washing. Power
1. Press the Power button to “On”. ©) > O >
2. Press the Super Clean select button five times. Start
Pause
Three times for Option 2.
3. Press the Start/Hold button and put the proper amount of detergent into tub.
Water level is selected automatically.
Water level is only selected 9~5.
4. Close the lid.
18_setting up your washer

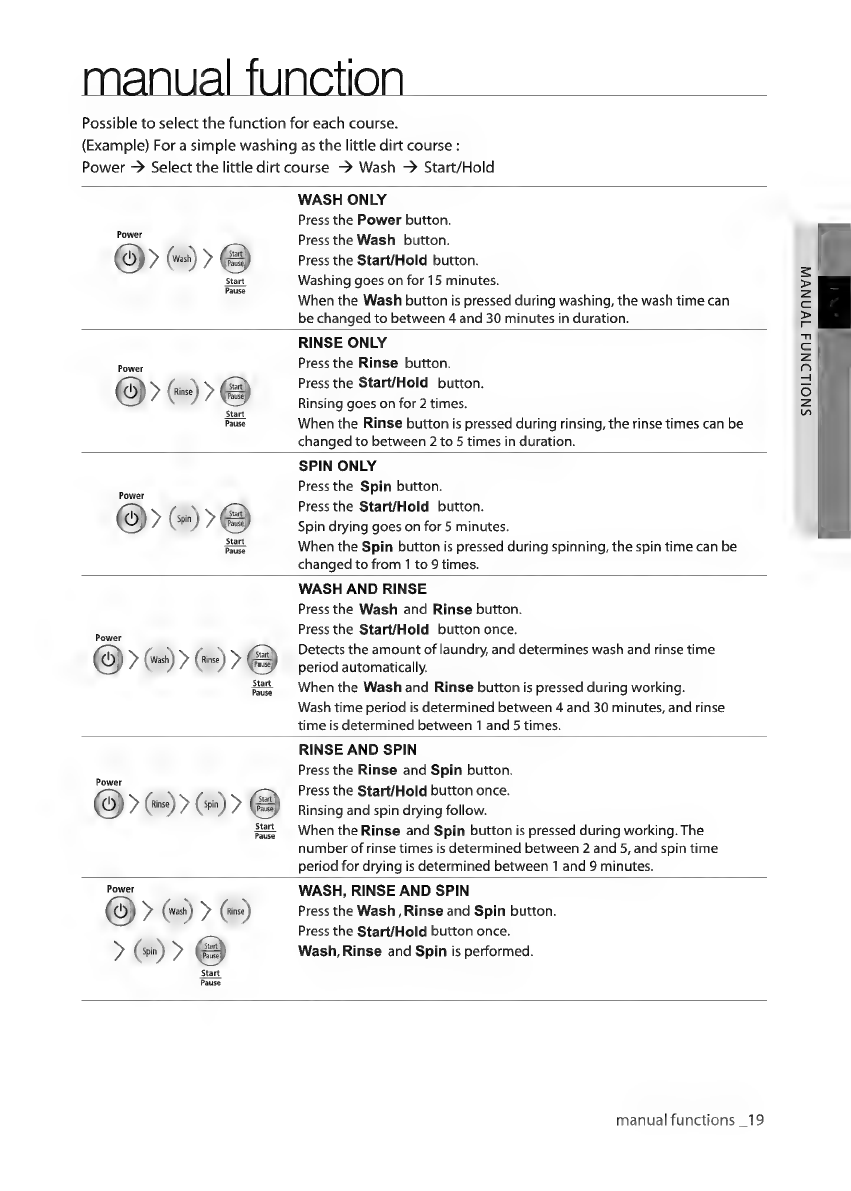

manual function
Possible to select the function for each course.
(Example) For a simple washing as the little dirt course :
Power > Select the little dirt course > Wash > Start/Hold
WASH ONLY
Press the Power button.
Power Press the Wash button.
©> (wash) > Press the Start/Hold button.
Strt Washing goes on for 15 minutes.
When the Wash button is pressed during washing, the wash time can
be changed to between 4 and 30 minutes in duration.
RINSE ONLY
Power Press the Rinse button.
© > (inse) > Press the Start/Hold button.
baa Rinsing goes on for 2 times.
Pause When the Rinse button is pressed during rinsing, the rinse times can be
changed to between 2 to 5 times in duration.
SPIN ONLY
leas Press the Spin button.
z A Press the Start/Hold button.
© > (en) 7 eg Spin drying goes on for 5 minutes.
start When the Spin button is pressed during spinning, the spin time can be
changed to from 1 to 9 times.
WASH AND RINSE
Press the Wash and Rinse button.
Power Press the Start/Hold button once.
© > A > (tine) 5 Detects the amount of laundry, and determines wash and rinse time
/ F period automatically.
$t è When the Wash and Rinse button is pressed during working.
Wash time period is determined between 4 and 30 minutes, and rinse
time is determined between 1 and 5 times.
RINSE AND SPIN
Press the Rinse and Spin button.
SNOILDNN4 IYNNYW
~~
; £
ma
Press
the
Start/Hold
button
once.
©
>
=)
> (sen)
>
Rinsing
and
spin
drying
follow.
šart
When
the
Rinse
and
Spin
button
is
pressed
during
working.
The
Pause
number of rinse times is determined between 2 and 5, and spin time
period for drying is determined between 1 and 9 minutes.
Power WASH, RINSE AND SPIN
© > (wash) > (Rinse) Press the Wash , Rinse and Spin button.
Press the Start/Hold button once.
> (spin ) > Wash, Rinse and Spin is performed.
Start
Pause
manual functions _19

maintenance

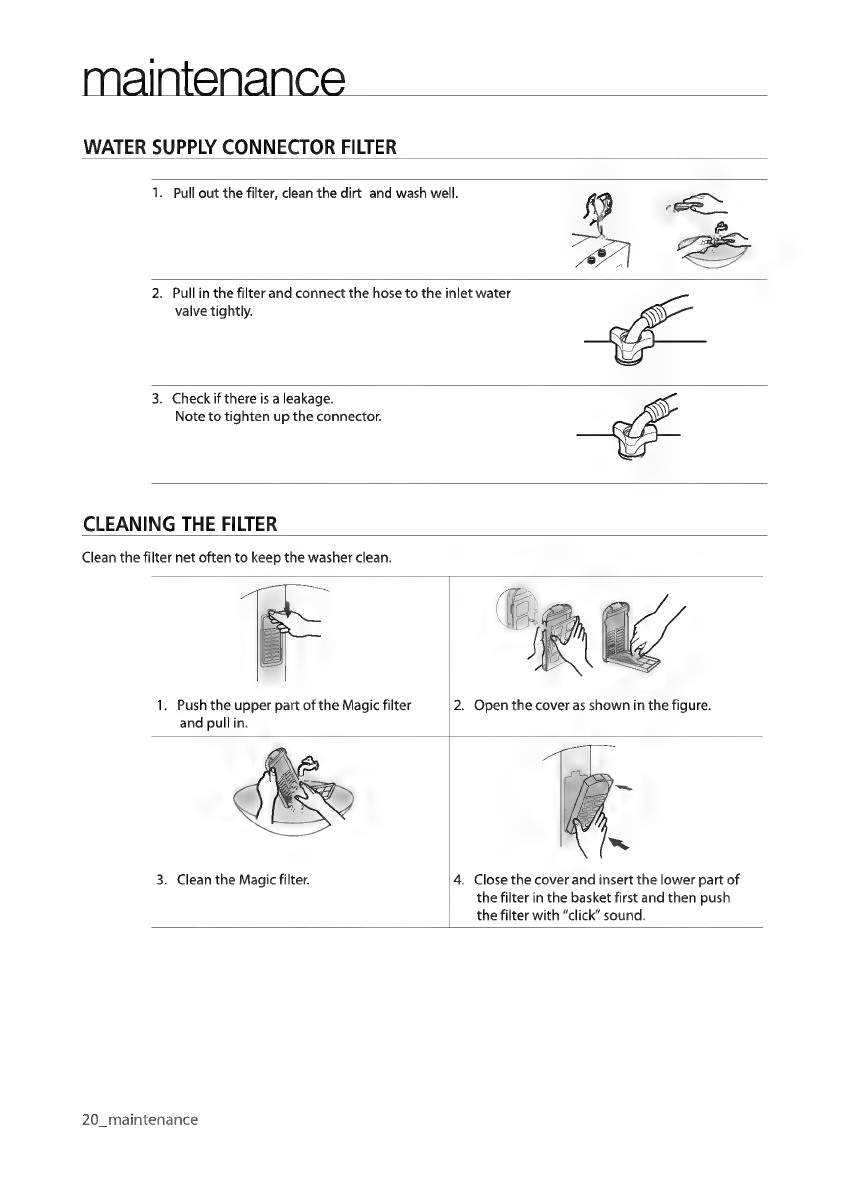

WATER SUPPLY CONNECTOR FILTER
1. Pull out the filter, clean the dirt and wash well.
@
2. Pullin the filter and connect the hose to the inlet water
valve tightly. Sy)
che
XZ
3. Check if there is a leakage. S
Note to tighten up the connector. o D
Ww
CLEANING THE FILTER
Clean the filter net often to keep the washer clean.
1. Push the upper part of the Magic filter
and pull in.
3. Clean the Magic filter. 4. Close the cover and insert the lower part of
the filter in the basket first and then push
the filter with “click” sound.
20_maintenance
