Samsung WF455ARG SERIES User manual

Washing Machine
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service or accessory
parts, please register your product at or contact
www.samsung.com/register
1-800-SAMSUNG (726-7864)
WF455ARG*
This manual is made with 100% recycled paper.
WF455AG-03159A_EN.indd 1WF455AG-03159A_EN.indd 1 2012-03-21  2:48:462012-03-21  2:48:46

2_ key features of your new Smart PowerFoam™ washer
key features of your new
Smart PowerFoam™ washer
1. VRT PLUS™ (Vibration Reduction Technology)
This Samsung washer minimizies noise and vibration with dual 3D vibration sensors and
smart control technology, ensuring quiet operation.
2. The Largest Capacity
Samsung’s extra-large capacity laundry machine can wash a full set of your bedding, a
kingsize comforter, or up to 32 bath towels in a single load. Since you don’t have to do as
many loads, you save time, money, water, and energy.
3. PowerFoam™
Samsung’s effective PowerForm delivers improved cleanliness with advanced fabric care.
PowerFoam allows detergent to distribute evenly and penetrate fabrics faster and deeper.
4. PureCycle™(Tub Cleaning cycle)
Clean your drum with one button! This Pure Cycle is specially designed to remove
detergent residue & dirt bulidup in the tub, diaphragm and door glass without the need for
special chemical detergents.
5. SpeedSpray™
Samsung’s new Speed Spray technology saves you up to 25%* more time when doing
laundry by shortening wash times while still keeping all segments of the washing process
and getting your clothes clean.
*Based on 8 pounds loads, Normal cycle (under Normal Soil level without any options),
on previous and existing 4.3 cu.ft. Samsung front loading washers released until 2011
without Speed Spray.
**Speed Spray performs in Normal, Bedding PLUS, Deep Steam, Stain Away and
Eco Cold cycle and the saving time may vary by cycles and various load and option
compositions.
6. Deep steam
The Deep Steam feature boosts cleaning performance and loosens grime and dirt, thus
providing superior cleaning results.
7. Smart Control
Samsung’s innovative Smart Control technology enables you to control your washer
through personal technologies such as smart phones. You don’t have to be on standby
until the cycle ends. Smart Control allows you to monitor the washing process and let you
know when the cycle is complete.
8. Smart Care
Samsung’s Smart Care, an automatic error-monitoring system, detects and diagnoses
problems at an early stage and provides a quick and easy solution. With the innovative
Smart Control technology, you can also be alerted when the problem occurs via your smart
phones.
9. Stylish design
The stylish design of this washer blends well with your environment.
10. Digital Display & Center jog dial
The Jog dial enables you to select cycles in both directions with ease, and the display is
easy to use and understand.
WF455AG-03159A_EN.indd Sec9:2WF455AG-03159A_EN.indd Sec9:2 2012-03-21  2:48:562012-03-21  2:48:56

key features of your new Smart PowerFoam™ washer _3
11. DD Motor
The power to handle anything! Our direct-drive inverter motor delivers power right to the
washer tub from a variable speed, reversible motor. A beltless direct-drive motor generates
a higher spin speed of 1,300rpm for more effective, quiter operation. The washer also has
fewer moving parts, meaning fewer repairs.
12. Sanitize
When selecting this cycle, the water heats to an extra high temperature to remove 99.9%
of certain bacteria typically found on clothing, bedding, or towels. This certification is
conducted by NSF International, an independent third-party testing and certification
organization.
Please check the garment care label to avoid garment damage. Only sanitizing cycles have
been designed to meet the requirements of this protocol for sanitization efficacy.
13. Pedestal with Storage Drawers (Model No : WE357* )
An optional 15” pedestal is available to raise the washer for easier loading and unloading.
It also offers a built-in storage drawer that can hold a 100 oz. bottle of detergent
14. Stacking (Model No : SK-5A/XAA)
Samsung washers and dryers can be stacked to maximize usable space. An optional
stacking kit is available for purchase from your Samsung retailer.
<Pedestal with Storage Drawers> <Stacking>
NSF Protocol P172
Sanitization Performance of Residential and
Commercial, Family-Sized Clothes Washers
WF455AG-03159A_EN.indd Sec9:3WF455AG-03159A_EN.indd Sec9:3 2012-03-21  2:48:562012-03-21  2:48:56

4_ safety information
safety information
Congratulations on your new Samsung washer. This manual contains important
information on the installation, use and care of your appliance. Please take time to
read this manual to take full advantage of your washer’s many benefits and features.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
The Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when installing,
maintaining and operating your washer.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury
or death.
To reduce the risk of fire, explosion, electric shock, or personal injury
when using your washer, follow these basic safety precautions:
CAUTION
Hazards or unsafe practices that may result in minor personal injury
or property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
Note
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
SAVE THESE INSTRUCTIONS
WF455AG-03159A_EN.indd Sec1:4WF455AG-03159A_EN.indd Sec1:4 2012-03-21  2:48:562012-03-21  2:48:56

safety information _5
SAVE THESE INSTRUCTIONS
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow
basic precautions, including the following:
1. Read all instructions before using the appliance.
2. Do not wash or dry articles that have been previously cleaned in, washed in, soaked in, or
spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as
they give o vapors that could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the door to the washing
or drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in the user-maintenance instructions or in published user-repair instructions
that you understand and have the skills to carry out.
9. Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to
the wash water. These substances give o vapors that could ignite or explode.
10. Under certain conditions, hydrogen gas may be produced in a hot water system that has not
been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system
has not been used for such a period, before using a washer or combination washer-dryer,
turn on all hot water faucets and let the water flow from each for several minutes. This will
release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an
open flame during this time.
WARNING
WF455AG-03159A_EN.indd Sec1:5WF455AG-03159A_EN.indd Sec1:5 2012-03-21  2:48:562012-03-21  2:48:56

6_ safety information
safety information
SAVE THESE INSTRUCTIONS
CRITICAL INSTALLATION WARNINGS
Plug the power cord into an AC 120 V / 60 Hz / 15 A wall socket or higher and use the
socket for this appliance only. In addition, do not use an extension cord.
- Sharing a wall socket with other appliances, using a power strip, or using an extension
cord may result in electric shock or fire.
- Do not use an electric transformer. It may result in electric shock or fire.
- Ensure that the voltage, frequency, and amperage provided at the wall socket match the
power specifications of the product.
The installation of this appliance must be performed by a qualified technician or service
company.
- Failing to do so may result in electric shock, fire, an explosion, problems with the
product, or injury.
Remove all foreign substances such as dust or water from the power plug terminals and
contact points using a dry cloth on a regular basis.
- Unplug the power plug and clean it with a dry cloth.
- Failing to do so may result in electric shock or fire.
Plug the power plug into the wall socket in the right direction so that the cord runs towards
the floor.
- If you plug the power plug into the socket in the opposite direction, the electric wires
within the cable may be damaged and this may result in electric shock or fire.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
- Improper grounding may result in electric shock, fi re, an explosion, or problems with the
product.
- Never plug the power cord into a socket that is not grounded correctly and make sure
that it is in accordance with local and national codes.
Do not install this appliance near a heater or inflammable material.
Do not install this appliance in a humid, oily or dusty location, or in a location exposed to
direct sunlight and water (rain drops).
Do not install this appliance in a location where gas may leak.
- This may result in electric shock or fire.
Plug the power plug into the wall socket firmly. Do not use a damaged power plug,
damaged power cord, or loose wall socket.
- This may result in electric shock or fire.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord,
insert the power cord between objects, or push the power cord into the space behind the
appliance.
- This may result in electric shock or fire.
WARNING
WF455AG-03159A_EN.indd Sec1:6WF455AG-03159A_EN.indd Sec1:6 2012-03-21  2:48:562012-03-21  2:48:56

safety information _7
SAVE THESE INSTRUCTIONS
Do not pull the power cord when unplugging the power plug.
- Unplug the power plug by holding the plug.
- Failing to do so may result in electric shock or fire.
If the power plug or power cord is damaged, contact your nearest service center.
INSTALLATION CAUTIONS
Position the appliance so that the power plug is easily accessible.
- Failing to do so may result in electric shock or fire due to electric leakage.
Install your appliance on a level and hard floor that can support its weight.
- Failing to do so may result in abnormal vibrations, noise, or problems with the product.
Unplug the power plug when the appliance is not being used for long periods of time or
during a thunder/lightning storm.
- Failing to do so may result in electric shock or fire.
CRITICAL USAGE WARNINGS
If the appliance is flooded, cut the power immediately and contact your nearest service
center.
If the appliance emits a strange noise, a burning smell, or smoke,, unplug the power plug
immediately and contact your nearest service center.
- Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without
touching the power plug. Do not touch the appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in an explosion or fire.
Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or
other flammable or explosive substances.
- This may result in electric shock, fire or an explosion.
Do not open the washer door by force while the washer is operating (high-temperature
washing/drying/spinning).
- Water flowing out of the washer may result in burns or cause the floor to be slippery.
This may result in injury.
- Opening the door by force may result in damage to the product or personal injury.
Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the
washer before using it.
Do not insert your hand under the washer.
- This may result in injury.
CAUTION
WARNING
WF455AG-03159A_EN.indd Sec1:7WF455AG-03159A_EN.indd Sec1:7 2012-03-21  2:48:562012-03-21  2:48:56

8_ safety information
safety information
SAVE THESE INSTRUCTIONS
Do not touch the power plug with wet hands.
- This may result in electric shock.
Do not turn the appliance o by unplugging the power plug while an operation is in
progress.
- Plugging the power plug into the wall socket again may cause a spark and result in
electric shock or fire.
Keep all packaging materials well out of the reach of children, as packaging materials can
be dangerous to children.
- If a child places a bag over its head, it may result in suocation.
Do not let children or infirm persons use this washer unsupervised.
- Failing to do so may result in electric shock, burns or injury.
Do not insert your hand or a metal object under the washer while it is operating.
- This may result in injury.
Make sure the detergent drawer is closed before you put laundry into the washer or remove
laundry from the washer.
- If the detergent drawer is open, you could strike the drawer with your head and injure
yourself.
Do not attempt to repair, disassemble, or modify the appliance yourself.
- Do not use any fuse (such as cooper, steel wire, etc.) other than the standard fuse.
- If you need to repair or reinstall the appliance, contact your nearest service center.
- Failing to do so may result in electric shock, fire, problems with the product, or injury.
If water has enters the appliance anywhere but the drum, unplug the power plug and
contact your nearest service center.
- Failing to do so may result in electric shock or fire.
When the water supply hose comes loose from the faucet and floods the appliance, unplug
the power plug.
- Failing to do so may result in electric shock or fire.
If any foreign substance enters the appliance, unplug the power plug and contact you
nearest service center.
- Failing to do so my result in electric shock or fire.
USAGE CAUTIONS
If the the washer is contaminated by a foreign substance such as detergent, dirt, food
waste, etc., unplug the power plug and clean the washer using a damp, soft cloth.
- Failing to do so may result in discoloration, deformation, damage or rust.
If struck hard, the front glass can break. Take care when using the washer.
- If the glass is broken, it may result in injury.
CAUTION
WF455AG-03159A_EN.indd Sec1:8WF455AG-03159A_EN.indd Sec1:8 2012-03-21  2:48:562012-03-21  2:48:56

safety information _9
SAVE THESE INSTRUCTIONS
After a water supply failure or when reconnecting the water supply hose, open the faucet
slowly.
Open the faucet slowly after a long period of non-use.
- The air pressure in the water supply hose or the water pipe may result in damage to a
part or in water leakage.
If a drain error occurs during an operation, check if there is a drainage problem.
- If the washer is used when it is flooded because of a drainage problem,, it may result in
electric shock or fire due to electric leakage.
Insert the laundry into the washer completely so that laundry does not get caught in the
door.
- If laundry gets caught in the door, it may result in damage to the laundry or the washer,
or result in water leakage.
Ensure that the faucet is turned o when the washer is not being used.
- Ensure that the screw on the water supply hose connector is firmly connected to the
faucet and properly tightened.
- Failing to do so may result in property damage or injury.
Take care that the Rubber Seal and the Front Door Glass are not contaminated by a foreign
substance (e.g. waste, thread, hair, etc.)
- If a foreign substance is caught in the door or the door is not completely closed, it may
cause water leakage.
Open the faucet and check if the water supply hose connector is firmly tightened and that
there is no water leaking before using the product.
- If the water supply hose connectors are loose, it may result in water leakage.
The product you have purchased is designed for domestic use only.
The use for business purposes qualifi es as product misuse. In this case, the product will
not be covered by the standard warranty provided by Samsung and no responsibility can
be attributed to Samsung for malfunctions or damages resulting from such misuse.
If the wash is not performed and the laundry is left for a period of time after adding
detergent or applying stain remover or pre-treatment onto the laundry, the laundry may be
discolored.
Select the recommended cycle and temperature on the basis of the laundry items, sort the
laundry by color on the basis of its colorfastness and select the appropriate cycle.
Make sure that foreign objects such as pins, buttons and coins are removed from clothing
items when adding laundry into the washer. Wash dirty laundry separately from relatively
clean items and wash fragile items separately from tougher textiles.
If an item is stained, wash it as fast as possible. Use stain remover or detergent only after
testing the colorfastness of the item by applying a small quantity to an inside seam.
WF455AG-03159A_EN.indd Sec1:9WF455AG-03159A_EN.indd Sec1:9 2012-03-21  2:48:562012-03-21  2:48:56

10_ safety information
safety information
SAVE THESE INSTRUCTIONS
Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
- This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
- This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the appliance.
- As well as being harmful to humans, it may also result in electric shock, fire or problems
with the product.
Do not place an object that generates a electromagnetic field near the washer.
- This may result in injury due to a malfunction.
Since the water drained during a high-temperature wash or drying cycle is hot, do not touch
the water.
- This may result in burns or injury.
Do not wash, spin or dry water-proof seats, mats or clothing (*).
- Do not wash thick, hard mats even if the washer mark is on the care label.
- This may result in injury or damage to the washer, walls, floor or clothing due to
abnormal vibrations.
* Woolen bedding, rain covers, fishing vests, ski pants, sleeping bags, diaper covers,
sweat suits, and bicycle, motor cycle, car covers, etc.
Do not operate the washer when the detergent box is removed.
- This may result in electric shock or injury due to water leakage.
Do not touch the inside of the tub during or just after drying as it is hot.
- This may result in burns.
Do not insert your hand into the detergent dispenser after opening it.
- This may result in injury as your hand may be caught.
Do not place any non-laundry objects, such as shoes, food waste, or animals into the
washer.
- This can cause abnormal vibrations that can damage the washer, and, in the case of
pets, cause severe injury or death.
Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.
- This may result in electric shock or injury.
Do not wash laundry contaminated by oils, creams or lotions usually found in skincare
shops or massage clinics.
- This may result in the rubber seal becoming deformed and water leakage.
Do not leave metal objects (safety pins, hair pins, etc.) or bleach in the tub for long periods
of time.
- This may cause the tub to rust.
- If rust appears on the surface of the tub, apply a neutral cleansing agent to the surface
and use a sponge to clean it. Never use a metal brush.
WF455AG-03159A_EN.indd Sec1:10WF455AG-03159A_EN.indd Sec1:10 2012-03-21  2:48:562012-03-21  2:48:56

safety information _11
SAVE THESE INSTRUCTIONS
Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry
contaminated by dry cleaning detergent.
- This may result in spontaneous combustion or ignition due to the heat from the oxidation
of the oil.
Do not use hot water from water cooling/heating devices.
- This may result in problems with the washer.
Do not use natural hand-washing soap in the washer.
- If it hardens and accumulates inside the washer, it may result in problems with the
product, discoloration, rust or bad odors.
Do not wash large laundry items such as bedding in the washing net.
- Failing to do so may result in injury due to abnormal vibrations.
- Place smaller items, such as lace socks and lingerie in the washing net.
Do not use hardened detergent.
- If it accumulates inside the washer, it may cause water leakage.
Do not wash throw rugs or doormats.
- If you wash throw rugs or doormats, sand will accumulate inside the washer. It may
result in errors such as no draining.
Take care that children’s fingers are not caught in the door when closing it.
- This may result in injury.
CRITICAL CLEANING INSTRUCTIONS
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner or alcohol to clean the appliance.
- This may result in discoloration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failing to do so may result in electric shock or fire.
WARNING
WF455AG-03159A_EN.indd Sec1:11WF455AG-03159A_EN.indd Sec1:11 2012-03-21  2:48:562012-03-21  2:48:56

12_ safety information
safety information
REGULATORY NOTICE
1. FCC Notice
FCC CAUTION:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with Part 15 of FCC Rules. Operation is Subject to following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received including interference that cause
undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection
of other channels is not possible.
FCC STATEMENT:
This equipment has been tested and found to comply within the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a dierent circuit from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help.
FCC RADIATION EXPOSURE STATEMENT:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator and your body. This device and its antenna(s) must not be co-located or
operation in conjunction with any other antenna or transmitter.
CAUTION
SAVE THESE INSTRUCTIONS
WF455AG-03159A_EN.indd Sec1:12WF455AG-03159A_EN.indd Sec1:12 2012-03-21  2:48:562012-03-21  2:48:56

safety information _13
2. IC Notice
The term “IC” before the radio certification number only signifies that Industry Canada technical
specifications were met. Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection
of other channels is not possible.
IC RADIATION EXPOSURE STATEMENT:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body. This device and its antenna(s) must not be co-located or
operation in conjunction with any other antenna or transmitter.
SAVE THESE INSTRUCTIONS
WF455AG-03159A_EN.indd Sec1:13WF455AG-03159A_EN.indd Sec1:13 2012-03-21  2:48:562012-03-21  2:48:56

14_ contents
contents
INSTALLING YOUR WASHER
16 16 Unpacking your washer
16 Overview of your washer
17 Electrical
17 Grounding
17 Water
17 Drain facility
18 Flooring
18 Location considerations
18 Alcove or closet installation
18 Undercounter installation(washer only)
19 With optional pedestal base or stacking kit
20 Important note to installer
OPERATING INSTRUCTIONS
23 23 Loading your washer
23 Getting started
WASHING A LOAD OF LAUNDRY
24 24 Overview of the control panel
26 Delay Start
27 Child Lock
28 Spin Only
28 Drum Light
28 Garment+
28 My cycle
29 Steam
29 Smart Care
30 Washing clothes using the cycle selector
31 Setting the Smart Control
31 Configuring the wired/wireless sharer
31 Check before installation
32 Connecting to the network using the WPS
setting
33 Connecting to the network using the AP
setting
34 Downloading and running the mobile app,
Samsung Smart Washer/Dryer App
36 Using the mobile App
36 Disconnecting the connection
36 Starting a new wash
38 Registering your washer
40 Quick guide for Wi-Fi setting and AP
connecting
41 Quick guide for device certification
42 Detergent use
42 Features
WF455AG-03159A_EN.indd Sec6:14WF455AG-03159A_EN.indd Sec6:14 2012-03-21  2:48:562012-03-21  2:48:56

contents _15
MAINTAINING YOUR WASHER
44 44 Cleaning the exterior
44 Cleaning the interior
45 Cleaning the dispensers
45 Storing your washer
46 Cleaning the debris filter
47 Cleaning the door seal/bellow
47 Preserving the top cover and the front frame
48 Pure Cycle
TM
TROUBLESHOOTING
49 49 Check these points if your washer…
51 Information codes
53 Network Setup Q&A
APPENDIX
55 55 Fabric care chart
56 Cycle chart
58 Helping the environment
58 Declaration of conformity
58 Specification
59 Open Source Announcement
01 contents
WF455AG-03159A_EN.indd Sec6:15WF455AG-03159A_EN.indd Sec6:15 2012-03-21  2:48:562012-03-21  2:48:56

16_ installing your washer
installing your washer
UNPACKING YOUR WASHER
Unpack your Washer and inspect it for shipping damage. Make sure you have received all of the items
shown below. If your Washer was damaged during shipping, or you do not have all of the items, contact
1-800-SAMSUNG(726-7864).
To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit.
Packing materials can be dangerous to children; keep all packing material (plastic bags, polystyrene,
etc.) well out of the reach of children.
OVERVIEW OF YOUR WASHER
Parts supplied
Wrench Bolt hole covers Water supply hoses
Hose guide User manual book Plastic zip hose tie
Tools needed
Pliers Flat screwdriver
Adjustable legs
Cold water supply
hose
Hot water supply
hose
Drain Hose
Detergent drawer
Control panel
Door
Tub
Debris filter
Drain tube
Filter cover
WARNING
WF455AG-03159A_EN.indd Sec3:16WF455AG-03159A_EN.indd Sec3:16 2012-03-21  2:48:562012-03-21  2:48:56

installing your washer _17
BASIC LOCATION REQUIREMENTS
Electrical
• 120 Volt 60 Hz 15 AMP fuse or circuit breaker
• Individual branch circuit serving only your Washer is recommended.
• Your Washer is equipped with a power cord.
NEVER USE AN EXTENSION CORD.
Grounding
ELECTRICAL GROUNDING IS REQUIRED ON THIS APPLIANCE.
This appliance must be grounded. In the event of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current.
This appliance is equipped with a power cord having a three-prong grounding plug for use in a
properly installed and grounded outlet.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of electrical
shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the
appliance is properly grounded. Do not modify the plug provided with the appliance – if it
does not fit the outlet, have a proper outlet installed by a qualified electrician.
IMPORTANT SAFETY PRECAUTIONS
• To prevent unnecessary risk of fire, electrical shock or personal injury, all wiring and
grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No.
70 Latest Revision and local codes and ordinances. It is the personal responsibility of the
appliance owner to provide adequate electrical service for this appliance.
NEVER CONNECT GROUND WIRE TO PLASTIC PLUMBING LINES, GAS LINES, OR HOT
WATER PIPES.
Water
To correctly fill your Washer in the proper amount of time, water pressure of 20-116 psi (137-
800kPa) is required.
Water pressure less than 20 psi may cause water valve failure, or may not allow the water valve
to shut off completely. Or, it may extend the fill time beyond what your Washer controls allow,
resulting in your Washer turning off. A time limit is built into the controls in the event of an internal
hose becoming loose and flooding your home.
The water faucets must be within 4 feet/122 cm of the back of your Washer for the inlet hoses
provided with your Washer.
Accessory inlet hoses are available in various lengths up to 10 feet/305cm for faucets that
are further away from the back of your Washer.
To avoid the possibility of water damage:
• Have water faucets easily accessible
• Turn off faucets when the washer is not in use.
• Periodically check that there is no leakage from the water inlet hose fittings.
CHECK ALL CONNECTIONS AT THE WATER VALVE AND FAUCET FOR LEAKS.
Using hard water or bad quality water may cause the water supply valve to operate
abnormally.
Drain facility
The recommended height of the standpipe is 18 in/46 cm. The drain hose must be routed
through the drain hose clip to the standpipe. The standpipe must be large enough to accept the
outside diameter of the drain hose. The drain hose is attached at the factory.
01 installing your washer
CAUTION
WARNING
CAUTION
CAUTION
WARNING
WF455AG-03159A_EN.indd Sec3:17WF455AG-03159A_EN.indd Sec3:17 2012-03-21  2:48:572012-03-21  2:48:57

18_ installing your washer
installing your washer
Flooring
For best performance, your Washer must be installed on a solidly constructed floor. Wood floors
may need to be reinforced to minimize vibration and/or unbalanced load situations. Carpeting
and soft tile surfaces are contributing factors in vibration may cause your washer to move slightly
during the spin cycle.
Never install your washer on a platform or weakly supported structure.
Location considerations
Do not install your washer in areas where water may freeze, since your washer will always
maintain some water in its water valve, pump, and hose areas. This can cause damage to the
pump, hoses and other components.
Alcove or closet installation
MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS:
Sides – 1 in / 25 mm
Rear – 5.9 in / 150 mm
Top – 17 in / 432 mm
Closet Front – 2 in / 51 mm
If the washer and dryer are installed together, the closet front must have at least a 72 in² (465
cm²) unobstructed air opening. Your washer alone does not require a specific air opening.
A. Recessed area
B. Side view - closet or confined area
Undercounter installation(washer only)
1 in.
(2.5 cm)
1 in.
(2.5 cm)
27 in.
(68.6 cm)
39.6 in.
(100.6 cm)
1 in.
(2.5 cm)
1 in.
(2.5 cm)
1 in.
(2.5 cm)
27 in.
(68.6 cm)
27 in.
(68.6 cm)
A
2 in.
(5 cm)
5.9 in.
(15 cm)
34.1 in.
(86.5 cm)
17 in.
(43.2 cm)
B
WF455AG-03159A_EN.indd Sec3:18WF455AG-03159A_EN.indd Sec3:18 2012-03-21  2:48:572012-03-21  2:48:57

installing your washer _19

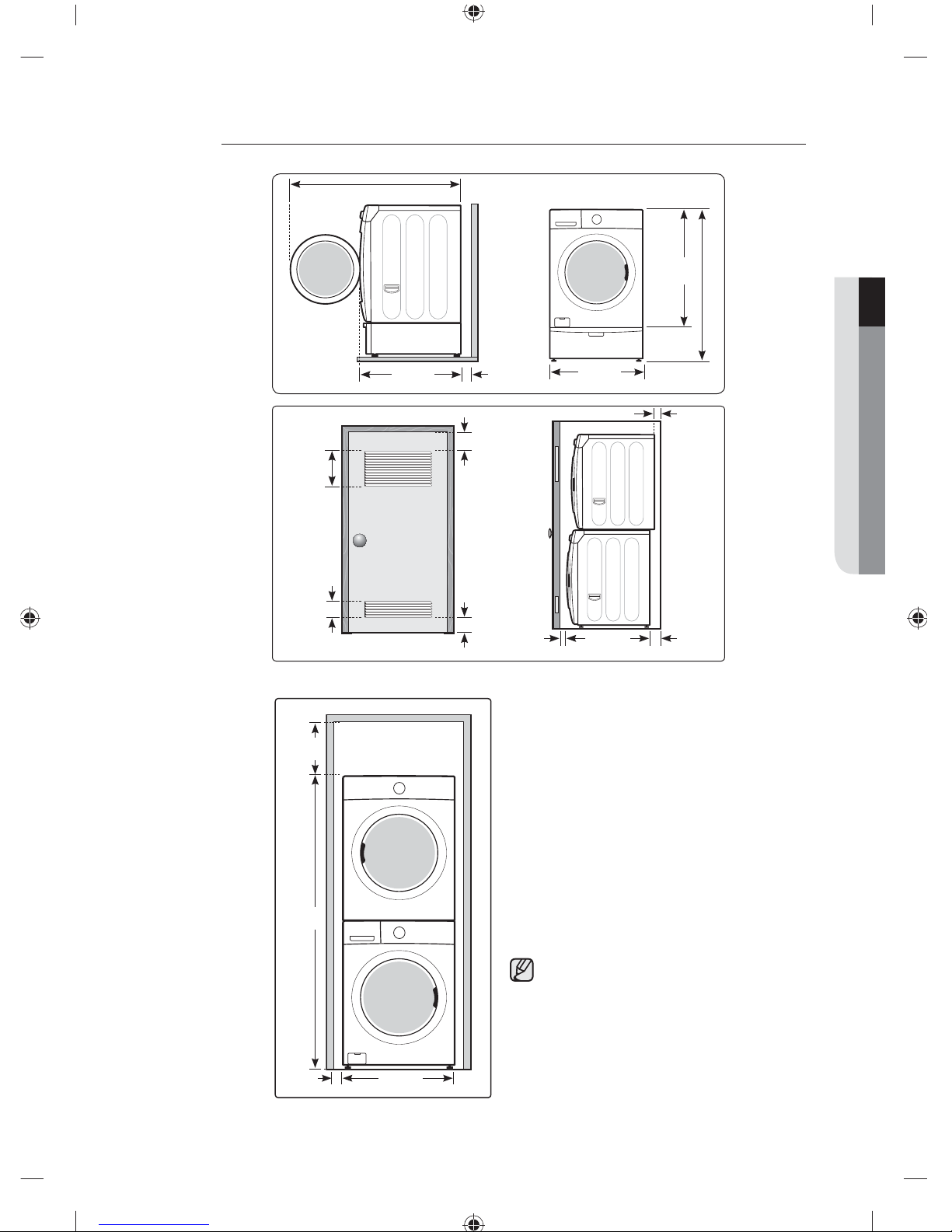

With optional pedestal base or stacking kit
Required Dimensions for Installation With Pedestal
Required Dimensions for Installation With Stacking Kit
It is not recommended to stack DV457* on
your washer.
(it might be hard to control dryer LCD
because of the viewing angle.)
* Required spacing
** External exhaust elbow requires additional space.
01 installing your washer
1 in.
(2.5 cm)
27 in.
(68.6 cm)
78 in.
(198 cm)
6 in. *
(15.2 cm)
Closet or Door
48 in.² *
(310 cm²)
24 in.² *
(155 cm²) 3 in.
(7.6 cm)
3 in.
(7.6 cm)
1 in.
(2.5 cm)
34.1 in.
(86.5 cm)
5.9 in.**
(15 cm)
5 in.
(12.7 cm)
27 in.
(68.6 cm)
39.0 in.
(99 cm)
53.6 in.
(136.2 cm)
5.9 in.
(15 cm)
34.1 in.
(86.5 cm)
51.2 in. (130 cm) to clear open door
WF455AG-03159A_EN.indd Sec3:19WF455AG-03159A_EN.indd Sec3:19 2012-03-21  2:48:572012-03-21  2:48:57

20_ installing your washer
installing your washer
IMPORTANT NOTE TO INSTALLER
Please read the following instructions carefully before installing your Washer.
These instructions should be retained for future reference.
We recommend you hire a professional for installation of this washer.
STEP 1
Selecting a Location
Before you install your washer, make sure the location:
• Has a hard, level surface without carpeting or flooring that may obstruct ventilation.
• Has no dust, oil and detergent etc.
• Is away from direct sunlight
• Has adequate ventilation
• Will not freeze (below 32°F or 0°C)
• Is away from heat sources such as oil or gas
• Has enough slack for the power cord.
• Doesn’t have any carpeting that will obstruct ventilation openings.
STEP 2

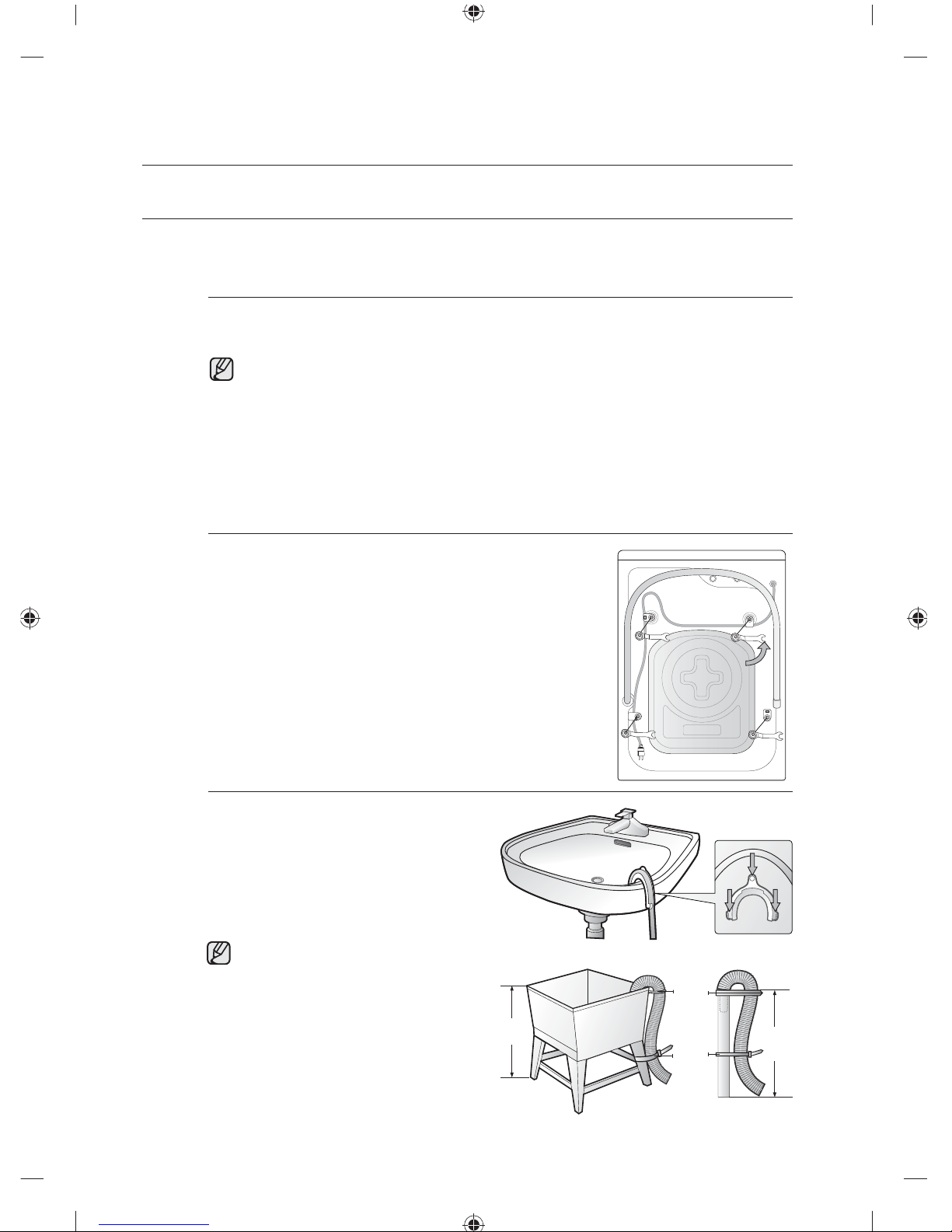

Removing the Shipping Bolts
Before using your Washer, you must remove the four shipping
bolts from the back of the unit.
1. Loosen all the bolts with the supplied wrench.
2. Slide the bolt and spacer up and remove the bolt with the
spacer through the hole in the rear wall of your washer.
Repeat for each bolt.
3.
Fill the holes with the supplied Bolt Hole Covers (See page 16).
4. Keep the shipping bolts and spacers for future use.
STEP 3
Installing your Washer
1. Place the drain hose in the drain facility. Be
sure an airtight connection is NOT made
between the drain hose and the standpipe.
The standpipe must be at least 18 in or 46
cm high.
Caution must always be exercised to
avoid collapsing or damaging the drain
hose. For best results, the drain hose
should not be restricted in any way – by
elbows, couplings, or excessive lengths.
For situations where the drain hose
cannot be conveniently elevated to at
least 18 in or 46 cm, the drain hose must
be supported.
96” Max
18” Min 96” Max
18” Min
Hose
retainer
Tie strap
Laundry tub Stand pipe
WF455AG-03159A_EN.indd Sec3:20WF455AG-03159A_EN.indd Sec3:20 2012-03-21  2:48:572012-03-21  2:48:57
