Samsung WF457ARGSWR/AA User manual

Washing Machine
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service or accessory
parts, please register your product at or contact
www.samsung.com/register
1-800-SAMSUNG (726-7864)
WF457ARG*
This manual is made with 100% recycled paper.
WF457ARG-03153A-04_EN.indd 1WF457ARG-03153A-04_EN.indd 1 2012-08-31  12:30:102012-08-31  12:30:10

2_ Key features of your new Smart PowerFoam™ washer
Key features of your new
Smart PowerFoam™ washer
• The Largest Capacity
Samsung’s extra-large capacity laundry machine can wash a full set of your Bedding, PLUS
a kingsize comforter or up to 32 bath towels in a single load. Since you don’t have to do as
many loads, you save time, money, water and energy.
• 8” LCD Touch Screen Display
The brilliant 8” Color LCD Touch Screen displays cycle information, settings, options, and
more. The easy-to-use interface allows you to scroll through all wash cycles with the slightest
touch.
• Smart Control
Samsung’s innovative Smart Control technology enables you to control your washer through
personal technology devices such as smart phones. You don’t have to be on standby until
the cycle ends. Smart Control allows you to monitor the washing process and lets you know
when the cycle is complete.
• Smart Care
Samsung’s Smart Care, an automatic error-monitoring system, detects and diagnoses
problems at an early stage and provides a quick and easy solution through the LCD screen.
With the innovative Smart Control technology, you can also be alerted via your smart phone
when a problem occurs.
• PowerFoam™
Samsung’s eective PowerForm delivers improved cleanliness with advanced fabric care.
PowerFoam allows detergent to disperse evenly and penetrate fabrics faster and deeper.
• SpeedSpray
Samsung’s new SpeedSpray technology saves you up to 25%* more time when doing
laundry by shortening the wash times while still keeping all segments of the washing process
and getting your clothes clean.
*Based on 8 pounds loads, Normal cycle (under Normal Soil level without any options), on
previous and existing 4.3 cu.ft. Samsung front loading washers released until 2011 without
SpeedSpray.
**SpeedSpray performs in Normal, Bedding PLUS, Deep Steam, Stain Away and Eco Cold
cycle and the saving time may vary by cycles and various load and option compositions.
• VRTplus™ (Vibration Reduction Technology)
This Samsung washer minimizies noise and vibrations with dual 3D vibration sensors and
smart control technology, ensuring a quiet operation.
• Deep Steam
The Deep Steam feature boosts cleaning performance and loosens grime and dirt, remove
thus providing a superior cleaning result.
• Pure Cycle™ (Tub Cleaning cycle)
Clean your drum with a single button! This Pure Cycle is specially designed to remove
detergent residue and dirt buildup in the tub, diaphragm and on the door glass without the
need for special chemical detergents.
WF457ARG-03153A-04_EN.indd Sec9:2WF457ARG-03153A-04_EN.indd Sec9:2 2012-08-31  12:30:182012-08-31  12:30:18

Key features of your new Smart PowerFoam™ washer _3
• Diamond Drum™
Takes gentle care of your fabrics. With inside holes 36% smaller than those of conventional
drums, the diamond drum prevents fabrics from sticking out through the holes and
consequently being damaged.
• DD Motor
The power to handle anything! Our direct-drive inverter motor delivers power right to the
washer tub from a variable speed, reversible motor. A beltless direct-drive motor generates a
higher spin speed of 1,300 rpm for a more eective, quieter operation. The washer also has
fewer moving parts, meaning fewer repairs.
• Sanitize
When you select the NSF certified Sanitize cycle, the water is heated to an extra high
temperature and removes 99.9% of certain bacteria typically found on clothing, bedding or
towels. This certification is awarded by NSF International, an independent third-party testing
and certification organization.
Please check the garment care label to avoid garment damage. Only sanitizing cycles have
been designed to meet the requirements of this protocol for sanitization ecacy.
• Pedestal with Storage Drawers (Model No : WE357*)
An optional 15” pedestal is available to raise the washer for easier loading and unloading.
It also oers a built-in storage drawer that can hold a 100 oz. bottle of detergent
• Stacking (Model No : SK-5A/XAA)
Samsung washers and dryers can be stacked to maximize usable space. An optional
stacking kit is available for purchase from your Samsung retailer.
<Pedestal with Storage Drawers> <Stacking>
NSF Protocol P172
Sanitization Performance of Residential and
Commercial, Family-Sized Clothes Washers
WF457ARG-03153A-04_EN.indd Sec9:3WF457ARG-03153A-04_EN.indd Sec9:3 2012-08-31  12:30:182012-08-31  12:30:18

4_ Safety instructions
SAVE THESE INSTRUCTIONS
Safety information
Congratulations on your new Samsung washer. This manual contains important
information on the installation, use and care of your appliance. Please take time to
read this manual to take full advantage of your washer’s many benefits and features.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
The Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when installing,
maintaining and operating your washer.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury
or death.
To reduce the risk of fire, explosion, electric shock, or personal injury
when using your washer, follow these basic safety precautions:
CAUTION
Hazards or unsafe practices that may result in minor personal injury
or property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
Note
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
WF457ARG-03153A-04_EN.indd Sec11:4WF457ARG-03153A-04_EN.indd Sec11:4 2012-08-31  12:30:192012-08-31  12:30:19

Safety instructions _5
SAVE THESE INSTRUCTIONS
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow
basic precautions, including the following:
1. Read all instructions before using the appliance.
2. Do not wash or dry articles that have been previously cleaned in, washed in, soaked in, or
spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as
they give o vapors that could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the door to the washing
or drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in the user-maintenance instructions or in published user-repair instructions
that you understand and have the skills to carry out.
9. Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to
the wash water. These substances give o vapors that could ignite or explode.
10. Under certain conditions, hydrogen gas may be produced in a hot water system that has not
been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system
has not been used for such a period, before using a washer or combination washer-dryer,
turn on all hot water faucets and let the water flow from each for several minutes. This will
release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an
open flame during this time.
State of California Proposition 65 Warnings:
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California
to publish a list of substances known to the State of California to cause cancer, birth defects,
or other reproductive harm, and requires businesses to warn of potential exposure to such
substances.
This product contains a chemical known to the State of California to cause cancer, birth defects,
or other reproductive harm. This appliance can cause low-level exposure to some of the
substances listed, including benzene, formaldehyde, and carbon monoxide.
WARNING
WARNING
WF457ARG-03153A-04_EN.indd Sec11:5WF457ARG-03153A-04_EN.indd Sec11:5 2012-08-31  12:30:192012-08-31  12:30:19

6_ Safety instructions
SAVE THESE INSTRUCTIONS
Safety instructions
CRITICAL INSTALLATION WARNINGS
Plug the power cord into an AC 120 V / 60 Hz / 15 A wall socket or higher and use the
socket for this appliance only. In addition, do not use an extension cord.
- Sharing a wall socket with other appliances, using a power strip, or using an extension
cord may result in electric shock or fire.
- Do not use an electric transformer. It may result in electric shock or fire.
- Ensure that the voltage, frequency, and amperage provided at the wall socket match the
power specifications of the product.
The installation of this appliance must be performed by a qualified technician or service
company.
- Failing to do so may result in electric shock, fire, an explosion, problems with the
product, or injury.
Remove all foreign substances such as dust or water from the power plug terminals and
contact points using a dry cloth on a regular basis.
- Unplug the power plug and clean it with a dry cloth.
- Failing to do so may result in electric shock or fire.
Plug the power plug into the wall socket in the right direction so that the cord runs towards
the floor.
- If you plug the power plug into the socket in the opposite direction, the electric wires
within the cable may be damaged and this may result in electric shock or fire.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
- Improper grounding may result in electric shock, fi re, an explosion, or problems with the
product.
- Never plug the power cord into a socket that is not grounded correctly and make sure
that it is in accordance with local and national codes.
Do not install this appliance near a heater or inflammable material.
Do not install this appliance in a humid, oily or dusty location, or in a location exposed to
direct sunlight and water (rain drops).
Do not install this appliance in a location where gas may leak.
- This may result in electric shock or fire.
Plug the power plug into the wall socket firmly. Do not use a damaged power plug,
damaged power cord, or loose wall socket.
- This may result in electric shock or fire.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord,
insert the power cord between objects, or push the power cord into the space behind the
appliance.
- This may result in electric shock or fire.
WARNING
WF457ARG-03153A-04_EN.indd Sec11:6WF457ARG-03153A-04_EN.indd Sec11:6 2012-08-31  12:30:192012-08-31  12:30:19

Safety instructions _7
SAVE THESE INSTRUCTIONS
Do not pull the power cord when unplugging the power plug.
- Unplug the power plug by holding the plug.
- Failing to do so may result in electric shock or fire.
If the power plug or power cord is damaged, contact your nearest service center.
INSTALLATION CAUTIONS
Position the appliance so that the power plug is easily accessible.
- Failing to do so may result in electric shock or fire due to electric leakage.
Install your appliance on a level and hard floor that can support its weight.
- Failing to do so may result in abnormal vibrations, noise, or problems with the product.
Unplug the power plug when the appliance is not being used for long periods of time or
during a thunder/lightning storm.
- Failing to do so may result in electric shock or fire.
CRITICAL USAGE WARNINGS
If the appliance is flooded, cut the power immediately and contact your nearest service
center.
If the appliance emits a strange noise, a burning smell, or smoke,, unplug the power plug
immediately and contact your nearest service center.
- Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without
touching the power plug. Do not touch the appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in an explosion or fire.
Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or
other flammable or explosive substances.
- This may result in electric shock, fire or an explosion.
Do not open the washer door by force while the washer is operating (high-temperature
washing/drying/spinning).
- Water flowing out of the washer may result in burns or cause the floor to be slippery.
This may result in injury.
- Opening the door by force may result in damage to the product or personal injury.
Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the
washer before using it.
Do not insert your hand under the washer.
- This may result in injury.
CAUTION
WARNING
WF457ARG-03153A-04_EN.indd Sec11:7WF457ARG-03153A-04_EN.indd Sec11:7 2012-08-31  12:30:192012-08-31  12:30:19

8_ Safety instructions
SAVE THESE INSTRUCTIONS
Safety instructions
Do not touch the power plug with wet hands.
- This may result in electric shock.
Do not turn the appliance o by unplugging the power plug while an operation is in
progress.
- Plugging the power plug into the wall socket again may cause a spark and result in
electric shock or fire.
Keep all packaging materials well out of the reach of children, as packaging materials can
be dangerous to children.
- If a child places a bag over its head, it may result in suocation.
Do not let children or infirm persons use this washer unsupervised.
- Failing to do so may result in electric shock, burns or injury.
Do not insert your hand or a metal object under the washer while it is operating.
- This may result in injury.
Make sure the detergent drawer is closed before you put laundry into the washer or remove
laundry from the washer.
- If the detergent drawer is open, you could strike the drawer with your head and injure
yourself.
Do not attempt to repair, disassemble, or modify the appliance yourself.
- Do not use any fuse (such as cooper, steel wire, etc.) other than the standard fuse.
- If you need to repair or reinstall the appliance, contact your nearest service center.
- Failing to do so may result in electric shock, fire, problems with the product, or injury.
If water has enters the appliance anywhere but the drum, unplug the power plug and
contact your nearest service center.
- Failing to do so may result in electric shock or fire.
When the water supply hose comes loose from the faucet and floods the appliance, unplug
the power plug.
- Failing to do so may result in electric shock or fire.
If any foreign substance enters the appliance, unplug the power plug and contact you
nearest service center.
- Failing to do so may result in electric shock or fire.
USAGE CAUTIONS
If the the washer is contaminated by a foreign substance such as detergent, dirt, food
waste, etc., unplug the power plug and clean the washer using a damp, soft cloth.
- Failing to do so may result in discoloration, deformation, damage or rust.
If struck hard, the front glass can break. Take care when using the washer.
- If the glass is broken, it may result in injury.
CAUTION
WF457ARG-03153A-04_EN.indd Sec11:8WF457ARG-03153A-04_EN.indd Sec11:8 2012-08-31  12:30:192012-08-31  12:30:19

Safety instructions _9
SAVE THESE INSTRUCTIONS
After a water supply failure or when reconnecting the water supply hose, open the faucet
slowly.
Open the faucet slowly after a long period of non-use.
- The air pressure in the water supply hose or the water pipe may result in damage to a
part or in water leakage.
If a drain error occurs during an operation, check if there is a drainage problem.
- If the washer is used when it is flooded because of a drainage problem,, it may result in
electric shock or fire due to electric leakage.
Insert the laundry into the washer completely so that laundry does not get caught in the
door.
- If laundry gets caught in the door, it may result in damage to the laundry or the washer,
or result in water leakage.
Ensure that the faucet is turned o when the washer is not being used.
- Ensure that the screw on the water supply hose connector is firmly connected to the
faucet and properly tightened.
- Failing to do so may result in property damage or injury.
Take care that the Rubber Seal and the Front Door Glass are not contaminated by a foreign
substance (e.g. waste, thread, hair, etc.)
- If a foreign substance is caught in the door or the door is not completely closed, it may
cause water leakage.
Open the faucet and check if the water supply hose connector is firmly tightened and that
there is no water leaking before using the product.
- If the water supply hose connectors are loose, it may result in water leakage.
The product you have purchased is designed for domestic use only.
The use for business purposes qualifi es as product misuse. In this case, the product will
not be covered by the standard warranty provided by Samsung and no responsibility can
be attributed to Samsung for malfunctions or damages resulting from such misuse.
If the wash is not performed and the laundry is left for a period of time after adding
detergent or applying stain remover or pre-treatment onto the laundry, the laundry may be
discolored.
Select the recommended cycle and temperature on the basis of the laundry items, sort the
laundry by color on the basis of its colorfastness and select the appropriate cycle.
Make sure that foreign objects such as pins, buttons and coins are removed from clothing
items when adding laundry into the washer. Wash dirty laundry separately from relatively
clean items and wash fragile items separately from tougher textiles.
If an item is stained, wash it as fast as possible. Use stain remover or detergent only after
testing the colorfastness of the item by applying a small quantity to an inside seam.
WF457ARG-03153A-04_EN.indd Sec11:9WF457ARG-03153A-04_EN.indd Sec11:9 2012-08-31  12:30:192012-08-31  12:30:19

10_ Safety instructions
SAVE THESE INSTRUCTIONS
Safety instructions
Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
- This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
- This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the appliance.
- As well as being harmful to humans, it may also result in electric shock, fire or problems
with the product.
Do not place an object that generates a electromagnetic field near the washer.
- This may result in injury due to a malfunction.
Since the water drained during a high-temperature wash or drying cycle is hot, do not touch
the water.
- This may result in burns or injury.
Do not wash, spin or dry water-proof seats, mats or clothing (*).
- Do not wash thick, hard mats even if the washer mark is on the care label.
- This may result in injury or damage to the washer, walls, floor or clothing due to
abnormal vibrations.
* Woolen bedding, rain covers, fishing vests, ski pants, sleeping bags, diaper covers,
sweat suits, and bicycle, motor cycle, car covers, etc.
Do not operate the washer when the detergent box is removed.
- This may result in electric shock or injury due to water leakage.
Do not touch the inside of the tub during or just after drying as it is hot.
- This may result in burns.
Do not insert your hand into the detergent dispenser after opening it.
- This may result in injury as your hand may be caught.
Do not place any non-laundry objects, such as shoes, food waste, or animals into the
washer.
- This can cause abnormal vibrations that can damage the washer, and, in the case of
pets, cause severe injury or death.
Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.
- This may result in electric shock or injury.
Do not wash laundry contaminated by oils, creams or lotions usually found in skincare
shops or massage clinics.
- This may result in the rubber seal becoming deformed and water leakage.
Do not leave metal objects (safety pins, hair pins, etc.) or bleach in the tub for long periods
of time.
- This may cause the tub to rust.
- If rust appears on the surface of the tub, apply a neutral cleansing agent to the surface
and use a sponge to clean it. Never use a metal brush.
WF457ARG-03153A-04_EN.indd Sec11:10WF457ARG-03153A-04_EN.indd Sec11:10 2012-08-31  12:30:192012-08-31  12:30:19

Safety instructions _11
SAVE THESE INSTRUCTIONS
Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry
contaminated by dry cleaning detergent.
- This may result in spontaneous combustion or ignition due to the heat from the oxidation
of the oil.
Do not use hot water from water cooling/heating devices.
- This may result in problems with the washer.
Do not use natural hand-washing soap in the washer.
- If it hardens and accumulates inside the washer, it may result in problems with the
product, discoloration, rust or bad odors.
Do not wash large laundry items such as bedding in the washing net.
- Failing to do so may result in injury due to abnormal vibrations.
- Place smaller items, such as lace socks and lingerie in the washing net.
Do not use hardened detergent.
- If it accumulates inside the washer, it may cause water leakage.
Do not wash throw rugs or doormats.
- If you wash throw rugs or doormats, sand will accumulate inside the washer. It may
result in errors such as no draining.
Take care that children’s fingers are not caught in the door when closing it.
- This may result in injury.
CRITICAL CLEANING INSTRUCTIONS
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner or alcohol to clean the appliance.
- This may result in discoloration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failing to do so may result in electric shock or fire.
WARNING
WF457ARG-03153A-04_EN.indd Sec11:11WF457ARG-03153A-04_EN.indd Sec11:11 2012-08-31  12:30:192012-08-31  12:30:19

12_ Safety instructions
SAVE THESE INSTRUCTIONS
Safety instructions
REGULATORY NOTICE
1. FCC Notice
FCC CAUTION:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with Part 15 of FCC Rules. Operation is Subject to following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received including interference that cause
undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection
of other channels is not possible.
FCC STATEMENT:
This equipment has been tested and found to comply within the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a dierent circuit from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help.
FCC RADIATION EXPOSURE STATEMENT:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator and your body. This device and its antenna(s) must not be co-located or
operation in conjunction with any other antenna or transmitter.
CAUTION
WF457ARG-03153A-04_EN.indd Sec11:12WF457ARG-03153A-04_EN.indd Sec11:12 2012-08-31  12:30:192012-08-31  12:30:19

Safety instructions _13
SAVE THESE INSTRUCTIONS
2. IC Notice
The term “IC” before the radio certification number only signifies that Industry Canada technical
specifications were met. Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection
of other channels is not possible.
IC RADIATION EXPOSURE STATEMENT:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body. This device and its antenna(s) must not be co-located or
operation in conjunction with any other antenna or transmitter.
Open Source License Notice
This device uses open source software. Open Source Licenses are available on the product
menu.
Tap “Settings > Network > Software Update > Legal Information” on the device for more details.
WF457ARG-03153A-04_EN.indd Sec11:13WF457ARG-03153A-04_EN.indd Sec11:13 2012-08-31  12:30:192012-08-31  12:30:19

14_ Contents
Contents
INSTALLING YOUR WASHER
16
16 Unpacking your washer
16 Overview of your washer
17 Meeting the installation requirements
17 Electrical supply and grounding
17 Water supply
18 Drain
18 Flooring
18 Surrounding temperature
18 Alcove or closet installation
20 Installing your washer
20 Installation flow chart
25 Setting up your washer for the first time
25 Choosing the language
25 Setting the current date
26 Setting the current time
26 Setting the Automatic Update
WASHING A LOAD OF LAUNDRY
27
27 Washing for the first time
27 Basic instructions
28 Using the control panel
29 Available cycles
30 Specialty Cycles
30 Available options
31 Available actions
33 Washing your laundry using the Cycle
Selection screen
35 Using the My Cycle function
36 Using the Delay Start function
37 Using the Child Lock function
38 Turning the Light On and O
38 Controlling the sound volume
39 Controlling the brightness level
40 Using the Stain Guide
41 Viewing the Energy Eciency
41 Using the Smart Grid
43 Detergent use
43 Using the detergent drawer
43 Automatic dispenser
43 Detergent compartment
44 Pre wash compartment
44 Bleach compartment
44 Fabric softener compartment
WF457ARG-03153A-04_EN.indd 14WF457ARG-03153A-04_EN.indd 14 2012-08-31  12:30:192012-08-31  12:30:19

Contents _15
USING YOUR MOBILE PHONE
45
45 Configuring your washer’s network settings
and connecting to your network
45 Configuring the IP address settings
46 Connecting your washer to the network
46 Turning on your washer’s Wi-Fi networking
function
47 How to update the software
48 Downloading and running the mobile app,
Samsung Smart Washer/Dryer App
50 Using the mobile App
50 Disconnecting the connection
51 Starting a new wash
52 Registering your washer
54 Overview for Wi-Fi Settings and AP
Connection
MAINTAINING YOUR WASHER
55
55 Cleaning the exterior
55 Cleaning the interior
55 Cleaning the dispensers
55 Storing your washer
56 Cleaning the debris filter
57 Cleaning the door seal/bellow
57 Preserving the top cover and the front frame
58 Pure Cycle
TM
TROUBLESHOOTING
59
59 Check these points if your washer…
61 Information codes
63 Network Setup Q&A
APPENDIX
65
65 Fabric care chart
66 Cycle chart
68 Helping the environment
68 Declaration of conformity
68 Specifications
WF457ARG-03153A-04_EN.indd 15WF457ARG-03153A-04_EN.indd 15 2012-08-31  12:30:192012-08-31  12:30:19

16_ Installing your washer
Installing your washer
UNPACKING YOUR WASHER
Unpack your washer and inspect it for shipping damage. Make sure you have received all the items
shown below. If your washer was damaged during shipping, or you do not have all the items, contact
1-800-SAMSUNG (726-7864).
To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit.
The packaging materials can be dangerous to children; keep all packaging material (plastic bags,
polystyrene, etc.) well out of the reach of children.
OVERVIEW OF YOUR WASHER
Adjustable legs
Cold water supply
hose
Hot water supply hose
Drain Hose
Detergent drawer
Control panel
Door
Tub
Debris filter
Drain tube
Filter cover
Parts supplied
Wrench Bolt hole covers Water supply hoses
Hose guide User manual Plastic zip hose tie
Tools needed
Pliers Flat screwdriver
WARNING
WF457ARG-03153A-04_EN.indd 16WF457ARG-03153A-04_EN.indd 16 2012-08-31  12:30:192012-08-31  12:30:19

Installing your washer _17
01 INSTALLING YOUR WASHER
MEETING THE INSTALLATION REQUIREMENTS
Electrical supply and grounding
Never use an extension cord.
Use only the power cord that comes with your washer.
When preparing the installation, ensure that your power supply oers:
• An AC 120 V / 60 Hz / 15-amp fuse or circuit breaker
• An individual branch circuit dedicated to your washer
Your washer must be grounded. If your washer malfunctions or breaks down, grounding will
reduce the risk of electric shock by providing a path of least resistance for the electric current.
Your washer comes with a power cord that has a three-prong grounding plug for use in a
properly installed and grounded outlet.
Never connect the ground wire to plastic plumbing lines, gas lines or hot water pipes.
Improperly connecting the equipment-grounding conductor can result in electric shock.
Check with a qualified electrician or serviceman if you are unsure if the washer is properly
grounded.
Do not modify the plug provided with the washer. If it does not fit the outlet, have a proper
outlet installed by a qualified electrician.
Important safety precautions
To prevent unnecessary risk of fire, electrical shock or personal injury, all wiring and
grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No.
70 Latest Revision and local codes and ordinances. It is the personal responsibility of the
appliance owner to provide adequate electrical service for this appliance.
Water supply
Your washer will fill properly when your water pressure is between 20 psi (137 kPa) to 116 psi
(800 kPa). A water pressure less than 20 psi (137 kPa) may cause a water valve failure and not
allow the water valve to shut o completely. Alternatively, it may take the washer than allowed
by the controls, causing your washer to turn o. (A fill-time limit has been built into the controls,
designed to prevent overflows or flooding if an internal hose becomes loose.)
The water taps must be within 4 feet (122 cm) of the back of your washer for the provided water
supply hoses to reach your washer.
Most plumbing supply stores sell water supply hoses of various lengths up to 10 feet
(305cm) long.
You can reduce the risk of leaks and water damage by:
• Making water taps easily accessible.
• Turning o water taps when the washer is not in use.
• Periodically checking the water supply hose fittings for leaks.
Before using your washer for the first time, check all connections at the water valve and
taps for leaks.
Using hard water or bad quality water may cause the water supply valve to operate
abnormally.
WARNING
WARNING
WARNING
CAUTION
CAUTION
WARNING
CAUTION
WF457ARG-03153A-04_EN.indd 17WF457ARG-03153A-04_EN.indd 17 2012-08-31  12:30:202012-08-31  12:30:20

18_ Installing your washer
Installing your washer
Drain
Samsung recommends a standpipe height of 18 in (46 cm). The drain hose must be routed
through the drain hose clip to the standpipe. The standpipe must be large enough to accept the
outside diameter of the drain hose. The drain hose is attached at the factory.
Flooring
For best performance, your washer must be installed on a solidly constructed floor. Wooden
floors may need to be reinforced to minimize vibrations and/or unbalanced loads. Carpeting and
soft tile surfaces are contributing factors to vibrations and the tendency for your washer to move
slightly during the spin cycle.
Never install your washer on a platform or poorly supported structure.
Surrounding temperature
Do not install your washer in areas where water may freeze, since your washer always retain
some water in the water valve, pump and hose areas. Frozen water in the lines can cause
damage to the belts, the pump and other components.
Alcove or closet installation

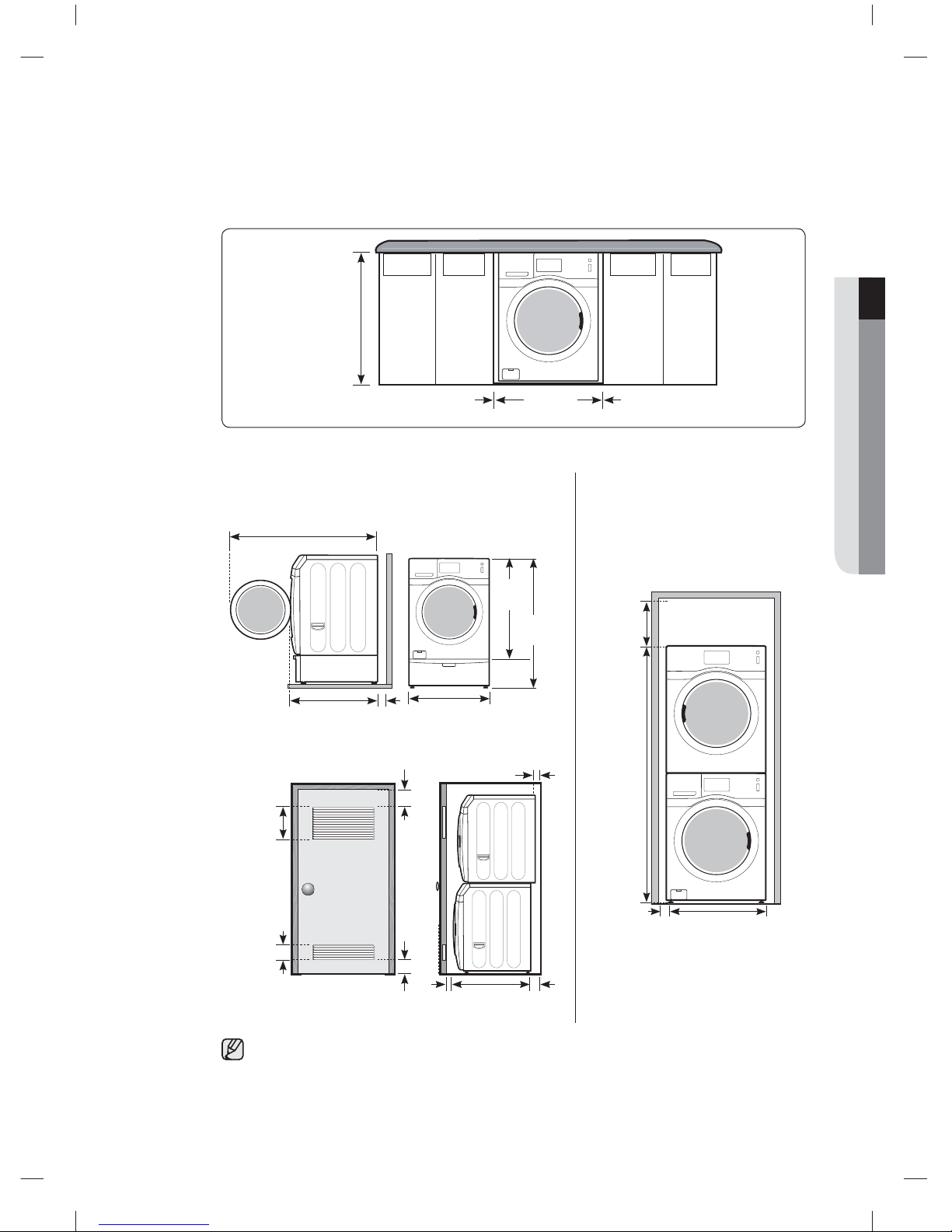

To operate safely and properly, your new washer requires the following minimum clearances:
Sides 1 in / 25 mm Rear 5.9 in / 150mm
Top 17 in / 432 mm Front 2 in / 51 mm
If both the washer and a dryer are installed together, the front of the alcove or closet must have
an unobstructed air opening of at least 72 in² (465 cm²). Your washer by itself does not require a
specific air opening.
1 in.
(2.5 cm)
1 in.
(2.5 cm)
1 in.
(2.5 cm)
27 in.
(68.6 cm)
27 in.
(68.6 cm)
2 in.
(5 cm)
5.9 in.
(15 cm)
34.1 in.
(86.5 cm)
17 in.
(43.2 cm)
Recessed area Side view - closet or confined area
WARNING
WF457ARG-03153A-04_EN.indd 18WF457ARG-03153A-04_EN.indd 18 2012-08-31  12:30:202012-08-31  12:30:20

Installing your washer _19
01 INSTALLING YOUR WASHER
When installing your washer under the counter (washer only)
1 in.
(2.5 cm)
1 in.
(2.5 cm)
27 in.
(68.6 cm)
39.6 in.
(100.6 cm)
When installing your washer with an optional pedestal base or stacking kit
Required dimensions for an installation with a pedestal Required dimensions for an
installation with a stacking kit
27 in.
(68.6 cm)
39 in.
(99 cm)
5.9 in.
(15 cm)
34.1 in.
(86.5 cm)
51.2 in. (130 cm) to clear open door
53.6 in.
(136.2 cm)
1 in.
(2.5 cm)
27 in.
(68.6 cm)
78 in.
(198 cm)
6 in. *
(15.2 cm)
48 in.² *
(310 cm²)
24 in.² *
(155 cm²)
3 in.
(7.6 cm)
3 in.
(7.6 cm)
1 in.
(2.5 cm)
34.1 in.
(86.5 cm)
5.9 in.**
(15 cm)
5 in.
(12.7 cm)
Closet or Door
It is not recommended to stack DV457* on WF457.
(it might be hard to control dryer LCD because of the viewing angle.)
* Required spacing
** An external exhaust elbow requires additional space.
WF457ARG-03153A-04_EN.indd 19WF457ARG-03153A-04_EN.indd 19 2012-08-31  12:30:202012-08-31  12:30:20

20_ Installing your washer
Installing your washer
INSTALLING YOUR WASHER
Before STEP 5 is complete, do not plug the power cord into a wall socket.
Packaging materials can be dangerous to children; keep all packaging material (plastic bags,
polystyrene, etc.) well out of the reach of children.

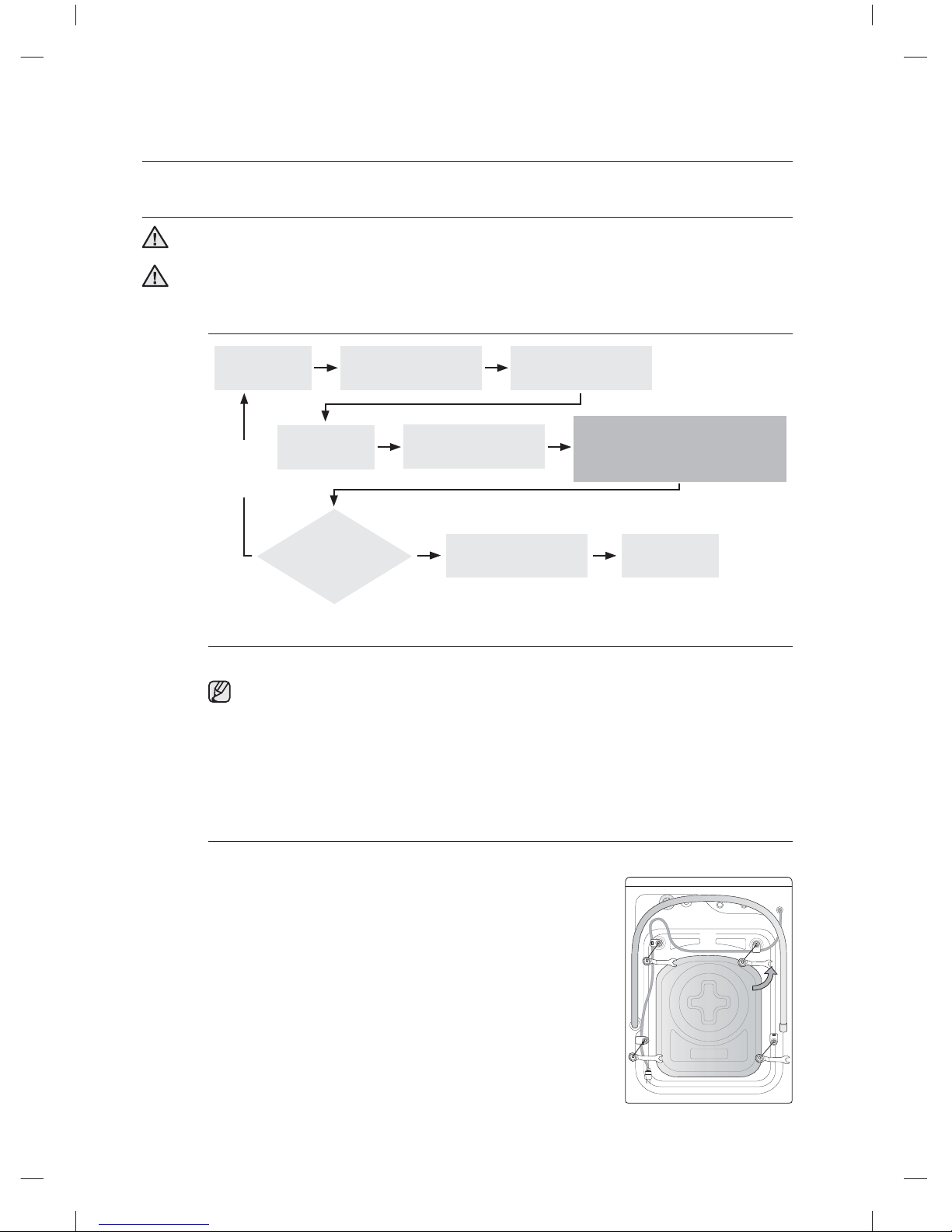

Installation flow chart
Selecting a
location
Running a Calibration mode
(Refer to the following
description)
Finish the
installation
Removing the shipping
bolts (*Drum only)
Connecting the water
and the drain
Adjusting the
levelling feet
Powering your washing
machine
[Running a test cycle]
Run a test cycle (Rinse+Spin) with
small amount of laundary
(about 4~5 Towels)
Yes
Please
check again
before
steps.
No
Does
your washer
have excess vibration
or noise?
STEP 1
Selecting a location
Before you install the washer, make sure the location:
• Has a hard, level surface without carpeting or flooring that may obstruct ventilation Is
away from direct sunlight
• Has adequate ventilation
• Is not exposed to freezing temperatures (temperatures are never below 32 °F or 0 °C)
• Is away from heat sources such as oil or gas
• Has enough space so that the washer doesn’t stand on its power cord
STEP 2
Removing the shipping bolts
Before installing the washing machine, you must remove all
shipping bolts from the back of the unit.
1. Hold the shipping bolt with your hand and pull it through
the wide section of the hole. Repeat for each shipping bolt.
2. Fill the holes with the supplied bolt hole covers.
3. Store the shipping bolts in a safe location where they can
be easily retrieved in the event that you have to move the
washing machine in the future.
CAUTION
WARNING
WF457ARG-03153A-04_EN.indd 20WF457ARG-03153A-04_EN.indd 20 2012-08-31  12:30:212012-08-31  12:30:21
