Samsung WS7000A1 User manual

FEATURES ………………………………………………………………………1
SAFETY INSTRUCTIONS ………………………………………………………2
DESCRIPTION OF PARTS ……………………………………………………3
CONTROL PANEL ………………………………………………………………4
WASHING PROCEDURE ………………………………………………………4
Wash……………………………………………………………………………4
Spin ……………………………………………………………………………5
Rinse …………………………………………………………………………5
INSTALLATION …………………………………………………………………6
Environment …………………………………………………………………6
Assembling the sound absorbing panel ……………………………………6
Connecting the drain hose ……………………………………………………6
Levelling ………………………………………………………………………6
Cleaning the magic filter ………………………………………………………6
How to put the fabric softener ………………………………………………6
LAUNDRY GUIDE ………………………………………………………………7
TROUBLESHOOTING …………………………………………………………7
SPECIFICATIONS ………………………………………………………………8
Before operating the unit, please read this manual
throughly, and retain for future reference.
Owner’s Instructions

1
FEATURES
TRANSPARENT WINDOW
This Transparent Window is the new concept to solve the curiosity
of users to see inside of washing machine while operation.
While operation, the laundry progress inside of washing machine can be checked
by looking through the transparent window.
BOOMERANG PULSATOR
The Boomerang Pulsator helps water
and detergent to go through fabrics efficiently while providing both the
powerful water action to clean larger and heavier clothes and the gentle
water action to clean all delicates with less wear and tear on clothes.
WATERFALL FLOW
The Waterfall Flow injected from under the pulsator cascades
with full force back into the tub, pushing down any clothes that float right
under the water surface. It is this Waterfall Flow that enables this washing
machine to effectively wash large and heavy items, such as bluejeans and blankets.
MAGIC FILTER
This unique magic Filter ensures that all the lint inside the tub is captured
for top quality filtering results to deliver consistently effective cleaning
results.
SOFTENER DISPENSER
The Softener Dispenser releases the fabric softener at the appropriate
time when the last rinsing proceeds.

2
SAFETY INSTRUCTIONS
Where an unearthed power cord is fitted, be
sure that the washer is grounded.
To avoid electrical shock use metal piping for
the ground connection.
Take care not to ground the washer to gas
pipes or telephone cables due to the danger of
explosion from lightning strikes.
During spinning, don't put
your hand in the spin basket.
Because the spin basket
is rotating at the high
speed, rotating parts may
Injure your hand.
Openings must not be obsructed by
carpeting when the washing machine is
installed on a carpeted floor.
To minimize the possibility of electric shock,
unplug this appliance from the power
supply or disconnect the washer at the
household distribution panel by removing
the fuse while any maintenance or cleaning.
The appliance is not intended for use by
young children or infirm persons without
supervision.
Young children should be supervised to
ensure that they do not play with the
appliance.
If the power supply cord is damaged, it must
be replaced by the manufacturer or its
service agent or a similary qualified person
in order to avoid a hazard.
Place clothes evenly into the washer as
unevenly distributed laundry may cause
excessive out-of-balance noise and
vibration.
Don't use excessively hot water.
(50°C or more)
Plastic parts may be deformed or damaged.
Also, clothing may be deformed or bleached.
Before washing, check all pockets.
If nails or pins remain in pockets, they may
damage the washer or clothes.
Don't press the control panel with a sharp
object.
Panel damaged or malfunction may occur.
If the control panel for this washer is damaged,
it must be replaced by a repair shop appointed
by the manufacturer, as special purpose tools
are required.
Do not operate this appliance if it is
damaged, malfunctioning, partially
disassembled, or has missing or broken
parts, including a damaged cord or plug.
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
The instructions for use shall specify the
maximum mass or dry cloth in kg, for which
the appliance is designed.
If the appliance is supplied from a cord
extension set or electrical portable outlet
device the cord extension set or electrical
portable outlet device should be positioned
so it is not subject to splashing or ingress of
moisture.
WARNING!
To reduce the risk of fire, electric shock, or injury to persons when using your appliance,
take care to adhere to the following precautions.

3

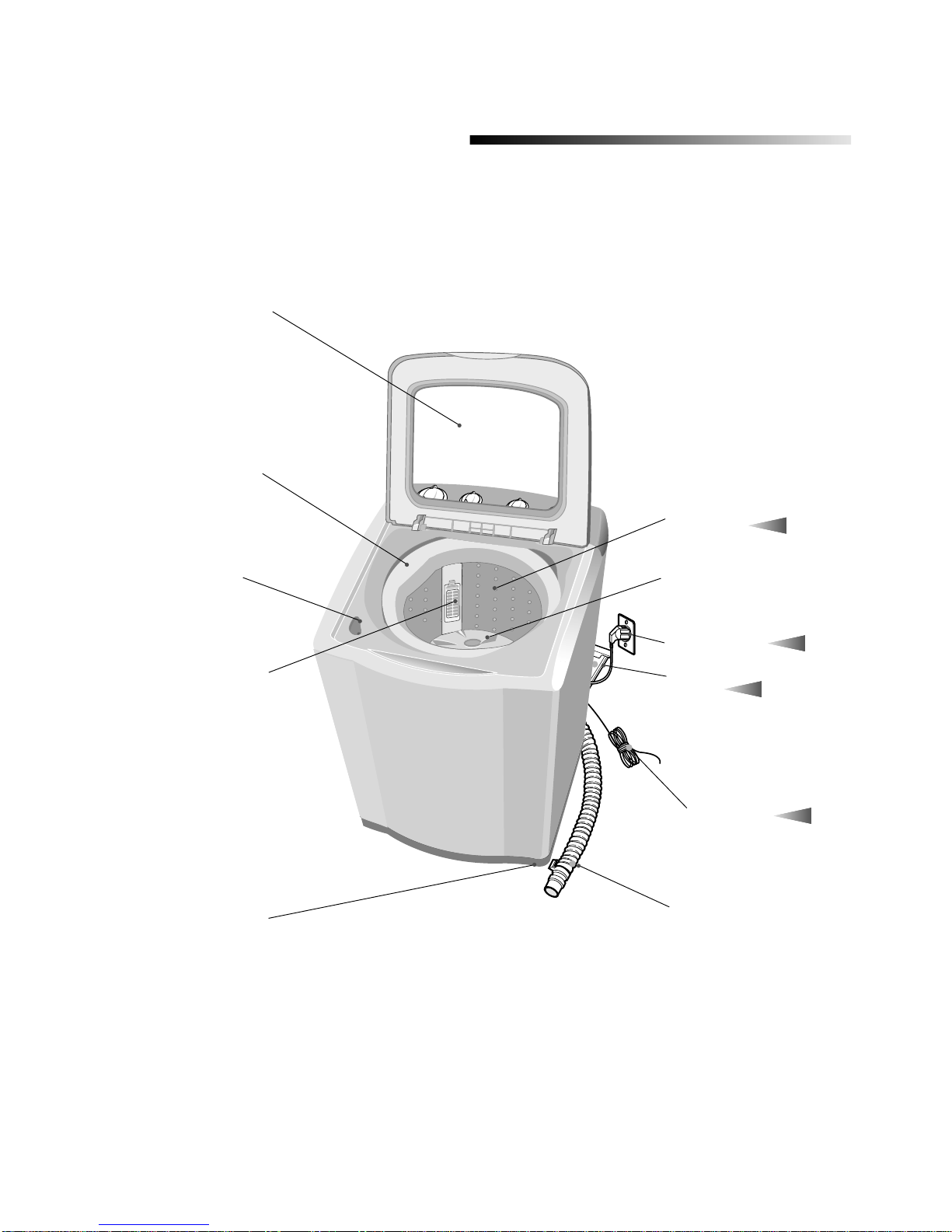

DESCRIPTION OF PARTS
BLEACH INLET
FABRIC SOFTENER
DISPENSER
LID
Be sure to keep the lid
closed during washing
and spinning.
MAGIC FILTER
Lint will be collected in the
filter during washing.
SPIN BASKET
Stainless
ADJUSTABLE LEGS
Adjust the length of the
legs when installing
the washer.
WATER DRAIN HOSE
SOUND ABSORPTION
PANEL
POWER CORD
“BOOMERANG”
PULSATOR
GROUND LEAD Option
When the water pipe is
metal, make sure to cover
the end of the ground wire.
Option
Option
Option

4

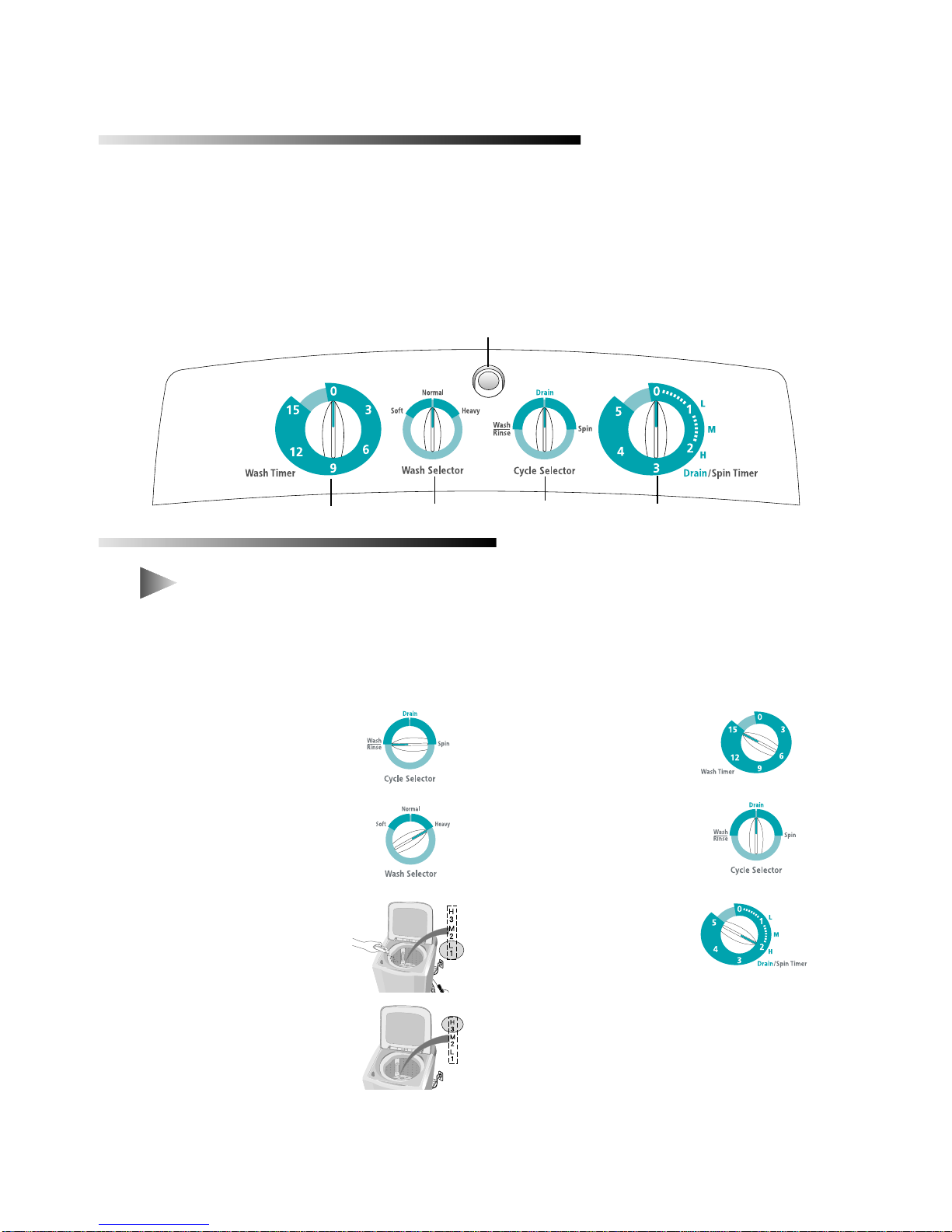

CONTROL PANEL
WASHING PROCEDURE
1. WASH TIMER
This is used to set the wash time, 1-15 minutes.
2. WASH SELECTOR
You can wash laundry effectively by various
agitation.
3. CYCLE SELECTOR
This is used to set the Washing/Rinsing or
Draining or Spining.
4. WATER INTAKE
Connect water inlet to tap with a Suitable.
5. DRAIN/SPIN TIMER
This is used to set the drain time 1~2 minutes /
spin time 1-5 minutes.
Before starting washing, check the following ;
Connect the water supply hose to the water tap. Leave a tap open.
Plug the power cord in. Make sure to lay down the drain hose.
Put the laundry into the washer and add detergent, too.
Be careful not to overload, Use right detergent for the fabrics you are washing.
WASH
1. Set the CYCLE SELECTOR KNOB
to “WASH / RINSE”
2. Select the WASH SELECTOR
KNOB for desired mode.
3. Fill water in the wash tub to
the “L1” lower water level by
carefully adjusting the tap
water and add the detergent.
4. Put the cloths into the wash
tub and set the same water
pressure to fill the tub so as
not to exceed “H3” level.
5. Set the WASH TIMER
1-15 minutes.
6. After washing, set the
CYCLE SELECTOR KNOB
to “DRAIN”
7. Set the DRAIN/SPIN
TIMER for drain “H” for drain.
Then, drain will be started.
(In case of need more drain,
repeat the no 2)
❖ Please adjust the drain time like H, M, L depend
on the warer level.
H : High water level.
M : Medium water lever level.
L : Low water level.
12
4
35

55

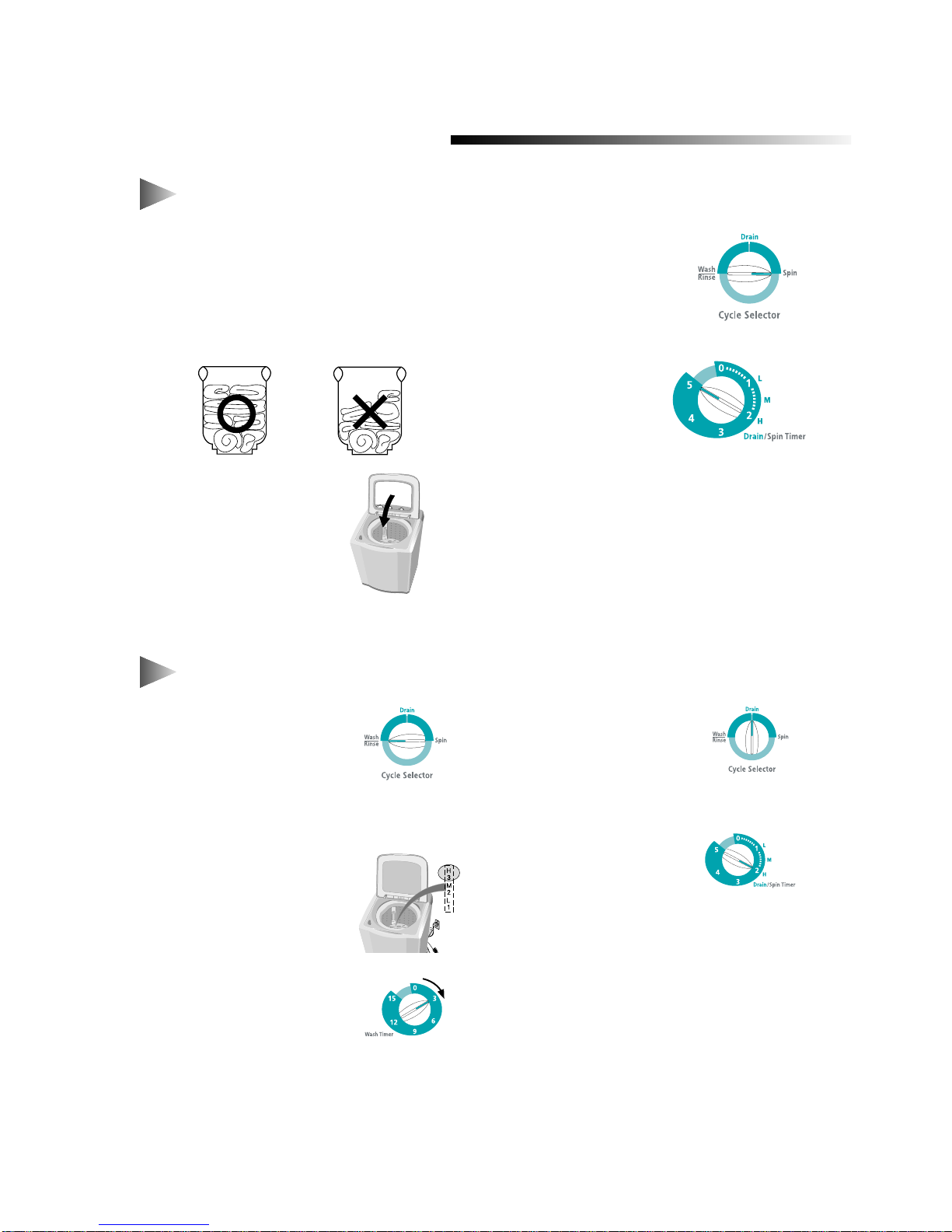

WASHING PROCEDURE
1. Distribute laundry evenly in the basket after drain.
(Uneven laundry may cause ABNORMAL NOISE.)
2. Distribute laundry evenly in the basket before
spinning.
(Uneven laundry may cause ABNORMAL NOISE.)
3. Close the lid
4. Set the CYCLE SELECTOR
KNOB to “Spin”
5. Set the DRAIN/SPIN
TIMER 1-5 minutes.
❖In case of a abnormal vibration and noise.
return the “DRAIN/SPIN TIMER” to the “0”
postion and then Distribute laundry evenly.
1. Set the CYCLE SELECTOR
KNOB to “WASH RINSE”
2. Set the same water pressure to fill the tub so as
not to exceed “H3” level.
3. Set the WASH TIMER
2~3 minutes.
4. After finsing,
set the CYCLE SELECTOR
KNOB to “DRAIN”
5. Set the DRAIN/SPIN TIMER for drain "H”.
Then, drain will be started.
(In case of need more drain,
repeat the no 2)
❖Please adjust the drain time like H, M, L depend
on the water level.
H : High water level.
M : Medium water level
L : Low water level.
6. Repeat this cycle until water comes.
(2~3 cycle)
SPIN
RINSE

6

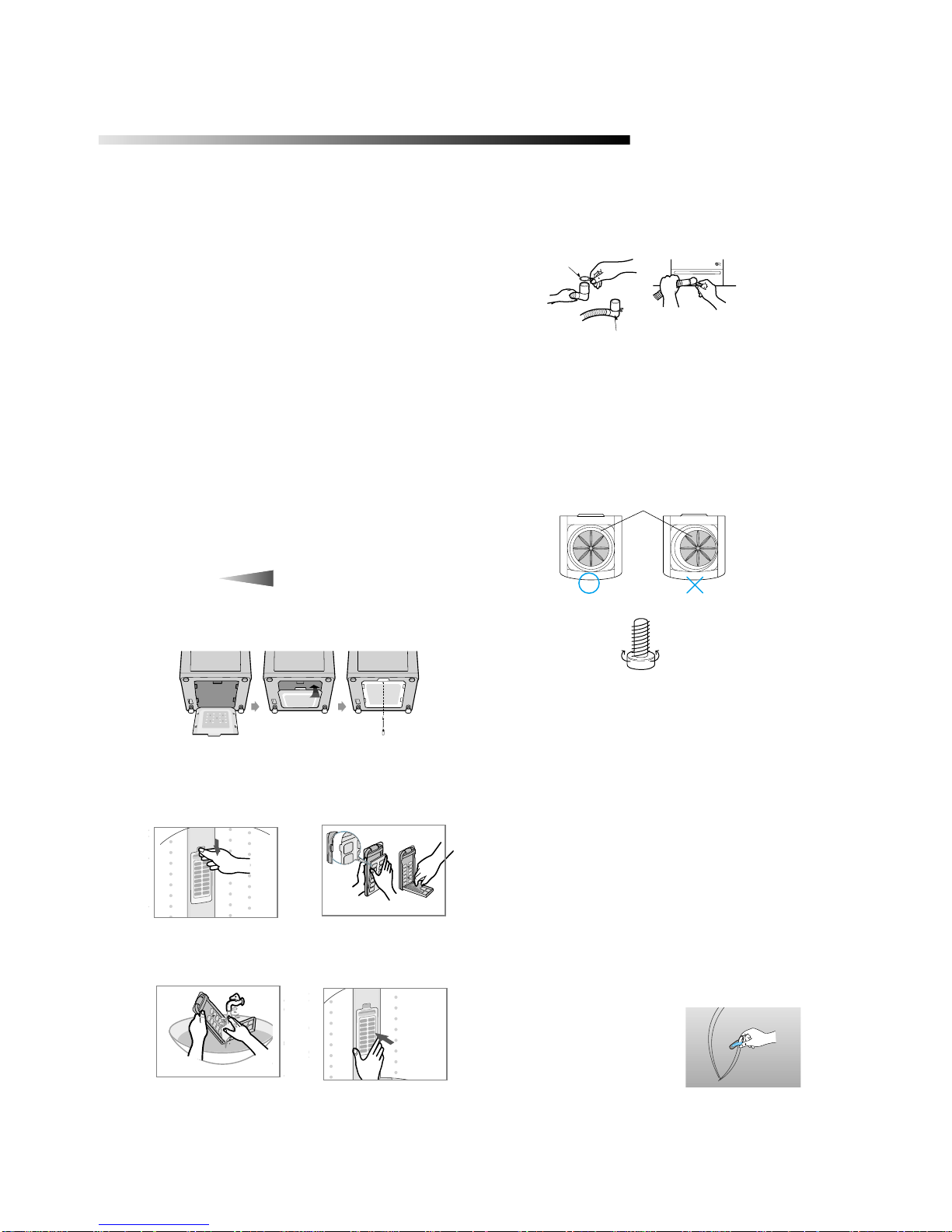

INSTALLTION
ENVIRONMENT
Leave some space
Maintain at least 10cm between the washer and
the wall.
Place the washer on a sturdy flat surface.
If the washer is placed on an uneven or weak
surface, noise or vibration occurs.
(Allowable is 1˚)
Adjust the legs for even placement.
Never install the washer near water.
Do not place the washer in steamy rooms or
where the washer is directly exposed to rain.
Moisture may destroy the electrical insulation
causing an electrical shock hazard.
Avoid direct sunlight or heaters.
As plastic and electrical components are affected
by direct heat, never place the washer near
furnaces, boilers, etc. Do not place under direct
sunlight.
ASSEMBLING THE SOUND ABSORBING
PANEL Option
Tilt the washer a little and lift up the panel until clicks,
finaly fix the panel with screw to the base as shown
in the figure.
CONNECTING THE DRAIN HOSE
After pressing the joint ring(a), insert the drain
hose(b) to drain direction.
LEVELLING
SEE IF THE MACHINE PLACED LEVEL BY
CHECKING THE POSITION OF THE WASHING TUB.
•Open the lid of the machine, pour water into the
tub up to the level just below the pulsator, and
adjust the legs so that the pulsator is positioned
at the center of the water as shown in the figure.
•Place the machine more than 10cm away from
the wall.
•Adjust the legs on feet for leveling.
1. Push the upper part of
the filter and pull in.
2. Open the cover as
shown in the figure.
Rear-side
(a)
(b)
WATER
LOOSEN LOCK
CLEANING THE MAGIC FILTER
3. Clean the filter.
4. Close the cover and insert the
lower part of the filter in the
basket first and then push the
filter with "click" sound.
How to put the FABRIC SOFTENER
1. Case 1
Fill the water and then, put the “RINSE”into the basket
for rinse cycle.
2. Case 2
In case of use Softener box, operate like following.
1) Put the Softener into the Softener box.
2) Operate following procedure.
Wash → Drain → Spin → Rinse1 → Drain → Spin →
Rinse2 →Drain → Spin
3) Softener will be flowed into the basket at “Rinse2”cycle.
•When a proper amount (one time does) of fabric
softener is stored in the softener inlet, it is
automatically put in at the last rinsig cylce.
•Do not use detergent, bleach or starch into the
Softener lnlet.
•Using too much softener may produce unsatis-
factory results.
•Do not open the lid during the Spin Dry cycle.
If added too early,
its effectiveness will decrease.
•Do not leave the softener into
the Softener Dispenser for a
long time.
Because softner became stiff.

TIME TYPE OF LAUNDRY
1min. Thin(synthetic fiber)
1~2min. wool
3~5min. cotton
5min thick(cotton)
77
LAUNDRY GUIDE
TROUBLE SHOOTING
WASHING TIME
DETERGENT
KINDS OF CLOTHING WASHING TIME
Extremely solid heavy fabric 10 to 15minutes
Linen, cotton, etc. 8 to 10minutes
Ordinary clothes 7minutes
(underwear, etc)
Slightly solied synthetic 2 to 5minutes
fiber
100% wool, mixed wool knitting,
thin synthetic fiber with tags 2 to 5minutes
indicating hand washing
AMOUNT OF WATER
DETERGENT LEVEL
41g Low (41 )
48g Medium (48 )
56g High (56 )
SPIN TIME
DRAIN TIME
TIME WATER LEVEL
L Low
M Medium
H High
- The amount of detergent is average.
Follow the instruction detergent printed on the package for
amount of detergent.
- Choose the amount of detergent depending on the fabric type.
TROUBLE CHECK POINT
Washing machine won’t work. Is the water tap opened?
Is the washer plugged in?
Is the power cut off?
Is there enough water?
Clothes will not move freely. Is the laundry overloaded?
Spinning does not work Is the laundry spread evenly in the washer?
Is the washer set on a sturdy flat surface?
Is the lid closed completely?
Water dose not drain Is the drain hose down?
Is the drain hose frozen?
Is the drain hose clogged?
Is the lid closed completely?
Water is not supplied Is the water tap opened?
Is the water cut off?
Is the water supply hose or hose connection clogged
Is the water tap frozen?

8
SPECIFICATIONS
IF YOU NEED HELP.
Do not hesitate to call your local samusng service center.
They will be willing to help you.
Be sure to give them your name, address, telephone number and the purpose of the call.
RATED POWER WASH 300W STANDARD HIGH 56
CONSUMPTION
SPIN 240W WATER LEVEL MED 48
DIMENSIONS W540 × D560 × H850mm
WEIGHT 30kg
WATER PRESSURE 0.05~0.78MPa PULSATOR 126 rpm
(0.5~8.0kg•f/cm2) ROTATING SPEED
RATING TIME Washing : 1Hour SPINNING TUB 760 rpm
Spinning : 15minutes ROTATING SPEED
CODE NO. : DC68-00541A
