Samyung ENC N430 User manual

Installation and Operation Manual
1
9+
Installation and Operation Manual
2

Installation and Operation Manual
3

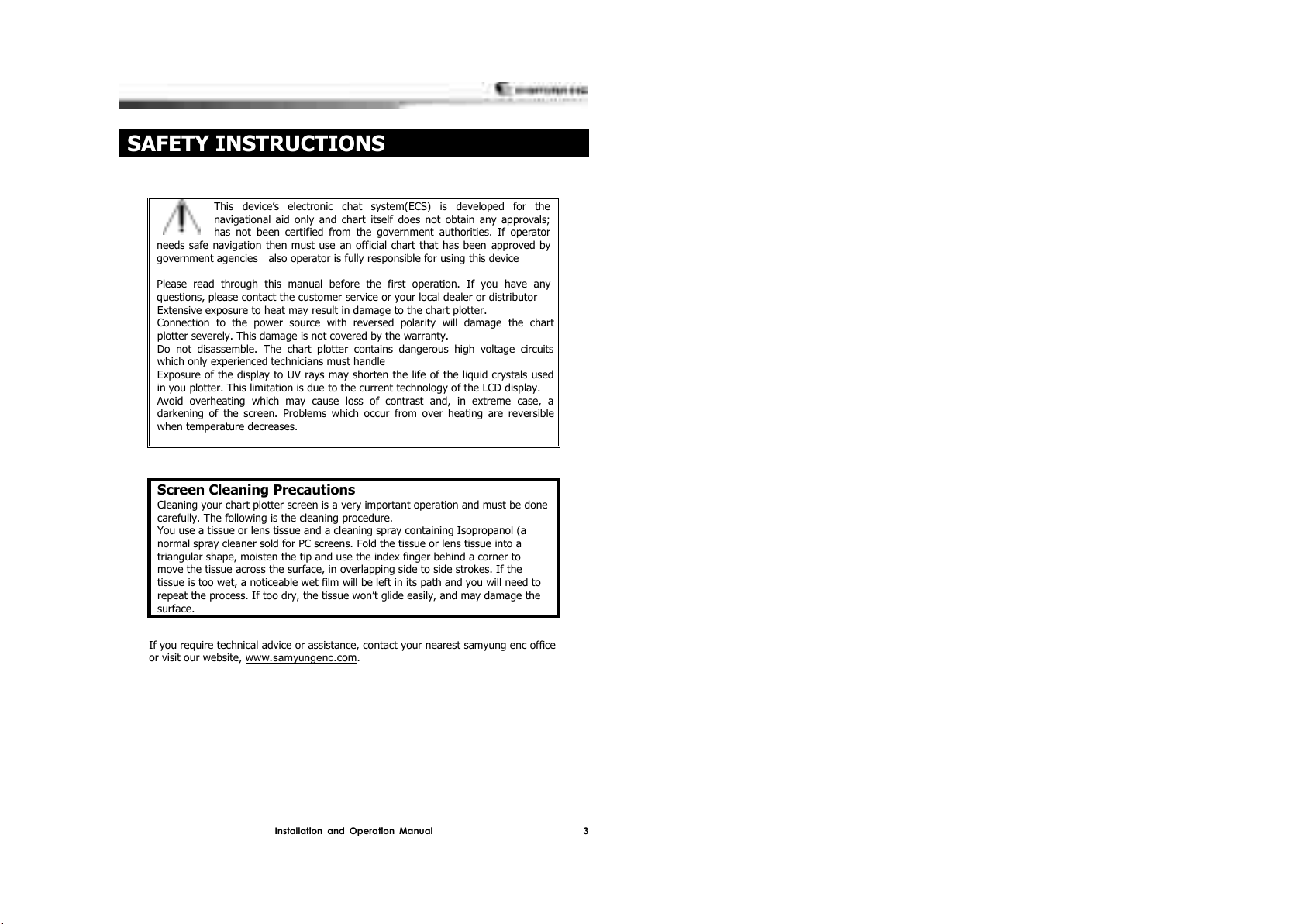

SAFETY INSTRUCTIONS
This device’s electronic chat system(ECS) is developed for the
navigational aid only and chart itself does not obtain any approvals;
has not been certified from the government authorities. If operator
needs safe navigation then must use an official chart that has been approved by
government agencies also operator is fully responsible for using this device
Please read through this manual before the first operation. If you have any
questions, please contact the customer service or your local dealer or distributor
Extensive exposure to heat may result in damage to the chart plotter.
Connection to the power source with reversed polarity will damage the chart
plotter severely. This damage is not covered by the warranty.
Do not disassemble. The chart plotter contains dangerous high voltage circuits
which only experienced technicians must handle
Exposure of the display to UV rays may shorten the life of the liquid crystals used
in you plotter. This limitation is due to the current technology of the LCD display.
Avoid overheating which may cause loss of contrast and, in extreme case, a
darkening of the screen. Problems which occur from over heating are reversible
when temperature decreases.
Screen Cleaning Precautions
Cleaning your chart plotter screen is a very important operation and must be done
carefully. The following is the cleaning procedure.
You use a tissue or lens tissue and a cleaning spray containing Isopropanol (a
normal spray cleaner sold for PC screens. Fold the tissue or lens tissue into a
triangular shape, moisten the tip and use the index finger behind a corner to
move the tissue across the surface, in overlapping side to side strokes. If the
tissue is too wet, a noticeable wet film will be left in its path and you will need to
repeat the process. If too dry, the tissue won’t glide easily, and may damage the
surface.
If you require technical advice or assistance, contact your nearest samyung enc office
or visit our website, www.samyungenc.com.
Installation and Operation Manual
4

Installation and Operation Manual
5
1 Introduction ........................................................................9
1-1 General Information................................................................................... 9
1-2 Specification ............................................................................................... 9
1-3 Packing List .............................................................................................. 10
1-4 Optional Accessories ................................................................................ 10
2 Getting Started................................................................. 11
2-1 Installation ............................................................................................... 11
2-1-1 Bracket Mounting ...............................................................................11
2-1-2 Flush Mounting ..................................................................................11
2-2 Keys .......................................................................................................... 12
2-3 NAVIONICS SD Card ................................................................................. 13
2-4 Chart Selection ......................................................................................... 13
2-5 Simulate Mode .......................................................................................... 13
2-6 Data Bar .................................................................................................... 13
2-7 Compass ................................................................................................... 15
2-8 Multi Window Display............................................................................... 16
3 General Operation ............................................................ 18
3-1 Power on and off ...................................................................................... 18
3-2 Brightness, night mode and Background ................................................. 18
3-3 The page window ..................................................................................... 19
3-4 Chart .................................................................................................. 21
3-4-1 Chart window ....................................................................................21
3-4-2 Latitude and longitude........................................................................22
3-4-3 Chart scale ........................................................................................22
3-4-4 Finding a chart symbol .......................................................................22
3-4-5 S-Map search ....................................................................................23
3-4-6 Chart symbols and information ............................................................23
3-4-7 Introduction to navigating...................................................................23
3-4-8 Going to a waypoint or to a point on the chart ......................................24
3-4-9 Following a route ...............................................................................24
3-4-10 Distance and bearing calculator .........................................................25
3-4-11 Projected course ..............................................................................25
3-4-12 Finding a chart symbol......................................................................25
3-4-13 Tracks & Log Settings in the chart window .........................................26
3-5 Sonar ................................................................................................ 27
3-5-1 Interpreting the display ......................................................................27
3-5-2 Mode ................................................................................................27
3-5-3 Single and Dual frequency fish finding .................................................28
3-5-4 Range...............................................................................................28
3-5-5 Gain .................................................................................................29
Installation and Operation Manual
6
3-5-6 Sonar window display.........................................................................30
3-5-7 No plit ..............................................................................................30
3-5-8 Split zoom and Full Screen zoom .........................................................31
3-5-9 Split bottom ......................................................................................31
3-5-10 Split 50/200.....................................................................................32
3-5-11 Split A-Scope ...................................................................................32
3-6 Highway ............................................................................................ 33
3-7 Gauges............................................................................................... 33
3-8 Waypoints ......................................................................................... 34
3-8-1 Creating a new waypoint ....................................................................34
3-8-2 Moving a waypoint .............................................................................34
3-8-3 Editing an existing waypoint................................................................34
3-8-4 Deleting a waypoint ...........................................................................35
3-8-5 Find a waypoint .................................................................................35
3-8-6 Sort Waypoints ..................................................................................35
3-8-7 Deleting all waypoints ........................................................................35
3-9 Routes ............................................................................................... 36
3-9-1 Managing a route from the chart window .............................................36
3-9-2 Managing a route from the route window...........................................37
3-10 Satellites ......................................................................................... 38
3-10-1 Satellite information .........................................................................38
3-11 Tides................................................................................................ 39
3-12 AIS................................................................................................... 40
3-12-1 Viewing AIS Vessels .........................................................................40
3-12-2 AIS Windows ...................................................................................40
3-13 DSC.................................................................................................. 42
3-13-1 1 distress ........................................................................................42
3-13-2 Poll .................................................................................................43
3-14 NAVTEX ........................................................................................... 44
3-15 Engine Faults................................................................................... 44
4 Settings ............................................................................ 45
4-1 System Configuration Settings ......................................................... 45
4-1-1 Language ..........................................................................................45
4-1-2 Chart Selection ..................................................................................45
4-1-3 Beep volume .....................................................................................45
4-1-4 Auto power .......................................................................................45
4-1-5 Features ...........................................................................................45
4-1-6 Factory reset .....................................................................................45
4-1-7 Unit information.................................................................................45
4-2 Chart Settings.................................................................................... 46
4-2-1 Rotation............................................................................................47

Installation and Operation Manual
7
4-2- Palette................................................................................................47
4-2-3-1 General (NAVIONICS)......................................................................47
4-2-3-2 General(S-MAP) ..............................................................................47
4-2-4-1 Land & Sea (NAVIONICS) ................................................................47
4-2-4-2 Land & Sea (S-MAP)........................................................................48
4-2-5 Map datum........................................................................................48
4-2-6 NMEA datum offset ............................................................................48
4-2-7 Map shift...........................................................................................48
4-2-8 Restore default ..................................................................................48
4-3 GPS Settings...................................................................................... 49
4-3-1 GPS Source .......................................................................................49
4-3-2 DGPS Source .....................................................................................49
4-3-3 Static Navigation................................................................................49
4-3-4 Speed Filter .......................................................................................49
4-3-5 Course Filter......................................................................................49
4-3-6 Lat/Lon d.p’s .....................................................................................49
4-3-7 Ship speed ........................................................................................49
4-3-8 Magnetic Variation .............................................................................49
4-4 Track & Log Settings ......................................................................... 50
4-4-1 Track ................................................................................................50
4-4-2 Log...................................................................................................50
4-5 Memory Settings ............................................................................... 51
4-5-1 Save .................................................................................................51
4-5-2 Load .................................................................................................51
4-5-3 Delete...............................................................................................51
4-5-4 Format..............................................................................................52
4-5-5 Screen Snap Shot ..............................................................................52
4-6 AIS Settings ...................................................................................... 52
4-6-1 Display Filter .....................................................................................53
4-6-2 Alarm Option .....................................................................................53
4-6-3 Display Option ...................................................................................53
4-6-4 Restore Default..................................................................................53
4-7 Alarm Settings................................................................................... 54
4-7-1 Deep ................................................................................................54
4-7-2 Shallow.............................................................................................54
4-7-3 Temperature .....................................................................................54
4-7-4 Temperature rate...............................................................................54
4-7-5 Low battery .......................................................................................54
4-7-6 Navigation alarms ..............................................................................54
4-7-7 AIS...................................................................................................54
4-7-8 DGPS................................................................................................54
4-7-9 Restore default ..................................................................................54
4-8 Others................................................................................................ 55
4-8-1 Simulate ...........................................................................................55
4-8-2 Waypoint ..........................................................................................55
4-8-3 GPS ..................................................................................................55
4-8-4 Units.................................................................................................55
4-8-5 Comms. ............................................................................................55
4-8-6 Time.................................................................................................55
Installation and Operation Manual
8
4-8-7 Restore default ..................................................................................55
5 INSTALLATION ................................................................. 56
5-1 Options and Accessories........................................................................... 56
5-2 Connections .............................................................................................. 57
5-3 Power / Data Cable .................................................................................. 57
5-4 GPS Antenna ............................................................................................. 57
5-4-1 External Antenna ...............................................................................57
5-4-2 The Antenna by using NMEA ...............................................................58
5-5 Sonar......................................................................................................... 59
5-6 NMEA 0183 ............................................................................................... 59
5-7 Setup and Test.......................................................................................... 59

Installation and Operation Manual
9
1-1 General Information
The chart plotter is a precision-crafted GPS
chart Plotter with high-performance receiver
for the Global Positioning System
constellation of satellites, providing precise
location data with a host of navigation
features. Some functions require optional
units and sensors installed on your boat.
The chart plotter can be connected to
external devices with NMEA0183 and
NMEA2000 interface and display information.
Following are the examples.
•NAVTEX
•AIS receiver
•DSC VHF radio
•Transducer & sensors
•Autopilot
1-2 Specification
[N430, NF430]
GENERAL
Category
Detail
Size
129 mm(H) x 183 mm(W) x 113.5 mm(D)
Display
4.3 “Diagonal, TFT color, 480 x 272 pixels
Supply Voltage
10 ~ 35 V DC
Supply Current
N 430
NF 430
13.8 V
130 mA - LCD no backlighting.
240 mA - full backlighting.
13.8 V
270 mA –LCD no Backlighting
400 mA –LCD full backlighting
Operating temperature
-10° ~ 50°C
ALARMS
User set:Arrival radius, anchor, XTE, danger, low battery, loss of DGPS fix, dangerous AIS vessels.
GPS NAVIGATION
Chart card
NAVIONICS SD Card
User card
SD Card
Waypoints
Up to 10,000, with default or user defined alphanumeric names up to
eight characters.
Routes
100 Routes, with up to 100 points each
Tracks
By time or distance, 10 track of 15,000 points
Chart datums
216 Chart datums, One user-defined map shift.
Chart scale
0.2 to 500 nm for chart (chart dependent) down to 0.005 nm in plotter
mode.
COMMUNICATIONS
NMEA
NMEA 0183 baud : 4800, 9600, 38400
NMEA 0183 Inputs from
compatible instruments
DBK, DBS, DBT, DPT, GGA, GLL, GNS, GGA, GSV, HDG, HDT, MDA,
MTA, MTW, MWD, MWV, RMC, RPM, VHW, VTG, VWT, ZDA
NMEA 0183 Outputs, for
compatible instruments
APA, APB, BWR, GGA, GLL, GSA, GSV, RMB, RMC, VTG, XTE, XDR,
ZDA, PLT
NMEA 2000 Outputs, for
compatible instruments
Water Speed(128259), Water depth(128267), XTE(129283), NAV.
data(129284), NAV. data(129285), COG & SOG(129026), GNSS
position(129029), Water temp.(130310)
1 Introduction
Installation and Operation Manual
10
1-3 Packing List
Item List
Part number
N430
NF430
Display
N430-E
NF430-E
Bracket
N430-DB
Display Cover
Z8-2M-05
Bracket mounting screw
N430-BP
Protection Cover
N430-CB
User’s Manual(E)
N430-ME
Quick User Guide(E)
N430-BE
GPS Antenna Stand type Support
57745
GPS Antenna +
GPS Antenna Support
SAN-60-10
Fuse
527-2002-1Q
P7 or P23
X
P7 or P23
1-4 Optional Accessories
Model
Part number
Item List
Flush mount Kit
(Including screw)
N430-TK
Ο(OPTION)

Installation and Operation Manual
11
2-1 Installation
The chart plotter is supplied with bracket and flush mounting kit. You can choose a method of
installation according to your preference.
2-1-1 Bracket Mounting
Before installing ensure the area the bracket is mounted to is strong enough to support the
weight of the GPS chart plotter. After the location is found, attach the mounting base to the
area using the supplied hardware.
Mounting the display Unit:
1 Hold the display unit and find a groove
joint between the display unit and
bracket.
2 Gently push the display unit into the
groove of bracket
3 Turn the knob to clockwise to lock.
Removing the display unit:
1 Turn the unit off
2 Turn the knob to counter clockwise and
pull the display unit out.
2-1-2 Flush Mounting
1 Find a location for flush mounting.
2 Drill a hole in the area of the cutout area
for the blade of jig saw.
3 insert and cut out the area on the panel
using the jig saw
4 Drill four holes for mounting studs.
5 Install the mounting studs on the chart
plotter and insert them into the mounting
hole.
6 Attach the chart plotter to the mounting
location by attaching the supplied
hardware to the mounting studs.
Note
1 If you flush mount, you need the optional external
GPS antenna.
2 Before Drilling holes make sure there is enough
space to mount the chart plotter there is no
obstructions.
2 Getting Started
Installation and Operation Manual
12
2-2 Keys
ESC –Exit from menu and return to previous
menu or window. In chart window, it
places own ship at center. (If press and
hold ESC in chart window, you can access to
track option)
PAGE –Show main windows and allow you to
setup displays as you like.
CURSOR –Moves the cursor on the display screen.
-–zoom out to multiple chart level.
POWER –Turns power on/off. Opens display
Brightness, Night mode and settings.
SD Card –Open the cover to install SD card.
(SD 2GB is not available.)
MENU –Show available options of current
window.
ENT –Select the desired option or to (If press and
hold ENT in chart window, you can access to mark
option.)
+- zoom in to multiple chart level.

Installation and Operation Manual
13
2-3 NAVIONICS SD Card
This section provides instructions for inserting
and removing NAVIONICS SD card
procedure.
Inserting the SD Card
1 Hold the SD card so that you can
see the NAVIONICS label.
2 Open the door, gently push the SD card
into the slot; push the SD card in as far as
you hear click sound, then close door.
Removing the SD Card
1 Turn off the unit.
2 Open the door and push in on the SD card
until it is released.
3 Close the door.
Insert NAVIONICS SD card
correctly.
(DO NOT FORCE)
Close SD card door firmly all
the times.
Do not remove SD card
during reading and writing.
2-4 Chart Selection
A user can select a map between NAVIONICS
and S-MAP.
A user can select a map as follow instruction,
Chart Selection
1 Press and hold .
2 Select the system setting icon.
3 Select Chart then a chart you prefer.
NAVIONICS SD is optional.
User can purchase it
themselves or contact
Samyung agent for
purchasing.
2-5 Simulate Mode
Simulate Mode is great for practicing the
actual use of a product when the satellites
signals and internal alarms are not available.
In the simulate mode, the unit turns the GPS
receiver off and ignores data from all optional
devices..
Two simulate modes are available as below.
•Normal: Allows a user to practicing the
actual use of a product without satellites
connection.
•Demo: boat travel alone given route at
given speed and show different
function of the unit.
Do not try to navigate in a
simulate mode. While the
simulate mode is turned on,
the GPS receiver is not
active.
2-6 Data Bar
Installation and Operation Manual
14
Data bar displays useful navigation
information at the top of the display.
Displaying Data bar
1 Press and select Data bar.
2 Select Data bar.
Setting the data displayed in data
bar
1 Press and select Data bar.
2 Select Data bar then Data bar setup.
3 Move the cursor key to highlight the
data field you want to change then
press .
4 Select Data type.
5 Select a desired data you want to
display in the field then press .
6 Repeat above steps if necessary.
Selecting the Data bar size
1 Press and select Data bar.
2 Select Data bar then Data bar size.
3 Select the desired size of data bar.
[Large]
[Small]
Tip:If you select None for all data fields, the
data bar will disappear to save space for the chart.
Tip: Even though you setup a data bar for
specific window, the data bar is not apply to all
other window.

Installation and Operation Manual
15
2-7 Compass
The chart plotter computes compass direction
from the constellation of GPS satellites. For
the GPS chart plotter to compute direction
the vessel must be moving through the
water..
For easy reading and recognition, there is a
compass needle at top right side.
When the compass is displayed, COG is
always displayed in data field.
Also when you are navigating to a point, COG
and BRG is always displayed in data bar.
Tip
COG(Course Over Ground) –The course you
vessel is heading.
BRG(Bearing) –The direction from your
current position to a destination point.
To turn the compass off or on:
1 Press and select Data bar.
2 Select Compass.
Installation and Operation Manual
16
2-8 Multi Window Display
The Chart plotter can display up to four
windows at the same time.
Adding a window
1Press and select Add icon.
2 Select an icon you want to add.
3 Repeat above steps if necessary.
Changing window size
1 Press and select Split icon on
bottom.
2 Press or to change the height of
the windows if there is only two windows. If
the unit is displaying more that three
windows, press , , or to
change the height of the windows.
Deleting a window
1 Press and hold to select a window
you want to delete.
2 Press and select Remove icon to
remove.
Replacing two windows on the
display
1 Press and hold to active desired
window you want to replace.
2 Press , select Replace icon.
3 Select icon you want to display then press
.

Installation and Operation Manual
17
Active Window
To distinguish an active window among windows, an orange border indicates the active
window. To change the active window to the next window, press and hold .
It is important to notice which screen is on due to the multi screens which can be used
each screen’s function.
Favorite displays
The most commonly used windows are called favorite displays and up to six favorite windows
can be saved. Also each favorite display can have data bar and compass.
Displaying a favorite display
1 Press twice.
2 when above window pops up select a desire display you want.
Adding a favorite display
1 Organize a window as you want.
2 Press to show the main window.
3 Select Save icon at the bottom
4 Select an icon where you want to add your favorite display. If you add the new favorite
display on existing favorite display new display will overwrite the old display.
Installation and Operation Manual
18
3-1 Power on and off
Manual power on
Press and hold until the display shows
the start up page. When the Warning screen
appears, press to accept.
Manual power off
Press and hold for 5 seconds. A counter
timer appears on the screen, if you release
the button before the countdown timer
reaches zero, the chart plotter will remain On.
3-2 Brightness, night mode and Background
You can change the screen setting for the
display. To change settings, shortly press .
Brightness
To change the brightness, select
Brightness, and press to dim or to
brighten.
Press to return to the previous
screen.
Night mode
The chart plotter has preprogrammed
settings allowing you to customize the look of
the Chart window. The default is daytime
view. Select Night mood depending on what
mode the display is in at the time of
selection.
To change mode:
1 Highlight Night mode.
2 Press or .
Tip:The screen will be difficult to read if
the chart plotter is in night mood when the
sun is too bright
Background
You can Changes the background color if
necessary. This selection is a personal
preference. Select the option that gives you
the clearest viewing in your weather
conditions and viewing angle.
3 General Operation

Installation and Operation Manual
19
3-3 The page window
Press to show the page window and select a function icon you want to display.
Note
1 Some function icons require optional units and
connected sensors.
2 If you press one more time in the main
window, favorite window is displayed.
Installation and Operation Manual
20
Waypoints
Data
AIS
Satellite
Tides
DSC
Navtex
Engine Faults
Chart
Sonar
Highway
Routes
