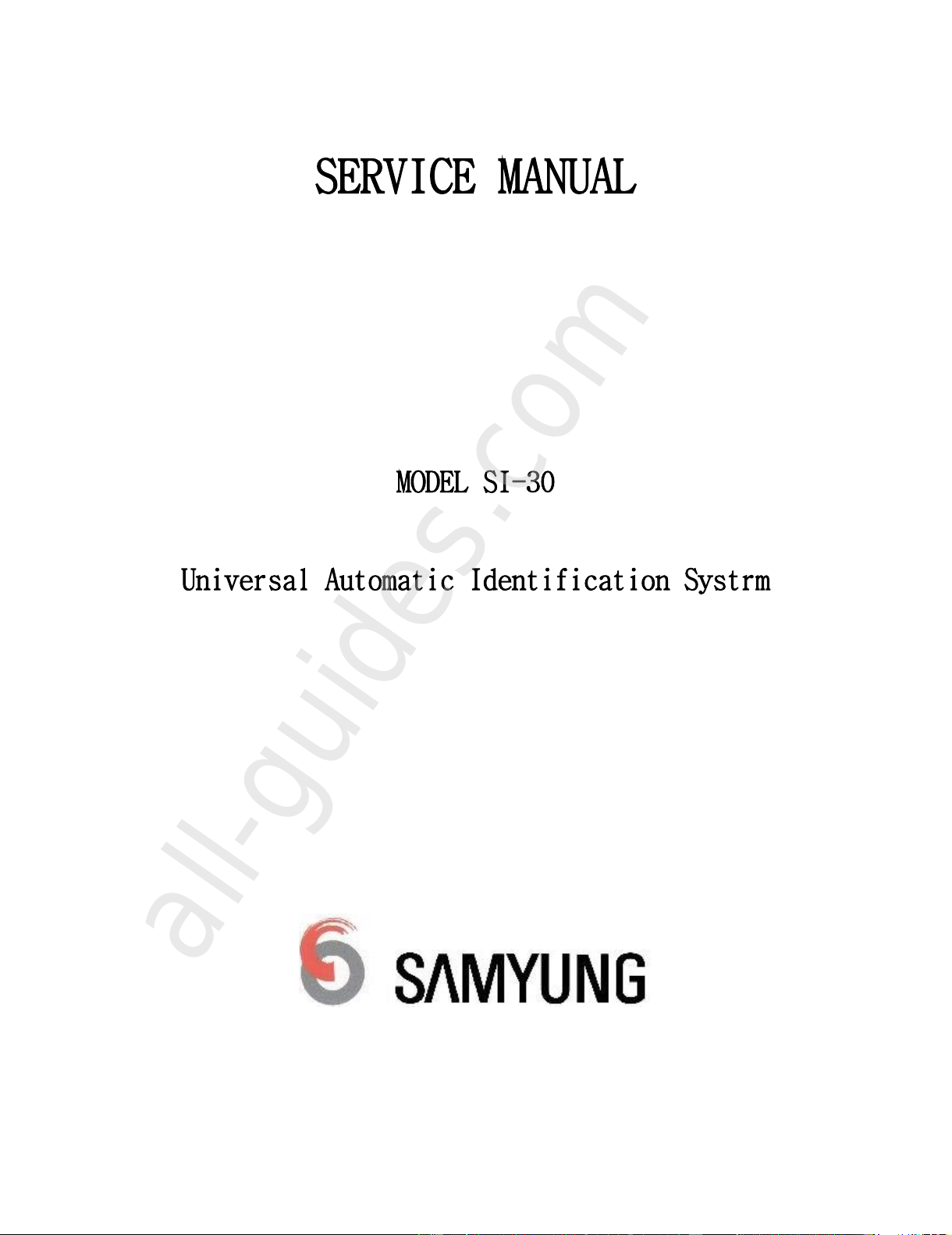

SERVICE MANUAL
MODEL SI-30
Universal Automatic Identification Systrm
All manuals and user guides at all-guides.com
all-guides.com

1 Summary Description:

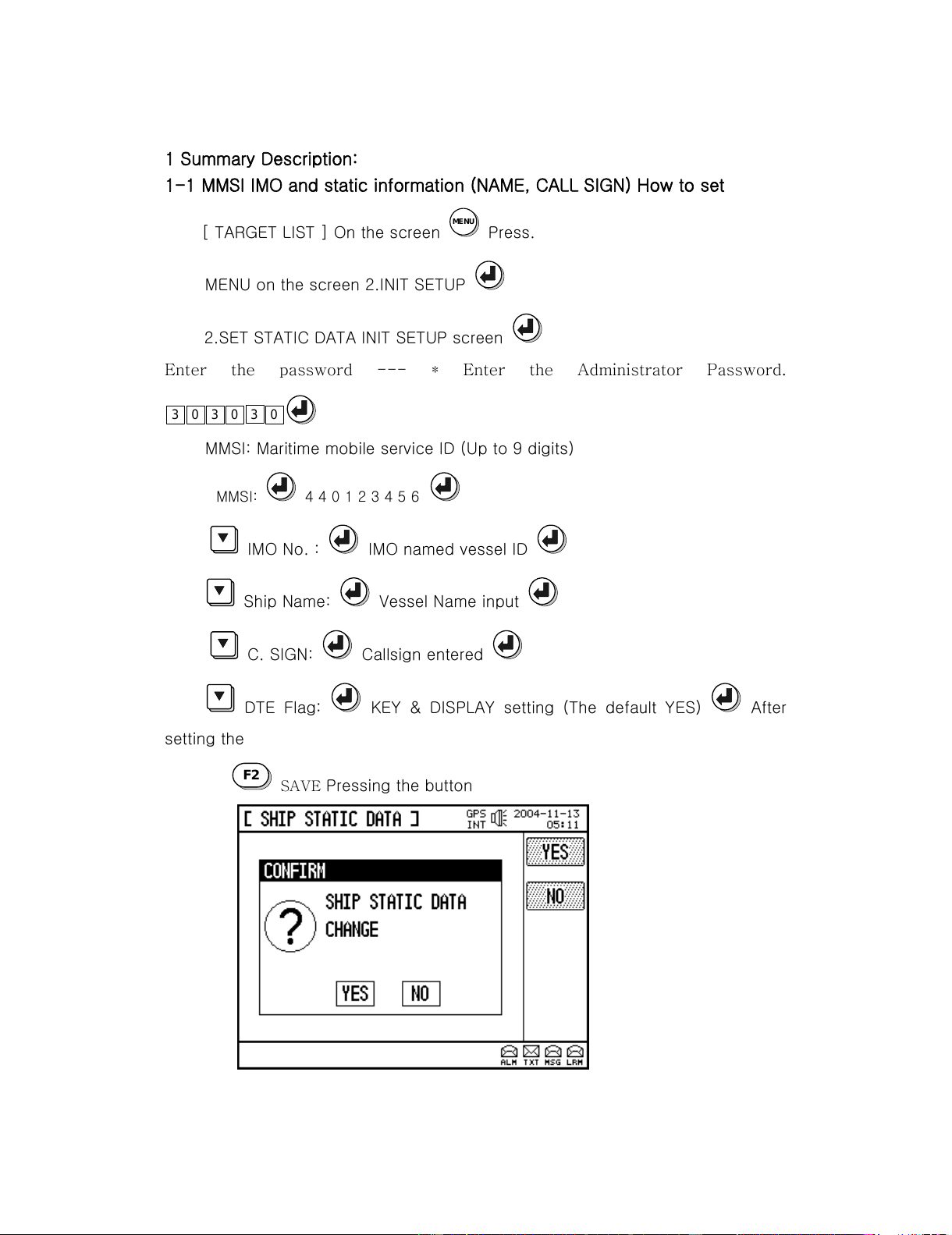

1-1 MMSI IMO and static information (NAME, CALL SIGN) How to set
[ TARGET LIST ] On the screen
MENU
Press.
MENU on the screen 2.INIT SETUP
2.SET STATIC DATA INIT SETUP screen
Enter the password --- * Enter the Administrator Password.
303030
MMSI: Maritime mobile service ID (Up to 9 digits)
MMSI: 4 4 0 1 2 3 4 5 6
IMO No. : IMO named vessel ID
Ship Name: Vessel Name input
C. SIGN: Callsign entered
DTE Flag: KEY & DISPLAY setting (The default YES) After
setting the
F2
SAVE Pressing the button
All manuals and user guides at all-guides.com

Store if you want
F1
YES Press the button and the information is stored.
1-2 GPS ANT How to set the position
[ TARGET LIST ] On the screen
MENU
Button, then press the MENU screen high 2.INIT SETUP
INIT SETUP screen. SET GNSS ANTENNA POSITION
Enter the password --- * Enter the Administrator Password.
303030
The meaning of the Internal describe the internal GPS function, and the right of
external Refers to the location of an external GPS antenna.
How to enter Button or Use the buttons to move each item,
Button is pressed, the existing information is cleared and new information can be
entered.
All manuals and user guides at all-guides.com

Store if you want
F1
YES Press the button and the information is stored.

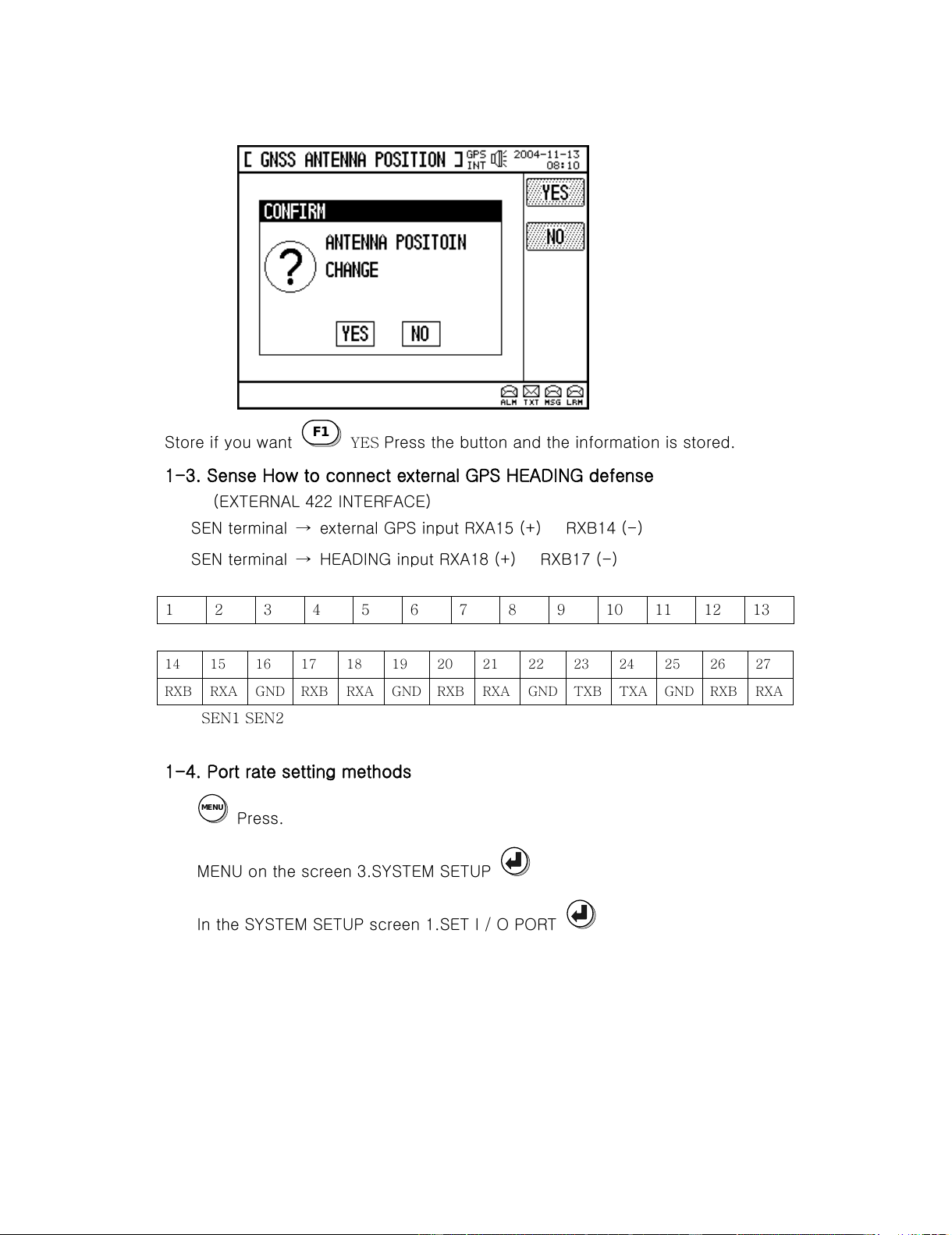

1-3. Sense How to connect external GPS HEADING defense
(EXTERNAL 422 INTERFACE)
SEN terminal →external GPS input RXA15 (+) RXB14 (-)
SEN terminal →HEADING input RXA18 (+) RXB17 (-)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
RXB
RXA
GND
RXB
RXA
GND
RXB
RXA
GND
TXB
TXA
GND
RXB
RXA
SEN1 SEN2
1-4. Port rate setting methods
MENU
Press.
MENU on the screen 3.SYSTEM SETUP
In the SYSTEM SETUP screen 1.SET I / O PORT
All manuals and user guides at all-guides.com

Each Itemized Port The definition As follows: Like.
1 GPS: Inside GPS Transfer rate(Internal GPS Baud Rates)
2 SEN1: Sensor Port1
3 SEN2: Sensor Port2
4 SEN3 Sensor Port3
5 SEN4: Reserved
6 LONG: Long Range Port
7 AUX AUXILIARY Port
8 SPARE: Not Used
9 MKD: Transponder and MKD Between Transfer rate
10 GPS DIFF: DGPS Port
Each I / O Port and Relevant Transfer rate of Setting With an external device Deep
Relationship Have.Namely Again Words External Of the device Transfer rate to
According MKDOf Each Port of Rate Set value Is determined Will.For example, For
Inside GPS Board of Transfer rate 38400If MKD I / O Port settings 38400By Settings
Be GPS Board and MKDBetween Communication Done.
Each Port of Transfer rate of Changes Button Or Button By Corresponding
Item By moving Button Pressing Choose Number In Transfer rate Will be
displayed, Button Or Button By Selected Next Button Pressing Is.All
Transfer rate of
All manuals and user guides at all-guides.com

Modification Upon completion
F2
SAVE button is pressed, the following screen will be
displayed Save
Wonhalttaeneun
F1
When you do not want to save the YES button,
F2
Press the NO
button.
1-5. How to Change Your Password
SYSTEM SETUP Mode Button By SET PASSWORDBy To move Next
Button If you press Under Screen Emerges.
Password Changes Gun6Place To enter NumberAnd The procedure As follows: Like.
Button OLD PASSWORD In place Place Button Pressing Past Number
Password To enter Number Have.Password Mistake Is entered After entering the
Button Using
NEW PASSWORDBy Move Time Password is wrong....Message Emerges.
NEW PASSWORD Item After moving Button And then New Password Entered
Next Button Press Button By CONFIRM NEW PASSWORD Item After
moving Button Pressing Again New Password Input and Again Button
All manuals and user guides at all-guides.com
all-guides.com

Press
F2
SAVE Button Pressing Under Screen Appears.
Changes If you want
F1
YES Button,Any If
F2
NO Button Pressing Each
Is performed
*[ TARGET LIST ] On the screen
.*
=+/-
BRIGHTNESS by pressing the button and adjust
0
----
The Night Mode button is pressed, the screen is switched to
,#
!?&
Adjust the CONTRAST button is pressed.
2 CPA alarm settings
All manuals and user guides at all-guides.com

CPA Alarm Setting up In order
Use COG instead of heading
CPAA Selection and Button Press the Check
CPA / TCPA: CPA (Closest Point to Approach)AOther Ships and Charity Approach Be
Most Close Point Say, TCPAA CPAIn To reach Until Time Means.
t3
t3
t2
t2
t1
t1
Target
10 knot
O wn
5 knot
Over In the figure, Charity(Own)And Other Marine(Target)This Each 5 knotWith 10
knotOf At a rate Movement Is Time Each On time According Two Spot Between
Distance Available Number Have.Time t1,t2,t3,...,tnDay Time Each Between the
points Distance Ask Time t3From Two Point Most Nearing the Egg Number Have.This
When Point CPAThe And CPATo To arrive Hours, t3The TCPAThe Is.
All manuals and user guides at all-guides.com

Display Is.

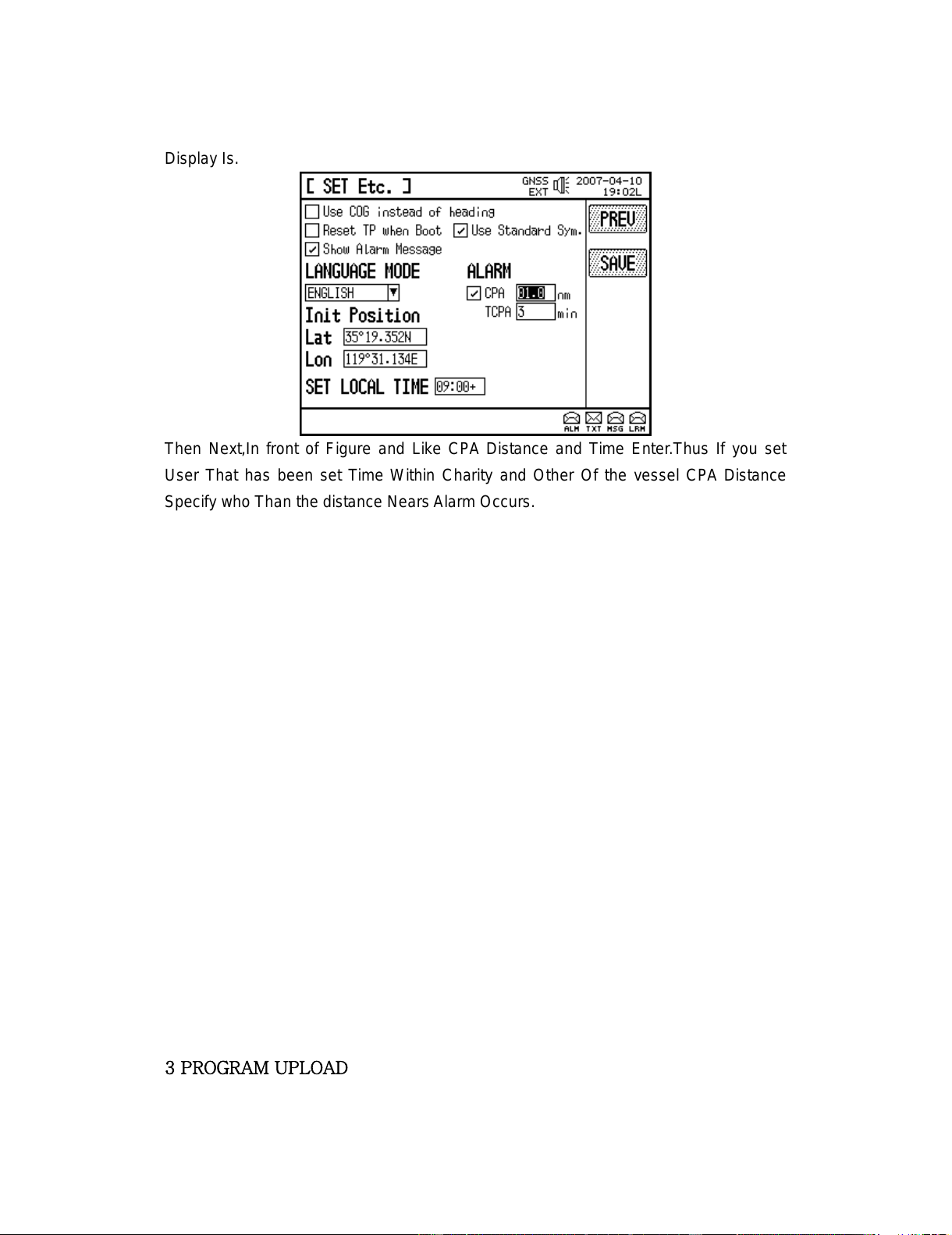

Then Next,In front of Figure and Like CPA Distance and Time Enter.Thus If you set
User That has been set Time Within Charity and Other Of the vessel CPA Distance
Specify who Than the distance Nears Alarm Occurs.
3 PROGRAM UPLOAD
All manuals and user guides at all-guides.com

Program Upload a MKDA By Transponder Or Other MKD Program Upgrade to Is
a function.Upload How Below Like.

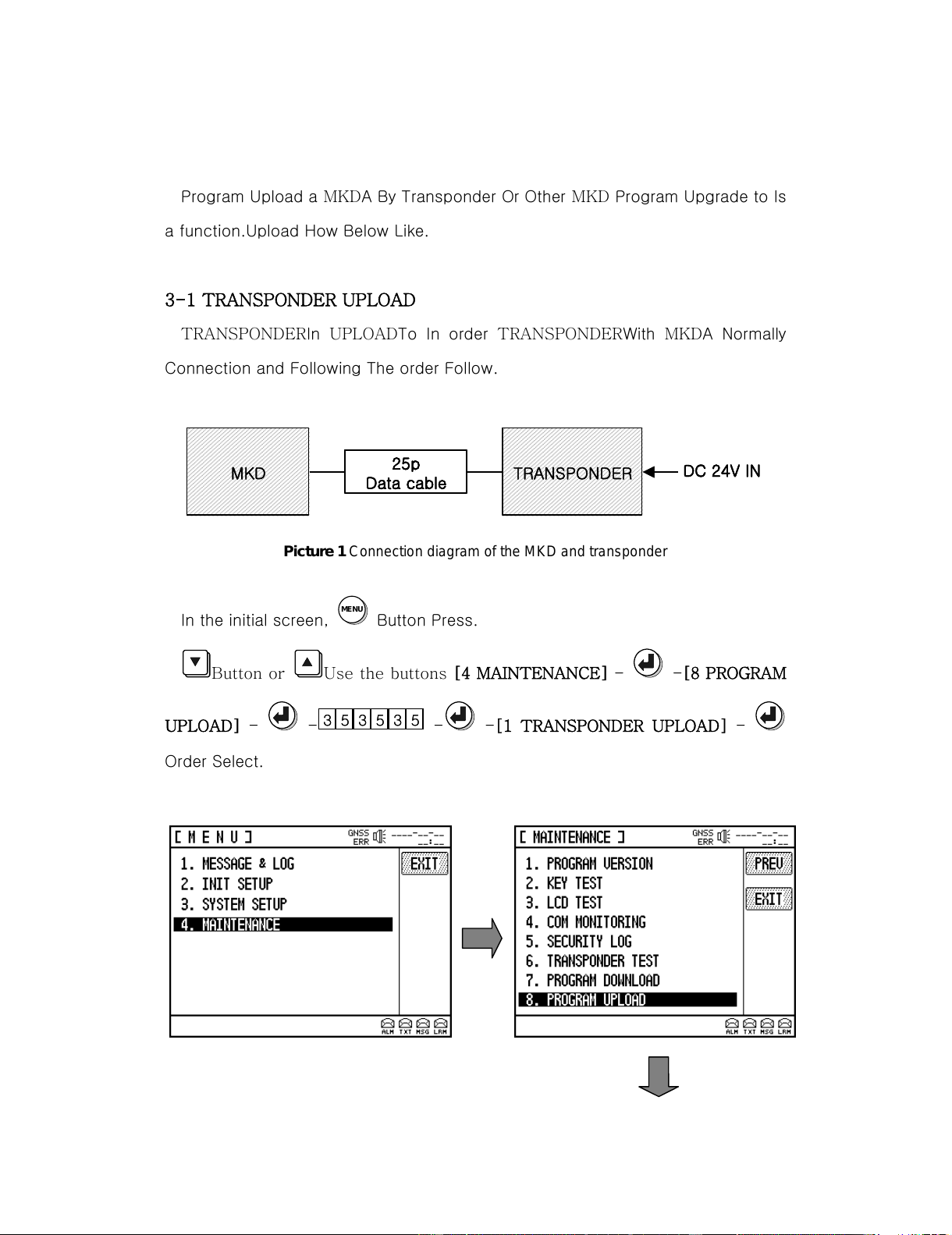

3-1 TRANSPONDER UPLOAD
TRANSPONDERIn UPLOADTo In order TRANSPONDERWith MKDA Normally
Connection and Following The order Follow.
MKD 25p
Data cable TRANSPONDER DC 24V IN
MKD 25p
Data cable TRANSPONDER DC 24V IN
Picture 1 Connection diagram of the MKD and transponder
In the initial screen,
MENU
Button Press.
Button or Use the buttons [4 MAINTENANCE] - -[8 PROGRAM
UPLOAD] - -
3 5 3 5 3 53 5 3 5 3 5
--[1 TRANSPONDER UPLOAD] -
Order Select.
All manuals and user guides at all-guides.com

[TRANSPONDER UPLOAD]A Selection and Once Following Screens
Sequentially Will be displayed Upload Progress is.Stage,Upload Among the
Necessarily Transponder and MKDOf Power Turned off, or Connection Unbroken So
that Note.

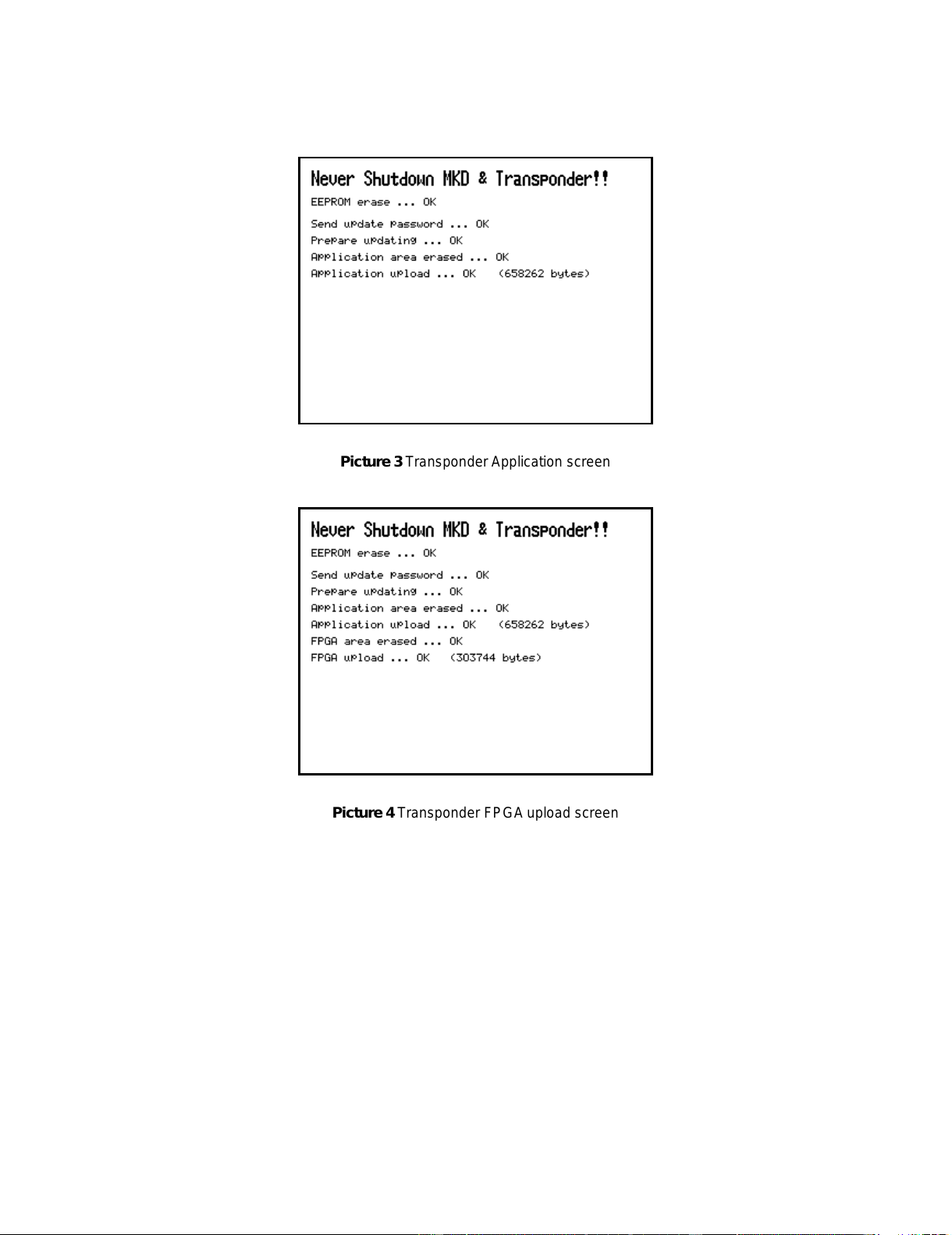

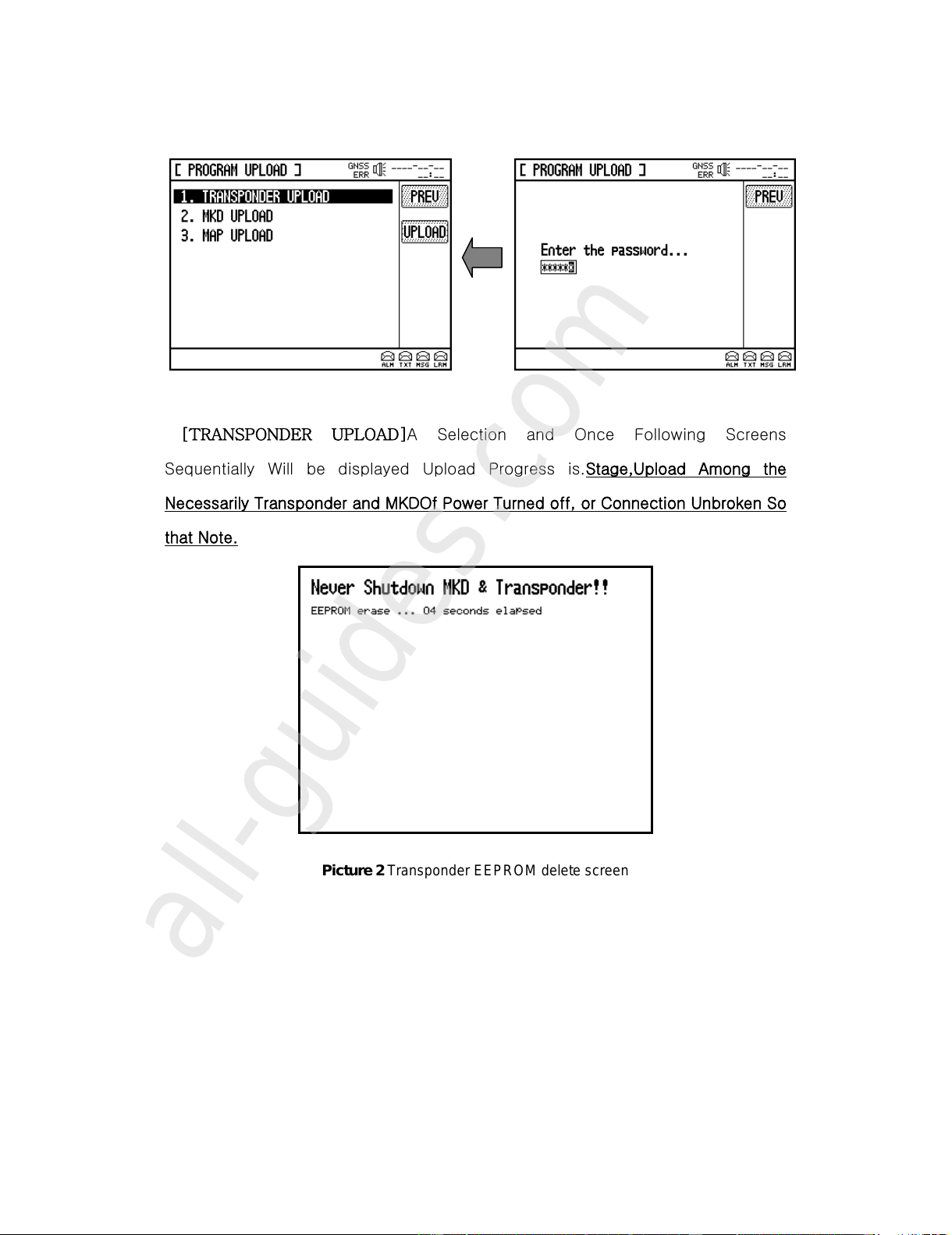

Picture 2 Transponder EEPROM delete screen
All manuals and user guides at all-guides.com
all-guides.com

Picture 3 Transponder Application screen
Picture 4 Transponder FPGA upload screen
All manuals and user guides at all-guides.com

Picture 5 Transponder After uploading complete standby screen
Upload After Under Screen Appears MKDA "Beep~" Sound Continue Ringing.At
this time, MKDOf No Kina Press throw Restarts the When the Upload a Is
completed.
Picture 6 Transponder Upload is complete, the screen
All manuals and user guides at all-guides.com

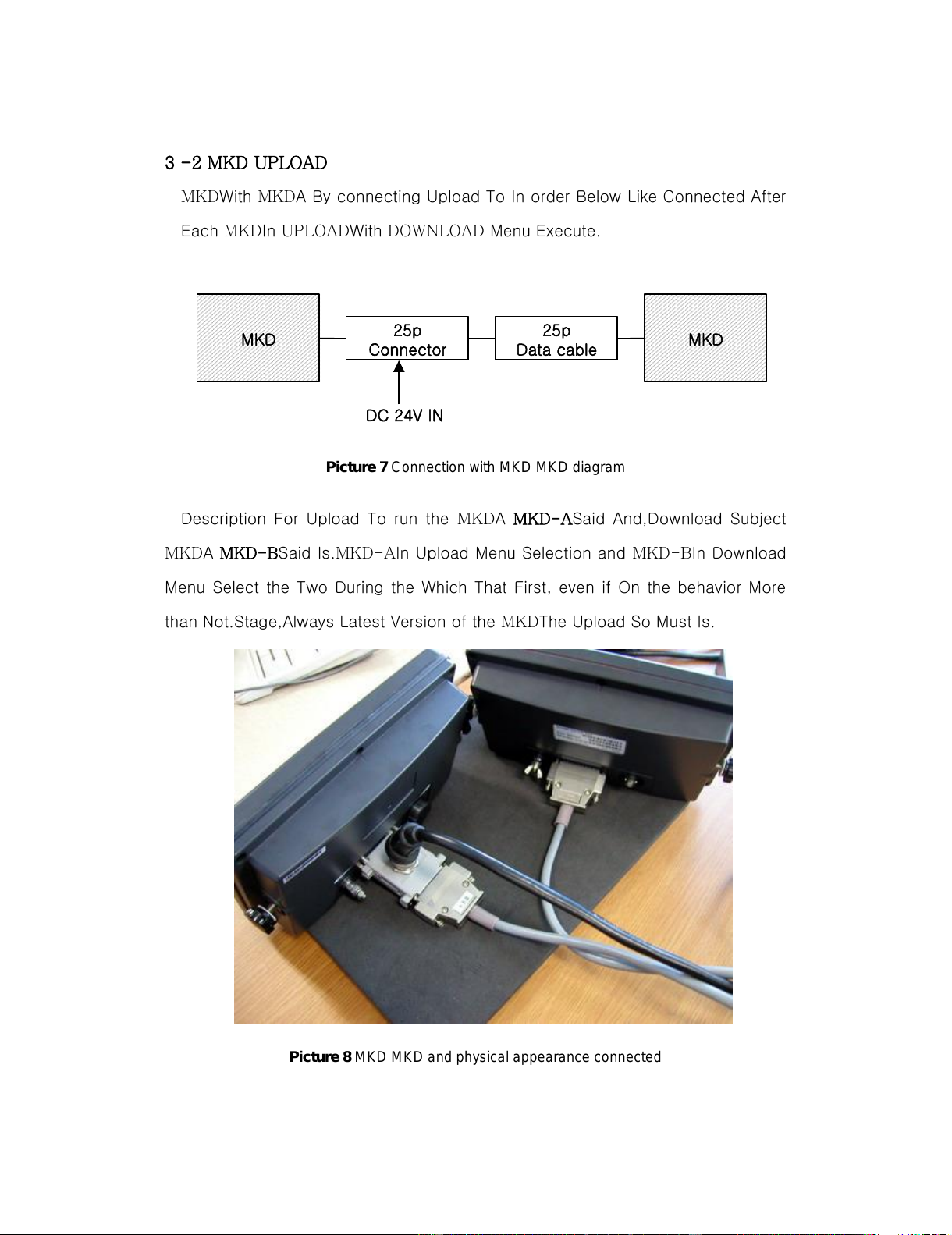

3 -2 MKD UPLOAD
MKDWith MKDA By connecting Upload To In order Below Like Connected After
Each MKDIn UPLOADWith DOWNLOAD Menu Execute.
MKD MKD
25p
Data cable
25p
Connector
DC 24V IN
Picture 7 Connection with MKD MKD diagram
Description For Upload To run the MKDA MKD-ASaid And,Download Subject
MKDA MKD-BSaid Is.MKD-AIn Upload Menu Selection and MKD-BIn Download
Menu Select the Two During the Which That First, even if On the behavior More
than Not.Stage,Always Latest Version of the MKDThe Upload So Must Is.
Picture 8 MKD MKD and physical appearance connected
All manuals and user guides at all-guides.com

Connector on the Connect When Upload/Download to Regardless of Both
Which It anywhere MKDA Connect Is.Connector Power Connection DC 24VA Is
used(Transponder Power AS When you use Is)
1) MKDOf Upload/Download Methods of Full Survey
MKDWith MKD Between Upload/Download How Below Like.

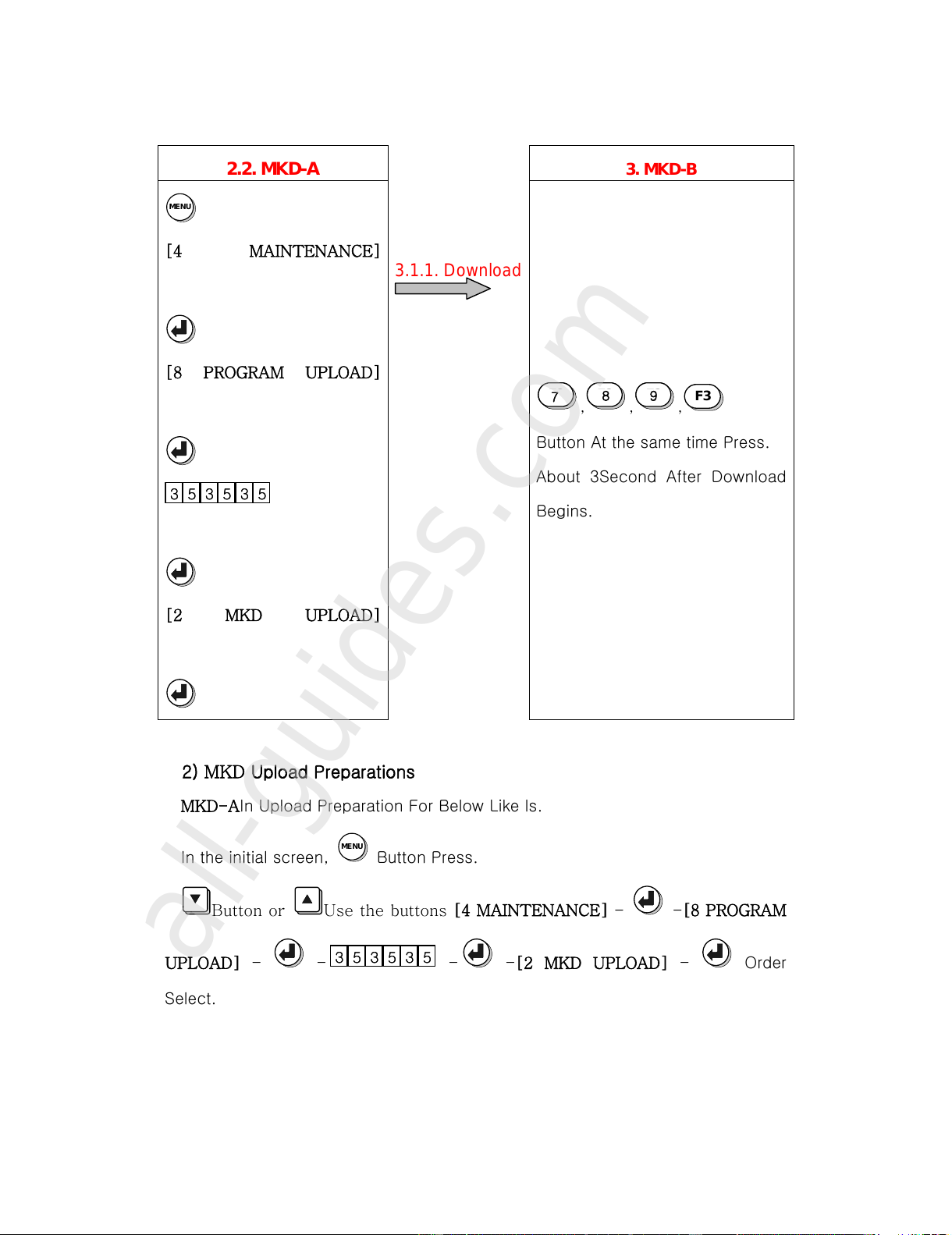

a. New MKD (Version 5.04 More than)
1.1. MKD-A
2. MKD-B
MENU
[4 MAINTENANCE]
[8 PROGRAM UPLOAD]
3 5 3 5 3 53 5 3 5 3 5
[2 MKD UPLOAD]
2.1.1. Download
MENU
[4 MAINTENANCE]
[7 PROGRAM DOWNLOAD]
b. Sphericity MKD (Version 5.04 Under)
All manuals and user guides at all-guides.com

2.2. MKD-A
3. MKD-B
MENU
[4 MAINTENANCE]
[8 PROGRAM UPLOAD]
3 5 3 5 3 53 5 3 5 3 5
[2 MKD UPLOAD]
3.1.1. Download
F3F3
7
,
F3F3
8
,
F3F3
9
,
F3
Button At the same time Press.
About 3Second After Download
Begins.
2) MKD Upload Preparations
MKD-AIn Upload Preparation For Below Like Is.
In the initial screen,
MENU
Button Press.
Button or Use the buttons [4 MAINTENANCE] - -[8 PROGRAM
UPLOAD] - -
3 5 3 5 3 53 5 3 5 3 5
--[2 MKD UPLOAD] - Order
Select.
All manuals and user guides at all-guides.com
all-guides.com

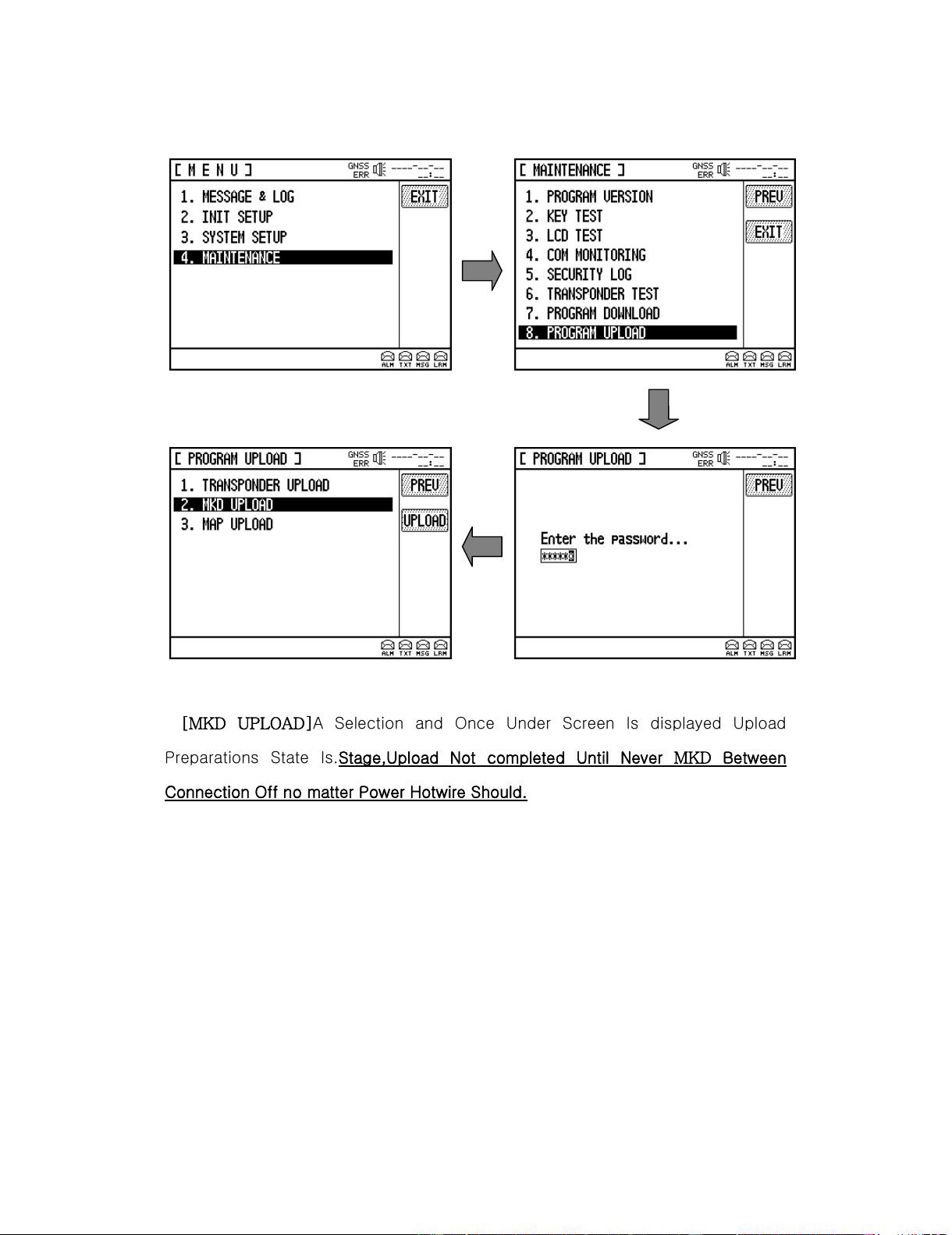

[MKD UPLOAD]A Selection and Once Under Screen Is displayed Upload
Preparations State Is.Stage,Upload Not completed Until Never MKD Between
Connection Off no matter Power Hotwire Should.
All manuals and user guides at all-guides.com

Picture 9 MKD ready to upload screen
Picture 10 Associated with MKD to download and upload is in progress, the screen
3) MKD Download Preparations(New)
MKD-BIn Download Preparation For Below Like Is.
In the initial screen,
MENU
Button Press.
Button or Use the buttons [4 MAINTENANCE] - -[7 PROGRAM
DOWNLOAD] - Order Select.
MKD-A
MKD-A
All manuals and user guides at all-guides.com

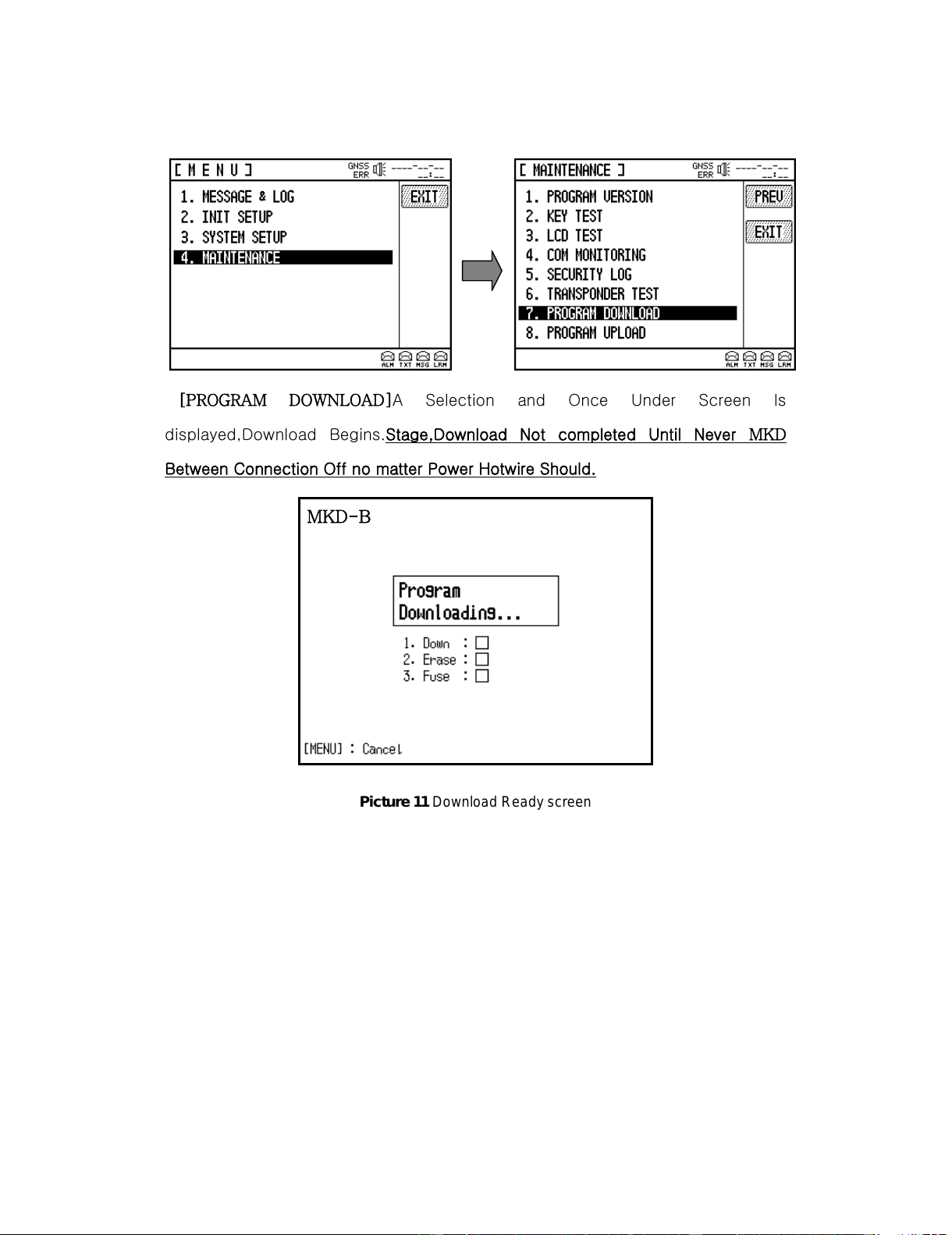

[PROGRAM DOWNLOAD]A Selection and Once Under Screen Is
displayed,Download Begins.Stage,Download Not completed Until Never MKD
Between Connection Off no matter Power Hotwire Should.
Picture 11 Download Ready screen
MKD-B
All manuals and user guides at all-guides.com

Picture 12 Download Screen to delete the ROM after MKD
Picture 13 Download Received in the ROM to record screen
MKD-B
MKD-B
