Sanji Dx120 series User manual

USER INSTRUCTIONS
DX120i DX120iHJ PG1
The Dx120 series represents a milestone in affordable vehicle
security design. Sanji have incorporated the most up to date
technology to improve performance and long term reliability.
Manufactured to full international ISO 9001 and SABS quality
standards. Please read these instructions for correct system
operation.
Points marked with the * are applicable to the DX120iHJ
version only
4) ALARM ARMED
MODE
During alarm
armed mode
the dash led
will flash
slowly.
The immobiliser, doors and
ignition are now fully
armed. If a door is opened
or ignition is turned on,
the system will trigger,
siren will sound for 35
seconds, then go back to
alarm armed mode.
Dash led
flashing
slowly
3) ALARM DELAY
PERIOD
The alarm
delay period is
30 seconds.
During the alarm delay
period the dash led will
flash rapidly. The
immobiliser is armed,
however the doors and
ignition are not armed at
this point. After 30
seconds, the dash led will
flash slowly, doors and
ignition are now armed.
Dash led
flashing
rapidly
2) DOOR WARNING
CHIRPS
Door warning
chirps.
When you set the alarm,
if a door is open, you will
get 2 loud chirps warning
the user that a door is
open.
1) SETTING THE
ALARM
to enable the
immobiliser
and full
alarm
features.
Press the double dot
button (right button), the
unit will sound 2 chirps
and the indicators will
flash twice. If fitted with
central locking the doors
will lock.
to reset the
immobiliser
and full
alarm
features.
Press the single dot
button (left button), the
unit will sound 1 chirp
and the indicators will
flash once. If fitted with
central locking the doors
will unlock. The dash led
will go off.
6) RESETTING
THE ALARM
Trip chirps on
reset.
If the alarm tripped when
the user was not present.
When you reset the alarm,
the unit will sound
4 chirps.
7) TRIP CHIRPS
5) ALARM ARMED
CONFIRMATION
To confirm
alarm armed
mode.
Press the double dot
button, the indicators will
flash once to confirm that
the alarm is fully set.

USER INSTRUCTIONS
DX120i DX120iHJ PG2
15) ACTIVATING
HI-JACK
MODE
to activate
hi-jack.
In drive open then close
driver’s door. If all doors,
bonnet and boot are closed
the dash led will give a
1 second pulse. The unit is
now in countdown phase. If
you turn ignition off and
press the right button to
set the alarm, the unit will
sound 4 loud chirps.
8) IMMOBILISER
DELAY PERIOD
Dash led
off
The
immobiliser
delay period
is 60 seconds.
The dash led will be off.
The car is not immobilised
during this period. If the
double dot button is
pressed the unit will set
the alarm (refer to point1).
12) REMOTE
PANIC
to enable the
siren to
sound and the
indicators to
flash under
emergency
conditions.
Press either button
continuously for 3 seconds
in any mode. When in Panic
the vehicle can be driven.
To reset panic, press the
left button.
Dash led
on solid
11) IMMOBILISER
ARMED MODE
The car is now
immobilised.
The dash led will be on
solid. If the single dot
button is pressed, the
immobiliser will be reset,
the dash led will turn off.
If the double dot button is
pressed, the unit will set
the alarm.
If ignition is on, the dash
led will flash, press either
button to reset the
immobiliser.
10) LOCK AND
UNLOCK VIA
REMOTE
To lock and
unlock in
drive.
In drive, press the left
button to unlock and the
right button to lock the
doors.
When ignition is turned off
from drive, if you press the
left button you can also
unlock the doors.
unlock
Lock
13) HI-JACK
SERVICE
MODE
to temporarily
disable hi-jack.
In the immobiliser delay
period, (ignition and dash
led off), press both buttons
simultaneously, the siren will
chirp once. The hi-jack is
now disabled.
To reactivate hi-jack repeat
the about procedure, the
unit will chirp twice.
Dash led
off
14) OPERATION
IN HI-JACK
SERVICE
MODE
to show the
user that the
unit is in
hi-jack service
mode.
When the ignition is turned
on to drive, driver’s door
must be closed, the unit will
flash the indicators once as
a warning that the unit is in
the hi-jack override
condition.
9) LOCK ON
START
Lock on start
in drive.
In the immobiliser delay
period if ignition is turned
on, after 4 seconds the
doors will lock (if fitted
with central locking).
*
*
*
*
*

USER INSTRUCTIONS
DX120i DX120iHJ PG3

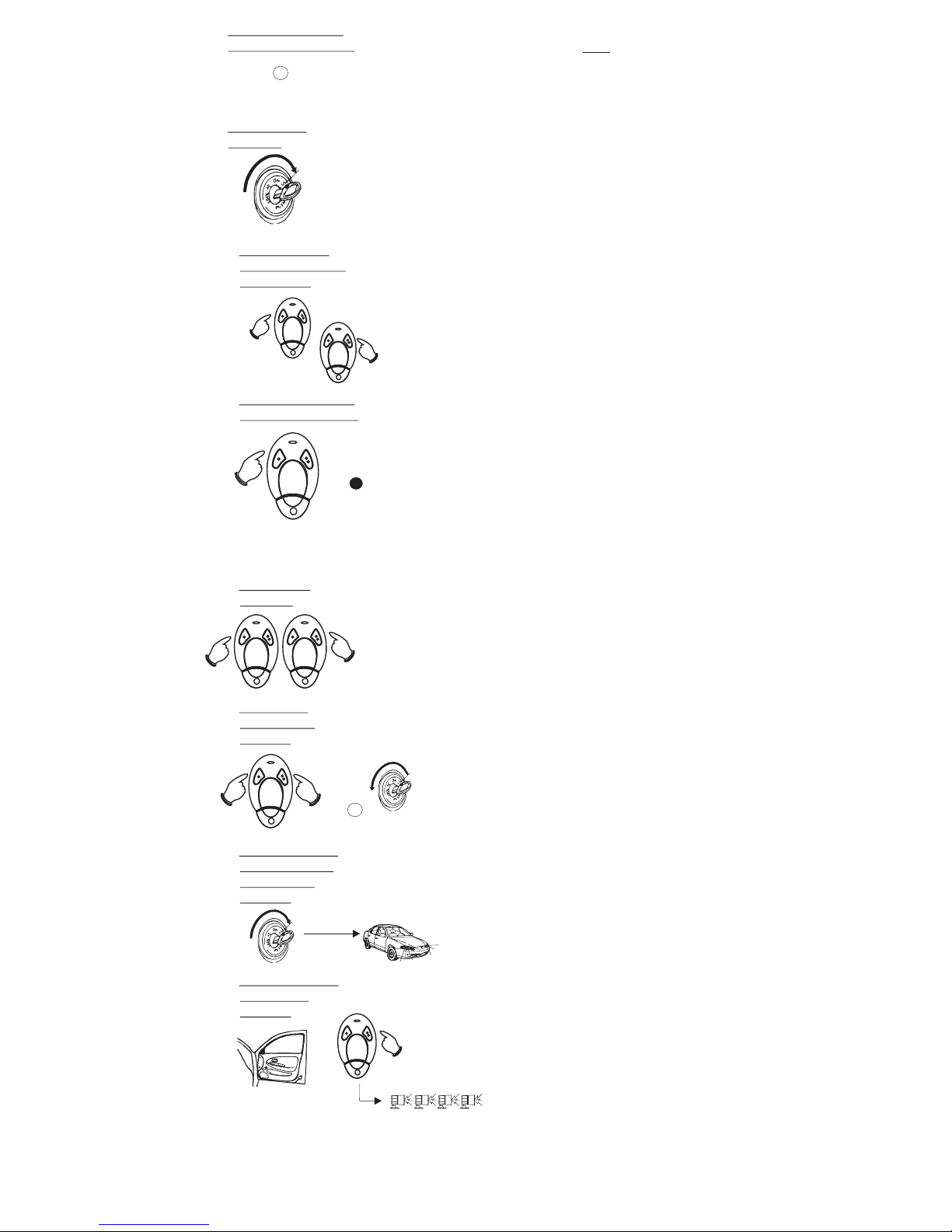

18) READING OUT THE PINCODE
IN THE IMMOBILISER
DELAY PERIOD, TURN
IGNITION ON (DRIVE MODE).
EXAMPLE PINCODE
2 1 3 4 1
led
off
1
FLASH
3
FLASHES
5TH DIGIT
3RD DIGIT
PRESS BOTH BUTTONS
SIMULTANEOUSLY.
COUNT DASH LED FLASHES
4TH DIGIT
2ND DIGIT
1ST DIGIT
4
FLASHES
1
FLASH
2
FLASHES
INDICATORS WILL
FLASH ONCE
INDICATORS WILL
FLASH ONCE
INDICATORS WILL
FLASH ONCE
INDICATORS WILL
FLASH ONCE
INDICATORS WILL
FLASH ONCE
INDICATORS WILL
FLASH ONCE
16) RESETTING
THE HI-JACK
DURING THE
COUNT
DOWN PHASE
to reset the
unit back to
normal drive
mode.
Press the hidden push
button at any time for 3
seconds, the doors will
unlock, the siren will chirp
to confirm that Hi-jack has
been cancelled.
17) HI-JACK
FINAL
PHASE
to confirm
what phase
the unit is in.
In final hi-jack the siren
will sound on and off at
5 second intervals. The
immobiliser will be armed.
The unit can be reset by
pushing the hidden button
for 3 seconds.
*
*

USER INSTRUCTIONS
DX120i DX120iHJ PG4

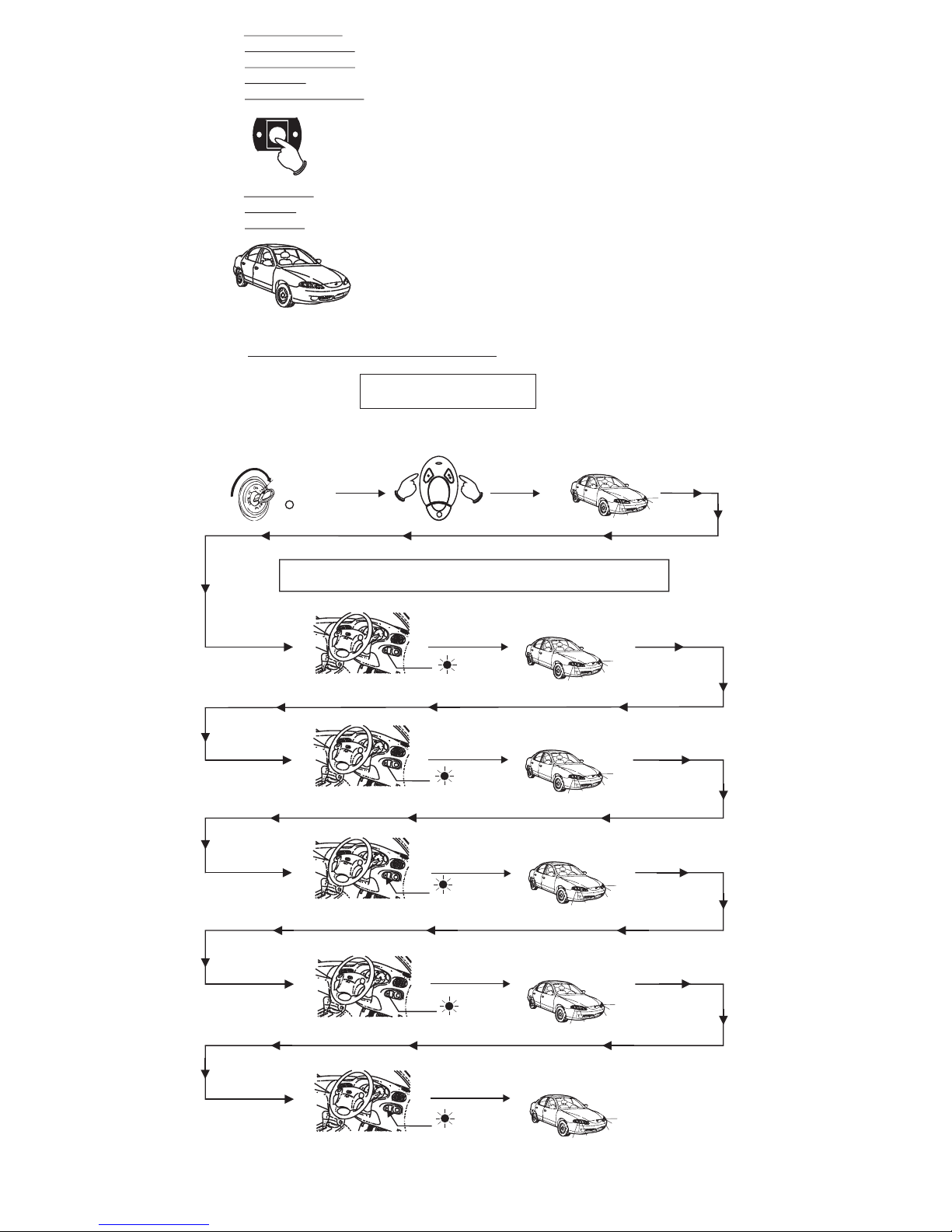

19) USING YOUR PINCODE OVERRIDE
If the unit is in immobiliser armed mode (dash led solid)
you can begin to enter your code. If the alarm is set,
open the door, the alarm will sound 3 cycles then you
can begin to enter your code. Assuming your code is;
2 1 3 4 1
Digit 1
Turn ignition key on, led will start to flash, on the
second flash, turn ignition key off, the indicators will
flash once, you have now successfully put your first
digit in.
Digit 2
If you enter an incorrect digit the unit will not flash
the and will revert back to the first digit. If
you enter an incorrect digit 3 times the unit will sound
the alarm and you will have to wait for 3 alarm cycles
until you can re enter your code.
Turn ignition key on, led will start to flash, after the
first flash, turn ignition key off, the indicators will
flash once, you have now successfully put your second
digit in.
Digit 3
Turn ignition key on, led will start to flash, after the
third flash, turn ignition key off, the indicators will
flash once, you have now successfully put your third
digit in.
Digit 4
Turn ignition key on, led will start to flash, after the
fourth flash, turn ignition key off, the indicators will
flash once, you have now successfully put your fourth
digit in.
Digit 5
Turn ignition key on, led will start to flash, after the
first flash, turn ignition key off, the indicators will
flash once, you have now successfully put your fifth
digit in and have successful overridden your vehicle.
indicators
COUNT DASH LED PULSES
NOW YOU CAN ENTER YOUR 5 DIGIT PIN CODE
TURN IGNITION ON TURN IGNITION
OFF
GOOD DIGIT GO TO NEXT DIGIT
LED OFF
SYSTEM RESET
BAD DIGIT GO BACK TO LOAD FIRST DIGIT
NO INDICATOR
FLASH
DASH LED
ON SOLID
INDICATOR
FLASH
INDICATOR
FLASH
IMMOBILISER ONLY ARMEDALARM ARMED
OPEN DOOR AND ALLOW
ALARM TO CYCLE FOR
3 CYCLES
DASH LED ON SOLID
