Sansui SMX5819USM User manual

1
User Manual
SMX5819USM
THE OPERATION OF THIS EQUIPMENT IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
1) IT IS POSSIBLE THAT THIS DEVICE OR DEVICE WILL NOT CAUSE HARMFUL INTERFERENCE AND
2) THIS EQUIPMENT MUST ACCEPT ANY INTERFERENCE INCLUDING THE ONE THAT CAN CAUSE
YOUR OPERATION NOT DESIRED.
BEFORE USING THIS PRODUCT READ THE INSTRUCTION AND CONSERVE FOR FUTURE REFERENCE,
IF THE POWER CORD BECOMES A TOTAL OR PARTIAL DAMAGE, DO NOT TRY TO REPAIR IT
GO TO THE SERVICE CENTER MARKED IN YOUR GUARANTEE; WITH A SPECIALIST TECHNICIAN,
OR, WITH YOUR MANUFACTURER..
IMPORTED BY:
CTM DIGITAL S.A. de C.V.
Av. Lago Zurich No. 219, 12th floor, Plaza Carso Building, Col. Amplicon Granada, 11529
Mexico, Mexico City. Tel. [phone]
ELECTRICAL SPECIFICATIONS: 100-240 See 50/60 Hz 70W
THE REMOTE CONTROL USES 2 "AAA" TYPE BATTERIES OF 1.5 V DC each (3 Vcc)
58
” LED SMART U
HD TV
147.32cm

2

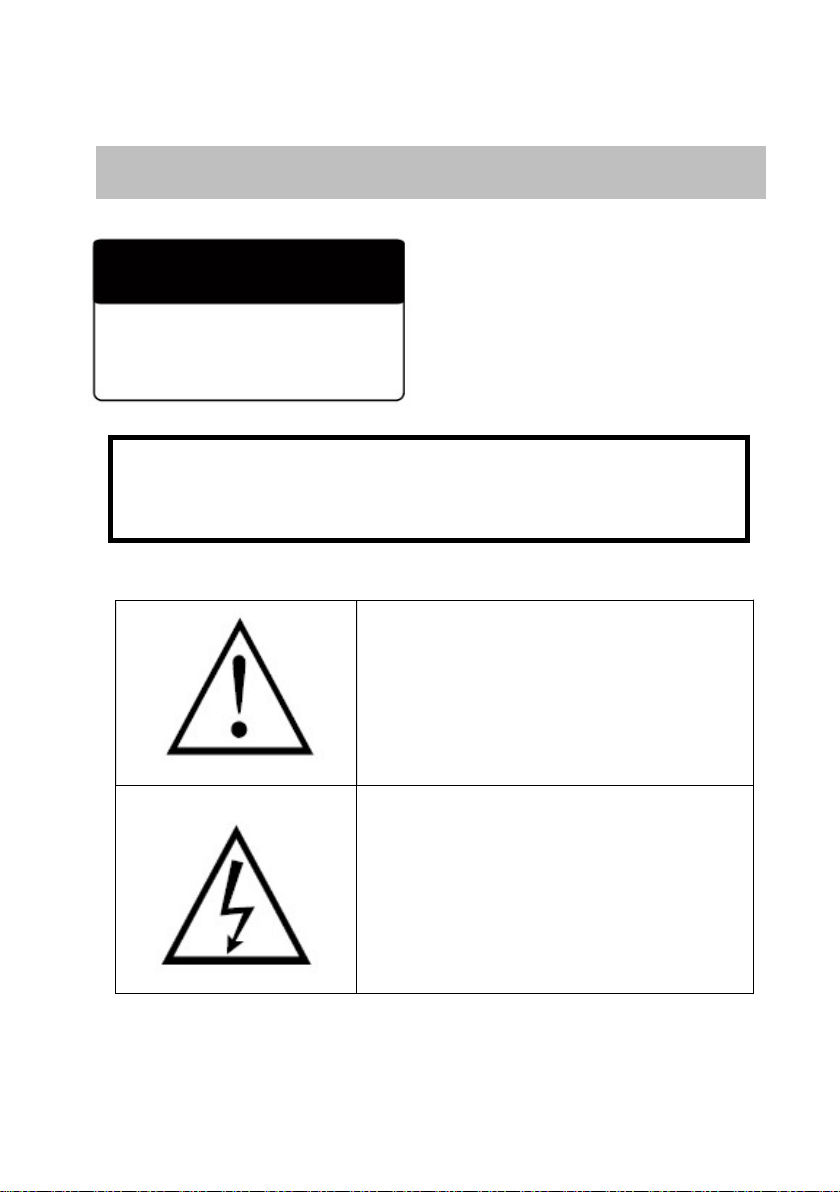

The exclamation symbol within the
equilateral triangle is used to prevent the
user from the presence of important points
that must be observed in the operation and
maintenance of this product.
Caution
The lightning symbol enclosed in an
equilateral triangle is used to warn the user
about the presence of non-isolated "high
voltage" parts, sufficient to be considered a
danger factor by electric shock or
electrocution.
Safety information
High voltages are used in the
operation of this product, to
avoid the risk of electric shock,
do not remove the back cover
of the TV. Please go to the
qualified personnel for service.
The use of controls, adjustments or carrying out procedures
other than those specified here, may cause dangerous
radiation levels.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION

3
.
Important security
1. Read these instructions.
2. Keep this instruction manual.
3. Follow all warnings.
4. Follow all instructions.
5. Do not use this equipment near water.
6. Clean only with soft and dry cloth.
7. Do not block the ventilation slots. Install according to the manufacturer's
instructions.
8. Do not install the equipment near sources that emit heat, such as radiators, stoves,
stoves, or other appliances (including amplifiers) that emit heat.
9. Do not try to avoid the purpose of the polarized plug. This TV is equipped with a
polarized plug (one blade wider than the other). This plug must fit correctly in the
outlet. This is a safety feature.
If it is not possible to fully insert the plug, try inverting it. If this is still not possible,
consult an electrician to replace the plug with an appropriate one.
10. Protect the power cord from being stepped on or being bent, particularly at the
plug and at the part where it joins the equipment.
11. Use only the accessories specified by the manufacturer. 12. Use only furniture or
shelves recommended by the manufacturer or sold together with the equipment.
When an unstable piece of furniture or shelf is used, be very careful, the equipment
may fall and cause personal injury.
13. Disconnect the equipment during lightning storms or when it is not used for a long
time.
14. Refer all service to qualified personnel only. Service is required when the
appliance has been damaged in some way, if the power cord or plug is damaged,
liquid has been spilled or objects have fallen into the appliance, been exposed to rain
or moisture, does not operate normally, or has fallen.
15. The equipment must be disconnected from the main socket and place the On /
Standby switch in the Standby position and disconnect the power cord of the
appliance from the AC receiver.
16. The contact must be installed near the equipment and must have easy access.
17. This equipment should be placed in an environment where ventilation is not good,
such as a bookshelf or enclosed space, unless good ventilation is provided.
18. Do not expose the device to dripping or splashing liquids.
19. Do not place any source of danger on the device (e.g. objects filled with liquids,
candles).
20. Wall or ceiling mounting - The appliance must be installed on the wall or sky only
as recommended by the manufacturer.
21. Never place the TV, remote control or batteries near flames or other sources of
heat, including direct sunlight. To prevent the spread of fire, keep candles or other
flames removed from the TV, remote control and batteries all the time.
22. The USB terminal must be charged with 0.5 A under normal operation.

4
Installing the TV on the wall
1. First, put the TV on a flat table, on which you must put something soft to prevent the panel
from being scratched or damaged.
2. Use the screwdriver to remove the 4 screws that hold the base of the TV (the direction of
the arrows, reference image 1) and, remove the base (guard the screws and the base carefully).
3. Make or buy support with which the TV can be mounted on the wall, according to the size
of the part marked with the arrows in image 2 and 3.
4. Make 4 holes in the wall in the right place (the size is only for reference) and put the part of
the bracket that goes on the wall with the 4 screws (optional parts).
5. According to step 4, use a screwdriver to put the screws to the part of the bracket that goes
on the TV, for wall mounting.
Wall installation
A
Product family Centimeters VESA Specification (A*B) Standard Screw
<co>
Quantity
LED Television
147.32
40
cm x
4
0cm
M
6
*L10
4
NOTE: "D" is the effective length of the thyme in the mounting hole.
The figures and illustrations in this manual are provided for reference only
and may different from your actual appearance. Product design and
specifications may change without prior notice.
Note:
1. Wall mounting bracket is an optional part.
2. When installing the TV, there should be no other items around or in front, please keep a
distance from other items.
3. When installing the TV, please ask qualified personnel about safety to avoid risks.
4. Installation images are for reference only.
5. Please follow the instructions in the manual about the installation of the TV.
6. The VESA wall mount kit is compatible with this TV.
Important security instructions
B
C
D

5

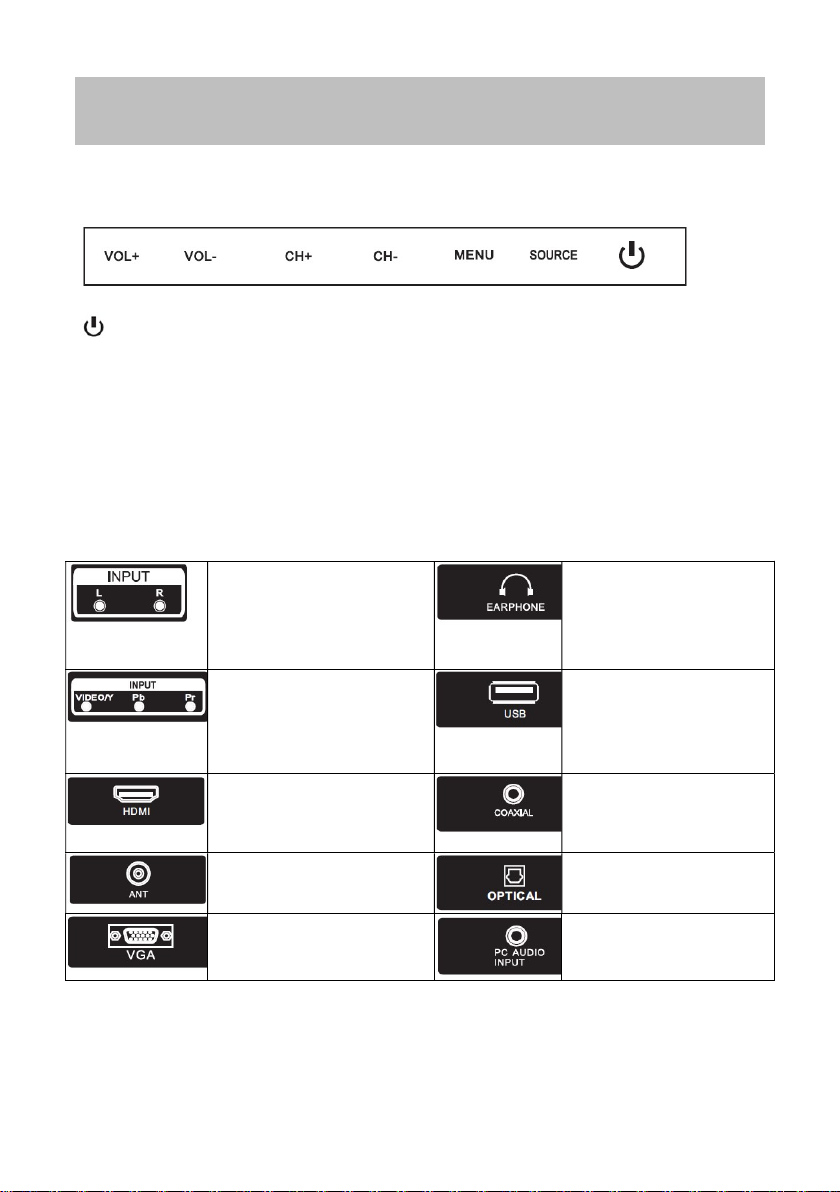

TV buttons
Note: The following is a functional diagram only, the arrangement and
position of the buttons between the different models, may vary.
: To turn on / off the TV.
SOURCE: To select the external input signal.
MENU: To show the main MENU and confirm the selected menu option.
CH+/-: For the selection of channels.
VOL+/-: To perform the volume adjustment.
Connection terminals
Note: The following drawings show various connection terminals, the position,
the accommodation and the number between the different models may vary.
AV Audio Inputs External AV
signal inputs and related sound
Right / Left,
Headphone output(Earephone)
When the headphones are
connected, the speakers are
deactivated
Video Inputs Y / VIDEO Pb Pr
Connections for video input from
your DVD / VCP
*Video input AV Y/VIDEO
* Composite video Y/VIDEO Pb
Pr
U
SB input
Connection for usb
HDMI input
Digitel line input from an HDMI
video corrector.
Digital audio output(COAXIAL)
digital audio output connection
to connect to the audio input of
an amplifier
Connection for antenna ANT 75
Input connection of TV antenna
or cache (75WHF / UHF).
O
ptical
Digital audio output
Entrada VGA
Entrada de sensl analoga ds PC.
P
C audio input
Audio input when you have the
VGA connection
TV buttons and connection

6
Installation and Connection of the TV
TV installation
Put the TV in a firm place, which must support the
weight of the TV.
To avoid risks, please do not expose the TV to hot or
humid places (as well as near lights, candles
heaters), and do not block the ventilation on the
back of the TV.
Connection of antenna and power cord
1. Connect the antenna cable to the antenna input
terminal of the TV.
2. Connect the TV power cord
(100-240V ~ 50/60Hz)
Ignition of the TV
3. Press the power button of the TV and the
indicator light will turn green. If the indicator light is
in standby mode (the light is red), press the power
button on the remote control or TV panel.
Note:
Reference image only.
Installation instructions of the base
1. Open the box and remove the TV, accessories and base (some models do not contain a
base).
2. To avoid damaging the TV, place the unit upside down on a table covered with some soft
material, the base of the neck is assembled on the TV with screws.
3. Assemble the base to the TV.
4. The installation is complete.

7

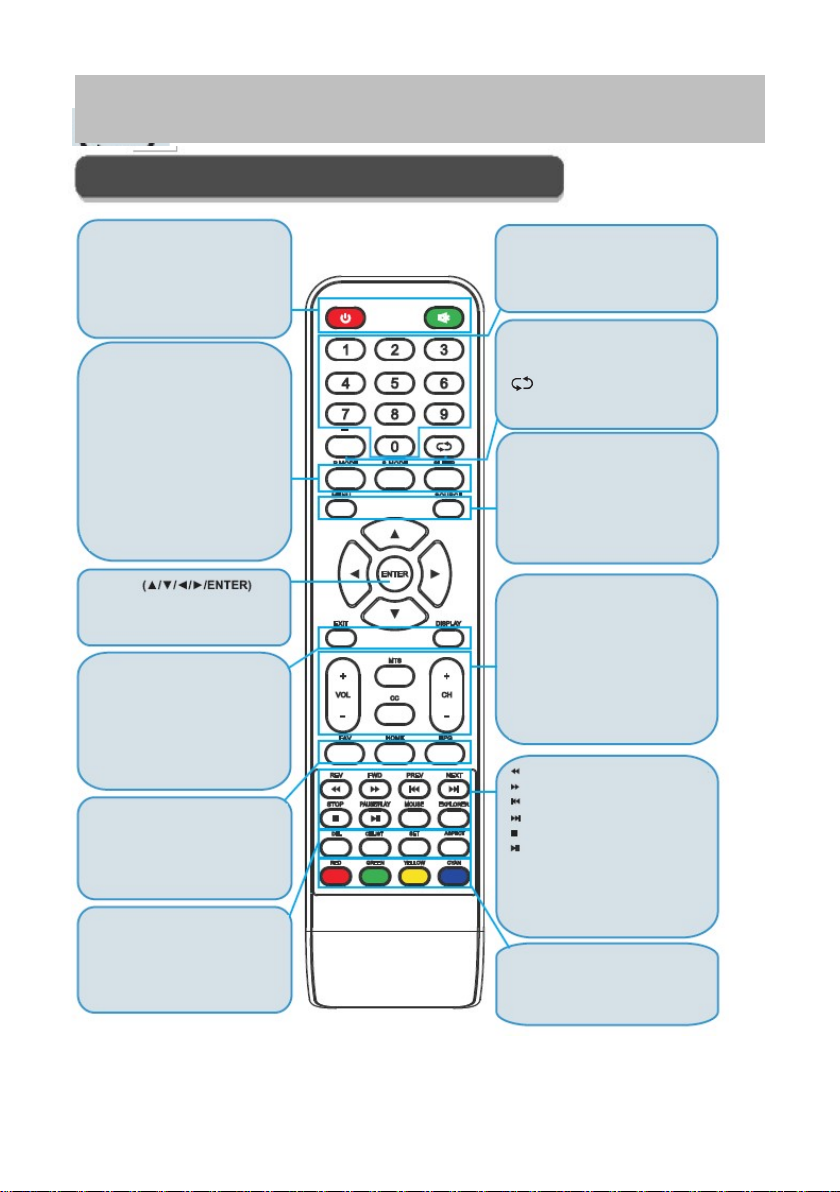

Remote Control
Operation of the remote control
POWER
Turn on or off (standby) the TV
Mute
Press to suspend the sound,
press again or press VOL + to
reset the sound
SLEEP
Select the time in which the TV
will automatically turn off
.
S.SMODE
Press repeatedly to cycle
through the available sound
modes.
P.MODE
Press repeatedly to go through
the modalities available image.
Buttons
Allows you to navigate through the
menus on screen and adjust the
system according to your preference.
EXIT
Press to exit the menu or sub-
menu and cancel the function in
progress (if applicable).
DISPLAY
Press to see the source and
channel information.
FAV
: Select or cancel the
current channel as favorite.
HOME: A buttons to return to
the home page of android
E P G:
Electronic program guides.
DEL
: Delete.
CHLIST: Press in TV mode, to
display the channel list.
SET: Open the Configuration
menu of network.
ASPECT: Aspect function.
NUMERIC BUTTONS
Press 0-9 to select a channel
directly when it is watching TV.
The channel changes after 2
seconds.
Press “-“to enter a multiple
channel number, as well as 2-
1.etc.
Return to the channel previously
Tuned.
MENU
Allow you to navigate in the
system of menus.
SOURCE
Press to change cyclically the
signal source of entry as follows:
TV->AV->YPBPR->HDMI->PC
->MEDIA
CH+/
-
:
Press to change channel.
VOL+/-: Press to increase or
reduce the volume level.
MTS
Press to select the audio mode,
you can select Stereo. Mono or
SAP.
CC
Activate or deactivate the subtitle
menu.
Fast rewind in USB mode)
Fast forward (in USB mode)
Previous (in USB mode)
Next (in USB mode)
Stop (in USB mode)
Play / Pause (in USB mode)
MOUSE
: Start the Mouse of the
remote control.
EXPLORER: To open the browser.
RED / GREEN / YELLOW / CYAN:
Without function.

8
I
nstallation of the batteries in the remote control
1. Open the back cover.
2. Use AAA batteries. When inserting the batteries, make sure that the polarity is correct,
that is, that the "+" marks are oriented as indicated in the compartment.
3. Position the back cover.
To prevent battery leakage that may cause damage to the remote control.
1. Install the batteries correctly according to what is indicated on the remote control.
2. Do not mix the batteries, (old and new, carbon and alkaline, etc.) Remove the batteries
from the control
remote when it is not going to be used for a long period
.

9
Main Screen
On the main screen, press the navigation arrows to select the icon memory and press
ENTER to enter the file browser, and select the file
wanted.

10
On the main screen, press the navigation arrows to select the icon search, press
ENTER to enter and perform the desired search.
On the main screen, press the navigation arrows to select the icon weather
information, and press ENTER to display the weather information page.
Press ENTER, to search and set the desired city.

11

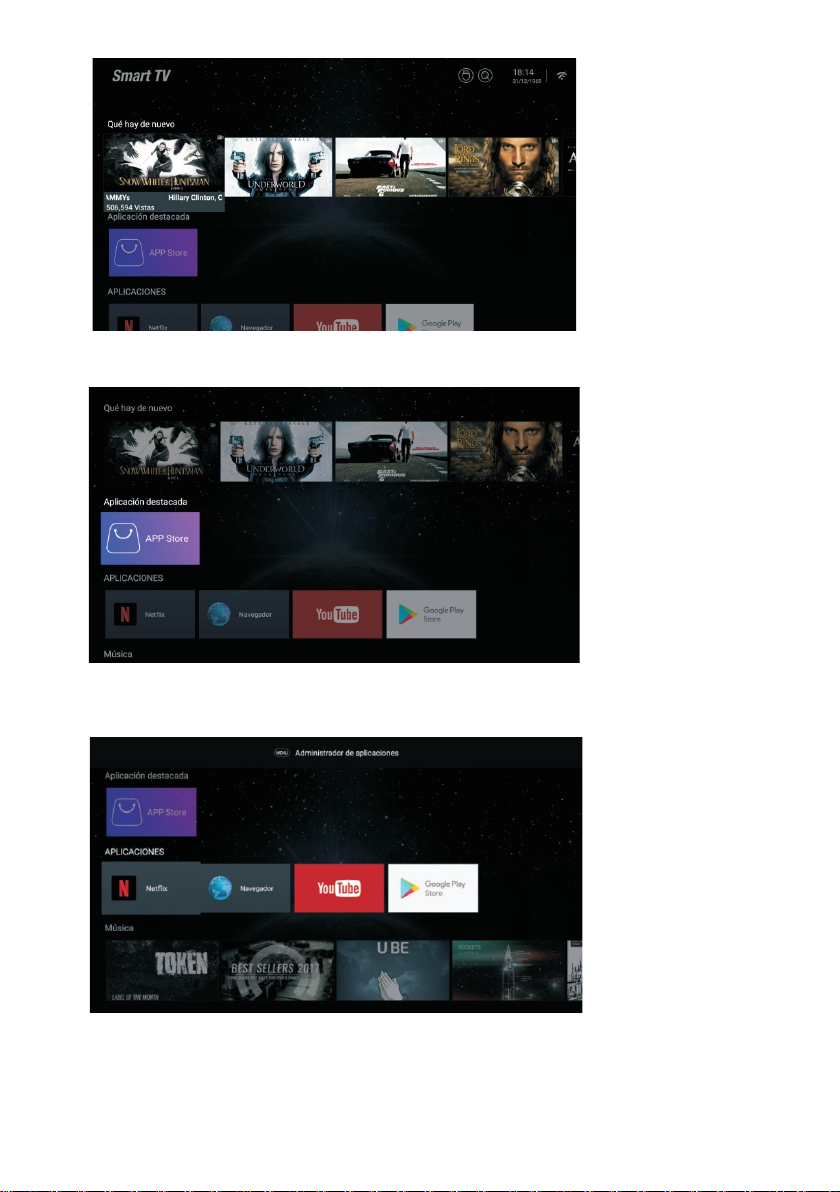

Press the navigation arrows to select the information bar WHAT YOU NEED NEW, with the
navigation arrows select the desired video and press ENTER to reproduce it

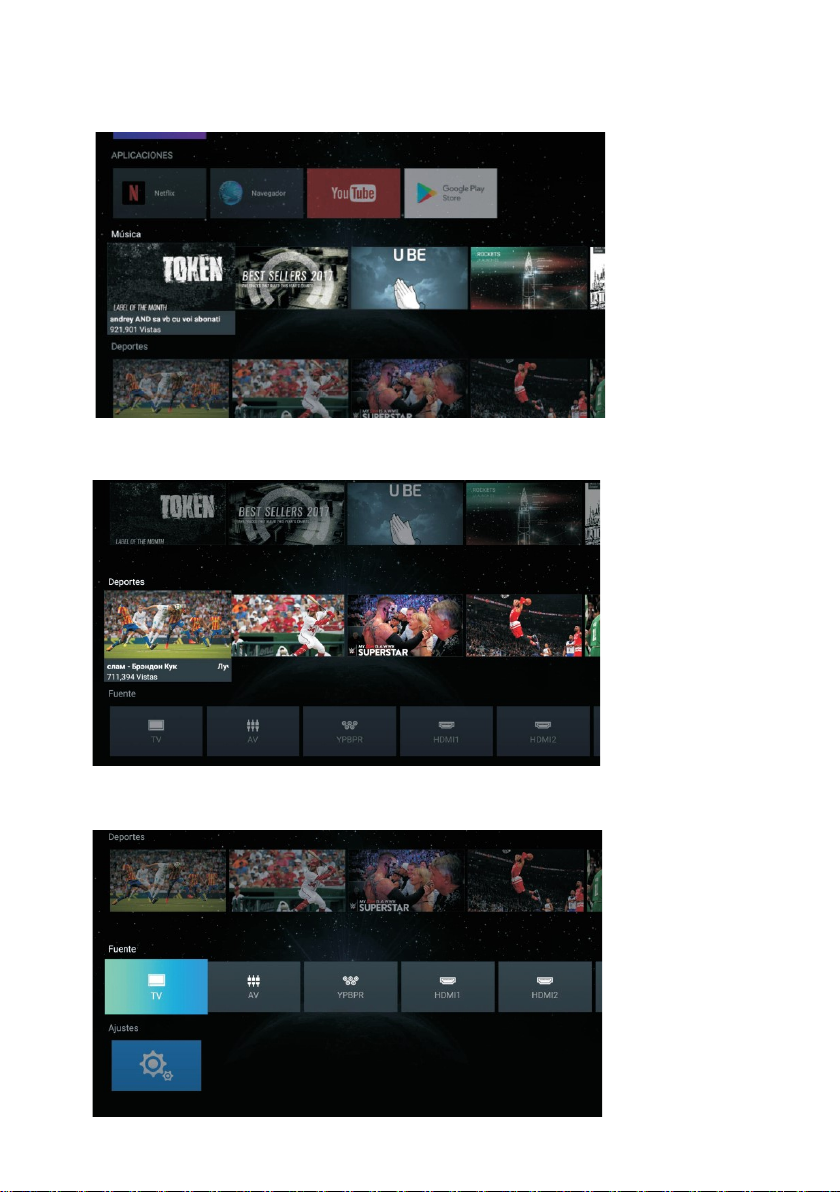

Press the navigation arrows to select OUTSTANDING APPLICATION, with the navigation
arrows select the desired app and press ENTER to view or to install.

12
Press the navigation arrows to select APPLICATIONS, with the arrows of navigation
select the desired app that you have previously installed and press ENTER to start it
Press the navigation arrows to select SPORTS, with the arrows of Navigation select the
desired Sports Video and press ENTER to play it.
Press the navigation arrows to select MUSICA, with the navigation arrows select the
desired Music Video and press ENTER to play it.

13
Settings
Press the navigation arrows to select SOURCE, with the navigation arrows select the desired
Video Input Signal Source, Press ENTER to change the Source.
Press the navigation arrows to select the SETTINGS option, press ENTER to visualize the
characteristics to configure; as a network, language, among others.

14
Press the navigation arrows to select SETTINGS, with the navigation arrows select the features to
configure and press ENTER to adjust the values.
1) About:
Local system update: press ENTER to enter the interface of local update of the system.
System network update: press ENTER to enter the interface of system network update.
Model: Shows the model of the system
Version: Shows the current version of the Android System

15
Functions:
Source
Press <SOURCE> to display the SOURCE menu.
Press ▲ / ▼ to select the desired Source and the <ENTER> button to confirm.
Image Settings
Press <MENU> to display the main menu, press ◄ / ► to select IMAGE, press ▲ / ▼
to select the desired option, press <MENU> to return, or <EXIT> to exit the menu.
TV Menu
(1) Power: ENC / OFF (On: ON / OFF)
(2) Menu: Press the MENU button to display the TV menu. Press <EX1T>, to return to the
previous menu or to exit.
Source: You can change the font by pressing up / down buttons.
Submenu: You can modify some features by pressing left / right.
ENTER: Allows you to select the desired option such as changing the video input signal source
or menu characteristics by pressing the <ENTER> button.

16
Image mode: includes standard mode, soft, user, game, lived, natural, sports, bright,
where in user mode you can customize brightness, contrast, tint, and sharpness,
between others.
Color Temperature: Allows you to adjust the temperature of the color you feel
comfortable, such as standard, warm, cold.

17
Aspect ratio: Adjusts the image's viewing scale. Includes 16: 9, 4: 3, Auto, Zoom 1,
Zoom 2 mode.
Noise reduction: It allows to improve the image quality by reducing the noise in the
image.
The available modes are: auto, off, weak, medium and strong.

18
MPEG NR: Allows softening the video on the screen to reduce noise and improve the
image quality. The available modes are: weak, medium, strong.
Audio Configuration
Press <MENU> to display the main menu, press ◄ / ► to select AUDIO, press ▲ / ▼
to select the desired option, press <MENU> to return or press <EXIT> to exit the menu.
Sound mode: Select the Audio mode of your choice. In User mode, you can adjust bass
and treble in levels of your preference.

19
Equalizer setting (EQ): Select the equalizer setting to adjust the gain of the corresponding
frequencies, the adjustment range is from 0 to 100.
Balance: Adjust the speaker audio output balance (left / right), the adjustment range is
0-100.
Automatic volume: On / Off, when the volume exceeds the set value, it will automatically
reduce the volume to protect the amplifier.

20
Surround Sound: Select to activate / deactivate.
SPDIF Mode: Select Coaxial Output Mode (PCM / Off / Auto).
Channel Configuration
