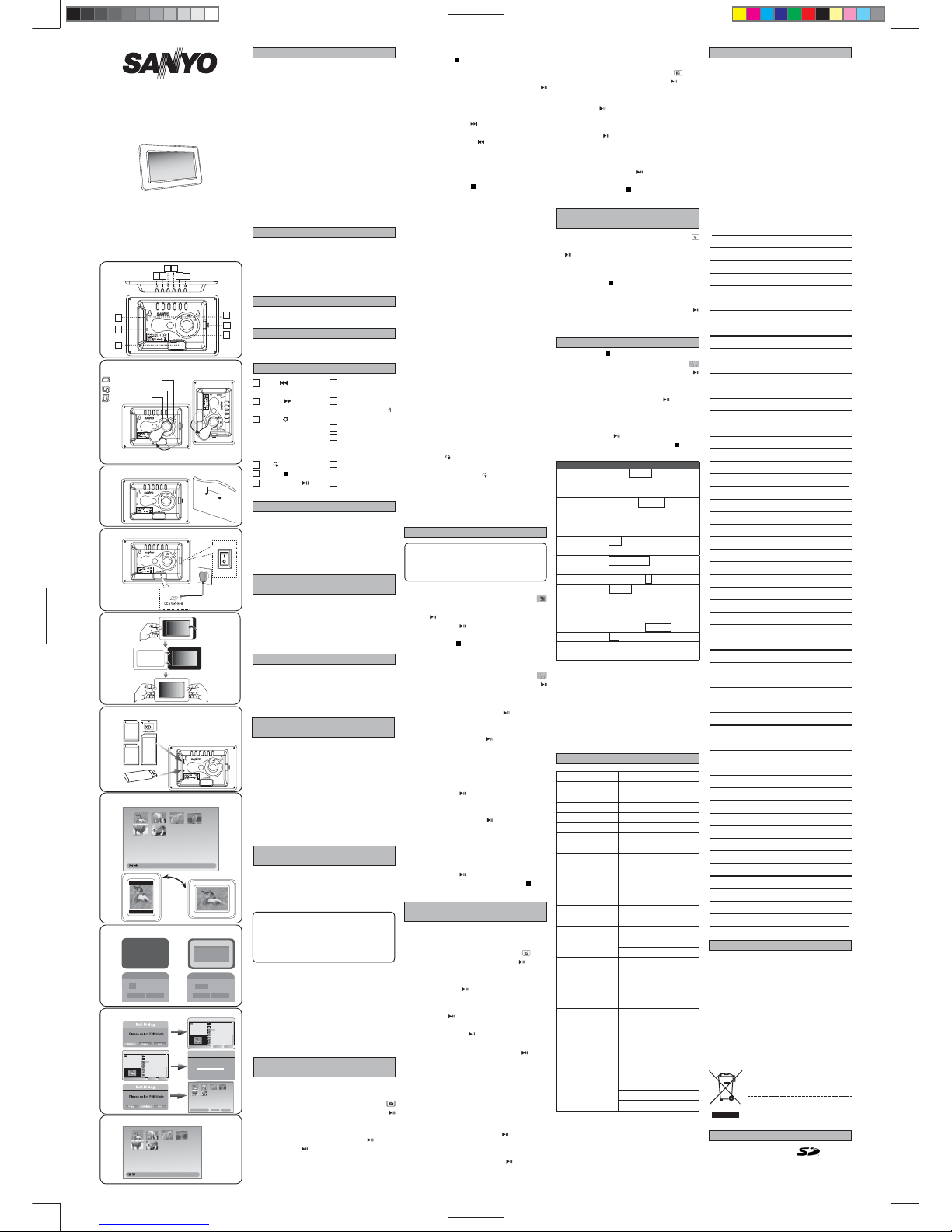

Sanyo LVF-PF72S User manual

10.2cm
Thank you for purchasing our 7” Digital Photo
Frame.Youcanplayyourfavoritephotos(JPEG
file)directly from amemory card ora USB flash
drive without a computer. Read the following
instructions for more details.
(A)
(B)
Landscape Viewing Portrait Viewing
Digital Photo Frame
LVF-PF72S
User Guide
Manufacturer and Address
SANYO Electric Co., Ltd.
5-5, Keihan-hondori, 2-chome, Moriguchi City
Osaka, Japan
Authorized Representative and Address
SANYO FISHER Sales(Europe) GmbH
Stahlgruberring 4,D-81829 Munich, Germany
SD
MMC MS
(A)
(B)
(A)
(B)
1600x900 2008/07/25 DeleteAll
Delete
Edit Mode Page: 1/1
001_1 1
002_2 2
003_3 3
003_4 4
003_5 5
003_6 6
ROOT
1024 X 768 2006/3/7 ExitSave
File Number: 1/100
SUPPORT
PICTURES
Save File
Please Wait 100%
001_1 1
002_2 2
003_3 3
003_4 4
003_5 5
003_6 6
ROOT
1024 X 768 2006/3/7 ExitSave
File Number: 1/100
SUPPORT
PICTURES
: Select 1024 X 768 2008/7/25
Thumbnail Mode Page : 1/1
Portrait position
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
: Select 1024 X 768 2008/7/25
Thumbnail Mode Page : 1/1
(A)
(B)
Attach/Detach position
Landscape position
SD™ is a trademark.
For EU users only
Trademark Information
1. Remove the stand from the unit.
2. Place the mounting holes of the unit on the wall
screws (not supplied) as shown in Figure.
Note: Take care when installing it. It may cause
damage or serious injury should it fall from
its mountings.
1. Insert the round end of the stand into the
receptacle.
2. Rotate the stand to the direction as shown in
Figure until it is fixed tightly in position.
Note: The unit can be placed horizontally or
vertically for a landscape or portrait display.
• Keep away from water, moisture and dust.
• Ambient Temperature should be 0~40°C. Do not
store the unit in hot or cold areas.
• Do not drop the unit or give a strong impact.
• Do not try to disassemble the unit by yourself.
• Connect the AC adapter to the DC5V jack and to
the wall outlet.
• Use attachments/accessories specified by the
manufacturer only.
• When left unused for a long period of time, the unit
should be unplugged from the wall outlet.
Warning: To reduce the risk of fire or electric shock,
do not expose the unit to rain, moisture and water.
Caution: Changes or modifications not expressly
approved by the party responsible for compliance
could void the user's authority to operate the
equipment.
Mounting the Photo Frame on Wall
(Figure 3)
1. Connect one end of the supplied AC adapter
(DC5V/1.5A) to the unit, and the other end to
the wall outlet.
2. Switch the power on ( to the position “I”) to turn
on the unit.
Safety Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This class B digital apparatus complies with
Canadian ICES-003.
This set complies with the EMC Directive 2004/108
and with the LVD Directive 2006/95.
FCC NOTICE
Canadian ICES-003 Information
CE
Product Overview (Figure 1)
Attaching the Stand (Figure 2)
Connecting to the Power (Figure 4)
1LEFT/ (Previous)
button
2RIGHT/ (Next)
button
3DOWN/ (Brightness)
button
*Each press of the
button will adjust the
brightness level.
4UP/ (Rotate) button
5MODE/ (Stop) button
6SEL.(Select) / (Play/
Pause) button
7SD/MMC/MS/xD
slot
8USB port
*Supports a USB
ash drive only.
9DC5V jack
10 Stand receptacle
*For attaching the
supplied stand.
11 Power switch ON/
OFF
12 Wall-mounting
holes
• This unit can play only JPEG format.
1. Insert your memory card into the memory card
slot according to the orientation marked on the
back of the unit.
2. Insert a USB flash drive to the USB port.
Note: This unit can display photos in either a
memory card or a USB flash drive at a
time. If a USB flash drive and a SD/MMC/
MS/xD card are inserted in the unit at the
same time, files in the USB flash drive will
be displayed. If you want to display files in
a SD/MMC/MS/xD card, remove the USB
flash drive from the unit.
Note: Displaying photos bigger than 480 x 234
pixels will take longer time for loading.
1. Press LEFT or RIGHT button to select
“Photo” in the main menu, then press SEL./
button to confirm.
2. The slideshow starts.
3. To pause the slideshow, press SEL./ button.
Press SEL./ button again to restart the
slideshow.
A.Removing the Changeable Frame
Release all the hooks in the edge of the
changeable frame by pulling up the changeable
frame using your fingers.
B.Installing the Changeable Frame
1. Hold the changeable frame and place it on the
unit.
2. Press the changeable frame for all the hooks to
be fixed in place.
Now the changeable frame is installed
successfully.
Removing and Installing the
Changeable Frame (Figure 5)
Viewing Photos and Slide Shows
(Figure 7)
Inserting a Memory Card or a
USB Flash Drive (Figure 6)
Caution: Do not insert “Memory Stick Duo” or
“Memory Stick Pro Duo” into the unit. In case
of using them, be sure to attach “Memory Stick
Adapter” in order not to have a trouble to
remove it from the unit.
Auto Rotation
• In the initial setting of the unit, Auto Rotation
is set to ON in Setup menu. Landscape
or
portrait display of a photo will be automati
cally
switched according to the unit orientation.
If the horizontally placed unit is rotated left
by 90 degrees, the photo will automatically
rotate by 90 degrees clockwise. If the vertically
placed unit is rotated right by 90 degrees, the
photo will automatically rotate by 90 degrees
counterclockwise.
Note 1: When the unit is placed horizontally, Auto
Rotation only works by rotating the unit
to left by 90 degrees. Rotating the unit to
right will not have any response. When
the unit is placed vertically, Auto Rotation
only works by rotating the unit to right by
90 degrees. Rotating the unit to left will
not have any response.
Note 2: The photo will be scaled down to an
appropriate size to fit in the height or
width of the unit if the photo orientation is
different from its original one.
Manual Rotation
• Press LEFT or RIGHT button to select the
photo you wish to rotate in the slideshow, then
press UP/ button to rotate by 90 degrees
clockwise.
Note 1: Each press of UP/ button will rotate the
photo by 90 degrees clockwise.
Note 2: Manual Rotation can be also set in the
Thumbnail mode.
Note 3: All the rotation effects will be cancelled
when returning to the main menu.
B. Rotation
A.Viewing the Clock & Calendar
1. Press LEFT or RIGHT button to select
“Clock & Calendar” in the main menu and press
SEL./ button.
2. Pressing SEL./ button will switch between
Clock, Calendar and photos of a memory card.
3. Press MODE/ button again to return to the
main menu.
B.Setting Clock & Calendar
1. Press LEFT or RIGHT button to select
“Setup” in the main menu, then press SEL./
button.
2. Press UP or DOWN button to select “Clock &
Calendar” and then press SEL./ button.
Setting the Time
3. Press UP or DOWN button to select “Set The
Time”, and press SEL./ button, then “Set
Time” window will appear on the screen.
4. Press LEFT or RIGHT button to select Hour,
Minute, Second or AM/PM and set the time by
pressing UP or DOWN button.
5. Press LEFT or RIGHT button to select “OK”
and press SEL./ button to set it.
Setting the Date
3. Press UP or DOWN button to select “Set The
Date”, and press SEL./ button, then “Set
Date” window will appear on the screen.
4. Press LEFT or RIGHT button to select Year,
Month or Day and set the calendar by pressing
UP or DOWN button.
5. Press LEFT or RIGHT button to select “OK”
and press SEL./ button to set it.
6. To leave the Setup menu, press MODE/
button again.
1. Press LEFT or RIGHT button to select “Edit”
in the main menu, and press SEL./ button.
Then “Edit Dialog” window will appear.
2. Press LEFT or RIGHT button to select “Copy”,
then press SEL./ button to enter the
Sub-menu.
3. Press UP or DOWN button to select a file, then
press SEL./ button to select photos you wish
to copy.
Note 1: Press SEL./ button on the selected
folder to enter the Sub-menu.
Note 2: To deselect the file, press SEL./ button
again on the selected file.
Note 3: Repeat the above step 3 to select some
files and the selected files will be
highlighted.
Note 4: The internal memory can store about 45
photos in case each photo is less than 32
megapixels.
4. Press RIGHT button and then LEFT button to
select “Save”, then press SEL./ button.
5. The file is now saved in the internal memory.
6. To exit Edit mode, press LEFT or RIGHT button
to select "Exit", then press SEL./ button.
Clock & Calendar Setting (Figure 8)
Editing Files in the Internal Memory
(Figure 9)
A. Copying Photos from a Memory Card
or a USB Flash Drive
Caution:
Once power is switched off, the set time and
calendar will be reset, because there is no
battery back up in this unit.
A. Thumbnail Mode
1. Press MODE/ button during the slideshow to
enter Thumbnail mode.
2. Press LEFT or RIGHT button to select the
photo you wish to play, then press SEL./
button.
Note: If the thumbnail has more than one page,
move the cursor to the last photo and
press RIGHT/ button to go to the next
page. Move the cursor to the first photo
and press LEFT/ button to return to the
previous page.
3. The slideshow starts with the photo selected.
Note 1: Refer to Setup Menu in this user guide for
the slideshow settings.
Note 2: Press MODE/ button again to return to
the main menu.
OSD menus Sub menus
Interval Time 5 Sec.,15 Sec., 30Sec., 1Min.,
5Min.,30 Min.,1 Hour,4Hours,
12 Hours, 1 Day
Transition No Effect, Random ,
Cover Up, Cover Down,
Uncover Left, Push Right,
Wipe Up, Wipe Down
12/24 Hour
Fomat 12H , 24H
Clock & Calendar Set The Time
Set The Date
Contrast -4, -3, -2, -1, 0 , +1, +2, +3, +4
OSD Language English , French,
German, Italian,
Spanish, Portuguese,
Dutch, Polish
Panel Full Screen, Original*
Auto Rotation On , Off
Reset Confirm**
Exit Setup Mode
*
Select “Original” to display photos in their
original aspect ratios. Black bands appear on
left and right sides of the screen in landscape
view, or top and bottom of the screen in portrait
view. Select “Full Screen” to display photos in
full screen size.
** Selecting Reset will restore the initial settings.
(The initial settings are marked by squares in
the above table.)
1. Press
MODE/ button to enter the main menu.
2. Press LEFT or RIGHT button to select
“SETUP” in the main menu, then press SEL./
button.
3. Press UP or DOWN button to select an item in
the Setup menu, and press SEL./ or RIGHT
button to go to the Sub menus as shown in the
below table.
4. Press UP or DOWN button to select a setting,
then press SEL./ to set it.
5. To leave Setup menu, press MODE / button
again.
1. Press LEFT or RIGHT button to select
“Favorites” in the main menu, then press SEL./
button.
2. The slideshow will start from the internal
memory.
3. Press MODE / button to enter the Thumbnail
Mode.
4. Press LEFT or RIGHT button to select the
photo you wish to play, then press SEL./
button.
5. The slideshow starts with the photo selected.
Display 7" colour TFT LCD panel
View Area
480 X 234 pixels, 16:9 aspect
ratio
Brightness 150 cd/m²
Contrast 150:1
Stand
Detachable
Memory Card Slot SD/SDHC/MMC/MS/MS Pro/
xD
I/O Ports DC-in / USB 2.0 port
Internal Memory About 45 photos can
be stored (in case each
photo is less than 32
megapixels).
Supported File
Format
JPEG (up to approx. 144
megapixels)
AC Adapter Input: 100-240V ~50/60Hz
0.4A
Output: 5V / 1.5A
Dimensions Approx.
206 x 139 x 33 mm
(W x H x D)
(Without Detachable Stand
and Changeable Frame)
Weight Approx.
337g
(Without Detachable Stand
and Changeable Frame)
Accessories AC adapter
Detachable stand
White changeable frame
(Attached to the unit)
User Guide
6 bonus static stickers
Viewing Files in the Internal
Memory (Figure 10)
Setup Menu
Specifications
1. Press LEFT or RIGHT button to select “Edit”
in the main menu, and press SEL./ button.
Then Edit Dialog window will appear.
2. Press RIGHT button to select “Delete”, then
press SEL./ button to enter the Edit mode.
3. Press LEFT or RIGHT button to select a photo,
and press DOWN button to select “Delete”, then
press SEL./ button to delete it. Press UP
button to deselect “Delete”.
Note 1: To delete all, press DOWN button and
press RIGHT button to select “Delete All”,
then press SEL./ button. Press UP
button to deselect “Delete All”.
Note 2: Press MODE / button to return to the
main menu.
B.Deleting Photos in the Internal
Memory
Your SANYOproduct isdesigned andmanufactured
with high quality materials and components which
can be recycled and reused. This symbol means
that electrical and electronic equipment, at their
end-of-life, should be disposed of separately from
your household waste. Please dispose of this
equipmentat yourlocal communitywaste collection/
recycling centre. In the European Union there are
separate collection systems for used electrical and
electronic products. Please help us to conserve the
environment we live in!
No power
• Check if the AC adapter is plugged into the wall
outlet.
• Make sure there is power to the wall outlet.
Unable to view photos
• This unit is designed to show photos in
standard JPEG format following the camera
industry standard. Some images in non-standard
JPEG format such as web images, scanned
images or photos in RAW format taken by
professional cameras cannot be displayed in
the unit correctly. Please use PC applications to
convert such images into standard JPEG format.
• Check if using compatible memory cards.
If photo display is slow
• Use lower resolution photo.
Troubleshooting
Notes
8
9
64
10
1
2
11
12
7
3
5
Cancel
12:00:00 AM
Set Time
OK Cancel
2008/01/01
Set Date
OK
12:00:00
Jan - 1- 2008 Tuesday
AM 2008.1.1
Sun
6
13
20
27
Mon
7
14
21
28
Tue
1
8
15
22
29
Wed
2
9
16
23
30
Fri
4
11
18
25
Sat
5
12
19
26
Thu
3
10
17
24
31
LVF-PF72S EN QG ( rev0317).indd 1LVF-PF72S EN QG ( rev0317).indd 1 2009/3/18 下午 02:04:362009/3/18 下午 02:04:36
