Sanyo CRD-BPDV2 User manual

Page 2
Document No. Document Name
SANYO Electric Co., Ltd.
Revision History
(1/1)
1. Revision History
Revision No. Manager Change Description Check Approval
First Edition Newly issued

Page 3
Document No. Document Name
SANYO Electric Co., Ltd.
Included Document List
(1/1)
2. Included Document List
Document Name Document No. Page No.
General Description 1/3 ~ 3/3 4
Dimensions, External View and
Names and Functions of Each Part 1/2 ~ 2/2 7
Terminal Description 1/3 ~ 3/3 9
Environmental Conditions 1/1 12
Reliability 1/3 ~ 3/3 13
Lot No. Reliability Description 1/1 16
Safety Standards 1/1 17
Electrical Characteristics 1/3 ~ 3/3 18
Function Description 1/3 ~ 3/3 21
Handling Manual 1/1 24
Notes for Handling 1/5 ~ 5/5 25

Page 4
Document No. Document Name
SANYO Electric Co., Ltd.
General Description
(1/3)
General Description
(1) Model Name: CRD-BPDV2
DVD-R/RW: drive with MAX ×12 speed reading, ×4 speed writing, ×2 speed rewriting.
DVD+R/RW: drive with MAX ×12 speed reading, ×4 speed writing, ×2.4speed rewriting.
CD-R drive with MAX ×40 speed reading, ×24 speed writing, and ×12 rewriting)


The DVD-R/RW or DVD+R/RW feature will be selectable by the firmware.


(2) External View
External View
(3) General Specifications
1)Characteristics
* Half-height and built-in type
* Conforms to Orange Book Part 2, 3 & DVD±R/RW for general specifications.
* Equipped with the newly developed automatic strategy LSI with the data reliability
enhanced.
* DVD-R/RW drive with MAX ×12 speed reading(CAV), ×4 speed writing(CLV),×2 speed
rewriting(CLV) DVD+R/RW drive with MAX ×12 speed reading(CAV),×4 speed
writing(CLV), ×2.4speed rewriting(CLV). CD-R drive with MAX ×40 speed reading, ×24
speed writing(ZCLV), and ×12 rewriting(CLV)
* ATAPI is employed to enable high speed data transmission.
* Automatic loading mechanism
* Emergency disc ejecting function
* Data verifying function
* Media condition check function
* CD-DA read function
* Vertical operation feasible
* BURN-Proof Technology implemented
“BURN-Proof” stands for Proof against Buffer Under Run error, not for proof against burning.

Page 5
Document No. Document Name
SANYO Electric Co., Ltd.
General Description
(2/3)
(4) Applications
Wide range of applications available, such as image data filing, management of CAD/CAM,
drawing data and financial affairs, audio data storage and electronic publication.
(5) Main Specifications
Items Specifications
Dimensions 148 (W) ×194.2 (D) ×42.3 (H) mm
Mass 1020 g
Recording Form Orange-book part 2, 3 Fixed packet
Disc-at-once Variable packet
Track-at-once
DVD-R for general 2.0
Disc at Once Recording
Incremental Recording
Front Panel Eject key, Emergency eject pinhole, LED (busy and write)
Headphone jack, Volume
Eject Automatic loading
Power Supply DC 5 ×(1 ± 5 %) V DC 12 ×(1 ± 10 %) V
(6) Operational environment for the “write/rewrite” application software
Items Specifications
Host Machine IBM compatible PC (Celeron433MHz or more) (Note 1)
OS MS-Windows 98SE/ME/2000/NT4.0/XP (Note 2)
Memory MS-Windows 98SE/ME/NT: 128 MB or more.
MS-Windows2000/WindowsXP: 128 MB required.
256 MB recommended.
Hard disc Empty Storage Capacity: 5GB or more (20GB or more recommended)
Average seek time: 20 ms or less
Transmission rate: 2 MB/s or more
Do not use the HDD which calibrate thermal during operation.
CD-R (×4 ~ ×40) : MITSUI CHEMICAL , HITACHI MAXELL,
RITEK, ACER, CMC (T.B.D)
CD-RW (×4 ,×10, ×12, ) :MITSUBISHI CHEMICAL, RICOH
(T.B.D) (Note 3)(Note 4)
Recommended Media
DVD-R(×1, ×2, ×4):MITUBISHI CHEMICAL,HITACHI MAXELL,
PIONEER VIDEO,TAIYO YUDEN,TDK
DVD-RW(×1, ×2):PIONEER VIDEO,MITUBISHI CHEMICAL,PRINCO
DVD+R(×1, ×2.4, ×4):RICOH,MITUBISHI CHEMICAL,RITEK
DVD+RW(×1, ×2.4):RICOH,MITUBISHI CHEMICAL,RITEK
(T.B.D)
(Note 1) If any problem occurs, negotiation is required to settle the matter.
(Note 2) Windows NT4.0 doesn’t have ATAPI-DMA-Driver in the standard.
Therefore, this Drive and IDE-HDD function with PIO-Mode.
(Note 3) We intend to add the proper media one by one in the near future.
(Note 4) Please refer to the latest information on the web: www.burn-proof.com.

Page 6
Document No. Document Name
SANYO Electric Co., Ltd.
General Description
(3/3)
(7)Scope
This specification is applied to the CD-R/RW/DVD-R/RW,DVD+R/RW drive “CRD-BPDV2”
which is designed by SANYO Electric Co., Ltd.
(8)Contents
1)Model No. CRD-BPDV2
2)Performance Write function onto CD-R/RW/DVD-R/RW/DVD+R/RW disc in
combination with the write application software and
CD-ROM/DVD-ROM read function, in combination with the
CD-ROM/DVD-ROM application software.
3)Applications Write onto and read of the CD-R/RW/DVD-R/RW/DVD+R/RW disc.
Read of CD-ROM/DVD-ROM disc.
4)Dimensions Refer to the item “Dimensions and Dimensional Drawing”.
5)Notes for handling Refer to the Manual and Notes for Handling.
6)Others
a.The specifications of this product are the same as in the delivery specifications.
If any fault or malfunction of the product occurs when it is used under any conditions
except for our guaranteed conditions, our company has no responsibility for the claim.
b.The specifications of this product are subject to change to enhance the performance.
c. The change of notice is issued when the specification is changed only.
d.If any doubt occurs regarding the contents of the specifications, negotiation is required to
settle the matter.

Page 7
Document No. Document Name
SANYO Electric Co., Ltd.
Dimensions, External View and Names and
Functions of Each Part
(1/2)
1. Dimensions and External View
(1) External View
Refer to the “General Description”.
(2) Dimensions and Dimensional Drawing
Refer to the attached document “Dimensions and Dimensional Drawing”.
(3) Names and Functions of Each Part on the Front Panel
Front Panel
1. Headphone
Terminal : The headphone with a stereo mini plug is connected through this terminal.
2. Headphone
Volume : The volume of the headphone connected to the headphone terminal is adjusted
using this volume dial. When the volume dial is turned right, the volume becomes
louder.
3. BUSY
indicator : Command executing.
ON Reading disc and accessing condition
ON-AND-OFF TOC reading condition & EJECT condition
OFF Pause or Stop condition
4. WRITE
indicator : This is ON when the data is written onto the disc.
5. EJECT key : The disc is ejected, using this key. This key is available even when the tray is
moving. When the PRV command is transmitted from HOST or during writing,
this key is not available.
6. Emergency
eject pinhole : If the disc is not ejected when the key is pressed, because of power failure or run
away of the software, this pinhole is used to take out the disc.
7. Disc tray : The disc is placed on this tray.
6
7
5
1 2 4
3

Page 8
Document No. Document Name
SANYO Electric Co., Ltd.
Dimensions, External View and Names and
Functions of Each Part
(2/2)
(4) Names and Functions of Each Part on the Rear Panel
Rear Panel
1. ANALOG AUDIO
Connector :
The audio analog signal output connector.
2. CS/SL/MA Pins : By covering the jumper block, these pins are used to set the CD-R drive to
either a Master or Slave mode to work with the hard disk drive inside the
personal computer.
Default is Master.
3. IDE Connector : Using a 40-pin connector, the ATAPI terminal of the host computer is
connected to this connector.
4. DC Connector : This is the power supply terminal.
5. FACTORY USE ONLY
Pins : These pins are used only for the test in the factory. Don’t cover the jumper block on them.
6. DIGITAL AUDIO
Connector
: The audio digital signal output connector.
7. UDMA Pins : UDMA mode is enabled by covering the jumper block on the 2 pins of the
UDMA jumper terminals.
Default is ON.
(Note 1) In case of using some personal computes, UDMA mode need
to be disable.
1 2 3 4
6
5 7

Page 9
Document No. Document Name
SANYO Electric Co., Ltd.
Terminal Description
(1/3)
1. AUDIO Terminals
The audio signal is output through these terminals. These terminals are used when the sound
board applicable to these terminals, is attached to the personal computer.
2. Jumper Terminals (CS/SL/MA)
SL
SLSL
SL Jumper Terminals:
To set to Slave mode, cover the jumper block on the 2 pins of the SL jumper terminals.
If the IDE controller of the personal computer supports two devices, set the CD-R drive to Slave
mode. The hard disk drive inside the personal computer is set to Master mode.
MA
MAMA
MA Jumper Terminals:
To set to Master mode, cover the jumper block on the 2 pins of the MA jumper terminals.
If the IDE controller of the personal computer supports up to four devices, set the CD-R drive to
either a Primary Slave, a Secondary Master or a Secondary Slave mode. Primary or Secondary
is set up by the IDE controller, while Master or Slave mode is set up by covering the jumper
block on the rear of the CD-R drive. The hard disk drive inside the personal computer is set to
Primary Master mode.
CS
CSCS
CS Jumper Terminals:
If the personal computer is supporting CSEL (Cable Select) signal, cover the jumper block on
the 2 pins of the CS jumper terminals and remain Slave and Master open.
An exclusive interface cable is necessary.
R-ch GND L-chGND
Slave
Master Use CSEL
J
umper
block
J
umper
block

Page 10
Document No. Document Name
SANYO Electric Co., Ltd.
Terminal Description
(2/3)
3. IDE Connector Terminals (ATAPI CONNECTOR)
The IDE terminal of the host computer is connected through these terminals.
Use the 40-pin IDE cable.
The pin marked “1” means pin No. 1. Connect the IDE cable of the color-coding (normally red)
on one edge to pin No. 1.
PIN NO. SIGNAL NAME PIN NO. SIGNAL NAME
2 Ground 1 RESET-
4 DD8 3 DD7
6 DD9 5 DD6
8 DD10 7 DD5
10 DD11 9 DD4
12 DD12 11 DD3
14 DD13 13 DD2
16 DD14 15 DD1
18 DD15 17 DD0
20 (keypin) 19 Ground
22 Ground 21 DMARQ
24 Ground 23 DIOW-:STOP
26 Ground 25 DIOR-:HDMARDY-
:HSTROBE
28 CSEL 27 IORDY:DDMARDY-
:DSTROBE
30 Ground 29 DMACK-
32 reserved 31 INTRQ
34 PDIAG- 33 DA1
36 DA2 35 DA0
38 CS1- 37 CS0-
40 Ground 39 DASP-
39
40
1
2

Page 11
Document No. Document Name
SANYO Electric Co., Ltd.
Terminal Description
(3/3)

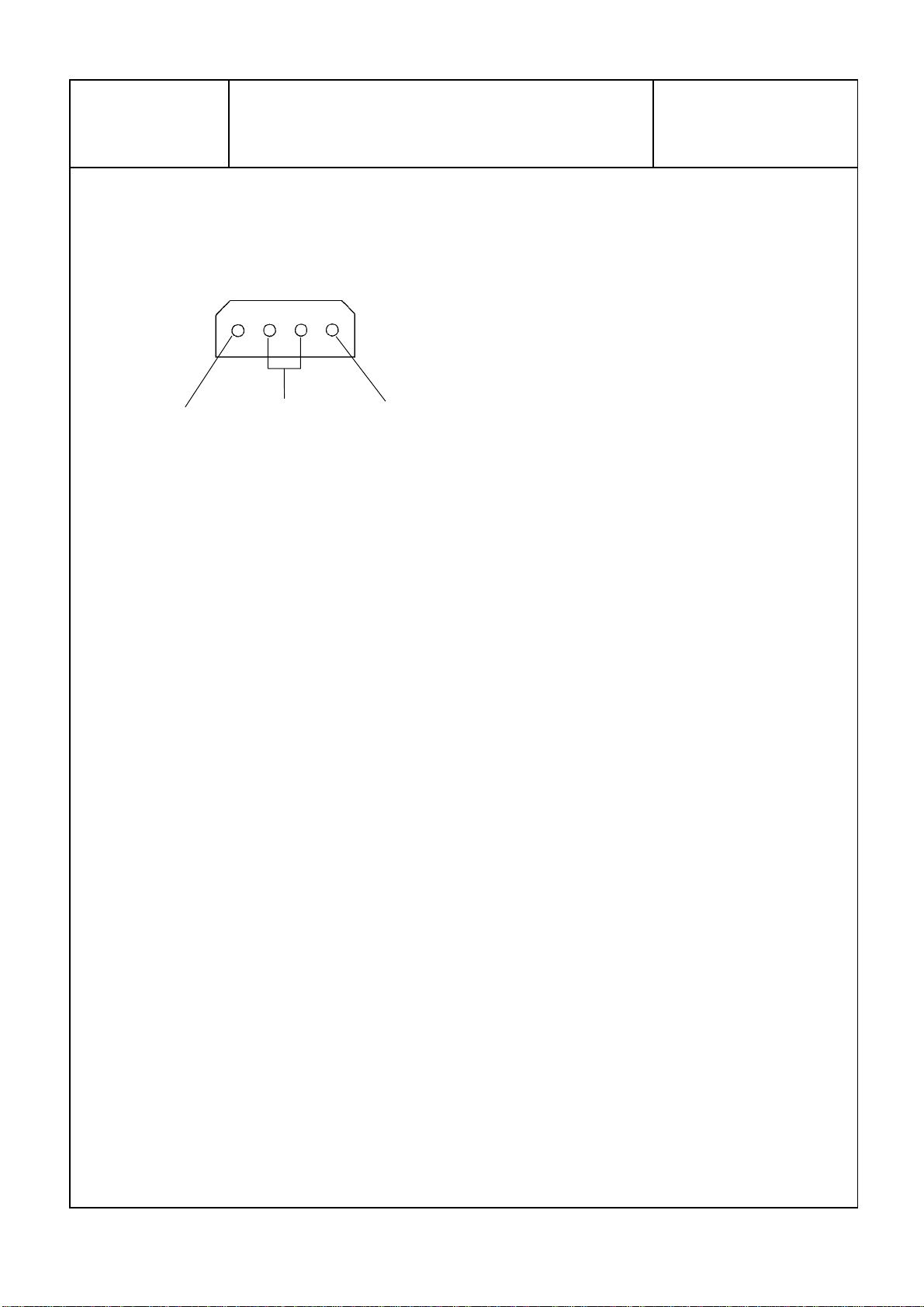

4. DC Connector Terminals (DC INPUT)
The DC power supply cable is connected through these terminals.
5V 12V
GND

Page 12
Document No. Document Name
SANYO Electric Co., Ltd.
Environmental Conditions
(1/1)
Environmental Conditions
Items Environmental Conditions
Temperature
Operation : 5 °C < to< 40 °C
Storage : −30 °C < tNO < 60 °C
Humidity Operation : (20 to 80) % (non-condensing)
Storage : 90 % (40 °C, 48 h)
Mean-Time-Between-Failure (MTBF)
30000 POH DUTY 20 % (read operation) (Note 1)
Life Tray loading : 20000 cycles
Traverse mechanism : 1000000 seek
Vibration Operation: Read 0.98 m/s2(0.1 G) [(10 to 500) Hz]
Random Vibration
Without operation (transportation):
800 cpm (13.3 Hz), 3 mm (1.06 G), Up/Down 20
min.
Impact Drop Impact: 490 m/s2(50 G), 3 directions, 6 ms
(Note 1) POH : Power On Hour (live current time)
DUTY: Actual operation time

Page 13
Document No. Document Name
SANYO Electric Co., Ltd.
Reliability
(1/3)
1. Estimate Conditions
1)Standard test position
For the standard test position, the + side of the Z axis shall be in the upper direction, provided
that the Z axis shall be the outgoing beam and the direction of the outgoing beam shall be +
side.
2)Standard Estimate Environments
Temperature : (22 ± 2) °C
Humidity : (50 ± 5) % RH
However, when no doubt occurs regarding the judgment, the test may be performed under the
following conditions.
Temperature : (15 to 30) °C
Humidity : (45 to 85) % RH
3)Disc to be estimated
Test Disc made by ALMEDIO Inc. ROM DISK, DA DISK, CD-R DISK (RICOH),
CD-RW (RICOH, MITSUBISHI CHEMICAL)
DVD-R/+R(RICOH,MITSUBISHI CHEMICAL)
DVD-RW/+RW(RICOH,MITSUBISHI CHEMICAL)
However, when no doubt occurs regarding the judgment, TCD-784 made by ALMEDIO Inc.
may be used.
4)Power Supply Voltage
Power supply: DC 5 ×(1 ± 5 %) V
Power supply: DC 12 ×(1 ± 10 %) V
2. Reliability
The results should conform to the criteria of each item after the test has been performed under
the following conditions.
There shall be no crack, deformation or distortion from the external view of the product after
the test.
Unless otherwise specified, the measurement conditions of this test for each item shall be
subject to the above estimate conditions.
However, the temperature in this test shall be specified to the surrounding temperature of the
drive unit, rather than the surrounding temperature of the set unit where this product is
built-in.

Page 14
Document No. Document Name
SANYO Electric Co., Ltd.
Reliability
(2/3)
Test items Test conditions Criteria
1. Operating
temperature test Operation under low temperature: +5 °C
Operation under high temperature: +40 °C
Leave the product for 4 hours without operation in the
environmental temperatures, as above. Turn on the
power and leave the product for 10 minutes.
Immediately after that, check the performance under
the same environmental temperatures as above.
However, there should be no dew condensation.
The performance should
conform to the standards
described in the Reliability
Estimation Standard
Table.
2. Practical
operation
temperature test
Operation under low temperature: +5 °C
Operation under high temperature: +40 °C
Leave the product for 4 hours without operation in the
environmental temperatures, as above. Turn on the
power of the product and leave the product for 10
minutes. Immediately after that, check the
performance under the same environmental
temperatures as above. However, there should be no
dew condensation.
There should be no errors
in the practical operation.
When this product is built
in the set unit, make sure
that the temperature does
not exceed the range
described on the left.
3. Storage test
under low
temperature.
Temperature: (−30 ± 2) °C
Leave the product for 24 hours without operation in the
above environmental temperature range, and then leave
it at normal temperature for 24 hours. After that,
measure the characteristic change. However, there
should be no dew condensation.
The characteristics should
conform to the standards
described in the Reliability
Estimation Standards
Table.
4. Storage test
under high
temperature
Temperature: (60 ±2) °C
Leave the product for 24 hours without operation in the
above environmental temperature range, and then leave
it at normal temperature for 24 hours. After that,
measure the characteristic change. However, there
should be no dew condensation.
The characteristics should
conform to the standards
described in the Reliability
Estimation Standards
Table.
5. Storage
under high
temperature and
high humidity
Temperature and humidity: (40 ± 2) °C, (90 ± 2) % RH
Leave the product for 24 hours without operation in the
above environmental temperature range, and then leave
it at normal temperature for 24 hours. After that,
measure the characteristic change. However, there
should be no dew condensation.
The characteristics should
conform to the standards
described in the Reliability
Estimation Standards
Table.
6. Unit Vibration
(without
peration)
Amplitude:800 cpm (13.3 Hz)
3 mm (1.06 G)
The above amplitude is applied to the product for 20
minutes for Up/Down direction.
The characteristics should
conform to the standards
described in the Reliability
Estimation Standards
Table.
7. Unit Impact
(without
operation)
Impact: 490 m/s2(50 G), 3 directions
Impact time: 6 ms
Measure the performance after applying the above
impact for each direction.
The characteristics should
conform to the standards
described in the Reliability
Estimation Standards
Table.
8. Pick-up
Slide Operation Random Seek
After 1000000 times operation, the performance is
checked.
There should be no errors
in the practical operation.
9. Jamming When the product is built in the set unit, the level of electromagnetic wave which is
emitted from the unit shall conform to the local radio wave standards. (When any
problems occurs, the negotiation is required to support the counter measures).

Page 15
Document No. Document Name
SANYO Electric Co., Ltd.
Reliability
(3/3)
The following table shows the reliability standards for the main parts (units) which are used in
this product.
Test items Test conditions Criteria
10. Laser diode life
Check the recorded power after 1000 hours of
operation at 60 °C.
(except for breakage caused by static electricity)
The error rate should be
1 % or less.
11. Spindle motor life Measure the current in the motor after 1000 hours
operation. The initial value should be
+35 % or less.
12. Feeder motor life
After the pick-up slide operation as described in item
8, measure the consumption current in the motor. The values should be
conform to the pull-out
torque 1500pps 9.8×10-4
N-m (10grf-cm) or more.
3. Reliability Standards
The reliability standards are as follows.
1).CD
2).DVD
Items Before Test
Change in
Values after Test Remarks
1/3 stroke mean access
time ×40 CAV
speed 0.27 s or less 0.35 s or less Mean value measured after
reciprocating operation for (0
to 20) min. (one way value)
Items Before Test
Change in
Values after Test Remarks
1/3 stroke mean access
time ×12 CAV
speed 0.27 s or less 0.35 s or less Mean value measured after
reciprocating operation for (0
to 20) min. (one way value)

Page 16
Document No. Document Name
SANYO Electric Co., Ltd.
Lot No. Reliability Description
(1/1)
Lot No. Description
[Serial No. Indication]
1 2 3 4 5 6 7 8
A B C D D D D D
A. Factory: Korea Tokyo Electronics: 6,
Sanyo Media Tech: 3, SSHQ: 8
B. Year of manufactured: (1996: 6, 1997: 7, 1998: 8, 1999: 9, 2000: 0, 2001: 1,
2002: 2, 2003: 3, 2004: 4, 2005: 5)
C. Month of manufactured: Form Jan. to Sep.: 1 ~ 9 & Form Oct. to Dec.:X ~Z
(Jan: 1, Feb: 2, Mar: 3, Apr: 4, May: 5, Jun: 6, Jul: 7,
Aug:8, Sep: 9, Oct: X, Nov: Y, Dec: Z)
D. Manufacturing Serial No.: Start from 00001.
(5 digits) When the number reach to 99999, the next is 00000,
then 00001 again.

Page 17
Document No. Document Name
SANYO Electric Co., Ltd.
Safety Standards
(1/1)
Safety Standards
(1) UL (UL1950 / FDA1040)
(2) CUL (UL1950)
(3) Label

Page 18
Document No. Document Name
SANYO Electric Co., Ltd.
Electrical Characteristics
(1/3)
Electrical Performance
Items Specifications
Reading speed DVD-Read ×12(CAV) speed : 8.9MB/s(disc in side) to
21.6MB/s(disc out side)
CD-Read ×40(CAV) speed: 2.4 MB/s (disc in side) to
6.0MB/s (disc out side)
(typical)
Writing speed DVD-R ×1, ×2, ×4(CLV)DVD+R ×1,×2.4, ×4(CLV)
DVD-RW ×1, ×2(CLV) DVD+RW ×1,×2.4(CLV)
CD-R ×4, ×8, ×12, ×16(CLV) , ×16〜×24(ZCLV)
CD-RW ×4, ×10, ×12(CLV)
Mean random seek
time 130 ms (typical) CD
130 ms (typical) DVD-ROM
Buffer size 8 MB
Photo CD Applied
Sampling Frequency 44.1 kHz
Line Out HeadphoneT.H.D.
(Total Harmonic Distortion) 0.15 %
(1 kHz) 0.4 % (1 mW, 1 kHz)
Channel Separation 60 dB 28 dB
Audio(CD)
S/N ratio 70 dB 65 dB
Max Output 0.6 V (typical) 0.8 V (typical)
Error rate < 10–9 (soft read error) CD
< 10–12 (hard read error) CD
Power Consumption
Item Specifications
Power Consumption DC 5 V 2.0 A (Peak)
DC 12 V 2.0 A (Peak)

Page 19
Document No. Document Name
SANYO Electric Co., Ltd.
Electrical Characteristics
(2/3)
Mechanisms
Usable Media of DVD
Items Specifications
Pick-up NA : 0.51/0.67
Focus : Astigmatism
Tracking : DPP/DPD
Wave length : 784/660 nm (standard)
Traverse mechanism Stepping motor
Spindle motor DC brushless motor
Loading mechanism Automatic loading system
Media name Capacity Reading Writing
DVD-ROM single 4.7GB -
DVD-ROM dual 8.7GB -
DVD-RAM V1.0 2.6GB ××
DVD-RAM V2.0 4.7GB ××
DVD-R V2.0 for General 4.7GB
DVD-RW V1.1 4.7GB
DVD+R V1.0 4.7GB
DVD+RW 4.7GB
