Savant TTV-2018 Deployment Guide
009-0575-00
Savant Touch TV 18.5-inch
(TTV-2018)
Deployment Guide
Software Release: da Vinci Release 5.0
Hardware Release:TTV-2018-01
Date: May 2012
Part Number: 009-0575-00
Introduction

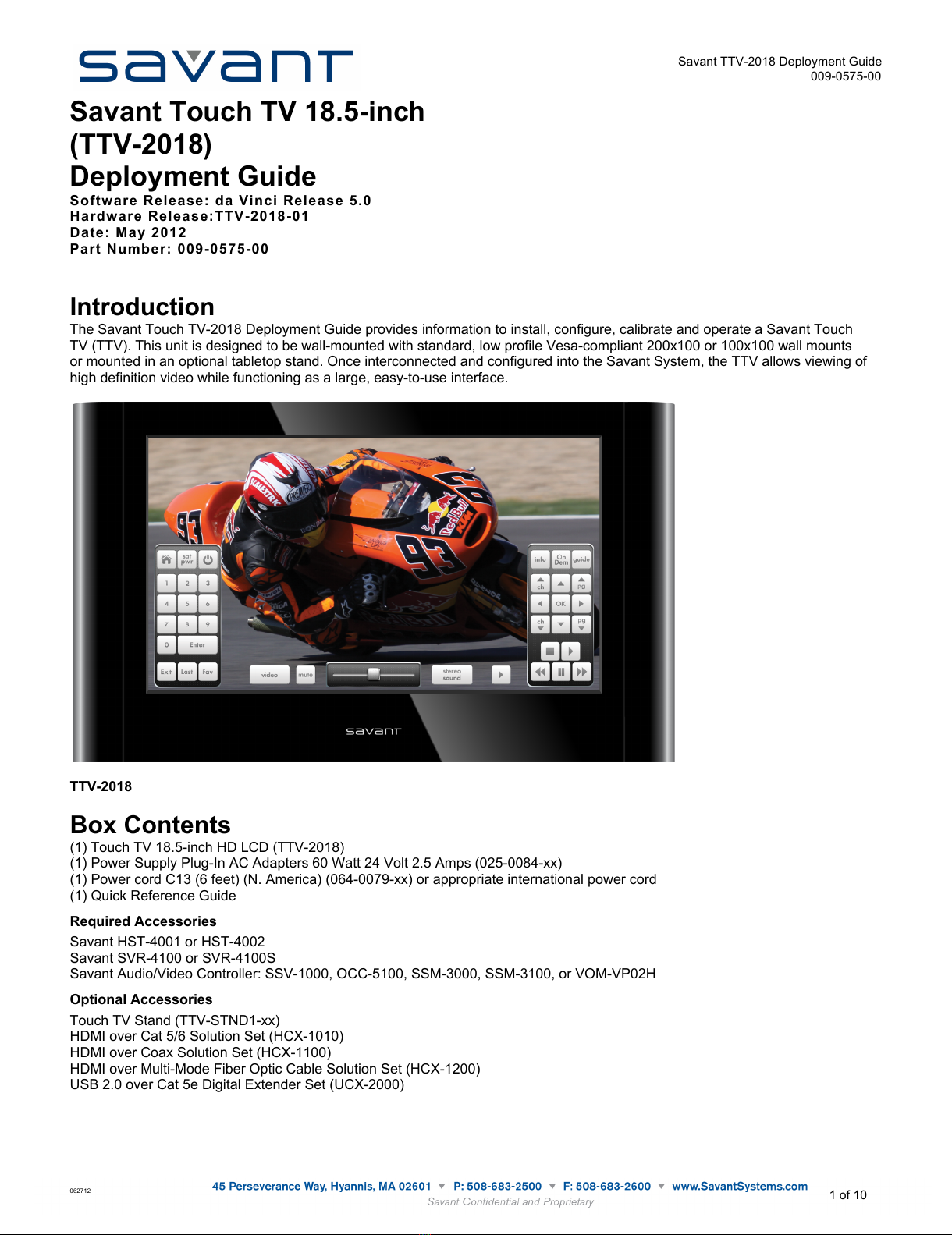

The Savant Touch TV-2018 Deployment Guide provides information to install, configure, calibrate and operate a Savant Touch
TV (TTV). This unit is designed to be wall-mounted with standard, low profile Vesa-compliant 200x100 or 100x100 wall mounts
or mounted in an optional tabletop stand. Once interconnected and configured into the Savant System, the TTV allows viewing of
high definition video while functioning as a large, easy-to-use interface.
TTV-2018
Box Contents
(1) Touch TV 18.5-inch HD LCD (TTV-2018)
(1) Power Supply Plug-In AC Adapters 60 Watt 24 Volt 2.5 Amps (025-0084-xx)
(1) Power cord C13 (6 feet) (N. America) (064-0079-xx) or appropriate international power cord
(1) Quick Reference Guide
Required Accessories
Savant HST-4001 or HST-4002
Savant SVR-4100 or SVR-4100S
Savant Audio/Video Controller: SSV-1000,OCC-5100, SSM-3000, SSM-3100, or VOM-VP02H
Optional Accessories
Touch TV Stand (TTV-STND1-xx)
HDMI over Cat 5/6 Solution Set (HCX-1010)
HDMI over Coax Solution Set (HCX-1100)
HDMI over Multi-Mode Fiber Optic Cable Solution Set (HCX-1200)
USB 2.0 over Cat 5e Digital Extender Set (UCX-2000)
All manuals and user guides at all-guides.com

062712
2 of 10
Savant TTV-2018 Deployment Guide
009-0575-00
Unpack the Components
1. Remove the components and packing materials.
2. Save the box and packing materials to transport or ship the Touch TV.
Specifications
Environmental
Temperature
50º to 104º F (10º to 40º C)
Humidity
10% to 90% RH (non-condensing)
Maximum BTUs
137 BTUs per hour
Dimensions and Weight
Height
12.77 in/32.43 cm
Width
21.47 in/54.53 cm
Depth
1.58 in/4.01 cm
13.20lb/5.99 kg (TTV-2018)
Weight
4.80lb/2.18 kg (Stand only)
Power
Input Power
24V DC, 2.5 Amps, 100-240V AC 50/60 Hz
Nominal Power Draw
20 Watts
Maximum Power Draw
30 Watts
Display
18.5in/46.9 cm, TFT LCD Widescreen Display (with LED Backlight); Capacitive Touch Screen; Aspect Ratio
16:9; Resolution 1366 x 768
Compliance
Safety and Emissions
FCC Part 15
RoHS
Compliant
All manuals and user guides at all-guides.com

062712
3 of 10
Savant TTV-2018 Deployment Guide
009-0575-00
Mounting
The TTV-2018 can be wall-mounted with standard low profile wall mounts, Vesa 200x100 or 100x100, or mounted in an optional
Touch TV stand (TTV-Stand1).
Connections
Bottom view of TTV-2018
Power button
Switches TTV-2018 on and off.
USB 1, USB 2
USB ports (Type A) for connections to optional peripherals
For example, a mouse or keyboard.
24V DC connector
Input connector for 24V DC power.
USB Local Host
USB port (Type B) for connection to a Savant User Interface Server.
For example, HST-4001, HST-4002 or SVR-4100.
HDMI
HDMI connection to Savant audio/video controller.
Connect the TTV-2018
1. Connect the TTV-2018 connectors above to the components in your system.
2. Connect the power cord to the 24V DC connector.
Typical Configuration
Setup the Touch Driver
When the Savant Host is purchased, the touch driver is already installed. If you need to re-install the touch driver, do the
following:
1. Locate the host and click the Share Screen button in upper left of the System Monitor window.
2. Stop the software running on the host.
3. Locate the Tools folder on the Desktop.
4. Select the Setup App.
When prompted to select a driver, do not select a driver. The software will auto-detect the driver.
5. Select Install.
6. Select Restart when prompted.
7of 7
Design Considerations
As shown in the TTV-2018
interconnection figure to the
right, the USB interface must
connect to the user interface
server that provides the on-
screen graphics to the Touch
TV. Only one Touch TV is
supported per user interface
server.
Savant Touch TV: TTV-2018
009-0592-00
!"!##$
User Interface Server (SVR-4100)
TTV-2018
Copyright © 2012 Savant Systems, LLC. SAVANT and RacePoint Blueprint are trademarks of Savant Systems, LLC.
All brand names, product names and trademarks are the property of their respective owners.
Savant Systems, LLC reserves the right to change product specifications without notice.
All manuals and user guides at all-guides.com

062712
4 of 10
Savant TTV-2018 Deployment Guide
009-0575-00
RacePoint Blueprint Configuration
1. Open RacePoint Blueprint™.
2. Configure host and controller in Layout window.
3. Select the correct component from the RacePoint Blueprint™ Toolbar: Show Library > Components menu.
4. Add Savant IDs, where necessary
Note: Touch TV does not require a Savant UID.
The Savant IDs (UID) for all Savant components must be included in the RacePoint Blueprint™configuration.
Find the sticker displaying the Savant ID (UID) on the back of the Savant component.
a. Highlight the Savant component in the Layout window.
b. Enter a unique name for the component when the dialog box appears.
c. Rename component, if necessary.
d. Click Create button.
e. Click Show Inspector in RacePoint Blueprint toolbar to open the Inspector window.
f. If necessary, click Device and the Edit checkbox. Enter the Savant ID (UID) in the appropriate Inspector window text
field.
All manuals and user guides at all-guides.com

062712
5 of 10
Savant TTV-2018 Deployment Guide
009-0575-00

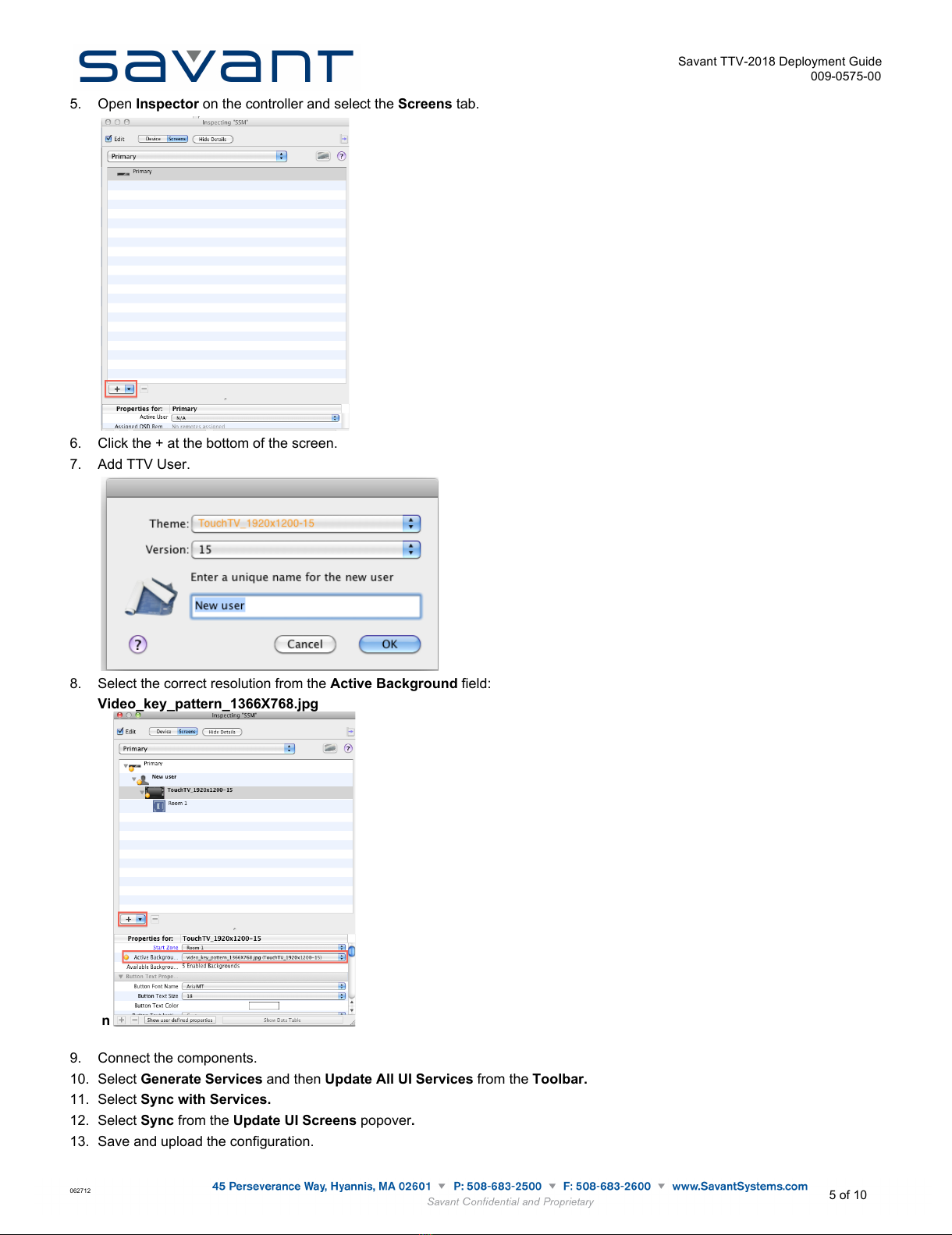

5. Open Inspector on the controller and select the Screens tab.
6. Click the + at the bottom of the screen.
7. Add TTV User.
8. Select the correct resolution from the Active Background field:
n
9. Connect the components.
10. Select Generate Services and then Update All UI Services from the Toolbar.
11. Select Sync with Services.
12. Select Sync from the Update UI Screens popover.
13. Save and upload the configuration.
All manuals and user guides at all-guides.com

062712
6 of 10
Savant TTV-2018 Deployment Guide
009-0575-00

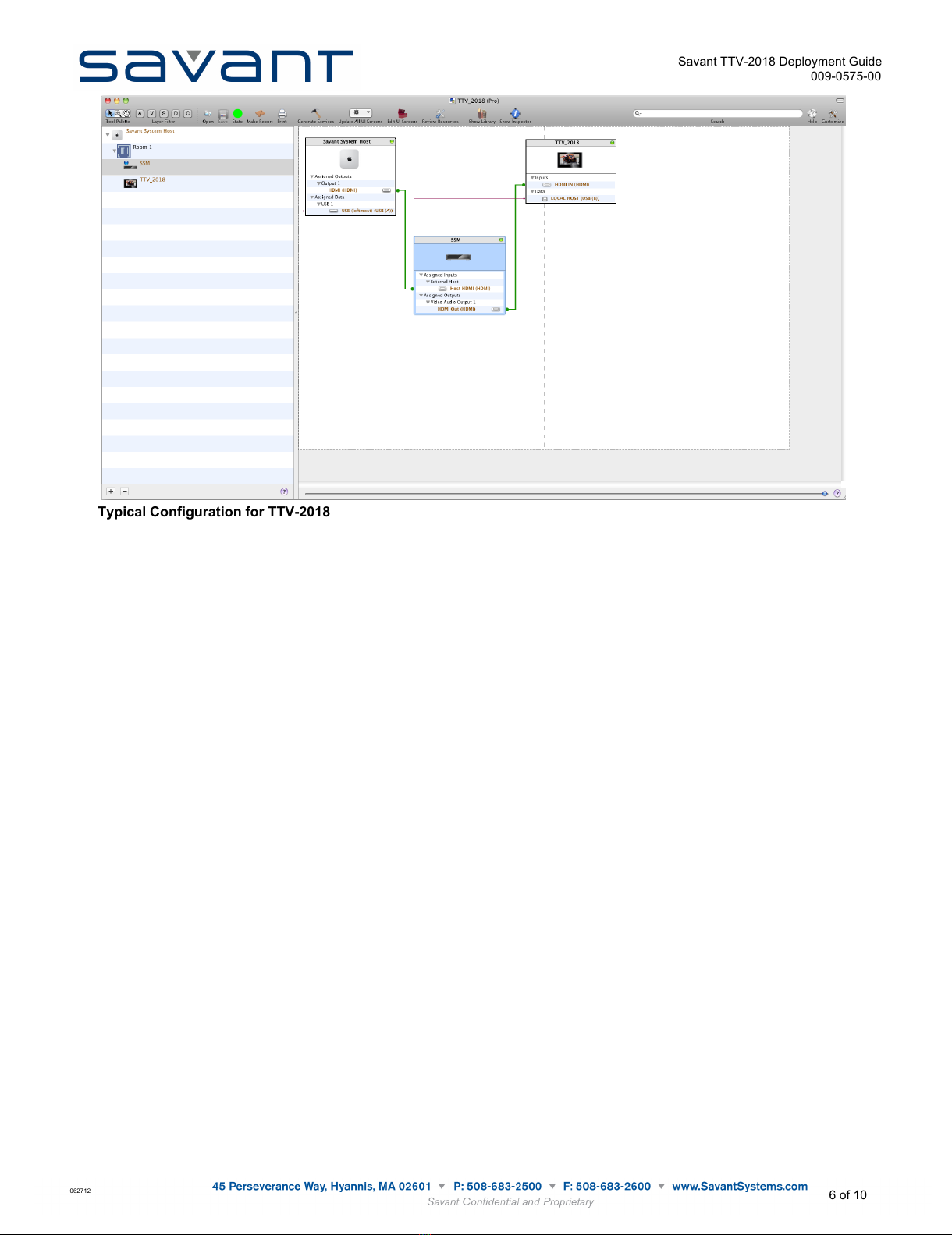

Typical Configuration for TTV-2018
All manuals and user guides at all-guides.com

062712
7 of 10
Savant TTV-2018 Deployment Guide
009-0575-00
Configure the Touch Driver to use a specific TTV
1. Connect to the TTV-2018 host via Share screens.
2. Stop the software on the host.
3. Open the UPDD Console.
4. Select Hardware and verify that the screen matches the screen shot below.
Note: If not, verify cables are connected.
5. Select Calibrate.
6. Follow instructions displayed on the TTV.
7. Restart software.
Preventative Maintenance and Cleaning
1. Clean the touch screen daily to avoid a buildup of dirt and dust with the following:
•A soft, absorbent and non-abrasive cleaning cloth
•A commercially available, non-ammonia glass cleaner (50% isopropyl and 50% water)
2. Gently wipe the screen.
3. Use a clean, soft cloth to dry the screen.
Additional Documentation
To see more documentation go to http://www.SavantSystems.com and navigate as follows:
>Dealer Login > Knowledge Base
•Refer to: Products > Touch TV 18.5 (TTV-2018) Quick Reference Guide
•Click link: RacePoint Blueprint™
All manuals and user guides at all-guides.com

062712
8 of 10
Savant TTV-2018 Deployment Guide
009-0575-00
Important Notice
Disclaimer
The contents of this document are subject to change without notice; therefore, the information presented herein shall not be
construed as a commitment or warranty.
Savant Systems, LLC shall not be liable for any technical or editorial errors or omissions contained herein or for incidental or
consequential damages resulting from the performance, furnishing, reliance on, or use of this material.
Patents
Certain equipment and software described in this document is protected by issued and pending U.S. and foreign patents.
All products and services are trademarks or registered trademarks of their respective manufacturer.
Copyright
This document contains confidential and proprietary information protected by copyright. All rights reserved. Copying or other
reproduction of all or parts of this document is prohibited without the permission of Savant Systems, LLC.
Trademarks
RacePoint Blueprint™and SAVANT® are trademarks of Savant Systems, LLC
All brand names, products names and trademarks are property of their respective owners.
Technical Support
SAVANT Systems, LLC is dedicated to providing prompt and effective support.
To get technical support in a timely and efficient manner:
1. Access the Savant Dealers Web site at dealers.SavantSystems.com
2. Enter User Name and Password and click Login.
3. The Support Center screen appears.
4. Select Support Request box.
5. The Submit Request window appears.
6. The Submit a Ticket window appears.
7. Complete the information and click Finish.
All manuals and user guides at all-guides.com

062712
9 of 10
Savant TTV-2018 Deployment Guide
009-0575-00

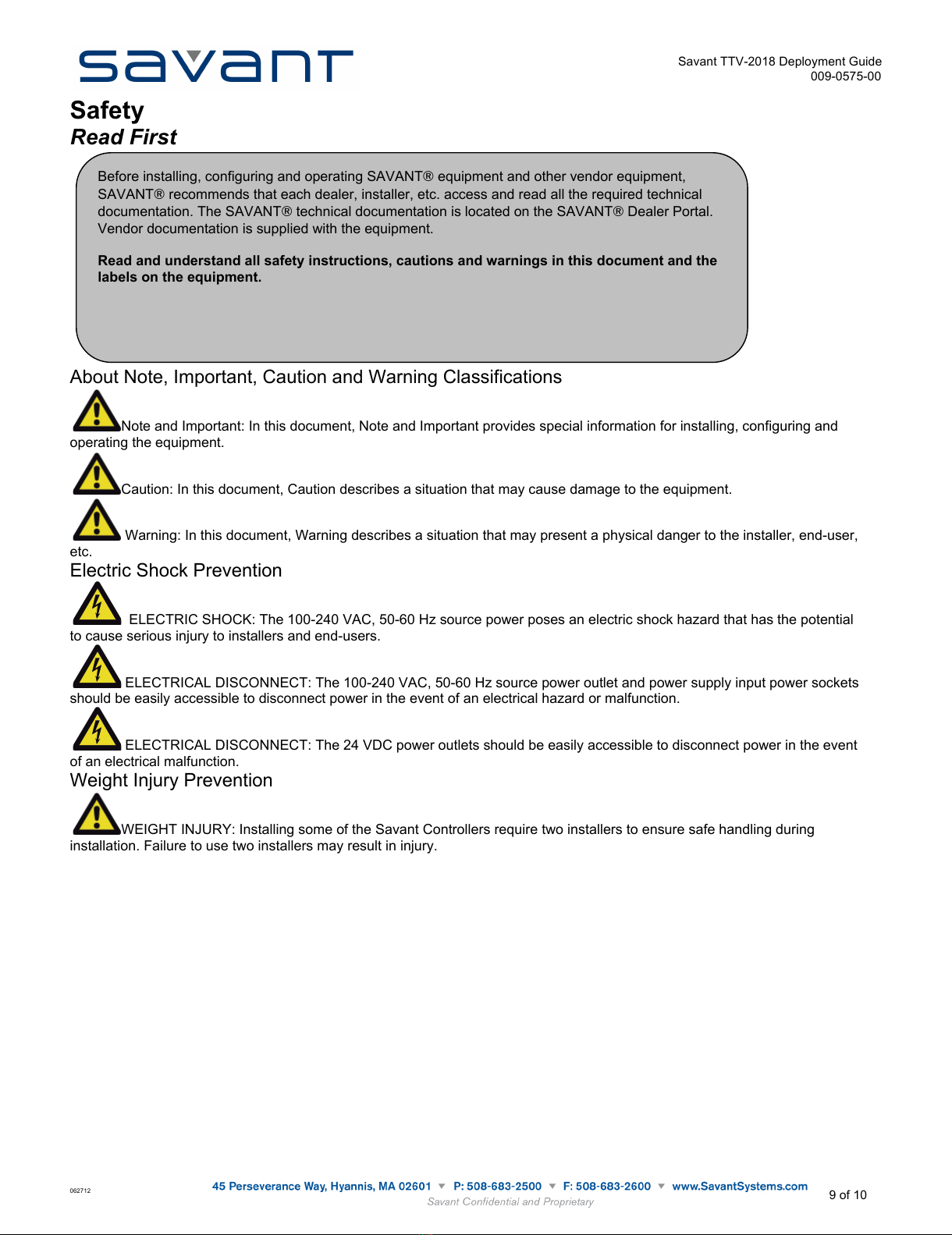

Safety
