GAS GRILL ASSEMBLY, USE AND CARE MANUAL
MODEL NO.: GD4210S-B1
ANY QUESTIONSDURING ASSEMBLY, USE AND CARE,
PLEASE CALL OUR SERVICE CENTER FOR
ASSISTANCE

2
Message to our users
Thank you for selecting the Savor Pro grill. We hope you enjoy using our
quality crafted product.
Please read this entire manual prior to assembly and use of this grill. Keep
this manual as a referrence for future questions that may occur.
Please contact our service center for assistance.
This grill is not intended for use on recreational vehicles and/or boats.
This appliance is for outdoor use only.
ATTENTION INSTALLER/ASSEMBLER: Please leave this manual in the grill for consumer
reference.
TABLE OF CONTENTS
Messages to Our Users--------------------------------------- 2
Important---------------------------------------------------------- 3
Installation Safety Precautions------------------------------ 4
Exploded View--------------------------------------------------- 5
Parts List---------------------------------------------------------- 7
Gas Connection------------------------------------------------ 19
Leak Testing---------------------------------------------------- 21
Installer Final Check List------------------------------------- 22
Grill Lighting Instructions------------------------------------- 23
Operation Instructions----------------------------------------- 25
Care & Maintenance--------------------------------------------27
Trouble Shooting------------------------------------------------29
Grilling Tips------------------------------------------------------ 30
Wear suitable protective gloves as necessary

3

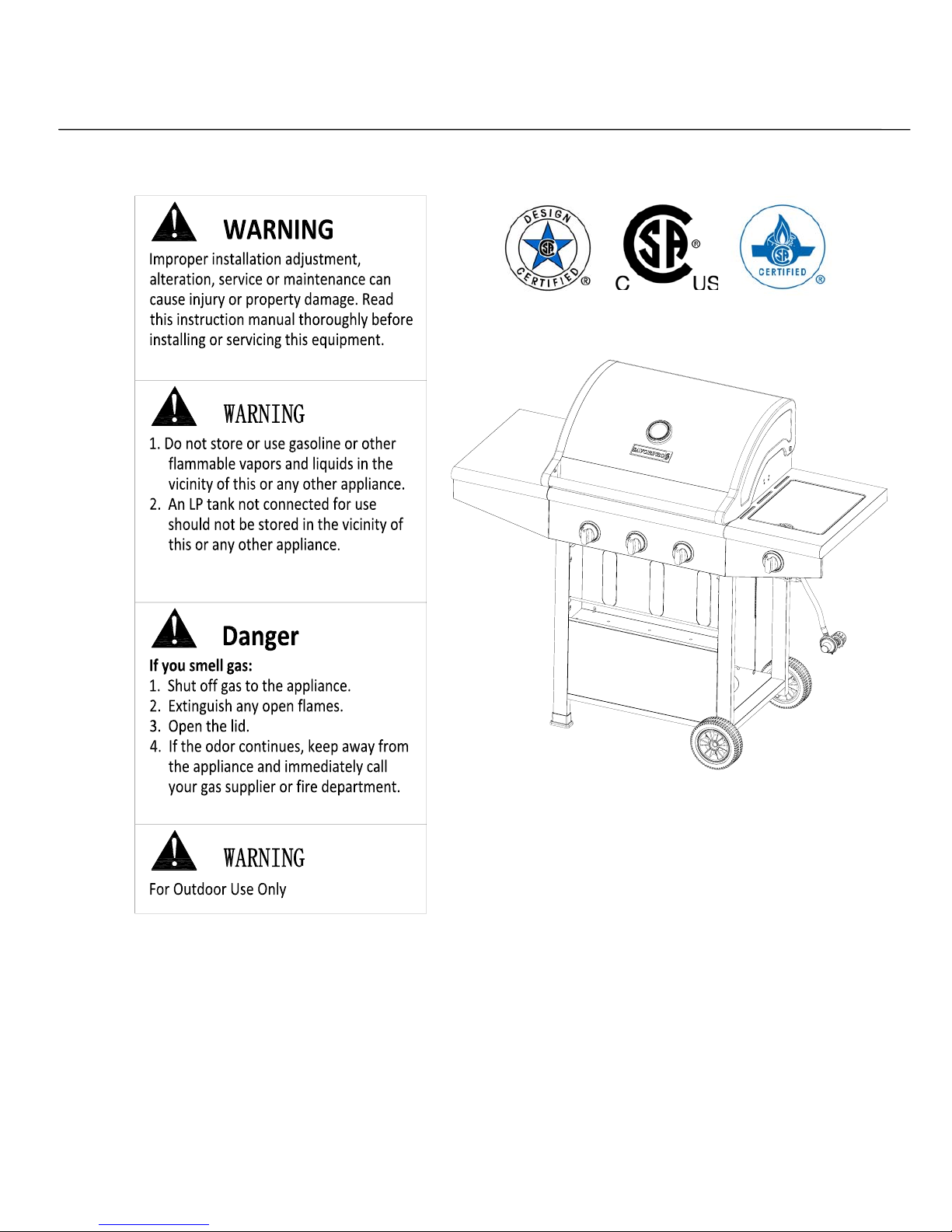

IMPORTANT

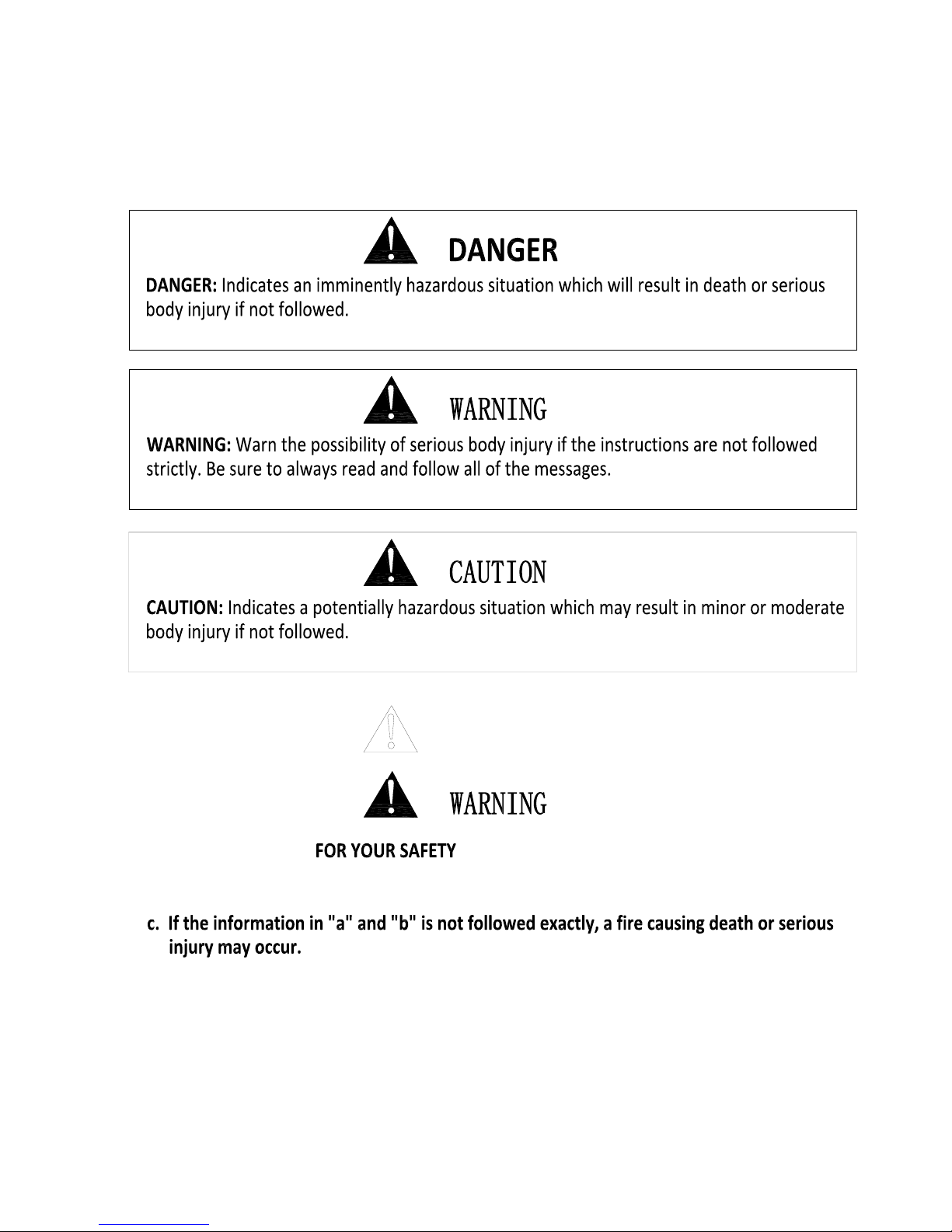

The symbols and boxes shown below explain what each symbol means.
Read and follow every message found in this manual.
ATTENTION SAFETY PRECAUTIONS
a. Do not store a LP Gas cylinder under or near this appliance
b. Never fill the cylinder beyond 80 percent full

4
1. This grill is designed to use L.P. gas only. So only use grill with L.P. gas and the
regulator assembly supplied by the manufacturer.
2. The installation of this appliance must confirm with local codes or, in the absence of
local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural
Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling
Code, B149.2, or the Standard.
3. The L.P. tank used must conform with the specification for L.P.-gas cylinders of the U.S.
Department of Transportation (DOT) or the National Standard of Canada,
CAN/CSA-B339. Cylinders, Spheres and Tubes for the Transportation of Dangerous
Goods.
4. This grill is safety certified for use in the United States and Canada only. Never modify
to use in other places. Modification may cause serious body injury or property loss.

5

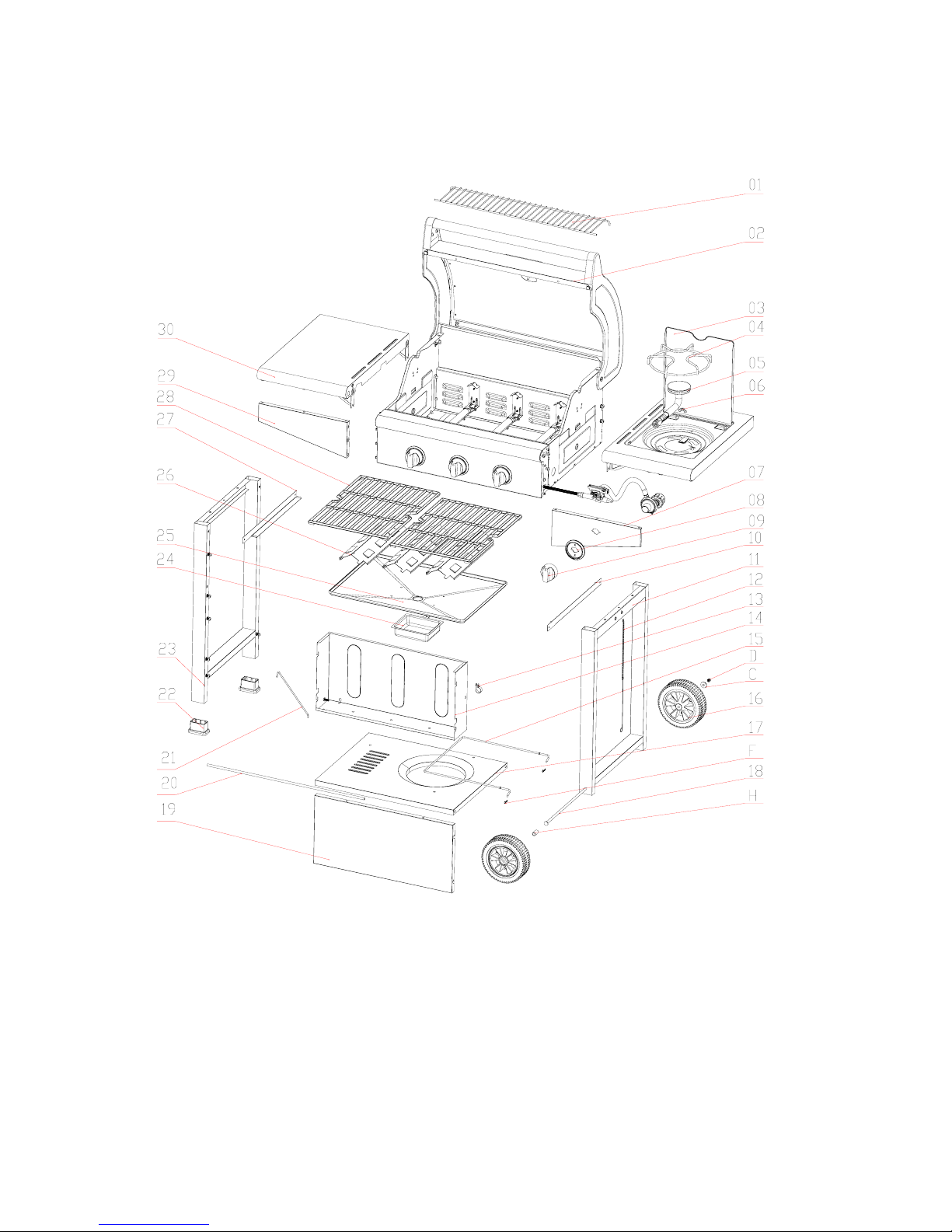

EXPLODED VIEW

6

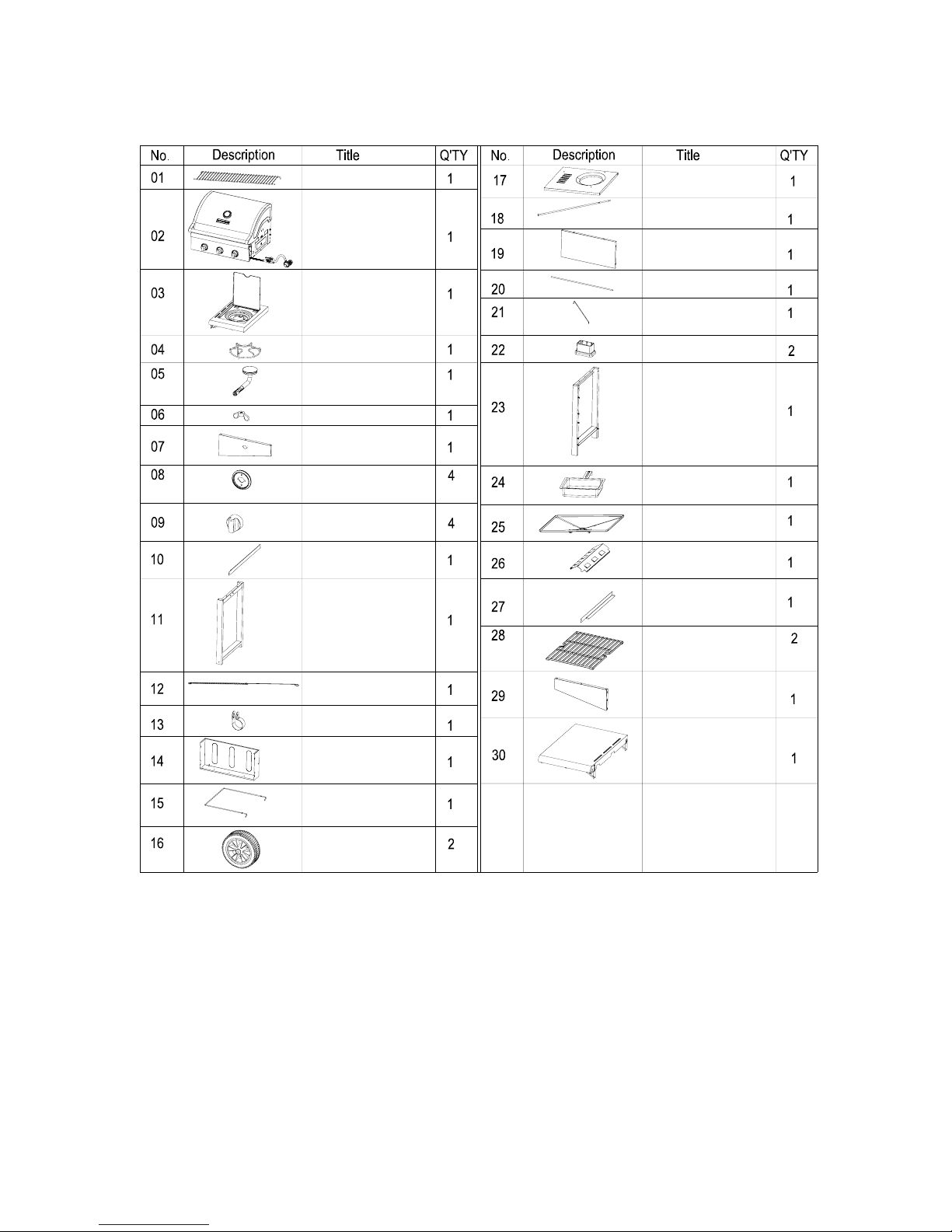

MODEL: GD4210S-B1 PARTS LIST
If you want to replace the parts, please feel free to contact us. We will be glad to assist you; please
Refer to this model No.:GD4210S-B1 whenever you contact us. Thank you.
GAE：
Gas Appliance Experts
P. O. Box 1637
Allen TX 75013
Tel: [phone]
Condiment Tray
Right table front panel
Left table front panel
Drip tray bracket left
Drip tray
Grease Cup
Cast Iron cooking grate
Side burner Grate
Drip tray bracket right
Cart Frame Left
Cart frame right
Stay Rod for condiment tray
Cylinder stop rod
Side Burner
Side Burner Nut
Knob Bezel
Knob
Warming Rack
Firebox Assembly
Right table assembly
Match stick holder
Regulator hose anchor
Gas cylinder saftey stop
Wheel
Bottom panel
Wheel axel
Cart front panel
Plastic foot mats
Heat tent
Left table assembly

7
ASSEMBLY INSTRUCTIONS
PLEASE READ THE INSTRUCTIONS CAREFULY AND FOLLOW STEP
BY STEP.
TOOLS REQUIRED:
■ Philips head screwdriver (not provided)
■ Adjustable / Allen wrench (not provided)
■ Soft Hammer(not provided)

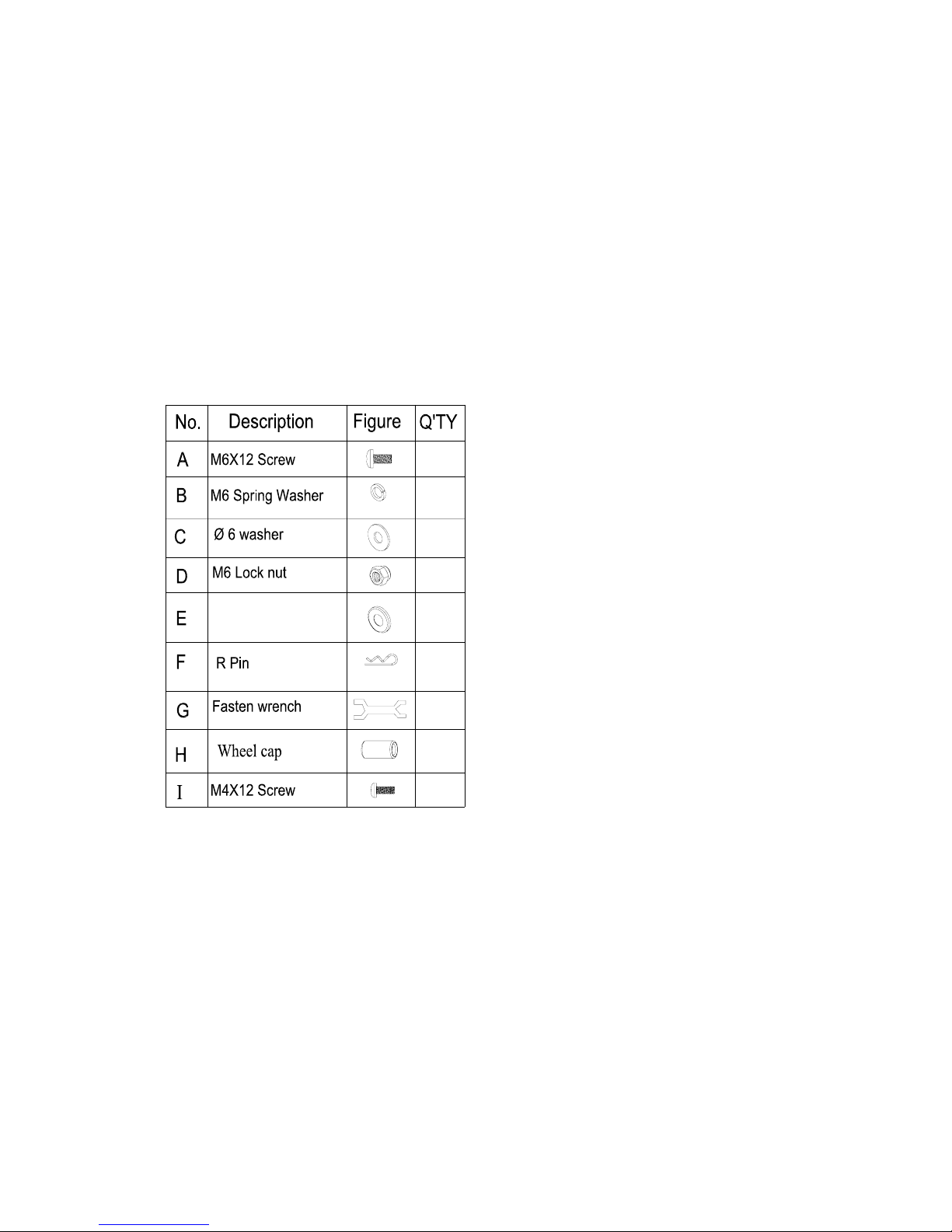

M6 Conical Washer
15
15
1
1
4
4
1
1
7

8

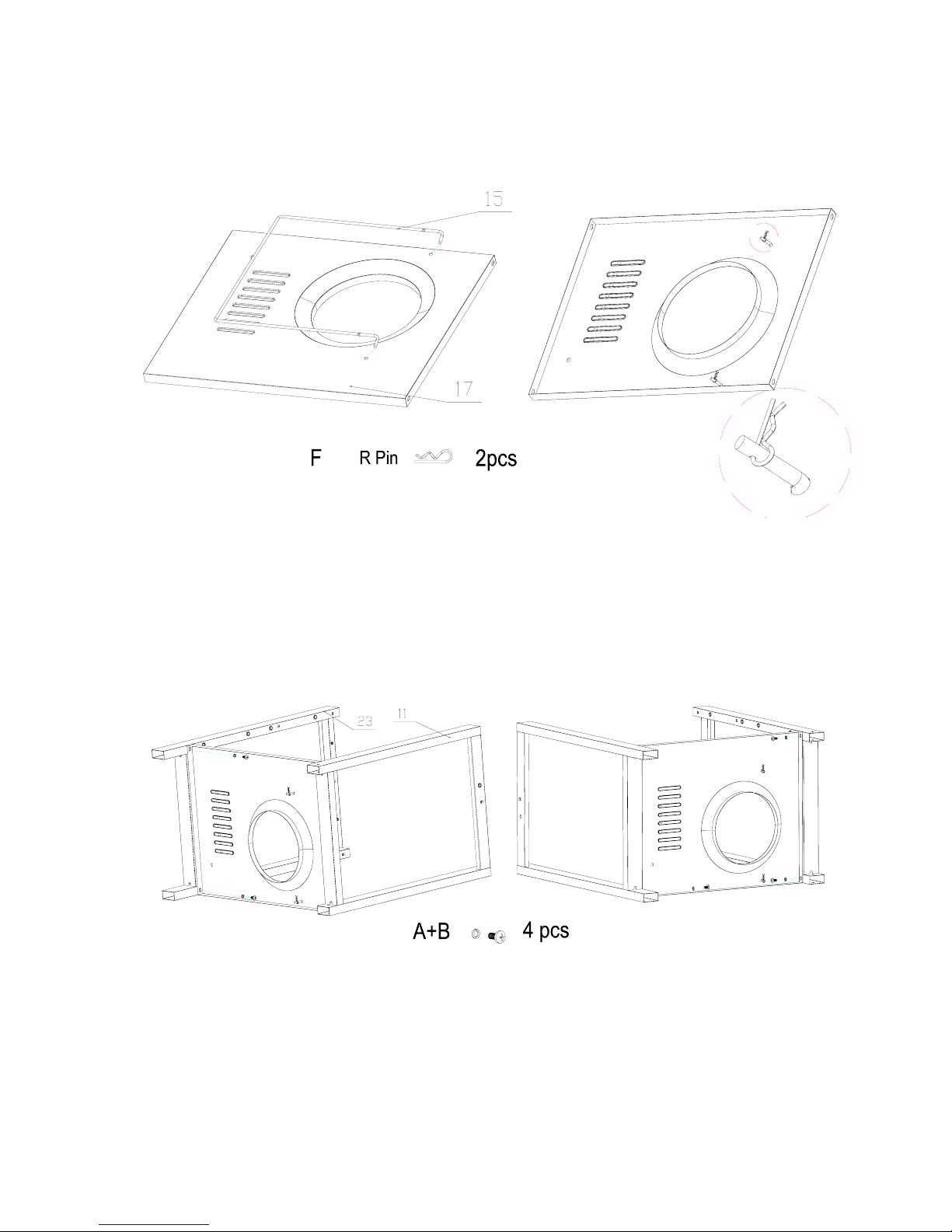

STEP 1: Insert the gas cylinder safety stop(15) to the related 2 holes into
bottom panel(17) as shown, turn over the bottom panel, insert the R PIN in the
2 holes on gas cylinder safety stop.

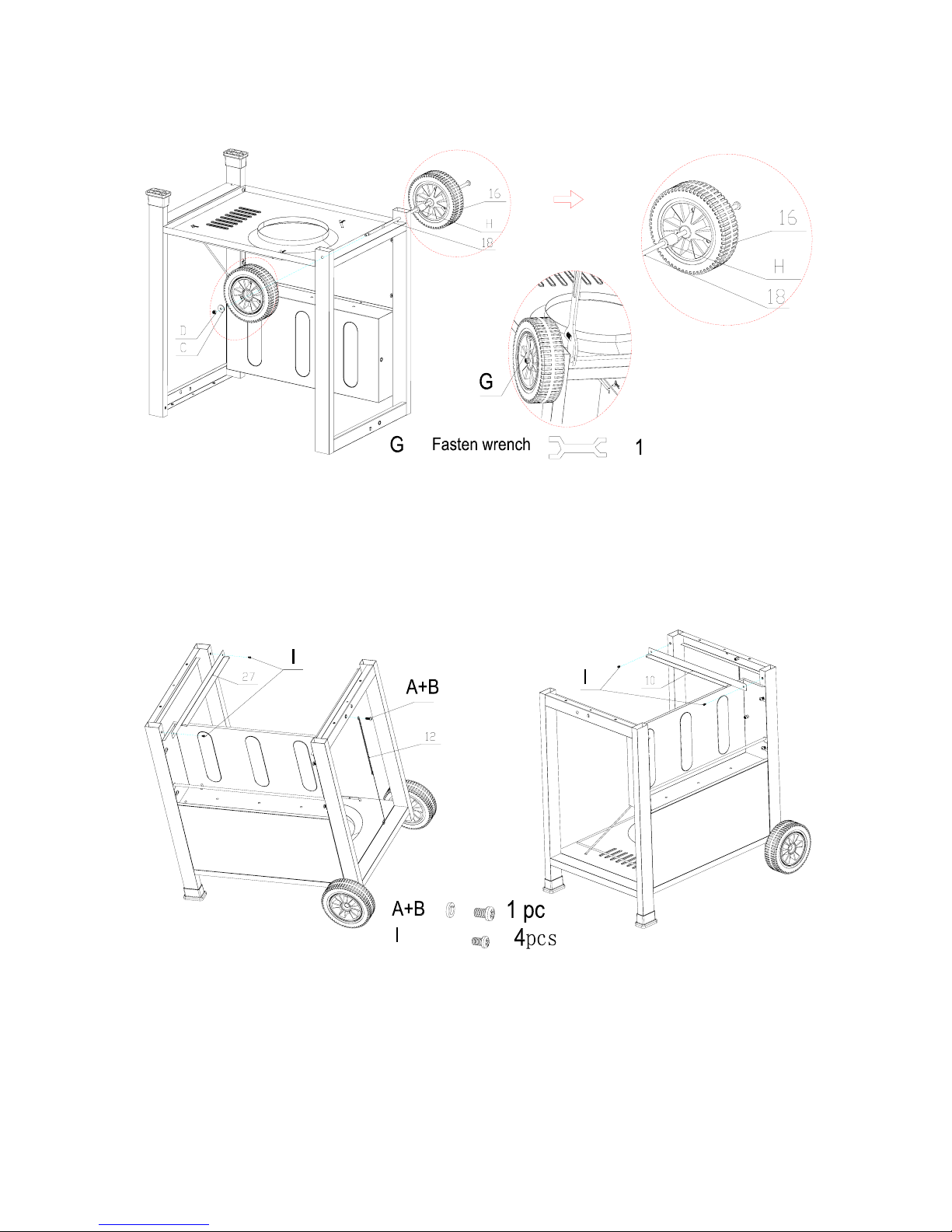

STEP 2: Install the cart left frame assembly(23) and cart right frame
assembly(11) as pictures shown:

9

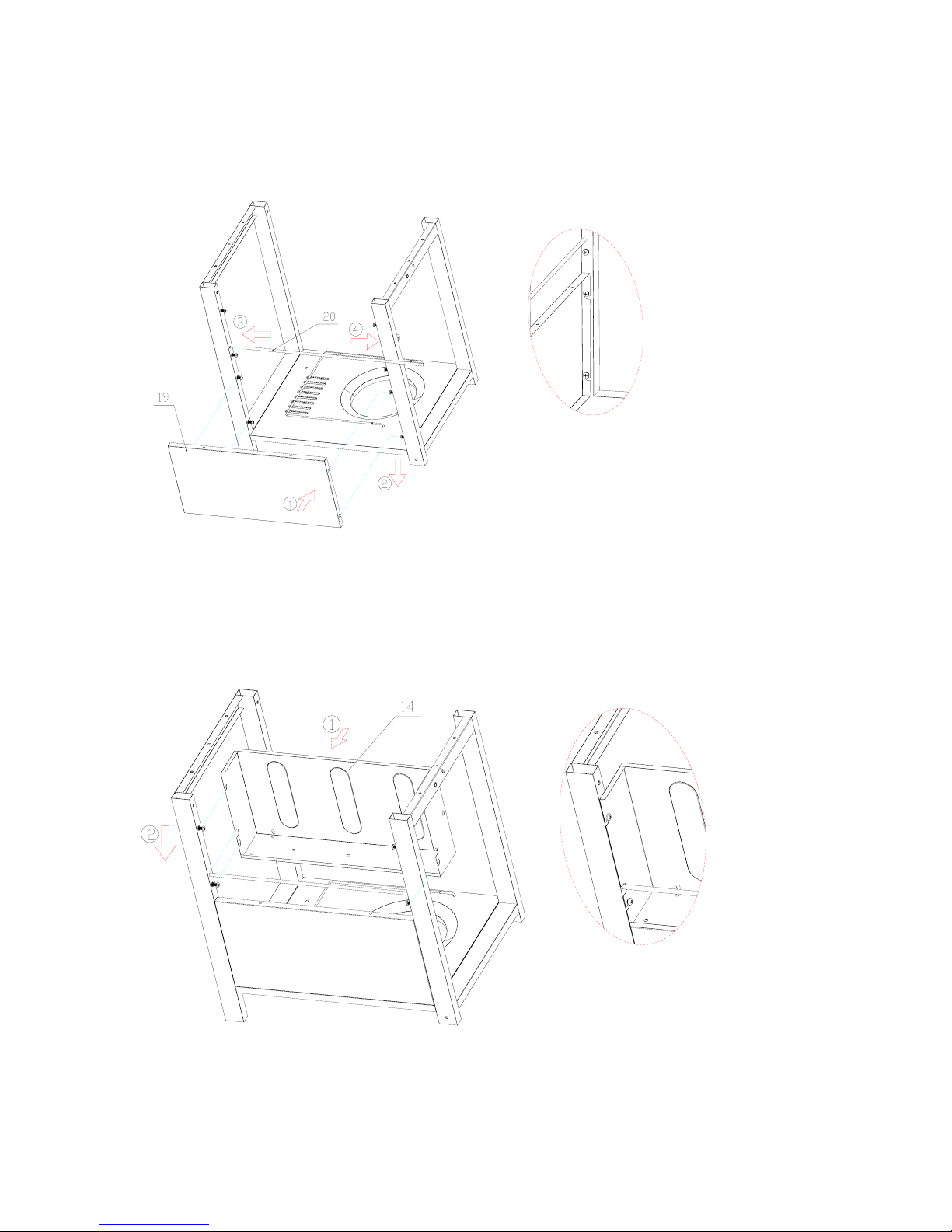

STEP 3: Insert front panel of cart (19) to the 4 pre set screws in cart assembly as
shown below.Install stay rod for condiment tray (20) into the pre drilled holes in
left cart frame and right cart frame, then tighten all related screws.
STEP 4: Insert condiment tray (14) into pre set screws as shown below,
then tighten the related 4screws.

10
STEP 5: Install cylinder stop rod (1) as shown, then insert 2 R pins
in the 2 small holes at each end of rod
STEP 6: Install plastic foot mats (22) as shown
