Savoy MK2 ELEGANCE 134 08 09 User manual

Description of the appliance
Installation instructions
Operating instructions
Spare parts
Warranty certificate
Document n° 1274-8
20/09/2011
Multifuel stove
Norm DIN EN 13240 : 2005-10
Model : 134 08 09
Output : 8 kW Technical manual
to be saved
by the user
for future reference
FR EN NL IT
SAVOY MK2 ELEGANCE
ES
Rue Orphée Variscotte
59660 MERVILLE (FRANCE)
Telephone : [phone]
Fax : [phone]

2Technical manual “1274”
“SAVOY MK2” - model : 134 08 09
CONTENTS
P
Sp
W
Lo
F
Li
This appliance is meant to burn wood or solid fuel safely
WARNING
Incorrectly installed, this appliance can be dangerous and possibly cause serious accidents.
We recommend that you engage the services of a professional engineer for its installation
and the regular maintenance requirements
Door closing pressure . . . . . . . . . . . p. 6

1Description of the unit
1.1 Package
•1 package : Stove
1.2 Specifications
Model................... 1340809
Norm DIN EN 13240 : 2005-10
Useful firebox dimensions
- Width ................mm 429
- Depth ................mm 201
- Height................mm 365
Ash pan capacity ..........litre 6
Weight .................kg 135
Fuel : WOOD
Firebox draught at nominal rate ...Pa 12
Logs dimensions :
- Max. length .............cm 40
Nominal heat output .........kW 8
Efficiency................% 78
Co (13% O2) ..............% 0,30
Mean flue gas temperature ......C° 303
1.3 Appliance description
Wood stove - in conformity with DIN EN 13240 :
2005-10
•Intermittent-burning heating appliance.
•Detachable flue spigot for rear or top chimney
connection.
•Front loading door fitted with large refractory glass
panel.
•Adjustable primary air for controlling the burning rate.
•Large ash-pan.
1.4 Operating principle
The appliance is designed for operating only with the
door closed. Heat is mainly diffused by radiation
through the window and by hot air diffusion convection
around the body of the appliance.
Technical manual “1274” 3
“SAVOY MK2” - model : 134 08 09 Description of the unit
535
663
520
363
132
Ø 1 2 5
i n t .
Ø 1 3 9
e x t .
407

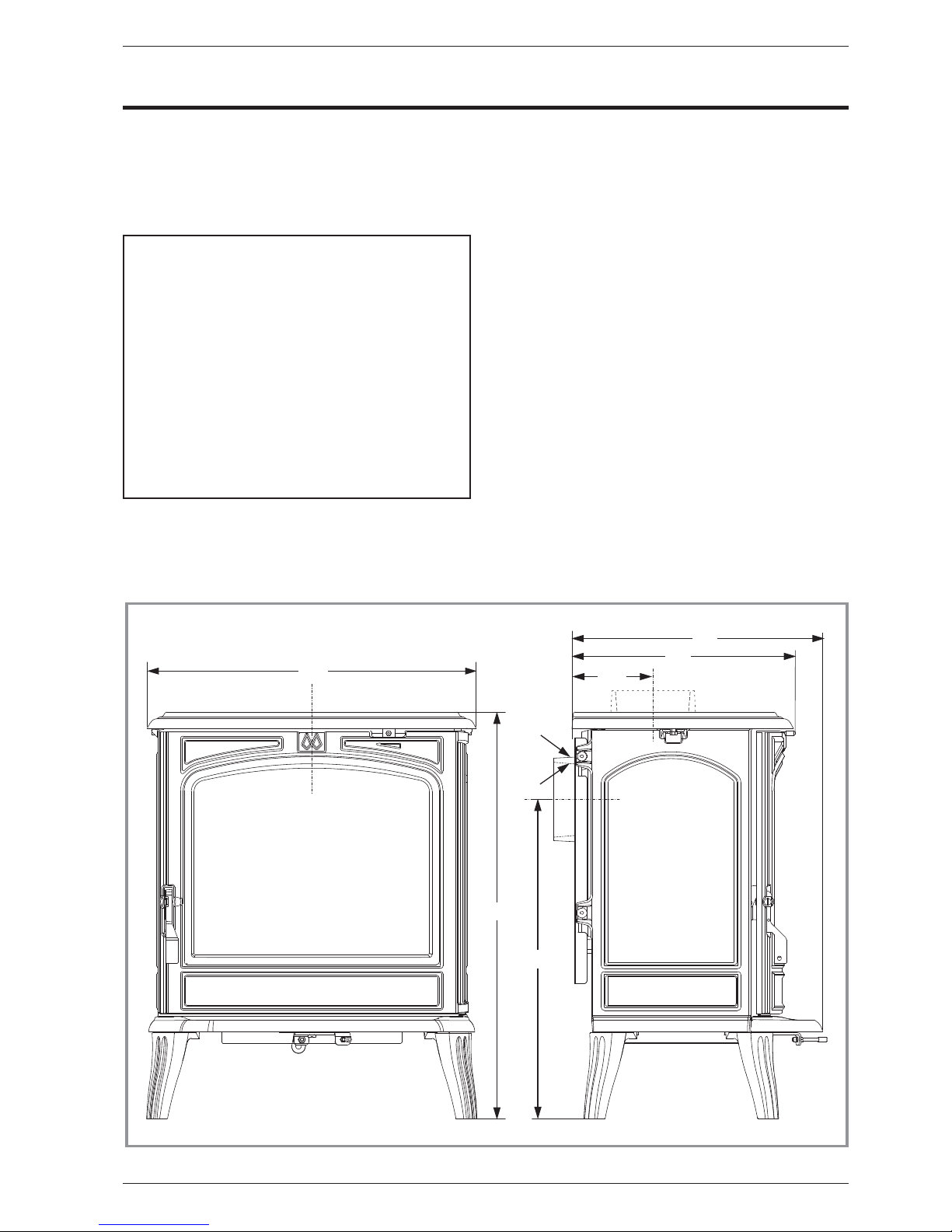

Figure 1 - Dimensions in mm

2Installation instructions
2.1 Warning to the user
All the local and national
regulations, and in particular
those relating to national and
European standards, must be
observed when installing the
appliance.
An incorrectly installed
heating appliance can cause
serious accidents (chimney
fires, burning of plastic
insulation materials, in partition
walls, etc.).
The insulation of both the
appliance and the exhaust gas
pipe has to be reinforced and
done according to the Standards
and the Building Regulations for
safety reasons. The installation
must be carried out according to
the Standards and the Building Regulations.
Failure to respect the mounting instructions leads to
engage the responsibility of the one doing the
installation.
The manufacturer’s responsibility shall be limited
to the supply of the appliance.
2.2 Location of the unit
Ventilation :
For satisfactory appliance operation with a natural
draught, check that sufficient air for combustion is
available in the room.
In houses equipped with one VMC (controlled
mechanical ventilation), this one aspire and renew the
ambient air ; In this case, the residence is under slight
low pressure and a non-sealable external air intake
must be installed in addition to the chimney itself, at
least 50 cm² in section.
Position of the unit :
For new installations, select a central position within the
house, to provide a good heat distribution around the
building.
The heat distribution towards the other rooms will be
made through the communicating doors.
These rooms must be in negative pressure or must
include ventilation gratings.
Floor and walls :
Make sure that the floor can support the weight of the
appliance, its surroundings and the hood. In the
contrary the floor needs to be reinforced with a concrete
screed to distribute this load.
Make sure they are not combustible or covered with
combustible material (as per the Building regulations).
There must be a clearance of at least 150 mm at each
side of the appliance and at the back of the appliance
from a non-combustible wall.
This measurement may be reduced to a minimum gap
of 50 mm when the non-combustible wall is at least
200 mm thick.
This distance must be extended to a minimum
clearance of 600 mm from any combustible materials.
The distance to a combustible rear wall is minimum
400 mm.
When using a single wall flue pipe, there must be a
clearance (A) of at least three times its diameter (B)
from any combustible materials.
If the appliance has to be located in an opening, this
distance must be extended to a minimum clearance (A)
of 375 mm from the pipe or the stove body to any
combustible materials.
Hearth :
The appliance must stand on a fireproof hearth.
It is possible to provide a hearth made of non
combusible board/sheet material or tiles at least 12 mm
thick (C).
Constructional hearths should be constructed of solid
non combustible material at least 125 mm thick
(including the thickness of any non combustible floor
under the hearth).
The hearth must protrude at least 225 mm in front of the
stove and 150 mm each side.
If the hearth is constructed on timber, there must be a
clearance of at least 250 mm from the timber to the top
surface of the hearth. See section J of the Building
regulations.
Do not place any combustible matérials in front of the
stove within a distance of 115 cm.
Be aware that the distances given are the minimum
required, however take into consideration that you need
to have sufficient space for cleaning and maintenance
purposes.
2.3 Flue
Existing flue : The chimney must comply with Current
Building Regulations. If in doubt, consult your Dealer or
local Building Inspector.
4Technical manual “1274”
“SAVOY MK2” - model : 134 08 09 Installation instruction
1 5 0
1 5 0 1 5 0 3 0 0
1 5 0
B
A
A
C
1 5 0
Figure 2 - Clearances

-The flue must be in good condition and must provide
sufficient draught.
-The flue must be suitable for the installation of solid
fuel burning appliances and comply with Current
Building Regulations.
-The flue must be clean. It should be swept to remove
soot and dislodge tar deposits.
-The flue must be well insulated. If the flue inner wall
surfaces are cold, a good thermal draw is impossible
causing condensation problems (tar formation etc) to
occur.
-The flue must not be shared with other appliances.
-The chimney must be at least 4.5 m (15 ft high).
-In case of a flat roof or when the roof gradient is lower
than 15°, the stack must be 1,2 m (4 feet) high at least.
-If the chimney has any down draught tendency, due to
its position in relation to nearby obstacles, then an
anti-down draught cowl must be installed on the
chimney or the chimney height must be increased.
-If the decompression in the chimney is excessive, a
draught stabiliser must be installed.
Chimney to be built / New flue : The chimney must
comply with Current Building Regulations. If in doubt,
consult your Dealer or local Building Inspector.
-The appliance must not support the weight of the flue.
-It must be distant from any combustible material
(walls, cross members).
-It must permit an easy sweeping.
2.4 Mounting the flue collar
The stove is supplied with a connection flue spigot with
an inner diameter of 125 mm and an outer diameter of
139 mm. The stove is set from the factory with a top
outlet.
2.5 Top flue outlet
Figure 3
-First remove the flue baffle (A).
-The stove is set from the factory with a top outlet.
-Do not remove the cast iron top.
-Fit the sealing rope (B) in the groove and attach the
flue spigot (C) on the top using the bolts and washers
supplied, ensuring there is a good seal.
-Refit the flue baffle (A).
2.6 Rear flue outlet
Figure 4
-Do not remove the cast iron top.
-remove the cardboard chock from the top.
-Remove the internal baffle A.
-Remove the rear heat shield F.
-Remove the flue precut part in the heat shield
(figure 5).
-Removed the flue spigot C.
-Place the seal rope Bwithin the groove, fix the
blanking plate Dand the clamp Eand ensure a good
tightness.
-Place the seal rope Bwithin the groove, screw into
position the Flue collar Cand ensure a good tightness.
-Replace the rear heat shield F.
-Refit the flue baffle A.
Technical manual “1274” 5
“SAVOY MK2” - model : 134 08 09 Installation instruction
1
2
A
A
B
C
Figure 3 - Top flue outlet
1
2
A
A
BC
B
D
E
F
Figure 4 - Rear flue outlet
Figure 5 - Cut-out in the rear heat shield
A- Flue baffle
B- Gasket
C- Flue collar
D- Blanking plate
E- Clamp
F- Back panel

2.8 Chimney connector
The connection to flue must be carried out according to
local building regulations.
The appliance must be installed as close as possible to
the chimney.
The connector pipe must be approved for installation
with combustion products (either 24 ga. Black painted
or blued steel or 316 grade 20 ga. Stainless steel or 1
mm vitreous enamelled steel).
Pipe diameter must not be less than the appliance
spigot diameter.
The connection can be either vertical or horizontal. For
horizontal connections, avoid right angle bends.
The join between the connection pipe and the
stovepipe, and the flue, must be leak tight.
For the premises equipped with a mechanical
controlled ventilation, the airtightness has to prevent
the exhauster drawing out the smokes from the
exhaust gas pipe.
The connection pipe and any draught stabiliser must
have access for cleaning.
The spigot should be connected to a minimum of
125 mm flue system and in that case the appliance is
capable of burning untreated wood and recommended
solid fuels.
2.9 Pre-utilisation check
-Check that the seals of the smoke-line are in good
condition. Check that the door closes correctly. Check
that the glass is not damaged. Check that the smoke
passages are not obstructed by packaging or
removable parts. Check that all removable parts are
correctly installed.
Note : The rope seals should be checked on a regular
basis as they are normal replacement parts.
2.10 Maintenance of the Chimney
Very important : In order to avoid any incident
(chimney fire, etc...), maintenance tasks must be
carried out regularly. If the appliance is regularly used,
the chimney should be swept several times per year,
together with the stovepipe connection section.
If the chimney catches fire, you must cut off the flue
draught, close the doors and windows, hatches and
keys and call the Fire Brigade without delay.
DO NOT OPEN THE DOOR OF THE APPLIANCE
(OR AIR INLET) UNDER ANY CIRCUMSTANCES
6Technical manual “1274”
“SAVOY MK2” - model : 134 08 09 Installation instruction

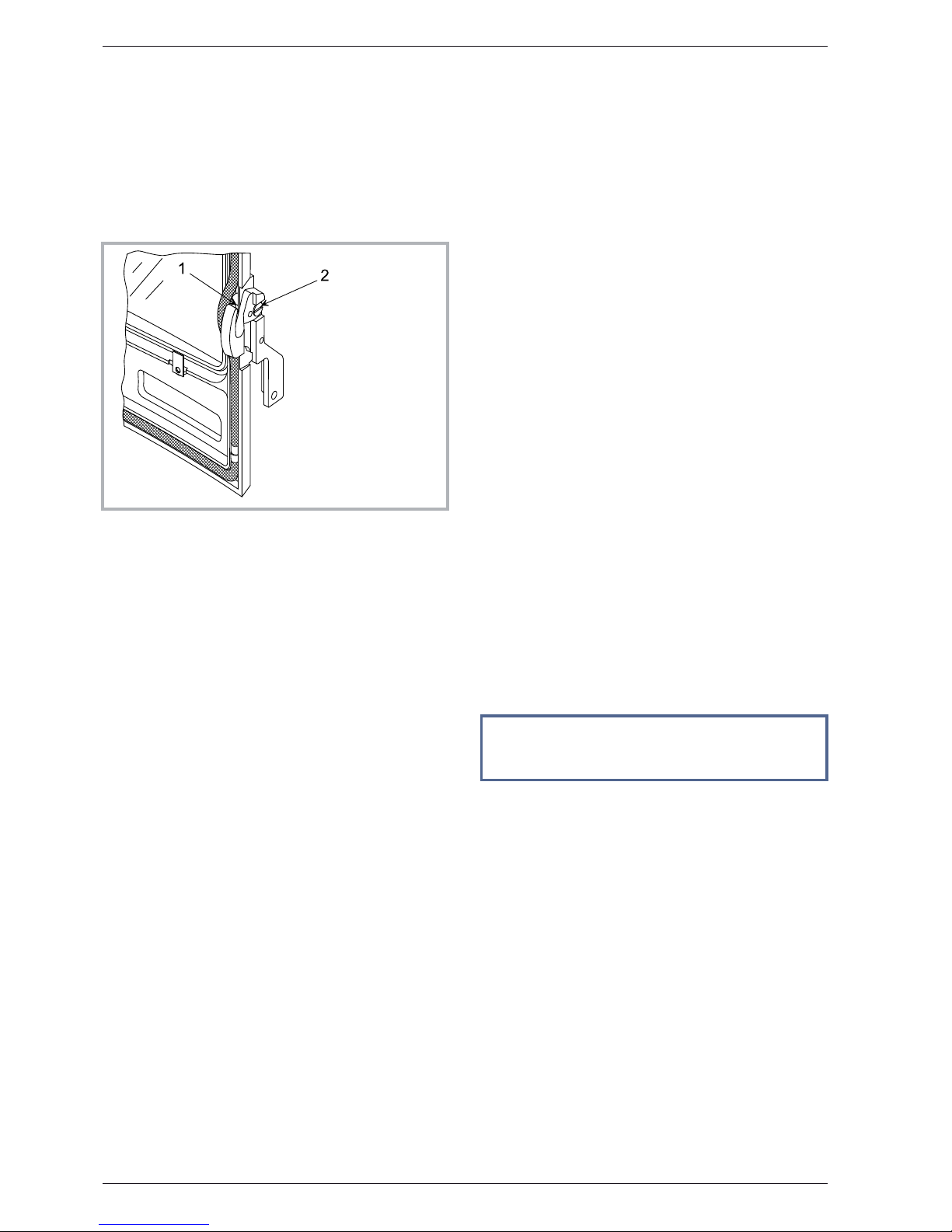

Figure 6 - Door closing pressure
1- Pressure
screw
2-Cam
2.7 Door closing pressure
Figure 6
The closing latch rotates around a pressure screw
positionned cam.
- Remove gently the ceramics rope
- Loosen pressure screw 1.
- Turn cam 2to desired position.
- Tighten pressure screw 1.

3Instructions for user
The manufacturer will not be responsible for damages
on parts of the appliance due to the use of prohibited
fuel or due to an alteration of the appliance or its
installation. Only use replacement parts supplied
by the manufacturer.
Don’t run the stove in mild weather with
coal : Under certain circumstances (e.g. fog
and repeated thaw) the chimney will not
draw sufficiently well and thus be at the
origin of asphyxia.
Awaiting better weather circumstances,
don’t use any coal but only wood.
At the first lighting, the fire must be progressively
increased to allow the various parts to expand normally
and to dry up.
Note : When the fire is lit for the first time, the stove may
give off fumes from the new paint. This is normal but
ensure the room is well ventilated during the first few
hours of operation.
Warning : properly installed and operated this
appliance will not emit fumes into the dwelling.
Occasional fumes from de-ashing and re-fuelling may
occur. Persistent fume emission is dangerous and must
not be tolerated. If fume emission does persist :
Open doors and windows to ventilate room.
Let the fire go out and dispose of fuel from the
appliance.
Check for flue or chimney blockage, and clean if
required. Do not attempt to relight the fire until the
cause of the fume emission has been identified and
corrected. If necessary seek expert advice.
Note : It is recommended to use a fireguard in the
presence of children, and also in the presence of old
and/or infirm people.
3.1 Fuel
This appliance is not an incinerator.
Use hard wood logs, which have been cut for at least
two years and stored, under a ventilated shelter.
Use hardwood that have a higher calorific value per cu
metre (Yoke-elm, oak, ash, maple, birch, elm, beech,
etc.). Large logs must be split and cut to an useful
length, before being stored in a sheltered and ventilated
place.
•Recommended fuel :
The best fuels for use with the Franco Belge
“Savoy MK2” are :
Seasoned wood. - hard wood logs that have been cut,
split and stored for at least two years with a maximum
moisture content of 20 % e.g. oak, beech, elm etc.
Fuel : smoleless fuel
Heating volume ................m
3........240
Firebox draught at nominal .......Pa........12
Nominal heat output.............kW........7
Efficiency .....................%.........70
CO(13%O2)..................%.........0,13
Mean flue gas temperature .......C°........250
Anthracite – dry steam coal fuels as described in type A
– table B2 of the Standard – smokeless fuels along with
coalite and anthracite.
•Prohibited fuel :
Any form of housecoal (bituminous coal) or petroleum
based fuels.
We do not recommend that unseasoned wood (green
wood) is used due to it’s high levels of moisture which
will produce tar and in turn can cause the insides of the
stove and the lining of the chimney to become coated
which in turn could lead to a chimney fire.
We do not recommend recovered wood e.g railway
sleepers,chipboard, pallets are burned as these have
been treated and will product a great deal of pollution to
the environment and will overheat the appliance.
Technical manual “1274” 7
“SAVOY MK2” - model : 134 08 09 Instructions for user
+
*  *
*
)

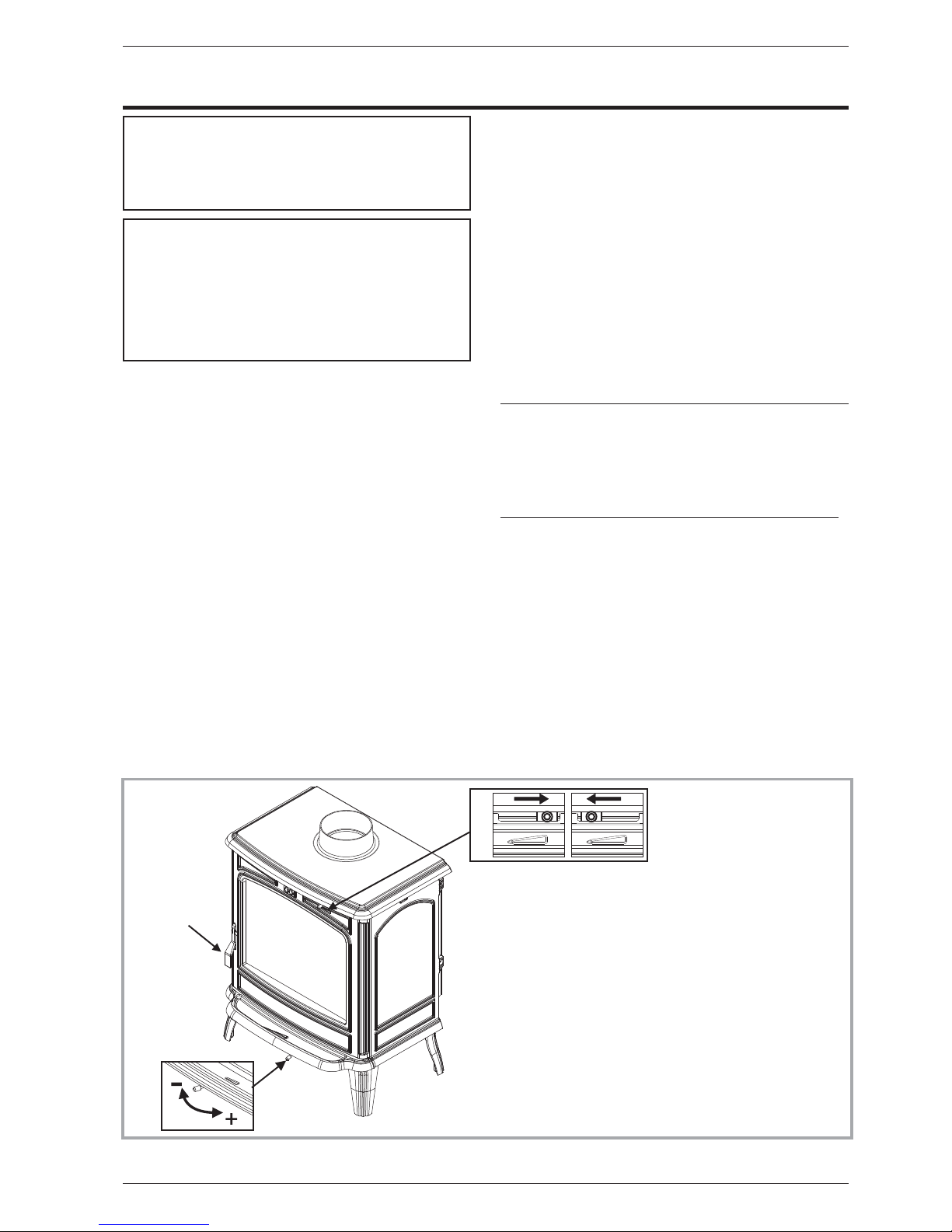

Figure 7 - Operating devices
A: Opening/closing the
main door
B: Draught control
(secondary air inlet)
B1 = Flue damper opened
B2 = Flue damper closed
C: Primary air inlet

3.2 Lighting
Figure 7
-Slide the air control (# B and C).
-Open the front door and lay firelighters or rolled up
newspapers on the grate with a reasonable quantity, if
necessary, of dry kindling wood. Place 2 or 3 small
logs on top.
-Light the newspaper or firelighters using a long taper
and close the front door.
-When the fire is burning fiercely, add further logs of a
diameter up to 10 cm.
-When the stove body is very hot, close the lower air
control (# C).
-The burning rate can now be adjusted by moving the
top air control to the left (# B).
Experience will show you which settings are best for
your situation.
3.3 Operating procedure
The appliance must function with the door properly
closed, the burning rate being controlled in using the
secondary air regulation flap (rep. B).
Experience will show you which settings are best for
your situation.
The airwash system works with the top airslide. When
the top airslide is full open the system works at its
strongest efficiency.
The more closed down the airslide is, the less effective
the airwash will be (when shut down completely, the
airwash system can not function).
•Loading the fuel
-The door should be opened slowly, avoiding a sudden
rush of intake air, so that smoke does not escape into
the room.
-The logs must be placed on the glowing embers.
-For a briskly burning fire, there should always be at
least two logs in the fire. The fire will burn better if
there are several logs.
-For a slower burning fire (for example, at night), select
larger logs.
-After loading the firebox, close the main door (rep. A,
figure 7, page 7).
3.4 De-ashing
-Ashes must be removed regularly.
-Ashes must never be allowed to pile up to the grate.
The grate would not be cool down and could rapidly be
damaged.
-Empty the ashes when the appliance is cold.
-Remove the ash drawer using the tool provided.
-Empty the ashes carefully with regard to the live
embers.
3.5 Maintenance of the Chimney
Very important ! In order to avoid any incident
(chimney fire, etc...), maintenance tasks must be
carried out regularly.
If the appliance is regularly used, the chimney
should be swept several times per year, together
with the stovepipe connection section.
If the chimney catches fire, you must cut off the flue
draught, close the doors and windows, hatches and
keys and call the Fire Brigade without delay.
DO NOT OPEN THE DOOR OF THE APPLIANCE
(OR AIR INLET) UNDER ANY CIRCUMSTANCES.
The chimney must be serviced and cleaned by a
specialist.
3.6 Maintenance of the stove
•The appliance must be cleaned regularly, together with
the connecting pipe and the flue pipe.
•Open the door and remove all deposits in the firebox
and clean the removable fire grate.
•Cleaning of the glass door can be done with a soft cloth
dampened with water and vinegar or potassium ; this
must be done when the appliance is cold ; then rinse
with clear water. Do not use abrasive cleaners.
•The “vitroceramic” glass will resists to temperatures of
up to 750 C. Should the glass break due to misuse, it
must be replaced by the manufacturer own product.
•All the casing parts can be cleaned using a soft cloth
either dry, or slightly damp. In case of condensation or
water splashes clean the parts before they dry out.
•Check that there are no obstructions before relighting
after a long period of disuse.
•The appliance must not be used with a flue serving
several appliances.
•Keep the grates ventilation free of any obstruction.
•The baffle plates should be removed regularly and any
ash or deposits cleaned away.
•Ashes must not be allowed to build up.
•The door rope seals should be checked annually and
replaced when required.
3.7 Safety advice
This appliance produces heat and may cause severe
burns if touched.
The stove may still be HOT even when the fire has burnt
out.
KEEP CHILDREN AWAY.
A FIRE GUARD IS ADVISABLE TO PROTECT
CHILDREN THE ELDERLY AND INFIRM.
8Technical manual “1274”
“SAVOY MK2” - model : 134 08 09 Instructions for user

3.8 Trouble shooting
Situation Probable causes -Corrective action
Fire difficult to start. Fire goes
out.
Wood green… or too damp -Use hard wood logs, which have been cut for at least
two years and stored, under a ventilated shelter.
Logs are too big -To light the fire, use small, very dry twigs. To maintain
the fire, use split logs.
Poor quality wood -Use hardwood that have a higher calorific value per cu
metre (Yoke-elm, oak, ash, maple, birch, elm, beech,
etc..).
Not enough primary air -Open air control.
-Open the outside fresh air inlet grid.
Insufficient draught -Open temporarily the flue damper control.
þ-Check that the flue is not obstructed, sweep it if
necessary.
-Seek advice from a chimney specialist.
Fire burns too quickly. Too much draught -Partially close the air control.
Excessive draught -Check that the chimney-flap does not remain opened.
þ-Install a draught stabiliser to the connector pipe.
Poor quality wood -Do not continuously burn small wood, sticks, bundles,
carpentry offcuts (plywood, pallets), etc...
Smokes when lighting up. The flue damper is closed -Open the flue damper.
Flue duct is cold -Burn paper and kindling wood to increase heat.
Room is in decompression
(negative pressure) -In houses equipped with mechanical ventilation, partly
open a window until the fire is well established.
Smokes while burning. Insufficient draught -Open temporarily the flue damper control.
þ-Consult a chimney specialist.
-Check that the flue is not obstructed, sweep it if
necessary.
Down draught þ-Install an anti-down draught cowl.
Room is in decompression
(negative pressure) -In houses equipped with mechanical ventilation, an
outside air intake must be installed in addition to the
chimney itself.
Low heat output. Poor quality wood -Use the recommended fuel.
Poor mixing of the convection air þ-Check the air flow system (air inlet, piping, air outlet).
-Check that the next rooms are equiped with ventilation
grids to help out the hot air circulation.
Technical manual “1274” 9
“SAVOY MK2” - model : 134 08 09 Instructions for user
þ: This sign means that you should ask
for a qualified engineer to do the work.

10 Technical manual “1274”
“SAVOY MK2” - model : 134 08 09 Note
Note

4Spare parts
When ordering spare parts, specify the stove type and serial number, including the colour index (on the guarantee
or identification plate), the name of the part and the part number.
Example : Multifuel stove “SAVOY MK2”, ref. 134 08 09, colour Y, top plate 352176 EF.
Technical manual “1274”

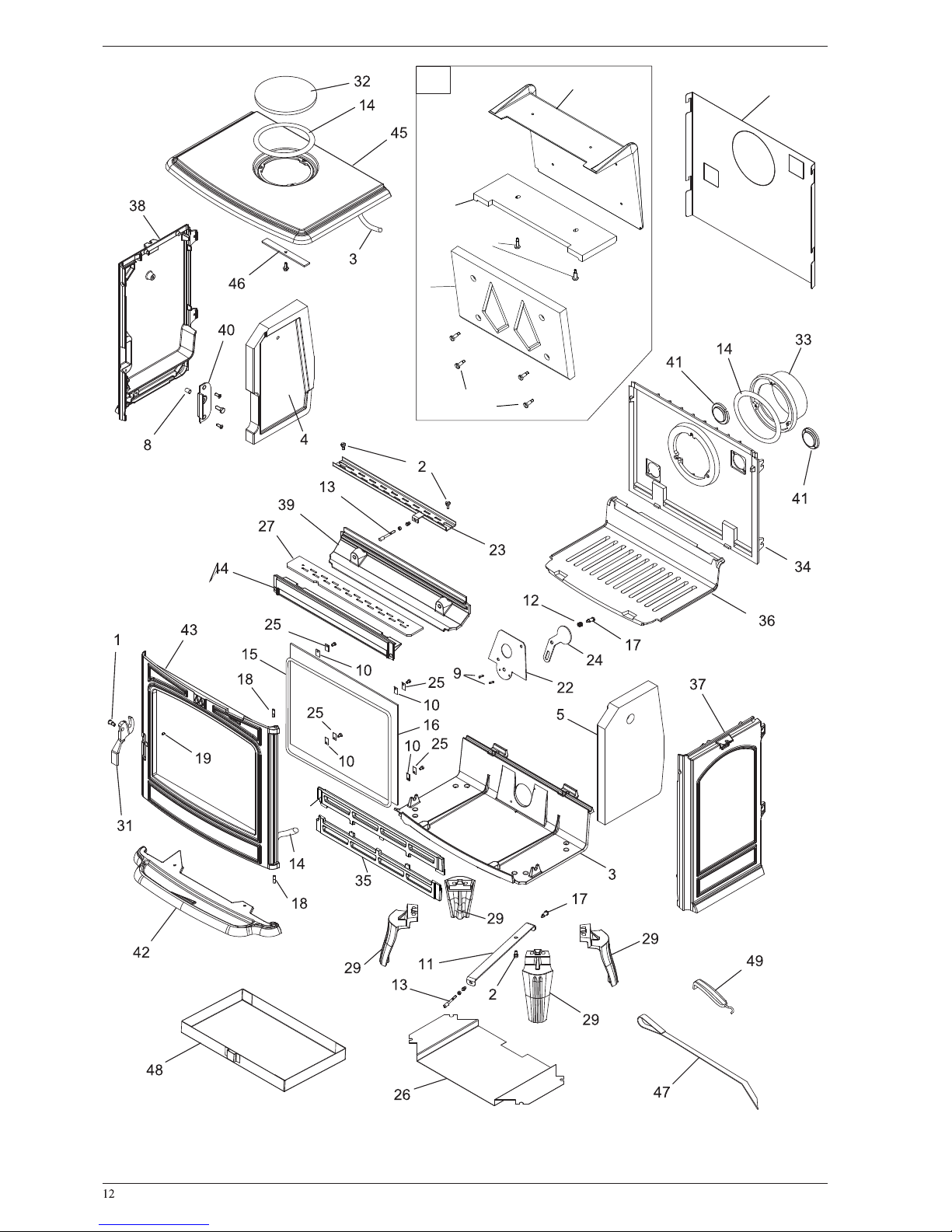

“SAVOY MK2” - model : 134 08 09 Spare parts
1 100917 ...Campin......................A....B...C...D.......01
2 100939 . . . Axle ........................A....B...C...D.......03
3 105006 . . . Gasket ............Ø15.......A....B...C...D.......1,60 m
4 105622 . . . Wall ........................A....B...C...D.......01
5 105623 . . . Wall ........................A....B...C...D.......01
6 105639 . . . Back wall .....................A....B...C...D.......01
7 105625 . . . Wall ........................A....B...C...D.......01
8 134253 . . . Bushing ......................A....B...C...D.......01
9 134758 ...Pin..............4x16 ......A....B...C...D.......02
10 142881 . . . Gasket ......................A....B...C...D.......04
11 265602 . . . Knob .......................A....B...C...D.......01
12 166003 . . . Spring ............11x15......A....B...C...D.......01
13 179628 . . . Regulator shaft ..................A....B...C...D.......02
14 181607 . . . Ceramic rope .........Ø9,5.......A....B...C...D.......2,50 m
15 181632 . . . Gasket .............Ø6.......A....B...C...D.......1,30 m
16 188881 . . . Ceramic glass ......402x322X4....A....B...C...D.......01
17 189103 . . . Screw............27x8x6 .....A....B...C...D.......02
18 189104 . . . Screw.............6x22 ......A....B...C...D.......02
19 189825 . . . Screw ............M5x6......A....B...C...D.......01
20 205362 . . . Back panel ....................A....B...C...D.......01
21 323217 . . . Flue baffle ....................A....B...C...D.......01
22 236138 . . . Reducing plate ..................A....B...C...D.......01
23 237406 . . . Reducing plate ..................A....B...C...D.......01
24 237427 . . . Reducing plate ..................A....B...C...D.......01
25 259015 . . . Fixing plate ....................A....B...C...D.......04
26 262607 . . . Heat shield ....................A....B...C...D.......01
27 270402 . . . Air control flap ..................A....B...C...D.......01
29 300128 EF . . Leg ........................A ............. ........04
29 300128 RH . . Leg..............................B........ ........04
29 300128 RP . . Leg ..................................C.... ........04
29 300128 MK. . Leg ......................................D.......04
30 300446 EF . . Base .......................A ............. ........01
30 300446 RH . . Base .............................B........ ........01
30 300446 RP . . Base .................................C.... ........01
30 300446 MK. . Base ......................................D.......01
31 301526 EF . . Door lock .....................A ............. ........01
31 301526 RH . . Door lock ..........................B........ ........01
31 301526 RP . . Door lock...............................C.... ........01
31 301526 MK. . Door lock ...................................D.......01
32 303718 EF . . Blanking plate ..................A ............. ........01
32 303718 RH . . Blanking plate ........................B........ ........01
32 303718 RP . . Blanking plate ............................C.... ........01
32 303718 MK. . Blanking plate .................................D.......01
33 303860 EF . . Flue collar ....................A ............. ........01
33 303860 RH . . Flue collar ..........................B........ ........01
33 303860 RP . . Flue collar ..............................C.... ........01
33 303860 MK. . Flue collar ...................................D.......01
34 306276 EF . . Back wall .....................A ............. ........01
34 306276 RH . . Back wall ..........................B........ ........01
34 306276 RP . . Back wall...............................C.... ........01
34 306276 MK. . Back wall ...................................D.......01
35 307443 EF . . Fuel retainer ...................A....B...C...D.......01
36 308711 . . . Coal grate.....................A....B...C...D.......01
37 310739 EF . . R. side panel ...................A ............. ........01
37 310739 RH . . R. side panel ........................B........ ........01
37 310739 RP . . R. side panel.............................C.... ........01
37 310739 MK. . R. side panel .................................D.......01
38 310834 EF . . L. side panel ...................A ............. ........01
38 310834 RH. . L. side panel.........................B........ ........01
N° Code . . . Description .........Type.......A....B...C...D.......Qty
A = 134 08 09 Y;B=1340809P;C=1340809E:D=1340809C

Technical manual “1274”
“SAVOY MK2” - model : 134 08 09 Spare parts
Figure 8 - Spare parts view
20
50
21
7
51
51
6
0
52

Technical manual “1274” 13
“SAVOY MK2” - model : 134 08 09 Spare parts
38 310834 RP . . L. side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . . 01
38 310834 MK. . L. side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D . . . . . . . 01
39 315615 . . . Air duct . . . . . . . . . . . . . . . . . . . . . . A . . . . B . . . C . . . D . . . . . . . 01
40 324503 EF . . Sealing plate . . . . . . . . . . . . . . . . . . . A . . . . B . . . C . . . D . . . . . . . 01
41 325304 EF . . Reducing plate . . . . . . . . . . . . . . . . . . A . . . . . . . . . . . . . . . . . . . . . 02
41 325304 RH . . Reducing plate . . . . . . . . . . . . . . . . . . . . . . . B . . . . . . . . . . . . . . . . 02
41 325304 RP . . Reducing plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . . 02
41 325304 MK. . Reducing plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D . . . . . . . 02
42 327910 EF . . Tray . . . . . . . . . . . . . . . . . . . . . . . . A . . . . . . . . . . . . . . . . . . . . . 01
42 327910 RH . . Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B . . . . . . . . . . . . . . . . 01
42 327910 RP . . Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . . 01
42 327910 MK. . Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D . . . . . . . 01
43 331132 EF . . Main door . . . . . . . . . . . . . . . . . . . . . A . . . . . . . . . . . . . . . . . . . . . 01
43 331132 RH . . Main door . . . . . . . . . . . . . . . . . . . . . . . . . . B . . . . . . . . . . . . . . . . 01
43 331132 RP . . Main door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . . 01
43 331132 MK. . Main door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D . . . . . . . 01
44 332004 . . . Air duct . . . . . . . . . . . . . . . . . . . . . . A . . . . B . . . C . . . D . . . . . . . 01
45 352176 EF . . Top plate . . . . . . . . . . . . . . . . . . . . . A . . . . . . . . . . . . . . . . . . . . . 01
45 352176 RH . . Top plate . . . . . . . . . . . . . . . . . . . . . . . . . . B . . . . . . . . . . . . . . . . 01
45 352176 RP . . Top plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . . 01
45 352176 MK. . Top plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D . . . . . . . 01
46 406816 . . . Clamp . . . . . . . . . . . . . . . . . . . . . . . A . . . . B . . . C . . . D . . . . . . . 01
47 415504 60 . . Poker . . . . . . . . . . . . . . . . . . . . . . . A . . . . B . . . C . . . D . . . . . . . 01
48 624042 . . . Ash-pan . . . . . . . . . . . . . . . . . . . . . . A . . . . B . . . C . . . D . . . . . . . 01
49 808001 ED . . Hand tool . . . . . . . . . . . . . . . . . . . . . A . . . . B . . . C . . . D . . . . . . . 01
N° Code . . . Description . . . . . . . . . Type. . . . . . . A . . . . B . . . C . . . D . . . . . . . Qty
A = 134 08 09 Y; B = 134 08 09 P; C = 134 08 09 E: D = 134 08 09 C
50 307447 EF . . Fuel retainer . . . . . . . . . . . . . . . . . . . . A . . . . B . . . C . . . D . . . . . . . 01
51 189137 . . . Screw . . . . . . . . . . . . . . 6 x 10 . . . . . . .
A . . . . B . . . C . . . D . . . . . . . 06
52 909820 . . . Baffle kit . . . . . . . . . . . . . . . . . . . . . .
A . . . . B . . . C . . . D . . . . . . . 01

Guarantee certificate
Legal guarantee
The specifications, dimensions and information shown
on our documents are provided for information purposes
only and under no circumstances are binding upon the
vendor.
With the aim of constantly improving our equipment, all
modifications considered as necessary by our
departments may be made without notice.
The provisions of the present guarantee certificate are
not excluding or limiting the owner of the equipment’s
rights, concerning the legal guarantee regarding faults or
hidden vices which applies in all circumstances, in the
conditions detailed in articles 1641and following of the
civil code, and in the country in which the equipment was
purchased.
Contractual guarantee
Our equipment is guaranteed against faults and hidden
vices subject to the following conditions :
1) Installation and adjustment of the device by a professional
installer.
2) Observance of the instructions provided in our technical
documents and our installation/adjustment instructions.
3) The installation, use and maintenance of the device carried
out in conformity with the applicable standards and
legislation, and with the indications provided in the technical
instructions accompanying the device.
This guarantee covers the replacement, in our factory, of
parts recognised as being defective from the outset by
our “Guarantee Inspection” Department. Carriage and
labour is at the user’s cost. Moreover, if the repair or
replacement of parts covered by the guarantee is found
to be too costly vis-à-vis the price of the appliance, the
decision to replace or repair the appliance will be taken
by the vendor.
Our guarantee is for 2 (two) years for all appliances, with
the exception of closed combustion fireplace and inserts
for which our guarantee is 5 (five) years excluding the
following:
1) Indicator lights, fuses, electrical elements and fans.
2) Parts subject to wear or in contact with high temperatures
namely: soles and burner grills, bottom plates baffles, ash
pans, paintwork and surface treatments for decorative
parts. Also excluded from this guarantee are seals and
windows.
3) Any damage which may result from the use of the appliance
with a fuel other than that stipulated in our instructions.
4) Damage occurring to parts caused by elements outside the
appliance (down draught, storm damage, damp, abnormal
pressure or vacuum, heat shocks, etc...).
5) Damage to electrical parts caused by plugging in and using
the appliance on a mains system, the voltage of which
(measured at the entrance to the appliance) is 10% above
or below the nominal voltage of 220 V.
Exclusion of liability
In the case of a product manufactured at the client’s
request, under no circumstances may we, as a
subcontractor, be considered liable vis-a-vis the client or
third parties for defects arising from the installation or a
design fault with the item in question.
*Name and address of the installer : ___________________________
____________________________________________
(Telephone : _____________________________________
*Name and address of the customer : __________________________
____________________________________________
Date of installation : __ __ / __ __ /__ __ __ __
Model of the appliance : q134 08 09
Color : qYqPqEqC
Serial number : ___ ___ ___ ___ ___ ___
• This certificate has to be completed and kept carefully.
In case of claims, send a copy of this to :
STAUB FONDERIE, BP 73, 59660 MERVILLE, FRANCE.
