SB Acoustics Arya Kit User manual

SB
Arya | User Manual

1 Arya | User Manual
Technical Specications:
Frequency range : 44-28000 Hz +/-3 dB
Sensitivity (2.83V / 1m) : 87.5 dB
Nominal impedance : 4Ω
Max SPL : 107 dB
Recommended amplier : 50-200W
Cross-over frequency
: 3000 Hz
Speaker type : 2½-way Floor Stand
Enclosure type : Bass reex
:
Port tuning frequency 41 Hz
Drive Units:
- High frequency driver : SB29RDAC-C000-4
- Low frequency drivers : 2 x 6” SB17MFC35-8
Cabinet:
18 mm MDF
Dimensions (H x W x D) : 1076 x 195 x 310 mm / 42.36 x 7.68 x 12.2 inch
Net Weight (pair):
- Cabinet only : 18.73 kg / 41.29 lb
- Full assembly : 22.54 kg / 49.69 lb
Special Features:
- High quality drivers.
- Diffraction optimized cabinet proportions.
- Internal bracing to reduce and distribute cabinet vibrations.
- Dual vents and slanted internal bottom plate for reduction of standing
wave resonances.

Arya | User Manual 2
100 95 90 85 80 75 70 65 60 55 50 45 40
40.0 36.7 33.3 30.0 26.7 23.3 20.0 16.7 13.3 10.0 6.7 3.3 0.0
dB
Ohm
20 20 50 100 200 500 1k 2k 5k 10k 20kHz

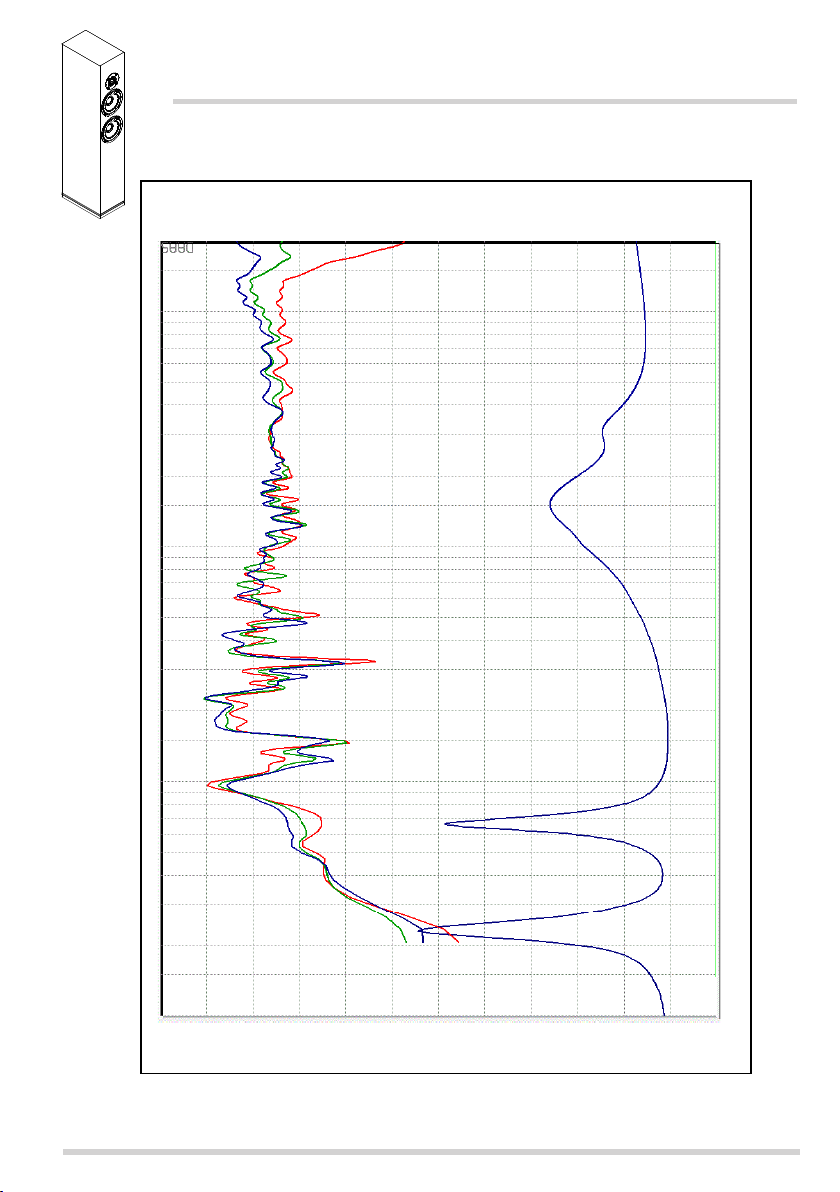

Frequency Response
Response Curve :
(Blue) : on axis ( Green ) : 15° off-axis ( Red ) : 30° off-axis------ ------ ------

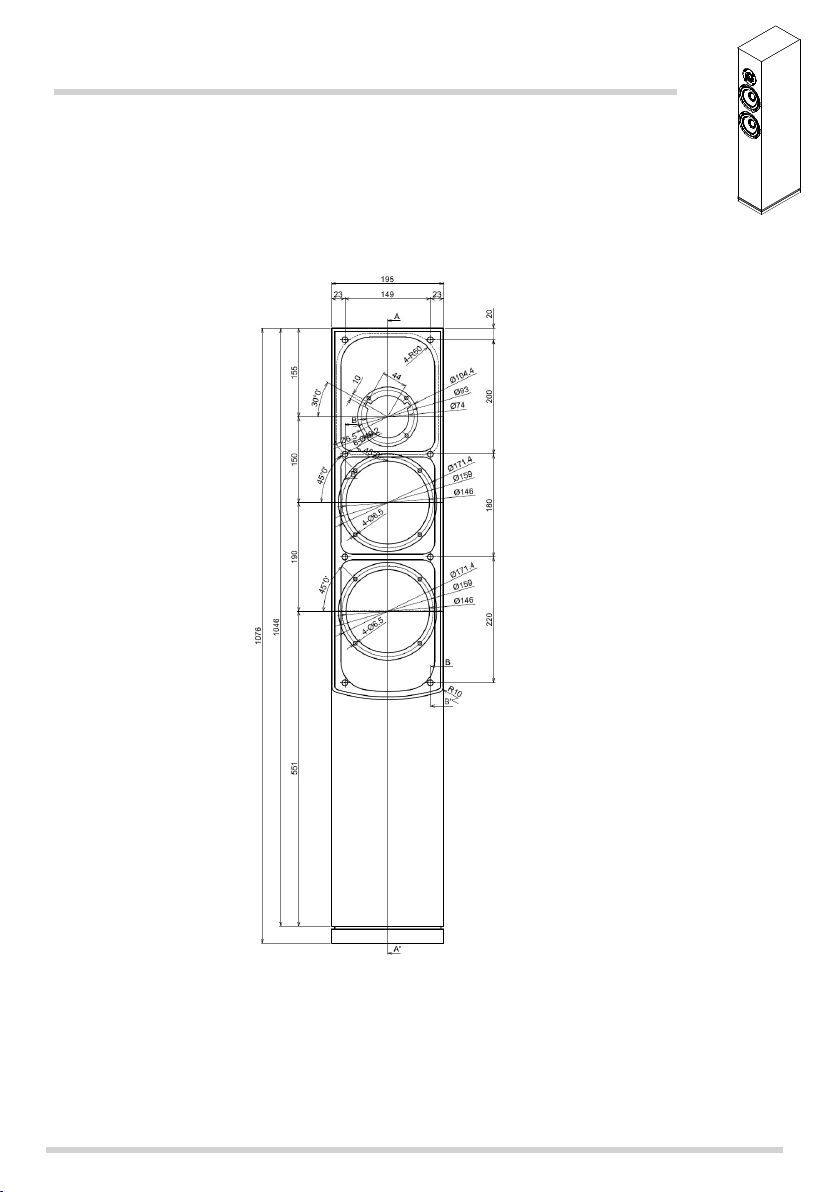

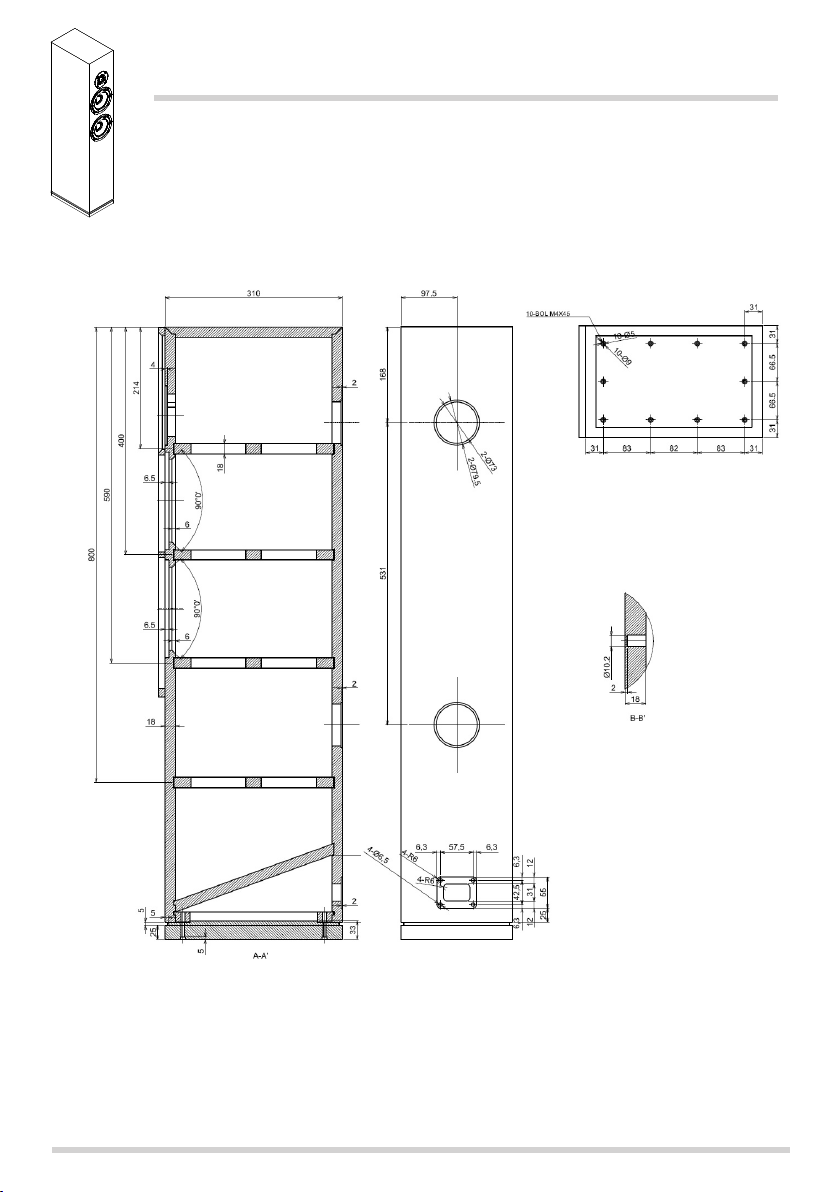

Mechanical Drawing (dimensions in mm)
3 Arya | User Manual

Arya | User Manual 4

5 Arya | User Manual
SB29RDAC-C000-4 (Sold separately)

Arya | User Manual 6

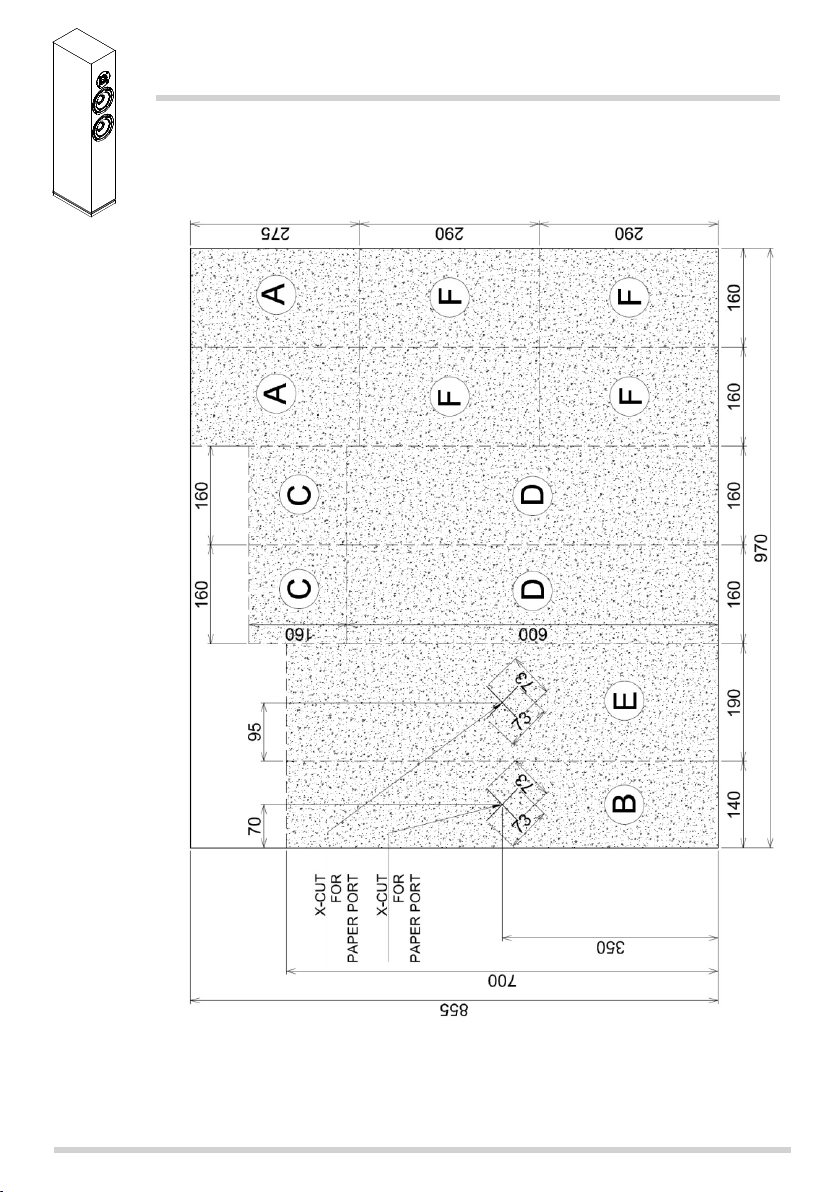

Damping Material Cut Pattern (dimensions in mm)

7 Arya | User Manual
Damping Material Position (dimensions in mm)

Arya | User Manual 8
Crossover Schematic
R1
C1
C2
C3
L1
L3
R2
IN 1
2.2 Ω /10 W
33 Ω /10 W
0.15 mH / Ø0.7 mm
0.47 mH / Ø1.2 mm
6.8 µF / MKP
6.8 µF / MKP
Yellow
Tweeter
SB29RDAC-C000-4
SB17MFC35-8 SB17MFC35-8
Black
Black Black
12 µF / MKP
1 2
Red Black
L2
L4
1 mH / Ø1.4 mm
3.3 mH / Ø1.2 mm
Yellow
Blue Red
Mid woofer
Low woofer

9 Arya | User Manual
Part List (each cabinet):
- High frequency driver SB29RDAC-C000-4 (sold separately) ............
- Low frequency driver 6” SB17MFC35-8 (sold separately) ...............
- Arya crossover kit (sold separately) ...............................................
- Hex socket screw M4 x 20mm (for drivers) ....................................
- Hex socket screw M4 x 30mm (for pedestal) .................................
- Countersunk screw M4 x 20mm (for terminal plate) .....................
- Wood screw 4 x 16 mm for crossover (from crossover kit) ............
- Insert nut M4 (Installed on cabinet) ..............................................
- Stainless Terminal plate .................................................................
- Binding post .................................................................................
- Seal gasket (for terminal plate) .....................................................
- Seal gasket (for pedestal, installed on cabinet) .............................
- Port are (installed on cabinet) .....................................................
- Port paper tube (installed on cabinet) ...........................................
- Damping .......................................................................................
- Name plate ...................................................................................
- Speaker grill e ..................................................................................
Tools Needed:
- Hex key 3mm size (for driver and pedestal screw).
- Hex key 2.5mm size (for terminal plate screw).
- Philips screwdriver no. 2 (for crossover screw).
- Multipurpose glue (for attaching the damping and sealing the wire hole).
1 pc
2 pcs
1 pc
12 pcs
10 pcs
4 pcs
6 pcs
26 pcs
1 pc
1 pair
1 pc
1 pc
2 pcs
2 pcs
1 pc
1pc
1 pc

Arya | User Manual 10
Assembly Instructions:

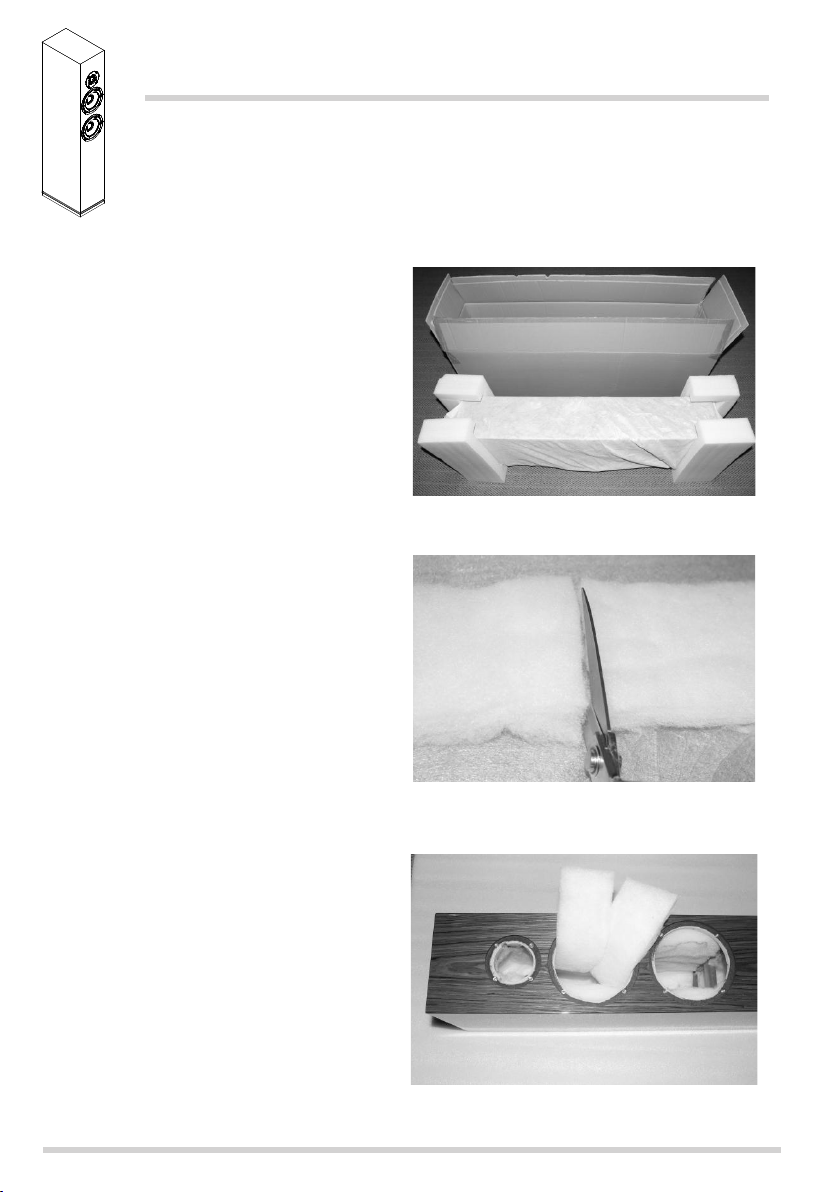

1. Unpack the cabinet from
the packaging and take out
the raw damping material
from inside the cabinet.
2. Cut the raw damping material
to 12 pieces of damping
according to the cutting diagram.
3. Place each damping piece into
the cabinet according to the
position diagram. Add a bit of
glue if needed to hold the
damping in place.

11 Arya | User Manual

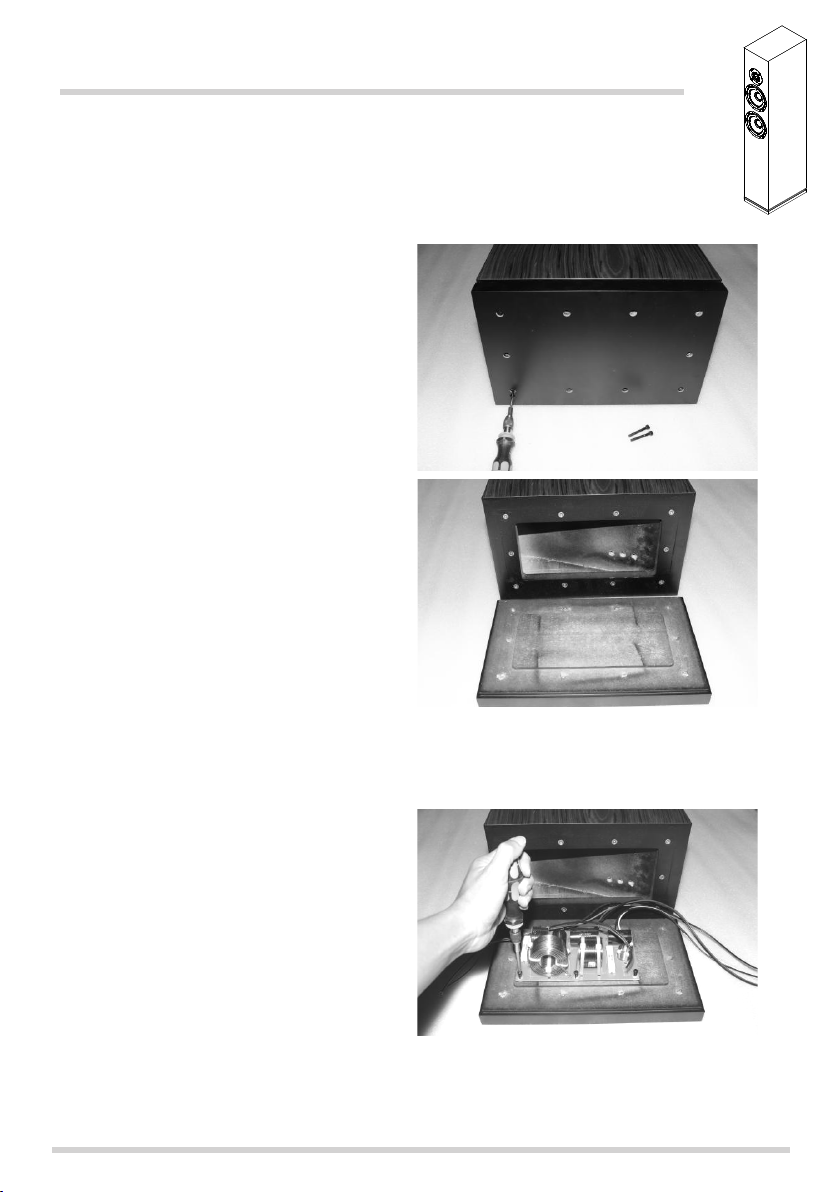

4. Detach the pedestal
by removing the four screws
in each corner.
5. Place the crossover on top
of the pedestal, with the
orientation of the input cable
towards the rear terminals
and the speaker wires towards
the front panel.

Arya | User Manual 12

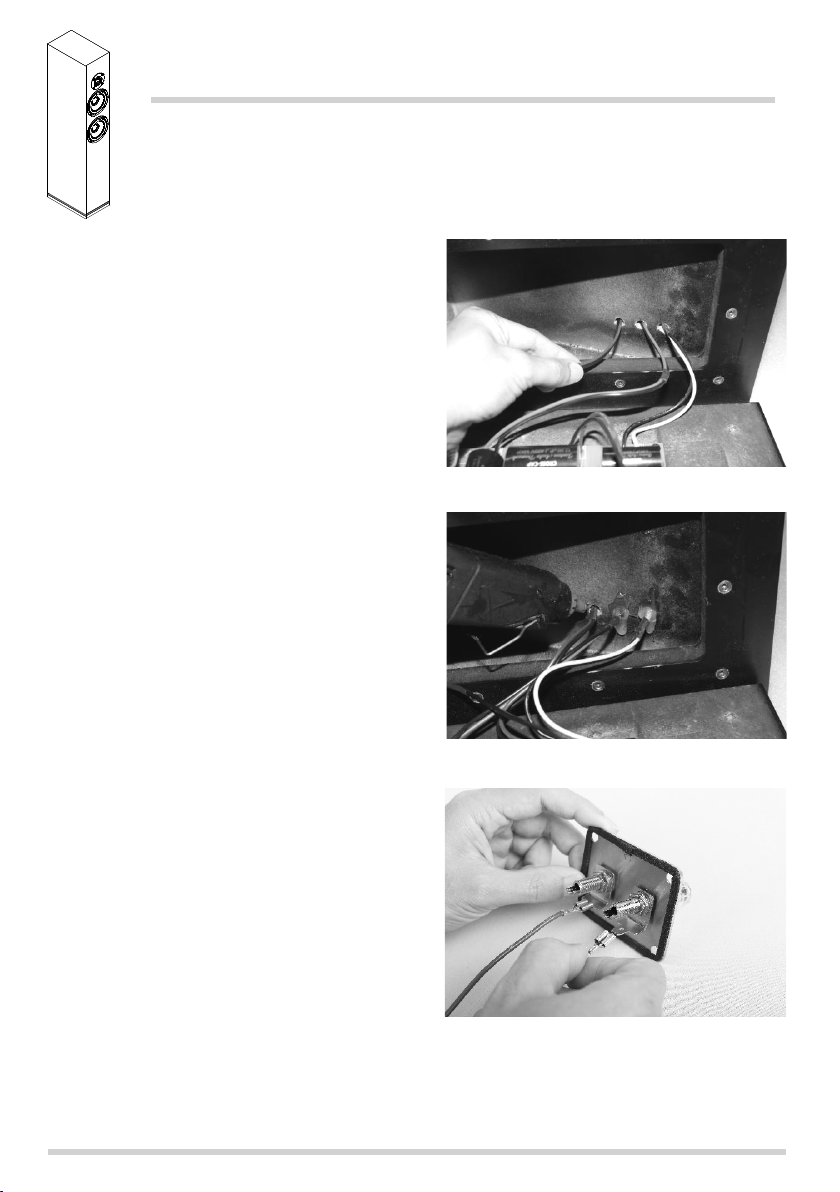

6. Pass the three pairs of speaker
wires through each hole in
the bottom panel of the cabinet.
7. Seal all the cable holes with hot
melt glue.
8. Pass the input cable through
the terminal hole on the rear
of the cabinet, then connect
to the binding posts.

13 Arya | User Manual

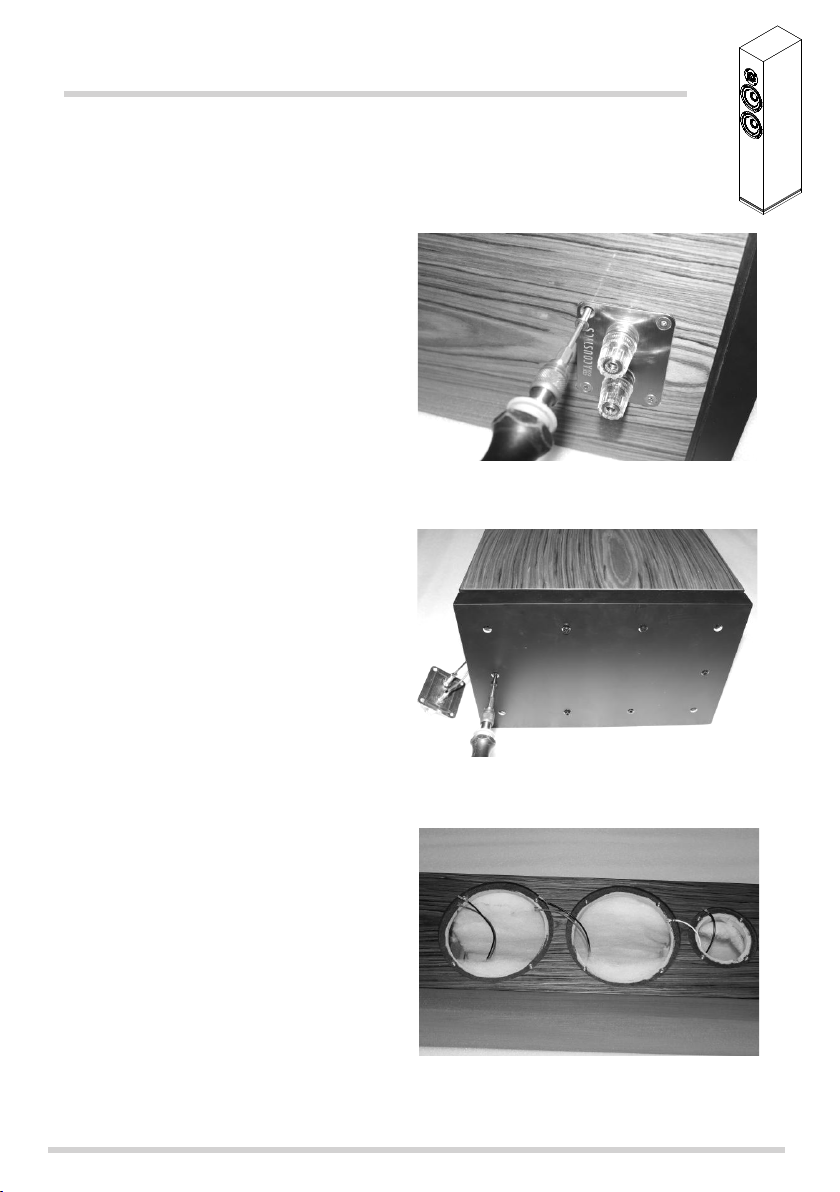

9. Mount the terminal panel
into the terminal hole at
the rear.
10. Mount the pedestal to
the cabinet using all
10 screws.
11. Pull the three pairs of
cables through the holes
in each cabinet bracing.

Arya | User Manual 14
12. Hook up the cables to
the woofers and tweeter
terminals.
13. Mount the drivers to
the cabinet and carefully
tighten the screws.
14. Reapeat the steps for the
other speaker and you have
completed your
SB ACOUSTICS Arya speakers.
Time to listen!.

Rev.0: (07.06.21)
