SBI HEATFLOW S5 User manual

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
1
Installation
Instructions
HEATFLOW S5 – Forced air system
AC02110
WARNING: THE CLEARANCE FOR COMBUSTIBLE MATERIAL OF THIS ACCESSORY SUPERSEDES
THOSE OF THE STOVE
WARNING: THIS ACCESSORY CAN ONLY BE INSTALLED WITH SINGLE WALL PIPES AND MAY
REQUIRE MOVING THE STOVE FURTHER FROM COMBUSTIBLE MATERIAL
WARNING: DECORATIVE PANELS MUST BE REMOVED TO USE THIS ACCESSORY. THIS WILL NOT
ALTER THE PRODUCT WARRANTY
WARNING: The HEATFLOW S5 CANNOT BE ASSEMBLED WITH A HEATSHIELD (AC02762),
LOWERED CEILING, INSIDE AN ALCOVE OR IN A MOBILE HOME.
WARNING: The HEATFLOW S5 IS NOT A CENTRAL HEATING SYSTEM

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
2
1. General information
This forced heat distribution system supports heating adjacent and upper rooms located at a
maximum distance of 50’ (15,2m) from the stove. Rooms below the HEATFLOW S5 cannot be
heated with the system.

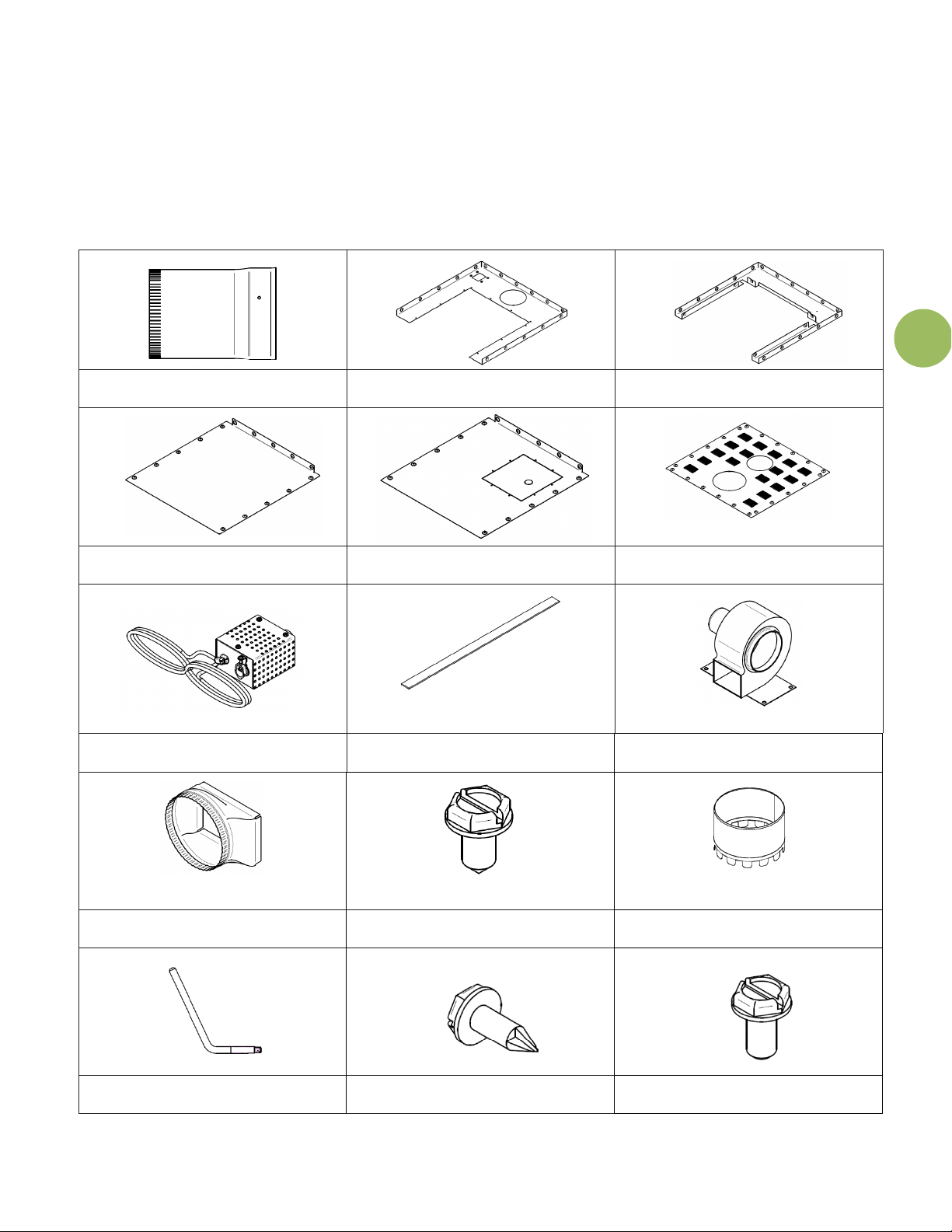

2. Content of the accessory
Flue Collar (PL72473)
(A)
1x
Back panel (PL72474)
(B)
1x
Front panel (PL72470)
(C) 1
x
Right panel (PL72477)
(D) 1x
Left panel (PL72471)
(E)
1x
Top panel (PL72472)
(F)
1x
Control sub-assembly (SE72475)
(G) 1x
1’’ Self-adhesive gasket (AC06950)
(H) 4’ (121cm)
Blower(44121)
(I) 1 x
Blower end adaptor (49091)
(J) 1x
Metal screw #10 x 3/8’’ (30132)
(K) 80x
6’’ Adaptor (PL66220)
(L) 1
x
Door handle (PL72481)
(M) 1x
Self drilling screw #10 x 5/8” (30163)
(N) 20x
Thread cutting screw #10 x 3/8” (30029)
(O) 4x

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
3

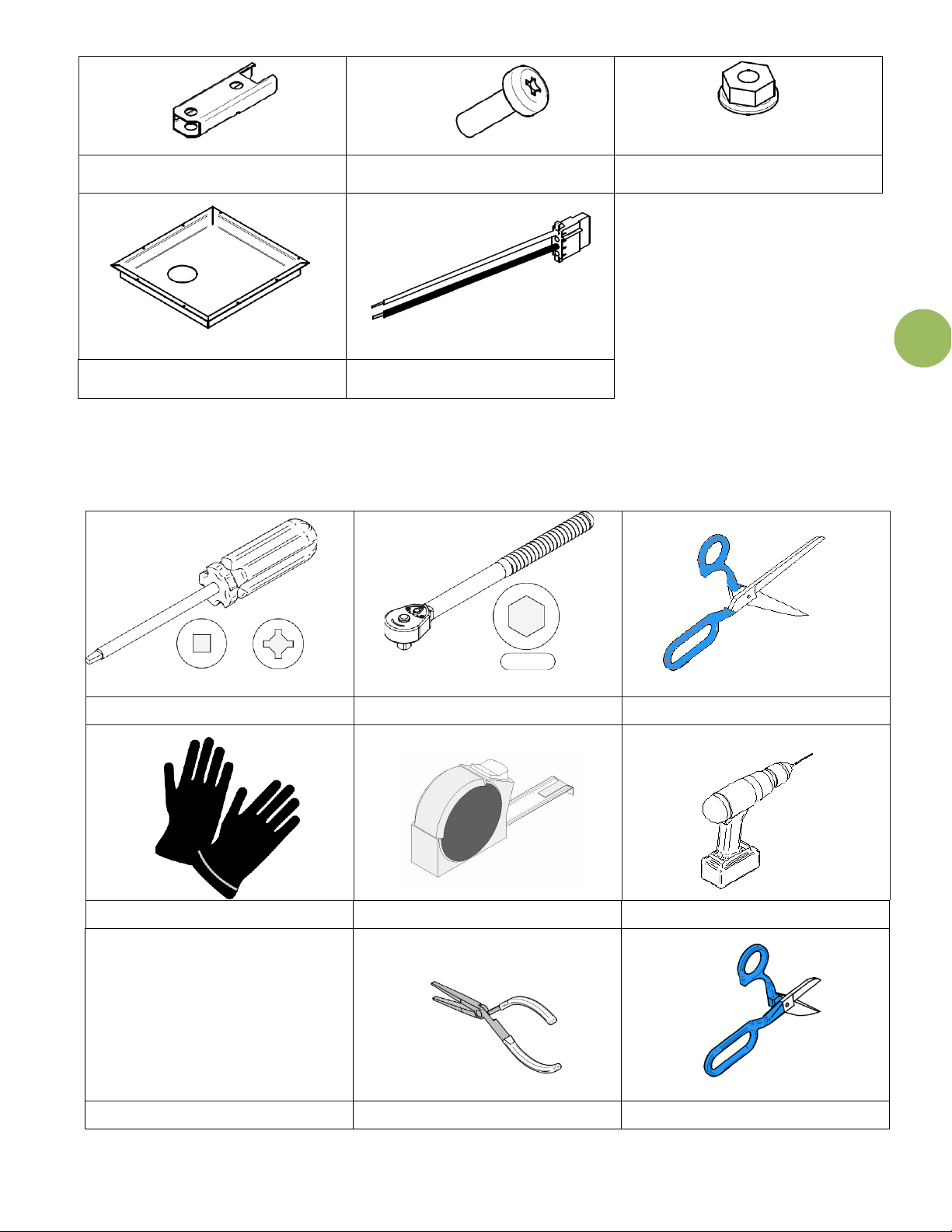

Shaft extension (PL72480)
(P) 1x
Mechanical screw 1/4 x ¾” (30017)
(Q) 1x
Locknut ¼ (30220)
(R) 1x
Damper Box (PL72478)
(S) 1x
Motor Connector (60437)
(T) 1x
3. Tools required
Screwdriver Ratchet wrench & 5/16" socket Scissors
Protective gloves Measuring tape Drill
Hammer pliers Metal snips

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
4
4. Other parts (not-included)
•Rigid galvanised ducts (non-insulated only)
•Metal air registers
•Elbow ducts
•Airflow damper or damper blades
•HVAC foil tape
•Electrical wire 14-2
•Electrical wire connectors
•Anti-Seize
•Self drilling screws
•Flat back paint

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
5

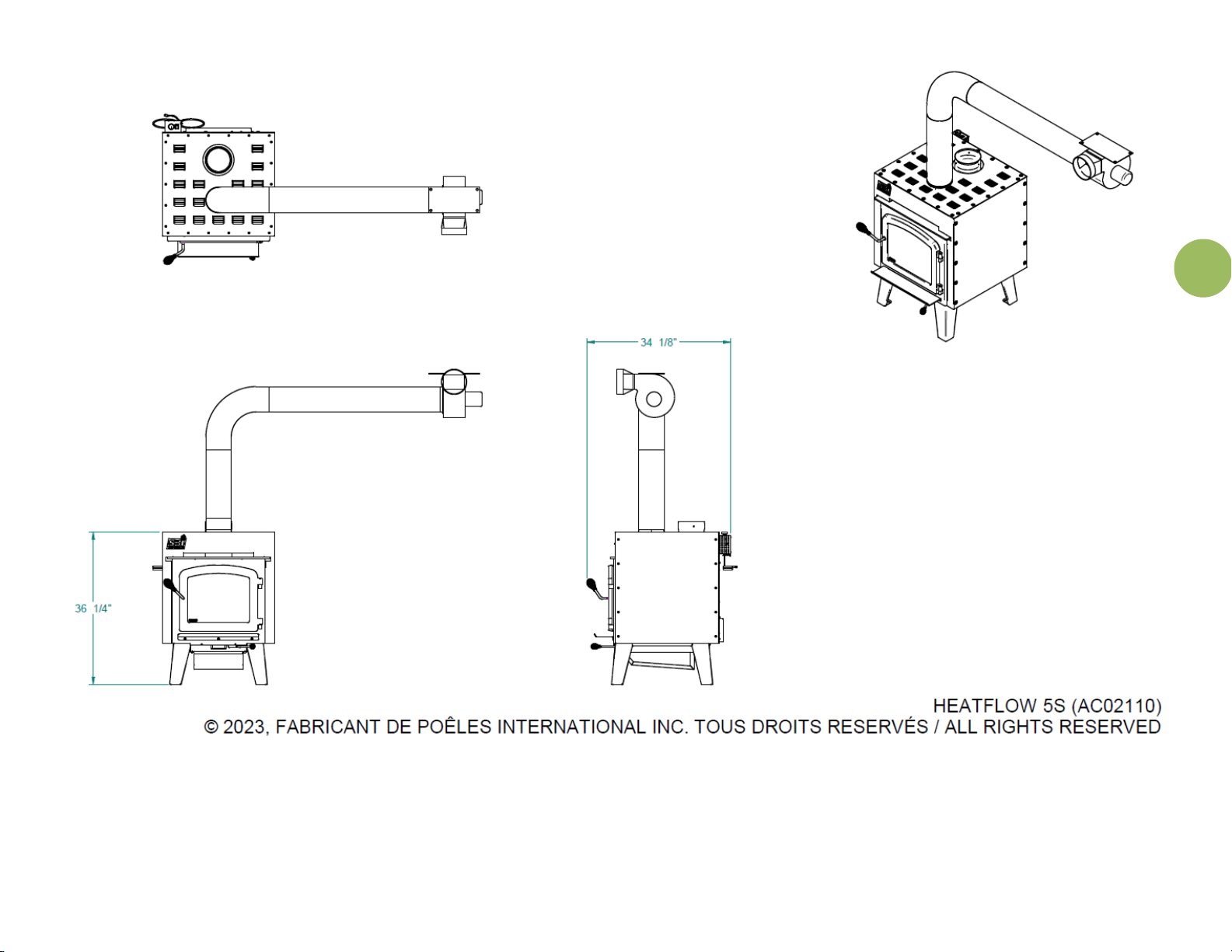

5. Dimensions

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
6

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
7
6. Assembly instructions
WARNING
The HEATFLOW S5 can only be assembled with a single wall pipe,refer to the Annex for double
wall pipe retrofit.
The HEATFLOW S5 cannot be assembled with a Heat shield (AC02762), lowered ceiling, inside
an alcove or in a mobile home.
THE HEATFLOW S5 CANNOT BE INSTALLED IN REDUCED CLEARANCES
1. Remove the air baffle
(BB) by removing the 4
screws (AA) at the
back of stove.
Wear protective gloves for the following instructions

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
8
2. Place the flue collar (A)
with 3 self-drilling
screws. (N)
3. Place the back panel
(B) with the 10 metal
screws (K) on the back
of stove.

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
9

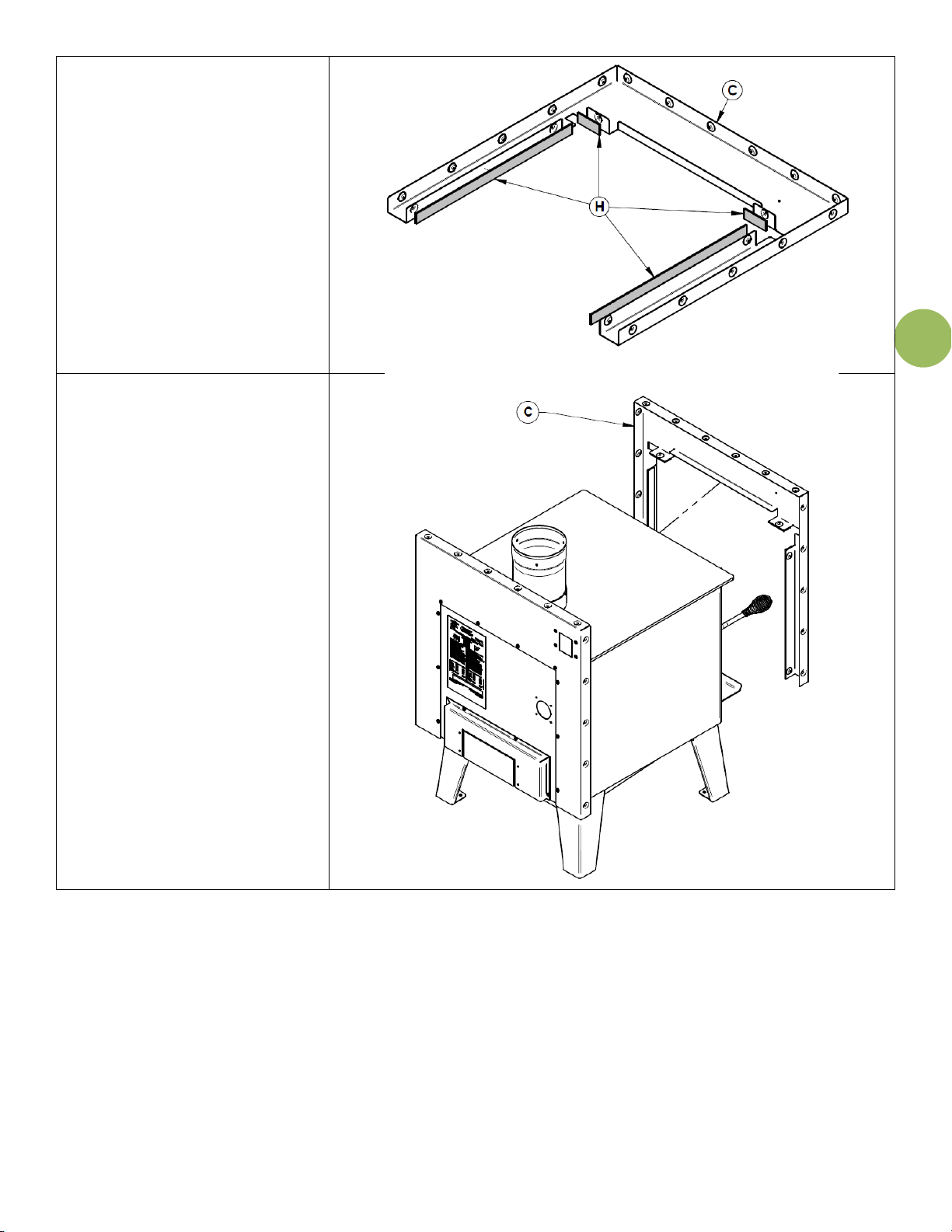

4. Cut the self-adhesive
gasket (H) into 4 parts
and stick them on the 4
bent up frame of the
front panel. (C)
5. Place the front panel
(C) on the top of stove.

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
10

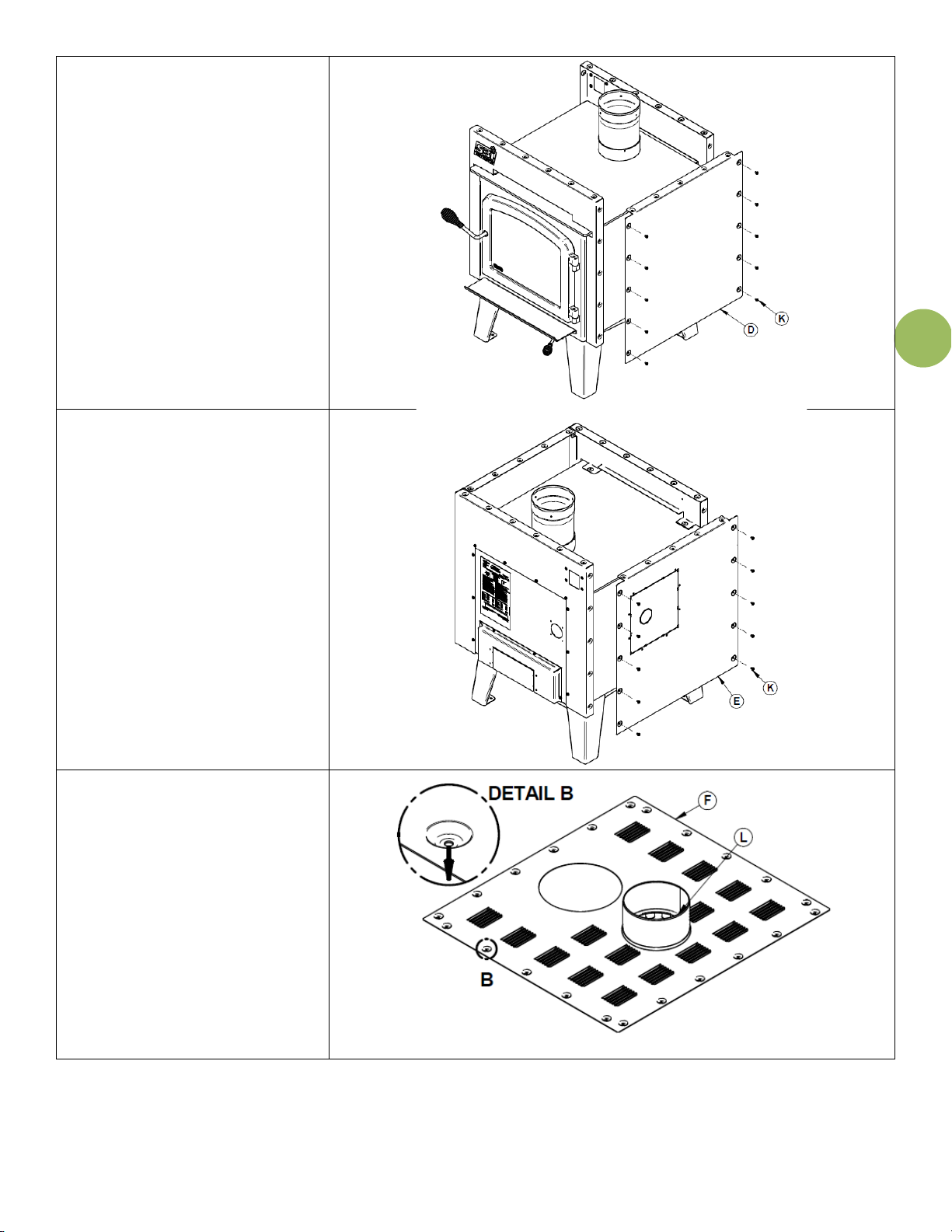

6. Install the right panel
(D) with 10 metal
screws (K) on the front
and back panels.
7. Install the left panel (
E
)
with 10 metal screws
(K) on the front and
back panels.
8. Install the 6’’ adaptor
(L) on the top panel. (F)
IMPORTANT`: The
dents in DETAIL B on
the top panel must be
pointing downward.

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
11

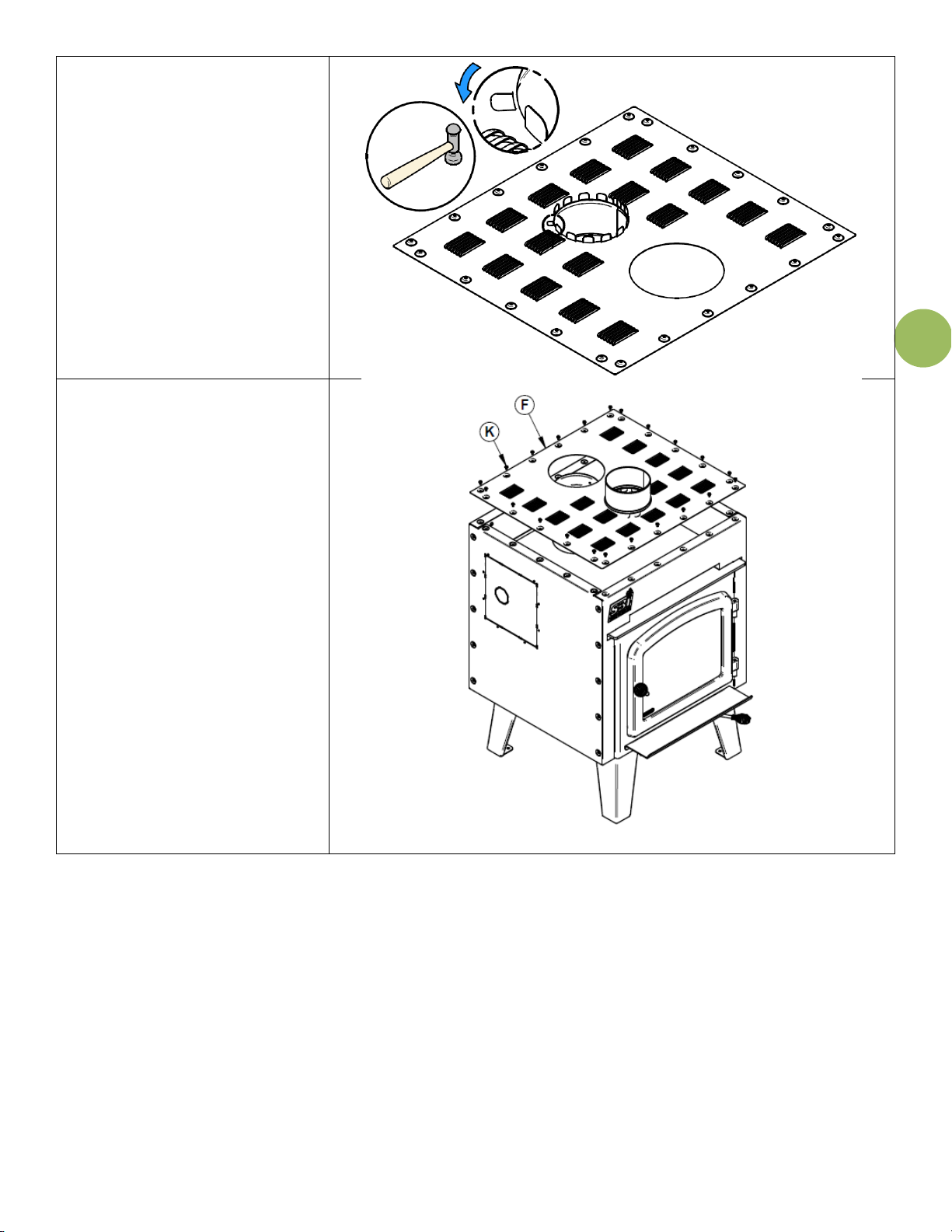

9. Flip the top panel and
fold the metal tab of the
6” adaptor (L) with a
hammer so that it is
fixed in place.
10. Install the top panel (F)
on the other panels with
22 metal screws. (K)

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
12
11. Remove the 3 screws
(O) from the control
sub-assembly (G) and
then remove cover.
Keep the screws.
Screw the control sub-
assembly with 4 screws
(O) on the back panel.
Replace the cover of
the control assembly
with the 3 (O) screws
previously removed.
12. With the help of pliers,
remove the spring pin
(CC) blocking the
rotation of the door
handle.
13. With pliers, remove the
small spring pin. (DD)

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
13
14. Remove the pin (EE)
and latch mechanism
bearing (FF) from the
handle shaft.
15. Remove the former
handle shaft (GG) and
replace it with the one
provided (M) with the
accessory.
16. Put back the pin, its
bearing and the small
spring pin. Adjust the
door latch mechanism
by
screwing/unscrewing
the door handle with
some intensity.
17. Verify the door seal by
closing and locking it on
a bit of paper. If the
paper slips easily
anywhere around the
door, the door
adjustment must be
reviewed or the seal
gasket must be
changed.

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
14

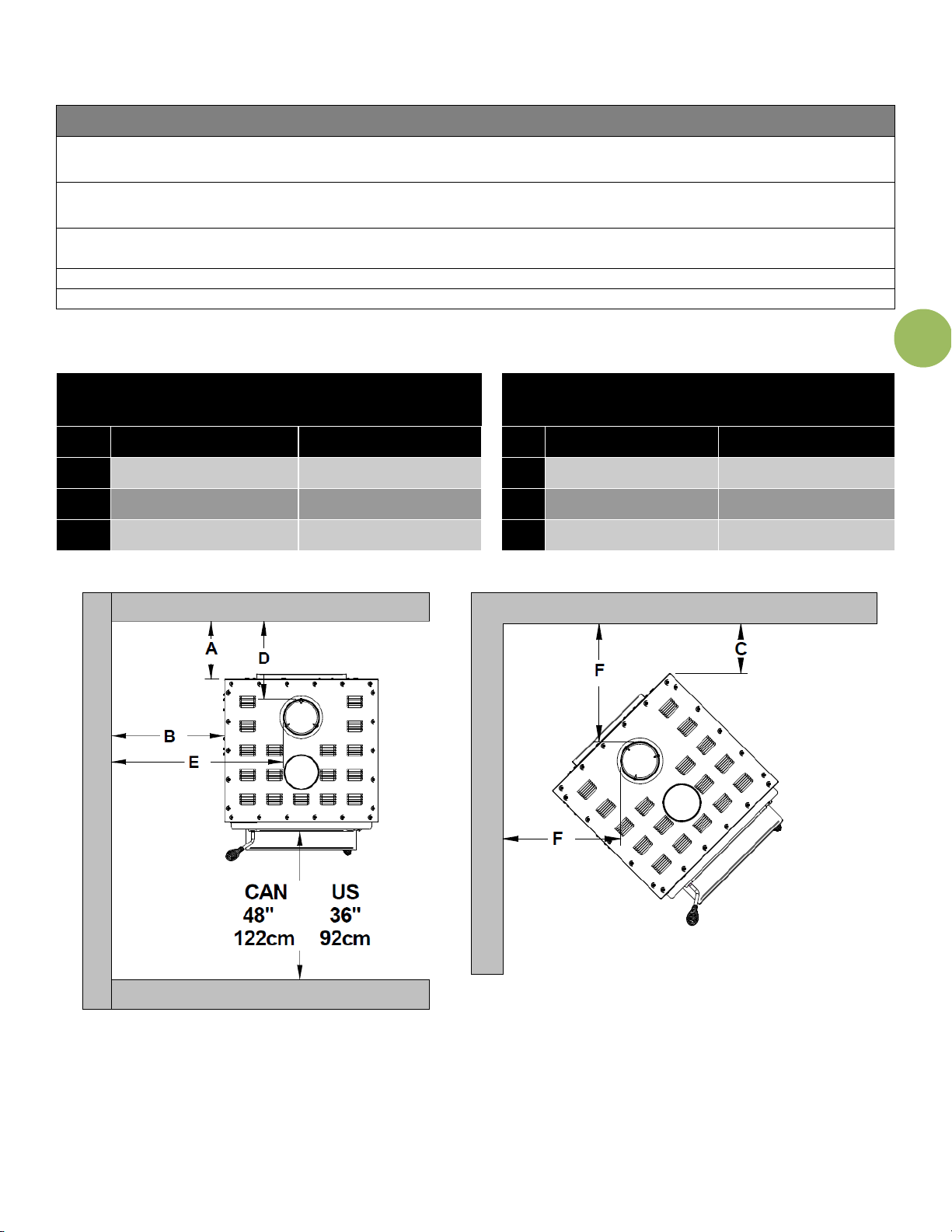

7. Clearance of the HEATFLOW S5 to combustible material
WARNING
The HEATFLOW S5 can only be assembled with a single wall pipe,refer to the Annex for double
wall pipe retrofit.
The HEATFLOW S5 cannot be assembled with a Heat shield (AC02762), lowered ceiling, inside
an alcove or in a mobile home.
The following clearances for stoves with the HEAFLOW S5 must be respected, failure to do so may result in
damage to the stove, air ducts, blower and may also cause a fire.
The HEATFLOW S5 CANNOT BE INSTALLED IN REDUCED CLEARANCES
It is absolutely essential to place the stove to gain clearance for combustible material from the jacket.
The following clearances for the stoves with the HEAFLOW S5 must be respected
JACKET CLEARANCE WITH SINGLE WALL
PIPE CONNECTOR
DISTANCE FROM PIPE CONNECTOR
WITH SINGLE WALL PIPE CONNECTOR
CANADA
USA
CANADA
USA
A
14 ½” (368mm)
14 ½” (368mm)
D
18” (457mm)
18” (457mm)
B
12 ½” (318mm)
12 ½” (318mm)
E
22 ¾” (578mm)
22 ¾” (578mm)
C
10” (254mm)
10” (254mm)
F
19 3/4” (502mm)
19 3/4” (502mm)

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
15
8. Blower installation
WARNING
The blower must be positioned in a way that the shaft of the motor is not pointing downward.
There must be openings around the blower to ventilate the motor.
DO NOT COMPLETELY ENCLOSE THE
BLOWER BETWEEN JOISTS.
The blower should be installed in a location with easy access for maintenance purposes and to
reduce noise.

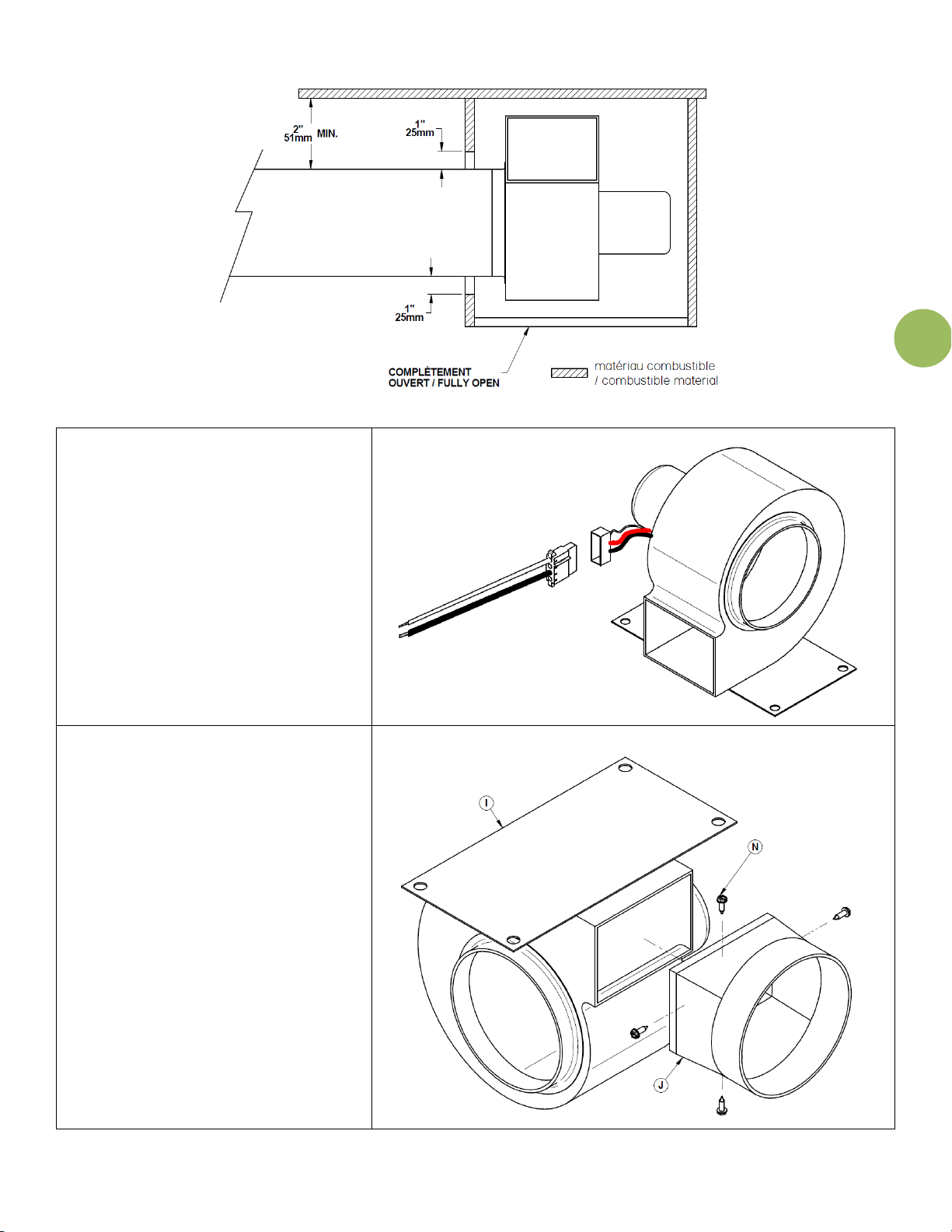

DUCT CLEARANCE FOR COMBUSTIBLE MATERIALS
Clearance to the ceiling of the FIRST HORIZONTAL duct
2in MIN
Clearance around the blower box
1in MIN
Clearance around duct connected to blower
1in MIN
Clearance around air register
1in MIN
Blower duct length to HEATFLOW S5 (min – max)
6.5ft (2m) – 12 ft (3.7m)

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
16
Install the blower with rubber washers included with the blower to lower vabration noises.
18.
Connect the motor
connector (T) to the blower.
(I)
19.
Install the blower end
adaptor (J) on the blower
(I) with 4 self-drilling
screws. (N)

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
17
9. Electrical wiring
WARNING
The installation of the Heatflow S5 requires a power outlet (120V). The wiring must be done in
accordance with the local legislation/norms and with the national building code.
The wiring must be done by a certified electrician only.
The Heatflow S5 must be wired on a 120V circuit, 15 amps.
WARNING: Special attention must be taken to the passage of wires and should be shielded from
radiation. WIRES SHOULD NEVER BE IN CONTACT WITH ANY PART OF THE SYSTEM (Stove,
Heatflow S5 jacket, air conduit, pipe, etc …)
Connect the blower to the control sub-assembly (G) with a 14/2 wire and wire splices. The following
schematic shows how:

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
18

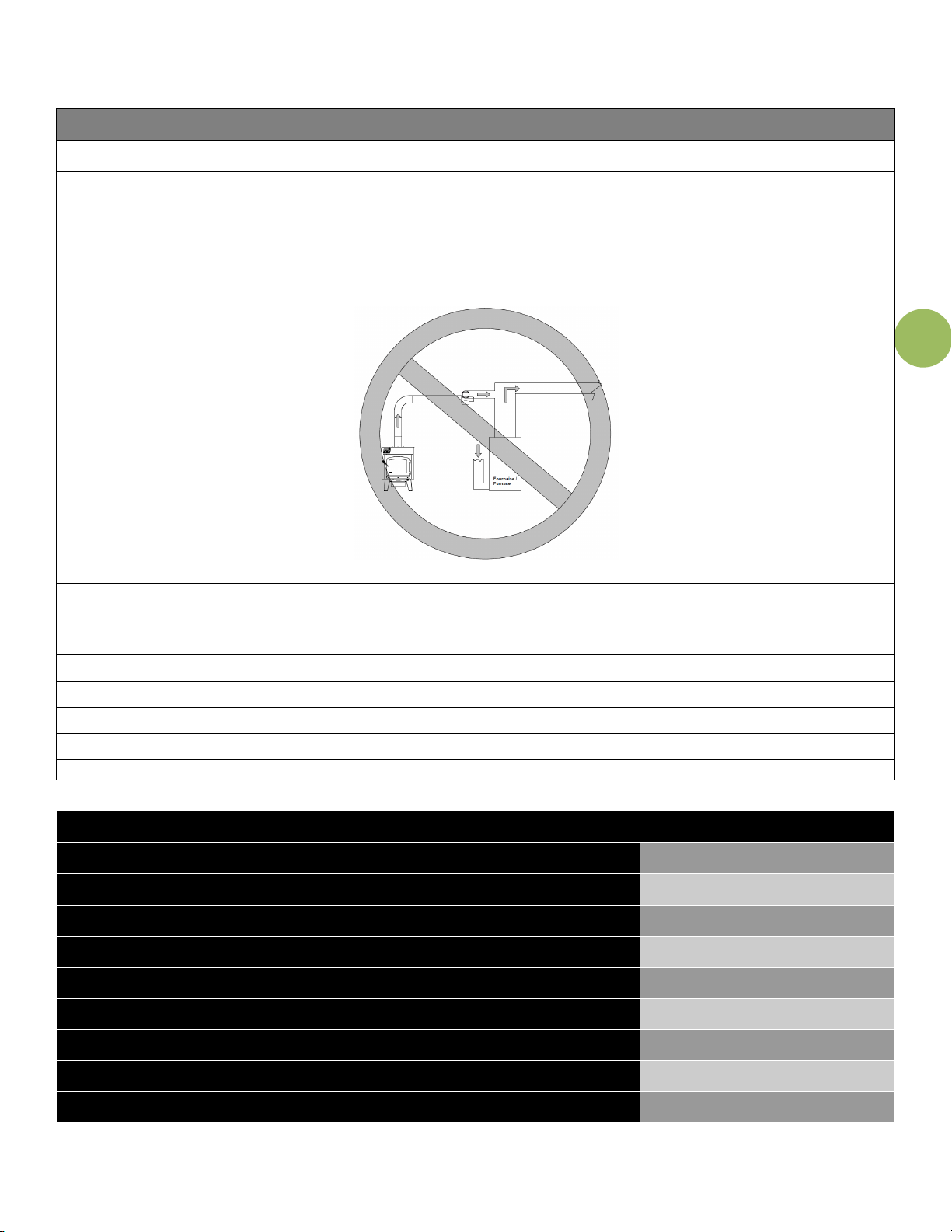

10. Conduit configuration & assembly instructions
WARNING
WARNING : THE USE OF INSULATED DUCT IS PROHIBITED
The configuration of the ductwork system will have a direct effect on the capacity of the
blower to distribute the air efficiently.
The HEATFLOW S5 must never be connected to the existing ductwork system of a furnace. To
use an existing ductwork system, the furnace must be completely be removed. The HEATFLOW
S5 must be the only heating source connected to the ductwork.
Only use rigid galvanised ductwork and HVAC foil tape to seal them
The use of an airflow damper or damper blade is highly recommended in each conduit leading to an air
outlet to balance the airflow in the system.
The ductwork should always be fixed to reduce vibration noise.
The ductwork should always have a positive slope toward air outlet for good gravity airflow.
The air registers should always be in metal.
Fix each section of ductwork with at least 3 self drilling screws.
Reducing deviations in the system will result in a better airflow at air outlets.
DUCTWORK DIMENSIONS
Number of air outlet [MIN - MAX]
[1 – 4]
Recommended diameter of main ductwok
6 in
TOTAL length of main ductwork
50ft (15.2m) MAX
Recommended length of main ductwork after the blower
38ft (12.2m) MAX
Distance between stove and blower [MIN - MAX]
[6.5ft (1.9m) / 12ft (3.6m)]
Length of secondary ductwork from main ductwork
12ft (3.6m) MAX
TOTAL Length of secondary ductwork
48ft (14m) MAX
TOTAL length of ductwork system
100ft (30m) MAX
Recommended speed of air draft at the air outlet (feet per minute) 500 to 750 fpm

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
19

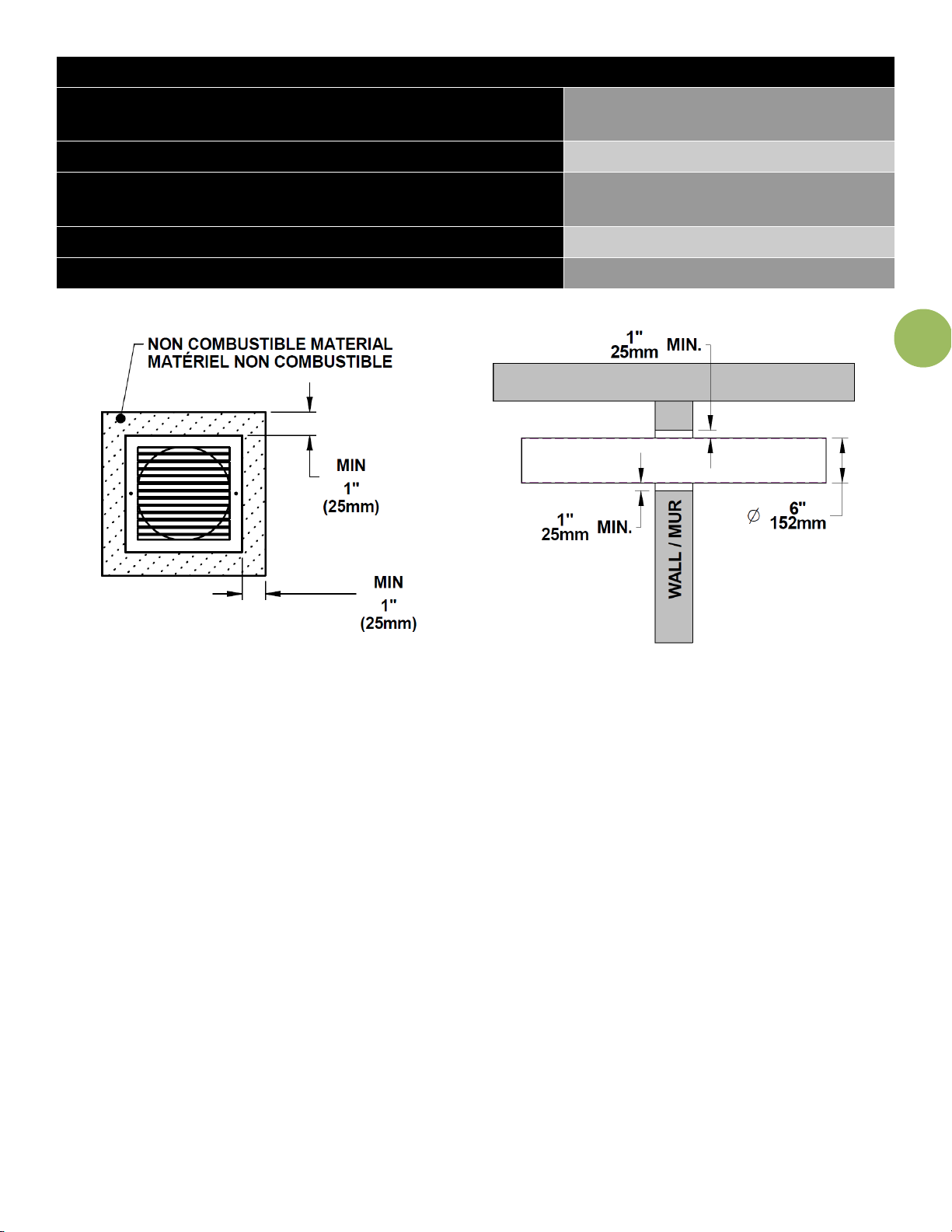

DUCTWORK CLEARANCES FOR COMBUSTIBLE MATERIALS
Clearance to the ceiling of the first horizontal
ductwork connecting the blower
2in MIN
Clearances to combustible materials from the blower
1in MIN
Clearance to combustible materials around air
register
1in MIN
Clearance to combustible materials around air outlet
1in MIN
Clearance around ductwork passing through wall
1in MIN
Instruction to balance the airflow at the different air outlets:
1. The diameter of the main conduit should be reduced to 5” (127mm) after 20ft(6.1m) and/or
reduced to 1in every 2 air outlets.
2. After the system is completely installed, put the control sub-assembly to “M” to start blower
(refer to Section 9. Operating instructions).
3. Open all dampers located in ductwork leading to an air outlet.
4. Locate the outlet with the strongest airflow (it should be the first outlet from the blower).
5. Close the outlet damper slightly and verify the airflow at each air outlet to compare their
speed. If the airflow of the strongest is still too strong, repeat this step.
6. Proceed progressively with each damper by closing them slightly and balancing each
airflow at air outlet. If at a last air outlet, it is impossible to keep an airflow consistent with
the first air outlets, it might be an indicator that the section of the ductwork should be
reduced.
7. The damper of the furthest air outlet from the stove should be open.

Installation Instruction HEATFLOW S5 English 46310A
2023-03-15
20

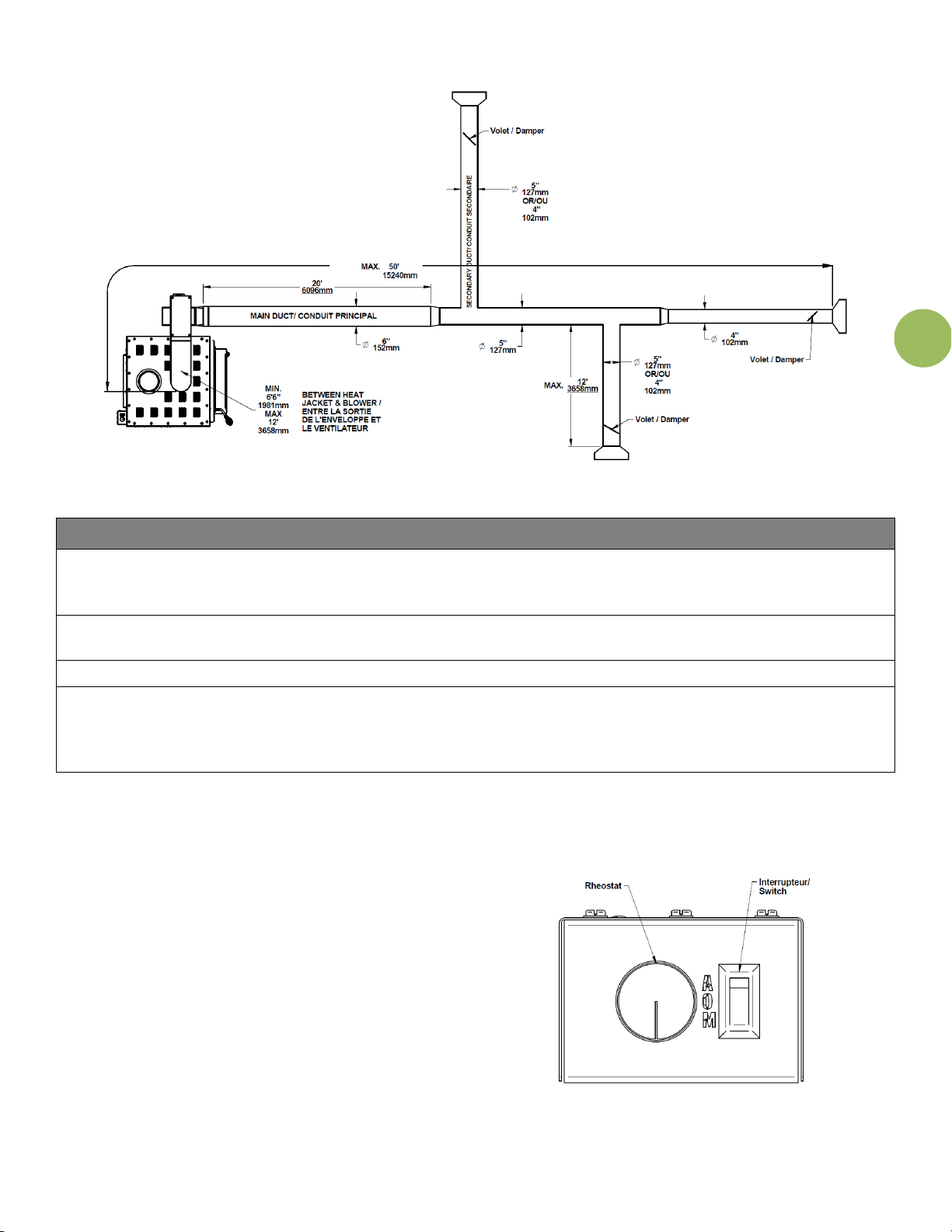

Note: Next image as an indicative reference only of a typical 3 air outlets system
11. Operating instructions
WARNING
NEVER BLOCK ANY HOLES/LOUVERS ON THE HEATFLOW S5 METAL JACKET. FAILURE TO
DO SO COULD RESULT IN FIRE, INJURY, DAMAGE TO THE STOVE, BLOWER OR AIR
DUCTWORK SYSTEM, etc..
DO NOT MODIFY THE SYSTEM. FAILURE TO DO SO COULD RESULT IN FIRE, INJURY,
DAMAGE TO THE STOVE, BLOWER OR AIR DUCTWORK SYSTEM, etc..
Always put the system to “OFF” while reloading the stove with wood.
IMPORTANT : If the stove is new, it is normal to have an odor of smoke when lighting it for
the first time. This intitial fire should always be done before connecting the air ductwork
system to the HEATFLOW S5 in order to prevent the odor of smoke being dispersed to
all rooms.
1. Plug the control sub-assembly into an electrical outlet.
2. Select the desired mode with the 3 position switch located on the top of the control box behind the
HEATFLOW S5.
A- « AUTO MODE » in this position, the blower will
start and stop automatically with the temperature of
the stove.
O- « OFF MODE » in this position, the blower is
stopped immediately. It is recommended to put the
system in this mode when reloading the stove
with wood.
M- « MANUAL MODE » in this position, the blower
will always be energized.
3. Adjust the blower speed with the rheostat to optimise comfort at air outlet
a. Higher blower speed Lower temperature at air outlet
b. Lower blower speed Higher temperature at air outlet
