Scania Radio Premium User manual

1
Manual
Radio Premium
Complete manual for Scania Radio Premium
This manual can be downloaded at www.scania.com/manuals

2

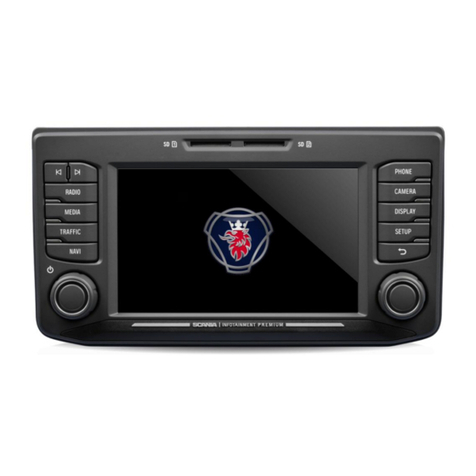

Buttons and controls
1. Arrow keys and :
In radio mode: Automatic search for radio stations.
In CD/MP3 mode: Select track (short press), Fast-forward/rewind (long press).
2. Slot for CD disc.
3. Display/touch screen
4. Eject CD disc.
5. : Display day-night.
Short press: Day or night illumination in the display.
Long press: Switch the display on or off.
6. MAP: Show map
7. NAVI: Open the menu for navigation.
8. Slot for SD card for navigation.
9. SETUP: Opens the menu for system settings.
10. : Go back to the previous menu page.
11. Multi-function button:
In a menu: Turn - select, change. Press - confirm.
In radio mode: Turn - set a station.
In CD mode/MP3 mode: Turn - select track.
12. Function buttons for saved radio stations 1-6.
13. Multi-function button:
Long press: Switch on/off the radio.
Short press: Activate/deactivate Mute (when the radio is on).
Turn: Change volume.
14. : Open the menu for the phone.
15. : Show or hide the camera images.

3
16. MEDIA: Change between different audio sources:
•CD disc
•USB
•AUX
•Bluetooth
17. FM•AM: Start the radio mode and change between different sources.
•FM1
•FM2
•AM

4
Table of contents
Manual Radio Premium.............................................................................................. 1
Complete manual for Scania Radio Premium 1
Buttons and controls................................................................................................... 2
Important information.................................................................................................. 8
Warning texts 8
Please note the following! 8
Stipulated use................................................................................................................................................... 8
Cleaning 11
Disposal (EU countries) 11
Instructions for handling CD discs 11
Compatible SD cards with maps 11
About the Scania Radio Premium manual 12
Introduction................................................................................................................13
General Information 13
Radio reception 13
Operating modes 14
Radio...............................................................................................................................................................14
Media...............................................................................................................................................................14
Navigation........................................................................................................................................................14
Telephone:.......................................................................................................................................................14
Use 14
Controls ...........................................................................................................................................................14
Touch screen...................................................................................................................................................14
Multi-function button ........................................................................................................................................15
Switching on the system 15
Automatic shutdown ........................................................................................................................................15
Setting the volume 16
Scroll through a list of menu items 16
Selecting the settings 17
System settings ...............................................................................................................................................17
Navigation settings ..........................................................................................................................................19
Bluetooth and phone........................................................................................................................................19
Traffic message settings..................................................................................................................................19
Radio settings..................................................................................................................................................20
Truck attributes................................................................................................................................................20
Volume settings 20
Setting the volume for traffic announcements (TA)..........................................................................................21
Setting the volume for AUX input sources (if available)...................................................................................21
Setting the speed-dependent volume..............................................................................................................22

5
Setting the volume for voice guidance (navigation).........................................................................................22
Setting the volume for the phone sound..........................................................................................................22
Camera 23
Radio.........................................................................................................................24
Starting radio mode 24
Selecting frequency ranges 25
Radio Data System (RDS) 25
RDS regional mode .........................................................................................................................................25
Activating or deactivating RDS Regional.........................................................................................................26
Traffic announcements (TA) 26
Activating or deactivating TA...........................................................................................................................26
Activating or deactivating the priority for traffic announcements (TA)....................................................................27
Tuning into stations 27
Automatic tuning..............................................................................................................................................27
Manual tuning..................................................................................................................................................28
FM station list 28
Storing a station 30
Retrieving a station..........................................................................................................................................30
Media.........................................................................................................................31
Playing CDs 31
General Information.........................................................................................................................................31
Playing CDs.....................................................................................................................................................33
Pausing playback (Pause)...............................................................................................................................34
Selecting a track..............................................................................................................................................34
Skip to the next or previous track.....................................................................................................................34
Fast-forward/rewind forward or backward........................................................................................................34
Random playback............................................................................................................................................35
Repeating a track.............................................................................................................................................35
Ejecting a CD disc ...........................................................................................................................................35
USB port 36
General Information.........................................................................................................................................36
Important information.......................................................................................................................................36
Playing back audio files from an MP3 player, a USB device and an SD card..................................................37
Playing back audio files from an iPod..............................................................................................................37
Bluetooth audio connection 38
General Information.........................................................................................................................................38
Important information.......................................................................................................................................38
Pairing with a Bluetooth device........................................................................................................................38
Use ..................................................................................................................................................................39
Activating Bluetooth music mode.....................................................................................................................39
AUX connection 40
General Information.........................................................................................................................................40

6
Use ..................................................................................................................................................................40
Telephone:.................................................................................................................41
General Information 41
Bluetooth profiles.............................................................................................................................................42
Bluetooth connection.......................................................................................................................................42
Pairing with a Bluetooth device........................................................................................................................42
Connecting to another paired device...............................................................................................................42
Disconnecting a paired device.........................................................................................................................43
Emergency calls 44
Making an emergency call...............................................................................................................................44
Use 44
Controls on the front panel for phone use........................................................................................................45
Handsfree mode 45
Activating handsfree mode ..............................................................................................................................45
Making a call using the phonebook..................................................................................................................46
Searching for a phone number ........................................................................................................................46
Using call lists..................................................................................................................................................47
Redialling a phone number..............................................................................................................................47
Entering the phone number .............................................................................................................................48
Accessing the voice mailbox............................................................................................................................48
Incoming phone calls.......................................................................................................................................48
Functions during a call 49
Temporary deactivation of the handsfree mode...............................................................................................49
Temporary deactivation of the microphone......................................................................................................49
Ending a call....................................................................................................................................................49
Setting the phonebook 50
Downloading the phonebook...........................................................................................................................50
Sorting in the phonebook.................................................................................................................................50
Show the phonebook on the SIM card or in the phone memory......................................................................51
Navigation..................................................................................................................52
General Information 52
Navigation system functions 52
TMC traffic information system and dynamic navigation 53
Map data..........................................................................................................................................................53
Vehicle specifics 53
Map options 54
Saving the current position ..............................................................................................................................55
Show position information................................................................................................................................55
Show destination information...........................................................................................................................55
NAVI button and Navigation menu 55
Select destination ............................................................................................................................................56
Home address .................................................................................................................................................58

7
Select route outline..........................................................................................................................................59
Changing the mode for the time display ..........................................................................................................60
Previous destinations.......................................................................................................................................60
Setting route options........................................................................................................................................61
Stopping the guidance.....................................................................................................................................62
TRAFFIC INFO menu......................................................................................................................................62
Blocking...........................................................................................................................................................62
TA....................................................................................................................................................................63
Route outline....................................................................................................................................................64
All.....................................................................................................................................................................64
SETUP button and NAVIGATION menu 64
Information on the map....................................................................................................................................67
User-defined points of interest (POI) ...............................................................................................................69
Maps 72
SD cards with maps.........................................................................................................................................72
Replacing an SD card with maps.....................................................................................................................73
Steering wheel buttons..............................................................................................74
PIN list.......................................................................................................................75
Frequently asked questions.......................................................................................76
GENERAL........................................................................................................................................................76
RADIO .............................................................................................................................................................76
CD disc (AUDIO/MP3).....................................................................................................................................76
NAVIGATION...................................................................................................................................................77
Technical Specifications............................................................................................80
Power Supply...................................................................................................................................................80
Power consumption.........................................................................................................................................80
Fuse.................................................................................................................................................................80
Output..............................................................................................................................................................80
Frequency range..............................................................................................................................................80
Frequency response (±3 dB)...........................................................................................................................81
Temperature range..........................................................................................................................................81
Dimensions and weight....................................................................................................................................81
Glossary ....................................................................................................................82

8
Important information
This Scania Radio Premium has been manufactured according to the latest
technological developments and in compliance of applicable technical safety
regulations. However, the failure to comply with these safety instructions could
involve risk:
Read through the whole manual carefully and thoroughly before using any of the
functions.
Store the Audio Operating Guide where it is easily accessible for all users.
Warning texts
The manual contains the following important warning texts:
Note
This symbol is used for certain important information.
Warning
This symbol is used when there is a risk of personal injury or damage to
physical property, primarily the radio.
Please note the following!
Stipulated use
The Scania Radio Premium is equipped with an operating voltage of 12 V. The
system is intended for installation and use in a truck.
Consult a professional to perform repairs, installation and removal as required.

9
Important information!
Do not adjust settings or input information into the navigation system while the
truck is in motion. Stop before you enter a new destination or change system
settings! The navigation equipment must be used in a way that does not put
you and other road users in danger. Traffic safety must always come first. The
risk of serious accident is great if you neglect to keep your full attention on the
traffic situation.
The route outline with the route guidance that the navigation equipment
calculates is a suggestion. You must always demonstrate good driving
behaviour and give your full attention to the current traffic situation. Signs,
temporary directions and other regulations always take priority over route
guidance from the navigation system.
If you are using vehicle-specific navigation (Truck Navigation), make sure that
you are aware of the applicable conditions for the route outline that the
navigation system has suggested. This applies, for example, to the bearing
capacity of roads or bridges, local regulations, etc.
Familiarise yourself will all functions before you begin driving.
Only use the Scania Radio Premium and other functions when traffic
situations permit.
The navigation system provides route guidance during navigation. Follow
them only on condition that you do not break any traffic rules!
The Scania navigation system has been designed for use in trucks.
Adjust the volume to the current traffic situation. You must be able to hear
sounds from emergency vehicles clearly and in good time.
The Scania navigation system has been designed for use in trucks.
When calculating the route outline you can instruct the navigator to take into
account height limits or maximum permissible axle weights on the heaviest
axle which are required in order to navigate a truck to the destination, to the
extent they are stored on the SD card. In the manual this is called navigation
with the truck’s specifics.
While driving, always be observant of road traffic restrictions, even when
you are following the recommendations provided by Scania in the manual.
The information saved on the SD card may not be complete or up-to-date.
Only use original Scania SD cards in conjunction with the Scania Radio
Premium.
Make sure that your vehicle specifics and current load are always input in
full into the navigation system to prevent the system from recommending
unsuitable or hazardous route outlines.

10
Note
Use the demo mode when the truck is stationary to familiarise yourself with
the functions available in the Scania navigation system. Read more about this
in the section " SETUP button and the Navigation menu" in the chapter
"Navigation".
Risk of injury
Do not open or make alterations to the inside of the Radio with Navigation!
The CD player contains a Class 1 laser which emits invisible laser beams that
could damage your eyes.
Do not repair or otherwise modify the Radio with Navigation.
Consult a trained professional to repair and maintain the Radio with
Navigation.
Risks associated with improper use of the Radio with Navigation
Do not use Mini-CDs (8 cm diameter) or contoured CD discs (”Shape CD
discs”) as these can damage the CD player.
Scania disclaims any liability for damage to the CD player caused by inserting
unsuitable CD discs.
