Schecter Blackjack ATX C-1 FR Quick start guide

Neck
Bridge
1 2 3
3-way switch settings
.1
9-Volt
battery
9-Volt
battery
Red
Bridge
volume
25k
Neck
volume
25k
Master
tone
25k
Red
3-way
switch
Blackjack ATX C-1 FR
Wiring Diagram
Tone
Bridge Vol
Neck Vol
Tone
For technical or warranty questions please email: [email protected]
Diagram copyright Schecter Guitar Research 2011
= ground.
This symbol
is found where any ground connection
should be soldered.
Output Jack
Tip (hot output)
Sleeve (ground)
Ring (battery ground)
21
3
3-Way
Switch
Bare
White
White
Bare
3
2
2
1
Neck pickup
Seymour Duncan AHB-1 Blackouts
Bridge pickup
Seymour Duncan AHB-1 Blackouts
Seymour Duncan
Seymour Duncan

c
d
a
b
radius

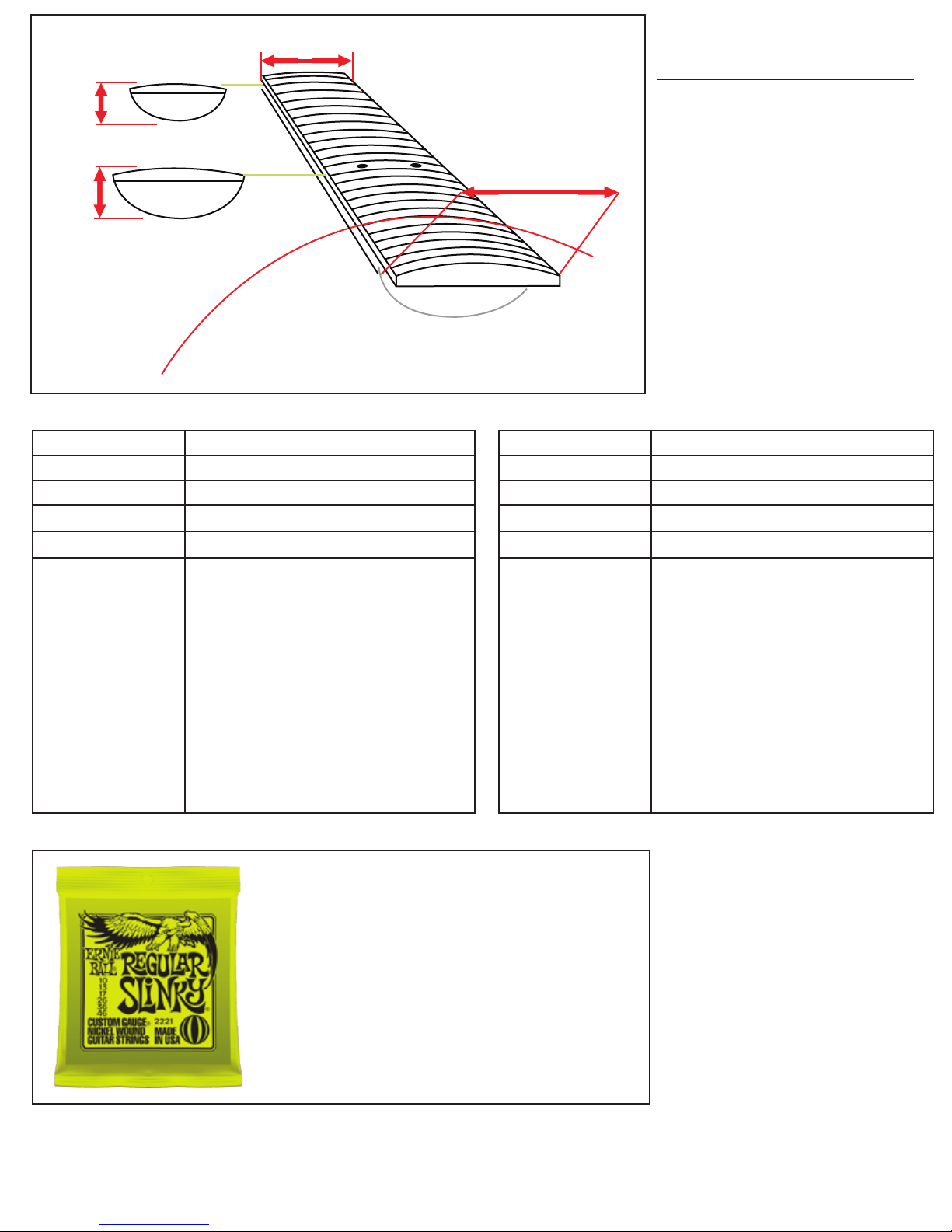

Scale Length: 648mm/25.5”
A: Width at Nut- 42mm
B: Width at Last Fret- 58mm
C: Thickness at 1st Fret- 20mm
D: Thickness at 12th Fret- 22mm
Radius: 355mm/14”
Blackjack ATX C-1 FR
Neck Specs:
Bridge Pickup
Name:
Model No:
Construction:
Magnet:
Description:
Seymour Duncan Blackouts AHB-1
AHB-1 Bridge
Humbucker
Ceramic
Output: Resonant Peak- 430 KHz
9-volt active humbucker for
aggressive playing styles.
Recommended for old school
metal, garage, punk, thrash, drop
tunings, and other heavy rock
styles. Capturing the tone that
players want in an active design
using balanced inputs. The result is
12dB to 14dB less noise, plus more
lows, more highs, and more output.
Neck Pickup
Name:
Model No:
Construction:
Magnet:
Description:
Seymour Duncan Blackouts AHB-1
AHB-1 Neck
Humbucker
Alnico V
Output: Resonant Peak- 750 KHz
9-volt active humbucker for
aggressive playing styles.
Recommended for old school
metal, garage, punk, thrash, drop
tunings, and other heavy rock
styles. Capturing the tone that
players want in an active design
using balanced inputs. The result
is 12dB to 14dB less noise, plus
more lows, more highs, and
more output.
Strings
6-String Guitar*
Tuning: E-A-D-G-B-E
Gauge: .046-.036-.026-.017-.013 .010
(EB Regular Slinky #2221)
*Changing to different string gauges and/or
alternate tunings may require minor neck/bridge
adjustments for optimal performance. For Schecter
setup tips refer to Schecter Setup Guide.
