ART48 - MULTIPLE IN
The Multiple In is a CLASS-A input unit that can receive 4 line signals (or two stereo
lines), as opposed to just the 2 lines that can be handled by the Stereo In unit. It does
however include fewer features (no gain, lters or AUX routing), having been principally
designed to enable simple routing of line signals to the L/R Master - which, in many
cases will prove sufcient.
The Multiple In is mainly intended for use with audio devices that generate a line signal
(0 dBV) from their output(s). This makes it particularly useful for sub group routing: Its
inputs can accommodate effect units, CD players, tape or digital recorders, preamps of
any kind and electronic instruments such as keyboards and Midi devices.
A number of Multiple In units combined with one L/R Master unit will create a summing
amp of outstanding quality, which is both modular and money saving. For example, four
Multiple In units will congure into a 16-channel summing amp.

ART48 - MULTIPLE IN
UNITY-C UNITY-D
PAN-C PAN-D
ON-C ON-D
A B
UNITY-A UNITY-B
ON-A ON-B
PAN-A PAN-B
C D
BA
CD
balanced
INPUTS
-20
-10
+ 6
-20
-10
+ 6

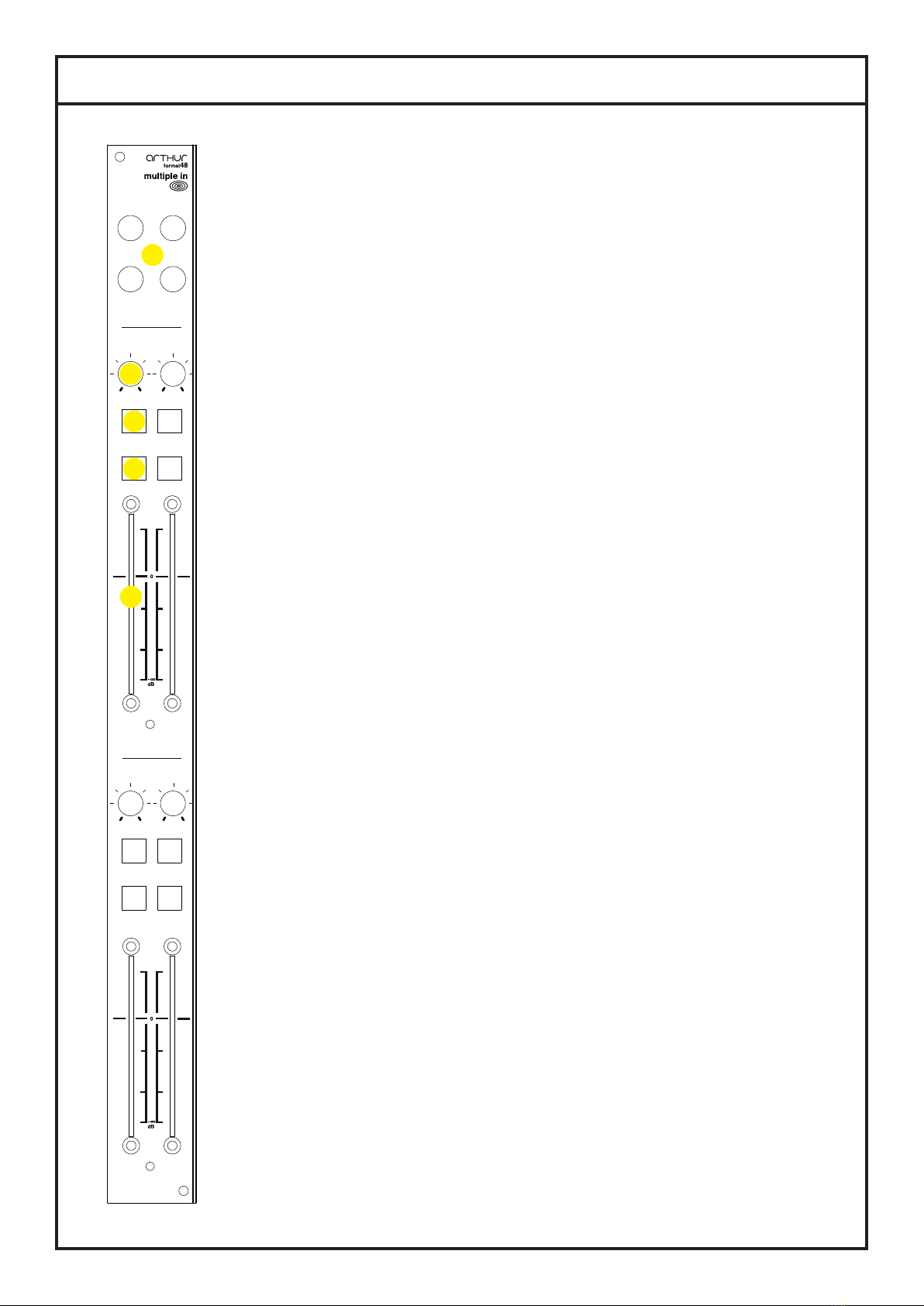

This unit has four input connectors(1.) for the respective line channels.
These are fully balanced and use space-saving stereo phone plugs.
The tip connects as usual to the hot signal, the ring to the cold and
the sleeve to the ground. Another advantage of these phone plugs is
that you can connect an unbalanced music signal, for example from
a keyboard, via a simple guitar jack.
All four inputs will receive nominal line signals (0dB), therefore no
gain adjustment is previewed and the input amp’s sensitivity is always
0dB unity gain.
Volume, Mute, L/R Routing and Unity Gain
Every input channel has its own VOLUME(2.) control, MUTE(3.),
UNITY GAIN(4.) button and PAN pot(5.) for L/R routing. Four
independent mono signals can therefore be individually controlled,
sent left or right, or mixed.
You might also want to connect one or two stereo sources to the
Multiple unit, such as recorders, effects or keyboards. Connect the
left signal to Channel 1, setting the PAN hard left and the right signal
to Channel 2 setting the PAN hard right. This way, the Multiple can
route the stereo signal to the L/R master. The same can be done with
a second set of stereo signals, connected to Channels 3 and 4 and
panned hard left and right as above.
Depressing the UNITY GAIN button lets you set an amplication level
of 0dB independently from the position of the volume fader. This
can be very useful when you have several similar sources connected
to the unit, which you then want to send to the L/R bus at the same
nominal level, i.e. via one or two sub group units.
Depressing the MUTE button lets you mute the respective signal
without altering the position of the fader.
1.
2.
3.
4.
5.

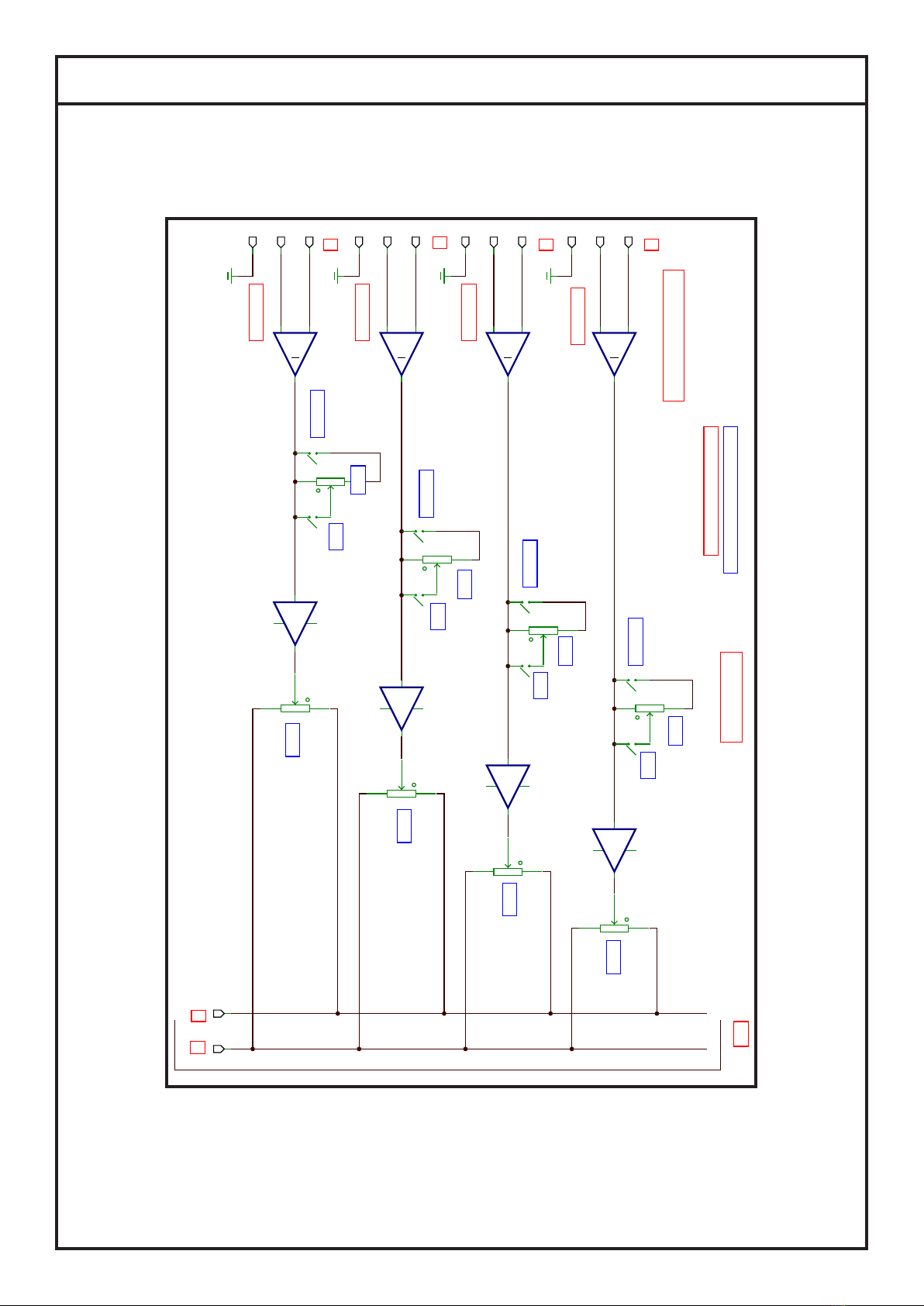

SIGNAL FLOW
++
9 9
9 9
++
9 9
9 9
++
9 9
9 9
++
9 9
9 9
- + - + - + - +
mute
mute
mute
unity gain
mute
unity gain
unity gain
unity gain
input amps 1 - 4
PA N 4
PA N 3
PA N 2
PA N 1
R
L
4
3
Vol 4
Vol 3
Vol 2
Stereo Jack Stereo Jack
Vol 1
Stereo Jack
2 1
BUS
all pots and sw itches in blu color all plugs and bus in red color
multiple IN
Stereo Jack

TECHNICAL SPECS
Input impedance:
Maximum input level:
Gain range:
Frequency response: (-3dB)
Equivalent Input Noise (EIN):
Distortion (THD+N, @1kHz):
-30dBu input level
0dBu output level
Power consumption:
Size & Weight:
41.4 Kohm
20dBu
-61dBu to +6dBu
< 10Hz - 90kHz
111.7dB (Gain @11.7dBu)
0.15%
0.12% (2nd harmonic)
0.06% (3rd harmonic)
0.04% (4th harmonic)
0.01% (5th harmonic)
80mA
36x58x475mm; 0.5Kg
