ELECTRIC DEFLECTOR KIT FOR SNOWBLOWER

1
02-2017
IMPORTANT MESSAGE
Thank you for purchasing this Schiller Grounds Care, Inc. product. You have purchased a world class product,
one of the best designed and built anywhere.
This product comes with an Owner/Operator's Manual. The useful life and good service you receive from this
product depends to a large extent on how well you read and understand this manual. Treat this product properly
and adjust it as instructed, and it will give you many years of reliable service.
See a Schiller Grounds Care, Inc. dealer for any service or parts needed. Schiller Grounds Care, Inc. service
ensures that you continue to receive the best results possible from Schiller Grounds Care, Inc. products. You
can trust Schiller Grounds Care, Inc. replacement parts because they are manufactured with the same high
precision and quality as the original parts.
Schiller Grounds Care, Inc. designs and builds its equipment to serve many years in a safe and productive manner.
For longest life, use this product only as directed in the manual, keep it in good repair and follow safety
warnings and instructions. You'll always be glad you did.
Schiller Grounds Care, Inc.
One Bob-Cat Lane
Johnson Creek, WI 53038
TABLE OF CONTENTS FIGURES PAGE
SAFETY..................................................................................................................................................................................................................2
ASSEMBLY/SET-UP INSTRUCTIONS .............................................................................................................................................................. 3-7
TROUBLESHOOTING ...........................................................................................................................................................................................8
TORQUE CHART...................................................................................................................................................................................................9
PARTS LIST ....................................................................................................................................................................................................10-11

2
MODEL NUMBER: This number appears on
sales literature, technical manuals and price lists.
SERIAL NUMBER: This number appears only
on your model. It contains the model number
followed consecutively by the serial number.
Use this number when ordering parts or seeking
warranty information.
Located on engine deck top, left side.
SAFETY
NOTICE !!!
Unauthorized modications may present extreme
safety hazards to operators and bystanders and
could also result in product damage.
Schiller Grounds Care, Inc. strongly warns against,
rejects and disclaims any modications, add-on
accessories or product alterations that are not
designed, developed,tested and approvedby Schiller
Grounds Care, Inc. 's Engineering Department. Any
Schiller Grounds Care, Inc. product that is altered,
modied or changed in any manner not specically
authorized after original manufacture–including the
addition of “after-market” accessories or component
parts not specically approved by Schiller Grounds
Care, Inc. –will result in the Schiller Grounds Care,
Inc. Warranty being voided.
Any and all liability for personal injury and/or
property damage caused by any unauthorized
modications, add-on accessories or products not
approved by Schiller Grounds Care, Inc. will be
considered the responsibility of the individual(s) or
company designing and/or making such changes.
Schiller Grounds Care, Inc. will vigorously pursue
full indemnification and costs from any party
responsible for such unauthorized post-manufacture
modications and/or accessories should personal
injury and/or property damage result.
This symbol means:
ATTENTION!
BECOME ALERT!
Your safety and the safety of others is involved.
Signal word denitions:
The signal words below are used to identify levels
of hazard seriousness. These words appear in this
manual and on the safety labels attached to Schiller
Grounds Care, Inc. machines. For your safety and
the safety of others, read and follow the information
given with these signal words and/or the symbol
shown above.
DANGER indicates an imminently hazardous
situation which, if not avoided, WILL result in death
or serious injury.
WARNING indicates a potentially hazardous
situation which, if not avoided, COULD result in
death or serious injury.
CAUTION indicates a potentiallyhazardous situation
which,if notavoided, MAY result in minor ormoderate
injury. It may also be used to alert against unsafe
practices or property damage.
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, MAY result in property damage.

3
ASSEMBLY/SET-UP INSTRUCTIONS
GENERAL NOTE: FRONT, REAR, RIGHT HAND AND LEFT HAND REFERENCES BELOW
ARE WITH RESPECT TO AN OPERATOR AT THE CONTROLS.
MOTOR ASSEMBLY:
1. Remove the two knobs (Item A) from the
deector and replace them with two 5/16" nylon
insert lock nuts (Item 28).
Leave the two 11/32" nylon washers under the insert
lock nuts.
DO NOT TIGHTEN COMPLETELY so the deector
moves freely.
2. Drill holes B (Ø 11/32") and C (Ø 7/25") on
the side of the chute with the provided drilling
template. Use hole A (Ø 11/32") and the edges
of the chute to position the drilling template.
NOTE: Depending on the model of the blower, some
chutes have hole B pre drilled. If so, use hole B to
position the drilling template.
TOOLS REQUIRED:
1 Ratchet
2 Wrenches 7/16”, 1/2”
1 Wrench (for the nuts on the posts of the
battery on the unit)
1 Socket 7/16”
1 Wire stripper
1 Flat screwdriver
1 Drill
1 Bit 9/32”
1 Square head screwdriver #2
1 Cross head screwdriver #2
1 Pair of snips

4
ASSEMBLY/SET-UP INSTRUCTIONS

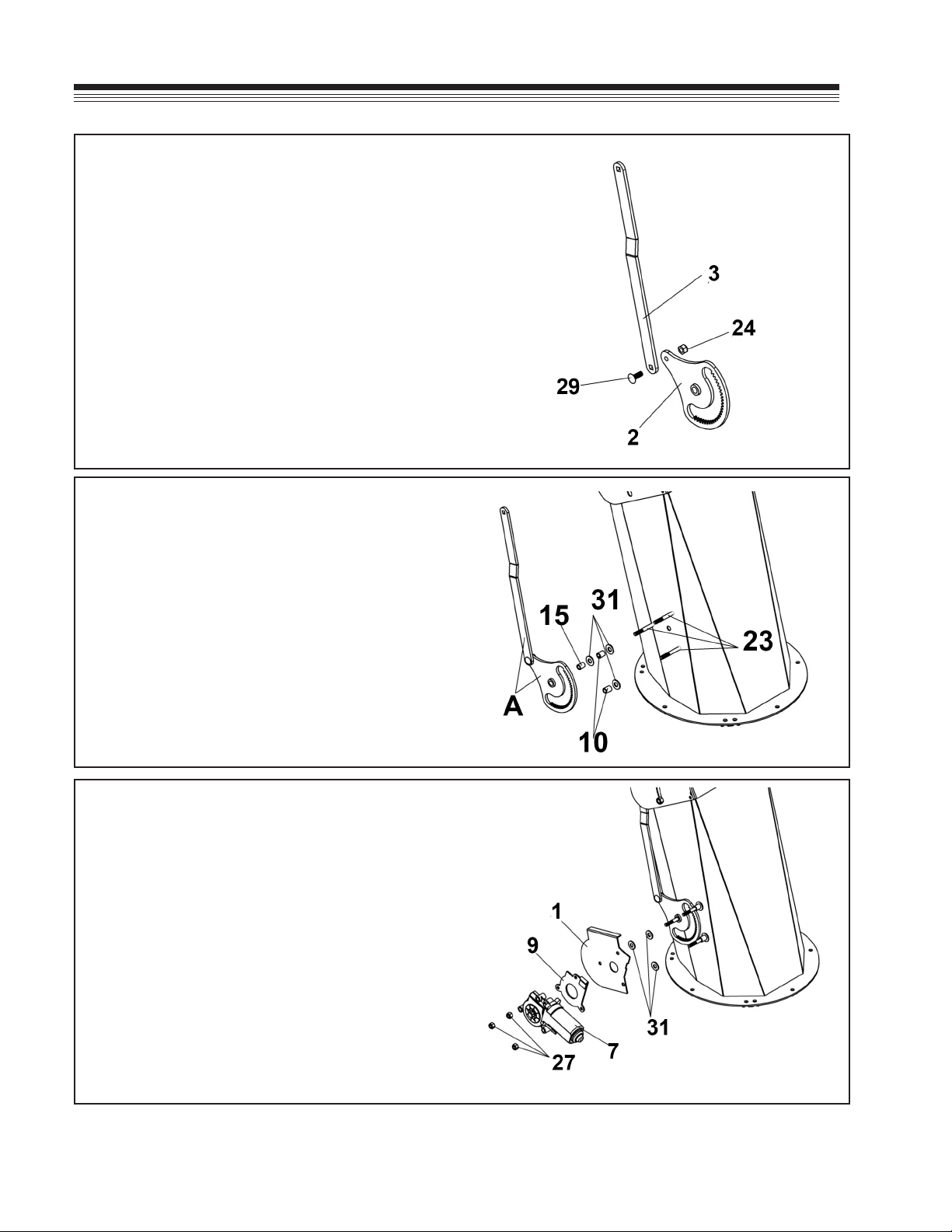

3. Assemble the lever( Item 2) and the arm (Item 3)
with one 1/4" X 3/4" hex bolt (Item 24) and one
1/4" nylon-insert locknut (Item 29).
DO NOT TIGHTEN COMPLETELY so the deector
moves freely.
8. Insert three 5/16" washers (Item 31) and the
bracket (Item 1) on the bolts installed in Step 3.
9. Insert the gasket (Item 9) and the electric motor
(Item 7) on the bolts also.
10. Secure the assembly with three 1/4" nylon-insert
locknuts (Item 27).
Make sure the gasket is properly positioned on the
motor.
4. Insert three 1/4" X 2 hex bolts (Item 23) into the
Ø9/32" hole drilled inthe chute. Insert three 5/16"
at washers (Item 31).
5. Insert two spacers (Item 10) on the two back
bolts.
6. Insert oil lite bushing (Item 15) on the front bolt.
7. Insert the lever assembly (Item A) on the oil lite
bushing (Item 15).

5
ASSEMBLY/SET-UP INSTRUCTIONS

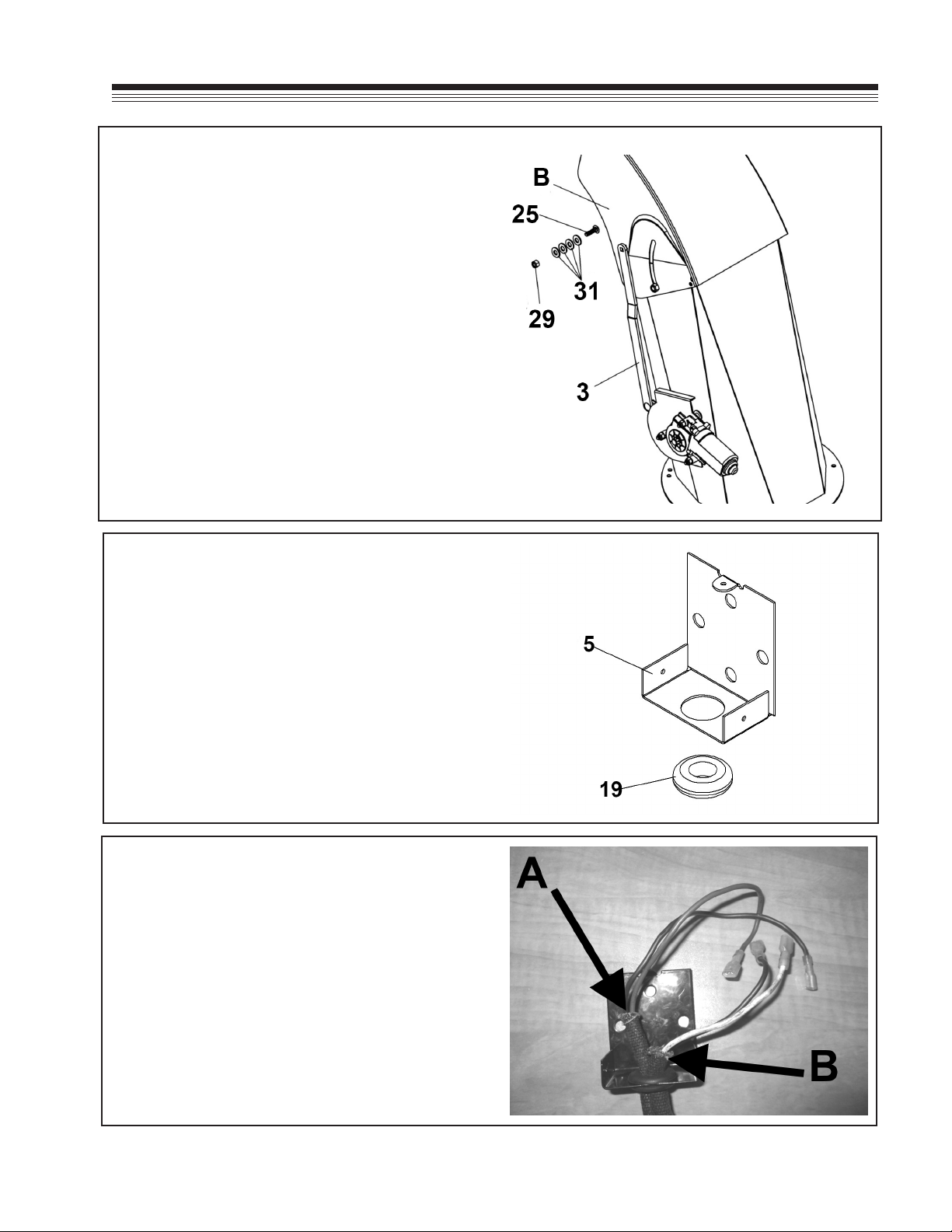

11. Secure lever arm (Item 3) on the head of the
chute (Item B) with one 1/4" x1" carriage bolt
(Item 25), four 5/16" at washers (Item 31) and
the 1/4" nylon-insert locnut (Item 29) .
Note: The washers must be positioned between the
head of the chute and the arm.
DO NOT TIGHTEN COMPLETELY so the deector
moves freely.
CONTROL BOX ASSEMBLY
12. Install the rubber grommet (Item 19) in the cover
(Item 5).
13. Pass wire assembly (Item 6) Wires A and B thru
the rubber grommet. as pictured

6
ASSEMBLY/SET-UP INSTRUCTIONS
15. Install wires A, B, C and D into switch (Item 16)
as shown below. Be sure to position wire A &
B properly to avoid short circuit.
16. Install the switch (Item 16) into the box (Item 4).
Secure with the rubber boot (Item 17). Tighten
rmly.
14. Plug the breaker (Item 18) on the red wire. Plug
the small wire (Item C) on the breaker.

7
ASSEMBLY/SET-UP INSTRUCTIONS
CONTROL BOX INSTALLATION
NOTE: Choose the ideal place to install the control
box assembly (Item D).
We suggest placing it on the right fender of the
tractor, close to the driver's seat, with the switches
toward the outside.
17. Secure the box (Item D) with two 1/4" X 1/2" bolts
(Item 20) and two 1/4" ange nuts. (Item 30).
May also be secured elsewhere with spacers (Item
11) and support brackets (Item 12), one rubber
spacer (Item 13) and two ange nuts (Item 30). Two
other lengths of bolts (Items 21 & 22) have been
provided for tting purposes.
18. Secure Control box cover to box with three #8 x
1/4" screws. (Item 26)
It is also possible to install the switch without the
control box in the dashboard or on the lever of the
tractor's hydraulics.
19. Turn the chute to its maximum towards the right.
20. Secure the wires of the deector motor (item A)
with a tie wrap around the motor.
21. Tie the wires with another tie wrap in the
hole at the base of the deector (item B) as
shown.
22. Install the connector (item 14) by cutting the
wires to the desired length one at a time. Make
sure to install the same wire to the male pole and
to the corresponding female pole.
It is recommended to place the connector as close as
possible to the vehicle.
The reason for the connector is to faciltate
dismounting of the snowblower.
23. Connect the red and black wires with a round
eyelet on the battery’s posts, The red wire on the
positive post and the black wire on the negative
post.

8
TROUBLESHOOTING
TROUBLESHOOTING
(For identication, see the parts breakdown)
PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION
Electric motor does not work. Overheating of the motor. These motors are equipped with
internal protector.
Wait 10 minutes before using.
The deector works inopposite
direction.
the Wires are inversed. Change the black wire with the white-
wire of the electric motor to switch.

9
TORQUE SPECIFICATION TABLE
SEE Grade No. 2 5 8 *
BOLT HEAD
IDENTIFICATION
MARKS AS PER GRADE
NOTE MANUFACTURING
MARKS W ILL VARY
TORQUE TORQUE TORQUE
BOLT SIZE FOOT POUNDS NEW TON-METERS FOOT POUNDS NEW TON-METERS FOOT POUNDS NEW TON-METERS
Inches
Millimetre Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Max. Min. Max. Max.
1/4”
6.35 5 6 6.8 8.13 9 11 12.2 14.9 12 15 16.3 30.3
5/16”
7.94 10 12 13.6 16.3 17 20.5 23.1 27.8 24 29 32.5 39.3
3/8”
9.53 20 23 27.1 31.2 35 42 47.5 57 45 54 61 73.2
7/16”
11.11 30 35 40.7 47.4 54 64 73.2 86.8 70 84 94.9 113.9
1/2”
12.7 45 52 61 70.5 80 96 108.5 130.2 110 132 149.2 179
9/16”
14.29 65 75 88.1 101.6 110 132 149.2 179 160 192 217 260.4
5/8”
15.88 95 105 128.7 142.3 150 180 203.4 244.1 220 264 298.3 358
3/4”
19.05 150 185 203.3 250.7 270 324 366.1 439.3 380 456 515.3 618.3
7/8”
22.23 160 200 216.8 271 400 480 542.4 650.9 600 720 813.6 976.3
1”
25.4 250 300 338.8 406.5 580 696 786.5 943.8 900 1080 1220.4 1464.5
METRIC BOLT TORQUE SPECIFICATIONS
COARSE THREAD FINE THREAD
Size Screw Grade No. Pitch (mm) Foot Pounds Newton-Meters Pitch (mm) Foot Pounds Newton-Meters
M6 4T 1.00
3.6 - 5.8 4.9 - 7.9 - - -
7T 5.8 - 9.4 7.9 - 12.7 - -
8T 7.2 - 10 9.8 - 13.6 - -
M8 4T 1.25
7.2 - 14 9.8 - 19 1.00 12 - 17 16.3 - 23
7T 17 - 22 23 - 29.8 19 - 27 25.7 - 36.6
8T 20 - 26 27.1 - 35.2 22 - 31 29.8 - 42
M10 4T 1.50
20 - 25 27.1 - 33.9 1.25 20 - 29 27.1 - 39.3
7T 34 - 40 46.1 - 54.2 35 - 47 47.4 - 63.7
8T 38 - 46 51.5 - 62.3 40 - 52 54.2 - 70.5
M12 4T 1.75
28 - 34 37.9 - 46.1 1.25 31 - 41 42 - 55.6
7T 51 - 59 69.1 - 79.9 56 - 68 75.9 - 92.1
8T 57 - 66 77.2 - 89.4 62 - 75 84 - 101.6
M14 4T 2.00
49 - 56 66.4 - 75.9 1.50 52 - 64 70.5 - 86.7
7T 81 - 93 109.8 - 126 90 - 106 122 - 143.6
8T 96 - 109 130.1 - 147.7 107 - 124 145 - 168
M16 4T 2.00
67 - 77 90.8 - 104.3 1.50 69 - 83 93.5 - 112.5
7T 116 - 130 157.2 - 176.2 120 - 138 162.6 - 187
8T 129 - 145 174.8 - 196.5 140 - 158 189.7 - 214.1
M18 4T 2.00
88 - 100 119.2 - 136 1.50 100 - 117 136 - 158.5
7T 150 - 168 203.3 - 227.6 177 - 199 239.8 - 269.6
8T 175 - 194 237.1 - 262.9 202 - 231 273.7 - 313
M20 4T 2.50
108 - 130 146.3 - 176.2 1.50 132 - 150 178.9 - 203.3
7T 186 - 205 252 - 277.8 206 - 242 279.1 - 327.9
8T 213 - 249 288.6 - 337.4 246 - 289 333.3 - 391.6

10
PARTS BREAKDOWN

11
PARTS LIST
PARTS LIST
ELECTRIC DEFELCTIR KIT FOR CHUTE COMMERCIAL GRADE
Ref.
Réf. English description Description française Qty Qté.
.Part #
Pièce #
1 Bracket Support 1 4173032-02
2 Lever Levier 1 4173032-03
3 Arm Bras 1 4173032-04
4 Box Boîte 1 4173032-06
5 Box cover Couvercle de la boîte 1 4173032-07
6 Wire assembly Fils assemblés 1 4173032-12
7 Electric motor Moteur électrique 1 4173032-13
8 Hardware bag Sac de quincaillerie 1 ----------------
9 Gasket Joint d’étanchéité 1 4173032-01
10 Spacer Espaceur 2 4173032-05
11 Spacer Espaceur 2 4173032-08
12 Support bracket Fixation du support 2 4173032-09
13 Rubber spacer Espaceur de caoutchouc 1 4173032-10
14 Connectors Connecteurs 1 4173032-11
15 Oil lite bushing Coussinet imprégné d’huile 1 4173032-14
16 Switch Commutateur 1 4173032-15
17 Rubber boot Capuchon de caoutchouc 1 4173032-16
18 Breaker Disjoncteur 1 4173032-17
19 Rubber grommet Oeillet de caoutchouc 1 4173032-18
20 Hex. bolt 1/4” n.c. x 1/2” GR5 Boulon hex. 1/4” n.c. x 1/2” GR5 2 64123-49
21 Hex. bolt 1/4” n.c. x 1 1/4” GR5 Boulon hex. 1/4” n.c. x 1 1/4” GR5 2 64123-80
22 Hex. bolt 1/4” n.c. x 1 3/4” GR5 Boulon hex. 1/4” n.c. x 1 3/4” GR5 2 4173032-19
23 Hex. bolt 1/4” n.c. x 2” GR5 Boulon hex. 1/4” n.c. x 2” GR5 3 64123-60
24 Carriage bolt 1/4” n.c. x 3/4 “ GR5 Boulon hex 1/4” n.c. x 3/4” GR5 1 64123-89
25 Carriage bolt 1/4” n.c. x 1 “ GR5 Boulon à carrosserie 1/4” n.c. x 1 “ GR5 1 64018-42
26 Metal screw P.H. #8 x 1/4” Vis à métal P.H. #8 x 1/4” 3 4173032-20
27 Nylon Insert lock Nut 1/4” n.c. Écrou à garniture de nylon 1/4” n.c. 5 64229-01
28 Nylon Insert lock Nut 5/16” n.c. Écrou à garniture de nylon 5/16” n.c. 2 64229-02
29 Nylon inser lock nut 1/4" n.c (thin) Écrou à garniture de nylon 1/4" n.c. (mince) 2 4173032-21
30 Flange nut 1/4” n.c. Écrou à bride 1/4” n.c. 2 64141-2
31 Flat washer 5/16” hole Rondelle plate 5/16” trou 10 64163-70
32 Tie wrap 8” Attache de nylon 8” 6

Schiller Grounds Care, Inc.
One Bob-Cat Lane
Johnson Creek, WI 53038
