Schleuniger Uni-M User manual

Uni-M Ferrule
Applicator
Pneumatic
feed
Operating Instructions
Version 1.0 (05-2018
)

Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 2 | 32

Table of Contents
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 3 | 32
TABLE OF CONTENTS
1 General ....................................................................................................................... 6
1.1 Manufacturer ..................................................................................................................... 6
1.2 Manufacturing date / product type ..................................................................................... 6
1.3 Information about the Operator's Handbook ..................................................................... 6
1.3.1 ontents of the manual .......................................................................................... 6
1.3.2 Manual storage ........................................................................................................ 7
1.3.3 Responsibilities ........................................................................................................ 7
1.4 General symbols and legend ............................................................................................... 7
1.4.1 References and hints ............................................................................................... 7
1.4.2 Legend .................................................................................................................... 7
1.5 Limitation of liability ........................................................................................................... 7
1.6 Warranty statements and policies ....................................................................................... 7
1.7 opyright protection ........................................................................................................... 7
1.8 Spare parts .......................................................................................................................... 7
2 Safety ......................................................................................................................... 8
2.1 Warning notices ................................................................................................................. 8
2.2 General safety notes .......................................................................................................... 8
2.3 Sources of danger / risks ..................................................................................................... 8
2.4 Intended usage................................................................................................................... 9
2.5 Safety symbols ................................................................................................................... 9
2.5.1 Safety symbols used in manual ............................................................................... 9
2.6 Modification and retrofitting .............................................................................................. 9
2.7 Personnel qualification ....................................................................................................... 9
2.7.1 Personnel classification .......................................................................................... 9
2.8 Personal protective equipment ......................................................................................... 10
2.8.1 Eye protection ....................................................................................................... 10
2.8.2 Safety shoes .......................................................................................................... 10
2.9 Safety installations ............................................................................................................ 10
3 Transport / Packaging / Storage .................................................................................... 11
3.1 Transport inspection ......................................................................................................... 11
3.2 Unpacking / Loading ......................................................................................................... 11

Table of Contents
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule | 32
3.3 packaging.......................................................................................................................... 12
3.3.1 Handling packaging material ................................................................................. 12
3.4 Internal transportation ...................................................................................................... 12
3.5 Storage ............................................................................................................................. 12
4 Product specifications.................................................................................................. 13
4.1 Dimensions & weights (unpackaged) ................................................................................ 13
4.2 Technical specifications .................................................................................................... 13
4.3 Fixation ............................................................................................................................. 13
4.4 Identification plate ............................................................................................................ 13
5 Product description .................................................................................................... 14
5.1 Overview ........................................................................................................................... 14
5.2 Main applications .............................................................................................................. 14
5.3 Definitions ........................................................................................................................ 15
5.4 Danger zones .................................................................................................................... 15
6 nstallation ................................................................................................................ 16
6.1 Setup ................................................................................................................................ 16
6.1.1 onfirm shut height ............................................................................................... 16
6.1.2 Install applicator in press ....................................................................................... 16
6.1.2.1 Mounting ............................................................................................................... 16
6.1.2.2 Air connection ....................................................................................................... 17
6.1.2.3 onfirm clearance .................................................................................................. 17
6.1.2.4 Activate split cycle mode ....................................................................................... 17
6.1.2.4.1 Use on automatic wire processing machines ................................................... 17
6.1.2.4.2 Use on bench-top crimping presses ................................................................. 17
6.1.2.5 Verify/set crimp height dials .................................................................................. 18
6.1.2.6 Load the ferrules .................................................................................................... 18
6.1.2.7 Verify/adjust crimp height ..................................................................................... 19
6.1.3 Remove the ferrule strip ........................................................................................ 19
6.1.4 Remove the applicator .......................................................................................... 20
6.2 Adjustments ..................................................................................................................... 20
6.2.1 Reading and adjusting the crimp height dial ......................................................... 20
6.2.2 Back stroke adjustment ........................................................................................ 20
6.2.3 Forward stroke adjustment .................................................................................... 21

Table of Contents
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 5 | 32
6.2.4 Feed timing and rate adjustment .......................................................................... 22
6.2.5 Funnel adjustment ................................................................................................ 22
7 Maintenance ............................................................................................................... 23
7.1 Safety instructions ............................................................................................................ 23
7.2 ustomer service ............................................................................................................... 23
7.2.1 Hotline ................................................................................................................... 23
7.2.2 Trouble shooting procedure ................................................................................. 24
7.3 Maintenance schedule ..................................................................................................... 24
7.3.1 heck tooling ........................................................................................................ 24
7.3.2 leaning ............................................................................................................... 24
7.3.3 Lubrication of components ................................................................................... 25
7.4 Repair work ...................................................................................................................... 25
7.4.1 Tooling replacement ............................................................................................. 25
8 Spare parts ................................................................................................................ 28
9 Decommissioning ....................................................................................................... 29
9.1 Disassembly ..................................................................................................................... 29
9.2 Disposal ........................................................................................................................... 29
10 APPEND X A: Panduit End Ferrule Specifications ........................................................... 30
10.1 Identification plate – Panduit ferrule applicators ............................................................... 30
10.2 Verify/adjust crimp height ................................................................................................. 30
10.3 rimp parameters and settings for panduit ferrules .......................................................... 30
10.4 Feed adjustments using the Panduit adjustment blocks .................................................... 31

1 General
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 6 | 32
1 GENERAL
Thank you for your trust in the Schleuniger technique! You have acquired a high performance Schleuniger prod-
uct, designed and manufactured in our factory to your needs Read through this manual with due care and at-
tention It contains important tips and safety instructions, which allow precise and reliable wire/cable produc-
tion
1.1 MANUFACTURER
The original equipment manufacturer of the applicator is Mecal s r l of Fubine, Italy However, this applicator
is sold and serviced by Schleuniger Inc , U S A In this manual, Schleuniger Inc , U S A is referred to as the
manufacturer and abbreviated with „Schleuniger“
Schleuniger Inc Phone: [phone]
87 Colin Drive Fax: [phone]
Manchester, NH 03103 Email: "Mailto:[e-mail]"
USA Web: "http://www.schleuniger.com"
1.2 MANUFACTURING DATE / PRODUCT TYPE
See “E -Declaration of Conformity (Register 2)“ in the manual
1.3 INFORMATION ABOUT THE OPERATOR'S HANDBOOK
1.3.1 Contents of the manual
General
Each person using the product must be properly trained and have read and understood the Operator's Hand-
book This is also imperative, even when the respective person has operated such a product or similar previ-
ously and where they have been trained by the manufacturer
The Operator's Handbook is no longer valid, if any of its contents (except a Quick Start Card, where available)
are removed or are changed on the data storage medium
As Operator's Handbook we declare:
Construction
We are trying to make the operation of our products as easy as possible To achieve this we have developed a
concept for the Operator's Handbook Since errors can never fully be avoided despite diligence, we are always
grateful for any advice and suggestions
■ This manual is part of the product and contains all the relevant information necessary to operate the prod-
uct efficiently and safely as intended
■ The following phases of the product life cycle are described:
o Shipping
o Commissioning
o Operation
o Maintenance
o Disposal
■ Observe the safety regulations and instructions The local accident preventions and safety regulations
must be followed
■ If the product changes hands, the manual must be supplied to the new owner
■ Published modifications and corrections from the manufacturer must be complemented Ask your local
Schleuniger distributor

1 General
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 7 | 32
1.3.2 Manual storage
The Operator's Handbook must be available to the operating personnel at all times Keep the Operator's
Handbook in such a way that it will not become damaged, so that the contents will remain clearly legible be-
yond the expected lifespan of the product
1.3.3 Responsibilities
■ This Operator's Handbook must be near the product site and available to operating personnel at all time
■ Always follow the instructions in this Operator's Handbook fully and without exception
1.4 GENERAL SYMBOLS AND LEGEND
1.4.1 References and hints
The listed pictograms have the following meaning in the Operator's Handbook:
Tip:
Application note and other useful information
which improves the intended use of the product.
Info:
Information which helps to operate the product
efficientl and error-free.
1.4.2 Legend
Cross referencing Cross referencing is indicated in color and italics, e g see chapter "Safety"
Measurement units Units are given in kilograms or millimeters with pounds or inches in parenthesis
1.5 LIMITATION OF LIABILITY
The content of these operating instructions was put together taking into consideration the current standards
and guidelines according to the state of the technology and our many years of experience
The manufacturer disclaims any liability for damages and accidents as a result of:
■ Disregarding the instructions and warning notices
■ Non-intended use
1.6 WARRANTY STATEMENTS AND POLICIES
See Schleuniger document „ eneral Terms and Conditions of Sale and Delivery”
1. COPYRIGHT PROTECTION
Keep this Operator's Handbook confidential It is intended for the exclusive use of persons operating the prod-
uct Without written agreement, this manual shall not be made available to third parties
The content of the Operator's Handbook in the form of text, illustrations, drawings, circuit diagrams or other
presentation, is protected by copyright law of the manufacturer
1.8 SPARE PARTS
Always order original spare parts from your local Schleuniger distributor
Any modifications in design or function of the spare parts, in terms of ongoing product improvement, are sub-
ject to change without prior notification
CAUTION
Use of unverified spare parts!
Unverified or defective spare parts may lead to damage, malfunction or complete failure of the product and
may affect safety Therefore, it is imperative that only original Schleuniger spare parts are used Use of un-
verified or other parts may void the warranty

2 Safety
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 8 | 32
2 SAFETY
2.1 WARNING NOTICES
The warning notices in the entire Operator's Handbook are marked with the following symbols They are
headed by a safety alert symbol and the warning word which represents the degree of endangerment
To avoid any injuries or material damage it is essential that you read and fully understand these symbols
DANGER
Warning notice „Danger”
This panel indicates a hazardous situation, which if not avoided, will result in death or serious injury
WARNING
Warning notice „Warning”
This panel indicates a hazardous situation, which if not avoided, could result in death or serious injury
CAUTION
Warning notice „Caution”
This panel indicates a hazardous situation, which if not avoided, may result in minor or moderate injury
NOTICE
Warning notice „Property damage”
This panel indicates a hazardous situation, which if not avoided, can result in damage to property
2.2 GENERAL SAFETY NOTES
■ The product must only be operated when in good working order and condition It must be checked for in-
tactness prior to the start of operation
■ Never operate the product in an explosive or flammable environment
■ Before performing any maintenance or repair work, remove the air supply from the applicator, when appli-
cable, and remove the applicator from the press whenever possible
■ Any lubricating grease supplied with the machine, may only be used according to the instructions given in
this manual
2.3 SOURCES OF DANGER / RISKS
Dangers are associated with the use of technical products
Dangers that could not be eliminated by design measures and also not by protection devices are residual risks
The safety instructions in this Operator's Handbook refer to the known residual risks Should additional opera-
tional risks be known or discovered, the operator is obliged to inform Schleuniger immediately
However, the following risks remain:
■ Inadequate maintenance can cause injury to the operating personnel and malfunction of the product
■ Tripping, falling, slipping due to unorganized cables, wire residue and air hoses on the ground
■ Cuts due to sharp edges or parts
■ Risk of increased noise levels while working with multiple machines in the room Therefore, arrange for
noise control measures and/or hearing protection!
■ By working with insufficient illumination in the workplace can cause injury

2 Safety
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 9 | 32
2.4 INTENDED USAGE
The product is designed and manufactured exclusively for the following intended application:
The Uni-M applicators must only be used for crimping of electrical contacts onto wires The applicator must
be used within the given range according to the technical specifications Only the contact(s) for which the
applicator was designed should be processed in the applicator The terminal for which the applicator was
designed is listed on the identification plate fixed to the applicator
Misuse
Any other use of the product is regarded as non-intended use and may lead to injury of personnel and to prop-
erty damage Schleuniger is not liable for any damages resulting from a non-intended use of the product
2.5 SAFETY SYMBOLS
2.5.1 Safety symbols used in manual
In this manual, safety symbols are used which alert the user to potential hazards They will be described here
General danger! Notes and instructions with this safety symbol should be followed
strictly Disregarding may lead to injury and damage to the machine
2.6 MODIFICATION AND RETROFITTING
To avoid any dangerous situations and for an optimal performance, it is not allowed to make any modifica-
tions to, or retrofitting of the product, without explicit written permission of the manufacturer or the local
Schleuniger distributor with the exception of standard options and accessories supplied by Schleuniger
2. PERSONNEL QUALIFICATION
The individual tasks may only be performed by persons listed in the respective chapter
The product is intended to be operated by personnel older than 14 years It is strictly forbidden to grant access
to younger people
WARNING
Risk of injury if operated y unqualified personnel!
Improper handling of the machine may lead to serious injury to personnel and damage to the property
2. .1 Personnel classification
The following classifications in these instructions are specified for the individual activities
Operating company
As a parent entity that is responsible for the proper use of the product and for the training and the commit-
ment of authorized persons It defines the mandatory competencies for its operation and authority of the au-
thorized personnel
Technical specialists
Due to product-specific training and mechanical and electrical skill and experience, these individuals are quali-
fied to perform maintenance and repair work on the product

2 Safety
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 10 | 32
Qualified personnel
Due to product-specific training, technical skill and work experience, these individuals are qualified to put the
product into operation and to instruct the operating personnel
Operating personnel
Personnel who have been trained and authorized by the management to operate the product safely according
to the instructions They have the ability to identify all sorts of danger and to avoid it This includes an ade-
quate knowledge of accident prevention and first aid procedures
Third party
External personnel called in by the operating company, service technicians and staff from Schleuniger
2.8 PERSONAL PROTECTIVE EQUIPMENT
While working on the product, always wear protective equipment according to the local regulations to mini-
mize the risk of injury
2.8.1 Eye protection
To protect the eyes from small particles produced during crimping of wire/cable
2.8.2 Safety shoes
To protect from heavy, falling objects or reels
2.9 SAFETY INSTALLATIONS
This product should be used only in presses with proper security and protection measures The built in safety
interlocks on the machine (safety, protection, monitoring) must not be removed, by-passed or changed The
safety circuits should be checked periodically Defective safety equipment must be repaired immediately be-
fore work may be continued
■ Never in a machine without the safety shield installed and properly functioning
■ Never operate in a machine if the safety cover is open
■ The press emergency stop buttons must always be accessible
■ Do not remove any safety barriers installed on the press

3 Transport / Packaging / Storage
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 11 | 32
3 TRANSPORT / PACKAGING / STORAGE
During unpacking, transportation or storage of the product always observes the following instructions They
contain important information to avoid injury to the operator and property damage Take into consideration
the weight of the machine during transportation and loading
NOTICE
Damage due to improper transportation!
Transportation by unqualified personnel may lead to extensive property damage Therefore:
■ Handle with care and always observe the symbols and hints on the packaging and the product when un-
loading and placing on site location
■ The instructions in this chapter must be carried out by qualified personnel!
3.1 TRANSPORT INSPECTION
Check the goods immediately after receiving for completeness and loss during shipment
For loss on the packaging during shipment, proceed as follows:
■ Do not accept the delivery or only with exceptions
■ Declare loss of shipment
■ Immediately report damages on the product
NOTICE
Packaging notice!
If provided, observe the packaging notice on the machine Please dispose of waste appropriately

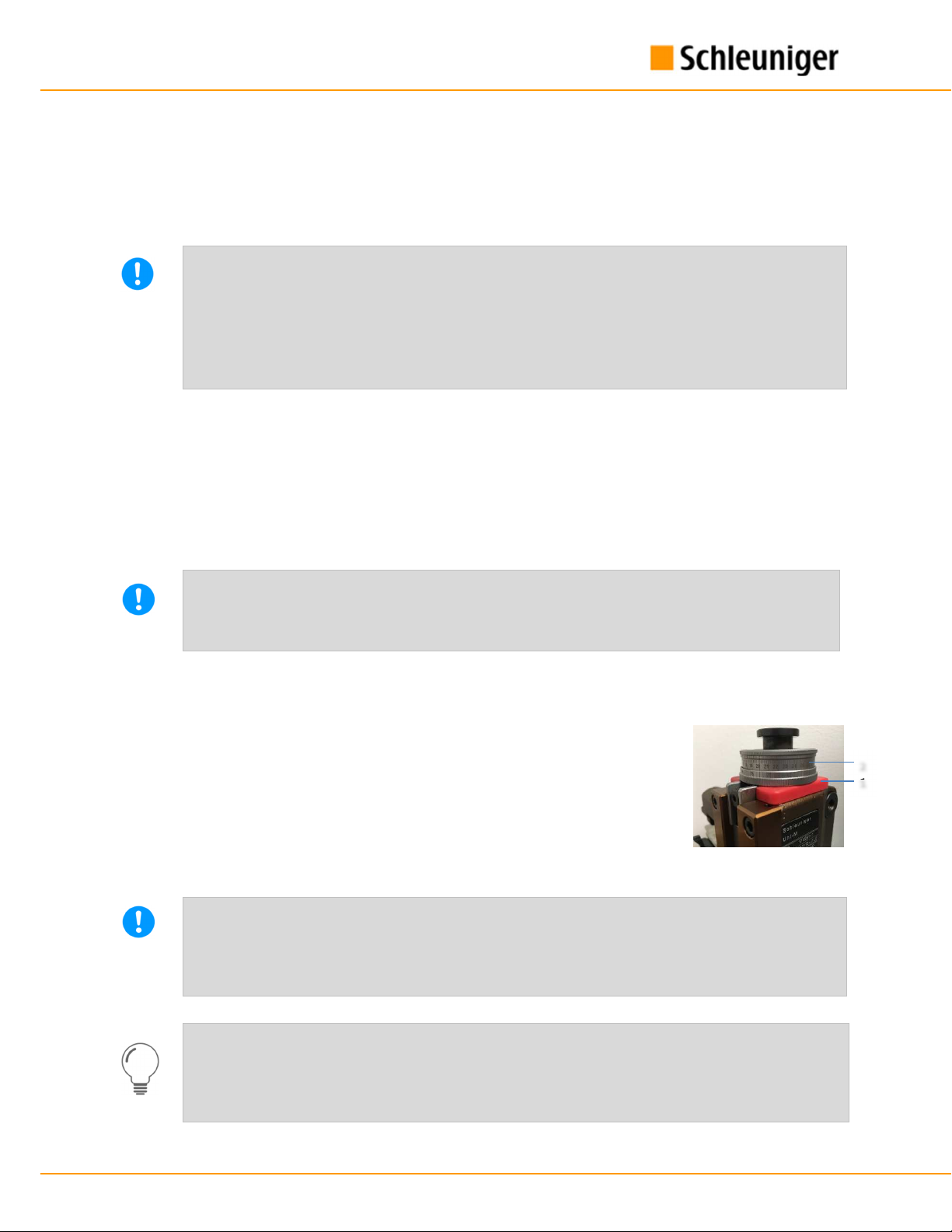

3.2 UNPACKING / LOADING
Carefully open the package and remove contents Upon receipt of the applicator, please verify that:
• The packing must be intact and without signs of tampering
• The applicator has not been damaged during transport
• The same serial number is marked both on the tool, instruction manual and
delivery note
• In the event of damage or non-matching serial number, please contact the
supplier
Just before installation in the press, remove the rubber crash protection ring (1) be-
tween the crimp height dials (2) and the applicator body
NOTICE
Prevent tooling damage!
It is highly recommended to replace the rubber crash protection ring (1) after the applicator is removed from
the press This will prevent tooling damage during handling
TIP
Retain the original packaging
It is recommended to retain the original packaging in the event that the product needs to be shipped to an-
other facility or to the supplier for service
1
2

3 Transport / Packaging / Storage
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 12 | 32
3.3 PACKAGING
Store the packaging for later use in a weatherproof location
3.3.1 Handling packaging material
Recycle the unneeded packaging
3.4 INTERNAL TRANSPORTATION
As applicable, transport the product in the original packaging
NOTICE
Careless transportation of the product can lead to property damage!
■ Always install the red rubber crash protection ring (1) whenever the applicator is not installed in a press
■ Handle the packaging with care
■ Observe the packaging signs
■ Wherever applicable remove the packaging not before placing on site of operation
3.5 STORAGE
Store the product and/or its packaging under the following conditions:
■ Ensure the product is cleaned and properly lubricated before long term storage
■ After cleaning and lubricating, place the product in a strong plastic bag, preferably with a desiccant inside
■ Store product indoors in a dry environment
■ Observe temperature conditions
■ Observe climatically conditions

4 Product specifications
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 13 | 32
4 PRODUCT SPECIFICATIONS
4.1 DIMENSIONS & WEIGHTS (UNPACKAGED)
Type Pneumatic, Side Feed
Weight 4 1 kg (9 0 lbs )
Dimensions
(L x W x H)
175 x 115 x 145 5mm
(6 89 x 4 53 x 5 72”)
4.2 TECHNICAL SPECIFICATIONS
Base & Ram Configuration 3-point base clamp with t-shaped ram („Mini-style“)
Stroke 40 mm (1 58”) / 30 mm (1 18”)
Shut Height 135 78 mm (5 346”)
4.3 FIXATION
The press applicator adapter must be of the proper configuration
NOTICE
Applicator fixation in press
The applicator must be secured and locked in position in the press Do not operate an applicator in a press
without the proper upper and lower adapters Operating the applicator in a press without proper fixation
could result in damage to the press or the applicator
4.4 IDENTIFICATION PLATE
The rating plate with serial number is on the right side of the product and contains the following information
(Note: The identification plate shown here is only an example Please refer to the delivered product for accu-
rate settings and readings Please refer to Appendix A for Panduit ferrule applicators )
1 Name of supplier and product name
2 Terminal number
3 Applicator model and serial number
4 Wire cross section size (in mm
2
or AWG)
5 Position on crimp height dial (INDEX)
6 Target conductor crimp height values (CHR)
W
L
H
1
2
3
4 5 6

6 Installation
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 1 | 32
5 PRODUCT DESCRIPTION
The product description explains operating elements and modules of the machine For a better understanding,
the models are represented in an appropriate view The models will vary Alternate layouts are described as
options
5.1 OVERVIEW
1 Insulation support tool
2 Wire inserter kit
3 Inserter kit holder
4 Feeding finger
5 Brake lever
6 Backstroke adjustment screw
7 Wire crimp height adjustment
8 Ferrule cut-off tool
9 Upper ram knob
10 Terminal feed adjustment knob
11 Terminal feed control valve
12 Applicator base plate
13 Terminal position locking clamp
14 Rubber protection ring
15 Pneumatic supply quick connect fitting
16 Counter
Fig 1: Pneumatic, side-feed ferrule applicator general components
5.2 MAIN APPLICATIONS
The primary application for the Uni-M ferrule appli-
cators are crimping of insulated wire end ferrules in
strip form to the end of pre-stripped wire

5 Product description
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 15 | 32
5.3 DEFINITIONS
Shut height
The distance from the top of the applicator base plate to
the bottom of the press ram at bottom dead center when
the press is under load.
This can only be accurately measured with a press analysis
device or shut height measurement tool that allows meas-
urement during a full press cycle.
Stroke
The distance the press ram travels from top to bottom in
one complete cycle.
Pre-feed
The next terminal is in position over the crimp anvil before
the crimp (pre-crimp) cycle begins.
This method is more common for bench applications be-
cause the terminal is waiting over the anvil before the wire
is introduced.
Post-feed
The next terminal feeds into position over the crimp anvil
after the crimp cycle has started (post-crimp).
This method is more common for automatic termination
applications. This method allows more time for the
crimped wire end to move out of the way before the next
terminal moves into place.

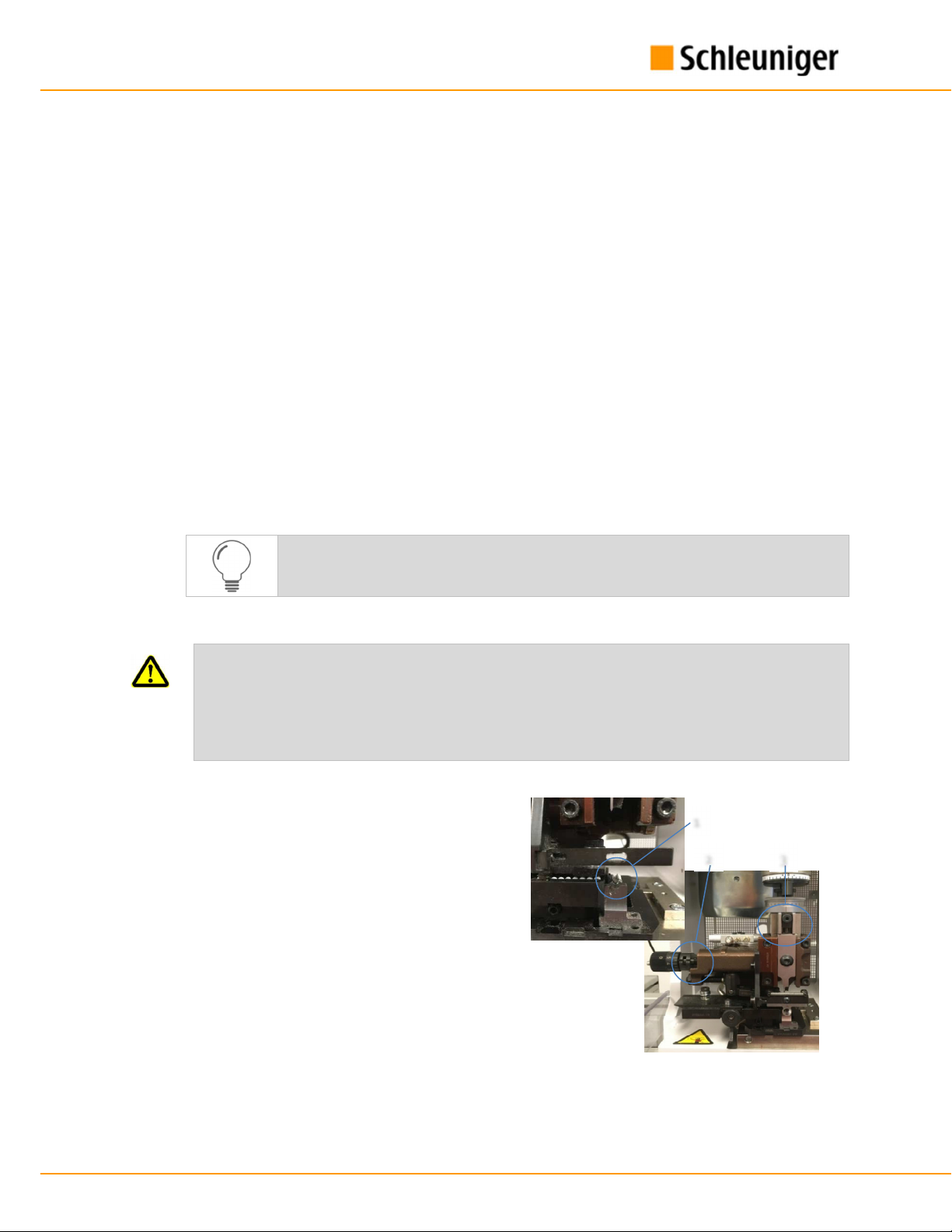

5.4 DANGER ZONES
WARNING
Danger if operated y unqualified personnel!
The Uni-M applicators must only be operated by qualified personnel There are multiple areas on the Uni-
M that are danger zones Improper use or inadequate caution may result in injury to the operator or dam-
age to the product
1. Above and around the crimp tooling (1). Edges are
sharp and personal injury might occur.
a. This is applicable for all applicator types.
b. (Image is of ferrule applicator tooling with
funnels removed.)
2. Around the feed adjustment knob (2).
3. Between the adjustment dials and the ram and
the body of the applicator (3).
Tip:
Ferrule applicators must always be set up as pre-feed
1
3
2

6 Installation
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 16 | 32
6 INSTALLATION
6.1 SETUP
WARNING
Single operator use only!
The machine has been designed for use by a single operator
WARNING
Danger if operated y unqualified personnel!
The following operations must be performed by trained personnel only
WARNING
Danger if adjusting with main power on!
Always turn the press’s main power switch to “Off” when making any adjustments or to the
machine or tool
6.1.1 Confirm shut height
The shut height of the press must be set to 135.78 mm ± 0.02 mm (5 346“± 0 0008”)
Confirm the setting is accurate with either and electronic press analyzer or a mechanical shut height gauge
For shut height adjustment, please refer to the instruction manual of the press

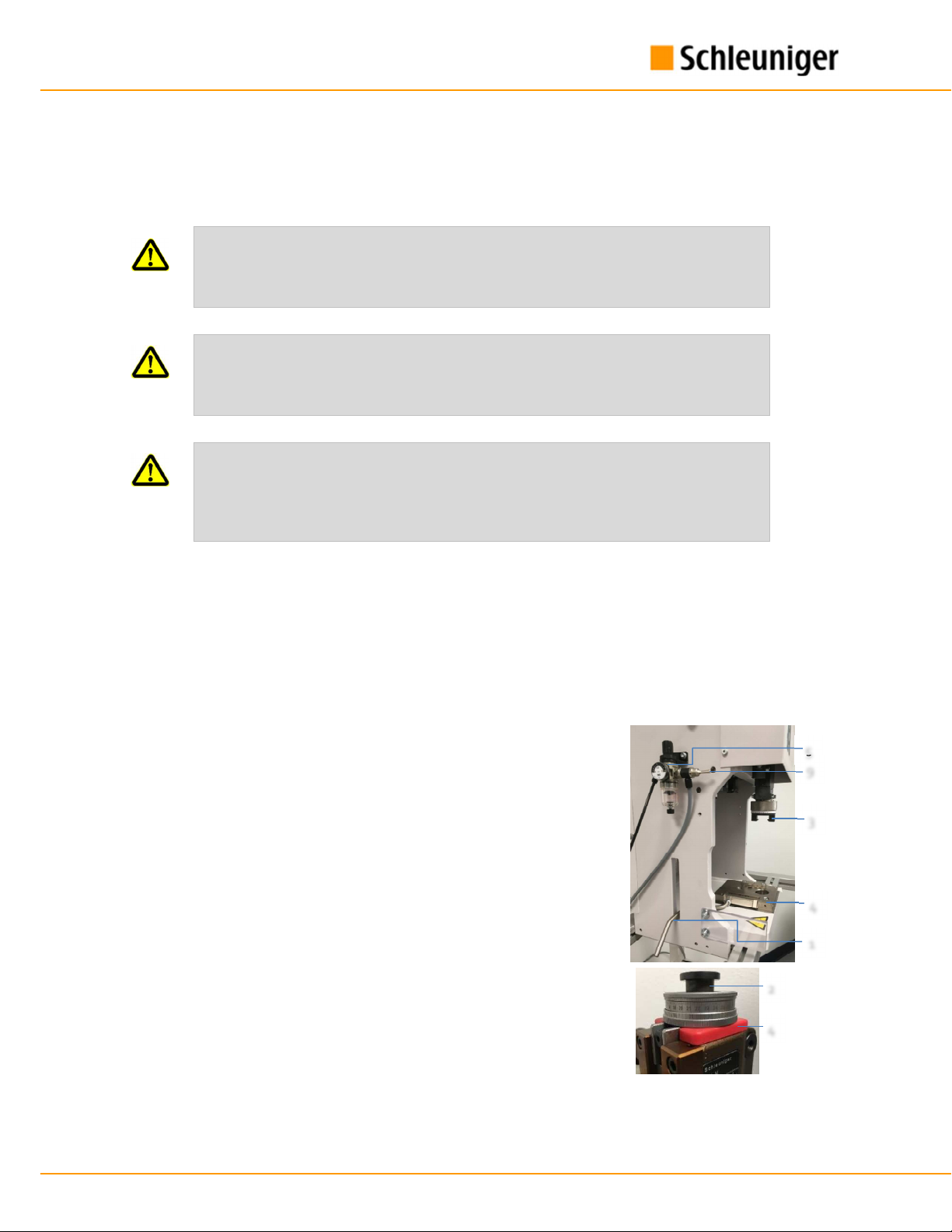

6.1.2 Install applicator in press
6.1.2.1 Mounting
1.
Release the base plate lever
(1)
.
2. Place the upper ram bolt (2) into the press ram
coupling (3) and lower the applicator until the
base rests on the base plate ( ).
(Note: Ensure that upper ram bolt remains in the
upper ram coupling.)
3. Lift the lever (1) to lock the applicator into
position. Firmly grasp the applicator and try to
move it to ensure it is secure.
. Remove the red tooling protection ring ( ).
3
4
2
4
1
5
9

6 Installation
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 17 | 32
6.1.2.2 Air connection
1. Disconnect the main air from the pneumatic
valve (5).
2. Insert the mm hose into the right output
(normally open) side of the pneumatic valve (6).
3. Attach the fitting (7) on the other end of the
mm hose and plug it into the quick connect on
the applicator (8).
. Connect the main air and turn on the pneumatic
valve switch (9).
6.1.2.3 Confirm clearance
1. After the applicator is mounted and before ferrules are loaded, cycle the press slowly either by hand or with the
press jog mode to ensure the tool is loaded correctly and the tooling does not crash.
CAUTION
Always verify proper installation y first cycling the press slowly!
To prevent tooling damage, whenever any applicator is loaded into a press, the press should be cycled slowly or
manually to ensure the tooling will not crash.
6.1.2.4 Activate split cycle mode
The Uni-M ferrule applicator requires a split cycle process Please refer to the press manual to enable split cy-
cle processing
6.1.2.4.1 Use on automatic wire processing machines
When using automatic processing machines, split cycle operation and the use of the wire funnels is required
Follow the machines instructions for programming split cycle operation
6.1.2.4.2 Use on bench-top crimping presses
When using bench-top crimping presses, split cycle operation is highly recommended
Split cycle ensures consistent positioning of the ferrules in the tooling and behind the funnels, therefore, tar-
geting is easier and throughput will be higher
If split cycle operation is not available, remove the wire funnels
Tip:
Split cycle operation is required for highest productivity
6
7
8

6 Installation
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 18 | 32
6.1.2.5 Verify/set crimp height dials
1. Ensure the top crimp height dial (1) is set
properly according to the INDEX value on the
applicator identificationplate.
2. Use the mark (2) on the lower ring as the index.
3. For more information on reading the crimp
height dials, see "Reading and adjusting the
crimp height dial".
6.1.2.6 Load the ferrules
1.
Remove air pressure to the applicator.
2. Bring the press ram to the top center position
either manually or by using the jog buttons.
3. Open the safety shield.
. Remove the funnel unit (1).
5. Lift the ferrule brake lever (2).
6. Select the proper ferrule according to the
applicator ID plate.
7. Install ferrule strip until the first ferrule reaches
the end of the track (3), as shown.
8. Lower the ferrule brake lever (2).
9. Apply air pressure to the applicator and close
the safety shield.
10. Slowly lower the tooling either manually or with the press jog so that the tooling captures the next ferrule.
(Note: This may re uire a few cycles depending on where the ferrule strip is with relation to the feed cycle.)
11. If the ferrule strip is advanced properly, the tooling will capture the first ferrule properly.
a. If the first ferrule lies to the left of the tooling, continue to cycle the press through until the first ferrule is
captured.
12. If the ferrules are not captured properly in the tooling, open the tooling using the opposite jog button and try
to adjust the strip. If the strip cannot be adjusted so that the ferrule is properly captured, the feed must be
adjusted. Refer to the section on "Adjustments".
13. When the ferrule advances, it will be slightly
above the crimp anvil but not completely
centered over it as seen in Fig. 1.
1 . The cut-off blade ( ) comes down, and pushes
the ferrule into the cavity (5) as seen in Fig.2.
15. The blade cuts through the insulation and the
pusher blade (6) pushes the ferrule into the
cavity (5) and hold it in place as seen in Fig. 3.
2
1
2
1
3
5
4
Fig. 1 6
Fig. 3
Fig. 2

6 Installation
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 19 | 32
16. If required, adjust the feed as needed with the
terminal position adjustment knob (7). Refer to
the section on "Adjustments".
17. After verifying that the ferrules will be properly
captured, close the shield and try a few crimps
to ensure the terminals continue to feed
properly.
18. If all is functioning well, raise the tooling and
install the funnel unit (8). Refer to Appendix A
for proper funnel size for Panduit ferrules.
(Note: The tooling must be raised, in the upper
position to install the funnel unit.)
19. Ensure the funnel unit is properly aligned.
20. Once the funnel unit is properly aligned, you
are ready to begin crimping.
CAUTION
Confirm proper ferrule position efore initiating a full cycle!
To prevent tooling damage, before initiating a full crimp cycle, verify that the ferrules are in the proper position in the
crimp tooling.

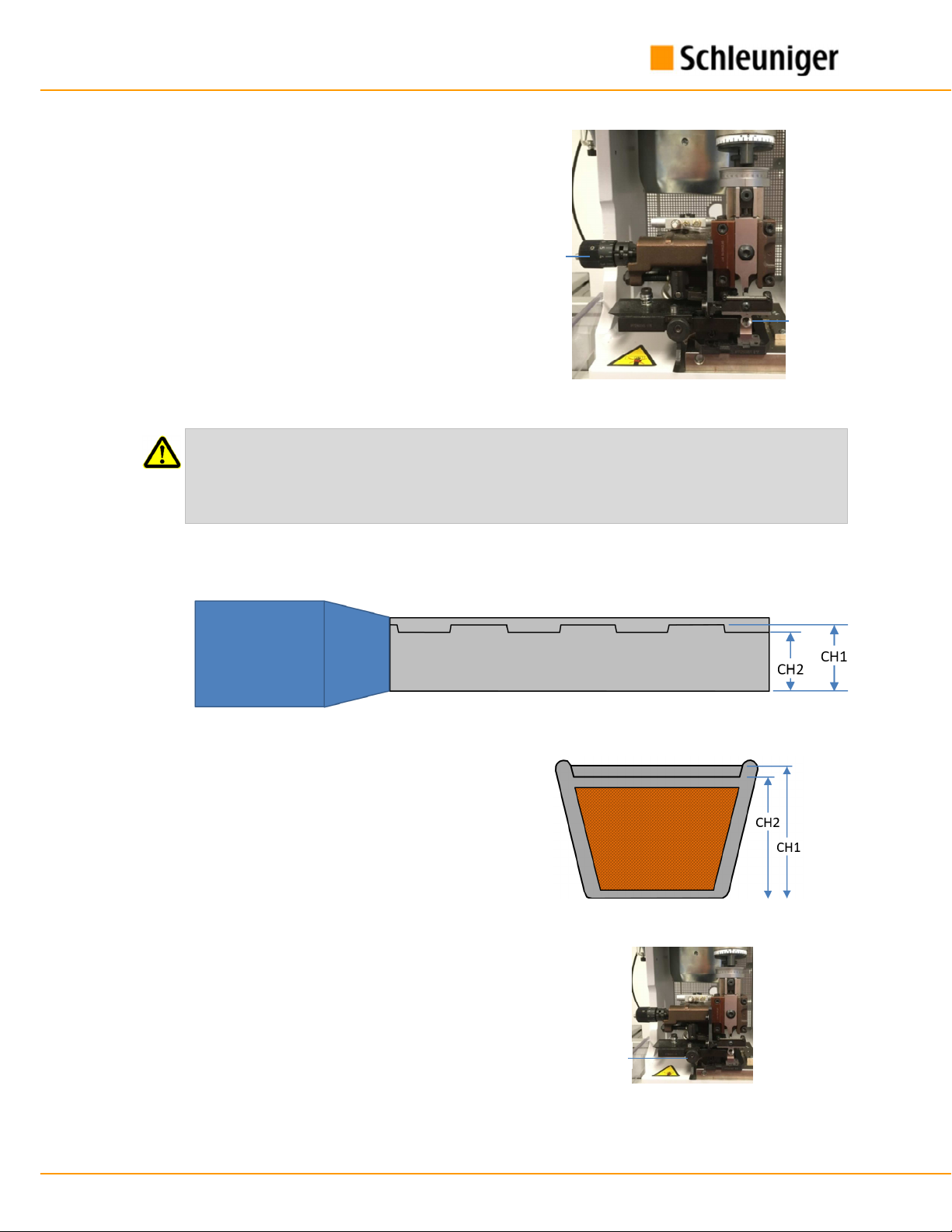

6.1.2. Verify/adjust crimp height
1.
Typically in a ferrule crimp there are low spots (CH1) and high spots (CH2) as seen in Fig. .
Fig.
2. When using Panduit end ferrules, crimp
height should be measured at the high
spot (CH1) using standard micrometers.
3. When using other brands of end ferrules,
crimp height should be measured at the
low spots (CH2) with a proper crimp
height measurement micrometer.
6.1.3 Remove the ferrule strip
1. Raise the press ram and tooling to the top.
2. Remove air pressure.
3. Open the shield and clear the ferrule on the anvil
if one is present.
. Lift the brake lever (1) and feed finger.
5. Gently pull the ferrule strip to the left to remove
the strip.
8
7
1

6 Installation
Operating Instructions | Version 1.0 (05-2018) | Uni-M Ferrule 20 | 32
6.1.4 Remove the applicator
1. Raise the press ram to the top.
2. Remove air pressure.
3. Open the shield.
. Install the red tooling protection ring (1).
5. Remove the hose fitting from the quick connect
on the applicator.
6. Release the base plate lever.
7. Ensure a firm grip on the applicator and remove
it to the left.
6.2 ADJUSTMENTS
INFO
Always confirm quality!
After making any adjustments, always confirm crimp quality according to the given specifications
6.2.1 Reading and adjusting the crimp height dial
1. The crimp height adjustment dials consist of:
a. A dial (1) labelled 0 – 27 to adjust the conductor crimp height.
b. A lower ring with a reference mark (2).
2. Each increment (or click) of the dial changes the crimp height by a
0.01mm (0.000 ”).
a. Reduce crimp height by turning the top dial clockwise (to the left).
b. Increase crimp height by turning the top dial counterclockwise (to
the right).
c. A setting of “0” (zero) results in the maximum crimp height.
. Each major increment represents an index value of the number divided by 10
a. Examples: Dial setting on 8 refers to an index value of 0.8.
b. Example: Dial setting on 19 refers to an index value of 1.9.
a. Photo shown of the dial refers to an index setting of approximately 1.95.
5.
Setting the dial index values.
a. To achieve an index value of 0.85, start at “8” on the crimp dial (1) and turn it clockwise 5 clicks (0.80 +
5*0.01 = 0.85)
b. To achieve an index value of 1.23, from “12” on the crimp dial (1), turn it clockwise 3 clicks (1.20 + 3*0.01 =
1.23)
6.2.2 Back stroke adjustment
Proper adjustment
During the backstroke, the feed finger must pass over at least one full ferrule Depending on the range of fer-
rule sizes, it may be necessary to pass over 1 5 or more ferrules so that the entire range may be processed in
the same applicator As long as the forward stroke only advances one ferrule, then the backstroke position is
not critical
1
2
1
