Scholl 24000/B/C User manual

GBA B 0041 4 E
BA Page 1 of 33 März 21, 2019
Last revised 03-2019 Rev. 4
Scholl Apparatebau GmbH & Co. KG
Instructions for Use

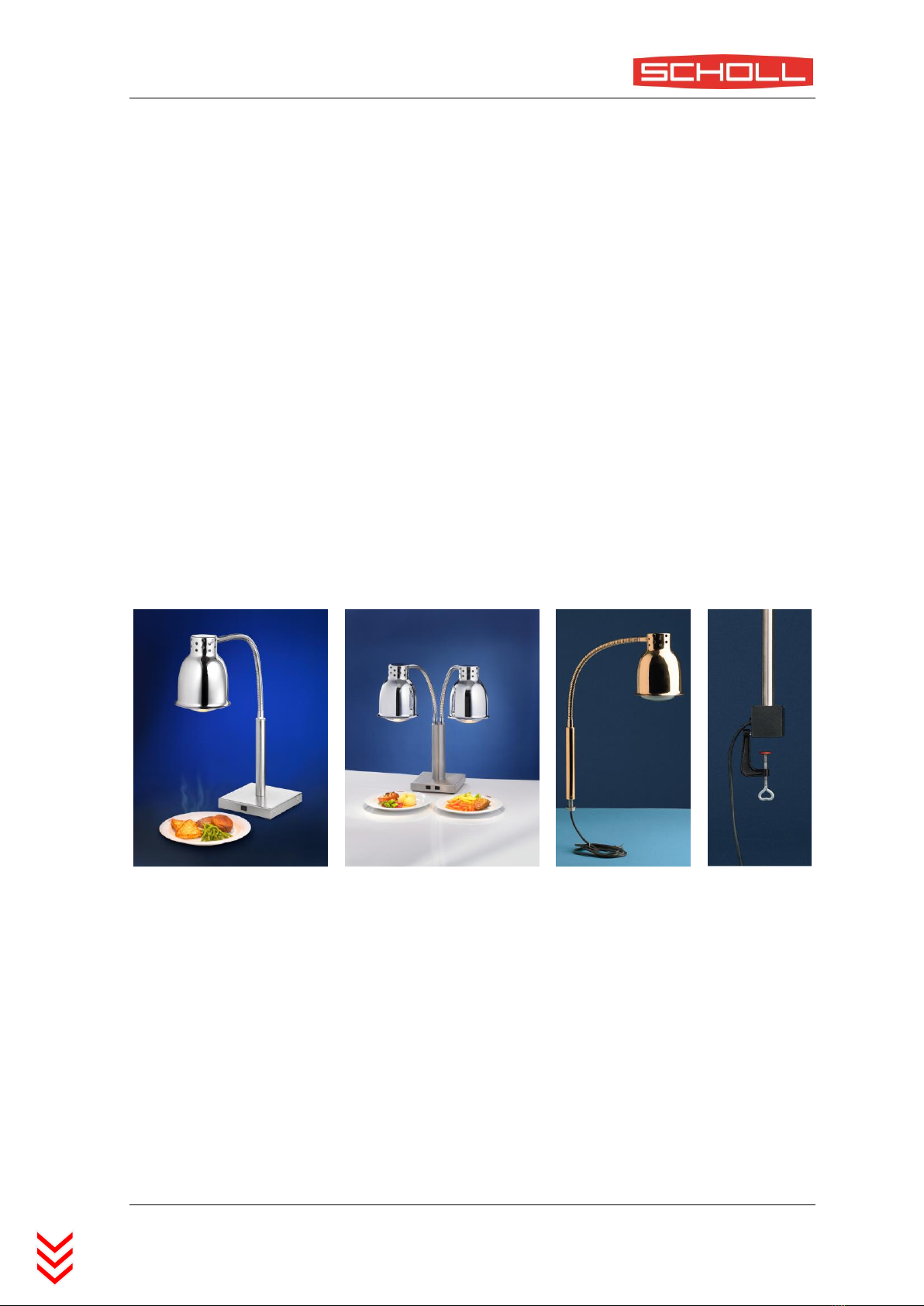

Buffet heat lamp
Model-No. Art.-No. Model-No. Art.-No.
24000/B/C B 0041 24000/S/C B 0051
24000/B/G B 0042 24000/S/G B 0052
24000/B/W B 0049 24000/S/S B 0054
24000/B/S B 0050 24000/TS/C B 0061
24002/B/C B 0043 24000/TS/G B 0062
24002/B/S B 0053 24000/TS/S B 0056
B 0041 B 0043 B 0052 B0061
Scholl Apparatebau GmbH & Co. KG
Zinhainer Weg 4
D–56470 Bad Marienberg/Germany
Phone [phone]
Fax [phone] (Service)
Internet www.scholl-gastro.de
E-mail [email protected]e

GBA B 0041 4 E
BA Page 2 of 33 März 21, 2019
Last revised 03-2019 Rev. 4
Scholl Apparatebau GmbH & Co. KG
TABLE OF CONTENTS
Table of contents............................................................................................................................................... 2
Preface............................................................................................................................................................... 4
1Conventions............................................................................................................................................... 5
1.1 Pictograms –General safety notes .................................................................................................. 5
1.2 Pictograms –Warning notes............................................................................................................ 7
1.3 Pictograms –Important notes ......................................................................................................... 8
2Product information .................................................................................................................................. 9
2.1 Information regarding compliance with standards, laws and directives ......................................... 9
2.2 Safety ............................................................................................................................................... 9
3Packing, transport, intermediate storage, scope of delivery .................................................................. 10
3.1 Packing ........................................................................................................................................... 10
3.2 Transport........................................................................................................................................ 10
3.3 Intermediate storage ..................................................................................................................... 10
3.4 Scope of delivery............................................................................................................................ 10
4Installation and electrical installation ..................................................................................................... 11
4.1 Installation ..................................................................................................................................... 11
4.2 Electrical installation ...................................................................................................................... 11
5Operation ................................................................................................................................................ 12
5.1 Intended use .................................................................................................................................. 12
5.2 Unintended use.............................................................................................................................. 12
6Maintenance ........................................................................................................................................... 13
6.1 Maintenance and repair ................................................................................................................ 13
6.2 Cleaning and care........................................................................................................................... 13
7Troubleshooting ...................................................................................................................................... 15
7.1 Possible malfunctions .................................................................................................................... 16
8Technical data.......................................................................................................................................... 17

GBA B 0041 4 E
BA Page 3 of 33 März 21, 2019
Last revised 03-2019 Rev. 4
Scholl Apparatebau GmbH & Co. KG
8.1 Execution ....................................................................................................................................... 17
8.1.1 Execution buffet heat lamp ....................................................................................................... 17
8.1.2 Execution buffet heat lamp BiTherm......................................................................................... 17
8.1.3 Execution buffet heat lamp with srew fitting for built-in .......................................................... 18
8.1.4 Execution buffet heat lamp with table board fixing for mobile ................................................ 18
8.2 Dimensioned drawing .................................................................................................................... 19

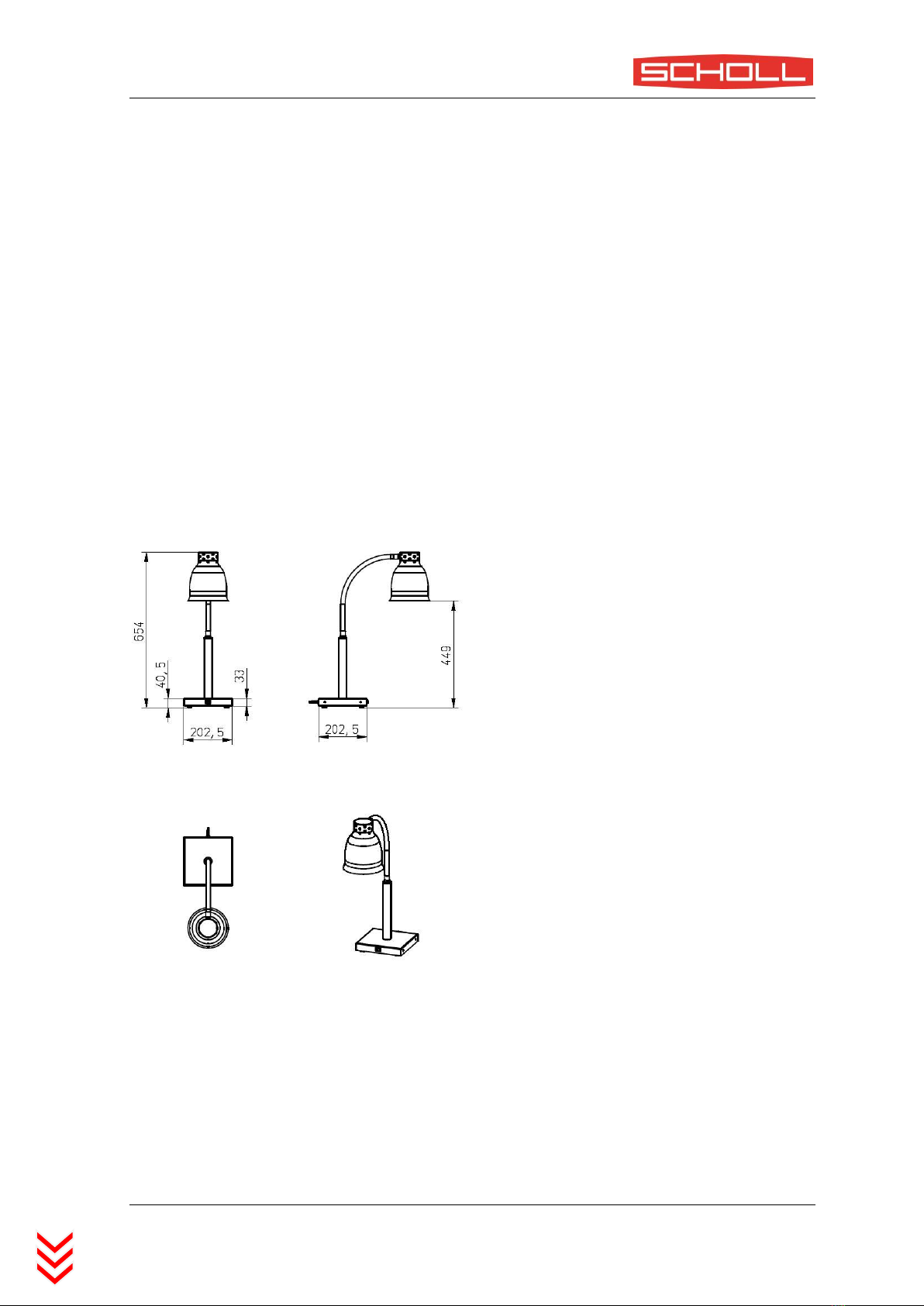

8.2.1 Dimensioned drawing buffet heat lamp.................................................................................... 19

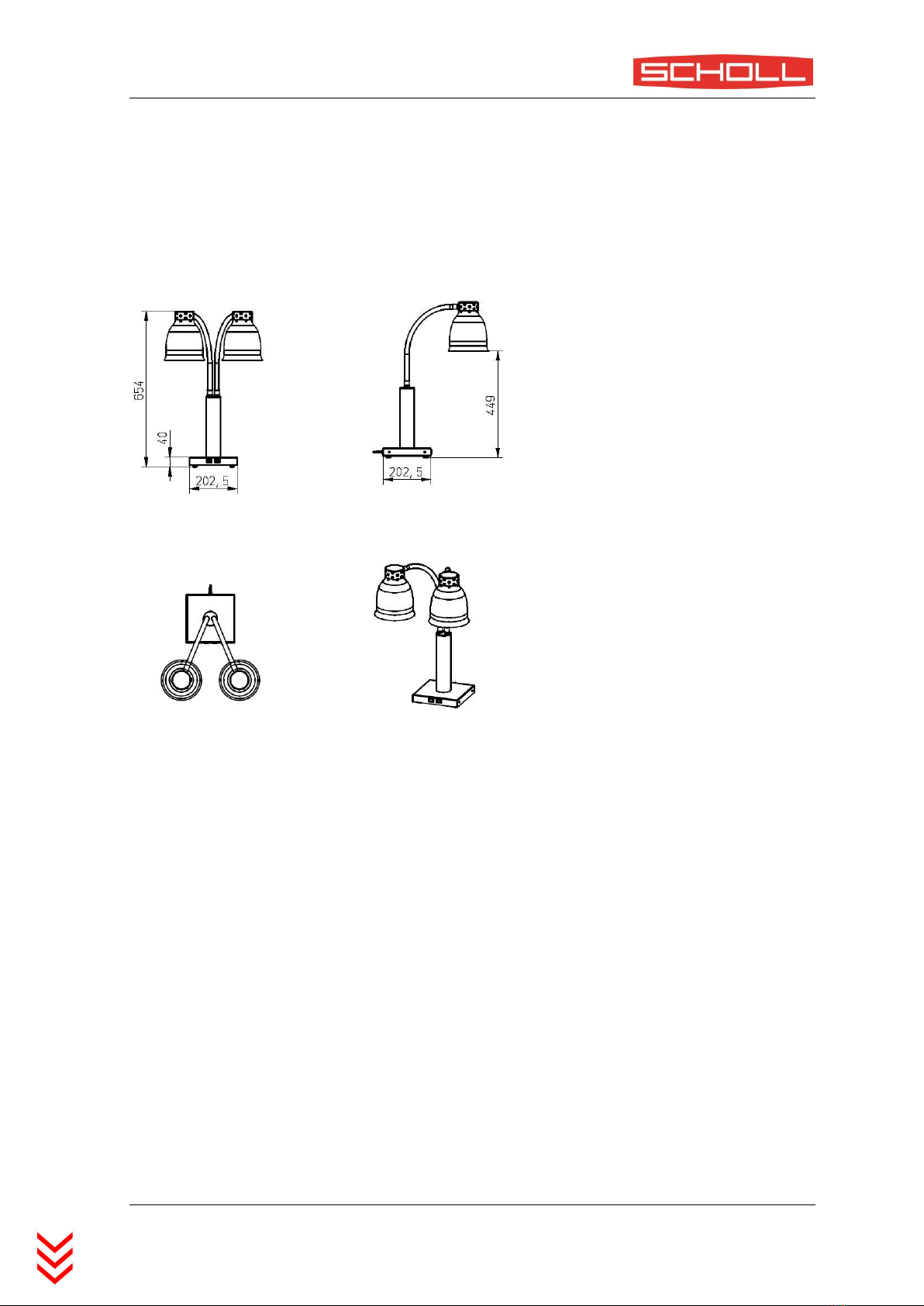

8.2.2 Dimensioned drawing buffet heat lamp BiTherm ..................................................................... 20
8.2.3 Dimensioned drawing buffet heat lamp with srew fitting for built-in ...................................... 21
8.2.4 Dimensioned drawing buffet heat lamp with table board fixing for mobile ............................. 22
8.3 Circuit diagrams ............................................................................................................................. 23
8.3.1 Circuit diagram buffet heat lamp .............................................................................................. 23
8.3.2 Circuit diagram buffet heat lamp BiTherm ................................................................................ 24
8.3.3 Circuit diagram buffet heat lamp with srew fitting for built-in ................................................. 25
8.3.4 Circuit diagram buffet heat lamp with table board fixing for mobile........................................ 26
8.4 Spare parts list ............................................................................................................................... 27
8.4.1 Spare parts list buffet heat lamp ............................................................................................... 27
8.4.2 Spare parts list buffet heat lamp BiTherm................................................................................. 28
8.4.3 Spare parts list buffet heat lamp with srew fitting for built-in.................................................. 29
8.4.4 Spare parts list buffet heat lamp with table board fixing for mobile ........................................ 30
9Disposal and Environmental Notes ......................................................................................................... 31
9.1 Disposal of packing material .......................................................................................................... 31
9.2 Disposal of the appliance ............................................................................................................... 31
10 Warranty and service ......................................................................................................................... 32
10.1 Warranty conditions ...................................................................................................................... 32
10.2 Service............................................................................................................................................ 32
10.3 Service address .............................................................................................................................. 33

GBA B 0041 4 E
BA Page 4 of 33 März 21, 2019
Last revised 03-2019 Rev. 4
Scholl Apparatebau GmbH & Co. KG
PREFACE
Congratulations!
In purchasing this new SCHOLL appliance you have chosen a product which meets highest technical stand-
ards while providing outstanding convenience in practical use.
This appliance has been designed with minimal energy consumption in mind. Used responsibly, it will serve
you well in an ecologically sound manner.
Please read the information in this manual carefully before starting up this appliance. On the following
pages you will find important notes regarding its operation, care and maintenance so that you will be able
to enjoy its use for a long time.
If a malfunction should nevertheless occur, please consult the "Troubleshooting" section first. In many cases
you should be able to remedy minor problems yourself, thus saving unnecessary service costs.
Please retain this manual carefully and pass it on to any subsequent user for his or her information and
safety.
A quality product, properly treated, will give you many years of satisfactory service.
We trust you will enjoy using this product!
Yours sincerely
Gustav Scholl Apparatebau GmbH & Co. KG

GBA B 0041 4 E
BA Page 5 of 33 März 21, 2019
Last revised 03-2019 Rev. 4
Scholl Apparatebau GmbH & Co. KG
1 CONVENTIONS
1.1 PICTOGRAMS –GENERAL SAFETY NOTES
Be sure to observe these Instructions for Use as well as the safety notes to prevent
injuries or damage to health or property. Do not alter or modify this appliance.
Never use a defective appliance. If you suspect the unit of being faulty or discover
an unusual noise or smell, turn off the power switch and pull the plug out of the
socket-outlet, or otherwise disconnect the appliance from the mains and de-
energize it (i.e., ensure that it no longer carries any voltage). Do not use this appli-
ance when its power cord is damaged.
Failure to observe this warning may result in a fire hazard or electrical shock!
Maintenance and repair work must be carried out only by qualified professionals
using original spare parts and accessories. Do not attempt to carry out repairs on
this appliance yourself!
Connect this appliance to suitably earthed mains outlets only. Ensure that your
mains power supply conforms to the data stated on the nameplate of the appliance.
Failure to observe this warning may result in a fire hazard or electrical shock!
Place this appliance on a sturdy, level and heat-resistant surface to prevent fire
hazards and accidents.
This appliance is not intended to be used by persons (including children) of limited
physical, sensory or intellectual abilities, or lacking in experience and/or knowledge,
unless they are supervised by a person responsible for safety who instructs them in
the use of the device. Children should be supervised to ensure they will not play
with this appliance.
Do not run the power cord near heat sources, over sharp edges, etc. Always pull on
the plug, not the cord, to remove it from a socket-outlet since the cord might be
damaged as a result. Do not allow cords to hang unsupported. Route the cord so
that it will not form a tripping hazard!
When using an extension cord, unwind the cord from the reel to prevent heat build-
up or cord fires, respectively. The socket-and-plug connection must be splash-proof
and be made of, or coated with, rubber. Each wire must have a cross-section of at
least 1.5 mm².
