Scholl 27001 User manual

rail design
27001-27008
State January 2005 Operating Manual
Rev. 0. 2005

HEAT LAMP 27001-27008
STATE AUGUST 2004 1
Contents IV 1
Environnemental information UW 2
General information AL 3
Safety SI 4-7
Technical details TE 8
Transport TR 9
Commissioning IN 10
Operation BE 11
Cleaning RE 12
Stock keeping of replacement parts and service EK 13

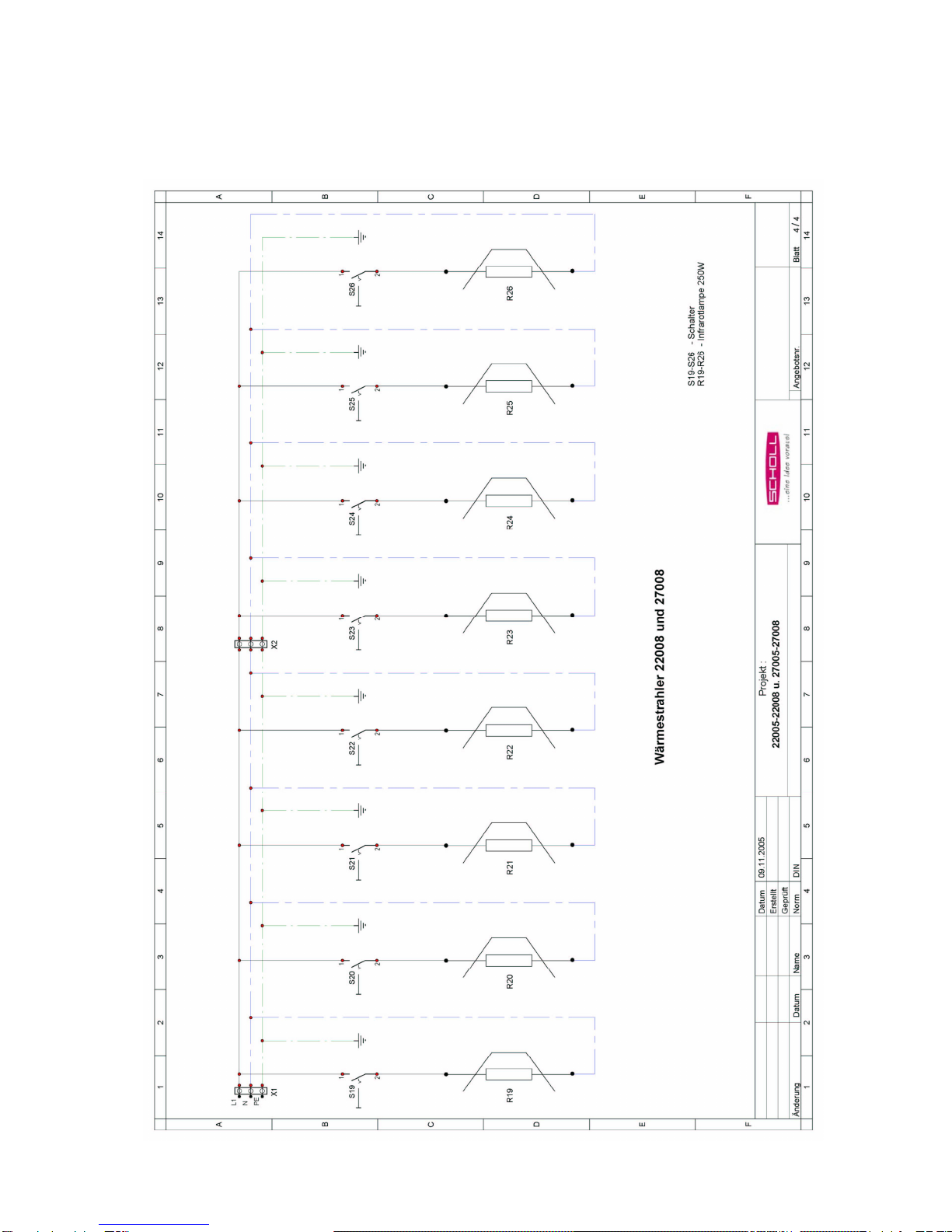

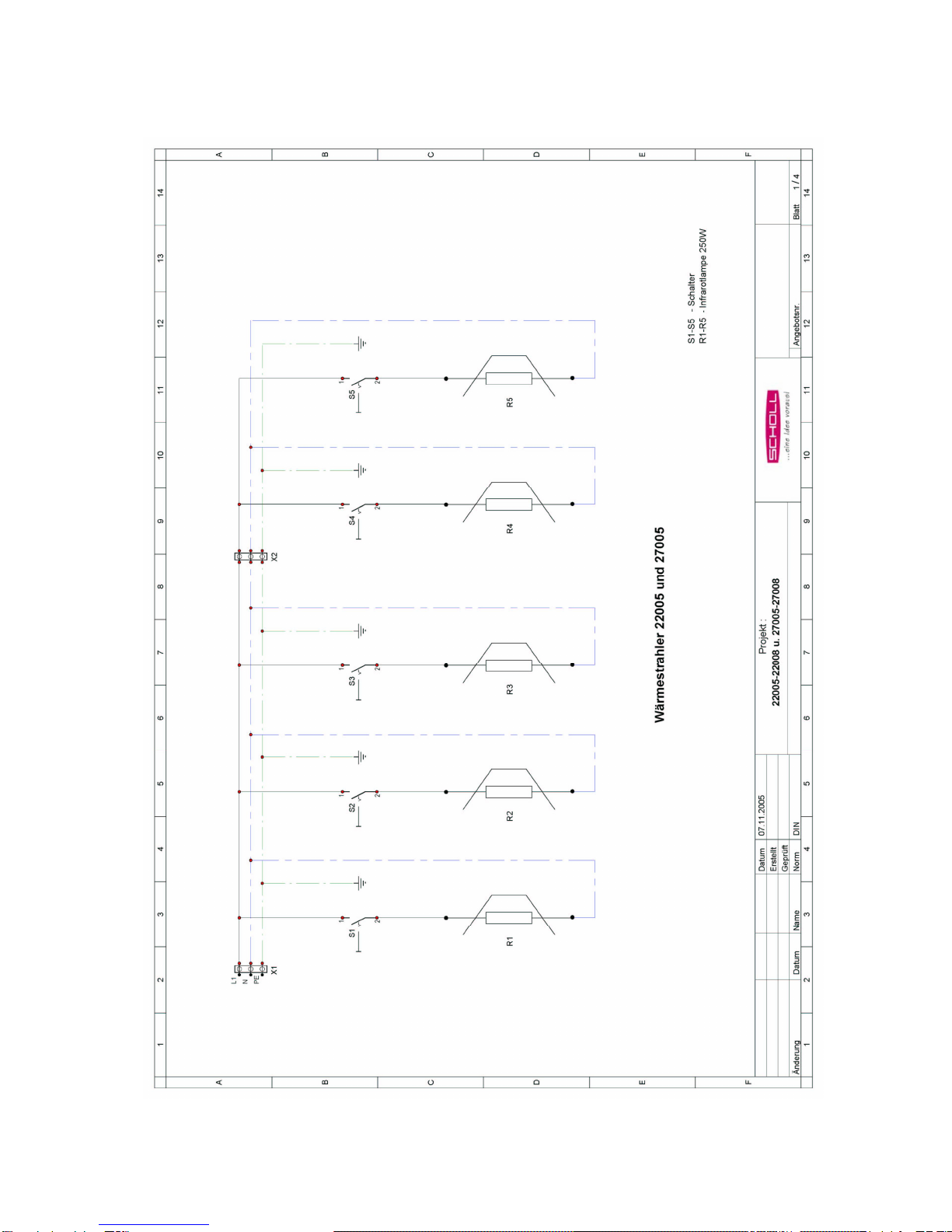

Wiring diagram SB 14 -18
Appendix AN 19

HEAT LAMP 27001-27008
STATE AUGUST 2004 2
Congratulations
We recommend reading these operation
instructions carefully in order to familiarize
yourself with your new device.
If properly used, a good device will serve you
many years.
Please keep these operation and assembly
instructions available for possible further
owners.
We wish you a lot of fun using your new
device!
Environnemental information -E-
Disposal of the device
Devices have to be made inoperable before
they are scrapped by cutting off the mains
cables.
Make sure that the device is properly
disposed according to environmental
requirements.
Warning
Manufacturer can not be made liable if
damages are caused upon non–observance
of the following instructions:
1. The handling of this device and of all other
electrical devices requires the observance of
some basic rules for your own safety as the
following:
-don’t expose the device to any weather
influence as rain, etc.
-keep unattended children away.
2. After unwrapping make sure that the
device has not been damaged. In case
of doubt don’t take the device into
operation and inform the responsible
technician or the after-sales service.
Keep away from children all wrapping
material (plastic bags, polystyrene,
nails, etc.), as they are possible
sources of danger.
3. Device has to be used exclusively for
the indicated purpose.

HEAT LAMP 27001-27008
STATE AUGUST 2004 3
4. Before connecting the device, please check if
indications on the rating plate correspond to
the installation rating.
Basic safety instructions must be observed in
any case. In case of doubts the installation
has to be checked carefully by an authorized
specialist. The electrical safety is guaranteed
only in case that the device is installed and
grounded according to our safety instructions
for electrical installations.
5. In case of care and maintaining works
disconnect device from the electric circuit by
switching off the main switch or quitting
the voltage of the power supply.
6. Don’t leave the device unnecessarily in
operation after use. Switch off the main
switch.
7. In case of operation disturbances or
faults the device has to be
disconnected from the electric circuit.
Qualified specialists or our after-sales
service should carry out repairs. Use
only genuine replacement parts.
General information -AL-
Introduction
Device serves to keep warm food –short-
termed.
Warm keeping temperature depends on the
distance between lamp and food.
Device is equipped with 250 W bulbs.
Indications given in this operating manual
can be changed without previous advice.

HEAT LAMP 27001-27008
STATE AUGUST 2004 4
Safety -SI-
1 SYMBOLS
1.1 Operating safety
This symbol will be found in all
operating safety advices in
this operating manual where
danger for life and limp of
people exists. Please observe
these advices and act
especially carefully. Pass on
all operating safety advices to
further users.
In addition to the advices in
this operation manual all
general regulations on safety
and prevention of accidents
must be observed.
1.2 Attention
ATTENTIONThis note will be found
everywhere in the operating
manual where special
guidelines, regulations,
advices and the correct
working operation have to
be observed and the
damaging and destroying of
the device has to be
prevented.
2 Operational safety recommendations
2.1 Appropriate use
Device has been manufactured according to the current state of the art technology and to the
acknowledged regulations concerning safety and is reliable in operation.
Nevertheless, if used by unskilled personnel or for impropriate purposes device can cause danger
to life and/or limb of users or third persons respectively can damage the device and other tangible
assets.
Use device exclusively in technically perfect conditions, as well as according to all safety
regulations indicated in the operating manual!
Eliminate all faults, which might affect safety immediately!
Device is only made for purposes described in the operating manual.
All other and additional use does not conform to the regulations. The manufacturer/ supplier is
not liable for damages resulting of improper use. Risk lies with the user.
!

HEAT LAMP 27001-27008
STATE AUGUST 2004 5
The proper use includes observing the operating manual and conditions of inspection and
maintenance.
After cleaning of device check loosened connections, raw rubbed parts and damages.
All detected faults have to be repaired immediately!
Always tighten firmly screwed connections loosened for maintenance and repair purposes!
If dismantling of safety devices is required at setting up, maintenance or repair, the assembly and
checking of all safety devices has to be carried out immediately after finishing the maintenance
and repair works.
Before putting into operation after maintenance works make sure that all protection advices have
been mounted!
Provide safe and environment conserving disposal of operational and auxiliary materials as well
as of replacement parts.
Don’t use device for unsuitable purposes!
Safety guidelines
During the production of your device all safety guidelines, in particular VDE and international CEE
regulations have been observed.
Your device passed final control before leaving the plant and all electrical components were
checked on proper functioning.
Contact protection according to VDE-regulations has to be guaranteed by correct assembly.

HEAT LAMP 27001-27008
STATE AUGUST 2004 6
3Electrical connection
Before connecting please observe indications on rating plate!
Observe VDE-regulations and regulations of your local power supplier!
Connected load 0,25 kW - 2,0 kW
Fuse protection 1 x 10 A
Voltage IN AC 230 V
-Special voltage upon demand
-Device is delivered with a helix cable of 850 mm length. E.g. type 3 x 1H05RN3G
EG regulations: EMV 89/336
NSR 73/23
CE regulations: 93/68
3.1 Indication of particular kinds of danger
3.2 Electrical energy
Use only genuine fuses with prescribed strength of current! In case of disturbances in power
supply switch off device immediately!
Works at electrical installations or operational means have to be carried out by authorized electric
under guidance and supervision of authorized electricians or trained persons according to electro
mechanical rules. During works of inspection, maintenance and repair at the device or
components of installation, voltage has to be switched off. Check parts first if they are powerless,
then earth and short out. Insulate adjacent parts under tension!
Electrical equipment of a device has to be checked regularly. Faults, such as loose connections
resp. burned cables have to be removed immediately.
Use only tension-insulated tools!

HEAT LAMP 27001-27008
STATE AUGUST 2004 7
3.3 Information about high temperature
A T T E N T I O N ! ! !
Before putting into operation
During the switching on of the device (before use) high temperatures can be
reached around the heating. Please check the surface before you start working
there!
Don’t put paper, cardboard, cloth, etc. between device and fireproof covering
board, as they might catch fire.
During putting into operation insulation material may emit corresponding smells.
Warning about
hot surface

HEAT LAMP 27001-27008
STATE AUGUST 2004 8
Technical details -TE-
Heating lamp 27001
Design: Lamp shade made of aluminium, silver-coloured
anodised optionally also copper-black or white plastic
laminated, 140 mm €, with helix cable, continuously
adjustable from 850 to 1700 mm, including 250W-infrared
radiator.
Rosette 100 mm€, black. Casing with on-
off switch.
Also available with 250W-infrared radiator, white light.
E-Connection: 230V-250W
Heating lamp -rail design
Design: As heat lamp 27001, but with several
lamps adjacent to each other, to be switched
separately. Instead of one single rosette one
continuous rail made of chrome nickel steel 18/10.
E- Connection: 230V-250W
Noise level
Operation site related emission value of noise
level is below 70 dB (A).
This indication is necessary due to certain
national safety regulations.
Subject to technical alterations!
Model -No. Lamps Length
27002 2600
27003 3900
27004 41200
27005 51500
27006 61800
27007 72100
27008 82400
Additional length upon request.
Surcharge for contact rail design upon request.

HEAT LAMP 27001-27008
STATE AUGUST 2004 9
Transport -TR-
1. Packaging
Transport route is important for selection of kind of packing. If not agreed upon otherwise by
contract, packing corresponds to regulations of packing HPE, defined by the Federal Association
for Wood Materials, Pallets, Export Packing e. V. and by the Association of German Machinery
Manufacturers.
2. Delicateness
Transport the device with particular care in order to avoid damage by violent impacts or careless
loading and unloading.
Shocks during transport have to be avoided.
Device has to be treated with care.
3. Interim storing
If devices are not assembled immediately after delivery they have to be stored carefully at a
protected place. They have to be duly covered that neither dust nor humidity can penetrate.
4. Scope of supply
Content of delivery is listed in delivery notes and completeness has to be checked upon receipt.
Possible shipping damages and/or missing items have to be notified immediately in writing.

HEAT LAMP 27001-27008
STATE AUGUST 2004 10
Commissioning -IN-
1. Before commissioning
Before putting into operation of the device following items have to be checked:
-Shipping damages?
-Indications on the rating plate have to match with the local public supply system.
-All electrical protective measures have been carried out and serviceability has been checked.
-All screwed connections are tight.
2. At commissioning
During the putting into operation has to be checked:
Defect devices are not allowed to put into operation.
Instructions for use -IN-
Connect heat lamp by means of safety plug to power supply system.
Device is ready for operation.
Connected load: 230 V, 250 W
Don’t touch hot bulb with unprotected hands.
Danger of burn!
Do not cover device while heating.
!

HEAT LAMP 27001-27008
STATE AUGUST 2004 11
Operation -BE-
1. How to act in case of disturbance
In addition to the following advices al local safety regulations have to be observed for the
operation of the device.
All electrical repairs have to be done by authorized specialists!
1.1 Repair of disturbances
Symptoms: Reasons: Measures:
-device does not heat up -infrared bulb defect -exchange infrared bulb
-connection cable broken -exchange cable
-switch defect -exchange switch
Always unplug the
device before
opening!

HEAT LAMP 27001-27008
STATE AUGUST 2004 12
Cleaning -RE-
Always make sure that device is plugged off before cleaning the heat lamp.
Don’t hose down the device.
Only wipe device with a wet tissue using a mild cleaner if necessary.
Don’t use cleaning powder.
SECURITY ADVISES
-Don’t use high-pressure cleaner.
-Don’t treat device with acids or expose it to acid vapour. Otherwise the passive layer of nickel
chromium steel will be damaged and the device may probably discolour.
Don’t use device for unsuitable purposes !!!
Water splashing
forbidden
!

HEAT LAMP 27001-27008
STATE AUGUST 2004 13
Stock keeping of replacement parts /after-sales service -RP-
Please fill in here data of the rating plate of your device.
You will find the rating plate next to the cable outlet.
Gustav Scholl
Apparatebau GmbH & Co.
56470 Bad
Marienberg
Volt
KW
Typ
Nr-
Please provide these data always when you require:
-after-sales services,
-replacement parts and accessories,
-technical advice
Replacement parts
infrared bulb 250 W, 230 V –red light order-no.: 71,40,05
infrared bulb 250 W, 230 V –white light order-no.:: 71,40,06
helix cable, black order-no.: 73,70,01
switch order-no.: 73,15,03
Metal-socket order-no.: 73,20,10
Metal -screwed ring 54x14 order-no.: 73,20,11
Connection clip 3-pole KU order-no.: 73,30,01
single wire BIAF 1,5 brown order-no.: 73,80,81
single wire BIAF 1,5 blue order-no.: 73,80,82
single wire BIAF 1,5 green / yellow order-no.: 73,80,83
Lamp casing, ALU ( top part )order-no.: 82,20,02
Lamp casing, ( lower part )order-no.: 82,20,01
screw hook M4 x 50 order-no.: 85,10,01
Your specialized dealer can obtain our fitting and proved replacement parts.
All electrical repairs have to be carried out by authorized specialists.

HEAT LAMP 27001-27008
STATE AUGUST 2004 14

HEAT LAMP 27001-27008
STATE AUGUST 2004 15

HEAT LAMP 27001-27008
STATE AUGUST 2004 16

HEAT LAMP 27001-27008
STATE AUGUST 2004 17

HEAT LAMP 27001-27008
STATE AUGUST 2004 18

HEAT LAMP 27001-27008
STATE AUGUST 2004 19
Appendix -AN-
G.SCHOLL Apparatebau GmbH & Co. KG
Zinhainer Weg 4
56470 Bad Marienberg / Ww.
Replacement parts sales Telephone [phone] Telefax +2661/9868-38
E-mail: [e-mail]
Technical services Telephone [phone] Telefax +2661/9868-48
E-mail: [e-mail] Contact: Mr. Jens Schell
