Schweigen HN-2OC User manual

RANGEHOOD & INSTALLATION GUIDE
HN-2OC
Revision V2
www.schweigen.com.au
(04.2017/v2.0)

Page 2
Index
1. Welcome _____________________________________________________________________________________ 3
2. Your Safety
Safety Advice __________________________________________________________________________________ 4
Before Installation ______________________________________________________________________________ 5
Product Use ___________________________________________________________________________________ 6
Maintenance and Service _______________________________________________________________________ 6
Cleaning the Bae Filters ___________________________________________________________ 6
Electrical Cord __________________________________________________________________________________ 6
3. Description
Main Rangehood _______________________________________________________________________________ 7
Push Button Control Panel ______________________________________________________________________ 7
4. Installation
Mounting Laws & Regulations ___________________________________________________________________ 8
Wall Mount Installation _________________________________________________________________________ 8
Mounting Points _______________________________________________________________________________ 9
BBQ Installation __________________________________________________________________ 10

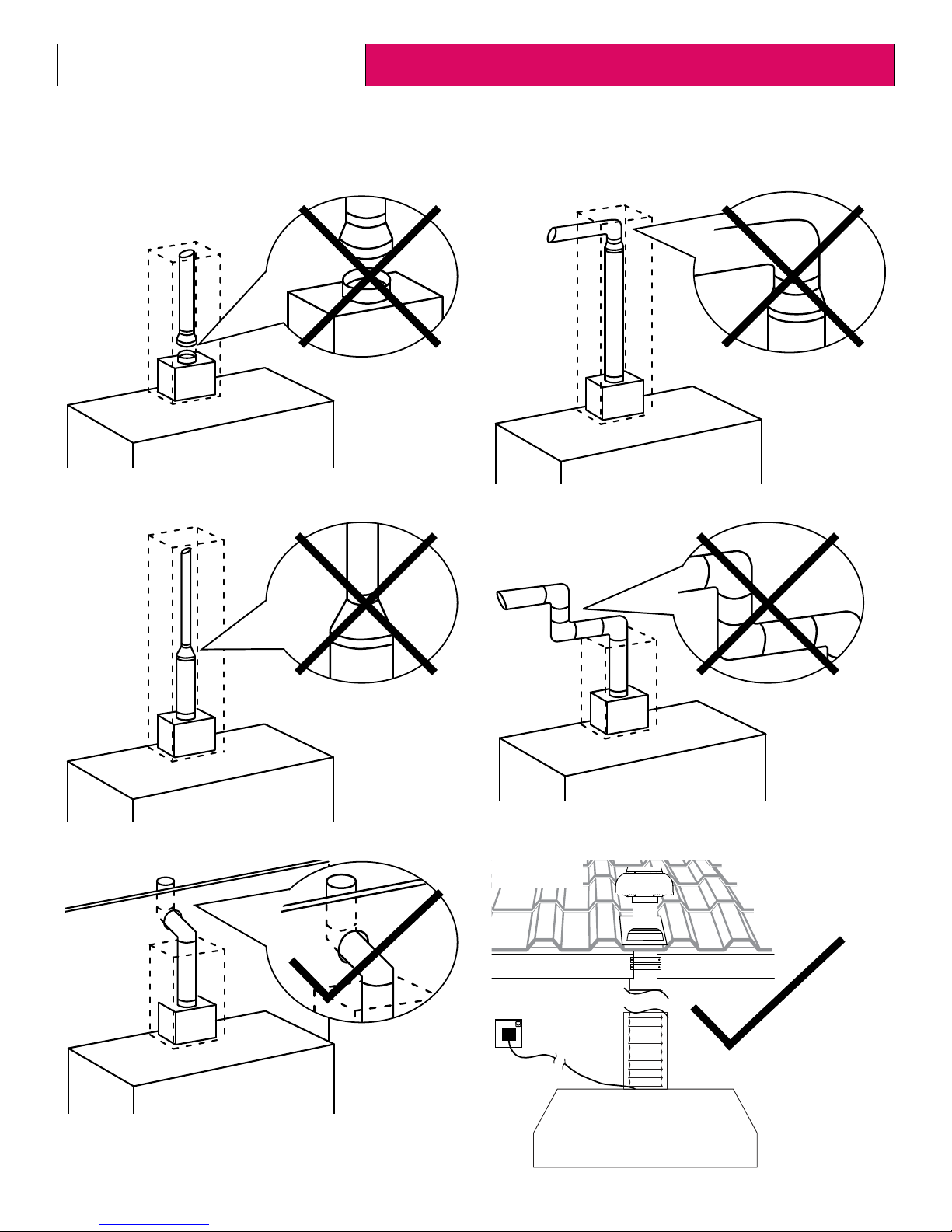

Ducting Installation ____________________________________________________________________________ 10
Example Installation _______________________________________________________________ 11
Roof Cowls / Roof Seal Kit ___________________________________________________________ 12
Back Draft Fins ___________________________________________________________________ 13
5. Maintenance
Filters _________________________________________________________________________________________ 14
Replacing the Light Bulb ________________________________________________________________________ 15
Cooking with Induction Cooktops ________________________________________________________________ 16
Troubleshooting _______________________________________________________________________________ 17
Technical Specications ____________________________________________________________ 17
6. Specication
HN-2OC _______________________________________________________________________________________ 18
7. Disclaimer ___________________________________________________________________________________ 19

Page 3
1. Welcome
Thank you for purchasing your new Schweigen rangehood.
To get the maximum output from this unit, please read through this guide before use.
The guide contains important information on the use and maintenance of the unit, as well as important safety
notes. This will ensure your personal safety and the lasting value of your
professional rangehood.
We trust that you will enjoy your new Schweigen rangehood.
Please always retain your proof of purchase to aid in any warranty queries.
If you are unable to locate your warranty card, one is available to download from our website.
www.schweigen.com.au
This appliance and its packaging are produced by processes that minimise waste and respect the environment.
Please help us to continue this eort to protect the environment by using the appliance eciently and dispose
of the packaging in a responsible manner.

Page 4
2. Your Safety
Warning
Please read this section thoroughly before attempting to operate the appliance.
Inspect your product upon receipt. Any damages or defects MUST be reported
within 48 hours of receiving the rangehood, or no claim will be recognised.
DO NOT INSTALL THIS APPLIANCE IF IT IS FOUND TO BE DAMAGED.
If this product is installed damaged, neither the supplier, nor the retailer, will be
responsible for any costs associated with the repair, replacement, removal or re-
installation of the appliance.
Safety Advice
1. There shall be adequate ventilation in the room when the rangehood is used at the same
time as appliances burning gas or other fuels.
2. There is a re risk if cleaning is not carried out in conjunction with the instructions.
3. Do not ambé under the rangehood. This will damage the rangehood and will not be covered by warranty.
4. Do not ignite burners that give o intense, uncontrolled ames beneath the rangehood.
5. Flames beneath the pan must be contained at all times and cannot exceed the width of the pan in use.
6. Do not leave any packaging material (bags, corner brackets etc.) within reach of children.
7. This appliance is not intended for use by person/s (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and/or knowledge. Unless, the person is given supervision or
instruction concerning the safe usage of the appliance by person/s responsible for their safety. Children
must be supervised to ensure that they do not play with the appliance, it is not a toy.
8. The air must not be discharged into a ue that is used for exhausting fumes from appliances burning gas
or other fuels (not applicable to appliances that only discharge the air back into the room).
9. Accessible parts may become hot when used with cooking appliances.
10. Before performing any cleaning or maintenance operation, disconnect the rangehood from the mains
using the respective mains or isolation switch or by unplugging it.
11. Do not use the rangehood without the grease lters.
12. Keep the grease lters clean and respect the recommended cleaning frequencies.
13. The rangehood motor must be switched on before commencing cooking.
14. Turn the rangehood motor o about 10-15 minutes after you nish cooking.
15. It is forbidden to use the rangehood as an aspirator.
16. Never cook foodstu directly over the ame or have the gas burners on under the rangehood without
using cookware.

Page 5
2. Your Safety
Before Installation
1. We recommend this appliance be installed or repaired by a qualied Schweigen Home Appliances
technician.
2. Please see our website www.schweigen.com.au for a list of our recommended installers.
3. It is dangerous to modify any part of this appliance. Modication of any kind, will immediately void the
warranty.
4. The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
5. Ensure that the location in which this appliance is installed, has good and permanent
ventilation.
6. Please consult local laws and regulations and install in accordance.
7. Please use an earthed electrical connector that coincides with relevant local laws and regulations.
8. Check that the power voltage in your area corresponds to the appliance voltage indicated on the rating
label.
9. This appliance must be connected to an electrical supply that has a grounded connection.
10. Check that the installation and electrical connections are carried out by a qualied technician and that the
indicated instructions and local regulations in force are met, using materials that are compliant with the
applicable legislation.
11. The company will not be responsible for installations executed by non-qualied sta and installations that
fail to heed the applicable legislation on electrical safety (with regard to both modes and materials).
12. The electrical technical data can be found inside the rangehood, after removing the grease lters.
13. The exible power cable supplied is already connected internally and emerges from the rangehood near
the air outlet tube.
14. Before installing the electrical connections, you should:
• Verify that the indicated electrical data coincides with the voltage values and frequency of
the electrical circuit in the house where the rangehood is to be installed;
• Check that the premises has electrical protection against short circuits and electrocution,
pursuant to the applicable legislation;
• Always switch o the current using the double-pole switch before maintenance and turn the
power on again for normal use only when the operation has been completed.
17. To be installed in an undercover alfresco area and/or indoor kitchen only.
18. If the unit is not adequately covered or sheltered from the outside elements the warranty will be null
and void.

Page 6
2. Your Safety
Product Use
This product is designed for household use and should not be used for commercial applications.
After use, always ensure that all controls are in the “OFF” position.
When frying with a gas ame, take particular care not to allow the oil or grease in the pan to catch re (Flambé).
Maintenance and Service
The rangehood surface should be cleaned with soft cloth and non-corrosive detergent. Do not leave the
rangehood wet after cleaning or used, please keep rangehood dry.
IMPORTANT:Never attempt to repair this appliance by yourself. Always refer to a qualified Service
Technician.
Always switch o the electricity and unplug the connection before conducting maintenance or cleaning.
Cleaning the Bae Filters
• The bae lters and grease trap can be removed by sliding them from their mounted position within the
hood and washed in the dishwasher or by hand.
• Use hot water and liquid detergent.
• After cleaning, leave the lters and trap to dry completely before placing back to the rangehood.
Electrical Cord
Ensure the supply cord is not exposed to heat, chemicals or sharp objects. If the supply cord is damaged, it must be
replaced by the manufacturer, service agent or a similarly qualied person in order to avoid a hazard.
For Installers and Users
1. In addition to the size, the height of the rangehood above the cooktop is important to obtain the best performance.
2. For recommended height, please refer to Mounting Laws and Regulations.

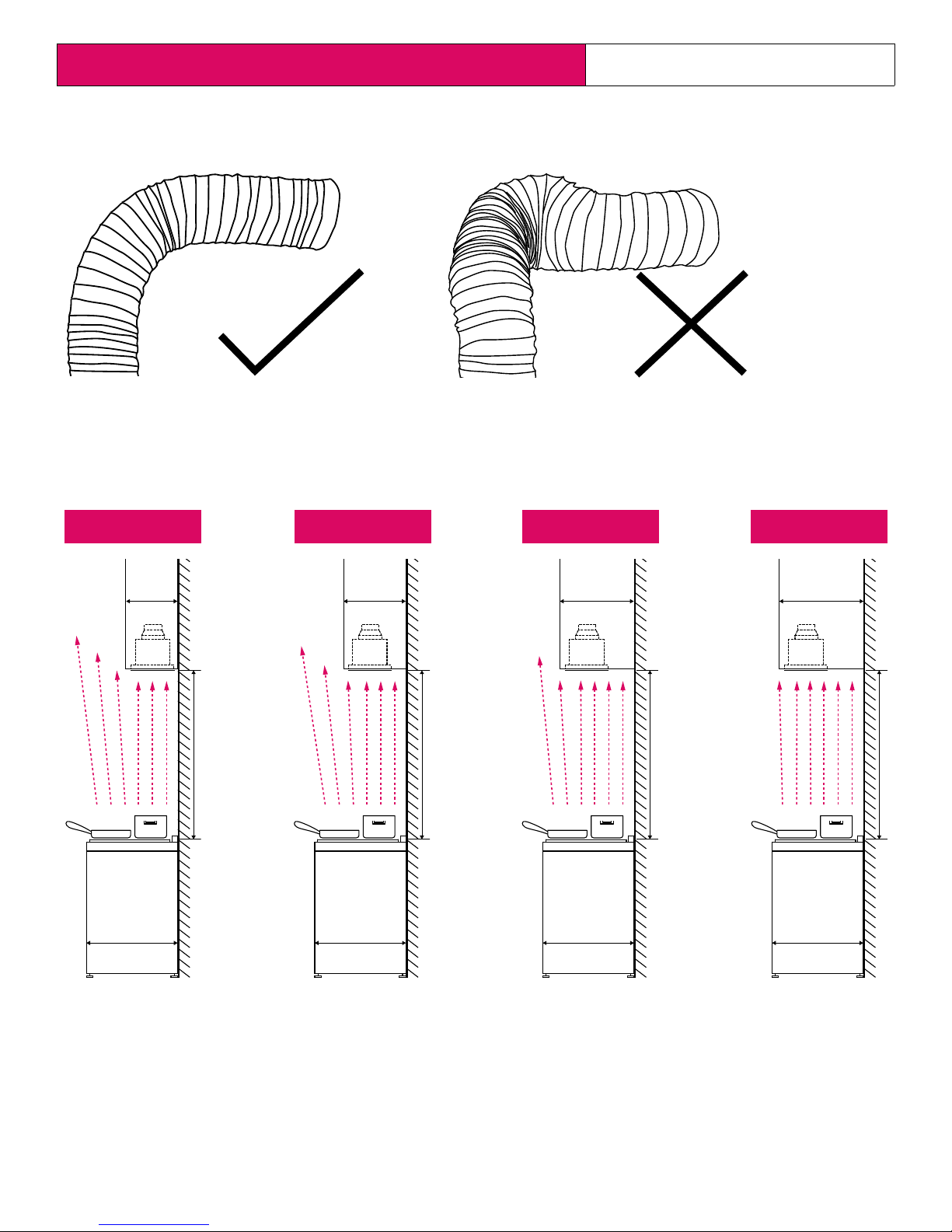

OPTIMAL
Rangehood bigger than the cooking area.
ADEQUATE
Rangehood equal to the cooking area.
INADEQUATE
Rangehood smaller than the cooking area.

Page 7

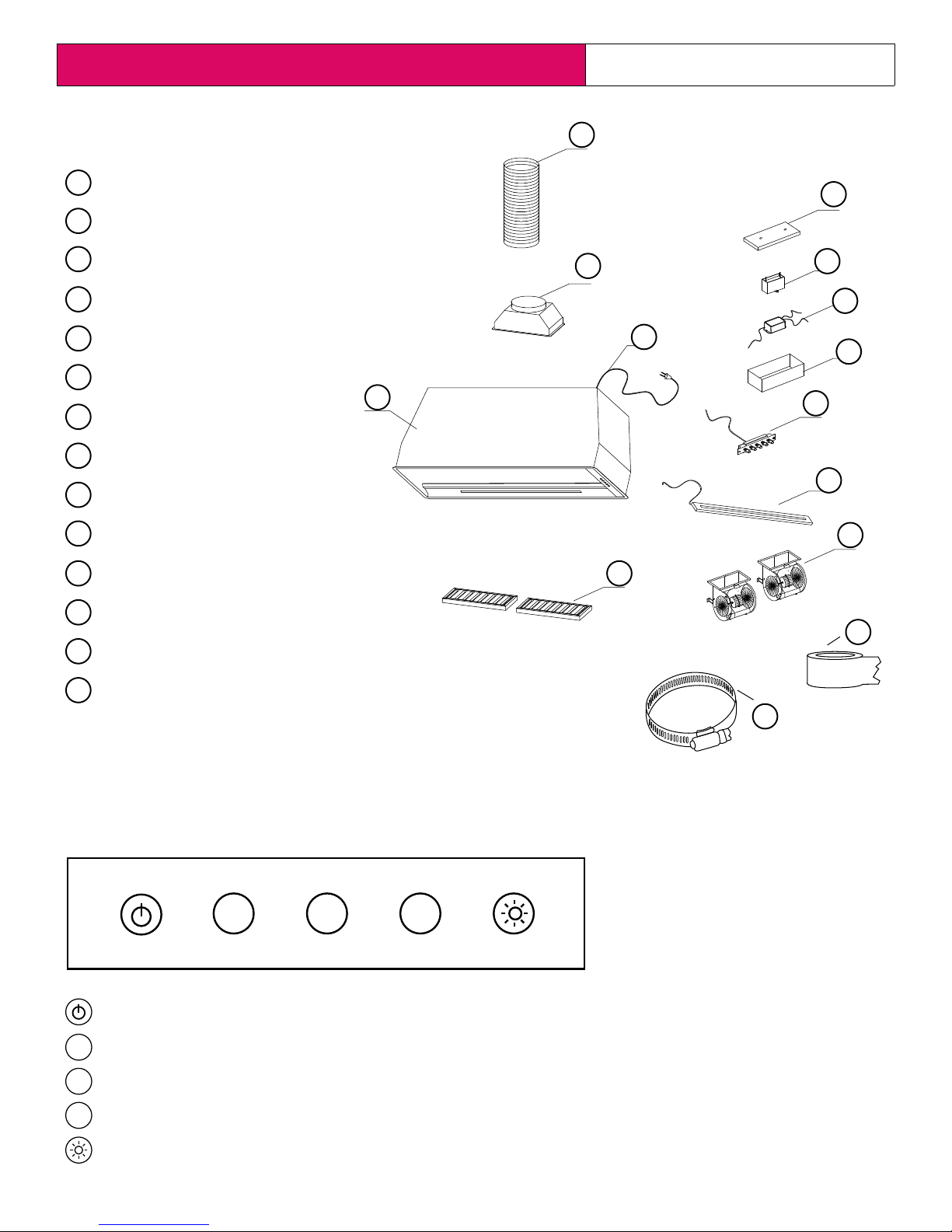

3. Description
1
2
3
4
5
6
7
8
9
10
10
11
12
13
13
14
14
11
12
Main Rangehood
Electric Box Cover
Switch
Capacity
LED Strip (HN-2OC only)
Motor
Silver Tape
Ring Clamp 200mm
Body
Transformer
Filter
Electric Box
Ducting 200mm x 2m
1
Outlet (200mm)
2
Power Cord
3
4
8
5
9
7
6
NOTE: Filter and light quantity may vary from model to model.
Push Button Control Panel
Turn on/o the rangehood
Ligh speed setting
Medium speed setting
High speed setting
Turn on/o the lamp
1 2 3
1 2 3
1
2
3

Page 8
4. Installation
Wall Mount Installation
Every wall mounted rangehood has two primary mounting points and several secondary mounting points to
rmly x the rangehood in its place.
Please ensure that the holes for the two primary mounting points are level before installation.
*IMPORTANT: Please check all State and Federal Laws in relation to the minimum - maximum
heights, regulations concerning the expelling of air and install your rangehood in accordance
with local laws and regulations.
Danger
Always switch o and disconnect power before installing the rangehood. Failure to do so
may cause serious injury.
Mounting Laws and Regulations
To be installed in an undercover alfresco area and/or indoor kitchen
only. If the unit is not adequately covered or sheltered from the outside
elements the warranty will be null and void.
The rangehood must be located at the correct distance from the
work plan.
For indoor kitchen area:
• The minimum safety installation distance between the top of a cooktop and the lowest part of the
rangehood are as follows:
• Minimum installation height for electric cooktop is 650mm*.
• Minimum installation height for gas cooktop is 650mm*.
• Suggested height above an Induction Cooktop is 750-800mm. For more information please see
section Maintenance - Condensation Information*.
• There shall be adequate ventilation in the room when the rangehood is used at the same time as appliances
burning gas or other fuels.
• The location of the installation must have permanent openings for ventilation.
• Regulations concerning the expelling of air have to be fullled.
• It is strongly recommended that the rangehood be installed centrally over the cooktop.

Page 9
4. Installation
Step 1
Before installing the undermount, make sure that none of the
parts are damaged in anyway. In case of damaged parts, contact
your retailer and do not proceed with installation.
Read all the following instructions with care before installing
the undermount.
• Use an air outlet pipe/duct of the shortest possible length.
• Limit the number of pipe bends.
• Use a material approved by standards and regulations.
• Avoid any sudden changes in pipe section (recommended
constant diameter: ø 200mm or equal).
Before carrying out installation, please remove the grease lter
in order to avoid possible damages to the undermount.
Cut a hole in the surface where the undermount should be
installed (265 x 832mm approx.).
Mounting Points
A B C
DEF
*Please refer to Specications for
mounting points measurements.
832mm
265mm
Step 2
Spring loaded clip is to help support the rangehood during
installation, adjust clip to the right level before inserting
rangehood.

Page 10
4. Installation
Step 3
Insert the undermount, making sure the push button panel is
placed on the right, when looking at the product from the front
of the cooktop.
Step 4
Fix unit by using the appropriate screws and tighten them, see
points A to F.
Step 5
Make the electric connection and connect the air outlet ange
to a suitable exhausting pipe/duct.
832mm
265mm
A B C
D E F

Page 11
4. Installation
Ducting Installation
For internal motor units, please install exible ducting with the least amount of bends possible, maximum
length of exible ducting should be no longer than 4 meters approximately. Do not apply bends at motor outlet
as it will restrict airow.
Pictures are for illustrative purposes only, not to scale.
STANDARD*
310mm
600mm
700-750mm
Side View
GOOD
600mm
700-750mm
400mm
Side View
BETTER
600mm
700-750mm
450mm
Side View
BEST
600mm
700-750mm
500mm
Side View

Page 12
4. Installation
Figure 1
Figure 3 Figure 4
Figure 2
Figure 5
Example Installation
Figure 6

Page 13
4. Installation
Roof Cowls / Roof Seal Kit
1
2
34
WARNING
All electrical wiring should be kept inside the roof space.
*NOTE: Motor system does not include the roof seal kit/roof cowls, cable tie, duct tape or the
support straps.
For best result, please install ducting in a straight line and duct length no longer than 4 metres.
Main Power Lead (Male Plug)
Roof Cowls*
Flexi Ducting must be pulled taut.
DO NOT crush or kink the ducting.
Connect exi ducting to the outlet
on rangehood using duct tape or
cable tie. Please DO NOT rip the
ducting.
4
1
2
3

Page 14
5. Maintenance
Filters
• For this appliance to function eectively, regular maintenance is a must.
• The function of the lter is to absorb the grease particles emitted during cooking.
• Blocked lters and heavy oil deposits restrict airow and may cause the motor to overheat and become a re
hazard.
• Filters should be cleaned every 3-6 weeks or after 40 hours of use.
• Disconnect the electrical connection before any maintenance or cleaning processes are carried out.
• To remove the lter, grab the handles pull forward the lter, lift it up slightly and push back. Then pull down
gently to release it. To replace, perform the same operation but in reverse.
• In ceiling-mounted rangehoods, the doors or glass must be opened before accessing the lters.
• For an induction cooktop, please aim to clean them at least every 10 days, depending on use.
• The lters can be washed by hand or in the dishwasher
Washing by hand - Immerse the lter in hot water and a suitable detergent and when clean, rinse with plenty
of hot water.
Dishwasher - Put the lter in the dishwasher and select a short program at low temperature.
NOTE: The colour of the metal mesh lters may change after several washes. This is normal and it is not
necessary to change the lters. Please make sure the lters are dry before placing them back in position.
1
2
3

Page 15
5. Maintenance

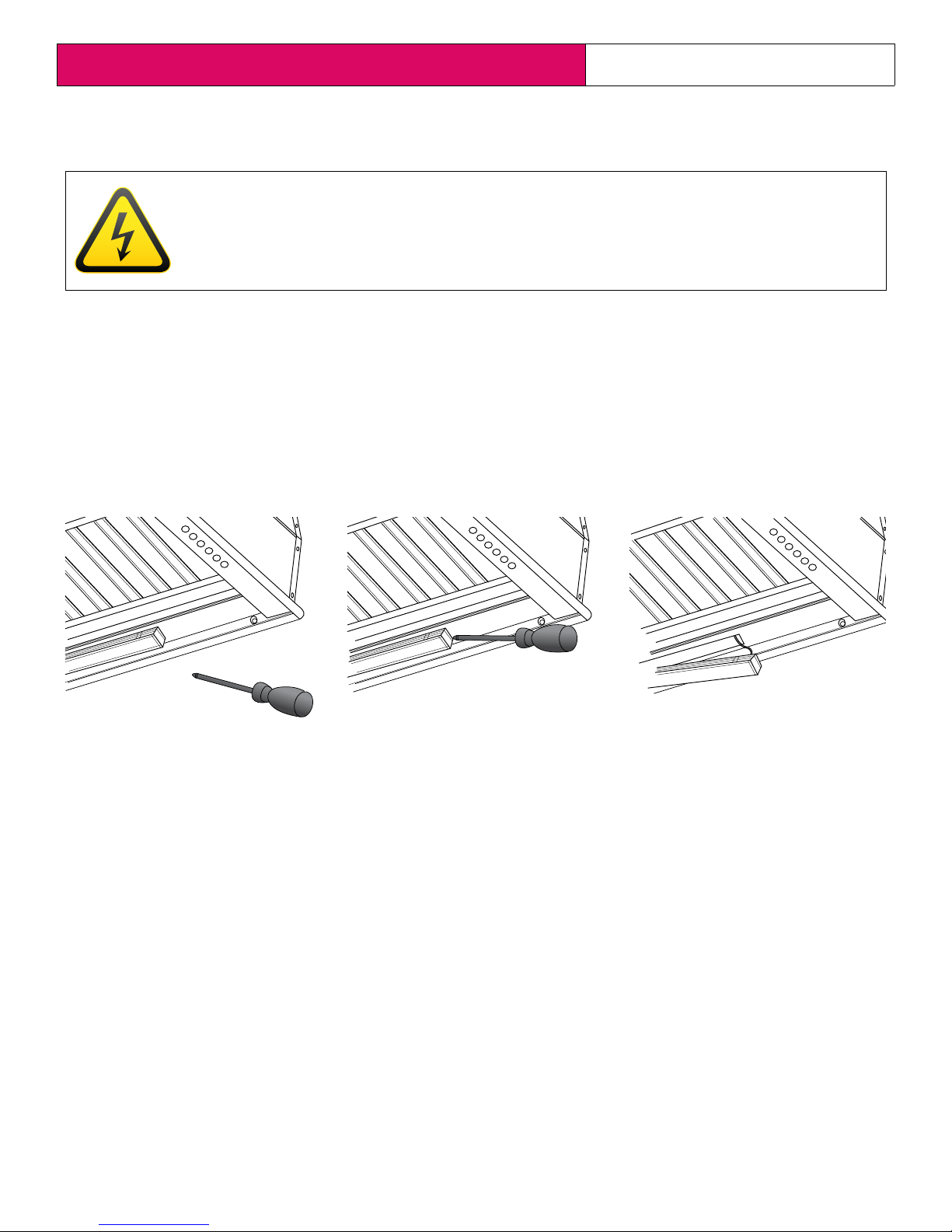

Replacing the Light Bulb
Step 2
Using the appropriate tools remove
the LED light strip from its slot.
Note: Please take extra care, and
make sure you do not damage the
rangehood.
Step 3
Take out the LED light strip from
its connector and replace. When
reinserting the LED strip gently
clip it back in place.
Step 1
Before replacing the LED lights,
please switch o the unit.
DANGER
Always switch o and disconnect the power cord before replacing any light bulbs. Failure to
do so may cause serious injury. Please be aware that the light bulb will retain heat for a short
period of time after being switched o.

Cooking with Induction Cooktops
Cooking with an induction or similar cooktop, may produce condensation on the rangehood.
Unlike basic electric or gas cooking, induction cooktops heat food and liquid instantly, which in turn, produces vapours
rapidly. Because of this faster process, the rangehood lters do not have enough time to warm, which increases the
chance of condensation forming.
There are many variables that may contribute to condensation forming, some of which include but are not limited to:
• Variance in climate – geographical location
• Position of your home & kitchen – morning/afternoon sun
• Distance from cooktop to the rangehood
• Speed of food & liquid heating
• Angle of ducting – Schweigen ‘S’ bend preferred
• Filter size - larger canopy preferred
• Quality of pots or cookware you are using – high quality recommended
How to reduce the possibility of condensation forming:
• Ensure the rangehood is installed by a qualied professional, carefully following installation guide
• Turn on the rangehood 5-10 minutes prior to cooking, and leave on for 5-10 minutes after cooking; this helps
clear remaining vapours from the ue.
• Start the cooking process at a low-to-medium setting and allow time for the rangehood to become warm.
• Clean lters regularly.
• Ensure constant airow in the cooking zone; this helps optimise the rate of extraction.
• Follow all induction cooktop manufacturer advice.
For further advice, tips or information regarding cooking with induction, please contact the induction cooktop
manufacturer.
5. Maintenance
Page 16
Calling the Technical Assistance Service Hotline
In the event that the failure is not due to the faults mentioned in Trouble Shooting, contact
Customer Service.
In Australia, Customer Service 1300 829 066
In New Zealand, Customer Service 0800 200 510
Lodging an online Service Request
In the event that failure is not due the reason/s in the trouble shooting section, you can lodge
an online Service Request.
To lodge a Service Request, visit our website www.schweigen.com.au/pages/support/service-warranty and
click on the link to download the service request form.

5. Maintenance
Page 17
Troubleshooting
If the product does not work:
Before you contact the technical service department, make sure that the product is plugged in, the electric fuse
(on selected models) is in correctly and electric wiring is connected. (Fuses can be purchased from your local
electrical dealer or hardware store). Weak air suction may be caused by back draft ns remaining closed. Do not
take any action that will damage the product.
Check electric connection. Voltage of the electric network should be between 220 - 240V, rangehood should be connected to grounded plug. Check motor switch. Please ensure that there is power to the rangehood and the rangehood is switched on. Check lamp switch. Lamp switch should be at on position. Check metal lter. Metal lter should be washed once a month at normal operating conditions. Check lamps. Lamps should be rm. Check outlet. Outlet should be open. Check lamps and fuse. Make sure they are not broken or faulty. Please make sure there is no obstruction in ducting.
Rangehood does not work X X
Light does not work X X X X
Rangehood air suction is weak X X
Rangehood does not direct air out
(through chimney) X X
A service request will require the following information:
• The purchase date
• The rangehood model and motor type (eg. Isodrive 650)
• The rangehood serial number or batch number (this number is on a sticker inside the rangehood)
• A copy of the purchase receipt (without a receipt your service request cannot be processed)
Faulty Installation
It is not the responsibility of Schweigen Home Appliances to rectify any incorrect installations. A service call
out fee will be charged for any Schweigen technician that attends a call, whereby it is established that the
fault is due to an incorrect installation or non-manufacturing fault. Should the appliance be installed in such
a way that the service agent is unable to gain access to the appliance, the person/s who own the premises
where the appliance resides — will be responsible to provide access to the appliance at their expense.

Page 18
6. Specications
850
355
355
355
355
70 70
70
70
100
255
705
825
320
280
Technical Specications
Model HN-2OC
Feeding Voltage 220-240V 50Hz
Lamp Power 1 LED Strip x 10.5W
Weight 20kg
850
100
255
705
40
100
100
40
215
215
200
200
825
320
280

Page 19
7. Disclaimer
Under our policy of continuous product development, product specications may change without notice.
Prospective purchasers should therefore check with the retailer to ensure this publication correctly describes
the products being oered for sale. All information supplied is to be used for general reference purposes only
and is on the understanding that Schweigen Home Appliances will not be liable for any loss, liability or damage
of whatever kind arising as a result of any reliance upon such information. All pictures used in the guide are for
illustrative purposes only.
The symbol on the product or its packaging indicates that it cannot be treated
as normal household waste. Take this product to your nearest electrical and
electronic equipment waste point for recycling. By correctly disposing of this
product, you will be helping to prevent potentially negative consequences
for the environment and public health, which could arise if this product is
not handled in the appropriate way. For more details about the recycling of
this product please contact the authorities of your city or town, your local
household waste service or the store where you purchased the product.

1.
Distributed by Axis Group International Pty Ltd.
ACN 124 141 322
Australia 8/3-4 Anzed Court, Mulgrave 3170 Victoria. Phone [phone]
Email [e-mail] Web www.schweigen.com.au
New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone [phone]
Email info.par[email protected] Web www.parex.co.nz
