Schweigen WM-LIN9S User manual
INSTRUCTION MANUAL
WALLMOUNTED RANGEHOODS
(12.2016 / V1.0)
Installation / Operation / Maintenance
Page 2
WELCOME
Thank you for purchasing this Schweigen IN
appliance.
To achieve the optimal performance from your
appliance, and to avoid the risk of accident or
damage, it is essential to read this manual before
This guide contains important information on the
use and maintenance of the appliance, as well as
important safety notes.
Your appliance has been thoroughly checked for
safety and functionality before being packaged
and leaving the manufacturer.
Please keep this instruction manual in a safe
place so you can refer to it at any time.
IMPORTANT!
The appliance should only be
operated when you have read and
understood this manual thoroughly.
The appliance can be only used for the
purpose for which it was designed.
Any other use is improper and can be
dangerous.
Installation and maintenance
electrical appliances should only
authorised professionals familiar
with Australian Appliance Industry
regulations.
Upon collection or delivery of your
appliance, any damage or defects
must be reported within 48 hours
to your retailer or Schweigen
Customer Service, in order to
recognise any claim.
The manufacturer reserves the right
to introduce product improvements,
the appliance.
Page 3
Important safety information................................................................................................................4
Description................................................................................................................................................ 7
Installation ................................................................................................................................................8
Operation ................................................................................................................................................ 15
Cleaning and maintenance................................................................................................................... 17
Troubleshooting.....................................................................................................................................20
........................................................................................................................23
Disclaimer................................................................................................................................................24
Page 4
Please read the instructions carefully.
Only then will you be able to operate your
appliance safely and correctly. Retain the
instruction manual for future use or for
subsequent owners.
Check the appliance for damage after
unpacking it. Do not connect or install
the appliance if it has been damaged in
transport.
Any damage must be reported within
48 hours.
There must be adequate ventilation in the
room when the rangehood is used at the
same time as appliances burning gas or
other fuels.
that is used for exhausting fumes from
appliances burning gas or other fuels.
Air exhaust systems must be installed in
accordance with local and federal laws.
not carried out in conjunction with the
instructions.
under the rangehood. This will damage the
rangehood and will void warranty.
rangehood.
contained at all times and cannot exceed
the width of the pan in use.
Do not leave any packaging material (bags,
corner brackets etc.) within reach of
children.
This appliance is not intended for use by
person/s (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and/or knowledge.
Unless, the person is given supervision or
instruction concerning the safe usage of
the appliance by person/s responsible for
their safety. Children must be supervised
to ensure that they do not play with the
appliance, it is not a toy.
Accessible parts may become hot when
used with cooking appliances.
maintenance, disconnect the rangehood
from the mains power, using the
respective mains or sector switch, or by
unplugging it.
Do not use the rangehood without the
the recommended cleaning frequencies.
It is forbidden to use the rangehood as an
aspirator.
Page 5
BEFORE INSTALLATION
We recommend this appliance be installed
Appliances technician.
Please see our website www.
schweigen.com.au for a list of our
recommended installers.
It is dangerous to modify any part of this
immediately void the warranty.
The manufacturer declines all
responsibility in case of failure to adopt
proper safety measures.
Ensure that the location in which this
appliance is installed, has good and
permanent ventilation.
Please consult local laws and regulations
and install in accordance.
Please use an earthed electrical connector
that coincides with relevant local laws and
regulations.
Check that the power voltage in your area
corresponds to the appliance voltage
indicated on the rating label.
This appliance must be connected to an
electrical supply that has a grounded
connection.
Check that the indicated instructions and
local regulations are met and carried out
that are complaint with the applicable
legislation.
Schweigen will not be responsible for any
technicians that fail to heed the applicable
legislation on electrical safety.
The electrical technical data can be found
inside the rangehood, after removing the
already connected internally and emerges
from the rangehood near the air outlet
tube.
Before installing the electrical
connections, you should:
• Verify that the indicated electrical data
coincides with the voltage values and
frequency of the electrical circuit in the
house where the rangehood is to be
installed.
• Check that the premises has electrical
protection against short circuits and
electrocution.
•
the double-pole switch (mains power
switch). The power can only be turned
on for normal use, once the operation
has been completed.
• Ensure the supply cord is not exposed
to heat, chemicals or sharp objects. If
the supply cord is damaged, it must be
replaced by the manufacturer, service
order to avoid a hazard.
Page 6
Rangehood smaller than
cooking zone
INADEQUATE
Rangehood same size as
cooking zone
ADEQUATE
Rangehood larger than
cooking zone
OPTIMAL
MATCH THE RANGEHOOD SIZE TO YOUR COOKTOP
PRODUCT USE
The Rangehood has one mode of
operation:
Air extraction: The air is drawn in by the
check the cleaning and maintenance
section for advice on
This product is designed for household
use and must not be used for commercial
applications.
After use, always ensure that all controls
rangehood.
unplug the connection before conducting
maintenance or cleaning.
Respect the cleaning frequencies
otherwise, the accumulated grease could
Changes made to the steel surface will
render the warranty invalid.
In addition to the size of the rangehood,
the height of the rangehood above the
cooktop is important to obtain the best
performance.
Mounting Laws and Regulations.
Page 7
Rangehood
1.
2.
3.
4. Single Outlet 200mm
5.
6. Connect to the Isodrive motor system
7. Male Plug (Connect to Mains Power 240V
10 Amp)
8.
10. Screw Pack
11. LED light globe
12. LED strip
13.
NOTE:
model to model.
1
2
3
4
5
7
6
89
10 11
12 13
DESCRIPTION
Page 8
INSTALLATION
DANGER
All electrical wiring from the motor to
the rangehood should be kept inside
the roof space.
SYSTEM OVERVIEW
1. Isodrive Motor
2. Roof Seal Kit (Dektite)*
3. Support Straps*
4.
cable tie or ring clamp. Please DO NOT rip the
ducting.
5. Isodrive Motor Power Lead (Male Plug)
6. Rangehood to Isodrive Motor Lead
7. Main Power Lead (Male Plug, 10 Amp)
8.

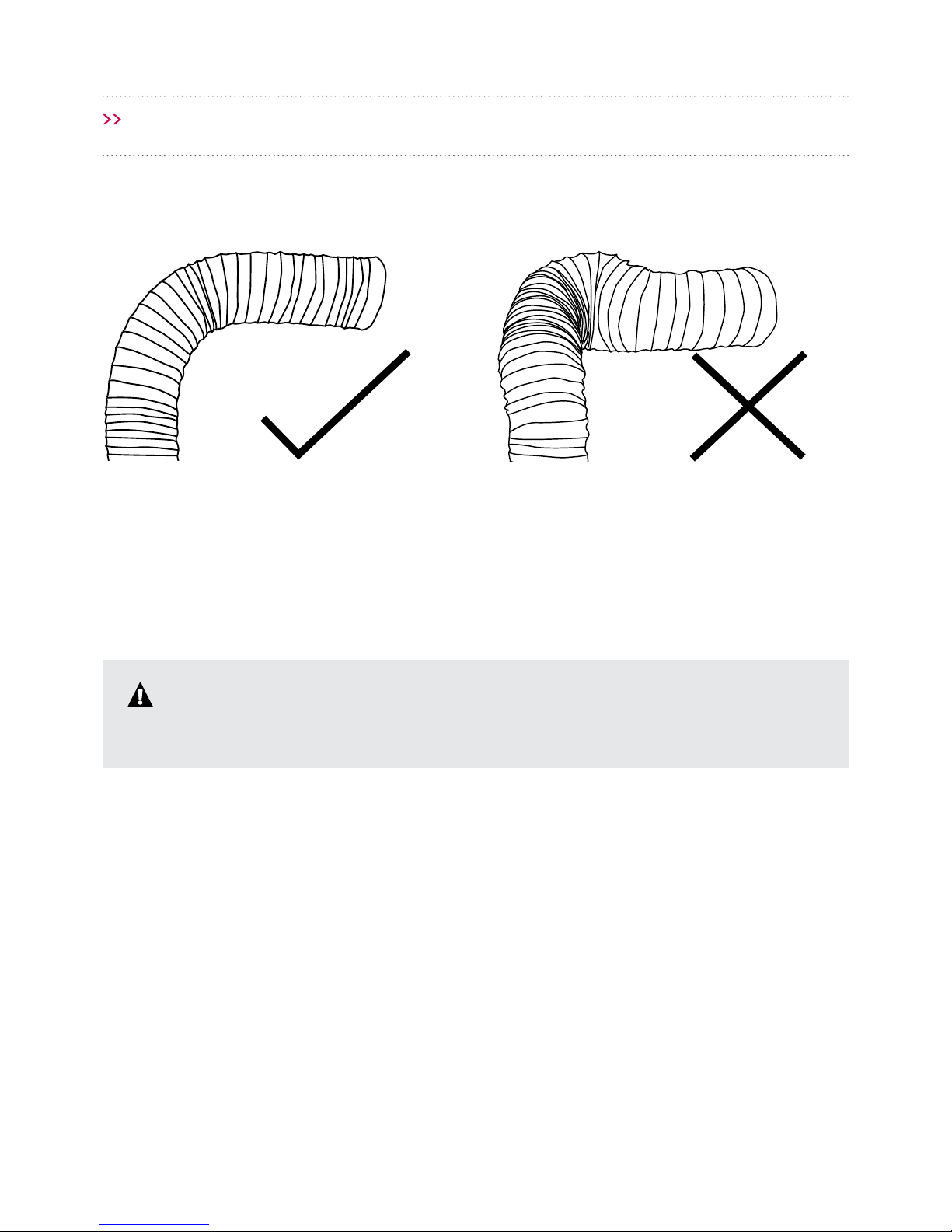

DO NOT crush or kink the ducting.
rangehood using cable tie or ring clamp.
Please DO NOT rip the ducting.
*NOTE: The Isodrive motor system does not
include the roof seal kit, cable ties, ring clamp
or the support straps.
NOTE: The general power outlet for the rangehood
should be located in an easy to access area.
Pictures are for illustrative purposes only, not to scale.
1
2
3
4
56
7
9
8
MOUNTING LAWS AND REGULATIONS
• The location of the installation must have permanent openings for ventilation.
•
• It is STRONGLY RECOMMENDED that the rangehood be installed centrally over the cooktop, this will greatly
improve its performance.
Minimum and maximum heights (cooktop-to-canopy) are legally required, and
recommended for optimum rangehood performance in an indoor kitchen
Type of Cooktop Min. Height Max. Height Notes
Electric 650mm 750 to 800mm –
Gas 650mm 750 to 800mm –
INSTALLATION HEIGHT FOR INDUCTION COOKTOP
Type of Cooktop Min. Height* Max. Height Notes
Induction 700mm 800mm -
DANGER
INSTALLATION
See Mounting Laws
and Regulations
Measurements are taken from the top of the
trivets to the lowest part of the rangehood.
* IMPORTANT
Please check all State and
the minimum and maximum
installation height, and the
regulations concerning the
expelling of air, and install your
rangehood in accordance.
Page 10
INSTALLATION
ATTACHING THE COMPUTER BOARD
AND WIRING BRACKET CERTAIN
MODELS ONLY
connect the computer board and wiring bracket to
the main body of the rangehood.
1. Attach the computer board to the outlet box
using the screws provided.
2. Position the computer board facing out from
secure using screws provided.
NOTE: Some of the models only have two
screw holes.
Figure A
Figure B
Align all the screw holes
INSTALLATION
Page 11
INSTALLING THE RANGEHOOD
A — Rangehood levelling screw points
C — Second rangehood screw points
D — Main support bracket
NOTE: Some models might need the
computer board and wiring bracket
to be attached, see page 10 .
B
A
D
C
Step 1
Measure the position on the wall where the
bracket is to be inserted following the height
recommendations indicated in the mounting laws
and regulations section.
Draw a line and mark the position of the holes that
D) to
a supporting beam.
Step 2
Once secured using the screws (B), hang the
rangehood onto the main support bracket.
D
B
INSTALLATION
Page 12
Step 3
Using a leveller, level the rangehood using
screws (A).
C) using
the appropriate screws.
Step 4
rangehood outlet to the Isodrive motor.
Step 5
NOTE:
computer board.
A
C
INSTALLATION
Page 13
Figure 1
Figure 2
Figure 3
Step 6
Install the wall ue bracket.
1.
2. Install the bracket to the wall at the correct
3.
IMPORTANT
Please ensure all plastic
protection on the rangehood and
INSTALLATION
Page 14
ISODRIVE MOTOR SETUP
NOTE
Please refer to the Isodrive motor installation guide for more details on
exi ducting and Isodrive motor installation.
FLEXIBLE DUCTING INSTALLATION
system. Ducting must be kept taut at all times.
1300 829 066.
Page 15
OPERATION
To obtain the best performance, switch the
rangehood on a few minutes prior to cooking and
leave it running for at least 10 minutes after you
The buttons have the following functions:
A.- Timer: When this function is activated, the
rangehood continues to operate for 10-15 minutes
at the required speed and then automatically
B.- Increase speed: This button increases the
aspiration speed. When at maximum speed, the
C.- ON / OFF: This button turns the rangehood on
D.- Reduce speed: This button reduces the
aspiration speed. When in operation, the low speed
button will be blue.
E.- Light: Press this button to turn the lights on
button is blue.
This rangehood has a device that lets you know
When the light button (E)
operation).
hold the light button (E) down for a few seconds to
reset it and return the counter down to zero.
AC D E
Electronic Controls
Model WM-LIN9S.
The rangehood has a 4-speed electronic keypad.
Speed control usage suggestions:
• Low speed for simmering.
• Medium speed for light cooking.
•
OPERATION
Page 16
Electronic Touch Controls
Models KLS-ALBW9S and KLS-ALBB9S.
The rangehood has a 4-speed electronic keypad.
Speed control usage suggestions:
• Low speed for simmering.
• Medium speed for light cooking.
•
To obtain the best performance, switch the
rangehood on a few minutes prior to cooking and
leave it running for at least 10 minutes after you
The buttons have the following functions:
A.- Light switch: Press this switch to turn the
B.- ON / OFF / button – speed one: This button
starts to operate at speed one.
C. D. E.- Speeds 2, 3 and 4, respectively.
F.- Timer: When the timer mode is in operation,
the timer button light will remain on. When this
button is pressed, the rangehood will continue to
operate for 10-15 minutes at the required speed,
This rangehood has a device that lets you know
the timer button (F)
operation).
hold the timer button (F) down for a few seconds
to reset it and return the counter down to zero.
AC D E
Page 17
FILTERS
•
maintenance is a must.
•
particles emitted during cooking.
•
•
after 40 hours of use.
• Disconnect the electrical connection before any
maintenance or cleaning processes are carried
out.
• In ceiling-mounted rangehoods, the doors or
glass must be opened before accessing the
•
rear of the rangehood (removing the pins from
the front guide), ease down slightly and remove.
To replace, perform the same operation but in
•
Aspiration System periodical cleaning is
removed by taking out the 6 screws shown in
installing back to the rangehood.
•
frequency of use.
•
dishwasher
Washing by hand -
water and a suitable detergent, when clean,
rinse with plenty of hot water.
Dishwasher -
and select a short program at low temperature.
NOTE:
change after several washes. This is normal and
WARNING
Cleaning and user maintenance shall not be made by children without supervision.
CLEANING AND MAINTENANCE
Latch A
Catch A
Figure 1 Figure 2 Balanced Aspiration Plate
1
4
2
5
3
6
CLEANING AND MAINTENANCE
Page 18
SURFACES
The surface of the rangehood can be cleaned with
warm soapy water and a soft sponge / cloth.
• Never use abrasive detergents, scouring pads,
steel wool or solvents on ANY part of this
appliance.
• Rinse with clean water and ensure that the
appliance is completely dry after cleaning.
•
cleaning and protection products (eg. Steel
Kleen) to clean your rangehood.
• Always make sure the appliance is completely
dry after cleaning and never leave wet, this may
cause irreparable damage.
It is important to follow the direction of the surface
Do not pour any liquid directly onto the rangehood,
The cloth must have no buttons, zips or fasteners
that can scratch the surface.
It is strictly forbidden to use chemical solvents,
aggressive, grainy or abrasive products, naphtha,
alcohol or similar products that could damage the
surface of the rangehood.
The manufacturer will not be held responsible for
functional or aesthetic damage caused by using
inadequate cleaning methods.
Cleaning the Interior
Clean the interior of the rangehood with a damp
cloth and a neutral detergent or denatured alcohol.
NOTE: Do not use denatured alcohol on the
exterior of the rangehood. Do not clean the electric
parts or the motor with liquids or solvents.
TYPE 1 (LED Spot) & 2 (GLED Square):
REPLACING THE LED BULB
The life span of an LED bulb is at least 10 times that
of a halogen bulb. If the globe needs to be replaced,
proceed as follows:
1. Unplug the respective connector (A).
2.
3. Remove the LED.
4. Put in the new LED and reinstall, as above, but
in reverse order.
A A
B B
Your rangehood may have multiple light types, please refer to the pictures below for light replacement.
Type 1 — LED Spot Type 2 — GLED Square
DANGER
so may cause serious injury. Please be aware that the light bulb may retain heat for
REPLACING THE LIGHTS
CLEANING AND MAINTENANCE
1
2
3
TYPE 3:
REPLACING THE HALOGEN OR LED
BULB MAX 20W, 12V
1.
2.
3. Insert a new 12V halogen bulb as indicated (2)
and (3), 50W maximum.
4. Close the light cover by pressing the part where
NOTE: Never handle the glass of the lamp with
bare hands. Use a cloth or wear gloves when
handling the bulb to avoid contact with skin.
TYPE 4 :
REPLACING THE FLUORESCENT TUBE
1.
plate by taking out the 6 screws, see page 17.
2. Remove the top section by removing the 4 screws
at the front and loosening the 3 inner screws.
3.
4. Insert the new tube as explained above but in
reverse order.
Type 4 — Fluorescent TLS FBT
Type 3 — Halogen G4 HD, LED G4
1
2
3
4
5
7
6
89
10 11
12 13
Page 20
COOKING WITH INDUCTION
COOKTOPS
Cooking with an induction or similar cooktop,
may produce condensation on the rangehood.
Unlike basic electric or gas cooking, induction
cooktops heat food and liquid instantly, which in
have enough time to warm up, which increases the
chance of condensation forming.
There are many variables that may contribute
to condensation forming, some of which include
but are not limited to:
• Variance in climate – geographical location.
• Position of your home & kitchen – morning/
afternoon sun.
• Distance from cooktop to the rangehood.
• Speed of food & liquid heating.
•
•
• Quality of pots or cookware you are using –
high quality is recommended.
How to reduce the possibility of condensation
forming:
•
professional, carefully following the installation
guide.
• Turn on the rangehood 5-10 minutes prior to
cooking, and leave on for 5-10 minutes after
cooking; this helps clear remaining vapours
• Start the cooking process at a low-to-medium
setting and allow time for the rangehood to
become warm.
•
•
helps optimise the rate of extraction.
•
advice.
• Install at recommended height above induction
cooktop.
with induction, please contact the induction
cooktop manufacturer.
This manual suits for next models
2
Table of contents
Other Schweigen Ventilation Hood manuals
Schweigen
Schweigen UM-12UMS User manual
Schweigen
Schweigen KLS-3131RS User manual
Schweigen
Schweigen UM1170-6S1 User manual
Schweigen
Schweigen DS3326-9S User manual
Schweigen
Schweigen CL7272S User manual
Schweigen
Schweigen TRI-900 User manual
Schweigen
Schweigen EV-9UCQ User manual
Schweigen
Schweigen NAUM-9 User manual
Schweigen
Schweigen PREMIER PA20 User manual
Schweigen
Schweigen SCC1200-SP User manual
Schweigen
Schweigen DS3170-9S User manual
Schweigen
Schweigen UM1390-9S User manual
Schweigen
Schweigen SCC1000-S User manual
Schweigen
Schweigen WM2190-9S User manual
Schweigen
Schweigen UM1000-1S User manual
Schweigen
Schweigen CL8912 User manual
Schweigen
Schweigen DS3326B-9S User manual
Schweigen
Schweigen SCC1000B-S User manual
Schweigen
Schweigen UM422G-12S User manual
Schweigen
Schweigen GG-901B User manual
Popular Ventilation Hood manuals by other brands
Atag
Atag WV9111LM Instructions for use and installation
VALBERG
VALBERG CIH 60 EGK 302C Instructions for use
Best
Best K7788 user manual
Broan
Broan 613004 Series instructions
Cata
Cata TFB-5060 Installation, use and maintenance instructions
Fisher & Paykel
Fisher & Paykel HC36DTXB2 Installation instructions & user guide
Sirius Range Hoods
Sirius Range Hoods SU107 installation instructions
Gorenje
Gorenje INFINITY WHT68INI manual
Frigidaire
Frigidaire PL36PC50EC manual
Bosch
Bosch DWF97RV20 Instructions for installation and use
KitchenAid
KitchenAid Pro-Line KICV167RMT0 Installation Instructions and Use & Care Guide
NODOR
NODOR ISLA ARCO BLACK Manual for the installation, use and maintenance
