Scotch Brand 5.1.10 User manual

Scotch and libScotch 5.1 User’s Guide
(version 5.1.10)
Fran¸cois Pellegrini
Bacchus team, INRIA Bordeaux Sud-Ouest
ENSEIRB & LaBRI, UMR CNRS 5800
Universit´e Bordeaux I
351 cours de la Lib´eration, 33405 TALENCE, FRANCE
[e-mail]
August 29, 2010
Abstract
This document describes the capabilities and operations of Scotch and
libScotch, a software package and a software library devoted to static
mapping, partitioning, and sparse matrix block ordering of graphs and
meshes/hypergraphs. It gives brief descriptions of the algorithms, details
the input/output formats, instructions for use, installation procedures, and
provides a number of examples.
Scotch is distributed as free/libre software, and has been designed such
that new partitioning or ordering methods can be added in a straightforward
manner. It can therefore be used as a testbed for the easy and quick coding
and testing of such new methods, and may also be redistributed, as a library,
along with third-party software that makes use of it, either in its original or
in updated forms.
1

Contents
1 Introduction 6
1.1 Static mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 Sparse matrix ordering . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 Contents of this document . . . . . . . . . . . . . . . . . . . . . . . . 7
2 The Scotch project 7
2.1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Availability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Algorithms 8
3.1 Static mapping by Dual Recursive Bipartitioning . . . . . . . . . . . 8
3.1.1 Static mapping . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1.2 Cost function and performance criteria . . . . . . . . . . . . . 8
3.1.3 The Dual Recursive Bipartitioning algorithm . . . . . . . . . 9
3.1.4 Partial cost function . . . . . . . . . . . . . . . . . . . . . . . 11
3.1.5 Execution scheme . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1.6 Graph bipartitioning methods . . . . . . . . . . . . . . . . . . 12
3.1.7 Mapping onto variable-sized architectures . . . . . . . . . . . 15
3.2 Sparse matrix ordering by hybrid incomplete nested dissection . . . 15
3.2.1 Minimum Degree . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.2.2 Nested dissection . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.2.3 Hybridization . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.2.4 Performance criteria . . . . . . . . . . . . . . . . . . . . . . . 16
3.2.5 Ordering methods . . . . . . . . . . . . . . . . . . . . . . . . 17
3.2.6 Graph separation methods . . . . . . . . . . . . . . . . . . . . 18
4 Updates 18
4.1 Changes from version 4.0 . . . . . . . . . . . . . . . . . . . . . . . . 18
4.2 Changes from version 5.0 . . . . . . . . . . . . . . . . . . . . . . . . 19
5 Files and data structures 19
5.1 Graph files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.2 Mesh files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.3 Geometry files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.4 Target files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.4.1 Decomposition-defined architecture files . . . . . . . . . . . . 23
5.4.2 Algorithmically-coded architecture files . . . . . . . . . . . . 24
5.4.3 Variable-sized architecture files . . . . . . . . . . . . . . . . . 25
5.5 Mapping files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.6 Ordering files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.7 Vertex list files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6 Programs 27
6.1 Invocation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.2 Using compressed files . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.3 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.3.1 acpl . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.3.2 amk * . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.3.3 amk grf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.3.4 atst . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2

6.3.5 gcv . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.3.6 gmap /gpart . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
6.3.7 gmk * . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
6.3.8 gmk msh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
6.3.9 gmtst . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
6.3.10 gord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
6.3.11 gotst . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
6.3.12 gout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
6.3.13 gtst . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
6.3.14 mcv . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
6.3.15 mmk * . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.3.16 mord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.3.17 mtst . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
7 Library 46
7.1 Calling the routines of libScotch . . . . . . . . . . . . . . . . . . . 47
7.1.1 Calling from C . . . . . . . . . . . . . . . . . . . . . . . . . . 47
7.1.2 Calling from Fortran . . . . . . . . . . . . . . . . . . . . . . . 47
7.1.3 Compiling and linking . . . . . . . . . . . . . . . . . . . . . . 48
7.1.4 Machine word size issues . . . . . . . . . . . . . . . . . . . . . 49
7.2 Data formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
7.2.1 Architecture format . . . . . . . . . . . . . . . . . . . . . . . 50
7.2.2 Graph format . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
7.2.3 Mesh format . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
7.2.4 Geometry format . . . . . . . . . . . . . . . . . . . . . . . . . 54
7.2.5 Block ordering format . . . . . . . . . . . . . . . . . . . . . . 56
7.3 Strategy strings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
7.3.1 Using default strategy strings . . . . . . . . . . . . . . . . . . 57
7.3.2 Mapping strategy strings . . . . . . . . . . . . . . . . . . . . 58
7.3.3 Graph bipartitioning strategy strings . . . . . . . . . . . . . . 59
7.3.4 Ordering strategy strings . . . . . . . . . . . . . . . . . . . . 63
7.3.5 Node separation strategy strings . . . . . . . . . . . . . . . . 66
7.4 Target architecture handling routines . . . . . . . . . . . . . . . . . . 70
7.4.1 SCOTCH archInit . . . . . . . . . . . . . . . . . . . . . . . . . 70
7.4.2 SCOTCH archExit . . . . . . . . . . . . . . . . . . . . . . . . . 70
7.4.3 SCOTCH archLoad . . . . . . . . . . . . . . . . . . . . . . . . . 70
7.4.4 SCOTCH archSave . . . . . . . . . . . . . . . . . . . . . . . . . 71
7.4.5 SCOTCH archName . . . . . . . . . . . . . . . . . . . . . . . . . 71
7.4.6 SCOTCH archSize . . . . . . . . . . . . . . . . . . . . . . . . . 72
7.4.7 SCOTCH archBuild . . . . . . . . . . . . . . . . . . . . . . . . 72
7.4.8 SCOTCH archCmplt . . . . . . . . . . . . . . . . . . . . . . . . 73
7.4.9 SCOTCH archCmpltw . . . . . . . . . . . . . . . . . . . . . . . 73
7.4.10 SCOTCH archHcub . . . . . . . . . . . . . . . . . . . . . . . . . 74
7.4.11 SCOTCH archMesh2D . . . . . . . . . . . . . . . . . . . . . . . 74
7.4.12 SCOTCH archMesh3D . . . . . . . . . . . . . . . . . . . . . . . 75
7.4.13 SCOTCH archTleaf . . . . . . . . . . . . . . . . . . . . . . . . 75
7.4.14 SCOTCH archTorus2D . . . . . . . . . . . . . . . . . . . . . . . 76
7.4.15 SCOTCH archTorus3D . . . . . . . . . . . . . . . . . . . . . . . 76
7.5 Graph handling routines . . . . . . . . . . . . . . . . . . . . . . . . . 77
7.5.1 SCOTCH graphInit . . . . . . . . . . . . . . . . . . . . . . . . 77
7.5.2 SCOTCH graphExit . . . . . . . . . . . . . . . . . . . . . . . . 77
3

7.5.3 SCOTCH graphFree . . . . . . . . . . . . . . . . . . . . . . . . 77
7.5.4 SCOTCH graphLoad . . . . . . . . . . . . . . . . . . . . . . . . 78
7.5.5 SCOTCH graphSave . . . . . . . . . . . . . . . . . . . . . . . . 79
7.5.6 SCOTCH graphBuild . . . . . . . . . . . . . . . . . . . . . . . 79
7.5.7 SCOTCH graphBase . . . . . . . . . . . . . . . . . . . . . . . . 80
7.5.8 SCOTCH graphCheck . . . . . . . . . . . . . . . . . . . . . . . 81
7.5.9 SCOTCH graphSize . . . . . . . . . . . . . . . . . . . . . . . . 81
7.5.10 SCOTCH graphData . . . . . . . . . . . . . . . . . . . . . . . . 82
7.5.11 SCOTCH graphStat . . . . . . . . . . . . . . . . . . . . . . . . 83
7.6 Graph mapping and partitioning routines . . . . . . . . . . . . . . . 84
7.6.1 SCOTCH graphPart . . . . . . . . . . . . . . . . . . . . . . . . 84
7.6.2 SCOTCH graphMap . . . . . . . . . . . . . . . . . . . . . . . . . 85
7.6.3 SCOTCH graphMapInit . . . . . . . . . . . . . . . . . . . . . . 86
7.6.4 SCOTCH graphMapExit . . . . . . . . . . . . . . . . . . . . . . 86
7.6.5 SCOTCH graphMapLoad . . . . . . . . . . . . . . . . . . . . . . 87
7.6.6 SCOTCH graphMapSave . . . . . . . . . . . . . . . . . . . . . . 87
7.6.7 SCOTCH graphMapCompute . . . . . . . . . . . . . . . . . . . . 88
7.6.8 SCOTCH graphMapView . . . . . . . . . . . . . . . . . . . . . . 88
7.7 Graph ordering routines . . . . . . . . . . . . . . . . . . . . . . . . . 89
7.7.1 SCOTCH graphOrder . . . . . . . . . . . . . . . . . . . . . . . 89
7.7.2 SCOTCH graphOrderInit . . . . . . . . . . . . . . . . . . . . . 90
7.7.3 SCOTCH graphOrderExit . . . . . . . . . . . . . . . . . . . . . 91
7.7.4 SCOTCH graphOrderLoad . . . . . . . . . . . . . . . . . . . . . 91
7.7.5 SCOTCH graphOrderSave . . . . . . . . . . . . . . . . . . . . . 92
7.7.6 SCOTCH graphOrderSaveMap . . . . . . . . . . . . . . . . . . 92
7.7.7 SCOTCH graphOrderSaveTree . . . . . . . . . . . . . . . . . . 93
7.7.8 SCOTCH graphOrderCheck . . . . . . . . . . . . . . . . . . . . 93
7.7.9 SCOTCH graphOrderCompute . . . . . . . . . . . . . . . . . . 94
7.7.10 SCOTCH graphOrderComputeList . . . . . . . . . . . . . . . . 94
7.8 Mesh handling routines . . . . . . . . . . . . . . . . . . . . . . . . . 95
7.8.1 SCOTCH meshInit . . . . . . . . . . . . . . . . . . . . . . . . . 95
7.8.2 SCOTCH meshExit . . . . . . . . . . . . . . . . . . . . . . . . . 96
7.8.3 SCOTCH meshLoad . . . . . . . . . . . . . . . . . . . . . . . . . 96
7.8.4 SCOTCH meshSave . . . . . . . . . . . . . . . . . . . . . . . . . 97
7.8.5 SCOTCH meshBuild . . . . . . . . . . . . . . . . . . . . . . . . 97
7.8.6 SCOTCH meshCheck . . . . . . . . . . . . . . . . . . . . . . . . 99
7.8.7 SCOTCH meshSize . . . . . . . . . . . . . . . . . . . . . . . . . 99
7.8.8 SCOTCH meshData . . . . . . . . . . . . . . . . . . . . . . . . . 100
7.8.9 SCOTCH meshStat . . . . . . . . . . . . . . . . . . . . . . . . . 101
7.8.10 SCOTCH meshGraph . . . . . . . . . . . . . . . . . . . . . . . . 102
7.9 Mesh ordering routines . . . . . . . . . . . . . . . . . . . . . . . . . . 103
7.9.1 SCOTCH meshOrder . . . . . . . . . . . . . . . . . . . . . . . . 103
7.9.2 SCOTCH meshOrderInit . . . . . . . . . . . . . . . . . . . . . 104
7.9.3 SCOTCH meshOrderExit . . . . . . . . . . . . . . . . . . . . . 105
7.9.4 SCOTCH meshOrderSave . . . . . . . . . . . . . . . . . . . . . 105
7.9.5 SCOTCH meshOrderSaveMap . . . . . . . . . . . . . . . . . . . 106
7.9.6 SCOTCH meshOrderSaveTree . . . . . . . . . . . . . . . . . . 106
7.9.7 SCOTCH meshOrderCheck . . . . . . . . . . . . . . . . . . . . . 107
7.9.8 SCOTCH meshOrderCompute . . . . . . . . . . . . . . . . . . . 107
7.10 Strategy handling routines . . . . . . . . . . . . . . . . . . . . . . . . 108
7.10.1 SCOTCH stratInit . . . . . . . . . . . . . . . . . . . . . . . . 108
4

7.10.2 SCOTCH stratExit . . . . . . . . . . . . . . . . . . . . . . . . 108
7.10.3 SCOTCH stratSave . . . . . . . . . . . . . . . . . . . . . . . . 109
7.10.4 SCOTCH stratGraphBipart . . . . . . . . . . . . . . . . . . . 109
7.10.5 SCOTCH stratGraphMap . . . . . . . . . . . . . . . . . . . . . 110
7.10.6 SCOTCH stratGraphMapBuild . . . . . . . . . . . . . . . . . . 110
7.10.7 SCOTCH stratGraphOrder . . . . . . . . . . . . . . . . . . . . 111
7.10.8 SCOTCH stratGraphOrderBuild . . . . . . . . . . . . . . . . 111
7.10.9 SCOTCH stratMeshOrder . . . . . . . . . . . . . . . . . . . . . 112
7.10.10 SCOTCH stratMeshOrderBuild . . . . . . . . . . . . . . . . . 112
7.11 Geometry handling routines . . . . . . . . . . . . . . . . . . . . . . . 113
7.11.1 SCOTCH geomInit . . . . . . . . . . . . . . . . . . . . . . . . . 113
7.11.2 SCOTCH geomExit . . . . . . . . . . . . . . . . . . . . . . . . . 113
7.11.3 SCOTCH geomData . . . . . . . . . . . . . . . . . . . . . . . . . 114
7.11.4 SCOTCH graphGeomLoadChac . . . . . . . . . . . . . . . . . . 115
7.11.5 SCOTCH graphGeomSaveChac . . . . . . . . . . . . . . . . . . 115
7.11.6 SCOTCH graphGeomLoadHabo . . . . . . . . . . . . . . . . . . 116
7.11.7 SCOTCH graphGeomLoadScot . . . . . . . . . . . . . . . . . . 116
7.11.8 SCOTCH graphGeomSaveScot . . . . . . . . . . . . . . . . . . 117
7.11.9 SCOTCH meshGeomLoadHabo . . . . . . . . . . . . . . . . . . . 118
7.11.10 SCOTCH meshGeomLoadScot . . . . . . . . . . . . . . . . . . . 118
7.11.11 SCOTCH meshGeomSaveScot . . . . . . . . . . . . . . . . . . . 119
7.12 Error handling routines . . . . . . . . . . . . . . . . . . . . . . . . . 120
7.12.1 SCOTCH errorPrint . . . . . . . . . . . . . . . . . . . . . . . 120
7.12.2 SCOTCH errorPrintW . . . . . . . . . . . . . . . . . . . . . . . 120
7.12.3 SCOTCH errorProg . . . . . . . . . . . . . . . . . . . . . . . . 120
7.13 Miscellaneous routines . . . . . . . . . . . . . . . . . . . . . . . . . . 121
7.13.1 SCOTCH randomReset . . . . . . . . . . . . . . . . . . . . . . . 121
7.14 MeTiS compatibility library . . . . . . . . . . . . . . . . . . . . . . . 121
7.14.1 METIS EdgeND . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
7.14.2 METIS NodeND . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
7.14.3 METIS NodeWND . . . . . . . . . . . . . . . . . . . . . . . . . . 123
7.14.4 METIS PartGraphKway . . . . . . . . . . . . . . . . . . . . . . 123
7.14.5 METIS PartGraphRecursive . . . . . . . . . . . . . . . . . . 124
7.14.6 METIS PartGraphVKway . . . . . . . . . . . . . . . . . . . . . 125
8 Installation 126
8.1 Thread issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
8.2 File compression issues . . . . . . . . . . . . . . . . . . . . . . . . . . 126
8.3 Machine word size issues . . . . . . . . . . . . . . . . . . . . . . . . . 127
9 Examples 127
10 Adding new features to Scotch 129
10.1 Graphs and meshes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
10.2 Methods and partition data . . . . . . . . . . . . . . . . . . . . . . . 130
10.3 Adding a new method to Scotch . . . . . . . . . . . . . . . . . . . 130
10.4 Licensing of new methods and of derived works . . . . . . . . . . . . 132
5

1 Introduction
1.1 Static mapping
The efficient execution of a parallel program on a parallel machine requires that
the communicating processes of the program be assigned to the processors of the
machine so as to minimize its overall running time. When processes have a lim-
ited duration and their logical dependencies are accounted for, this optimization
problem is referred to as scheduling. When processes are assumed to coexist simul-
taneously for the entire duration of the program, it is referred to as mapping. It
amounts to balancing the computational weight of the processes among the proces-
sors of the machine, while reducing the cost of communication by keeping intensively
inter-communicating processes on nearby processors. In most cases, the underlying
computational structure of the parallel programs to map can be conveniently mod-
eled as a graph in which vertices correspond to processes that handle distributed
pieces of data, and edges reflect data dependencies. The mapping problem can then
be addressed by assigning processor labels to the vertices of the graph, so that all
processes assigned to some processor are loaded and run on it. In a SPMD con-
text, this is equivalent to the distribution across processors of the data structures
of parallel programs; in this case, all pieces of data assigned to some processor are
handled by a single process located on this processor.
A mapping is called static if it is computed prior to the execution of the program.
Static mapping is NP-complete in the general case [13]. Therefore, many studies
have been carried out in order to find sub-optimal solutions in reasonable time,
including the development of specific algorithms for common topologies such as the
hypercube [11, 21]. When the target machine is assumed to have a communication
network in the shape of a complete graph, the static mapping problem turns into the
partitioning problem, which has also been intensely studied [4, 22, 31, 33, 49]. How-
ever, when mapping onto parallel machines the communication network of which is
not a bus, not accounting for the topology of the target machine usually leads to
worse running times, because simple cut minimization can induce more expensive
long-distance communication [21, 56].
1.2 Sparse matrix ordering
Many scientific and engineering problems can be modeled by sparse linear systems,
which are solved either by iterative or direct methods. To achieve efficiency with
direct methods, one must minimize the fill-in induced by factorization. This fill-in
is a direct consequence of the order in which the unknowns of the linear system are
numbered, and its effects are critical both in terms of memory and computation
costs.
An efficient way to compute fill reducing orderings of symmetric sparse matrices
is to use recursive nested dissection [17]. It amounts to computing a vertex set S
that separates the graph into two parts Aand B, ordering Swith the highest indices
that are still available, and proceeding recursively on parts Aand Buntil their sizes
become smaller than some threshold value. This ordering guarantees that, at each
step, no non-zero term can appear in the factorization process between unknowns
of Aand unknowns of B.
The main issue of the nested dissection ordering algorithm is thus to find small
vertex separators that balance the remaining subgraphs as evenly as possible, in
order to minimize fill-in and to increase concurrency in the factorization process.
6

1.3 Contents of this document
This document describes the capabilities and operations of Scotch, a software
package devoted to static mapping, graph and mesh partitioning, and sparse matrix
block ordering. Scotch allows the user to map efficiently any kind of weighted
process graph onto any kind of weighted architecture graph, and provides high-
quality block orderings of sparse matrices. The rest of this manual is organized
as follows. Section 2 presents the goals of the Scotch project, and section 3
outlines the most important aspects of the mapping and ordering algorithms that it
implements. Section 4 summarizes the most important changes between version 5.0
and previous versions. Section 5 defines the formats of the files used in Scotch,
section 6 describes the programs of the Scotch distribution, and section 7 defines
the interface and operations of the libScotch library. Section 8 explains how
to obtain and install the Scotch distribution. Finally, some practical examples
are given in section 9, and instructions on how to implement new methods in the
libScotch library are provided in section 10.
2 The Scotch project
2.1 Description
Scotch is a project carried out at the Laboratoire Bordelais de Recherche en In-
formatique (LaBRI) of the Universit´e Bordeaux I, and now within the ScAlApplix
project of INRIA Bordeaux Sud-Ouest. Its goal is to study the applications of graph
theory to scientific computing, using a “divide and conquer” approach.
It focused first on static mapping, and has resulted in the development of the
Dual Recursive Bipartitioning (or DRB) mapping algorithm and in the study of
several graph bipartitioning heuristics [41], all of which have been implemented in
the Scotch software package [45]. Then, it focused on the computation of high-
quality vertex separators for the ordering of sparse matrices by nested dissection,
by extending the work that has been done on graph partitioning in the context
of static mapping [46, 47]. More recently, the ordering capabilities of Scotch
have been extended to native mesh structures, thanks to hypergraph partitioning
algorithms. New graph partitioning methods have also been recently added [8, 42].
Version 5.0 of Scotch is the first one to comprise parallel graph ordering rou-
tines. The parallel features of Scotch are referred to as PT-Scotch (“Parallel
Threaded Scotch”). While both packages share a significant amount of code, bea-
cuse PT-Scotch transfers control to the sequential routines of the libScotch
library when the subgraphs on which it operates are located on a single processor,
the two sets of routines have a distinct user’s manual. Readers interested in the
parallel features of Scotch should refer to the PT-Scotch 5.1 User’s Guide [43].
2.2 Availability
Starting from version 4.0, which has been developed at INRIA within the ScAlAp-
plix project, Scotch is available under a dual licensing basis. On the one hand, it
is downloadable from the Scotch web page as free/libre software, to all interested
parties willing to use it as a library or to contribute to it as a testbed for new
partitioning and ordering methods. On the other hand, it can also be distributed,
under other types of licenses and conditions, to parties willing to embed it tightly
into closed, proprietary software.
7

The free/libre software license under which Scotch 5.1 is distributed is
the CeCILL-C license [6], which has basically the same features as the GNU
LGPL (“Lesser General Public License”): ability to link the code as a library
to any free/libre or even proprietary software, ability to modify the code and to
redistribute these modifications. Version 4.0 of Scotch was distributed under the
LGPL itself.
Please refer to section 8 to see how to obtain the free/libre distribution of
Scotch.
3 Algorithms
3.1 Static mapping by Dual Recursive Bipartitioning
For a detailed description of the mapping algorithm and an extensive analysis of its
performance, please refer to [41, 44]. In the next sections, we will only outline the
most important aspects of the algorithm.
3.1.1 Static mapping
The parallel program to be mapped onto the target architecture is modeled by a val-
uated unoriented graph Scalled source graph or process graph, the vertices of which
represent the processes of the parallel program, and the edges of which the commu-
nication channels between communicating processes. Vertex- and edge- valuations
associate with every vertex vSand every edge eSof Sinteger numbers wS(vS) and
wS(eS) which estimate the computation weight of the corresponding process and
the amount of communication to be transmitted on the channel, respectively.
The target machine onto which is mapped the parallel program is also modeled
by a valuated unoriented graph Tcalled target graph or architecture graph. Vertices
vTand edges eTof Tare assigned integer weights wT(vT) and wT(eT), which
estimate the computational power of the corresponding processor and the cost of
traversal of the inter-processor link, respectively.
Amapping from Sto Tconsists of two applications τS,T :V(S)−→ V(T) and
ρS,T :E(S)−→ P(E(T)), where P(E(T)) denotes the set of all simple loopless
paths which can be built from E(T). τS,T (vS) = vTif process vSof Sis mapped
onto processor vTof T, and ρS,T (eS) = {e1
T, e2 T,...,en T}if communication channel
eSof Sis routed through communication links e1
T,e2
T, ..., en
Tof T.|ρS,T (eS)|
denotes the dilation of edge eS, that is, the number of edges of E(T) used to route
eS.
3.1.2 Cost function and performance criteria
The computation of efficient static mappings requires an a priori knowledge of the
dynamic behavior of the target machine with respect to the programs which are
run on it. This knowledge is synthesized in a cost function, the nature of which
determines the characteristics of the desired optimal mappings. The goal of our
mapping algorithm is to minimize some communication cost function, while keeping
the load balance within a specified tolerance. The communication cost function fC
that we have chosen is the sum, for all edges, of their dilation multiplied by their
weight:
fC(τS,T , ρS,T )def =X
eS∈E(S)
wS(eS)|ρS,T (eS)|.
8

This function, which has already been considered by several authors for hyper-
cube target topologies [11, 21, 25], has several interesting properties: it is easy
to compute, allows incremental updates performed by iterative algorithms, and its
minimization favors the mapping of intensively intercommunicating processes onto
nearby processors; regardless of the type of routage implemented on the target
machine (store-and-forward or cut-through), it models the traffic on the intercon-
nection network and thus the risk of congestion.
The strong positive correlation between values of this function and effective
execution times has been experimentally verified by Hammond [21] on the CM-2,
and by Hendrickson and Leland [26] on the nCUBE 2.
The quality of mappings is evaluated with respect to the criteria for quality that
we have chosen: the balance of the computation load across processors, and the
minimization of the interprocessor communication cost modeled by function fC.
These criteria lead to the definition of several parameters, which are described
below.
For load balance, one can define µmap, the average load per computational
power unit (which does not depend on the mapping), and δmap, the load imbalance
ratio, as
µmap
def
=P
vS∈V(S)
wS(vS)
P
vT∈V(T)
wT(vT)and
δmap
def
=
P
vT∈V(T)










1
wT(vT)P
vS∈V(S)
τS,T (vS) = vT
wS(vS)


−µmap







P
vS∈V(S)
wS(vS).
However, since the maximum load imbalance ratio is provided by the user in input
of the mapping, the information given by these parameters is of little interest, since
what matters is the minimization of the communication cost function under this
load balance constraint.
For communication, the straightforward parameter to consider is fC. It can be
normalized as µexp, the average edge expansion, which can be compared to µdil,
the average edge dilation; these are defined as
µexp
def
=fC
P
eS∈E(S)
wS(eS)and µdil
def
=P
eS∈E(S)
|ρS,T (eS)|
|E(S)|.
δexp
def
=µexp
µdil is smaller than 1 when the mapper succeeds in putting heavily inter-
communicating processes closer to each other than it does for lightly communicating
processes; they are equal if all edges have same weight.
3.1.3 The Dual Recursive Bipartitioning algorithm
Our mapping algorithm uses a divide and conquer approach to recursively allocate
subsets of processes to subsets of processors [41]. It starts by considering a set of
processors, also called domain, containing all the processors of the target machine,
and with which is associated the set of all the processes to map. At each step, the
algorithm bipartitions a yet unprocessed domain into two disjoint subdomains, and
9

calls a graph bipartitioning algorithm to split the subset of processes associated with
the domain across the two subdomains, as sketched in the following.
mapping (D, P)
Set_Of_Processors D;
Set_Of_Processes P;
{
Set_Of_Processors D0, D1;
Set_Of_Processes P0, P1;
if (|P| == 0) return; /* If nothing to do. */
if (|D| == 1) { /* If one processor in D */
result (D, P); /* P is mapped onto it. */
return;
}
(D0, D1) = processor_bipartition (D);
(P0, P1) = process_bipartition (P, D0, D1);
mapping (D0, P0); /* Perform recursion. */
mapping (D1, P1);
}
The association of a subdomain with every process defines a partial mapping of the
process graph. As bipartitionings are performed, the subdomain sizes decrease, up
to give a complete mapping when all subdomains are of size one.
The above algorithm lies on the ability to define five main objects:
•adomain structure, which represents a set of processors in the target archi-
tecture;
•adomain bipartitioning function, which, given a domain, bipartitions it in two
disjoint subdomains;
•adomain distance function, which gives, in the target graph, a measure of the
distance between two disjoint domains. Since domains may not be convex nor
connected, this distance may be estimated. However, it must respect certain
homogeneity properties, such as giving more accurate results as domain sizes
decrease. The domain distance function is used by the graph bipartitioning
algorithms to compute the communication function to minimize, since it allows
the mapper to estimate the dilation of the edges that link vertices which belong
to different domains. Using such a distance function amounts to considering
that all routings will use shortest paths on the target architecture, which
is how most parallel machines actually do. We have thus chosen that our
program would not provide routings for the communication channels, leaving
their handling to the communication system of the target machine;
•aprocess subgraph structure, which represents the subgraph induced by a
subset of the vertex set of the original source graph;
•aprocess subgraph bipartitioning function, which bipartitions subgraphs in
two disjoint pieces to be mapped onto the two subdomains computed by the
domain bipartitioning function.
All these routines are seen as black boxes by the mapping program, which can thus
accept any kind of target architecture and process bipartitioning functions.
10

3.1.4 Partial cost function
The production of efficient complete mappings requires that all graph bipartition-
ings favor the criteria that we have chosen. Therefore, the bipartitioning of a
subgraph S′of Sshould maintain load balance within the user-specified tolerance,
and minimize the partial communication cost function f′
C, defined as
f′
C(τS,T , ρS,T )def
=X
v∈V(S′)
{v, v′} ∈ E(S)
wS({v, v′})|ρS,T ({v, v′})|,
which accounts for the dilation of edges internal to subgraph S′as well as for the
one of edges which belong to the cocycle of S′, as shown in Figure 1. Taking into
account the partial mapping results issued by previous bipartitionings makes it pos-
sible to avoid local choices that might prove globally bad, as explained below. This
amounts to incorporating additional constraints to the standard graph bipartition-
ing problem, turning it into a more general optimization problem termed skewed
graph partitioning by some authors [27].
D0D1
D
a. Initial position.
D0D1
D
b. After one vertex is moved.
Figure 1: Edges accounted for in the partial communication cost function when
bipartitioning the subgraph associated with domain Dbetween the two subdomains
D0and D1of D. Dotted edges are of dilation zero, their two ends being mapped
onto the same subdomain. Thin edges are cocycle edges.
3.1.5 Execution scheme
From an algorithmic point of view, our mapper behaves as a greedy algorithm, since
the mapping of a process to a subdomain is never reconsidered, and at each step
of which iterative algorithms can be applied. The double recursive call performed
at each step induces a recursion scheme in the shape of a binary tree, each vertex
of which corresponds to a bipartitioning job, that is, the bipartitioning of both a
domain and its associated subgraph.
In the case of depth-first sequencing, as written in the above sketch, biparti-
tioning jobs run in the left branches of the tree have no information on the dis-
tance between the vertices they handle and neighbor vertices to be processed in
the right branches. On the contrary, sequencing the jobs according to a by-level
(breadth-first) travel of the tree allows any bipartitioning job of a given level to
have information on the subdomains to which all the processes have been assigned
at the previous level. Thus, when deciding in which subdomain to put a given pro-
cess, a bipartitioning job can account for the communication costs induced by its
11

neighbor processes, whether they are handled by the job itself or not, since it can
estimate in f′
Cthe dilation of the corresponding edges. This results in an interesting
feedback effect: once an edge has been kept in a cut between two subdomains, the
distance between its end vertices will be accounted for in the partial communication
cost function to be minimized, and following jobs will be more likely to keep these
vertices close to each other, as illustrated in Figure 2. The relative efficiency of
D
CL2
CL0
CL1
a. Depth-first sequencing.
D
CL1
CL2CL0
CL1
CL2
b. Breadth-first sequencing.

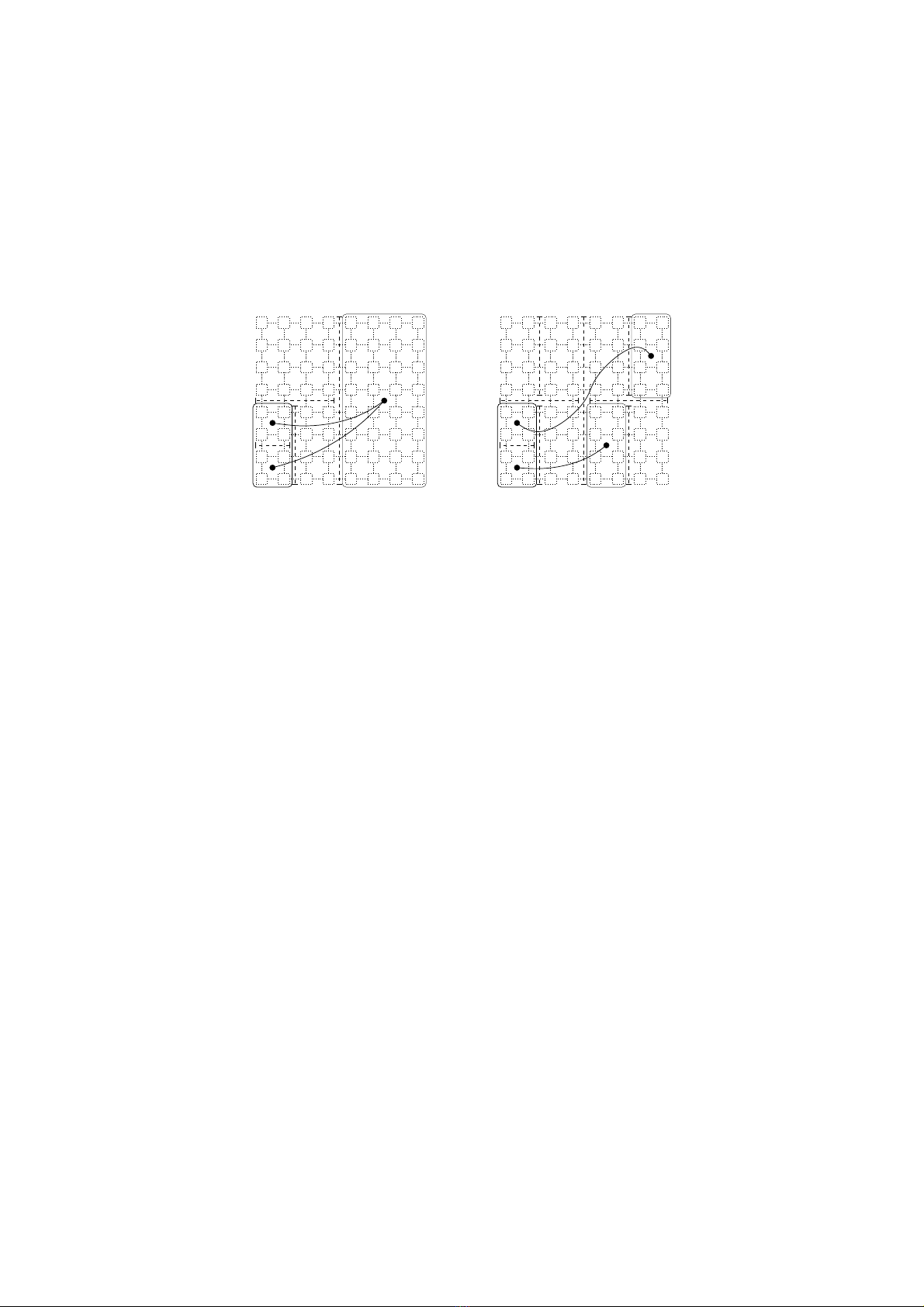

Figure 2: Influence of depth-first and breadth-first sequencings on the bipartitioning
of a domain Dbelonging to the leftmost branch of the bipartitioning tree. With
breadth-first sequencing, the partial mapping data regarding vertices belonging to
the right branches of the bipartitioning tree are more accurate (C.L. stands for “Cut
Level”).
depth-first and breadth-first sequencing schemes with respect to the structure of
the source and target graphs is discussed in [44].
3.1.6 Graph bipartitioning methods
The core of our recursive mapping algorithm uses process graph bipartitioning meth-
ods as black boxes. It allows the mapper to run any type of graph bipartitioning
method compatible with our criteria for quality. Bipartitioning jobs maintain an in-
ternal image of the current bipartition, indicating for every vertex of the job whether
it is currently assigned to the first or to the second subdomain. It is therefore possi-
ble to apply several different methods in sequence, each one starting from the result
of the previous one, and to select the methods with respect to the job character-
istics, thus enabling us to define mapping strategies. The currently implemented
graph bipartitioning methods are listed below.
Band
Like the multi-level method which will be described below, the band method
is a meta-algorithm, in the sense that it does not itself compute partitions, but
rather helps other partitioning algorithms perform better. It is a refinement
algorithm which, from a given initial partition, extracts a band graph of given
width (which only contains graph vertices that are at most at this distance
from the separator), calls a partitioning strategy on this band graph, and
projects back the refined partition on the original graph. This method was
designed to be able to use expensive partitioning heuristics, such as genetic
algorithms, on large graphs, as it dramatically reduces the problem space by
several orders of magnitude. However, it was found that, in a multi-level
context, it also improves partition quality, by coercing partitions in a problem
12

space that derives from the one which was globally defined at the coarsest
level, thus preventing local optimization refinement algorithms to be trapped
in local optima of the finer graphs [8].
Diffusion
This global optimization method, presented in [42], flows two kinds of antag-
onistic liquids, scotch and anti-scotch, from two source vertices, and sets the
new frontier as the limit between vertices which contain scotch and the ones
which contain anti-scotch. In order to add load-balancing constraints to the
algorithm, a constant amount of liquid disappears from every vertex per unit
of time, so that no domain can spread across more than half of the vertices.
Because selecting the source vertices is essential to the obtainment of use-
ful results, this method has been hard-coded so that the two source vertices
are the two vertices of highest indices, since in the band method these are
the anchor vertices which represent all of the removed vertices of each part.
Therefore, this method must be used on band graphs only, or on specifically
crafted graphs.
Exactifier
This greedy algorithm refines the current partition so as to reduce load imbal-
ance as much as possible, while keeping the value of the communication cost
function as small as possible. The vertex set is scanned in order of decreasing
vertex weights, and vertices are moved from one subdomain to the other if
doing so reduces load imbalance. When several vertices have same weight,
the vertex whose swap decreases most the communication cost function is se-
lected first. This method is used in post-processing of other methods when
load balance is mandatory. For weighted graphs, the strict enforcement of
load balance may cause the swapping of isolated vertices of small weight, thus
greatly increasing the cut. Therefore, great care should be taken when using
this method if connectivity or cut minimization are mandatory.
Fiduccia-Mattheyses
The Fiduccia-Mattheyses heuristics [12] is an almost-linear improvement of
the famous Kernighan-Lin algorithm [35]. It tries to improve the bipartition
that is input to it by incrementally moving vertices between the subsets of
the partition, as long as it can find sequences of moves that lower its commu-
nication cost. By considering sequences of moves instead of single swaps, the
algorithm allows hill-climbing from local minima of the cost function. As an
extension to the original Fiduccia-Mattheyses algorithm, we have developed
new data structures, based on logarithmic indexings of arrays, that allow us
to handle weighted graphs while preserving the almost-linearity in time of the
algorithm [44].
As several authors quoted before [24, 32], the Fiduccia-Mattheyses algorithm
gives better results when trying to optimize a good starting partition. There-
fore, it should not be used on its own, but rather after greedy starting methods
such as the Gibbs-Poole-Stockmeyer or the greedy graph growing methods.
Gibbs-Poole-Stockmeyer
This greedy bipartitioning method derives from an algorithm proposed by
Gibbs, Poole, and Stockmeyer to minimize the dilation of graph orderings,
that is, the maximum absolute value of the difference between the numbers of
neighbor vertices [18]. The graph is sliced by using a breadth-first spanning
13

tree rooted at a randomly chosen vertex, and this process is iterated by se-
lecting a new root vertex within the last layer as long as the number of layers
increases. Then, starting from the current root vertex, vertices are assigned
layer after layer to the first subdomain, until half of the total weight has been
processed. Remaining vertices are then allocated to the second subdomain.
As for the original Gibbs, Poole, and Stockmeyer algorithm, it is assumed that
the maximization of the number of layers results in the minimization of the
sizes –and therefore of the cocycles– of the layers. This property has already
been used by George and Liu to reorder sparse linear systems using the nested
dissection method [17], and by Simon in [54].
Greedy graph growing
This greedy algorithm, which has been proposed by Karypis and Kumar [31],
belongs to the GRASP (“Greedy Randomized Adaptive Search Procedure”)
class [36]. It consists in selecting an initial vertex at random, and repeatedly
adding vertices to this growing subset, such that each added vertex results
in the smallest increase in the communication cost function. This process,
which stops when load balance is achieved, is repeated several times in order
to explore (mostly in a gradient-like fashion) different areas of the solution
space, and the best partition found is kept.
Multi-level
This algorithm, which has been studied by several authors [4, 23, 31] and
should be considered as a strategy rather than as a method since it uses other
methods as parameters, repeatedly reduces the size of the graph to bipartition
by finding matchings that collapse vertices and edges, computes a partition
for the coarsest graph obtained, and projects the result back to the original
graph, as shown in Figure 3. The multi-level method, when used in conjunc-
Coarsening
phase Uncoarsening phase
Initial partitioning
Projected partition
Refined partition

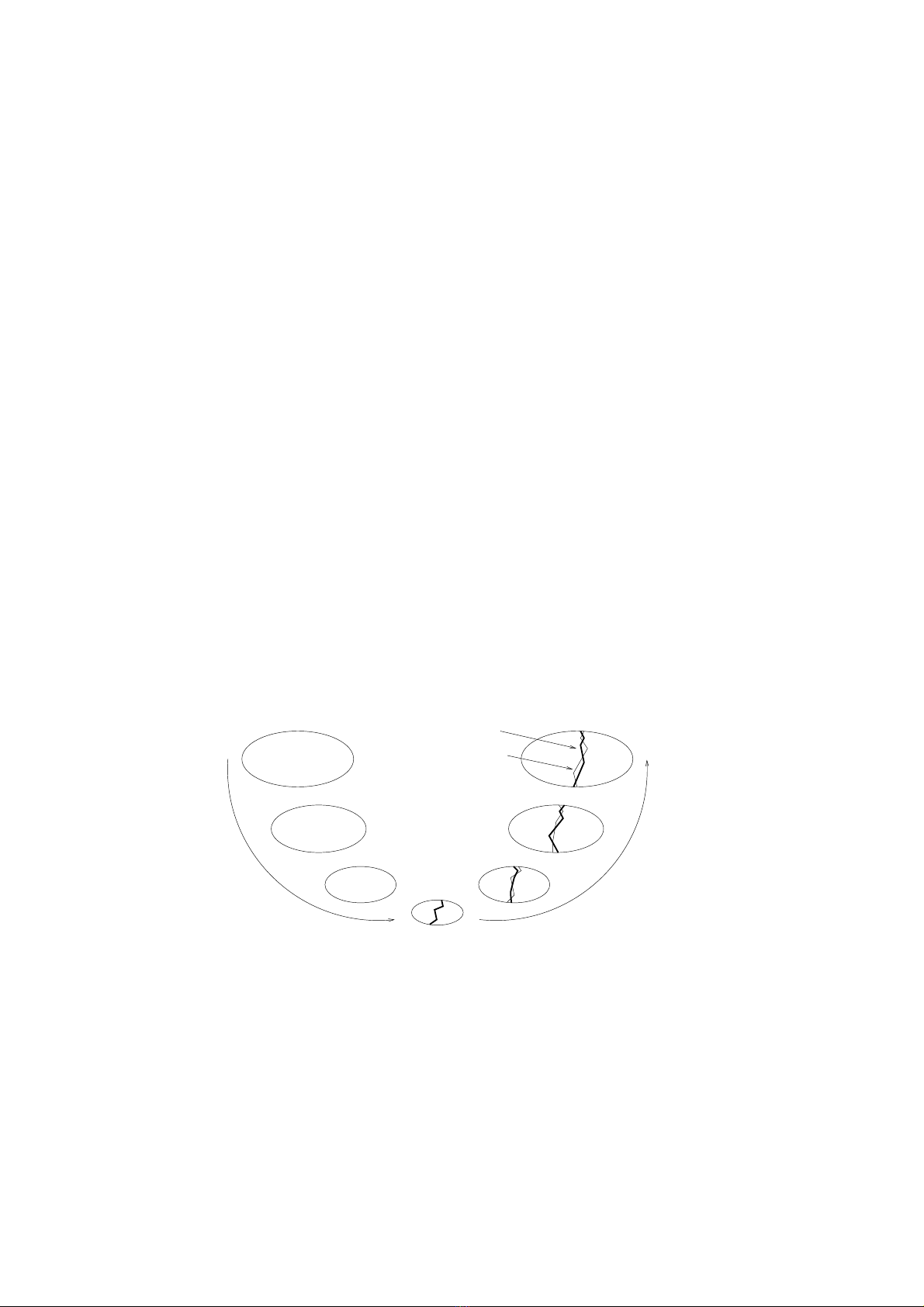

Figure 3: The multi-level partitioning process. In the uncoarsening phase, the light
and bold lines represent for each level the projected partition obtained from the
coarser graph, and the partition obtained after refinement, respectively.
tion with the Fiduccia-Mattheyses method to compute the initial partitions
and refine the projected partitions at every level, usually leads to a signifi-
cant improvement in quality with respect to the plain Fiduccia-Mattheyses
method. By coarsening the graph used by the Fiduccia-Mattheyses method
to compute and project back the initial partition, the multi-level algorithm
broadens the scope of the Fiduccia-Mattheyses algorithm, and makes possible
14

for it to account for topological structures of the graph that would else be of
a too high level for it to encompass in its local optimization process.
3.1.7 Mapping onto variable-sized architectures
Several constrained graph partitioning problems can be modeled as mapping the
problem graph onto a target architecture, the number of vertices and topology of
which depend dynamically on the structure of the subgraphs to bipartition at each
step.
Variable-sized architectures are supported by the DRB algorithm in the follow-
ing way: at the end of each bipartitioning step, if any of the variable subdomains
is empty (that is, all vertices of the subgraph are mapped only to one of the sub-
domains), then the DRB process stops for both subdomains, and all of the vertices
are assigned to their parent subdomain; else, if a variable subdomain has only one
vertex mapped onto it, the DRB process stops for this subdomain, and the vertex
is assigned to it.
The moment when to stop the DRB process for a specific subgraph can be con-
trolled by defining a bipartitioning strategy that tests for the validity of a criterion
at each bipartitioning step, and maps all of the subgraph vertices to one of the
subdomains when it becomes false.
3.2 Sparse matrix ordering by hybrid incomplete nested dis-
section
When solving large sparse linear systems of the form Ax =b, it is common to
precede the numerical factorization by a symmetric reordering. This reordering is
chosen in such a way that pivoting down the diagonal in order on the resulting
permuted matrix P AP Tproduces much less fill-in and work than computing the
factors of Aby pivoting down the diagonal in the original order (the fill-in is the
set of zero entries in Athat become non-zero in the factored matrix).
3.2.1 Minimum Degree
The minimum degree algorithm [55] is a local heuristic that performs its pivot
selection by iteratively selecting from the graph a node of minimum degree.
The minimum degree algorithm is known to be a very fast and general purpose
algorithm, and has received much attention over the last three decades (see for
example [1, 16, 39]). However, the algorithm is intrinsically sequential, and very
little can be theoretically proved about its efficiency.
3.2.2 Nested dissection
The nested dissection algorithm [17] is a global, heuristic, recursive algorithm which
computes a vertex set Sthat separates the graph into two parts Aand B, ordering
Swith the highest remaining indices. It then proceeds recursively on parts Aand B
until their sizes become smaller than some threshold value. This ordering guarantees
that, at each step, no non zero term can appear in the factorization process between
unknowns of Aand unknowns of B.
Many theoretical results have been carried out on nested dissection order-
ing [7, 38], and its divide and conquer nature makes it easily parallelizable. The
main issue of the nested dissection ordering algorithm is thus to find small vertex
separators that balance the remaining subgraphs as evenly as possible. Most often,
15

vertex separators are computed by using direct heuristics [28, 37], or from edge
separators [48, and included references] by minimum cover techniques [9, 30], but
other techniques such as spectral vertex partitioning have also been used [49].
Provided that good vertex separators are found, the nested dissection algorithm
produces orderings which, both in terms of fill-in and operation count, compare
favorably [19, 31, 46] to the ones obtained with the minimum degree algorithm [39].
Moreover, the elimination trees induced by nested dissection are broader, shorter,
and better balanced, and therefore exhibit much more concurrency in the context
of parallel Cholesky factorization [3, 14, 15, 19, 46, 53, and included references].
3.2.3 Hybridization
Due to their complementary nature, several schemes have been proposed to
hybridize the two methods [28, 34, 46]. However, to our knowledge, only loose
couplings have been achieved: incomplete nested dissection is performed on the
graph to order, and the resulting subgraphs are passed to some minimum degree
algorithm. This results in the fact that the minimum degree algorithm does not
have exact degree values for all of the boundary vertices of the subgraphs, leading
to a misbehavior of the vertex selection process.
Our ordering program implements a tight coupling of the nested dissection and
minimum degree algorithms, that allows each of them to take advantage of the infor-
mation computed by the other. First, the nested dissection algorithm provides exact
degree values for the boundary vertices of the subgraphs passed to the minimum
degree algorithm (called halo minimum degree since it has a partial visibility of the
neighborhood of the subgraph). Second, the minimum degree algorithm returns the
assembly tree that it computes for each subgraph, thus allowing for supervariable
amalgamation, in order to obtain column-blocks of a size suitable for BLAS3 block
computations.
As for our mapping program, it is possible to combine ordering methods into
ordering strategies, which allow the user to select the proper methods with respect
to the characteristics of the subgraphs.
The ordering program is completely parametrized by its ordering strategy. The
nested dissection method allows the user to take advantage of all of the graph
partitioning routines that have been developed in the earlier stages of the Scotch
project. Internal ordering strategies for the separators are relevant in the case of
sequential or parallel [20, 50, 51, 52] block solving, to select ordering algorithms
that minimize the number of extra-diagonal blocks [7], thus allowing for efficient
use of BLAS3 primitives, and to reduce inter-processor communication.
3.2.4 Performance criteria
The quality of orderings is evaluated with respect to several criteria. The first
one, NNZ, is the number of non-zero terms in the factored reordered matrix. The
second one, OPC, is the operation count, that is the number of arithmetic operations
required to factor the matrix. The operation count that we have considered takes
into consideration all operations (additions, subtractions, multiplications, divisions)
required by Cholesky factorization, except square roots; it is equal to Pcn2
c, where
ncis the number of non-zeros of column cof the factored matrix, diagonal included.
A third criterion for quality is the shape of the elimination tree; concurrency in
parallel solving is all the higher as the elimination tree is broad and short. To
16

measure its quality, several parameters can be defined: hmin,hmax, and havg denote
the minimum, maximum, and average heights of the tree1, respectively, and hdlt
is the variance, expressed as a percentage of havg. Since small separators result in
small chains in the elimination tree, havg should also indirectly reflect the quality
of separators.
3.2.5 Ordering methods
The core of our ordering algorithm uses graph ordering methods as black boxes,
which allows the orderer to run any type of ordering method. In addition to yielding
orderings of the subgraphs that are passed to them, these methods may compute
column block partitions of the subgraphs, that are recorded in a separate tree
structure. The currently implemented graph ordering methods are listed below.
Halo approximate minimum degree
The halo approximate minimum degree method [47] is an improvement of
the approximate minimum degree [1] algorithm, suited for use on subgraphs
produced by nested dissection methods. Its interest compared to classical min-
imum degree algorithms is that boundary vertices are processed using their
real degree in the global graph rather than their (much smaller) degree in the
subgraph, resulting in smaller fill-in and operation count. This method also
implements amalgamation techniques that result in efficient block computa-
tions in the factoring and the solving processes.
Halo approximate minimum fill
The halo approximate minimum fill method is a variant of the halo approxi-
mate minimum degree algorithm, where the criterion to select the next vertex
to permute is not based on its current estimated degree but on the minimiza-
tion of the induced fill.
Graph compression
The graph compression method [2] merges cliques of vertices into single nodes,
so as to speed-up the ordering of the compressed graph. It also results in some
improvement of the quality of separators, especially for stiffness matrices.
Gibbs-Poole-Stockmeyer
This method is mainly used on separators to reduce the number and extent
of extra-diagonal blocks.
Simple method
Vertices are ordered consecutively, in the same order as they are stored in the
graph. This is the fastest method to use on separators when the shape of
extra-diagonal structures is not a concern.
Nested dissection
Incomplete nested dissection method. Separators are computed recursively on
subgraphs, and specific ordering methods are applied to the separators and
to the resulting subgraphs (see sections 3.2.2 and 3.2.3).
1We do not consider as leaves the disconnected vertices that are present in some meshes, since
they do not participate in the solving process.
17

3.2.6 Graph separation methods
The core of our incomplete nested dissection algorithm uses graph separation
methods as black boxes. It allows the orderer to run any type of graph separation
method compatible with our criteria for quality, that is, reducing the size of the
vertex separator while maintaining the loads of the separated parts within some
user-specified tolerance. Separation jobs maintain an internal image of the current
vertex separator, indicating for every vertex of the job whether it is currently
assigned to one of the two parts, or to the separator. It is therefore possible to
apply several different methods in sequence, each one starting from the result of
the previous one, and to select the methods with respect to the job characteristics,
thus enabling the definition of separation strategies.
The currently implemented graph separation methods are listed below.
Fiduccia-Mattheyses
This is a vertex-oriented version of the original, edge-oriented, Fiduccia-
Mattheyses heuristics described in page 13.
Greedy graph growing
This is a vertex-oriented version of the edge-oriented greedy graph growing
algorithm described in page 14.
Multi-level
This is a vertex-oriented version of the edge-oriented multi-level algorithm
described in page 14.
Thinner
This greedy algorithm refines the current separator by removing all of the
exceeding vertices, that is, vertices that do not have neighbors in both parts.
It is provided as a simple gradient refinement algorithm for the multi-level
method, and is clearly outperformed by the Fiduccia-Mattheyses algorithm.
Vertex cover
This algorithm computes a vertex separator by first computing an edge sepa-
rator, that is, a bipartition of the graph, and then turning it into a vertex sep-
arator by using the method proposed by Pothen and Fang [48]. This method
requires the computation of maximal matchings in the bipartite graphs as-
sociated with the edge cuts, which are built using Duff’s variant [9] of the
Hopcroft and Karp algorithm [30]. Edge separators are computed by using a
bipartitioning strategy, which can use any of the graph bipartitioning methods
described in section 3.1.6, page 12.
4 Updates
4.1 Changes from version 4.0
Scotch has gone parallel with the release of PT-Scotch, the Parallel Threaded
Scotch. People interested in these parallel routines should refer to the PT-Scotch
and libScotch 5.1 User’s Guide [43], which extends this manual.
A compatibility library has been developed to allow users to try and use Scotch
in programs that were designed to use MeTiS. Please refer to Section 7.14 for more
information.
18

Scotch can now handle compressed streams on the fly, in several widely used
formats such as gzip,bzip2 or lzma. Please refer to Section 6.2 for more informa-
tion.
4.2 Changes from version 5.0
A new integer index type has been created in the Fortran interface, to address array
indices larger than the maximum value which can be stored in a regular integer.
Please refer to Section 8.3 for more information.
5 Files and data structures
For the sake of portability, readability, and reduction of storage space, all the data
files shared by the different programs of the Scotch project are coded in plain
ASCII text exclusively. Although we may speak of “lines” when describing file for-
mats, text-formatting characters such as newlines or tabulations are not mandatory,
and are not taken into account when files are read. They are only used to provide
better readability and understanding. Whenever numbers are used to label objects,
and unless explicitely stated, numberings always start from zero, not one.
5.1 Graph files
Graph files, which usually end in “.grf” or “.src”, describe valuated graphs, which
can be valuated process graphs to be mapped onto target architectures, or graphs
representing the adjacency structures of matrices to order.
Graphs are represented by means of adjacency lists: the definition of each
vertex is accompanied by the list of all of its neighbors, i.e. all of its adjacent arcs.
Therefore, the overall number of edge data is twice the number of edges.
Since version 3.3 has been introduced a new file format, referred to as the “new-
style” file format, which replaces the previous, “old-style”, file format. The two
advantages of the new-style format over its predecessor are its greater compacity,
which results in shorter I/O times, and its ability to handle easily graphs output
by C or by Fortran programs.
Starting from version 4.0, only the new format is supported. To convert
remaining old-style graph files into new-style graph files, one should get version 3.4
of the Scotch distribution, which comprises the scv file converter, and use it to
produce new-style Scotch graph files from the old-style Scotch graph files which
it is able to read. See section 6.3.5 for a description of gcv, formerly called scv.
The first line of a graph file holds the graph file version number, which is cur-
rently 0. The second line holds the number of vertices of the graph (referred to as
vertnbr in libScotch; see for instance Figure 16, page 51, for a detailed example),
followed by its number of arcs (unappropriately called edgenbr, as it is in fact equal
to twice the actual number of edges). The third line holds two figures: the graph
base index value (baseval), and a numeric flag.
The graph base index value records the value of the starting index used to
describe the graph; it is usually 0 when the graph has been output by C programs,
and 1 for Fortran programs. Its purpose is to ease the manipulation of graphs within
each of these two environments, while providing compatibility between them.
19

The numeric flag, similar to the one used by the Chaco graph format [24], is
made of three decimal digits. A non-zero value in the units indicates that vertex
weights are provided. A non-zero value in the tenths indicates that edge weights
are provided. A non-zero value in the hundredths indicates that vertex labels are
provided; if it is the case, vertices can be stored in any order in the file; else, natural
order is assumed, starting from the graph base index.
This header data is then followed by as many lines as there are vertices in the
graph, that is, vertnbr lines. Each of these lines begins with the vertex label,
if necessary, the vertex load, if necessary, and the vertex degree, followed by the
description of the arcs. An arc is defined by the load of the edge, if necessary, and
by the label of its other end vertex. The arcs of a given vertex can be provided
in any order in its neighbor list. If vertex labels are provided, vertices can also be
stored in any order in the file.
Figure 4 shows the contents of a graph file modeling a cube with unity vertex
and edge weights and base 0.
0
8 24
0 000
3 4 2 1
3 5 3 0
3 6 0 3
3 7 1 2
3 0 6 5
3 1 7 4
3 2 4 7
3 3 5 6
Figure 4: Graph file representing a cube.
5.2 Mesh files
Mesh files, which usually end in “.msh”, describe valuated meshes, made of elements
and nodes, the elements of which can be mapped onto target architectures, and the
nodes of which can be reordered.
Meshes are bipartite graphs, in the sense that every element is connected to the
nodes that it comprises, and every node is connected to the elements to which it
belongs. No edge connects any two element vertices, nor any two node vertices.
One can also think of meshes as hypergraphs, such that nodes are the vertices
of the hypergraph and elements are hyper-edges which connect multiple nodes, or
reciprocally such that elements are the vertices of the hypergraph and nodes are
hyper-edges which connect multiple elements.
Since meshes are graphs, the structure of mesh files resembles very much the
one of graph files described above in section 5.1, and differs only by its header,
which indicates which of the vertices are node vertices and element vertices.
The first line of a mesh file holds the mesh file version number, which is currently
1. Graph and mesh version numbers will always differ, which enables application
programs to accept both file formats and adapt their behavior according to the
type of input data. The second line holds the number of elements of the mesh
(velmnbr), followed by its number of nodes (vnodnbr), and by its overall number of
arcs (edgenbr, that is, twice the number of edges which connect elements to nodes
and vice-versa).
20
