SCOTT MILLER SM-DM1 Guide

SCOTT MILLER PRODUCT USER MANUAL
P a g e 1 | 10
Instruction Manual &
Product E-Warranty

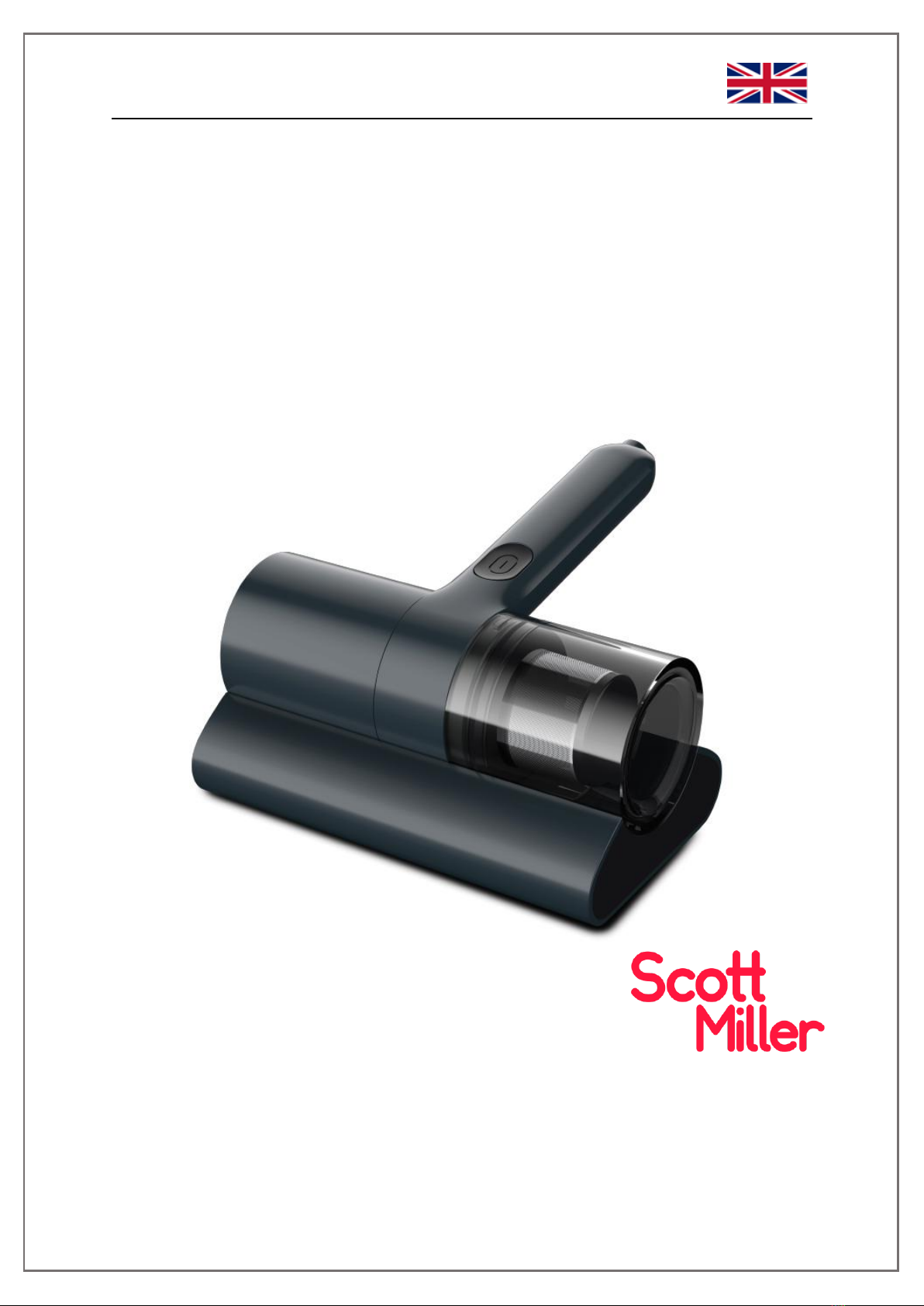

Scott Miller Dust Mite Vacuum Cleaner
Model: SM-DM1

SCOTT MILLER PRODUCT USER MANUAL
P a g e 2 | 10
Important Safety Instructions
READ ALL INSTRUCTIONS BEFORE USE AND RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
Top view of the appliance
1. Dust Container
2. Power Switch
3. Handle
4. Power Cord
5. UV light and vibrating pad indicator
6. Bottom Plate
Bottom view of the appliance
1. Vibrating Pad
2. Front Wheel
3. Suction Inlet
4. UV Lamp Protector
5. Switch for UV Lamp Removal
6. Back Wheel
7. UV Lamp
Inner view of the appliance
1. Dust Container
2. Suction Inlet Base Plate
3. Suction Inlet Cover Frame
4. Stainless Steel Filter Mesh
5. Sealing Ring
6. HEPA Filter
7. HEPA Filter Sealing Ring

SCOTT MILLER PRODUCT USER MANUAL
P a g e 3 | 10
Important safety Instructions
To avoid potentially fatal electric shocks:
Do not use the appliance outdoors.
Never use the vacuum cleaner if the cable, plug or casing are damaged.
Repairs should be carried out by a service agent or a suitably qualifies person only in
accordance with relevant safety regulations. Under no circumstances, should you
attempt repairing of the appliance yourself. Interference that are not carried out by a
specialist workshop could lead to physical injuries.
Before switching the vacuum cleaner on, ensure that the main voltage corresponds
to the voltage indicated in the technical data for the appliance.
Never touch the power supply or the appliance with wet or damp hands.
Do not use the adapter with an extension cable; connect the power adapter directly
to a power socket.
To avoid the risk of injury:
Do not change any accessories while the appliance is switched on.
Do not use the vacuum cleaner for sharp objects or glass shards.
Never use the vacuum cleaner on burning matches, glowing ashes or cigarette butts.
Do not use the vacuum cleaner on chemical products, stone dust, gypsum, cement
or similar particles.
Do not use the vacuum cleaner for liquid, water or similar particles.
This appliance is not suitable for use with inflammable and explosive substances or
chemical and aggressive liquids.
Always store the appliance indoors. To prevent accidents, keep the appliance in a dry
location when not in use.
Do not expose the UV light to eyes or any part of bodies to prevent unforeseen
injuries.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they are under adult supervision or given instruction concerning the
usage of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and maintaining of the vacuum cleaner
shall not be made by children without supervision.
Tips for safety:
Use replacement parts or accessories provided or recommended by the
manufacturer only.
Always grip the power plug to disconnect the appliance from the power supply.
Always be sure to keep the vacuum cleaner away from heating elements, ovens or
other heated appliances and surfaces.
Always ensure that the ventilation slits are open. A blocked ventilation circuit can
result in overheating and damage to the appliance.
Take special care when using the vacuum cleaner on stairs.
Do not use the vacuum cleaner without the dust filter inserted.

SCOTT MILLER PRODUCT USER MANUAL
P a g e 4 | 10
Operation Instructions
Removing the dust container & HEPA filter
Note: To ensure the optimum performance of the vacuum cleaner, empty the dust bin and clean the
HEPA filter frequently.
1. Remove the vacuum cleaner from the accessories. Hold the dust container firmly and twist it to
remove the dust container.
2. Separate the stainless steel filter mesh from the dust container.
3. Use the small brush to clean the fine dust stuck on the surface inside the container.
4. Separate the HEPA filter from the stainless steel filter mesh.

SCOTT MILLER PRODUCT USER MANUAL
P a g e 5 | 10
5. HEPA filter and the stainless steel filter mash can be rinsed with water and allow to air dry. After
drying completely, put back the HEPA filter in the machine. Do not use a washing machine to
clean the HEPA filter assembly. Do not use a hair dryer to dry it. Air dry only.
6. Replace the HEPA filter assembly back into the dust container and push the HEPA filter assembly
to fix firmly in the dust bin. NEVER operate vacuum cleaner without HEPA filter assembly in
place.
7. Attach the HEPA container assembly to the vacuum cleaner.
CAUTION: The suction inlet must be open and free of any obstructions at all times. Otherwise, the motor
may be overheated and could be damaged.
Note: it is recommended that the filter should be cleaned or replaced frequently, it should be cleaned
every three (3) to six (6) months depending on the usage to ensure optimum performance of the vacuum
cleaner.

SCOTT MILLER PRODUCT USER MANUAL
P a g e 6 | 10
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE REASON
POSSIBLE SOLUTION
Vacuum cleaner does
not work
1. Power supply cable not plug into
socket.
2. The switch on the vacuum
cleaner is not switched on.
1. Plug the power supply cable into socket.
2. Switch on the vacuum cleaner by
pressing on the on/off button.
Vacuum cleaner
cannot pick-up dust;
suction power
become weak
1. Dust container is full.
2. HEPA filter needs cleaning or
replacement.
1. Empty dust container
2. Remove dust filter assembly and check for
object(s) in suction inlet and remove. Clean or
replace dust filter assembly.
UV Light not working
1. Cleaned object’s surface uneven
or bottom part of the machine
not touching the cleaning
object’s surface.
2. UV light lamp tube damaged.
1. Keep the vacuum cleaner constantly in contact
with the cleaning object’s surface.
2. Contact customer service for UV light lamp tube
replacement.
Strange noise when
the operation
1. Dust container is full
2. Vacuum cleaner’s inlet is blocked
3. The filter assembly not inserted
correctly.
1. Stop and clean the blockage. Contact
customer service is the problem
persists.
2. Insert the filter assembly securely.
Important
Make sure that dust filter has completely air dried before replacing back in the vacuum cleaner.
Warning
Do not expose the UV light to eyes or any part of the body to prevent any unforeseen injuries.
WARNING:
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They can take
this product and disposal safely.

SCOTT MILLER PRODUCT USER MANUAL
P a g e 7 | 10
PRODUCT E-WARRANTY | SM-DM1
WARRANTY COVERAGE AND WARRANTY COVERAGE TIME PERIODS
The SCOTT MILLER (M) SDN. BHD. (“SCOTT MILLER”) warranty covers the repair and replacements on
certain parts of this vacuum cleaner and the cost of workmanship of the parts for a period of twelve (12)
months from the date of purchase. This limited warranty covers substantial defects in materials and
workmanship of the Vacuum Cleaner, provided that the Vacuum Cleaner is operated and maintained
properly and in conformity with the user’s manual. The warranty period becomes effective from the date
of purchase. This limited warranty applies only to the first purchaser of the products. It is not
transferable.
WHAT SCOTT MILLER WILL DO TO CORRECT PROBLEMS This warranty only covers the repair and/or
replacement of the Vacuum Cleaner’s motor. In the event that a substantial defect in material and/or
workmanship, attributable to SCOTT MILLER, is found to exist during the warranty coverage period
specifically in the Vacuum Cleaner’s motor only, will be to repair or replaced at SCOTT MILLER’s discretion,
without imposing any charges for the parts and/or workmanship to repair the Vacuum Cleaner’ motor, in
accordance with the terms, condition and limitations of this limited warranty. The cost of labour to repair
or replace at any time after the warranty coverage detailed above is the sole responsibility of the owner
and is to be borne by the owner. SCOTT MILLER’s obligation to repair or replace defective materials or
workmanship is the sole obligation of SCOTT MILLER under this limited warranty provided that and terms
and conditions of this limited warranty is fulfilled. SCOTT MILLER reserves the right to use new or
remanufactured parts of similar standard to complete any work, and to make parts and design changes
from time to time without providing prior notice to anyone. SCOTT MILLER reserves the right to make
changes in the design and/or material of its products without incurring any obligation to incorporate such
changes in any previously manufactured product. SCOTT MILLER makes no warranty as to the future
performance of this product. In addition, the owner’s obligation to notify SCOTT MILLER, or one of its
authorised independent dealers, of a claimed defect does not modify any obligation placed on the owner
to contact SCOTT MILLER directly when attempting to pursue remedies under state or federal law.
LIMITATIONS, EXCLUSIONS AND DISCLAIMER OF IMPLIED WARRANTIES Any implied warranty that is
found to arise by way of state or federal law, including any implied warranty of merchantability or any
implied warranty of fitness, is limited in duration to the terms of this limited warranty and is limited in
scope of coverage to the scope of coverage of this limited warranty. SCOTT MILLER disclaims any express
or implied warranty, including any implied warranty of fitness or merchantability, on items excluded from
the coverage under this warranty as set forth. SCOTT MILLER makes no warranty of any nature beyond
that contained in this limited warranty. No one has the authority to enlarge, amend or modify this limited
warranty, and SCOTT MILLER does not authorise anyone to create any other obligation for it regarding
this product. SCOTT MILLER is not responsible for any representation, promise or warranty made by any
independent dealer or other person beyond what is expressly stated in this limited warranty. Any selling
or servicing dealer is not an authorised SCOTT MILLER’s agent, but an independent entity.
SCOTT MILLER SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES THAT MAY
RESULT FROM BREACH OF THIS LIMITED WARRANTY OR ANY IMPLIED WARRANTY. THIS EXCLUSION OF

SCOTT MILLER PRODUCT USER MANUAL
P a g e 8 | 10
CONSEQUENTIAL AND INCIDENTAL DAMAGES SHALL BE INDEPENDENT OF ANY FAILURE OF THE
ESSENTIAL PURPOSE OF ANY WARRANTY, AND THIS EXCLUSION SHALL SURVIVE ANY DETERMINATION
THAT THIS LIMITED WARRANTY OR ANY IMPLIED WARRANTY HAS FAILED OF ITS ESSENTIAL PURPOSE.
This warranty does not cover, and in no event shall result in SCOTT MILLER being liable for towing charges,
travel, lodging, or any other expense incurred due to the loss of use of the product or by any other
reasons that may be raised.
HOW TO GET SERVICE To obtain warranty service, the owner shall: 1. Notify an authorised service centre
with regards to the claimed defect attributable to SCOTT MILLER, within the warranty coverage period
designated above; 2. Provide the notification mentioned in (1), above, within ten (10) days when the
owner discovered, or should have discovered, the claimed defect; 3. Promptly schedule an appointment
with and take the product to an authorised service centre for service; 4. Pay any transportation costs and
all expenses associated with obtaining the warranty service. Since SCOTT MILLER does not control the
scheduling of service work at the independent dealerships you may contact SCOTT MILLER, by email at
[e-mail]. If two (2) or more service attempts have been made to correct
any covered defect that you believe impairs the value, use or safety of the product, or if it has taken
longer than thirty (30) days for repairs to be completed, you must, to the extent permitted by law, notify
SCOTT MILLER directly, in writing, to the above email address, on the unsuccessful repair(s) of the alleged
defect(s) so that SCOTT MILLER can then directly involved in providing service pursuant to the terms of
this limited warranty.
WHAT IS NOT COVERED This Limited Warranty does not cover any of the following: defects in materials,
components or parts of the product not attributable to SCOTT MILLER, any material, component or part
of the product that is warranted by another entity (Note: the written warranty provided by the
manufacturer of the material, component or part is the direct responsibility of the manufacturer); items
that are added or changed after the product leaves SCOTT MILLER’s possession; additional items installed
at any dealership, or other place of business, or by any other party, other than SCOTT MILLER; normal
wear, tear, usage, maintenance, service, periodic adjustments, the effects of condensation or moisture
from condensation; mould or any damage caused by mould; imperfections that do not affect the product
for its intended purpose; items that are working as designed but that you are unhappy with; problems
related to mis-operation, misuse, mishandling, neglect or abuse, including failure to maintain the product
in accordance with the owner’s manual, or other routine maintenance such as inspections, lubricating,
adjustments, tightening of screws, sealing, wheel alignments or rotating tires; damage due to accident or
collision, including any acts of weather or damage or corrosion due to the environment; theft, vandalism,
fire, act of God or other intervening acts not attributable to SCOTT MILLER; damage resulting from
defacing, scratches, dents, or chips on any interior or exterior surface of the products, including
overloading or alteration of the product, or any of its components or parts. Defects and/or damage to
interior and exterior surfaces and other appearance items may occur at the factory or when the product
is in transit. These items are usually detected and corrected at the factory or by SCOTT MILLER or a dealer
prior to delivery to the purchaser. You must inspect the product for this type of damage when you
received upon delivery. If you found any defect or damage, you must notify the dealer, or SCOTT MILLER
at the time of delivery to have these defects covered by this limited warranty and to have work
performed on these particular defects at no cost to you as provided by this limited warranty.

SCOTT MILLER PRODUCT USER MANUAL
P a g e 9 | 10
EVENTS DISCHARGING SCOTT MILLER FROM OBLIGATION UNDER WARRANTY The following shall
completely discharge SCOTT MILLER from any express or implied warranty obligation to repair or replace
anything and void this warranty: misuse, neglect, collision, accidents, failure to provide routine
maintenance (See User’s Manual), unauthorised alteration, acts of nature, damage from weather or the
environment, theft, vandalism, tampering, fire, explosions and overloading the product.
LEGAL REMEDIES Any action to enforce any portion of this limited warranty, or any implied warranty,
must be commenced within six (6) months after expiration of the warranty coverage period designated
above or the action will be barred because of the passage of time. Any performance of repairs shall not
suspend this limitation period from expiring. Any performance of repairs after the warranty coverage
period has expired, or performance of repairs regarding anything excluded from the coverage under this
limited warranty shall be considered “good will” repairs, and they will not alter the terms of this limited
warranty, or extend the warranty coverage period or the filing limitation period in this paragraph. In
addition, since it is reasonable to expect that the product will need some service during the warranty
period; this warranty does not extend to future performance. It only sets forth what SCOTT MILLER will
do and does not guarantee anything about the product for any time period. Nothing in this warranty, or
any action of SCOTT MILLER, or any agent of SCOTT MILLER, shall be interpreted as an extension of any
warranty period or the filing limitation period in this paragraph.
WARRANTY REGISTRATION AND MISCELLANEOUS Your warranty registration records should be
completed through our website at https://scottmillerappliances.com/warranty-registration or delivered
to the appropriate companies. The registration of warranty must be completed within twelve (12)
months from the date of purchase. The SCOTT MILLER warranty will not be registered unless this
warranty registration is completed and received by SCOTT MILLER within twelve (12) months from the
date of purchase. SCOTT MILLER agrees to repair or replace any of its factory installed parts found to have
substantial defects within the warranty period designated above provided that the repair is authorised by
SCOTT MILLER and carried out by an authorised service centre (a SCOTT MILLER labour schedule
determines the cost allowance of repairs). SCOTT MILLER will not honour any warranty claim for repairs
or replacement of parts unless the claim is submitted with the appropriate documentations, and the
work is completed by an independent, factory authorised service centre. The appropriate
documentations can be submitted in the form of writing to SCOTT MILLER. Appropriate documentations
for any previous warranty claimed and/or repairs or replacement provided by SCOTT MILLER shall be
provided for the subsequent warranty claim within the warranty period. SCOTT MILLER will not honour
any warranty claim for repairs or replacement of parts if the repair or replacement had been carried out
by any entity other than SCOTT MILLER’s authorised service centre, the warranty herein shall be void and
all the repair or replacement cost shall be borne by the purchaser. SCOTT MILLER reserves the right to
designate where any warranty work can be performed. SCOTT MILLER also reserves the right to examine
any defective workmanship or part prior to giving any authorisation for warranty work. SCOTT MILLER’s
return authorisation procedure must be adhered to in order to process any warranty claims.

SCOTT MILLER PRODUCT USER MANUAL
P a g e 10 | 10
Innovation for Next
Generation Living
