INSTALLATION INSTRUCTIONS

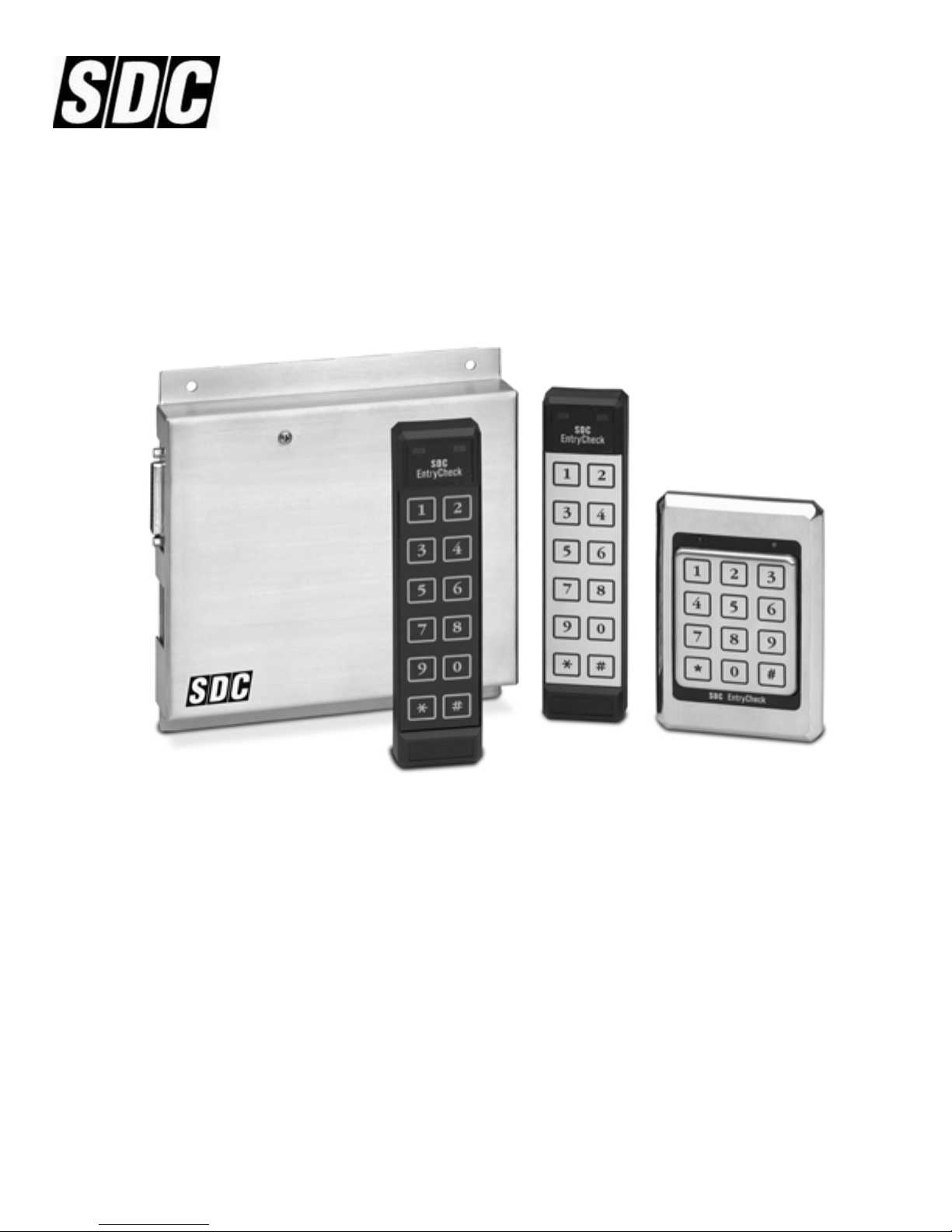

Model 935 EntryCheck™
The 935 EntryCheck™ is a powerful yet easy to use, stand-alone keyless entry system with features
suitable for a variety of access control requirements. Providing either a voltage output or dry contact
closure, the 935 is designed to control any fail-safe or fail-secure electric locking device.
The 935 EntryCheck™ can accommodate up to 500 individual Users, each of which is assigned to one of
16 programmable User Groups. Some additional features include a 32-day holiday schedule, manual or
timed latching capabilities, and a built-in audit trail. The 935 contains a 24-hour nonvolatile real time
clock. The time clock enables access control management through individual time zones tied to each
User Group and is also used to provide a time/date stamp for the last 750 transactions, which are logged
in the 935's buffered audit trail. These transactions can easily be retrieved from a parallel printer
connected directly to the 935 EntryCheck™ control module.

P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 2
Table of Contents
SYSTEM SPECIFICATIONS 3
INPUT REQUIREMENTS 4
OUTPUT CAPABILITIES 4
OPERATING TEMPERATURES 4
PREPARING FOR INSTALLATION 5
SYSTEM COMPONENTS 5
THE INSTALLATION PROCEDURE 5
REQUIRED TOOLS 5
PREPARE THE KEYPAD FOR INSTALLATION 5-6
INSTALL THE WIRING CABLE 7
MOUNT THE KEYPAD 7
PREPARE THE DOOR FOR THE ELECTRIC STRIKE 7
INSTALLING THE CONTROL MODULE 7
CONNECTING THE LOCKING DEVICE 8
SYSTEM HARDWARE SETUP 8
REMOTE BY-PASS 8
ANTI-TAILGATING 8
BATTERY BACKUP 8
OVERVIEW OF SYSTEM PROGRAMMING 9
SYSTEM SETUP 10
THE MASTER CODE 10
DOOR OPEN TIME / MAIN RELAY OUTPUT TIME 10
LATCHING 10
DURESS CODES 10-11
AUTOMATIC FEED LINE 11
DAYLIGHT SAVINGS TIME 12
PROGRAMMING SYSTEM SETUP 13-15
PROGRAMMING THE TIME CLOCK 16
PROGRAMMING THE HOLIDAY SCHEDULE 17
USER GROUPS 18
MODIFYING USER GROUPS 19-21
PROGRAMMING INDIVIDUAL USERS 22-24
NORMAL OPERATION 25
USER COMMANDS 25
TROUBLESHOOTING 26
APPENDIX A – CIRCUIT BOARD LAYOUT 27
APPENDIX B –TYPICAL WIRING DIAGRAMS 28
APPENDIX C – USER PROGRAMMING FORM 29
APPENDIX D – USER GROUP CONFIGURATION 30

SYSTEM SPECIFICATIONS
Input Requirements: 12 to 24V AC/DC
1 to 99 seconds
Default 5 seconds
Latching:
Programmable Output
(Door Open Time)
3 SPDT Relay contacts at 6 Amps (120VAC)
Voltage or Dry Contact
Fail Safe or Fail Secure Relay Configuration
Outputs:
Standby Current Draw:
12 or 24V w/ Non Illuminated Keypad 60mA
12 or 24V w/ Illuminated Keypad 100mA
Off (Default) Manual (Toggle On/Off), Timed
3 to 8 Digits
Code Length:
500 Codes (1 Master, 499 User)
# of User Codes:
1-2-3Default Master Code:
3 Incorrect Code AttempsTamper Alarm:
Non-Volatile Memory
Access Code Protection:
-40° C to + 70° C (-40° F to + 160° F)
100 % Relative Humidity
Keypad Operating Environment:
5 ⅛” x 3 ⅜” x 7/16”
7 ⅛” x 1 ¾” x ¾”
Keypad Dimensions:
12-Pad 3x4
Thinline 2x6
-40° C to + 49° C (-40° C to + 120° F)
100 % Relative Humidity
Control Module Operating
Enviroment:
6 ¾” x 7 ¾” x 1 ⅝”Control Module Dimensions:
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 3

The 935 EntryCheck™ accepts 12 to 24 volts AC/DC. System current draw (maximum):
Standby: 100mA
During Operation: 200mA
IMPORTANT: When using 12VAC input voltage, the maximum current draw allowed is 1 Amp. Check
the specifications of your locking device. Make sure that the locking device and the 935 combined draw
is less than 1 Amp. For locking devices that draw more current, a separate power supply is required.
(See Appendix B Typical Wiring Diagrams - Page 28)
INPUT REQUIREMENTS
OUTPUT CAPABILITIES
The 935 EntryCheck™ provides three SPDT dry contact relays (rated at 6 Amps at 120 VAC).
Main Relay – The main relay is intended to activate either a Fail-Safe or a Fail Secure (Non Fail-Safe)
electronic locking device. It may also be configured as a dry contact relay output to control a gate operator or
garage door opener. The main relay is programmable from 01 to 99 seconds with optional timed or manual
latching.
2nd Relay - Can be programmed for one of the following:
External Alarm System – Shunt or Enable/Disable an existing alarm
Internal Alarm System – Detect Break-in, Door-ajar, Duress and Tamper
Auxiliary Output – Manual Control or Timed Output (1 to 99 seconds)
3rd Relay – Can be programmed for one of the following:
Doorbell – Press # at the Keypad to trigger a 1 second output for a doorbell (not included)
CCTV or Light Controller – First key press triggers a Timed Output (1 to 99 seconds)
Auxiliary Output – Manual Control or Timed Output (1 to 99 seconds)
OPERATING TEMPATURES
Operating temperatures can range from -40°C to +70°C (-40°F to 160°F). The 935 EntryCheck™ is
compatible with any of the following Keypad styles/configurations:
KP-40U KP-30Y KP-30U
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 4

There are four primary components and one optional component to be
installed:
The Keypad should be mounted on the wall adjacent to the door. It
should be on the same side as the door strike and about 4 feet
above the floor.
The Control Module should be mounted inside the building near a
power source. Typically the control module is hidden in a false
ceiling or closet. The control module must be located in an
environmentally controlled area where the temperature remains
between
–40C and + 49C (-40 F and +125 F.)
The Wiring Cable connects the keypad to the control module. It is
important not to locate the cable adjacent to any wiring that carries
line voltage.
THE INSTALLATION PROCEDURE
REQUIRED TOOLS
You will need the following tools:
SYSTEM COMPONENTS
PREPARING FOR INSTALLATION
PREPARE THE KEYPAD FOR INSTALLATION
There are different procedures for mounting each Keypad. Locate the Keypad part number on the back
of the Keypad and follow appropriate mounting instructions.
Typical Installation
The Electric Strike/Other Locking Device (not included) connects to the 935 EntryCheck™ Main
Relay output. See Appendix B Typical Wiring Diagrams
A Parallel Printer (optional) – connects directly to the 935 EntryCheck™. Although it is not necessary
to have a “dedicated” printer, we suggest connecting a printer cable (PC) to the 935, which leads to
a nearby parallel printer. Anytime you need to print anything from the 935, simply connect the
printer cable to the printer.
Note: Many printers require bi-directional communication. The 935 may not work with these kinds of
printers. We suggest a basic dot matrix printer (i.e. Epson LX-300).
Medium sized, Phillips head screwdriver
1/8” standard screwdriver
Drill
7/8” or 1” (25mm) drill bit
1/2” (16mm) drill bit
5/32” (4mm) drill bit (For 12-Pad 3x4)
3/16” (6mm) drill bit (For Thinline 2x6)
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 5

MOUNTING INSTRUCTIONS KP40U PAD 3X4
The 3x4 keypad is designed to mount to a single gang switchbox or on a wall, pedestal or any flat
surface of at least 3 ½ by 5 ¼”. The composition of the mounting surface will determine the fastening
method required. If mounting to a surface other than a switchbox:
1. Select a flat surface (3 ½” by 5 ¼”) near the door where you wish to install the keypad.
2. Drill the large hole for the Keypad connector using a ⅞” (25mm) drill bit.
3. Place the connector on the back of the keypad in the large hole. Mark the keypad mounting holes.
4. Drill clearance holes in accordance with fastening method used. (If mounting to wood, drill small
pilot holes and use #6 flat head wood screws provided. If mounting to metal, drill two 5/32" clearance
holes for #6 flat head machine screws provided.)
5. Do NOT mount the keypad at this time.
6. Proceed to Install the Wiring Cable.
MOUNTING INSTRUCTIONS KP-30U AND KP-30Y 2X6:
The KP-30 is designed for mullion mount applications. It can also be mounted on a wall, pedestal or
any flat surface of at least 1 ¾” by 7”. The composition of the mounting surface will determine the
fastening method required:
1. Select a flat surface (1 ¾” by 7") near the door where you wish to install the keypad.
2. Using a Thinline template, mark location of holes.
3. Drill the large hole using a ⅞” or 1” (25mm) drill bit.
4. Place the connector on the back of the keypad in the large hole to verify that the mounting holes are
aligned. Make adjustments if necessary.
5. Drill mounting holes in accordance with fastening method used. (If mounting to plaster, use the #8
wood screws and plastic anchors included with the KP-30)
6. Do NOT mount the keypad at this time.
7. Proceed to Install the Wiring Cable.
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 6

1. Drill a ½” hole in the inside wall or ceiling where you want the cable to come through.
2. Pull the cable through the hole so the connector end goes to the keypad. Route it so there is minimal
cable at the keypad.
Note: Supplied with the system is a 6-conductor cable designed to connect the keypad to the control
module. You will also need a three-conductor cable (not included) to connect the control module to
the electric strike or other locking device.
INSTALL THE WIRING CABLE
MOUNT THE KEYPAD
1. Attach the wiring connector to the Keypad.
2. Attach the Keypad to the wall.
3. Do NOT mount the Keypad labels until the system is tested.
PREPARE THE DOOR FOR THE ELECTRIC STRIKE
Follow these instructions only if you are using an electric strike to unlock the door. If you are using the
main relay to activate a garage door, automatic gate, etc., skip this section. The new electric strike
should be checked to verify compatibility with existing door hardware prior to installation.
1. Remove existing strike.
2. Follow directions included with the strike for preparing the doorjamb.
3. Do NOT mount the strike at this time.
1. Connect the Wiring Cable to Terminal Strip “A” following the color sequence on the circuit board.
(See Appendix A Circuit Board Layout – Page 27)
2. For AC Input: Connect 12 to 24 Volts AC to Terminal Strip “B” to screws marked “12-24V AC IN”.
Note: If using an external AC Adaptor, connect low voltage AC output to the 12-24V input screws.
Connect ground wire to one of the “EARTH GROUND” screws on Terminal Strip “A”. Plug adapter into
a grounded (three terminal) receptacle.
For DC Input: Connect 12 to 24 Volts DC to Terminal Strip “B” to screws marked “POWER TAP/GND
DC+”. Make sure the polarity is correct.
IMPORTANT: The “EARTH GROUND” screw terminal on Terminal Strip “A” should be connected to a
true earth ground for proper system protection and operation.
INSTALLING THE CONTROL MODULE
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 7

CONNECTING THE LOCKING DEVICE
Connect the electric locking device to Terminal Strip “B” as outlined in the Typical Wiring Diagram
(Appendix B – Page 28). Any 3 conductor, 22 gauge wire can be used to connect the Control Module to
the Locking Device.
Included in the spare parts kit are two MOV’s (metal oxide varistor). The function of the MOV is to
absorb any inductive kickback from the locking device, protecting the circuit board. The MOV’s should
be installed as close to the electric lock as possible. See Typical Wiring Diagram (Appendix B – Page
28). If switching voltages higher than 36V, do not use the MOV. To provide proper grounding, connect
the 3rd wire from the body of the locking device to the “EARTH” screw on Terminal “A”
REMOTE BY-PASS
In some cases, it may be necessary to control the door from a remote area such as a security station or
reception desk. The 935 EntryCheck™ provides for a Remote By-Pass (Exit Switch) or Keypad
override. This can be accomplished by connecting a normally open switch to the “REMOTE” and “GND”
screw terminals on the circuit board (See Appendix A – Page 27). When the Remote By-Pass switch is
depressed, the contact bypasses the Keypad and activates the main relay. The relay is activated for
the same time length as the programmed Door Open Time (See Programming System Setup for Door
Open Time – Page 10)
SYSTEM HARDWARE SETUP
ANTI-TAILGATING
Some security applications require stricter door monitoring. Anti-tailgating can be accomplished by
installing a normally closed door monitor switch to the “DOOR MONITOR” and “GND” screw terminals
on the circuit board (See Appendix A – Page 27). This switch may be the output of a latch monitor
switch, a monitor maglock or an alarm switch that senses door movement. When this switch opens, it
will relock the door.
Note: If a door monitor switch is NOT used, you must jump the “MONITOR” screw terminals with the
factory installed wire.
BATTERY BACKUP
Battery backup is NOT required for User Code retention, however, you may wish to connect a SDC
Power Supply with battery backup to provide operation during a power interuption.
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 8

OVERVIEW OF SYSTEM PROGRAMMING
Once the 935 EntryCheck™ has been installed, the system is ready for programming. Before
proceeding with actual programming, we recommend you review the Suggested Initial Programming
Steps, System Defaults, System Options and the System Programming Commands & Feedback. We
suggest connecting a parallel printer directly to the 935 to verify programming.
*Time Clock Setting Note: In order to preserve the internal battery life of the 935’s Time Clock, the
system is shipped from the factory in a “suspended clock” mode. The Time Clock will remain suspended
with the default setting until the Time Clock is properly set through system programming (page 20).
Failure to set the clock may cause “Access Denied” for Individual Users and the Default Time Clock
setting in the Audit Trail Date and Time stamp.
Step
1
2
3
4
5
6
7
8
9
10
Page
9
10
13
16
17
18
30
19
29
22
Description
Review System Defaults
Review System Setup
Make Changes in System Setup (Print to Verify)
Program the Time Clock (Print to Verify)
Program Holiday Schedule (Print to Verify)
Review Preprogrammed User Groups
Construct User Groups Configuration
Modify User Groups as needed (Print to Verify)
Construct a list of Individual Users, Codes and User Groups
Program Individual Users (Print to Verify)
System Option
Master Code
Door Open Time
Latching
Use of Duress Codes
2nd Relay
3rd Relay
Automatic Line Feed (ALF)
Daylight Savings Time (DST)
Time Clock Setting*
Default
1 2 3
5 Seconds
OFF
OFF
Auxiliary Controller for 5 seconds
CCTV/Light for 30 seconds
ON
ON
Wed 01/01/1999 00:00:00
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 9

THE MASTER CODE
Knowledge of the Master Code is the highest privilege granted to a user of the 935 EntryCheck™
system. There is only one Master Code, which is used to gain access to all programming areas
including System Setup. Typically only the facilities manager or security director should have access
to this code. The default Master Code, “1,2,3”, can be used for initial programming but should be
changed to a unique 3 to 8 digit code. The Master Code is reprogrammed through system setup.
Note:If you forget the Master Code, locate the control module and remove the cover. Verify that the 5
dip switches are in the OFF position. Press “PGM SW” for at least 3 seconds. You will hear a double
beep at the keypad. Proceed to System Setup, Step 3 to change the Master Code (page 10).
Important: If you set all 5 dip switches in the ON position and press “PGM SW”, this completely
erases the memory and restores system defaults!!!)
DOOR OPEN TIME / MAIN RELAY OUTPUT TIME
The Door Open Time refers to the length of time the door will remain unlocked following the entry of a
valid User Code. Although the default is set for 5 seconds, this setting can be changed to any value
between 01 and 99 seconds. See Programming System Setup (page 13-15).
LATCHING
There are three options for latching the door open or closed for extended periods of time. Latching
Authorization is determined in each User Group.
Off – Set as the default, this prevents latching.
1. Manual – This allows any authorized user to manually latch the door open (unlocked) or closed
(locked) indefinitely. If the 935 EntryCheck™ is set to Manual, latching is activated by entering
“1#” following entry of an authorized user code. Entering “0#” following an authorized code will
deactivate latching.
2. Timed – This allows any authorized user to latch the door open until a predetermined time of day
at which point the door will automatically latch closed. Entering “1#” following entry of an
authorized code will activate timed latching. Entering “0#” following entry of an authorized code
will deactivate timed latching.
SYSTEM SETUP
DURESS CODES
The 935 EntryCheck™ can be configured to allow the use of Duress Codes. In emergency situations,
users who are forced to open the door against their will can use their Duress Code to open the door as
usual. In addition, if the 2nd Relay is configured to control the Internal Alarm, a duress code will also
activate the alarm output. (The alarm output would typically be wired to a guard station or other
monitoring service that could respond to the emergency). If used, the Duress Code is the User Code
with the last digit increased by 1. For example: If your User Code is 3 3 3, your Duress Code is 3 3 4. If
your User Code 5 6 9, your Duress Code is 5 6 0.
Important: If you wish to use the Duress Code Option, it must be set ON prior to any Individual User
Programming!!!
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 10

2nd RELAY
The 2nd Relay can be configured as one of the following:
Controlling an External Alarm – The 2nd Relay can be configured to either enable/disable or shunt an
existing alarm system for 01 to 99 seconds.
Internal Alarm – The 2nd Relay can be used to monitor and report events such as duress, break-in,
door ajar and tamper. In order to detect these occurrences, you will need to install a door monitor
switch or latch monitor switch.
Controlling an Auxiliary Device – By default, the 2nd Relay is configured to provide a 5 second
momentary output. The 2nd Relay can be programmed to provide a momentary output for 01 to 99
seconds or a manual ON/OFF output. The 2nd Relay is activated by entering “3#” following entry of
an authorized User Code. Entering “2#” following entry of an authorized code will deactivate the 2nd
Relay.
3rd RELAY
The 3rd Relay can be configured as one of the following:
1. Activate a Doorbell – The 3rd Relay can be used trigger a 1 second output to activate a doorbell (not
included with the 935 EntryCheck™). If the 3rd Relay is programmed for a doorbell, simply entering
“#” will activate the relay.
Note: Do not precede the “#” with any other keystrokes.
2. Controller for a Closed Circuit TV (CCTV) or External Light – By default, the 3rd Relay is configured to
activate at the first touch of the Keypad and remain ON for a 30 second time interval after the last
keypad touch. This time interval can be adjusted from 01 to 99 seconds.
3. Controlling an Auxiliary Device – The 3rd Relay can be configured to control an auxiliary device of
your choice. In this case the 3rd Relay can provide a momentary output for 01 to 99 seconds or a
manual ON/OFF output. The 3rd Relay is activated by entering “5#” following entry of an authorized
User Code. Entering “4#” following entry of an authorized code will deactivate the 3rd Relay.
When connecting a parallel printer to the 935 EntryCheck™, most printers require an automatic line feed
to advance the printer paper to the next line. In other cases, some printers have a built-in command to
automatically provide this line feed. If necessary, the printer line feed can be set ON or OFF. See
System Setup (page 15).
AUTOMATIC FEED LINE
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 11

DAYLIGHT SAVINGS TIME
By default, the 935 EntryCheck™ is configured to automatically adjust the time clock twice each year for
daylight savings time. The 935 makes the adjustment at 2 a.m. In areas where this adjustment is not
necessary, this option can be turned off. To adjust the setting for automatic Daylight Savings Time
adjustment, proceed to System Setup (page 15).
RESETTING THE SYSTEM
In certain cases you may want to erase all programmed user codes and restore system defaults. To
perform this procedure, locate the control module, remove the cover and set all 5 dip switches in the ON
position. Press the “PGM SW” switch for at least 3 seconds. The keypad will beep rapidly 5 times
indicating the memory has been cleared. Once the system has been reset, set the dip switches to the
OFF position.
Important: This procedure completely erases the memory and restores system defaults!!! Once the
memory is cleared, all programmed Users (codes) are erased, the audit trail buffer is cleared, User
Groups and System Setup options are restored to the factory default settings!!!
Notes to Remember When Programming
1. Knowledge of the Master Code is required to program System Setup. Knowledge of the Master
Code or an authorized User Code is required to program Users.
2. Each User/User Code is programmed into one of the 499 User ID’s (or User Locations). See
Appendix C for a User Programming Form.
3. User Codes can vary in length from 3 to 8 digits.
4. The # or key cannot be used as part of a User Code.
5. The system does not allow you to program duplicate codes.
6. The “#” key is used as an “Enter” key in programming and normal operation.
7. The “ ” command is used to complete a programming sequence or to reset the system back to
normal operation. If you are distracted or interrupted, while in the programming mode or in normal
operation, enter to reset the system back to normal operation. Depending on the level of
programming, you may need to enter several times until neither LED is flashing.
Key/Feedback
#
Double Beep
Triple Beep
Long Steady Beep
System Option
Begin Programming Sequence
Clear/Reset or Complete and Exit Programming
“Enter” Key
Entry accepted and more data needed
Completion of Programming Step
Error
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 12
*
**
**
*
**

PROGRAMMING SYSTEM SETUP
The 935 EntryCheck™ System Setup can only be modified if you know
the Master Code. When the system is initially setup, the default
system settings should be reviewed prior to other programming.
1. Enter *3
2. Enter the Master Code followed by #
Example: 3 123 #
This opens programming and causes
3. Proceed to one of the following options which requires programming:
To Change the Master Code (Default: 1,2,3)
A) Enter 1#
B) Enter the New Master Code
followed by #
C) Re-enter the New Master Code, followed by #
D) Return to Step 3 or enter to exit programming.
Note: If you forget the Master Code, locate the control module. (The control module is typically
installed in a secured area within 15’ of the keypad.) Remove the cover, locate and press
the “PGM SW” switch on the circuit board for 3 seconds (make sure the 5 dip switches are
OFF). This will take you to Step 3 of Programming System Setup. Once you press the
program switch, you have 1 minute to begin the program sequence.
Setting the Door Open Time (Default: 5 Seconds)
A) Enter 2 #
B) Enter the desired Door Open
Time in two digits (01 to 99 seconds), followed by #
Example: 2 # 1 5 # Set a 15 second Door Open Time
C) Return to Step 3 or enter to exit programming.
Red LED Green LED
Slow Flash Solid
Keypad Status after Step Completion
Setting Latching Option (Default: Off)
A) Enter 3 #
B) Select desired latching option
Off Enter 9900, followed by #
Manual Enter 9901, followed by #
Timed Enter the desired time (hour/minute) in four
digits (24 hour), followed by #
Example: 3 # 1 7 0 0 # Sets timed latching at 5:00 p.m.
C) Return to Step 3 or enter to exit programming.
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 13
*
*
**
**
Step
A)
B)
Beep
Double
Triple
Red LED
Slow Flash
Slow Flash
Green LED
Slow Flash
Solid
Step
A)
B)
Beep
Double
Triple
Red LED
Slow Flash
Slow Flash
Green LED
Slow Flash
Solid
**
Step
A)
B)
Beep
Double
Triple
Red LED
Slow Flash
Slow Flash
Green LED
Slow Flash
Solid

PROGRAMMING SYSTEM SETUP (Continued)
Keypad Status after Step CompletitionUsing Duress Codes (Default: OFF)
A) Enter 4 #
B) Enter 0 # to turn OFF
use of Duress Codes
--or –
Enter 1 # to turn ON use of Duress Codes
C) Return to Step 3 or enter to exit programming.
Important Note: Duress Code Option must be determined and programmed prior to User
Programming!!! You should hear a triple beep after completing step B indicating the use of duress
codes has been successfully reprogrammed. A long steady beep indicates an error (i.e. there may be
individual user codes already programmed into the system. These codes must all be deleted in order
to set duress option to ON.)
Step
A)
B)
Beep
Double
Triple
Red LED
Slow Flash
Slow Flash
Green LED
Slow Flash
Solid
Configuring 2nd Relay (Default: Aux 5 sec)
A) Enter 5 #
B) Select one of the following:
External Alarm
I. Enter 1 #
II. Enter the desired Alarm Shunt Output Time (01 - 99 seconds),
followed by #
Internal Alarm
I. Enter 2 #
II. Enter the desired Door Ajar Time in two digits (01-99 seconds),
followed by #
Auxiliary Device
I. Enter 3 #
II. Enter the momentary output time in two digits (01-99 seconds),
followed by #
-- or --
Enter 0 0 to set the auxiliary device for Manual Operation (ON/OFF),
followed by #
Examples: 5 # 1 # 1 5 # Set External Alarm Shunt Option for 15 seconds
5 # 2 # 1 0 # Set Internal Alarm with a 10 second Door Ajar Time
5 # 3 # 0 0 # Set Auxiliary Device with Manual Operation
C) Return to Step 3 or enter to exit programming.
Step
A)
i.
ii.
Beep
Double
Double
Triple
Red LED
Slow Flash
Slow Flash
Slow Flash
Green LED
Slow Flash
Fast Flash
Solid
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 14
**
**

PROGRAMMING SYSTEM SETUP (Continued)
Keypad Status after Step Completition
Configuring 3rd Relay (Default: CCTV 30 Sec)
A) Enter 6 #
B) Select one of the following:
Doorbell (1 second output)
I. Enter 1 #
CCTV / External Light
I. Enter 2 #
II. Enter the desired On Time in two digits (01-99 seconds),
followed by #
2nd Auxiliary Device
I. Enter 3 #
II. Enter the desired momentary output time in two digits (01-99 seconds) followed by #
-- or --
Enter 0 0 to set the auxiliary device for Manual Operation (ON/OFF), followed by #
C) Return to Step 3 or enter to exit programming.
Examples: 6 # 1 # Set Doorbell Option
6 # 2 # 2 5 # Set CCTV/Light with a 25 second On Time
6 # 3 # 0 0 # Set Auxiliary Device with Manual Operation
Step
A)
i.
ii.
Beep
Double
Double
Triple
Red LED
Slow Flash
Slow Flash
Slow Flash
Green LED
Slow Flash
Fast Flash
Solid
Automatic Line Feed (Default: ON)
A) Enter 7 #
B) Enter 0 # to turn OFF
-- or --
Enter 1 # to turn ON
C) Return to Step 3 or enter to exit programming.
Note: The printer line feed setting should only be adjusted if you encounter printer problems
(i.e. An unnecessary extra line or printing on the same line).
Step
A)
B)
Beep
Double
Triple
Red LED
Slow Flash
Slow Flash
Green LED
Slow Flash
Solid
Daylight Savings Time “DST” (Default: ON)
A) Enter 8 #
B) Enter 0 # to turn OFF
-- or --
Enter 1 # to turn ON
C) Return to Step 3 or enter to exit programming.
4. To Print System Setup, enter 9 #
5. Enter to complete programming sequence and reset the system to normal operation.
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 15
**
**
**
**

PROGRAMMING THE TIME CLOCK
Authorized users (master code holder or any user assigned to a User Group
given the authorization to program users) can program the 935 EntryCheck™’s
time clock from the keypad.
1. Enter 5
2. Enter the Master Code (or a User Code who is authorized to program), followed by #
Example: 5 123 #
This opens programming and causes
3. Proceed to any of the following which requires programming:
Red LED Green LED
Slow Flash Solid
Step
A)
B)
Beep
Double
Triple
Red LED
Slow Flash
Slow Flash
Green LED
Slow Flash
Solid
Step
A)
B)
Beep
Double
Triple
Red LED
Slow Flash
Slow Flash
Green LED
Slow Flash
Solid
Step
A)
B)
Beep
Double
Triple
Red LED
Slow Flash
Slow Flash
Green LED
Slow Flash
Solid
To program the Time
A) Enter 1#
B) Enter the current hour and minutes in four digits (24 hour
clock), followed by #
C) Return to Step 3 or enter to exit programming.
Examples: 1 # 1 0 0 0 # 10:00 a.m.
1 # 1 5 1 5 # 3:15 p.m.
To program the Date
A) Enter 2#
B) Enter the current month, day and year in six digits, followed by #
C) Return to Step 3 or enter to exit programming.
Examples: 2 # 0 2 0 5 0 5 # February 5th, 2005
2 # 1 1 1 5 0 4 # November 15th, 2004
Keypad Status after Step Completion
To program the Day of Week
A) Enter 3#
B) Enter the current day of week followed by #
C) Return to Step 3 or if you have completed programming the
time clock,
Enter to complete programming sequence and reset
system to normal operation.
Examples: 3 # 1 # Monday
3 # 6 # Saturday
4. To Print current Time/Date/Day of Week, enter 9 #
5. Enter to complete programming sequence and reset the
system to normal operation
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 16
*
*
**
**
**
**

PROGRAMMING THE HOLIDAY SCHEDULE
Step
A)
B)
Beep
Double
Triple
Red LED
Slow Flash
Slow Flash
Green LED
Slow Flash
Slow Flash
The 935 EntryCheck™ provides a 32-day holiday schedule. Authorized users
(master code holder or any user assigned to a User Group given the
authorization to program users) can program up to 32 holidays. Each User
Group is programmed to either authorize or prevent access on these scheduled
dates.
1. Enter 4
2. Enter the Master Code (or a User Code who is authorized to program),
followed by #
Example: 4 123 #
This opens programming and causes
3. Proceed to any of the following which requires programming:
Keypad Status after Step Completion
Adding a New Holiday
A) Enter 1#
B) Enter the holiday to add in four digits (month/day),
followed by #
C) To add an additional holiday, return to step B otherwise
enter and return to Step 3.
Example: 1 # 0 1 0 1 # 0 7 0 4 # Adds January 1st and July 4th to the holiday schedule.
Deleting an existing Holiday
A) Enter 2#
B) Enter the holiday to delete in four digits
(month/day), followed by #
C) To delete an additional holiday, return to step B otherwise
enter and return to Step 3.
Examples: 2 # 1 1 2 6 # Deletes November 26th from the holiday schedule.
4. To Print the Holiday Schedule, enter 9 #
5. Enter to complete programming sequence and reset the system to normal operation.
Step
A)
B)
Beep
Double
Triple
Red LED
Slow Flash
Slow Flash
Green LED
Slow Flash
Slow Flash
Red LED Green LED
Slow Flash Solid
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 17
*
*
**
**
**

USER GROUPS
User
Group
Days of
Entry
Times of
Entry Latch Relay
# 3
Relay
# 2
PGM
User
Delete
User
Temp
User
Holiday
Access
01
02
12
11
09
16
14
10
08
07
06
05
04
03
15
13
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
All 24 Hour
24 Hour
11pm-
7am
8am-
5pm
Sat &
Sun
8am-
5pm
M, T, W,
TH, F
M, T, W,
TH, F
M, T, W,
TH, F
Sat &
Sun
8am-
5pm
8am-
5pm
8am-
5pm
T, TH
M, W,
F
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
The 935 EntryCheck™ simplifies the process of programming users by providing 16 programmable User
Groups. Rather than assigning authorization options (i.e. latching, user programming and time zone
authorization) to each individual user, these authorizations are determined for each User Group. Individual
Users are then assigned to an appropriate User Group. Although these User Groups have been
preprogrammed with some typical authorization options, User Group authorizations can be modified to fit
your particular needs. (See Appendix D, page 30 for a User Group Configuration Worksheet)
Preprogrammed User Groups
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 18

MODIFYING USER GROUPS
1. Enter 9
2. Enter the Master Code (or a User Code who is
authorized to program),
followed by #
Example: 9 123 #
This opens programming and causes
3. To Modify a Group, enter the User Group
number in two digits (01-16),
followed by #.
Example: 0 2 # Select User Group 2
4. Proceed to any of the following which requires programming:
Keypad Status after Step Completion
Red LED Green LED
Slow Flash Solid
Step
A)
B)
C)
D)
Beep
Double
Double
Double
Triple
Red LED
Slow Flash
Slow Flash
Slow Flash
Slow Flash
Green LED
Fast Flash
Fast Flash
Fast Flash
Slow Flash
Step
A)
B)
Beep
Double
Triple
Red LED
Slow Flash
Slow Flash
Green LED
Slow Flash
Slow Flash
Latching Authorization
A) Enter 3 0 # to prevent latching
-- or --
Enter 3 1 # to authorize latching
B) Return to Step 4
Time Zone – Delete
A) Enter 2#
B) Select all days to delete
(1 Mon, 2 Tue), followed by #
C) Return to Step 4
Examples: 2 # 1 # Deletes Monday’s Time Zone Authorization.
Step
A)
Beep
Triple
Red LED
Slow Flash
Green LED
Slow Flash
Time Zone – Add or Modify
A) Enter 1#
B) Select all similar days
(1 Mon, 2 Tue), followed by #
C) Enter start time hours and minutes in four digits
(24 hour time) followed by #
D) Enter stop time hours and minutes in four digits
(24 hour time) followed by #
E) To program additional days, return to step A otherwise return to Step 4.
Examples: 1 # 1 5 # 0 8 3 0 # 1 7 0 0 # Mon & Fri Start: 8:30a.m. Stop: 5:00 p.m.
1 # 2 # 0 0 0 0 # 0 0 0 0 # Tuesday, 24 Hours
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 19
*
*

MODIFYING USER GROUPS (Continued)
Step
A)
Beep
Triple
Red LED
Slow Flash
Green LED
Slow Flash
Keypad Status after Step Completion
Program a Temporary Code Authorization
A) Enter 4 0 # to prevent Temp Code Programming
-- or --
Enter 4 1 # to authorize Temp Code Programming
B) Return to Step 4
Delete Users Authorization
A) Enter 5 0 # to prevent Deletion of Users
-- or --
Enter 5 1 # to authorize Deletion of Users
B) Return to Step 4
Program Users Authorization
A) Enter 6 0 # to prevent User Programming
-- or --
Enter 6 1 # to authorize User Programming
B) Return to Step 4
Notes on Program Users Authorization: Authorization to Program Users also provides
authorization to Delete Users and Program Temporary Users
2nd Relay Authorization
A) Enter 7 0 # to prevent 2nd Relay Operation
-- or --
Enter 7 1 # to authorize 2nd Relay Operation
B) Return to Step 4
3rd Relay Authorization
A) Enter 8 0 # to prevent 3rd Relay Operation
-- or --
Enter 8 1 # to authorize 3rd Relay Operation
B) Return to Step 4
Holiday Schedule Authorization
A) Enter 9 0 # to prevent access on holidays
-- or --
Enter 9 1 # to authorize access on holidays
B) Return to Step 4
5. Once all changes have been made for this User Group, enter .
Step
A)
Beep
Triple
Red LED
Slow Flash
Green LED
Slow Flash
Step
A)
Beep
Triple
Red LED
Slow Flash
Green LED
Slow Flash
Step
A)
Beep
Triple
Red LED
Slow Flash
Green LED
Slow Flash
Step
A)
Beep
Triple
Red LED
Slow Flash
Green LED
Slow Flash
Step
A)
Beep
Triple
Red LED
Slow Flash
Green LED
Slow Flash
P:\INSTALLATION INST\ACCESS CONTROL\INST-935.vsd 0505 Page 20
**
