Seagull Models GEEBEE ARTF User manual

MadeinVietnam.
Kit features.
• Ready-made—minimalassembly&finishingrequired.
• Ready-coveredcovering.
• Photo-illustratedstep-by-stepAssemblyManual.
Specifications
Wingspan--------------------------------------70.9in------------------------------180cm.
Wing area------------------------------------- 863.4 sq.in------------------- 55.7 sq.dm.
Approximate flying weight------------------10.6 lbs------------------------------4.8kg.
Length------------------------------------------46.6in-----------------------------118.3cm.
Recommended engine size-------------- .1.20 cu.in----------------------- 2-stroke.
.1.50cu.in------------------------4-stroke.
Radio System required 4 channels with 6 servos
Flying skill level Intermediate/advanced.
“Graphics and specifications may change without notice”.
MS: SEA 82
ASSEMBLY MANUAL

GEEBEE. Instruction Manual
2
INTRODUCTION.
Thank you for choosing the GEEBEE ARTF by SEAGULL MODELS. The GEEBEE was
designed with the intermediate/advanced sport scale in mind. It is a semi scale airplane which is
easytoflyandquicktoassemble.Theairframeisconventionallybuiltusingbalsa,plywoodtomake
itstrongerthantheaverageARTF,yetthedesignallowstheaeroplanetobekeptlight.Youwillfind
thatmostoftheworkhasbeendoneforyoualready. Themotormounthasbeenfittedandthehinges
are pre-installed . Flying the GEEBEE is simply a joy.
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manualthoroughlybeforestartingassemblyofyourGEEBEE.Usethepartslistingbelowtoidentify
all parts.
WARNING.
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it
is capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
If you are inexperienced with basic R/C flight we strongly recommend you contact your R/C
supplierandjoinyourlocalR/CModelFlyingClub.R/CModelFlyingClubsofferavarietyoftraining
proceduresdesignedtohelpthenewpilotonhiswayto successful R/C flight. They will also be able
to advise on any insurance and safety regulations that may apply.
ADDITIONAL ITEMS REQUIRED.
.1.2 cu.in 2-stroke engine.
.1.5 cu.in 4-stroke engine.
4 channels with 6 servos.
Glow plug to suit engine
Propeller to suit engine
Protective foam rubber for radio
system
Silicone fuel line
TOOLS & SUPPLIES NEEDED.
Thick cyanoacrylate glue
30 minute epoxy
5 minute epoxy
Hand or electric drill
Assorted drill bits
Modellingknife
Straight edge ruler
2mm ball driver
Phillips head screwdriver
220 grit sandpaper
90° square or builder’s triangle
Wire cutters
Masking tape & T-pins
Thread-lock
Paper towels
PARTS LISTING.
FUSELAGE ASSEMBLY
(1) Fuselage
(1) Canopy hatch
WING ASSEMBLY
(1) Right wing half/ aileron
(1) Left wing half with/ aileron
(1) Aluminium dihedral brace
Tail section assembly
(1) Horizontal stabilizer/ elevator
halves.
(1) Rudder halves.
Some more parts.
HARDWAREPACK
COWLING
Landinggear.....

www.seagullmodels.com
3
1) Carefully remove the aileron from one
of the wing panels. Note the position of the
hinges.
2)Removeeach hinge from thewingpanel
and aileron and place a T-pin in the center of
each hinge. Slide each hinge into the wing
panel until the T-pin is snug against the wing
panel. This will help ensure an equal amount
ofhingeison either side ofthehingelinewhen
the aileron is mounted to the aileron.
3) Slide the wing panel on the aileron until
there is only a slight gap. The hinge is now
centered on the wing panel and aileron.
Remove the T-pins and snug the aileron
against the wing panel.A gap of 1/64” or less
shouldbe maintained betweenthe wing panel
andaileron.
The control surfaces, including the
ailerons, elevators, and rudder, are
prehinged with hinges installed, but the
hinges are not glued in place. It is
imperativethat you properly adhere the
hingesin place per the steps that follow
using a high-quality thin C/A glue.
Note:
4)Deflect the aileron and completely
saturate each hinge with thin C/A glue. The
aileronsfrontsurfaceshould lightly contact the
wing during this procedure. Ideally, when the
hinges are glued in place, a 1/64” gap or less
will be maintained throughout the lengh of the
aileron to the wing panel hinge line.
Note: The hinge is constructed of a special
material that allows the C/A to wick or
penetrateanddistributethroughout the
hinge, securely bonding it to the wood
structureof the wingpanel and aileron.
To avoid scratching your new aero-
plane we suggest that you cover your work-
benchwith an oldtowel. Keepa couple ofjars
orbowlshandytoholdthesmallpartsafteryou
open the bags.
Pleasetrialfitallparts.Makesureyouhavethe
correct parts and that they fit and are aligned
properlybeforegluing!Thiswillensureproper
assembly as the GEEBEE is made from
natural materials and minor adjustments may
havetobemade. Thepaintandplasticparts
usedinthiskitarefuelproof.However,theyare
not tolerant of many harsh chemicals includ-
ingthefollowing:paintthinner,cyano-acrylate
glueaccelerator,cyanoacrylategluede-bonder
andacetone.Donotletthesechemicalscome
incontactwiththecoloursonthecoveringand
the plastic parts.
NOTE:
HINGING THE AILERONS.
5)Turnthe wingpanelover anddeflect the
aileron in the opposite direction from the
opposite side. Apply thin C/A glue to each
hinge,makingsure that the C/Apenetratesinto
both the aileron and wing panel.
6) Using C/A remover/debonder and a
papertowel, remove anyexcessC/A glue that
may have accumulated on the wing or in the
aileronhinge area.
C/Aglue. Hinge.
Hinge.
T- pin.
Hinge.
T- pin.

GEEBEE. Instruction Manual
4
TURNBUCKLE INSTALLATION.
8)Afterbothailerons are securelyhinged,
firmly grasp the wing panel and aileron to
make sure the hinges are securely glued and
cannot be pulled out. Do this by carefully
applying medium pressure, trying to separate
the aileron from the wing panel. Use caution
not to crush the wing structure.
7) Repeat this process with the other wing
panel, securely hinging the aileron in place.
HINGING THE RUDDER.
Glue the elevator hinges in place using the
same techniques used to hinge the ailerons.
Glue the rudder hinges in place using the
same techniques used to hinge the ailerons.
Work the aileron up and down several
times to “work in” the hinges and check
for proper movement.
Note:
Aileron control horn: See pictures below.
AILERON CONTROLHORN
Hinge.
2 sets.
3x40mm.
HINGING THE ELEVATOR.
Installingthe turnbuckle for the wing as same
as pictures below.
Theholelocationofturnbuckles shown in pic-
ture below .
Washer.
Turnbuckle.
Wing bottom.
3 x 20mm.
Washer.
Wing bottom.
Locker glue.

www.seagullmodels.com
5
AluminumWasher.
CONTRONL HORN M3
M3LOCKNUT.
Epoxy.
AluminumWasher.
ELEVATOR CONTROL HORN.
M3LOCK
NUT.
ALUMINUMWASHER.
ALUMINUMWASHER.
CONTRONLHORN
M3 SCREW.
16mm.
Epoxy.
Wing
Epoxy.
Wing
Install the elevator control horn using the
same method as with the aileron control
horns.
2 sets.
3x35mm.
Rudder control horn:
Using the same techniques used aileron
control horn. See picture below.
Elevator control horn.
16mm.
Epoxy.
RUDDER CONTROL HORN.
1 sets.
3x35mm.
Horizontal
Stabilizer.

GEEBEE. Instruction Manual
6
2) Usinga modeling knife, cut onelength
ofsiliconfuel line. Connect oneend of theline
tothe weighted fuel pick up andthe other end
to the nylon pick up tube.(The silicon tube is
not included).
3) Carefully bend the second nylon tube
up at a 45º angle. This tube is the vent tube.
1) Using a modeling knife, carefully cut
off the rear portion of one of the 3 nylon tubes
leaving 1/2” protruding from the rear of the
stopper. This will be the fuel pick up tube.
INSTALLING THE STOPPERASSEMBLY.
Thread locker glue.
See pictures below.Make yourself the
template of your engine on paper.
ENGINE MOUNT INSTALLATION.
Mark and drill 4 holes for engine mount.
Insert 4 blind nuts to firewall.
4x30mm.
16mm.
EPOXY.
Rudder control horn.
Hinge.
CONTRONL HORN
M3 SCREW.
ALUMINUMWASHER.
ALUMINUMWASHER.
M3LOCK NUT.
EPOXY.
Fuselage.Rudder.
3 x 25mm.
3 x 25mm.

www.seagullmodels.com
7
Vent tube. Fuel pick up tube.
Fuel fill tube.
4) Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using a
modeling knife. If flashing is present, make
sure none falls into the tank.
5) With the stopper assembly in place,
the weighted pick-up should rest away from
therear of the tank and move freely inside the
tank. The top of the vent tube should rest just
below the top of the tank. It should not touch
the top of the tank.
Important: When the stopper assembly is in-
stalled in the tank, the top of the vent tube
should rest just below the top surface of the
tank. It should not touch the top of the tank.
Carefully use a lighter or heat gun to
permenently set the angle of the vent tube.
6) When satisfied with the alignment of
the stopper assembly tighten the 3 x 20mm
machine screw until the rubber stopper ex-
pands and seals the tank opening. Do not
overtighten the assembly as this could cause
the tank to split.
FUEL TANK INSTALLATION.
You should mark which tube is the vent
and which is the fuel pickup when you
attach fuel tubing to the tubes in the stopper.
Once the tank is installed inside the fuselage,
it may be difficult to determine which is which.
Tie Wrap.
Fueltank.
Fuel pick-up tube.
Fuelfill tube.
Vent tube.

GEEBEE. Instruction Manual
8
 6) AttachtheZ-Bend in thepushrod wire to
the throttle arm on the carburetor.
 5) Bolttheenginetotheenginemountusing
the four machine screws. Double check that
all the screws are tight before proceeding.
155mm
.
4.2 mm
diameter.
MachineScrew 4x30mm.
Pushrodwire.
INSTALLING THE BATTERY.
Battery.
Tie Wrap.
1) Install the pushrod housing through the
predrilledholein the firewallandintothe servo
compartment. The pushrod housing should
protrude 1/4" out past the front of the firewall.
Makea Z-Bend 1/4"fromone end oftheplain
wire pushrod.
MOUNTING THE ENGINE.
4) Remove the engine. Using an drill bit,
drill the mounting holes through the engine
mount at the four locations marked.
 2) Place your engine onto the engine
mount. Adjust the engine is centered of the
edges of the engine case.
 3) When you are satisfied with the align-
ment, mark the locations of the engine
mounting.
Epoxy.
Battery tray.
Blow through one of the lines to ensure
thefuel lines have not become kinked in-
side the fuel tank compartment. Air should
flowthrough easily.

www.seagullmodels.com
9
2) While keeping the back edge of the
cowl flush with the marks, align the front of
thecowlwiththecrankshaftoftheengine. The
front of the cowl should be positioned so the
crankshaft is in nearly the middle of the cowl
opening.Usethespinnerbackplate as a guide.
Hold the cowl firmly in place using pieces of
masking tape.
3) Installthemufflerandmufflerextension
onto the engine and make the cut out in the
cowl for muffler clearance. Connect the fuel
and pressure lines to the carburetor, muffler
and fuel filler valve. Secure the cowl to fuse-
lage using the 3x10mm screws (4).
Becauseof the sizeof the cowl,itmay benec-
essaryto use a needle valveextension forthe
highspeedneedle valve. Make thisoutof suf-
ficient length 1.5mm wire and install it into the
end of the needle valve. Secure the wire in
placeby tightening theset screwin the sideof
the needle valve.
Trim and cut.
COWLING INSTALLATION.
1) Slide the fiberglass cowl over the en-
gineandline up thebackedge of the cowlwith
themarks you made on thefuselage thentrim
and cut.
Trim and cut.
Dummy
Engine.
Silicon
glue.
Cowling.
Dummy
Engine.
Dummy
Engine.
MachineScrew 3x10mm.

GEEBEE. Instruction Manual
10
INSTALLING THE SWITCH.
Installthe switch intotheprecut hole inthe
side of fuselage.
THROTTLE SERVO ARM INSTALLATION.
Install adjustableservoconnectorinthe servo
arm .
 2) Secure the servos with the screws pro-
vided with your radio system.
INSTALLING THE FUSELAGE SERVO.
1) Installthe rubber grommets and brass
colletsonto the throttleservo. Testfit the servo
into the aileron servo mount.
Switch.
Throttleservo.
Elevatorservo.
Elevatorservo.
Rudderservo.
AdjustableServo
connector.
Servoarm.
Loctite secure.
1 pcs.
Because the size of servos differ, you
mayneedtoadjustthesizeofthe precut open-
ing in the mount. The notch in the sides of the
mount allow the servo lead to pass through.

www.seagullmodels.com
11
Elevatorservoarm. Installing the aileron servo in place using the
same techniques used to flap servo.
Attach the string to the servo lead and carefully thread it though the wing.
String.
Small Weight.
Wing. Wing rib.
Throttleservoarm.
Elevatorservoarm.
Rudderservoarm.
INSTALLING THE AILERON SERVOS.
Servos. Smallweight.
Thread.
String.
Small weight.
Electric wire.
Aileron
Servo.
String.
Small Weight.
AILERONPUSHROD HORN INSTALLATION
Wing.
Aileron.
M2 lock nut.
M2clevis.
75mm.
110mm.

GEEBEE. Instruction Manual
12
Repeat the procedure for the other wing.
Wing. Aileron.
M2lock nut.
WING ASSEMBLY.
NOTE: We highly recommend using 30
minute epoxy as it is stronger and provides
more working time, allowing the builder to
properlyalignthe parts. Usingfastcureepoxy
whenjoiningthewinghalvescouldresultinthe
gluedryingbeforethewinghalvesarealigned
properlywhichmayresultinfailureofthewing
centre section during flight.
 1)Testfitthewingtubeintoeachwinghalf.
The brace should slide in easily up to the
centreline that you drew. If not, use 220 grit
sandpaper with a sanding block and sand
down the edges and ends of the brace until it
fits properly.
Maskingtape.
Epoxy.
Aileron.
Wing.
Wing.Aileron.
Carefully slide the two wing halves together
and firmly press them together, allowing the
excess epoxy to run out. There should not be
any gap in the wing halves. Use rubbing
alcohol and a paper tower to clean up any
excess epoxy.
Apply masking tape at the wing join to hold
the wing halves together securely.
2) Removethebracewhensatisfiedwithits
fit ineach wing half. Coat the dihedral brace
with30 minuteepoxy. Next,pour some epoxy
into the dihedral box in one wing panel. Make
sure you cover the top and bottom as well as
the sides of the dihedral brace.Use enough
epoxy to fill any gaps.
Epoxy.
Epoxy.

www.seagullmodels.com
13
Epoxy.
 3) Peel off the backing from the self adhe-
sivecoveringstrip.Applythestriptothecentre
section of the wing starting from the bottom
trailingedge.Wrapthestripallthewayaround
the wing until it meets the trailing edge again.
Trim off any excess strip.
Removethecovering.
Remove covering.
Pen.
When cutting through the covering to
remove it, cut with only enough pressure
toonly cut through the covering itself. Cut-
ting into the balsa structure may weaken
it.
Maskingtape.

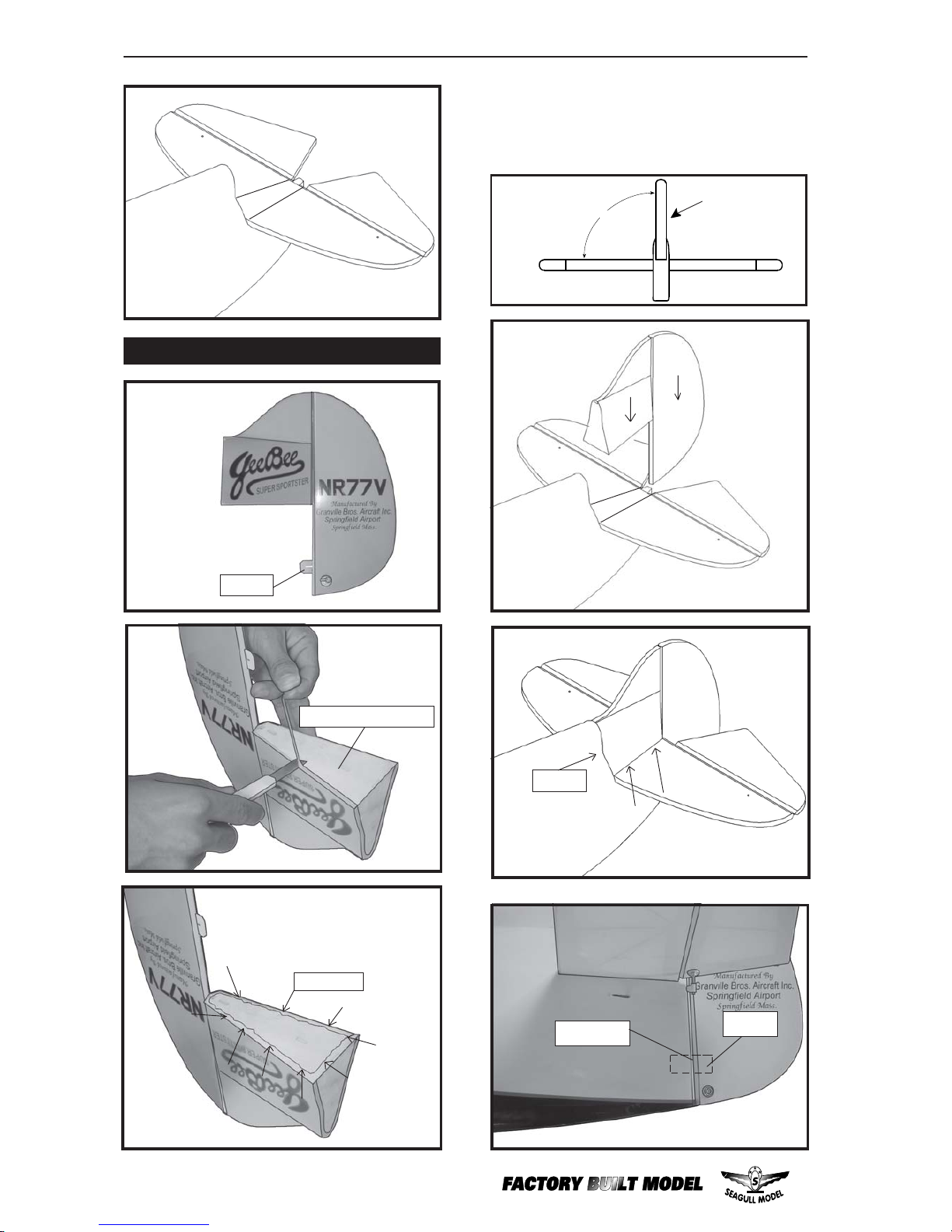

INSTALLING THEHORIZONTALSTABILIZER.
Hingeslot.
Center line.

GEEBEE. Instruction Manual
14
90º
Vertical
Stabilizer.
Horizontal
Stabilizer.
Putthe vertical stabilizerinto the inthe top
of the horizontal fin. The bottom edge of the
stabilizershouldalso be firmlypushed against
the top of the horizontal stabilizer.
Remove covering.
Fill epoxy.
Hinge.
INSTALLING THE VERTICAL STABILIZER.
Epoxy.
Hinge.
C/Aglue.

www.seagullmodels.com
15
1) Using a modeling knife, remove the
covering from over the two main gear mount-
ing slots located in the bottom of the wing.
2) Insert the 90º bend of one main gear
wire into the predrilled hole in one mounting
slot.
INSTALLING THE MAIN GEAR WIRES.
3)Usingthe two landinggear straps asa
guide,mark the locationsofthe four 3x 10mm
mounting screws onto the wing surface.
Installthe landinggear.
M3 x 30mm.
Wing botom.
Remove the covering.
Springlanding gear.
Wingbotom.
M3x15mm.
1
1
11mm.
9mm.

GEEBEE. Instruction Manual
16
Turnbuckle.
WHEEL PANT INSTALLATION.
Epoxy.
Screw
M3x30mm.
Install wooden tray to right position.
Install fibre glass wheel pants.
Trim and cut
Set of fibreglass wheel pants.

www.seagullmodels.com
17
11mm. 9mm.
Install wheel to the
landinggear.
Screw M3x10mm.
Drill diameter =12mm.
Screw the wheel pants.

GEEBEE. Instruction Manual
18
L1.
L2.
L1.L2.
L1= 35cm
L2= 50cm 21
2
L1.
L2.
Calbe trust.
2
1.
Fixcabletothebottom wing.

www.seagullmodels.com
19
ELEVATOR-RUDDER PUSHROD HORN INSTALLATION.
Elevator control horn.
Rudder control horn.
 1) Elevator and rudder pushrods assembly follow pictures below.

GEEBEE. Instruction Manual
20
Attach to servo arm in fuselage.
M2clevis. M2 Lock nut.
Attach to elevator - rudder control horn.
 2) Connect the elevator and rudder servos
to your radio’s receiver and turn on the sys-
tem. Set the trim tabs on the transmitter to
neutraland centerthe servoarms. The eleva-
tor and rudder servo arms should be perpen-
dicular to the servos.
 3) One at a time, hold the pushrods in po-
sition over the respective servos to check for
proper servo direction. If any servo turns in
the wrong direction, switch your radio’s re-
versingswitches as necessaryto achieve the
correct direction.
Elevator.
Elevator.
Rudder.
Throttle. Switch.
Elevator pushrod.
Rudder pushrod.
Control horn.
Metalclevis.
M2lock nut.
Elevator pushrod.
Rudder pushrod.
Elevator.
Elevator.
Rudder.
