Seagull Models Boomerang 40 User manual

Specifications
Wing span ____________________________ 155cm.
Wing area _________________________ 3950 sq cm .
Approximate flying weight_______________ 2.6-2.8kg.
Recommended engine size 0.40-0.46 cu. ins 2-stroke.
Recommended R/C __________4 channels minimum.
Flying skill level___________________ Sports Trainer.
Electric conversion: optional
Kitfeatures.
• Ready-made—minimalassembly&finishingrequired.
• Ready-covered—includingdecals,trim&covering.
• Factory-installedpushrod.
• Factory-pinned&gluedcontrolsurfacehingesforultimatesafety.
• Comprehensivehardwarepackincludingwheels,tank,spats,undercarriage& spinner.
• Photo-illustratedstep-by-stepAssemblyManual.
Hand-made Almost Ready to Fly R/C Model Aircraft
ASSEMBLY MANUAL
Additionalitems required.
Engine.
4 Channels or greater Radio Control system.
Glues.
Tools.
Starting Equipment.
Madein Vietnam.
SPORTS TRAINER - ENGINE SIZE.40 - .46 - 2STROKE

2
BOOMERANG 40. Instruction Manual.
INTRODUCTION.
ThankyouforchoosingtheBoomerang40ARTFbySEAGULLMODELS.TheBoomerang40was
designed with the sports trainer flyer in mind. It is a High-wing aeroplane which is easy to fly and
quick to assemble. The airframe is conventionally built using balsa, plywood and veneer to make it
stronger than the average ARTF , yet the design allows the aeroplane to be kept light. You will find
that most of the work has been done for you already. The pushrods are pre-made to the correct
lengths, the motor mount has been fitted and the hinges are pre-installed and pinned for security.
Flying the Boomerang 40 is simply a joy.
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manual throughly before starting assembly of your Boomerang 40 . Use the parts listing below to
identify all parts.
WARNING.
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable
of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU ASSUME ALL
RISK & RESPONSIBILITY.
IfyouareinexperiencedwithbasicR/CflightwestronglyrecommendyoucontactyourR/Csupplier
and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
proceduresdesignedtohelpthenewpiloton hiswayto successfulR/Cflight. Theywillalso beable
to advise on any insurance and safety regulations that may apply.
ADDITIONAL ITEMS REQUIRED.
- .40-.46 2-stroke engine.
- 4 channels radio with four servos.
- Glow plug to suit engine.
- Propeller to suit engine.
- Protective foam rubber for radio
system.
- Silicone fuel line.
- Stick-on weights for balance
(If necessary).
TOOLS & SUPPLIES NEEDED.
- Thick cyanoacrylate glue.
- 30 minute epoxy.
- 5 minute epoxy.
- Hand or electric drill.
- Assorted drill bits.
-Modellingknife.
- Straight edge ruler.
- 2mm ball driver.
- Phillips head screwdriver.
- 220 grit sandpaper.
- 90° square or builder’s triangle.
- Wire cutters.
- Masking tape & T-pins.
- Thread-lock.
- Paper towels.
PARTS LISTING.
FUSELAGE ASSEMBLY
- (1) Fuselage.
- (1) Pre-installed throttle pushrod &
tube.
- (1) Pre-installed servo tray.
- (1) Pre-installed motor mount.
- (1) Pre-installed rudder pushrod.
- (1) Pre-installed elevator pushrod.
WING ASSEMBLY
- (1) Right wing half with pre-
installedaileron.
- (1) Left wing half with pre-installed
aileron.
- (1) Aluminium wing tube.
- (1) Covering strip for centre
section joint.
TAIL SECTION ASSEMBLY
- (1) Vertical stabilizer with pre-
installedrudder.
- (1) Horizontal stabilizer with pre-
installedelevatorhalves.

3
BOOMERANG 40. Instruction Manual.
NOTE:To avoid scratching your new aero-
plane we suggest that you cover
your workbench with an old towel.
Keepacoupleofjarsorbowlshandy
toholdthesmallpartsafteryouopen
the bags.
Please trial fit all parts. Make sure
you have the correct parts and that
they fit and are aligned properly be-
fore gluing! This will ensure proper
assembly as the Boomerang 40 is
made from natural materials and
minor adjustments may have to be
made.
The paint and plastic parts used in
thiskitare fuel proof. However, they
arenottolerantofmanyharshchemi-
cals including the following: paint
thinner, cyano-acrylate glue accel-
erator,cyanoacrylategluede-bonder
andacetone.Donotletthesechemi-
calscomeincontactwiththecolours
onthecoveringandtheplasticparts.

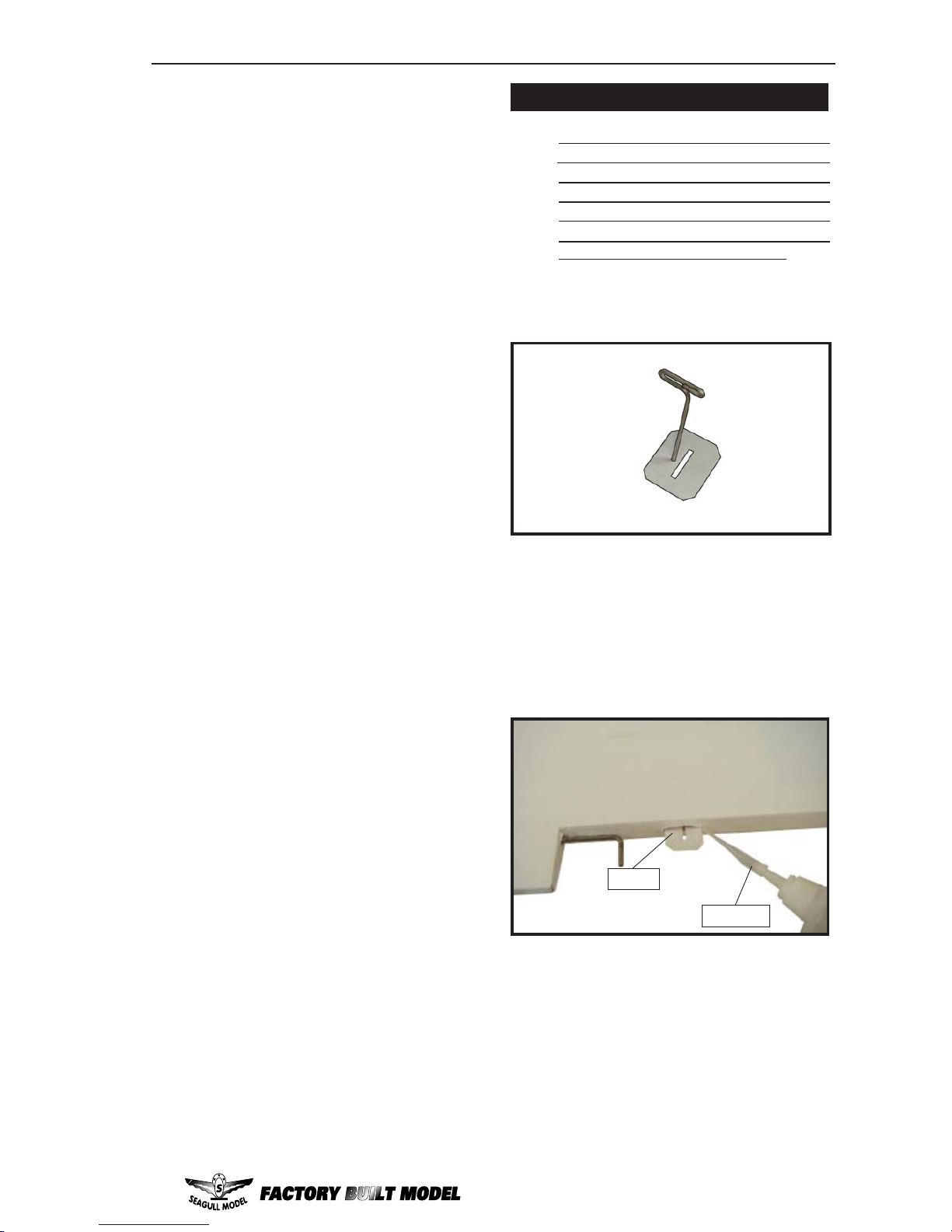

2)Removeeach hinge fromthewingpanel
and aileron and place a T-pin in the center of
each hinge. Slide each hinge into the wing
panel until the T-pin is snug against the wing
panel. This will help ensure an equal amount
ofhingeis on eithersideofthe hingelinewhen
the aileron is mounted to the aileron.
The control surfaces, including the
ailerons, elevators, and rudder, are
prehinged with hinges installed, but the
hinges are not glued in place. It is
imperativethatyouproperlyadherethe
hingesinplaceperthestepsthatfollow
using a high-quality thin C/A glue.
Note:
HINGING THE AILERONS.
Hinge.
3) Slide the wing panel on the aileron until
there is only a slight gap. The hinge is now
centered on the wing panel and aileron.
Remove the T-pins and snug the aileron
against the wing panel.Agap of 1/64” or less
shouldbemaintainedbetweenthewingpanel
andaileron.

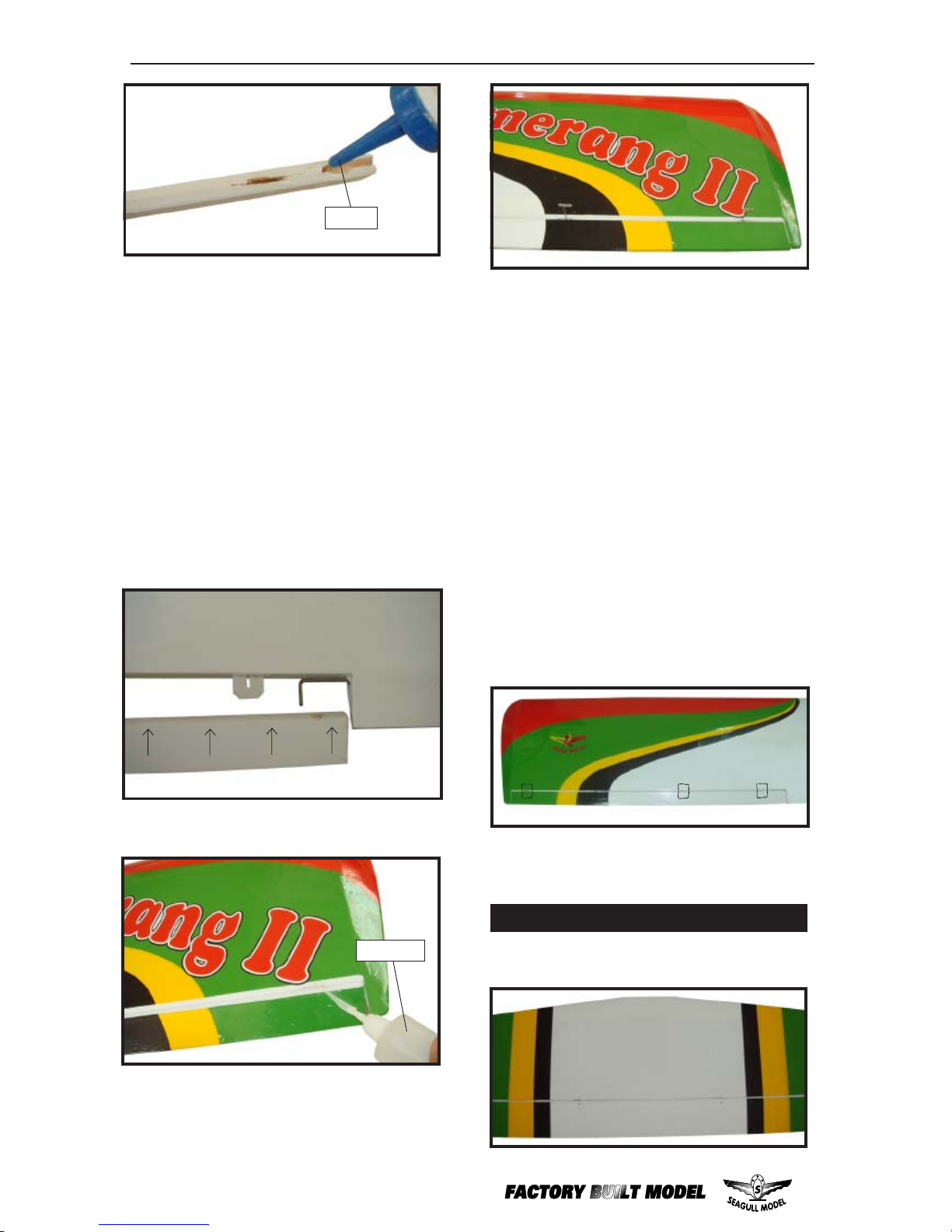

1) Carefully remove the aileron from one
of the wing panels. Note the position of the
hinges.
C/Aglue.

4
BOOMERANG 40. Instruction Manual.
8)After both ailerons are securely hinged,
firmly grasp the wing panel and aileron to
make sure the hinges are securely glued and
cannot be pulled out. Do this by carefully
applying medium pressure, trying to separate
the aileron from the wing panel. Use caution
not to crush the wing structure.
7) Repeat this process with the other wing
panel, securely hinging the aileron in place.
6) Using C/A remover/debonder and a
papertowel,removeanyexcess C/A glue that
may have accumulated on the wing or in the
aileronhingearea.
5)Turnthe wing panel over and deflectthe
aileron in the opposite direction from the
opposite side. Apply thin C/A glue to each
hinge,making surethattheC/Apenetratesinto
both the aileron and wing panel.
Workthe aileronupand downseveral
times to “work in” the hinges and
check for proper movement.
Note:
4) Deflect the aileron and completely
saturate each hinge with thin C/A glue. The
aileronsfrontsurface should lightlycontactthe
wing during this procedure. Ideally, when the
hinges are glued in place, a 1/64” gap or less
will be maintained throughout the lengh of the
aileron to the wing panel hinge line.
Thehingeis constructedofa special
material that allows the C/A to wick
or penetrate and distribute
throughout the hinge, securely
bonding it to the wood structure of
the wing panel and aileron.
Note:
Epoxy.
HINGING THE ELEVATOR.
Glue the elevator hinges in place using the
same techniques used to hinge the ailerons.
C/Aglue.

5
BOOMERANG 40. Instruction Manual.
Maskingtape.
Centreline.
2) Remove the brace when satisfied with
its fit ineach wing half. Coat both sides of one
halfofthedihedralbracewith30minuteepoxy.
Next,poursomeepoxyintothedihedralboxin
one wing panel. Make sure you cover the top
andbottomaswellasthesidesofthedihedral
brace. Use enough epoxy to fill any gaps.
 1)Testfitthewingtubeintoeachwinghalf.
The brace should slide in easily up to the
centreline that you drew.If not, use 220 grit
sandpaper with a sanding block and sand
down the edges and ends of the brace until it
fits properly.
WING ASSEMBLY.
NOTE: We highly recommend using 30
minute epoxy as it is stronger and provides
more working time, allowing the builder to
properlyalign theparts.Usingfastcure epoxy
whenjoiningthewinghalvescouldresultinthe
gluedryingbeforethewinghalvesarealigned
properlywhichmayresultinfailureofthewing
centre section during flight.
Carefully slide the two wing halves together
and firmly press them together, allowing the
excess epoxy to run out. There should not be
any gap in the wing halves. Use rubbing
alcohol and a paper tower to clean up any
excess epoxy.
Apply masking tape at the wing join to hold
the wing halves together securely.
HINGING THE RUDDER.
Glue the rudder hinges in place using the
same techniques used to hinge the ailerons.
Epoxy attach.
 3) Peel off the backing from the self adhe-
sivecoveringstrip.Applythestriptothecentre
section of the wing starting from the bottom
trailingedge.Wrapthestripallthewayaround
the wing until it meets the trailing edge again.
Trim off any excess strip.
4. Once the epoxy has cured, trial fit
both wing halves together. The centre ribs
shouldfittogetherflushwithnogaps.Ifgapsdo
exist, use 220 grit sandpaper and sand down
the high spots on the root ribs and the wing
joineruntilaproperfitisachieved.Thecorrect
amountofdihedralisready-builtintothewings.
With one wing half laid flat on the table, the
other wing tip should be off the table surface.
If this needs to be adjusted, you may do so by
sandingsmallamountsfrom the centreribsor
dihedral brace.
Epoxy.

6
BOOMERANG 40. Instruction Manual.
5. Carefullyapplymaskingtapearound
thetopandbottomedgeof therootrib ofeach
winghalftoprotectthemfromdamagecaused
byepoxy.
6. Mixagenerousamountof30minute
epoxy. Coat the exposed half of the dihedral
brace, and the remaining wing joiner box and
both root ribs with epoxy. Slide the two wing
halvestogetherandcarefullyalignthematthe
leading and trailing edges. Wipe away any
excess epoxy using paper towels. Use mask-
ingtape wrappedaroundthecentresectionto
hold the halves in place until the epoxy cures.

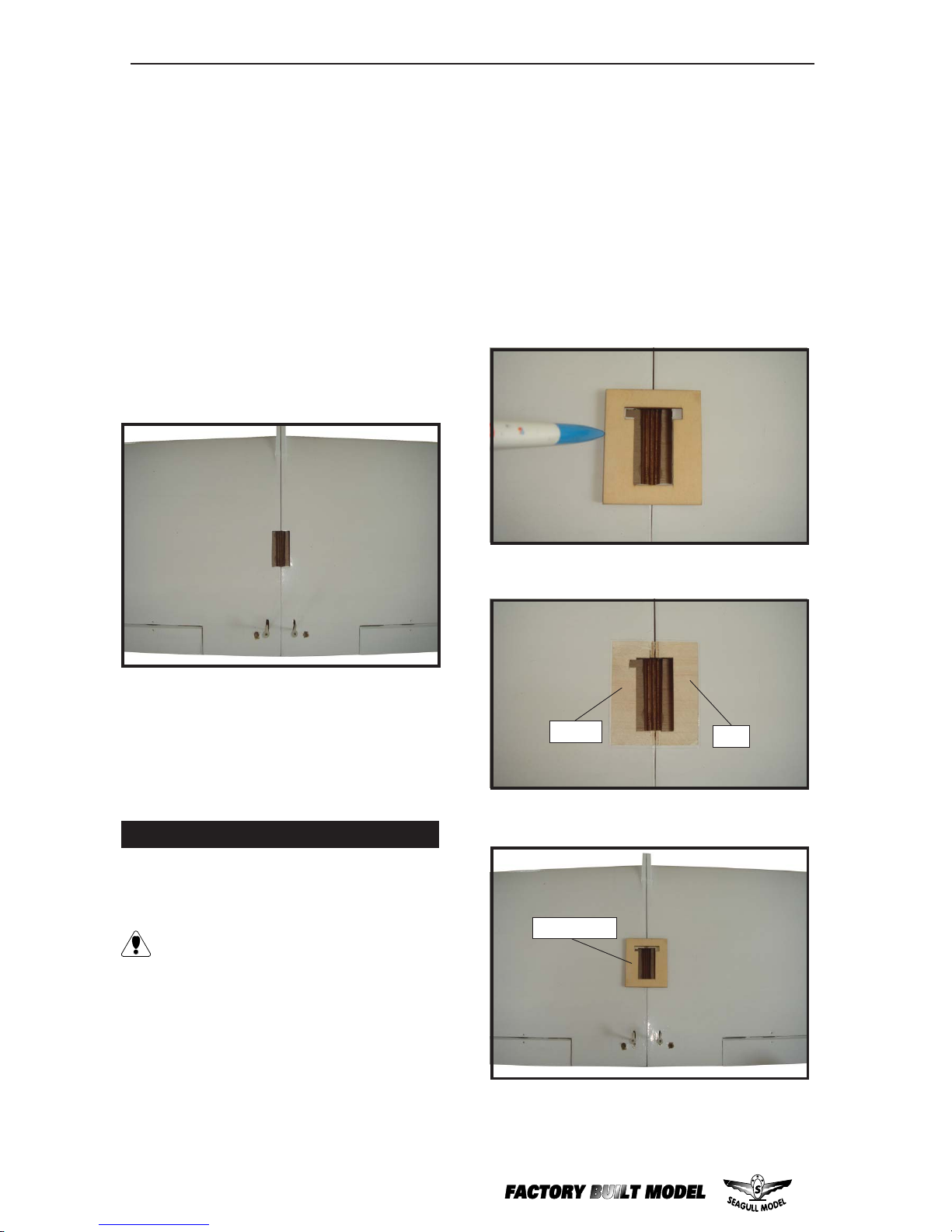

2. Remove the aileron servo. Place the
mountontothewing,aligningthecutoutin the
mount with the cutout in the wing. The two
notches in the mount should face the leading
edge of the wing.
3. While holding the servo mount firmly
in place, trace around it using a pen.
4. Remove the mount, and using a mod-
elingknife,carefullyremovethe covering from
inside the outline you drew.
5. Using 6 Minute Epoxy, glue the servo
mount into place. Remove any excess epoxy
usinga paper towel and rubbing alcohol. Use
piecesofmasking tapetoholdthe trayinplace
until the epoxy fully cures.
INSTALLING THE AILERON SERVO MOUNT.
8. Peel off the backing from the self
adhesive covering strip. Apply the strip to the
centre section of the wing starting from the
bottomtrailingedge.Wrapthestripalltheway
aroundthewinguntilitmeets thetrailingedge
again. Trim off any excess strip.
7. When the epoxy has cured, carefully
remove the masking tape from the wing.
1. Installthe rubber grommets and brass
colletsonto theaileronservo. Testfittheservo
into the aileron servo mount.
Because the size of servos differ, you
may need to adjust the size of the precut
opening in the mount. The notch in the sides
of the mount allow the servo lead to pass
through.
Epoxy. Cut.
Servo tray.

7
BOOMERANG 40. Instruction Manual.
INSTALLING THE AILERON SERVO.
Install the aileron servo into the servo
mount, withtheoutputshafttowardsthelead-
ing edge of the wing, using the wood screws
provided with your radio system. Drill 1/16”
pilot holes through the mount before installing
the screws. This will prevent the wood from
splitting.
1. Thread one nylon adjustable control
horn onto each aileron torque rod. Thread
the horns on until they are flush with the ends
of the torque rods.
2. Threadone nylonclevisatleast5/16” onto

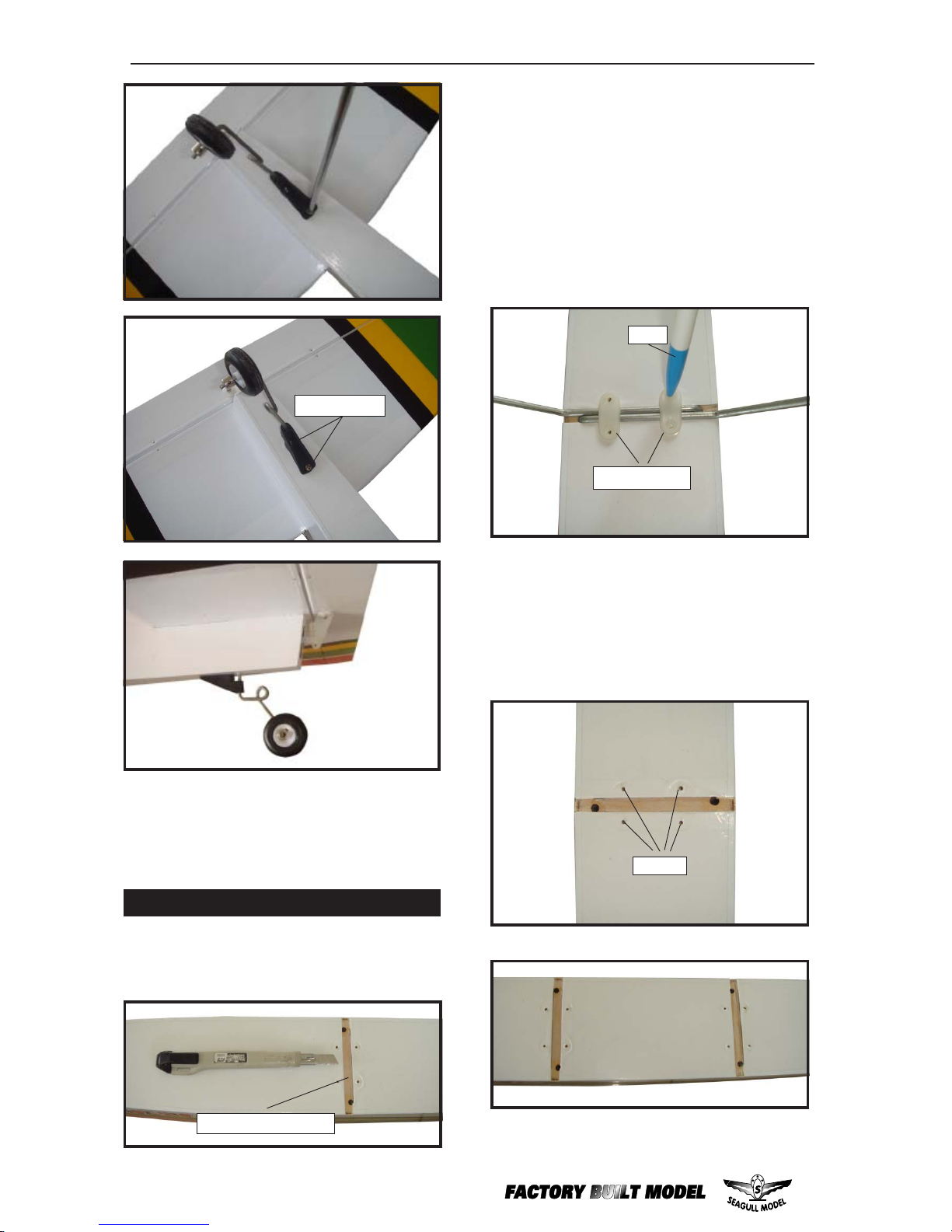

each of the two threaded wires.
3. Withtheaileronservocentered,install
theservoarmontotheservo. The arm should
beinstalled soitis parallelwiththetrailingedge
of the wing.
Pushrod
wire.
4. Slide the pushrod wires following pic-
tureabove.
5. With both the aileron servo and the ai-
leronscentered.Tighten the set screwsonthe
connectors.
Wirekeeper.
INSTALLING THEAILERONLINKAGE.
1. Using a modeling knife, remove the
covering from over the two main gear mount-
ingslotslocatedinthebottomofthefuselage.
2. Usingthe two landing gear straps as a
guide, mark the locations of the four 3mm x
12mmmountingscrews onto thefuselagesur-
face.
Remove covering.
INSTALLING THE MAIN GEAR WIRES.
3. The landing gear wire is held in place
using two nylon landing gear straps and four
3mm x 12mm wood screws.
The straps should be located equal distance
from the inside and outside ends of the wire.

8
BOOMERANG 40. Instruction Manual.
1) Locate the items necessary to install the
engine mount included with your model. .
ENGINE MOUNT INSTALLATION.
4x30mm.
2) Usefour4x30mm head boltsandfour4mm
washers to attach the engine mount rails to
thefirewall.Tightenthescrews.Makesureto
use threadlock on the screws to help prevent
them from vibrating loose.
2mm.
3mm X 12mm.
5. Remove the two straps and the gear
wire. Drill four 3/32” pilot holes into the fuse-
lage for the wood screws.
Plastic trap.
Pen.
4. Insert the main gear wire into the
mounting slot.
INSTALLING THE NOSE GEAR WHEEL.

9
BOOMERANG 40. Instruction Manual.

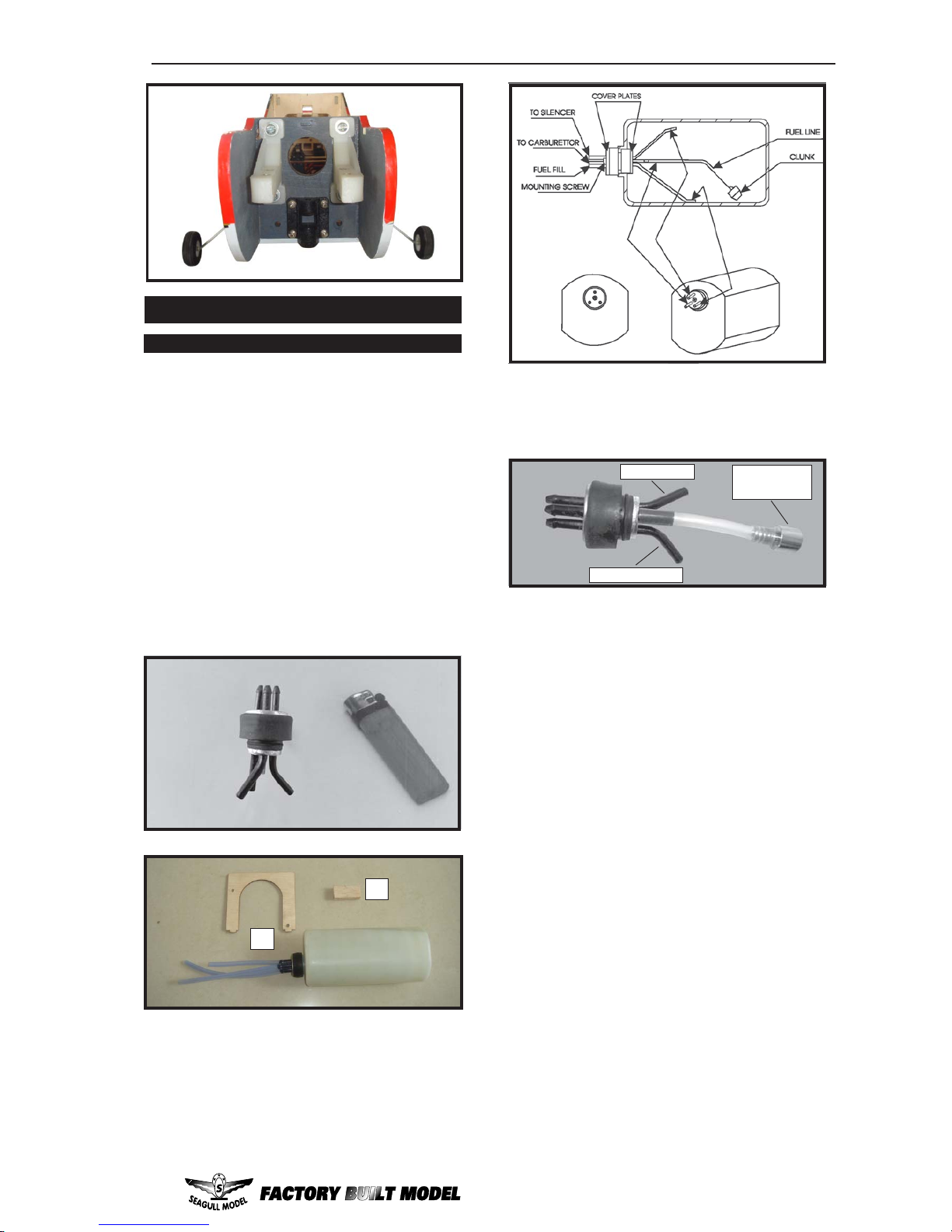

FUEL TANK.
INSTALLING THE STOPPERASSEMBLY.
1. Using a modeling knife, carefully cut
offtherearportionofoneofthetwonylontubes
leaving 1/2” protruding from the rear of the
stopper. This will be the fuel pick up tube.
2. Usinga modeling knife, cut one length
ofsiliconfuelline(notincluded)to2-1/4”long.
Connect one end of the line to the weighted
fuel pickup and the other end to the nylon
pickup tube.
3. Carefully bend the second nylon tube
up at a 45º angle. This tube is the vent tube.
4. Carefully heat the vent tube using a
heat gun or lighter to permanently set the
angle of the tube.
FuelPickup
Tube.
FuelFill Tube.
Vent tube.
A
B
When the stopper assembly is installed in
the tank, the top of the vent tube should rest
justbelowthe topsurfaceofthe tank. It should
not touch the top of the tank.
5. Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using a
modeling knife. If flashing is present, make
sure none falls into the tank.
6. With the stopper assembly in place,
the weighted pickup should rest about 3/8”
awayfromtherear of thetankandmove freely
insidethetank. Thetopoftheventtubeshould
rest just below the top of the tank. It should
not touch the top of the tank.
7. When satisfied with the alignment of
thestopperassemblytightenthe 3mmx20mm
machine screw until the rubber stopper ex-
pands and seals the tank opening. Do not
overtighten the assembly as this could cause
the tank to split.

10
BOOMERANG 40. Instruction Manual.
Fuelpickup
tube.
Venttube.
Fuel fill tube.
INSTALLING THE FUSELAGE SERVOS.
1) Installtherubbergrommetsandbrass
colletsonto thethrottleservo. Testfitthe servo
into the aileron servo mount.
 2) Secure the servos with the screws pro-
vided with your radio system.
Because the size of servos differ, you
mayneedto adjustthesizeof theprecutopen-
ing in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
Fueltank.
INSTALLING THE FUEL TANK.
Fueltank.
C/Aglue.
Fuel pickup tube.
Top of tank.
Vent tube.
Fuel fill tube.
 2) Use balsa plywood to help prevent
moveable from transferring to the fuel tank as
shown.
 1) Slide the fuel tank into the fuselage.
Guide the lines from the tank through the hole
in the firewall.
You should mark which tube is the vent
and which is the fuel pickup when you attach
fuel tubing to the tubes in the stopper. Once
thetankisinstalledinsidethefuselage,itmay
be difficult to determine which is which.
A
B
C/Aglue.

11
BOOMERANG 40. Instruction Manual.
Throttle servo.
Elevator servo.
Rudder servo.
THROTTLE SERVO ARM INSTALLATION.
Installadjustableservoconnectorin the servo
arm as same as picture below:
AdjustableServo
connector.
Servoarm.
Loctite secure.
Nut.
Elevator servo arm.
Throttle servo arm.
Rudder servo arm.
INSTALLING THE SWITCH.
3/32” Hole.
Trim and cut.
Installtheswitchintothe precut hole in the
side, in the fuselage.
Switch.
MOUNTING THE ENGINE.
PARTSREQUIRED.
1. Install the pushrod housing through the
predrilledholeinthe firewall andintotheservo
compartment. The pushrod housing should
protrude 1/4" out past the front of the firewall.
Make a Z-Bend 1/4" from one end of the plain
wire pushrod.
110mm.
2. Place your engine onto the engine
mount. Adjust the engine is centered of the
edges of the engine case.
3. When you are satisfied with the align-
ment, mark the locations of the engine
mounting.

12
BOOMERANG 40. Instruction Manual.

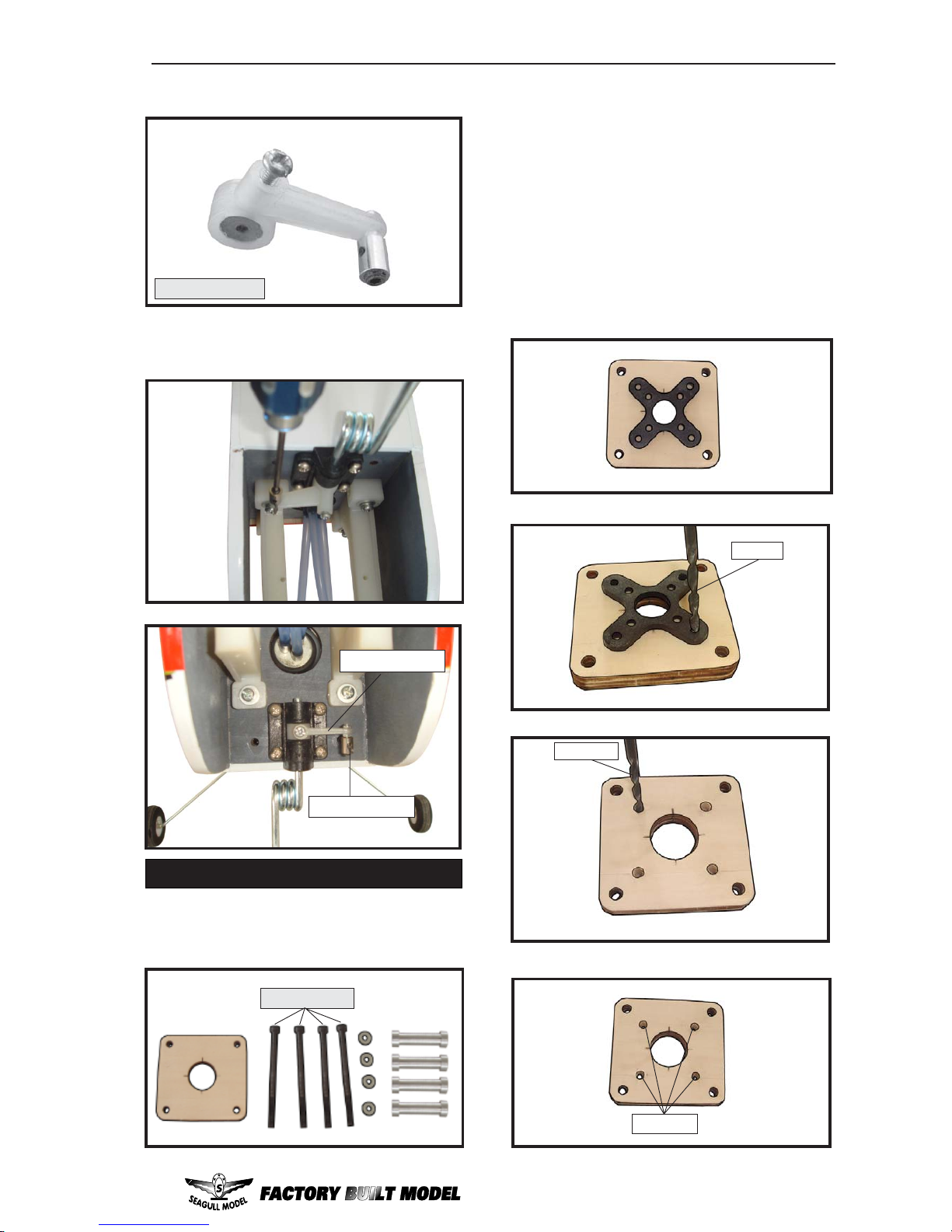

NOSE GEAR INSTALLATION.
TOOLSREQUIRED
3mm X 15mm.
1.5mm.
5. Bolt the engine to the engine mount
using the four machine screws. Double
cheek that all the screws are tight before
proceeding.
6. Attach the Z-Bend in the pushrod wire
to the throttle arm on the carburetor. You will
need to remove the throttle arm from the car-
buretor to be able to attach the Z-bend. When
complete, reattach the throttle arm to the car-
buretor.
Pushrod wire.
1.5mm.
4. Remove the engine. Using an drill bit,
drill the mounting holes through the engine
mount at the four locations marked.

13
BOOMERANG 40. Instruction Manual.
Steering arm.
Installing steering arm as follow.
Adjust the nose gear steering arm until the
arm is parallel with the fire wall.
Steering arm.
Pushrod wire.

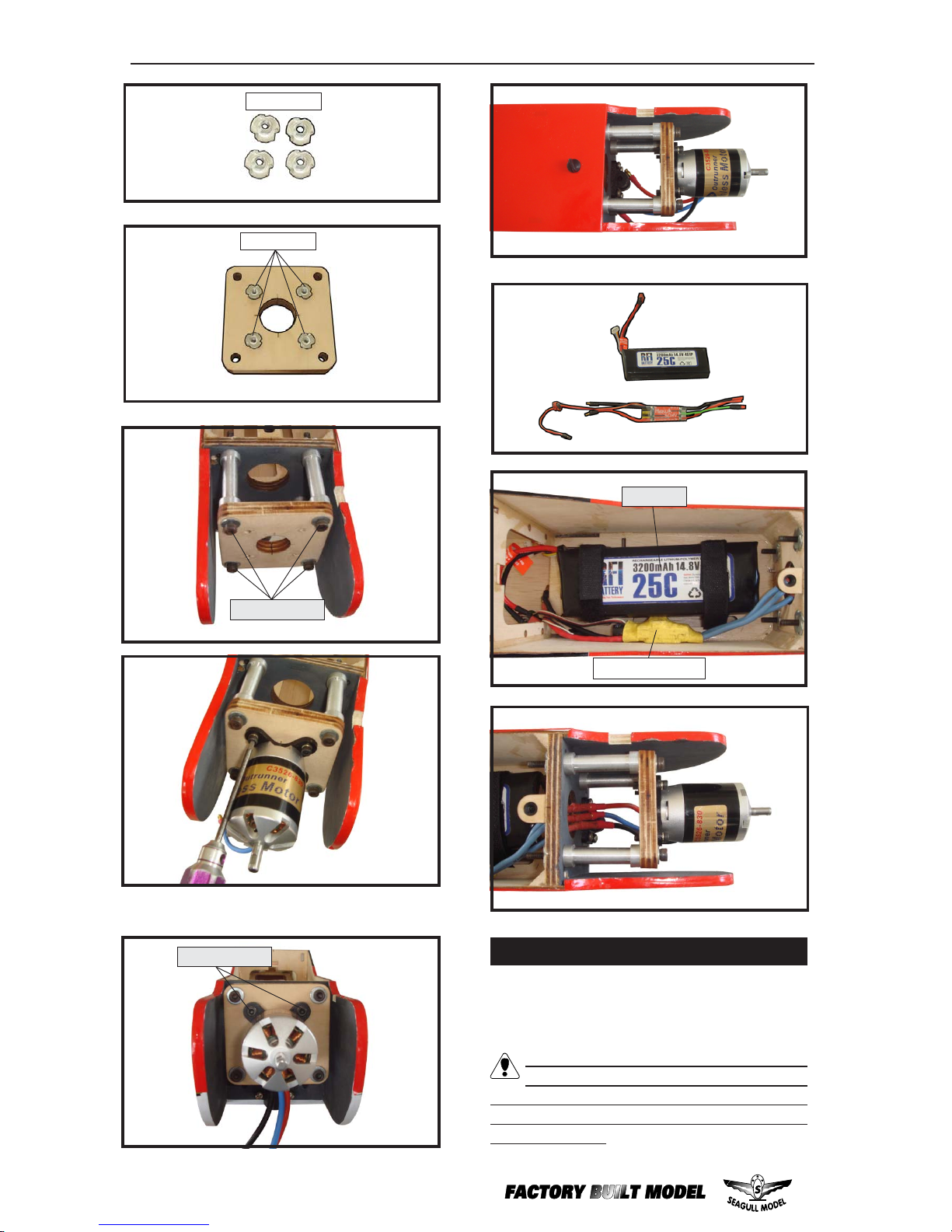

ELECTRIC POWER CONVERSION.
1) Locate the items neccessary to install the
electric power conversion included with your
model.
- Model size: .35-.45 size models
- Motor: 35mm 830 rev per volt
- Propeller: 10x7
- ESC: 50A
- Lipo Batteries: 4cell 3200mA
M4x70mm.
2) Attach the electric motor box to the firewall
suitable with the cross lines drawn on the electric
motor box and firewall. Using epoxy and balsa
stick to secure the motor box to the firewall.
Please see pictures below.
3mm.
4mm.
4mm.

14
BOOMERANG 40. Instruction Manual.
Battery.
Speed control.
Install the spinner backplate, propeller and
spinner cone. The spinner cone is held in
place using two 3mm x 12mm wood screws.
The propeller should not touch any part
of the spinner cone. If it does, use a
sharp modeling knife and carefully trim away
the spinner cone where the propeller comes
in contact with it.
INSTALLING THE SPINNER.
M4x70mm.
Blindnut.
Blindnut.
M3x15mm.

15
BOOMERANG 40. Instruction Manual.
3. Slidethestabilizerintoplaceinthe pre-
cut slot in the rear of the fuselage. The stabi-
lizer should be pushed firmly against the front
of the slot.
HORIZONTAL STABILIZER.
1. Using a ruler and a pen, locate the
centerline of the horizontal stabilizer, at the
trailing edge, and place a mark. Use a tri-
angleandextendthis mark, frombacktofront,
across the top of the stabilizer. Also extend
this mark down the back of the trailing edge
of the stabilizer.
Draw centerline.
Remove covering.
The top of the stabilizer does not have
the hinge pins exposed.
2. Using a modeling knife, carefully re-
move the covering from over the vertical sta-
bilizermountingslotinthetopofthefuselage.
5. Removethestabilizer. Usingthelines
youjustdrewasaguide,carefullyremovethe
covering from between them using a model-
ing knife.
6. Using a modeling knife, carefully re-
move the covering that overlaps the stabilizer
mounting platform sides in the fuselage. Re-
move the covering from both the top and the
bottom of the platform sides.
When cutting through the covering to re-
move it, cut with only enough pressure
toonlycutthroughthecoveringitself. Cutting
into the balsa structure may weaken it.
4. With the stabilizer held firmly in place,
use a pen and draw lines onto the stabilizer
where it and the fuselage sides meet. Do this
on both the right and left sides and top and
bottom of the stabilizer.
Pen.
Remove covering.

16
BOOMERANG 40. Instruction Manual.
2. While holding the vertical stabilizer
firmly in place, use a pen and draw a line on
each side of the vertical stabilizer where it
meets the top of the fuselage.
3. Remove the stabilizer. Using a mod-
eling knife, remove the covering from below
the lines you drew. Also remove the covering
from the bottom edge of the stabilizer and the
bottomandtop edges ofthefillerblock. Leave
the covering in place on the sides of the filler
block.
When cutting through the covering to re-
moveit, cut with only enough pressure to only
cut through the covering itself. Cutting into
the balsa structure may weaken it.
Remove covering.
Pen.
1. Slidethe vertical stabilizer into the slot
inthetopofthefuselage. Thebottomedgeof
the stabilizer should also be firmly pushed
against the top of the horizontal stabilizer.
VERTICAL STABILIZER
INSTALLATION.
7. When you are sure that everything is
aligned correctly, mix up a generous amount
of 30 Minute Epoxy. Apply a thin layer to the
topandbottomofthestabilizermounting area
and to the stabilizer mounting platform sides
in the fuselage. Slide the stabilizer in place
and realign. Double check all of your mea-
surementsoncemorebefore the epoxy cures.
Holdthestabilizerinplace withT-pinsormask-
ing tape and remove any excess epoxy using
a paper towel and rubbing alcohol.
8. After the epoxy has fully cured, re-
move the masking tape orT-pins used to hold
the stabilizer in place. Carefully inspect the
glue joints. Use more epoxy to fill in any gaps
that may exist that were not filled previously
and clean up the excess using a paper towel
and rubbing alcohol.

17
BOOMERANG 40. Instruction Manual.

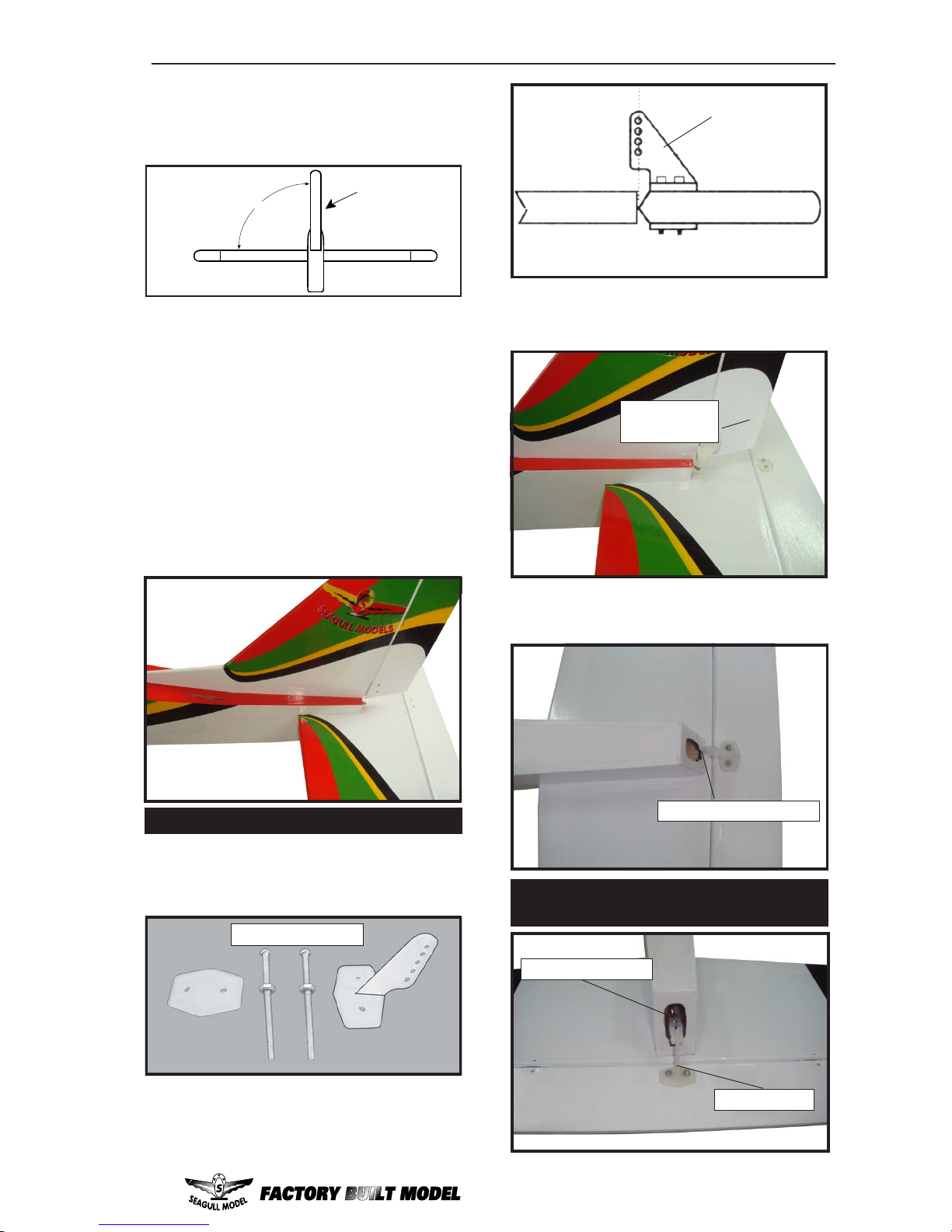

CONTROL HORN INSTALLATION.
1. Locate the two nylon control horns, two
nylon control horn backplates and four M2 x
15mm machine screws.
(2)2mm x 15mm.
4. Slide the vertical stabilizer back in
place. Using a triangle, check to ensure that
theverticalstabilizerisaligned90ºtothehori-
zontal stabilizer.
5. When you are sure that everything is
aligned correctly, mix up a generous amount
ofFlash 30MinuteEpoxy. Apply a thin layer to
themountingslotinthetop of the fuselage and
to the sides and bottom of the vertical stabi-
lizer mounting area. Apply epoxy to the bot-
tomandtopedgesofthefillerblockand to the
lower hinge also. Set the stabilizer in place
andrealign. Double checkallof yourmeasure-
mentsoncemorebeforethe epoxycures.Hold
the stabilizer in place with T-pins or masking
tape and remove any excess epoxy using a
papertowel and rubbing alcohol. Allow theep-
oxy to fully cure before proceeding.
90º
Vertical
Stabilizer.
Horizontal
Stabilizer.
4. Install the rudder control horn using the
same method as with the elevator control
horns.
Rudder
control horn.
Elevator control horn.
ControlHorn.
MountingScrews. Mounting Plate.
2. Position the elevator horn on the bottom
side of elevator.The clevis attachment holes
should be positioned over the hinge line.
3. Using a 1.5mm drill bit and the control
horns as a guide, drill the mounting holes
through the elevator halves.
ELEVATOR PUSHROD HORN
INSTALLATION.
Elevator pushrod.
Control horn.

18
BOOMERANG 40. Instruction Manual.
Pen.
Control horn.
Rudder pushrod.
RUDDER PUSHROD HORN
INSTALLATION.
8mm.
Elevator.
Rudder.
8mm.
Cut.
Pen.
INSTALLING THE RECEIVERANDBATTERY.
1) Plugthefiveservo leads andtheswitch
lead into the receiver. Plug the battery pack
lead into the switch also.
 3) Route the antennain theantenna tube
insidethefuselageandsecureittothebottom
of fuselage using a plastic tape.
2) Wrap the receiver and battery pack in
the protective foam rubber to protect them
from vibration.

19
BOOMERANG 40. Instruction Manual.
ATTACHMENT WING-FUSELAGE.
Receiver.
Battery.
Wing bolt.
TAIL - DRAGGER CONVERSION.
M3x12mm.
1) Test fit thefinandthetailgear,tomake
sure that everything fits properly. When you
arehappywiththefit,glue the fin permanently
in place.
2) Seebelowpicture howtoassembly the
tail-Dragger Conversion.

20
BOOMERANG 40. Instruction Manual.
M3x12mm.
3) Install the control horn on the rudder,
thenholdtherudderinplace andmarkit where
themusicwirewillenter. When you are happy
with the fit, fill the hole with epoxy and use CA
to glue in the rudder hinges. 2mm.
1. Using a modeling knife, remove the
covering from over the two main gear mount-
ingslotslocatedinthebottomofthefuselage.
2. Usingthe two landing gear straps as a
guide, mark the locations of the four 3mm x
12mmmountingscrews onto thefuselagesur-
face.
Remove covering.
INSTALLING THE MAIN GEAR WIRES.
3. The landing gear wire is held in place
using two nylon landing gear straps and four
3mm x 12mm wood screws.
The straps should be located equal distance
from the inside and outside ends of the wire.
5. Remove the two straps and the gear
wire. Drill four 3/32” pilot holes into the fuse-
lage for the wood screws.
Plastic trap.
Pen.
4. Insert the main gear wire into the
mounting slot.
