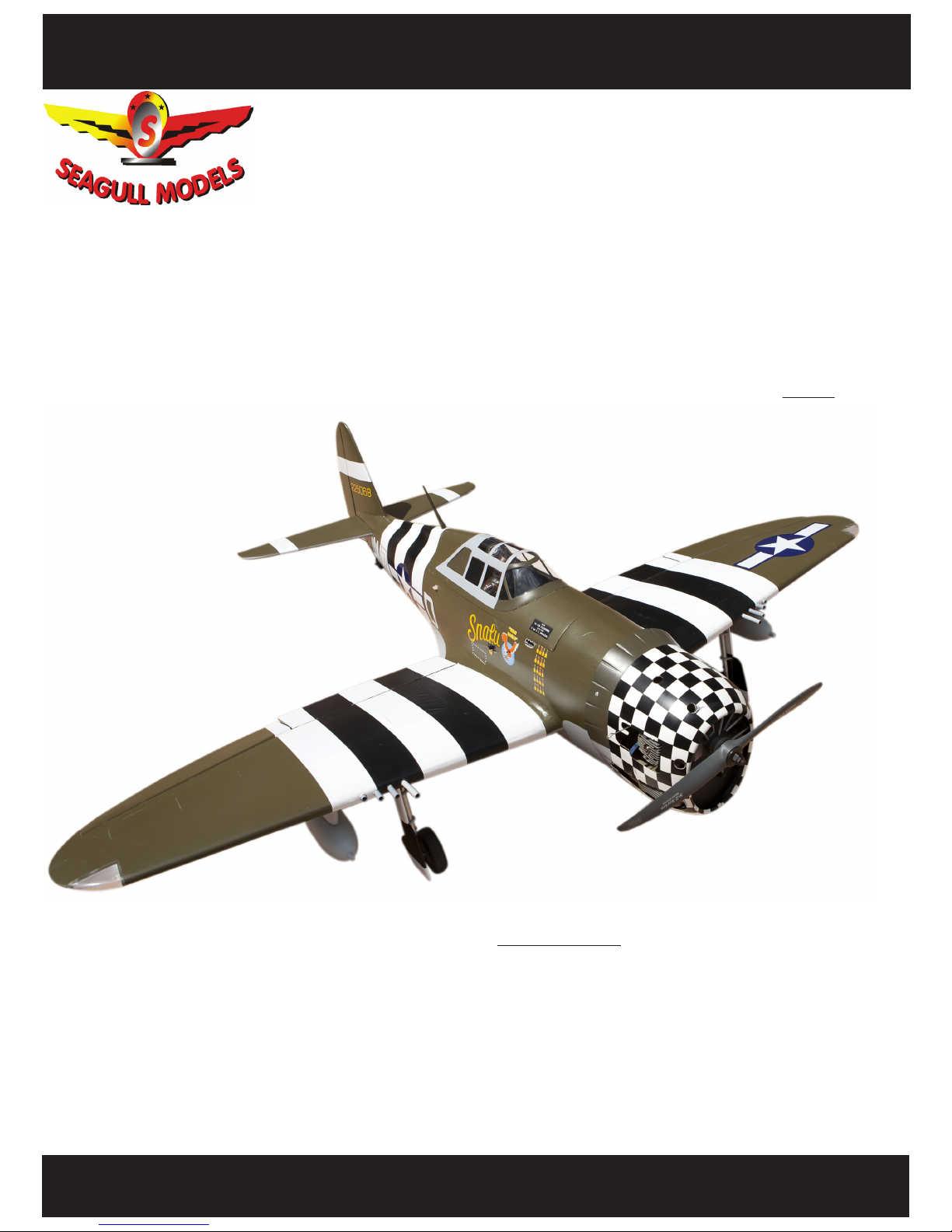

Seagull Models P47 SNAFU User manual

WWW.SEAGULLMODELS.COM
1
ALMOST
Specications:
Wingspan---------------63.0 in (160 cm).
Wing area----------------728.5 sq.in (47.0 sq.dm).
Weight-------------------9.3 - 9.9 lbs (4.2 - 4.5 kg).
Length-------------------51.8 in (131.5cm).
Engine-------------------0.61 - 0.91 cu.in----2 stroke.
...................................0.91- 1.00 cu.in----4 stroke.
....................................15cc gasoline engine .
Radio--------------------6 channels with 9 servos.
Electric conversion: Optional.
ASSEMBLY MANUAL
MS: 207
P47G
THUNDERBOLT
www.seagullmodels.com
“ Graphics and specications may change without notice “ .
READY TO FLY
SNAFU 60 ARF

P47 SNAFU Instruction Manual.
2
ank you for choosing the P47 SNAFU ARTF by SEAGULL MODELS COMPANY LTD,.
e P47 SNAFU was designed with the intermediate/advanced sport yer in mind. It is a semi
scale airplane which is easy to y and quick to assemble. e airframe is onventionally built using
balsa, plywood to make it stronger than the average ARTF, yet the design allows the aeroplane
to be kept light. You will nd that most of the work has been done for you already. e motor
mount has been tted and the hinges are pre-installed. Flying the P47 SNAFU is simply a joy.
is instruction manual is designed to help you build a great ying earoplane. Please read
this manual throughly before starting assembly of your P47 SNAFU. User the parts listing
below to indentify all parts.
Please be awere that this aeroplane is not a toy and if assembley or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & REPONSIBILITY.
If you are inexperianced with basic R/C ight we strongly recommend you contact your R/C
supplier and join your local R/C model Flying Club. R/C Model Flying Clubs oer a variety
of training procedures designed to help the new pilot on his way to successful R/C ight.
ey will also be able to advise on any insurance and safety regulations that may apply.
INTRODUCTION.
WARNING.
KIT CONTENTS
3
1
5
2
3
2
46
7
8

WWW.SEAGULLMODELS.COM
3
KIT CONTENTS.
SEA207 P47 SNAFU
SEA20701 Fuselage
SEA20702 Wing set
SEA20703 Tail set
SEA20704 Canopy
SEA20705 Pilot
SEA20706 Cowling
SEA20707 Landing gear
ADDITIONAL ITEMS REQUIRED.
61- 91 2-stroke.
91-100 4-stroke.
15cc gasoline engine.
Computer radio with 9 servos.
Glow plug to suit engine.
Propeller to suit engine.
Protective foam rubber for radio
system.
TOOLS & SUPPLIES NEEDED.
ick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modelling knife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
read-lock.
Paper towels.
HINGING THE FLAP.
.Hinge.
Note : e control surfaces, including the ai-
lerons, elevators, and rudder, are prehinged
with hinges installed, but the hinges are not
glued in place. It is imperative that you prop-
erly adhere the hinges in place per the steps
that follow using a high-quality thin C/A glue.
1) Carefully remove the aileron from one
of the wing panels. Note the position of the
hinges.
2) Remove each hinge from the wing panel
and aileron and place a T-pin in the center of
each hinge. Slide each hinge into the wing
panel until the T-pin is snug against the wing
panel. is will help ensure an equal amount
of hinge is on either side of the hinge line
when the aileron is mounted to the aileron.
3) Slide the wing panel on the aileron until
there is only a slight gap. e hinge is now
centered on the wing panel and aileron. Re-
move the T-pins and snug the aileron against
the wing panel. A gap of 1/64” or less should
be maintained between the wing panel and
aileron.

P47 SNAFU Instruction Manual.
4
HINGING THE AILERON.
Epoxy.
Hinge.
T-pin.
4) Deect the aileron and completely satu-
rate each hinge with thin C/A glue. e ailer-
ons front surface should lightly contact the
wing during this procedure. Ideally, when
the hinges are glued in place, a 1/64” gap or
less will be maintained throughout the lengh
of the aileron to the wing panel hinge line.
NOTE : e hinge is constructed of a spe-
cial material that allows the C/A to wick
or penetrate and distribute throughout
the hinge, securely bonding it to the wood
structure of the wing panel and aileron.
5) Turn the wing panel over and deect the
aileron in the opposite direction from the
opposite side. Apply thin C/A glue to each
hinge, making sure that the C/A penetrates
into both the aileron and wing panel.
6) Using C/A remover/debonder and a pa-
per towel, remove any excess C/A glue that
may have accumulated on the wing or in the
aileron hinge area.
7) Repeat this process with the other wing
panel, securely hinging the aileron in place.
8) Aer both ailerons are securely hinged,
rmly grasp the wing panel and aileron to
make sure the hinges are securely glued and
cannot be pulled out. Do this by carefully ap-
plying medium pressure, trying to separate
the aileron from the wing panel. Use caution
not to crush the wing structure.
Work the aileron up and down sev-
eral times to “work in” the hinges
and check for proper movement.
Note :
Note : e control surfaces, including the ai-
lerons, elevators, and rudder, are prehinged
with hinges installed, but the hinges are not
glued in place. It is imperative that you prop-
erly adhere the hinges in place per the steps
that follow using a high-quality thin C/A glue.
1) Carefully remove the aileron from one
of the wing panels. Note the position of the
hinges.
2) Remove each hinge from the wing panel
and aileron and place a T-pin in the center of
each hinge. Slide each hinge into the wing
panel until the T-pin is snug against the wing
panel. is will help ensure an equal amount
of hinge is on either side of the hinge line
when the aileron is mounted to the aileron.

WWW.SEAGULLMODELS.COM
5
3) Slide the wing panel on the aileron until
there is only a slight gap. e hinge is now
centered on the wing panel and aileron. Re-
move the T-pins and snug the aileron against
the wing panel. A gap of 1/64” or less should
be maintained between the wing panel and
aileron.
Hinge.
4) Deect the aileron and completely satu-
rate each hinge with thin C/A glue. e ailer-
ons front surface should lightly contact the
wing during this procedure. Ideally, when
the hinges are glued in place, a 1/64” gap or
less will be maintained throughout the lengh
of the aileron to the wing panel hinge line.
NOTE : e hinge is constructed of a spe-
cial material that allows the C/A to wick
or penetrate and distribute throughout
the hinge, securely bonding it to the wood
structure of the wing panel and aileron.
Epoxy.
5) Turn the wing panel over and deect the
aileron in the opposite direction from the
opposite side. Apply thin C/A glue to each
hinge, making sure that the C/A penetrates
into both the aileron and wing panel.
6) Using C/A remover/debonder and a pa-
per towel, remove any excess C/A glue that
may have accumulated on the wing or in the
aileron hinge area.
7) Repeat this process with the other wing
panel, securely hinging the aileron in place.
8) Aer both ailerons are securely hinged,
rmly grasp the wing panel and aileron to
make sure the hinges are securely glued and
cannot be pulled out. Do this by carefully ap-
plying medium pressure, trying to separate
the aileron from the wing panel. Use caution
not to crush the wing structure.
Work the aileron up and down sev-
eral times to “work in” the hinges
and check for proper movement.
Note :
HINGING THE ELEVATORS.
Glue the elevator hinges in place using
the same techniques used to hinge the ai-
lerons.

P47 SNAFU Instruction Manual.
6
HINGING THE RUDDER.
Glue the rudder hinges in place using
the same techniques used to hinge the ai-
lerons.
INSTALL THE AILERONS CONTROL
HORN.
Fiberglass control horn
Epoxy.
Epoxy.
Aileron control horn.
.
INSTALL FLAP CONTROL HORN.
Install the ap control horn using the
same method as same as the aileron con-
trol horns.
Fiberglass control horn.
Epoxy.
INSTALL ELEVATOR CONTROL HORN.
.
Fiberglass control horn.
Epoxy.

WWW.SEAGULLMODELS.COM
7
Elevator berglass control horn.
Epoxy.
INSTALL RUDDER CONTROL HORN.
Repeat steps to install the rudder control
horn as same as steps done for ailerons.
Fiberglass control horn
Epoxy.
Rudder berglass control horn.
INSTALLING THE FUSELAGE SERVOS.
.
Because the size of servos dier, you
may need to adjust the size of the precut
opening in the mount. e notch in the
sides of the mount allow the servo lead to
pass through.
1) Install the rubber grommets and brass
collets onto the throttle servo. Test t the
servo into the aileron servo mount.
2) Secure the servos with the screws pro-
vided with your radio system.
Rudder servo.
Elevator servo.
rottle servo.
THROTTLE SERVO ARM
INSTALLATION.
Install adjustable servo connector in the
servo arm as same as picture below:
Servo arm.
Adjustable servo
connector.
Loctite secure.
rottle servo arm.

P47 SNAFU Instruction Manual.
8
INSTALLING THE SWITCH RECEIVER.
Install the switch into the precut hole in
the side, in the fuselage.
3/32” Hole.
Trim and cut.
.
Switch.
INSTALLING THE SWITCH ENGINE.
Trim and cut.
Switch.
INSTALLING THE STOPPER
ASSEMBLY.
1) Using a modeling knife, carefully cut
o the rear portion of one of the 3 nylon
tubes leaving 1/2” protruding from the
rear of the stopper. is will be the fuel
pick up tube.
2) Using a modeling knife, cut one length
of silicon fuel line. Connect one end of
the line to the weighted fuel pick up and
the other end to the nylon pick up tube.
A
B

WWW.SEAGULLMODELS.COM
99
Vent tube. Fuel pick up tube.
Fuel fill tube.
3) Carefully bend the second nylon tube up
at a 45º angle. is tube is the vent tube.
4) Test t the stopper assembly into the tank.
It may be necessary to remove some of the
ashing around the tank opening using a
modeling knife. If ashing is present, make
sure none falls into the tank.
5) With the stopper assembly in place, the
weighted pick-up should rest away from the
rear of the tank and move freely inside the
tank. e top of the vent tube should rest just
below the top of the tank. It should not touch
the top of the tank.
6) When satised with the alignment of the
stopper assembly tighten the 3 x 20mm ma-
chine screw until the rubber stopper expands
and seals the tank opening. Do not over-
tighten the assembly as this could cause the
tank to split.
FUEL TANK INSTALLATION.
You should mark which tube is the vent
and which is the fuel pickup when you attach
fuel tubing to the tubes in the stopper. Once the
tank is installed inside the fuselage, it may be
dicult to determine which is which.
7) Slide the fuel tank into the fuselage. Guide
the lines from the tank through the hole in
the rewall.
8) Use plywood template to hold in place the
fuel tank with C/A glue to secure the fuel
tank inside the fuselage.
A
C/A glue.
C/A glue.
Balsa wood.
B
9) Connect the lines from the tank to the en-
gine and muer. e vent line will connect
to the muer and the line from the clunk to
the carburetor.
Vent tube.
Fuel pick up tube.
Fuel ll tube.

P47 SNAFU Instruction Manual.
10 10
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should ow
through easily.
.
ENGINE MOUNT INSTALLATION.
1) Locate the items necessary to install
the engine mount included with your
model.
4x30mm
2) Use four 4x30mm head bolts and four
4mm washers to attach the engine mount
rails to the rewall. Tighten the screws .
Make sure to use threadlock on the screws to
help prevent them from vibrating loose.
read locker glue.
MOUNTING THE ENGINE - 2 stroke.
1) Position the engine with the drive
washer (145mm) forward of the rewall
as shown.
145mm
2) Use a pin drill and 4mm drill bit to
drill a small indentation in the mount for
the engine mounting screw.
3) Use a drill to drill the four holes in the
engine mount rails.
4mm
4mm

WWW.SEAGULLMODELS.COM
11
4) On the re wall has the location for the
throttle pusshrod tube (pre-drill).
5) Slide the pushrod tube in the rewall
and guide it through the fuel tank mount.
Use medium C/A to glue the tube to the
rewall and the fuel tank mount.
6) Connect the Z-bend in the 450mm
throttle pushrod to the outer hole of the
carburetor arm.
7) Slide the throttle pushrod wire into
the tube. Position the engine between the
mounts. Use four M4x30mm machine
screws to secure the engine to the mount
as shown.
Machine screw M4x30mm
Pushrod wire.
Cut
8) Reinstall the servo horn by sliding the
connector over the pushrod wire. Center
the throttle stick and trim and install the
servo horn perpendicular to the servo
center line.
9) Move the throttle stick to the closed po-
sition and move the carburetor to closed.
Use a 2.5mm hex wrench to tighten the
screw that secures the throttle pushrod
wire. Make sure to use threadlock on the
screw so it does not vibrate loose.
COWLING.
Please see these below pictures.

P47 SNAFU Instruction Manual.
12 12
Drill hole 3mm.
Drill hole.
Knife.
Cut.
C/A glue.

WWW.SEAGULLMODELS.COM
13
Epoxy.
1) Slide the berglass cowl over the en-
gine and line up the back edge of the cowl
with the marks you made on the fuselage
then trim and cut as shown.
Because of the size of the cowl, it may be nec-
essary to use a needle valve extension for the
high speed needle valve. Make this out of suf-
cient length 1.5mm wire and install it into
the end of the needle valve. Secure the wire in
place by tightening the set screw in the side of
the needle valve.
2) While keeping the back edge of the cowl
ush with the marks, align the front of the
cowl with the cranksha of the engine. e
front of the cowl should be positioned so the
cranksha is in nearly the middle of the cowl
opening. Hold the cowl rmly in place using
pieces of masking tape.
3) Install the muer and muer extension
onto the engine and make the cutout in the
cowl for muer clearance. Connect the fuel
and pressure lines to the carburetor, muer
and fuel ller valve. Secure the cowl to fuse-
lage using the M3x10mm screws.
3x10mm
Needle valve.

P47 SNAFU Instruction Manual.
14

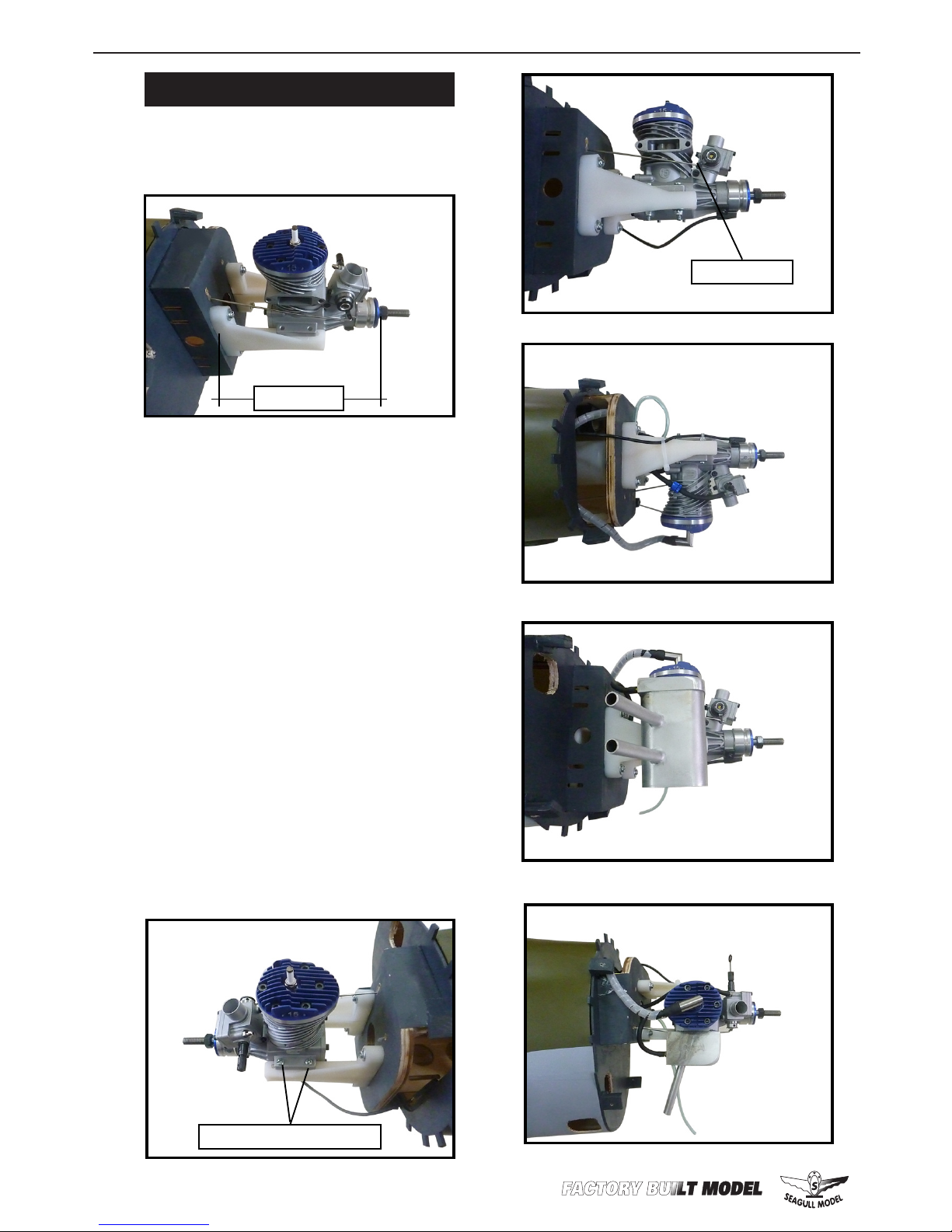

MOUNTING THE ENGINE 15cc.
145 mm
Machine screw M4x30mm
Pushrod wire.
1) Position the engine with the drive
washer (145mm) forward of the rewall
as shown.
2) Use a pin drill and 4mm drill bit to
drill a small indentation in the mount for
the engine mounting screw.
3) Use a drill to drill the four holes in the
engine mount rails.
4) On the re wall has the location for the
throttle pusshrod tube (pre-drill).
5) Slide the pushrod tube in the rewall
and guide it through the fuel tank mount.
Use medium C/A to glue the tube to the
rewall and the fuel tank mount.
6) Connect the Z-bend in the 450mm
throttle pushrod to the outer hole of the
carburetor arm.
7) Slide the throttle pushrod wire into
the tube. Position the engine between the
mounts. Use four M4x30mm machine
screws to secure the engine to the mount
as shown.

WWW.SEAGULLMODELS.COM
15
COWLING.
Trim and cut.
1) Slide the berglass cowl over the en-
gine and line up the back edge of the cowl
with the marks you made on the fuselage
then trim and cut as shown.
Trim and cut.
Trim and cut.
Because of the size of the cowl, it may be nec-
essary to use a needle valve extension for the
high speed needle valve. Make this out of suf-
cient length 1.5mm wire and install it into
the end of the needle valve. Secure the wire in
place by tightening the set screw in the side of
the needle valve.
2) While keeping the back edge of the cowl
ush with the marks, align the front of the
cowl with the cranksha of the engine. e
front of the cowl should be positioned so the
cranksha is in nearly the middle of the cowl
opening. Hold the cowl rmly in place using
pieces of masking tape.
3) Install the muer and muer extension
onto the engine and make the cutout in the
cowl for muer clearance. Connect the fuel
and pressure lines to the carburetor, muer
and fuel ller valve. Secure the cowl to fuse-
lage using the M3x10mm screws.
MOUNTING THE ENGINE - 4 stroke .
1) Position the engine with the drive
washer (145mm) forward of the rewall
as shown.
Needle valve.
3x10mm

P47 SNAFU Instruction Manual.
16 16
145 mm
Machine screw M4x30mm
COWLING.
2) Use a pin drill and 4mm drill bit to
drill a small indentation in the mount for
the engine mounting screw.
3) Use a drill to drill the four holes in the
engine mount rails.
4) On the re wall has the location for the
throttle pusshrod tube (pre-drill).
5) Slide the pushrod tube in the rewall
and guide it through the fuel tank mount.
Use medium C/A to glue the tube to the
rewall and the fuel tank mount.
6) Connect the Z-bend in the 450mm
throttle pushrod to the outer hole of the
carburetor arm.
7) Slide the throttle pushrod wire into
the tube. Position the engine between the
mounts. Use four M4x30mm machine
screws to secure the engine to the mount
as shown. 1) Slide the berglass cowl over the en-
gine and line up the back edge of the cowl
with the marks you made on the fuselage
then trim and cut as shown.
Trim and cut.

WWW.SEAGULLMODELS.COM
1717
Trim and cut.
Because of the size of the cowl, it may be nec-
essary to use a needle valve extension for the
high speed needle valve. Make this out of suf-
cient length 1.5mm wire and install it into
the end of the needle valve. Secure the wire in
place by tightening the set screw in the side of
the needle valve.
Needle valve.
3x10mm
3) Install the muer and muer extension
onto the engine and make the cutout in the
cowl for muer clearance. Connect the fuel
and pressure lines to the carburetor, muer
and fuel ller valve. Secure the cowl to fuse-
lage using the M3x10mm screws.
ELECTRIC POWER CONVERSION.
1) Locate the items neccessary to install
the electric power conversion included
with your model.

P47 SNAFU Instruction Manual.
18 18
2) Recommen the items necessary to in-
stall the electric power conversion parts
included with your model.
- Model size: .75-.90 size models
- Motor: 50mm 310 rev per volt
- Propeller: 15x10 ~ 16x10
- ESC: 80A
- Lipo Batteries: 8 cell 5200mA
3) Attach the electric motor box to the
rewall suitable with the cross lines
drawn on the electric motor box and re-
wall. Using M4x20mm to secure the mo-
tor box to the rewall. Please see pictures
below.
4) Attach the motor to the front of the
electric motor box using four 4mm blind
nut, four M3x15mm hex head bolts to se-
cure the motor. Please see picture shown.
M4x20mm
.
4 mm
.
Blind nut.
5) Attach the motor to the front of the
electric motor box using four 4mm blind
nut, four M3x15mm hex head bolts to se-
cure the motor. Please see picture shown.

WWW.SEAGULLMODELS.COM
19
145 mm
Epoxy
.
Balsa stick.
Epoxy
M3x15mm
6) Attach the speed control to the side
of the motor box using two-sided tape
and tie wraps. Connect the appropriate
leads from the speed control to the mo-
tor. Make sure the leads will not interfere
with the operation of the motor.
Speed control
Tie wraps.
Battery.
INSTALLING THE PROPELLER.
e propeller should not touch any
part of the spinner cone. If it does, use a
sharp modeling knife and carefully trim
away the spinner cone where the propel-
ler comes in contact with it.

P47 SNAFU Instruction Manual.
20
INSTALLING THE AILERON SERVOS.
Servos
.
Small weight
.
Thread .
Because the size of servos dier, you
may need to adjust the size of the precut
opening in the mount. e notch in the
sides of the mount allow the servo lead to
pass through.
1) Using a small weight (Weighted fuel
pick-up works well) and string, feed the
string through the wing as indicated.
2) Place the servo between the mount-
ing blocks and space it from the hatch.
Use a pencil to mark the mounting hole
locations on the blocks.
3) Use drill bit in a pin vise to drill the
mouting holes in the blocks.
4) Apply 2-3 drops of thin C/A to each
of the mounting holes. Allow the C/A to
cure without using accelerator.
C/A glue
5) Use dental oss to secure the connec-
tion so they cannot become unplugged.
6) Secure the servo to the aileron hatch
using Phillips screwdriver and the screws
provided with the servo.
