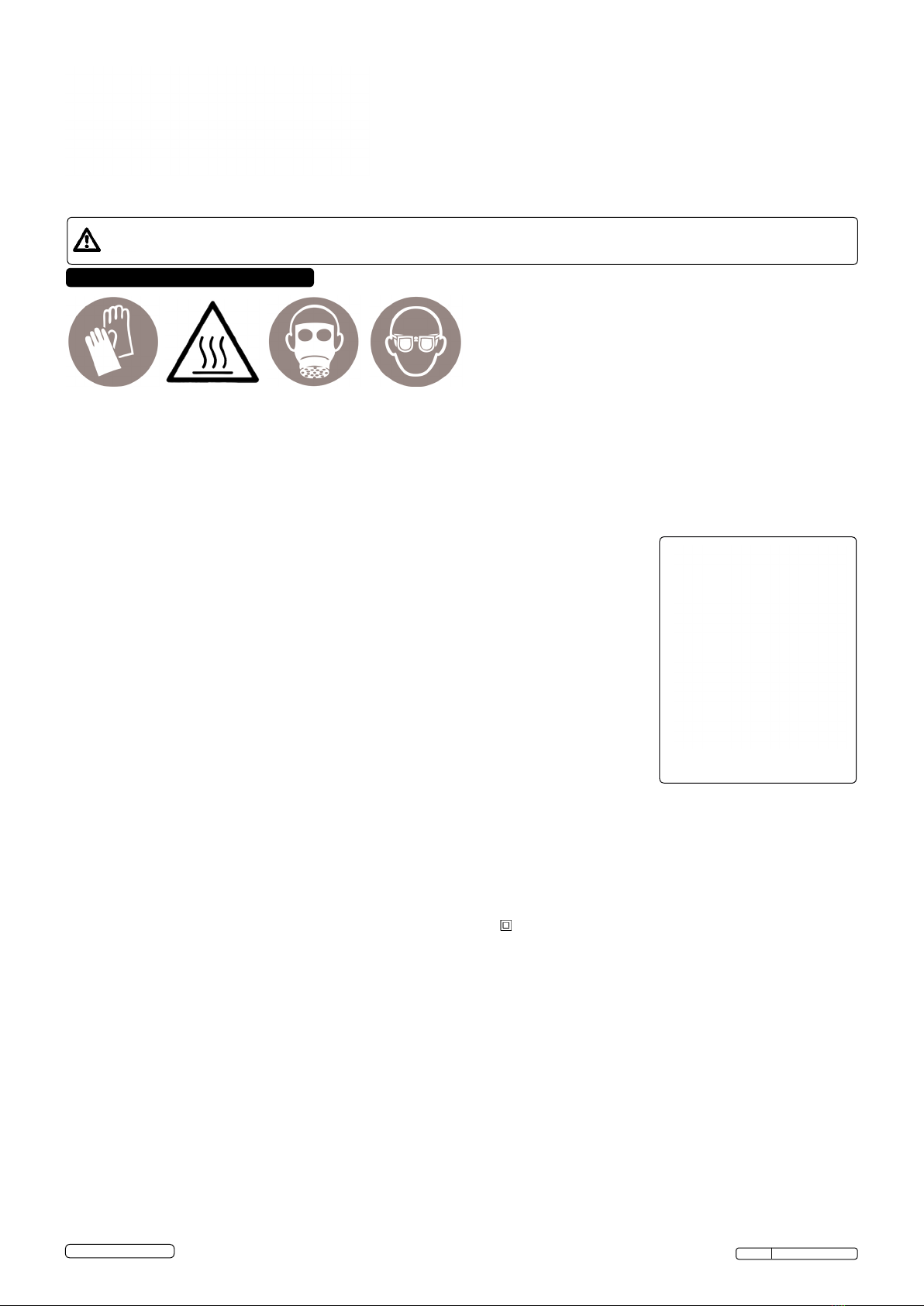

Sealey RE023 User manual
1.1. ELECTRICAL SAFETY
WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and
any other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate
safety devices. A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. We also recommend
that a Residual Current Device (RCD) is used. It is particularly important to use an RCD with portable products that are plugged into a
supply which is not protected by an RCCB. If in any doubt consult a qualified electrician. You may obtain a Residual Current Device by
contacting your Sealey dealer.
You must also read and understand the following instructions concerning electrical safety.
1.1.1. The Electricity at Work Act 1989 requires that all portable electrical appliances, if used on
business premises, are tested by a qualified electrician, using a Portable Appliance Tester (PAT),
at least once a year.
1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the
safe condition of those appliances and the safety of the appliance operators. If in any doubt
about electrical safety, contact a qualified electrician.
1.1.3. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the
power supply. See 1.1.1. and 1.1.2. and use a Portable Appliance Tester.
1.1.4. Ensure that cables are always protected against short circuit and overload.
1.1.5. Regularly inspect power supply cables and plugs for wear or damage and check all connections to
ensure that none is loose.
1.1.6. Important: Ensure that the voltage marked on the appliance matches the power supply to be used
and that the plug is fitted with the correct fuse - see fuse rating at right.
1.1.7. DO NOT pull or carry the appliance by the power cable.
1.1.8. DO NOT pull the plug from the socket by the cable.
1.1.9. DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty item
repaired or replaced by a qualified electrician. When a BS 1363/A UK 3 pin plug is damaged, cut the cable just above the plug and
dispose of the plug safely.
Fit a new plug according to the following instructions (UK only).
a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
d) After wiring, check that there are no bare wires, that all wires have been correctly connected, that the cable outer
insulation extends beyond the cable restraint and that the restraint is tight.
Double insulated products, which are always marked with this symbol , are fitted with live (brown) and neutral (blue) wires only. To
rewire, connect the wires as indicated above - DO NOT connect either wire to the earth terminal.
1.1.10. Products which require more than 13 amps are supplied without a plug. In this case you must contact a qualified electrician to ensure
that a suitably rated supply is available. We recommend that you discuss the installation of an industrial round pin plug and socket with
your electrician.
1.1.11. If an extension reel is used it should be fully unwound before connection. A reel with an RCD fitted is preferred since any appliance
plugged into it will be protected. The cable core section is important and should be at least 1.5mm², but to be absolutely sure that the
capacity of the reel is suitable for this product and for others which may be used in the other output sockets, we recommend the use of
2.5mm² section cable.
1.2 GENERAL SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this
equipment.
Familiarise yourself with the application, limitations and potential hazards of the staple gun.
Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
Locate staple gun in a suitable working area, keep area clean and tidy and free from unrelated materials.
Keep the work area clean, uncluttered and ensure there is adequate lighting.
Keep the staple gun clean for best and safest performance.
Ensure there are no flammable or combustible materials near the work area.
Wear approved safety eye protection (standard spectacles are not adequate).
Wear heat resistant gloves and appropriate protective clothing.
RECOMMENDED
FUSE RATING: 13AMP
INSTRUCTIONS FOR:
PLASTIC REPAIR HOT STAPLE GUN
MODEL NO: RE023
1. SAFETY
Original Language Version
© Jack Sealey Limited
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE
PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
Wear eye
Protection
Wear
Respiratory
Protection
Wear Heat
Resistant Gloves
Hot Surfaces
RE023 Issue: 1 - 15/05/14
DO NOT operate the staple gun when you are tired or under the influence of alcohol, drugs or intoxicating medication.
DO NOT leave a hot staple gun unattended. ( If you are leaving the work area even for a short period of time switch it off and allow to
cool.)
DO NOT use the staple gun for any purpose other than that for which it has been designed.
DO NOT allow untrained persons to operate the staple gun.
DO NOT touch the workpiece as it will be very hot. Allow to cool.
DO NOT operate the staple gun if damaged.
fig.1
2. INTRODUCTION
3. SPECIFICATION
4. OPERATION
Pistol grip design improves control and accuracy when carrying out repairs. Features high, medium and low power option. Ideal for workbench,
where frequent use is required. Supplied with staples; 100 x 0.6mm U-shaped, 100 x 0.8mm U-shaped, 100 x 0.6mm V-shaped.
Model No: .............................RE023
Replacement Staples: ....................(Packs of 100) RE06 (0.6mm), RE06V (0.6mm), RE08(0.8mm)
4.1. Plug the stapler in and switch the gun on using the rocker switch underneath.
4.2. Choose a suitable heating repair pin and place it into the tip of the stapler.
4.3. Setthepowerusingthebuttonontheside,seeg.1,greenlight=low,amberlight=medium,redlight=high.
4.4. Keep the stapler perpendicular to the damaged surface, press the control switch and after a few seconds touch onto the plastic.
4.5. When the pin is half way into the plastic material, stop pressing and release the power trigger. Wait for a few seconds until the repair
partbecomesrm.
4.6. Pull back the handle to release the pin from the device.
4.7. If the damage is excessively long and/or wide insert extra pins, 1/2 “ apart.
4.8. Cut off the pins with a side cutter, then grind the remaining part with a grinder or sander.
NOTE: DO NOT press the pins too hard, they may penetrate the plastic too far.
NOTE: Rest the stapler for 5 to 10 minutes after 40 cycles of continuous use, in order to extend the product’s life.
Ensure the workpiece is adequately held before operating the staple gun.
Always lay the staple gun on its side so that the tip cannot make contact with the work surface.
Always use staple gun in a well vetilated atmosphere or alternatively wear respiratory protection.
Ensure that when the staple gun is put down during use that the tip is not near to or in contact with any material that may burn or melt
including the product’s own supply lead.
After use always keep the staple gun in its original package in a safe place away from children.
DO NOT touch the staple during its warm up phase.
DO NOT use in wet or damp conditions.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
01284 757500
01284 703534
sales@sealey.co.uk
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk,
IP32 7AR
www.sealey.co.uk
Environmental Protection
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment.
WEEE Regulations
Dispose of this product at the end of its working life in compliance with the EU Directive on
Waste Electrical and Electronic Equipment (WEEE). When the product is no longer required, it must be disposed
of in an environmentally protective way. Contact your local solid waste authority for recycling information.
Parts support is available for this product. To obtain a parts listing and/or diagram,
please log on to www.sealey.co.uk, email sales@sealey.co.uk or telephone 01284 757500.
