Sears 944.414420 Use and care manual

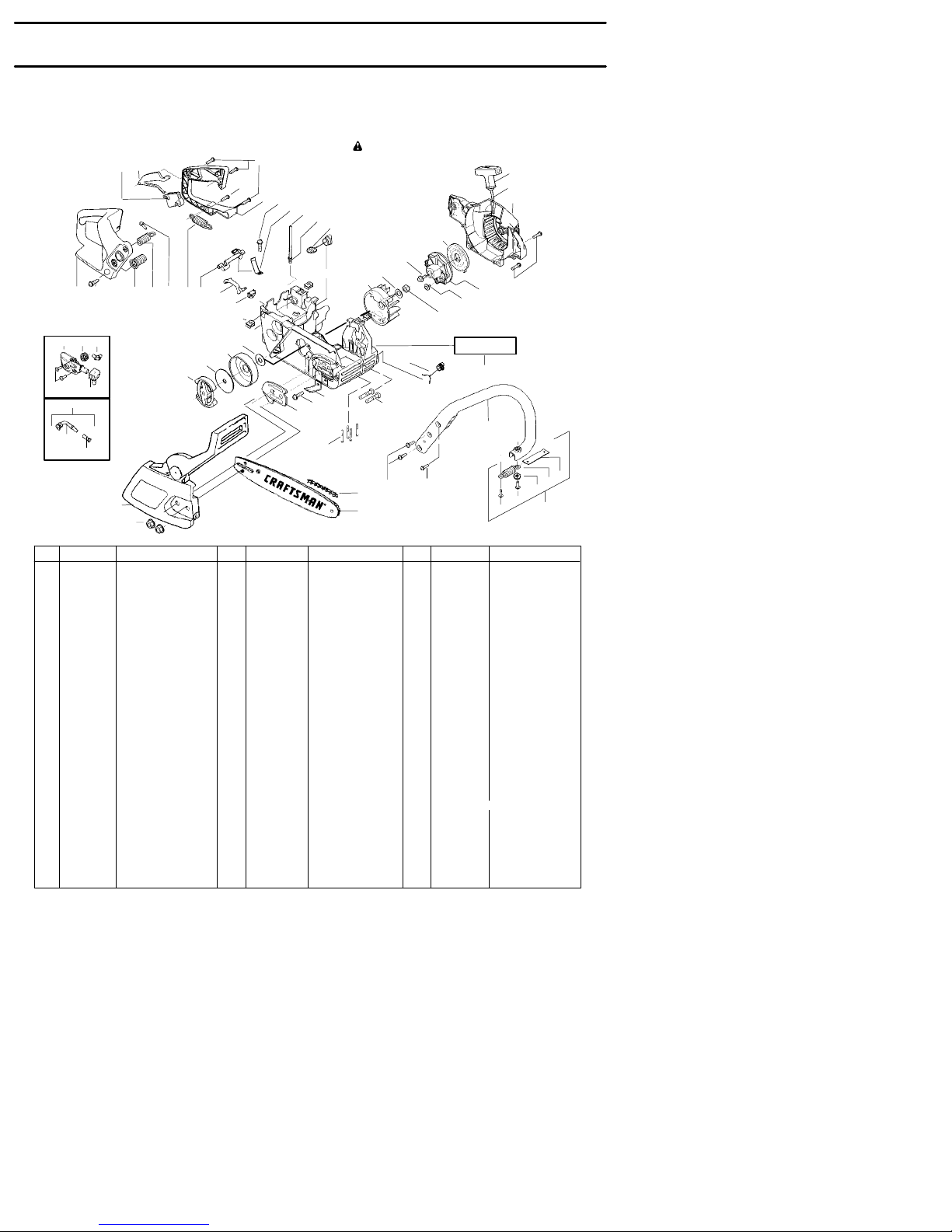

REPAIR PARTS
A
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must
be performed by qualified
service personnel.
WARNING
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
SEARS CHAINSAW MODEL 944.414420
1. 530047963 Assy.---Isolator
2. 530047608 Limiter Strap
3. 530042082 Spring---Isolator
4. 530015158 Washer
5. 530016018 Screw
6. 530015843 Screw
7. 530047583 Front Handle
8. 530015940 Screw
9. 530015814 Screw
10. 71--- 3619 Chain---18”
11. 71--- 36598 EZ Adjust Bar---18”
12. 530015917 Nut--- Bar Mounting
13. 530055113 Assy.--- Chain Brake
14. 530016132 Screw
15. 530038238 Plate--- Bar Mount.
16. 530015814 Screw
17. 530029850 Chain Catcher
18. 530016133 Bolt--- Bar
19. 530010846 Assy--- Oil Cap
20. 530071666 Kit---Oil Vent
21. 530016134 Nut--- Flywheel
22. 530016080 Screw
23. 530037817 Starter Pulley
24. 530015892 Screw
25. 530049336 Housing---Fan
26. 530069232 Kit --- Rope
27. 530056402 Handle--- Starter
28. 530027531 Spring---Recoil
29. 530015920 Screw
30. 530015127 Washer--- Flywheel
31. 530039187 Assy---Flywheel
32. 530047192 Assy--- Fuel Cap
33. 530023877 Fitting--- fuel line
34. 530069216 Kit---Fuel line (large)
35. 530016149 Spring---Switch
36. 530015775 Screw
37. 530047581 Cover---Rear Handle
38. 530015886 Screw
39. 530015906 Screw
40. 530036098 Throttle Lockout
41. 530036097 Trigger---Throttle
42. 530047582 Handle --- Rear
43. 530015814 Screw
44. 530053274 Assy Isolator---lower
45. 530071385 Kit---Isolator (Upper)
46. 530015875 Screw
47. 530042082 Spring---Isolator
48. 530057473 Lever---Switch
49. 530057474 Lever--- Choke
50. 530049005 Grommet--- Knob
51. 530015922 Nut--- ”U”--- Type
52. 530059701 Assy--- Chassis
(fuel lines and caps)
53. 530015907 Washer--- Thrust
54. 530047061 Assy.--- Clutch Drum
w/bearing
55. 530015611 Washer--- Clutch
56. 530014949 Assy. Clutch
57. 530071259 Kit --- Oil Pump
(incl. 58,59,61)
58. 530037820 Gear--- Worm Spring
59. 530049477 Elbow---Oil Pickup
60. 530016064 Screw
61. 530019206 Seal Block
62. 530047663 Assy--- Oil Pick--- up
(Incl. 63,64)
63. 530038373 Pick---up Oiler
64. 530056533 Filter---Oil
530164937 Manual---Operators
530053163 Decal---Warning
40
41
37
47
42 43 49
50
38
44
39
51
34
12
56
55
54 53
15 16
52
32
18
30
4
19
14
7
2
3
98
45 46
17
57
62
60
13
58
11
10
64
63
59
33
1
61
6
5
20
Kit--Oil Vent
22
21
29
23
28
25
27
26
24
31
35
48
36
Not Shown

REPAIR PARTS
B
Ref. Part No. Description Ref. Part No. Description
SEARS MODEL 944.414420
1. 530016153 Screw
2. 530055638 Assy---Cylinder Shield
(Incl .#16)
3. 530069247 Kit---Fuel Line (Small)
4. 530047213 Assy--- Air Purge
5. 530015780 Screw
6. 530095646 Assy--- Fuel Pick---up
7. 530047442 Ground Strap
8. 530039198 Ignition Module
9. 530015814 Screw
10. 530057475 Assy---Wire Harness
11. 530037793 Foam--- Air Filter
12. 530016101 Nut
13. 530057702 Assy--- Air box
(incl. throttle cable)
14. 530035526 Grommet
15. 530054144 Seal--- Carb Adapter
16. 530055698 Reflector--- Heat
17. Champion Spark Plug (RCJ---7Y)
18. 530016136 Clip--- High Tension Lead
19. 530012550 Cylinder
20. 530049870 Backplate---Muffler
21. 530069608 Gasket--- Muffler (kit)
22. 530047207 Assy---Muffler
(Incl. 23--- 25)
23. 530037813 Diffuser---Muffler
24. 530036103 Screen---Spark Arrestor
25. 530016132 Bolt--- Muffler
26. 530047631 Grommet--- throttle cable
2 7 . --- --- --- K i t --- C a r b u r e t o r
530071820 Zama (W--- 20)
530071821 Walbro (WT--- 662)
28. 530069608 Carb. Gasket
29. 530016386 Screw
30. 530049700 Adapter--- Carb.
31. 530016187 Screw
32. 530069608 Gasket--- Carb Adapter
33. 530071408 Kit---Piston (Incl. 34 & 35)
34. 530038729 Piston Ring
35. 530015697 Retainer--- Piston Pin
36. 530069608 Kit---Engine Gasket
(Incl. 21, 28 & 32)
37. 530031163 Wrench--- Bar
38. 530056363 Assy--- Seal & Bearing
39. 530037935 Cap--- Crankcase
40. 530047062 Assy---Crankshaft
11
1
14
4
3
10
17
19
33
34
35
40
38 39
18
5
Engine
Gasket
Kit
36
7
89
15
32
31
30
29
28
27
26
12
2
6
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must
be performed by qualified
service personnel.
WARNING
13
(Note: Repair kits are not available for this carburetor)
37
23
24
25
21
22
20
16
