Owner's
Manual
Model Nos.
14371
14374
14375
Model and Serial
NumberPla.te
j=
)=
AUTOMATIC DISHWASHER
CAUTION: Read and follow all Safety
Rules and Operating Instructions
before first use of this product.
Sears, Roebuck and Co., Hoffman Estates, iL 60179 U.S.A.
165D35j92P061
SR5560-1
542 CG
Printedin U,S,A.

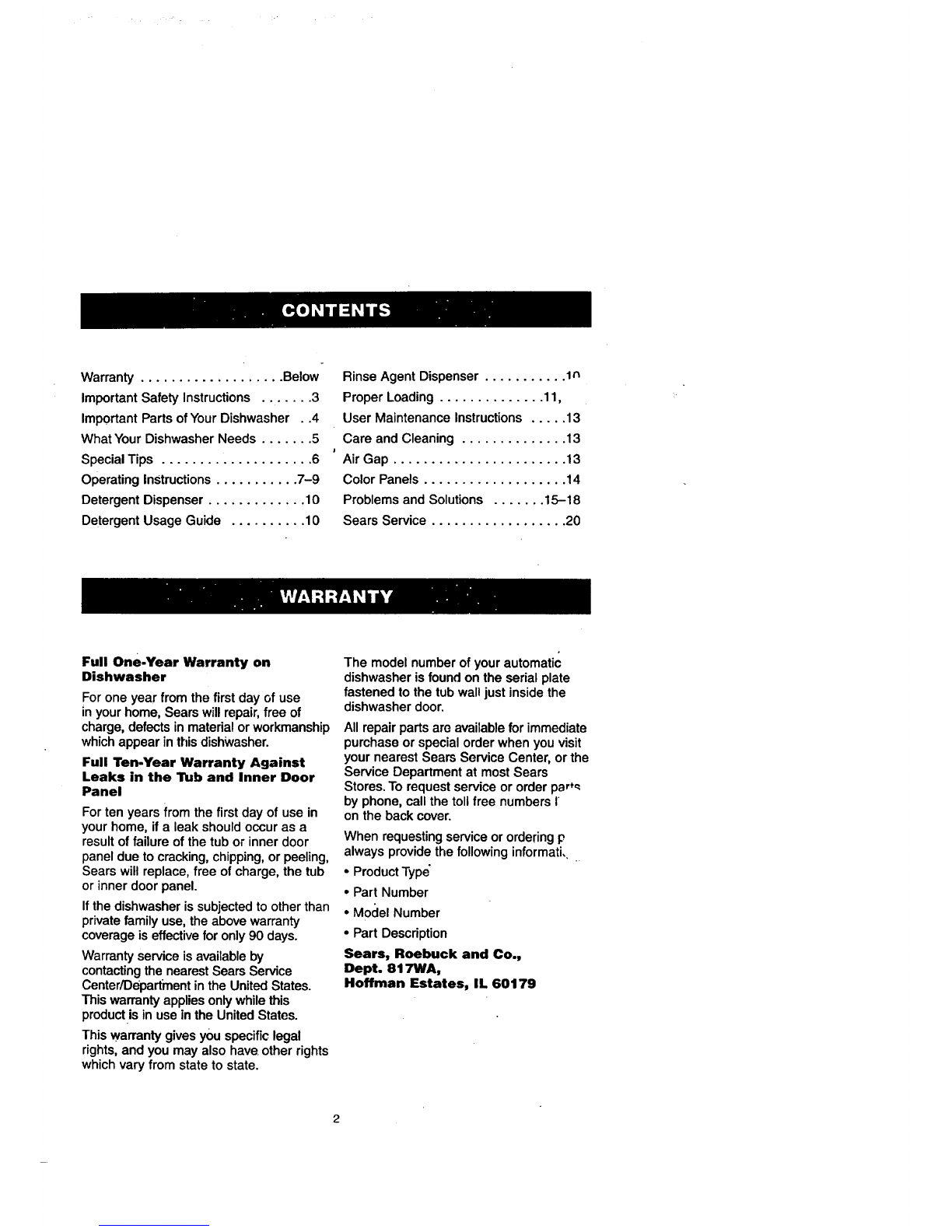

Warranty ................... Below
Important Safety Instructions ....... 3
Important Parts ofYour Dishwasher . .4
What Your Dishwasher Needs ....... 5
Special Tips .................... 6
Operating InStructions ........... 7-9
Detergent Dispenser ............. 10
Detergent Usage Guide .......... 10
Rinse Agent Dispenser ........... In
Proper Loading .............. 11,
User Maintenance Instructions ..... 13
Care and Cleaning .............. 13
Air Gap ....................... 13
Color Panels ................... 14
Problems and Solutions ....... 15-18
Sears Service .................. 20
Full One-Year Warranty on
Dishwasher
For one year from the first day of use
in your home, Sears will repair,free of
charge, defects in material or workmanship
which appear in this dishwasher.
Full Ten-Year Warranty Against
Leaks in the Tub and Inner Door
Panel
For ten years from the first day of use in
your home, if a leak should occur as a
result of failure of the tub or inner door
panel due to cracking, chipping, or peeling,
Sears will replace, free of charge, the tub
or inner door panel.
If the dishwasher is subjected to other than
private family use, the above warranty
coverage is effective for only 90 days.
Warranty service is available by
contacting the nearest Sears Service
Center/Department in the United States.
This warranty applies only while this
productis in use in the United States.
This warranty gives you specific legal
rights,and you may also have other rights
which vary from state to state.
The model number of your automatic
dishwasher is found on the serial plate
fastened to the tub wall just inside the
dishwasher door.
Allrepairpartsare availablefor immediate
purchaseor specialorderwhenyouvisit
yournearestSearsServiceCenter,orthe
Service Departmentat mostSears
Stores.To requestserviceororderpar_
by phone,callthetollfree numbersI
on thebackcover.
When requesting service or ordering p
always provide the following informati,,
• Product Type"
•Part Number
•Moclel Number
• Part Description
Sears, Roebuck and Co.,
Dept. 817WA,
Hoffman Estates, IL 60179

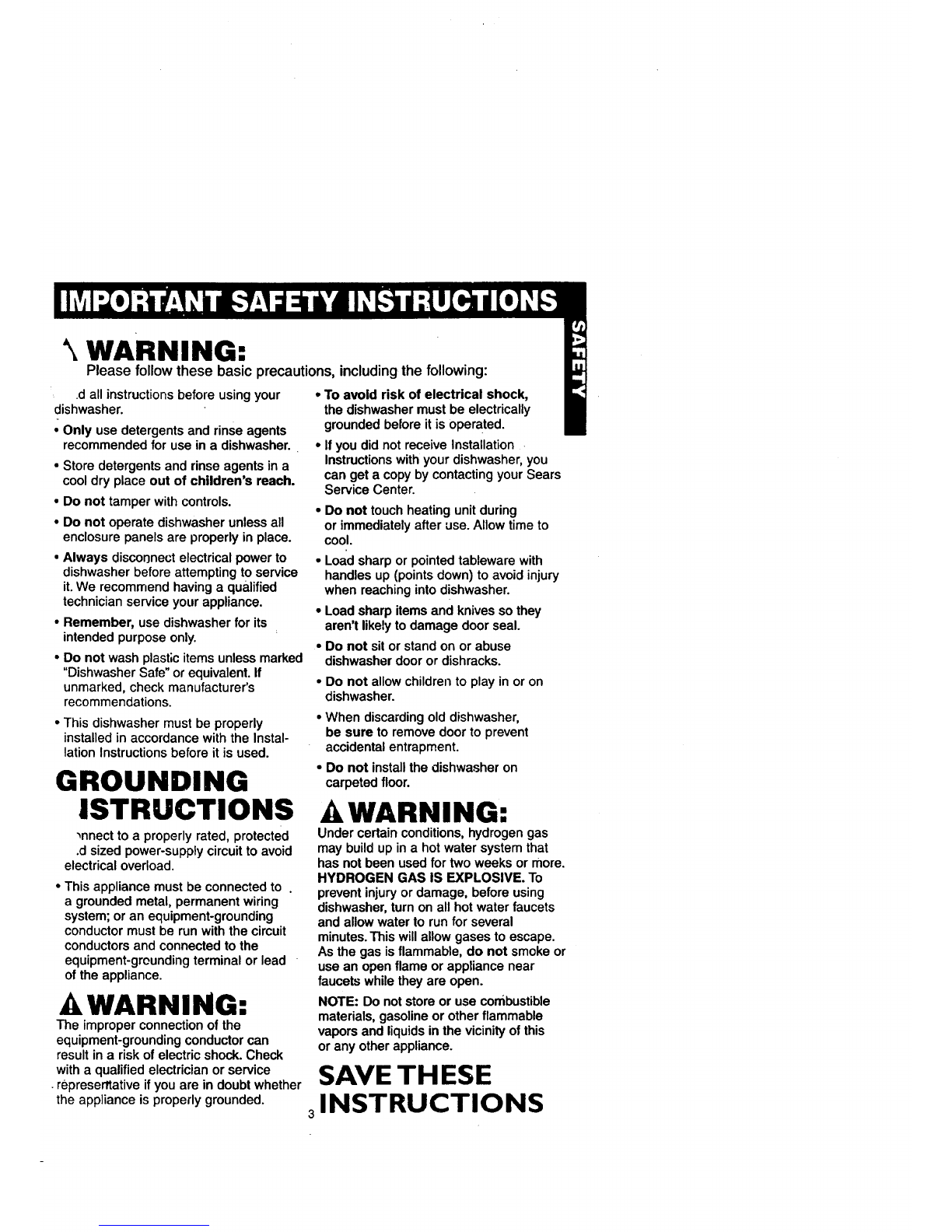

\WARNING:
Please follow these basic precautions, including the following:
.d all instructions before using your
dishwasher.
• Only use detergents and rinse agents
recommended for use in a dishwasher.
•Store detergents and rinseagentsin a
cool dry place out of children's reach.
•Do not tamperwith controls.
• Do not operate dishwasher unless all
enclosure panels are properly in place.
•Always discorjnect electrical power to
dishwasher before attempting to service
it.We recommend having a qualified
technician service your appliance.
•Remember, use dishwasher for its
intended purpose only.
•Do not wash plastic items unless marked
"Dishwasher Safe"or equivalent. If
unmarked, check manufacturer's
recommendations.
•This dishwasher must be properly
installed in accordance with the Instal-
lation Instructions before it is used.
GROUNDING
ISTRUCTIONS
_nnect to a properly rated, protected
.d sized power-supply circuit to avoid
electrical overload.
•This appliance mustbe connectedto
agroundedmetal,permanent wiring
system;or an equipment-grounding
conductormustbe runwiththecircuit
conductorsandconnectedtothe
equipment-groundingterminalor lead
oftheappliance.
WARNING:
The improperconnectionofthe
equipment-groundingconductorcan
resultina riskof electricshock.Check
witha qualifiedelectricianor service
•representativeifyouare in doubtwhether
theapplianceisproperlygrounded.
• To avoid risk of electrical shock,
the dishwasher must be electrically
grounded before it is operated.
• If you did not receive Installation
Instructions with your dishwasher, you
can get a copy by contacting your Sears
Service Center.
•Do not touch heatingunitduring
or immediately after use.Allow timeto
cool.
•Loadsharpor pointedtablewarewith
handlesup(pointsdown)toavoidinjury
when reachingintodishwasher.
•Loadsharpitemsand knivesso they
aren't likelytodamage doorseal.
• Do not sitorstandon or abuse
dishwasherdooror dishracks.
•Do not allowchildren to playin or on
dishwasher.
• When discarding old dishwasher,
be sure to remove door to prevent
accidental entrapment.
•Do not install the dishwasher on
carpeted floor.
WARNING:
Undercertainconditions,hydrogen gas
may buildup ina hotwatersystemthat
has notbeen usedfor twoweeksor more.
HYDROGEN GAS IS EXPLOSIVE. To
preventinjuryor damage,beforeusing
dishwasher,turn onall hot waterfaucets
and allowwaterto runfor several
minutes.This willallowgasestoescape.
Asthe gasisflammable, do not smokeor
useanopenflame orappliancenear
faucets whiletheyareopen.
NOTE: Do notstoreor usecombustible
materials,gasolineor otherflammable
vaporsand liquidsinthe vicinityofthis
oranyotherappliance.
SAVE THESE
3INSTRUCTIONS

Appearance will vary according to the model number
Uppe'r rack
Lowersprayarm
Heatingunit ,
Wash tower
Lowerrack
Right Side View
Door latch
Controlpanel
Door panel
Bottompanel
@
Front View
Inner Door
/
Rinseagent Deterclent
dispenser dis_ensers

•)t Water
jet dishesclean and dry you need hot
water.Tohelp youget waterofthe proper
-temperature,yourdishwasher
automaticallyheatsthe waterinthe wash
cycle.Higherwatertemperatureisneeded
to dissolvegreaseand activate powder
detergents.Forgoodwashingand drying,
the enteringwatermustbe at least120°F.
To preventdishdamage,inletwater
shouldnotexceed 150°F.
Check your water temperature with a
candy o[ meat thermometer.
Turnonthe Jnotwater faucet nearestthe
dishwasher.Put the thermometer in a
glassand letthe waterruncontinuously
intotheglassuntilthe temperature stops
rising.
Do notoperatethe dishwasherduringor
right afterotherheavyuse ofhotwater,
suchas for laundryor bathing.
Water Pressure
Water supply pressure must be between
15 and 120 pounds per square inch.To
determine if you have enough pressure,
put a 1 quart container under a fully
nnened hot water faucet nearest the
_washer. If the container fills in less
,..,_n 9 seconds, water pressure is within
,cceptable range. Be sure all other
,ets are turned off during this test.
Water Conditions
Inareaswhere water is very hard(12
grainsor more), itmay be necessaryto
installa watersoftenertoassureproper
performancefrom yourdishwasher.Ifyou
do notknowthehardnessofyourwater
supply,contactyourlocalwater
departmentor bringa sampleintoyour
Sears storefor testing.
Detergents
Onlyusedetergentslabeledfor usein
automaticdishwashers.NEVER use
laundrydetergents,liquidsoap.sorother'
householdcleanersin yourdishwasher.
Somedetergentswillbe moreeffective
withyourwaterConditionsthanothers.
Storedetergentina cool,dryplace.
Rinse Agents
Rinse agents make water flow off dishes
quicker than usual. This lessens water
spotting and makes drying faster, too.
Rinse agents come in either liquid or solid
form. Your dishwasher's dispenser uses
the liquid form.

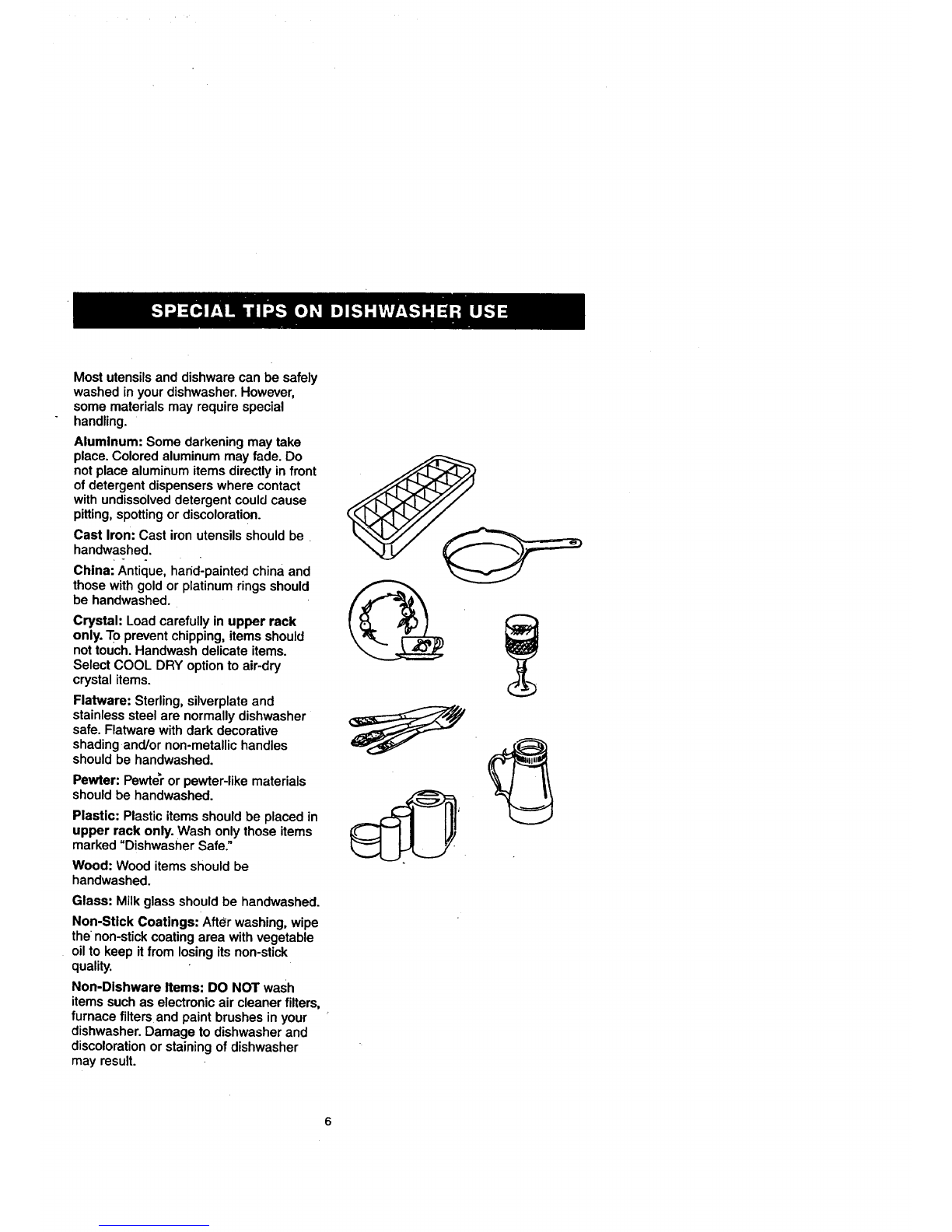

Mostutensils and dishware can be safely
washed in your dishwasher. However,
some materials may require special
handling.
Aluminum: Some darkening may take
place. Colored aluminum may fade. Do
not place aluminum items directly in front
of detergent dispensers where contact
with undissolved detergent could cause
pitting, spotting or discoloration.
Cast Iron: Cast iron utensils should be
handwashed.
Chinai Antique, har_d-painted china and
those with gold or platinum rings should
be handwashed.
Crystal: Loadcarefullyin upper rack
only. T.opreventchipping, itemsshould
nottouch.Handwashdelicateitems.
SelectCOOL DRY optionto air-dry
crystalitems.
Flatware: Sterling, silverplate and
stainless steel are normally dishwasher
safe. Flatware with dark decorative
shading and/or non-metallic handles
should be handwashed.
Pewter: Pewte_ror pewter-like materials
should be handwashed.
Plastic: Plasticitemsshouldbe placedin
upper rack only. Washonlythoseitems
marked "Dishwasher Safe."
Wood: Wood itemsshould be
handwashed.
Glass: Milkglassshouldbe handwashed.
Non-Stick Coatings:After washing,wipe
thenon-stickcoatingarea withvegetable
oilto keepitfrom losingitsnon-stick
quality.
Non-Dishware Items: DO NOT wash
itemssuchas electronicair cleanerfilters,
furnacefilters and paintbrushesinyour
dishwasher.Damageto dishwasherand
discolorationor stainingofdishwasher
mayresult.

•'-',_earancemayvary

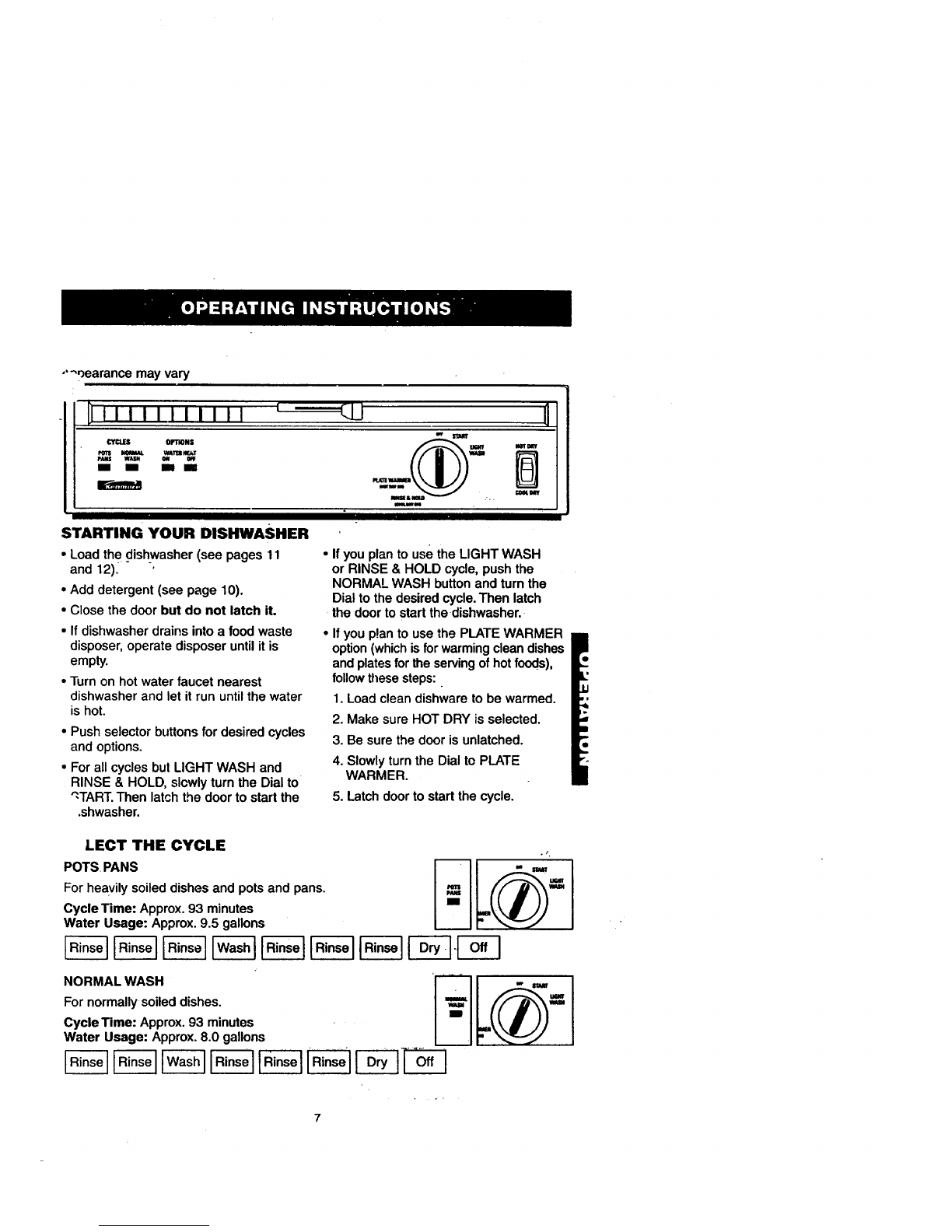

STARTING YOUR DISHWASHER
• Load the dishwasher (see pages 11
and 12).
• Add detergent (see page 10).
•Close the door but do not latch it.
•If you plan to use the LIGHT WASH
or RINSE & HOLD cycle, push the
NORMAL WASH button and turn the
Dial to the desired cycle. Then latch
the door to start the dishwasher.
• If dishwasher drains into a food waste
disposer, operate disposer until it is
empty.
• Turn on hot water faucet nearest
dishwasher and let it run until the water
is hot.
• Push selector buttons for desired cycles
and options.
• For all cycles but LIGHT WASH and
RINSE & HOLD, slowly turn the Dial to
qTART. Then latch the door to start the
.shwasher.
If you p!an to use the PLATE WARMER
option (which isfor warming clean dishes
and plates for the serving of hotfoods),
follow these steps:
1. Load clean dishware to be warmed.
2. Make sure HOT DRY is selected.
3. Be sure the door is unlatched.
4. Slowly turn the Dial te PLATE
WARMER•
5. Latch door to start the cycle.
LECT THE CYCLE
POTS PANS
For heavily soiled dishes and pots and pans.
Cycle Time: Approx. 93 minutes
Water Usage: Approx. 9.5 gallons I-I
NORMAL WASH I
For normally soiled dishes.
Cycle Time: Approx. 93 minutes
Water Usage: Approx. 8.0 gallons

LIGHTWASH
Forprerinsed or lightlysoiled dishes and
dishes that have been stored.
Cycle Time: Approx. 86 minutes
Water Usage: Approx. 6.6 gallons
RINSE & HOLD
For rinsing dishes that will be washed later.
DO NOT use detergent. Select COOL DRY
no-heat dryit_goption.
Cycle Time: Approx. 12 minutes
Water Usage: Approx. 3.9 gallons
I
I
SELECT OPTIONS
WATER HEAT Option ON
Select this option and the main
wash cycle is extended 21 minutes
while the dishwasher heats the
water for good washing and drying.
WATER HEAT Option OFF I;I
Turns WATER HEAT Option ON
off.
HOT DRY Option
Turns drying heating unit on for I _L-_| I
fast drying.
COOL DRY Option
Turns heating unit off for entire Ir_l
drying period. To shorten drying
time, open dishwasher door
slightly.

ORMAL SIGHTS AND
_UNDS
,u'll see watervaporcoming through
the vents by the door latch during drying
and when water is being pumped out,
•You'llhear occasional sounds while your
dishwasher is running:
• Soft food disposer shredding action.
•Drain valve opening to pump water
out.
• Timer control as cycle progresses.
• Detergent.cup opening.
• Pump motor starting.
• The motor stops during drying.
ENERGY AND WATER SAVING
TIPS
• Wash full loads.
•Use your dishwasher during off-peak
hours.
•Usethe LIGHT WASH cyclewhenever
possible.
• qelect COOL DRY optionwhenyou
n't needdry dishesin a hurry.
•"=n't prerinsenormallysoileddishes.
.,ad correctlytoensuregoodwashing
action,
HOW TO ADD A DISH DURING
A CYCLE
• Add dishes anytime during RINSE &
HOLD cycle.
• Withotherwashcycles,you canadd
dishesat anytimeBEFOREthe
detergentcuphasopened.
Here's how to add a forgotten dish:
1.Pushdoorlatchtothe left.Washingwill
stop.
2.Wait a few seconds untilthe water
calms. Then open the door.
3,Add dishes you've forgotten.
PREPARING DISHES FOR
WASHING
•Prerinsing of normalfood soilis not
necessary.
•Scrape offbones,seeds,skins,
toothpicksand otherhardsoils.
•Removehardshelledvegetables,
meat trimmings,leafyvegetables,and
excessiveamounts ofoilor grease.
• Removefoods withhighacid content--
theycan discolorstainlesssteel.
•Removelargequantitiesofany food.
• When usingthePOTS PANScycle,less
preparationis required.Thiscyclecan
washheavily-soileddishesand remove
dried-on and baked-on soilsfrompots,
pans and casseroles.However,items
withburned-onsoilsmaynotcome
clean.

You'll find two detergent dispensers on
the inside door of your dishwasher.
Open cup
Do"not add detergent until you are ready
to start the cycle. Use fresh detergent.
The dispenser will automatically release
detergent at the correct times during the
cycle.
Always close the main cup tightly. Whet ""
is firmly latched you will hear a clickin_
sound. It is not necessary to overtighten.
Grasp handle, rotate /
and. close ti___,._
Close the maincup.
NOTE:Toopenthedetergentdispenser
afterithas been closed,unlatchthedoor
and rotatetheDiala full turntotheOFF
position.Whentheclosedcup contains
soapitisbestthatthedoorbein a
partially openpositionbeforerotatingthe
Dial.Thiswillhelpreducetheamountof
detergentand rinseaidagent spillageinto
the tub.
Detergent Usage Guide (powder or liquid)
Moderately
Cycles Soft Water Hard Water Hard Water Very Hard Water
(O to 3 grains) (4 to 8 grains) (9 to t 2 grains) (over 12 grains)
LightWash Main Cup Main Cup MainCup Water Softener
1 tablespoon HalfFull CompletelyFul; Recommende_
PotsPans Each Cup EachCup EachCup Water Softener
NormalWash 1tablespoon HalfFul! CompletelyFull Recommends.
Rinse& Hold No Detergent "No Detergent No Detergent Water Softener
Recommended
To fill the dispenser:
Unscrew the cap. Note the FULL line
on the tip of the cap. Add the liquid rinse
agent until itjust reaches the top of
the FULL line. Replace the cap. The
dispenser automatically releases the
rinse agent into the final rinse water.
T
Full/.t_!
Fill as needed, but do not overfill.
10
