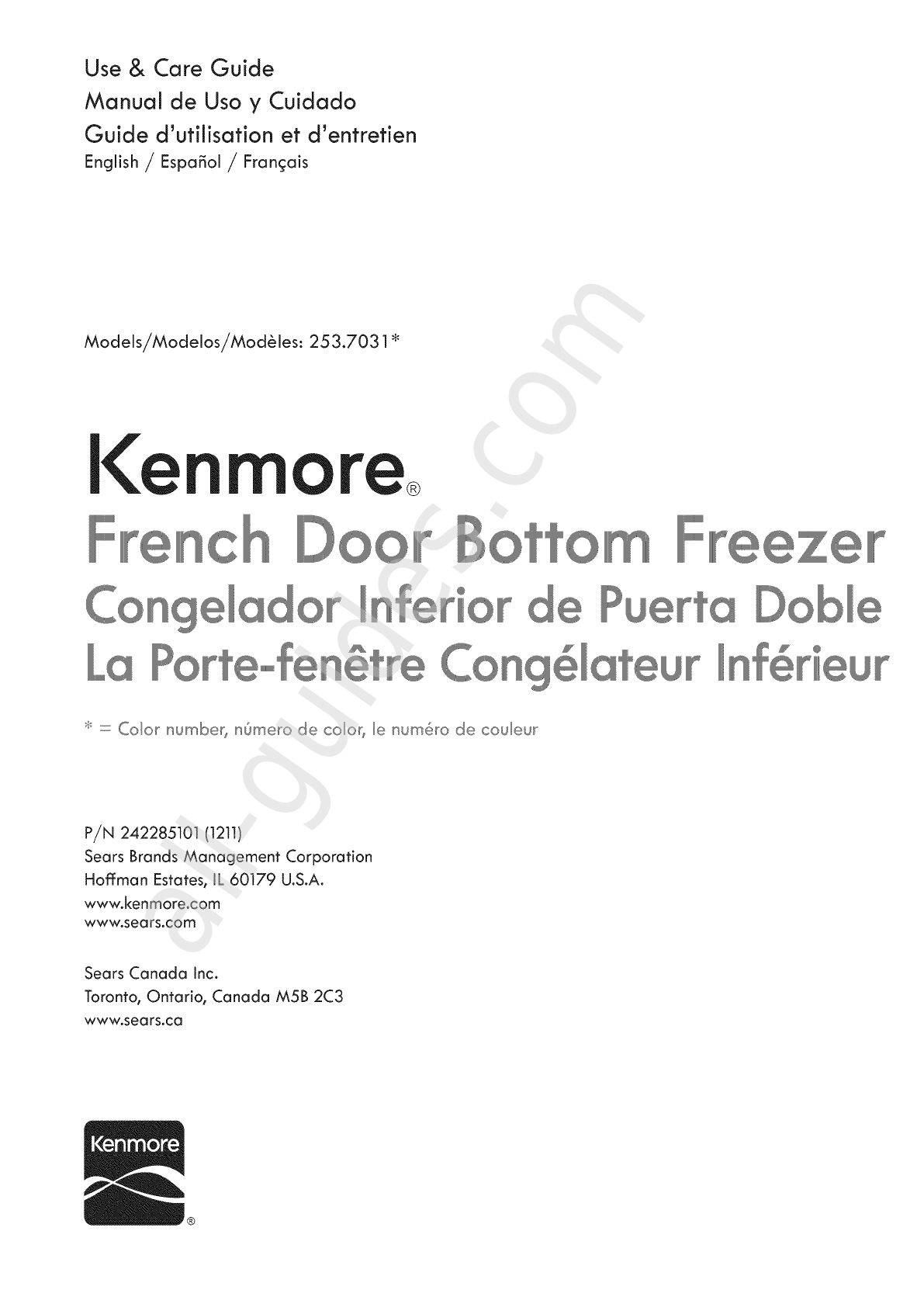

Sears Kenmore 253.7031 Series User manual

Use & Care Guide
Manual de Uso y Cuidado
Guide d_utilisation et d_entretien
English /Espa_ol /FrancFais
Models/Modelos/Mod_les: 253.7031 _<
®
,_'_:z Color numbe_3 n0mero de colo_3 le num@o de couleur
Dobl
Inf@r ur
P/N 242285101 (1211)
Sears Brands Management Corporation
Hoffman Estates, IL 60179 U.S.A.
www.kenmore.com
www.sears.com
Sears Canada Inc.
Toronto, Ontario, Canada M5B 2C3
www.sears.ca
All manuals and user guides at all-guides.com
all-guides.com

Record Model/Serial Numbers important Safety instructions
Please Read and Save these Instructions
This Use & Core Guide provides specific operating instructions
for your model. Use your unit only as instructed in this Use &
Care Guide. These instructionsore not meant to cover every
possible condition and situation that may occur. Common
sense and caution must be practiced when installing,
operating and maintaining any appliance.
Please record your model and serial numbers below for
future reference. This information is found an the serial plate
located inside the refrigerator compartment.
Model Number:
Serial Number..
Purchase Date:
IMPORTANT
Use only soap and water to cleon serial plate.
Table of Contents
RecordModel/Serial Numbers....................................... 2
Important Safetyinstructions..................................... 2-3
Warranty information.................................................. 4
Master ProtectionAgreements....................................... 5
Featuresat a Glance..................................................... 6
Installation ............................................................. 7-10
DoorRemoval....................................................... 11-12
InstallingDoorHandles.............................................. 13
ConnectingtheWaterSupply....................................... 14
Controls............................................................... 15-16
AutomaticIce&Water Dispenser............................ 17-18
StorageFeatures................................................... 19-21
StoringFoodandSavingl_nergy................................... 22
Normal OperatingSoundsand Sights........................... 23
Changingthe Filter..................................................... 24
Care& Cleaning.................................................... 25-27
BeforeYouCall..................................................... 28-30
Safety Precautions
Do not attempt to install or operate your unit until you have
read the safety precautions in this manual. Safety items
throughout this manual ore labeled with o Danger, Warning,
or Caution based on the risk type.
Definitions
_This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey oil safety messages
that follow this symbol to avoid possible injury or death.
_DANGER
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
_WARNING
WARNING indicates apotentially hazardous situation
which, if not avoided, could result in death or serious
injury.
_CAUTION
CAUTION indicates apotentially hazardous situation
which, if not avoided, may result in minor or moderate
injury.
IMPORTANT
Indicates installation, operation, or maintenance information
which is important but not hazard-related.
All manuals and user guides at all-guides.com

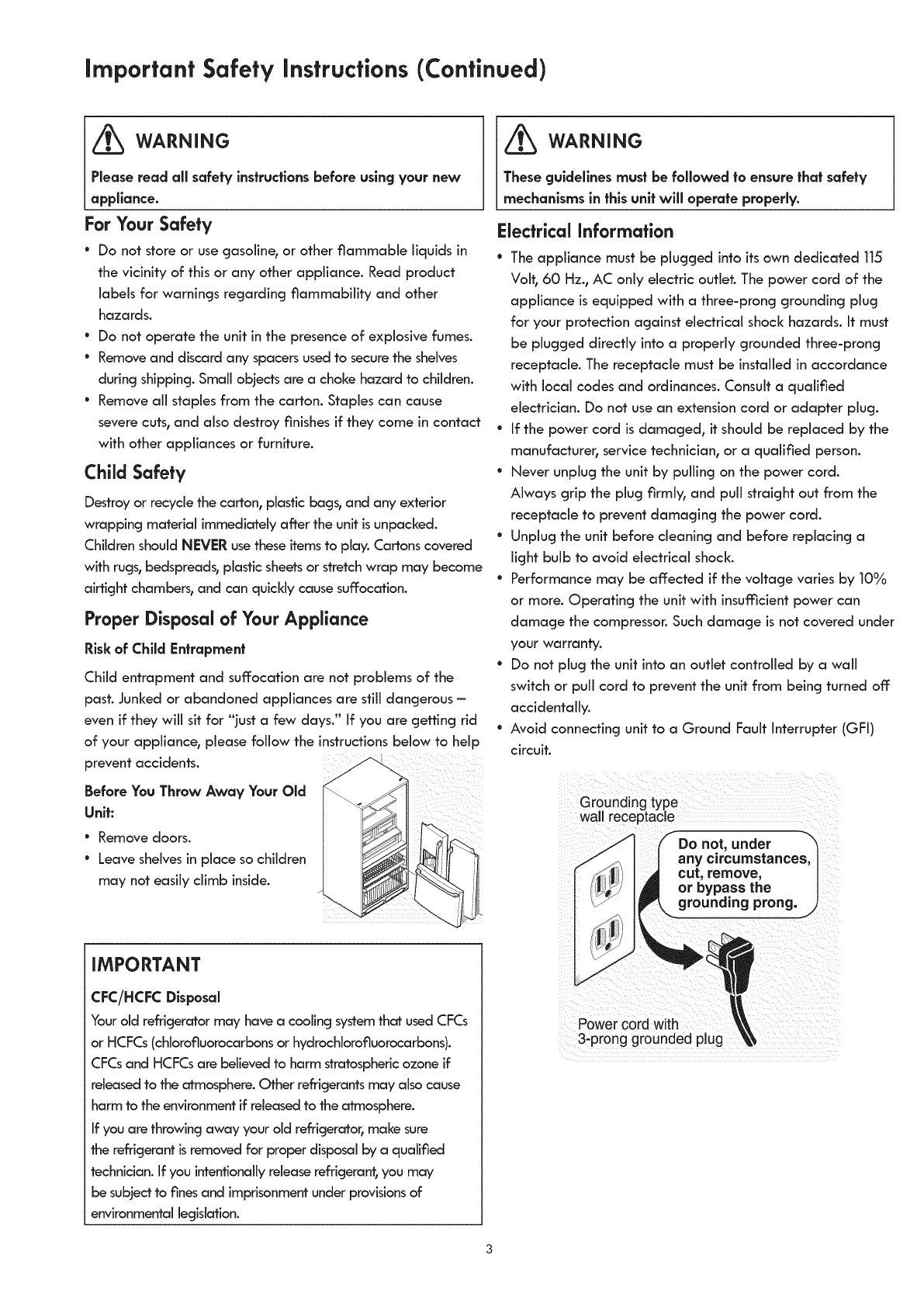

important Safety instructions (Continued)
WARNING
Please read all safety instructions before using your new
appliance.
For Your Safety
°Do not store or use gasoline, or other flammable liquids in
the vicinity of this or any other appliance. Read product
labels for warnings regarding flammability and other
hazards.
°Do not operate the unit in the presence of explosive fumes.
°Remove and discard any spacers used to secure the shelves
during shipping. Small objects are a choke hazard to children.
°Remove all staples from the carton. Staples can cause
severe cuts, and also destroy finishes if they come in contact
with other appliances or furniture.
Child Safety
Destroy or recycle the carton, plastic bags, and any exterior
wrapping material immediately after the unit isunpacked.
Children should NEVER usethese items to play. Cartons covered
with rugs, bedspreads, plastic sheets or stretch wrap may become
airtight chambers, and can quickly cause suffocation.
Proper Disposal of Your Appliance
Risk of Child Entrapment
Child entrapment and suffocation are not problems of the
past. Junked or abandoned appliances are still dangerous =
even if they will sit for "just a few days." If you are getting rid
of your appliance, please follow the instructions below to help
prevent accidents.
Before You Throw Away Your Old
Unit:
*Remove doors.
°Leave shelves in place so children
may not easily climb inside.
IMPORTANT
CFC/HCFC Disposal
Your old refrigerator may have a cooling system that used CFCs
or HCFCs (chlorofluorocarbons or hydrochlorofluorocarbons).
CFCs and HCFCs are believed to harm stratospheric ozone if
released to the atmosphere. Other refrigerants may also cause
harm to the environment if released to the atmosphere.
If you are throwing away your old refrigerator, make sure
the refrigerant isremoved for proper disposal by a qualified
technician. Ifyou intentionallyrelease refrigerant, you may
be subject to fines and imprisonmentunder provisions of
environmental legislation.
WARNING
These guidelines must be followed to ensure that safety
mechanisms in fhls unlf will operate properly.
Electrical Information
°The appliance must be plugged into its own dedicated 115
Volt, 60 Hz., AC only electric outlet. The power cord of the
appliance is equipped with a three-prong grounding plug
for your protection against electrical shock hazards. It must
be plugged directly into a properly grounded three-prong
receptacle. The receptacle must be installed in accordance
with local codes and ordinances. Consult a qualified
electrician. Do not use an extension cord or adapter plug.
°If the power cord is damaged, it should be replaced by the
manufacturer, service technician, or a qualified person.
°Never unplug the unit by pulling on the power cord.
Always grip the plug firmly, and pull straight out from the
receptacle to prevent damaging the power cord.
°Unplug the unit before cleaning and before replacing a
light bulb to avoid electrical shod<.
°Performance may be affected if the voltage varies by 10%
or more. Operating the unit with insumcient power can
damage the compressor. Such damage is not covered under
your warranty.
°Do not plug the unit into an outlet controlled by a wall
switch or pull cord to prevent the unit from being turned off
accidentally.
*Avoid connecting unit to a Ground Fault Interrupter (GFI)
circuit.
Grounding type
wall receptacle
/Do not, under "_
any circumstances, I
cut_ remove_
or bypass the
grounding prong, j
Power cord with
3-prong grounded plug
All manuals and user guides at all-guides.com

Warranty information
Kenmore Appliance Warranty
One Year Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails
due to a defect in material or workmanship within one year from the date of purchase, cali 1-800-4-MY-HOME® to
arrange for free repain
If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of
purchase.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions
supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended
purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than
those recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the
shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and
provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration
of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States and Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada MSB 2C3
All manuals and user guides at all-guides.com

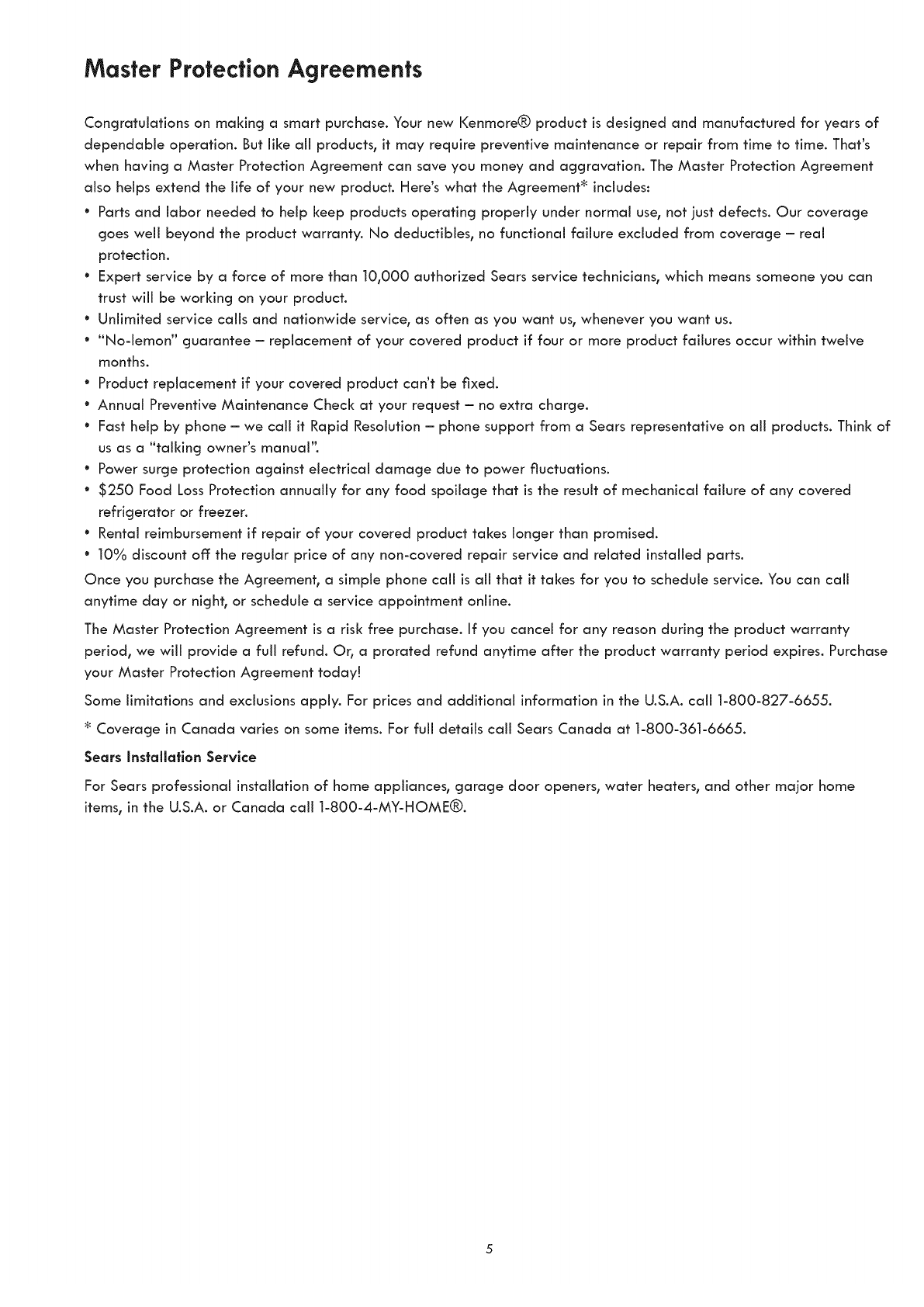

Master Protection Agreements
Congratulations on making a smart purchase. Your new KenmoreO product is designed and manufactured for years of
dependable operation. But like aii products, it may require preventive maintenance or repair from time to time. That's
when having a Master Protection Agreement can save you money and aggravation. The Master Protection Agreement
also helps extend the life of your new product. Here's what the Acjreement _ includes:
° Parts and labor needed to help keep products operating properly under normal use, not just defects. Our coverage
goes weii beyond the product warranty. No deductibles, no functional failure excluded from coverage - real
protection.
° Expert service by a force of more than 10,000 authorized Sears service technicians, which means someone you can
trust wiii be workincj on your product.
° Unlimited service calls and nationwide service, as often as you want us, whenever you want us.
° "Nodemon" guarantee - replacement of your covered product if four or more product failures occur within twelve
months.
° Product replacement if your covered product can't be fixed.
° Annual Preventive Maintenance Check at your request - no extra charge.
° Fast help by phone - we caii it Rapid Resolution - phone support from a Sears representative on aii products. Think of
us as a "talking owner's manuai'L
° Power surge protection against electrical damage due to power fluctuations.
° $250 Food Loss Protection annually for any food spoilacje that is the result of mechanical failure of any covered
refrigerator or freezer.
° Rental reimbursement if repair of your covered product takes ioncjer than promised.
° 10% discount off: the regular price of any non-covered repair service and related installed parts.
Once you purchase the Agreement, a simple phone caii is aii that it takes for you to schedule service. You can caii
anytime day or nicjhh or schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product warranty
period, we wiii provide a fuji refund. Or, a prorated refund anytime after the product warranty period expires. Purchase
your Master Protection Agreement today!
Some limitations and exclusions apply. For prices and additional information in the U.S.A. caii 1-800-827-6655.
Coverage in Canada varies on some items. For fuji details caii Sears Canada at 1-800-361-6665.
Sears InstaHatlon Service
For Sears professional installation of home appliances, garage door openers, water heaters, and other major home
items, in the U.S.A. or Canada caii 1-800-4-MY-HOME®.
All manuals and user guides at all-guides.com

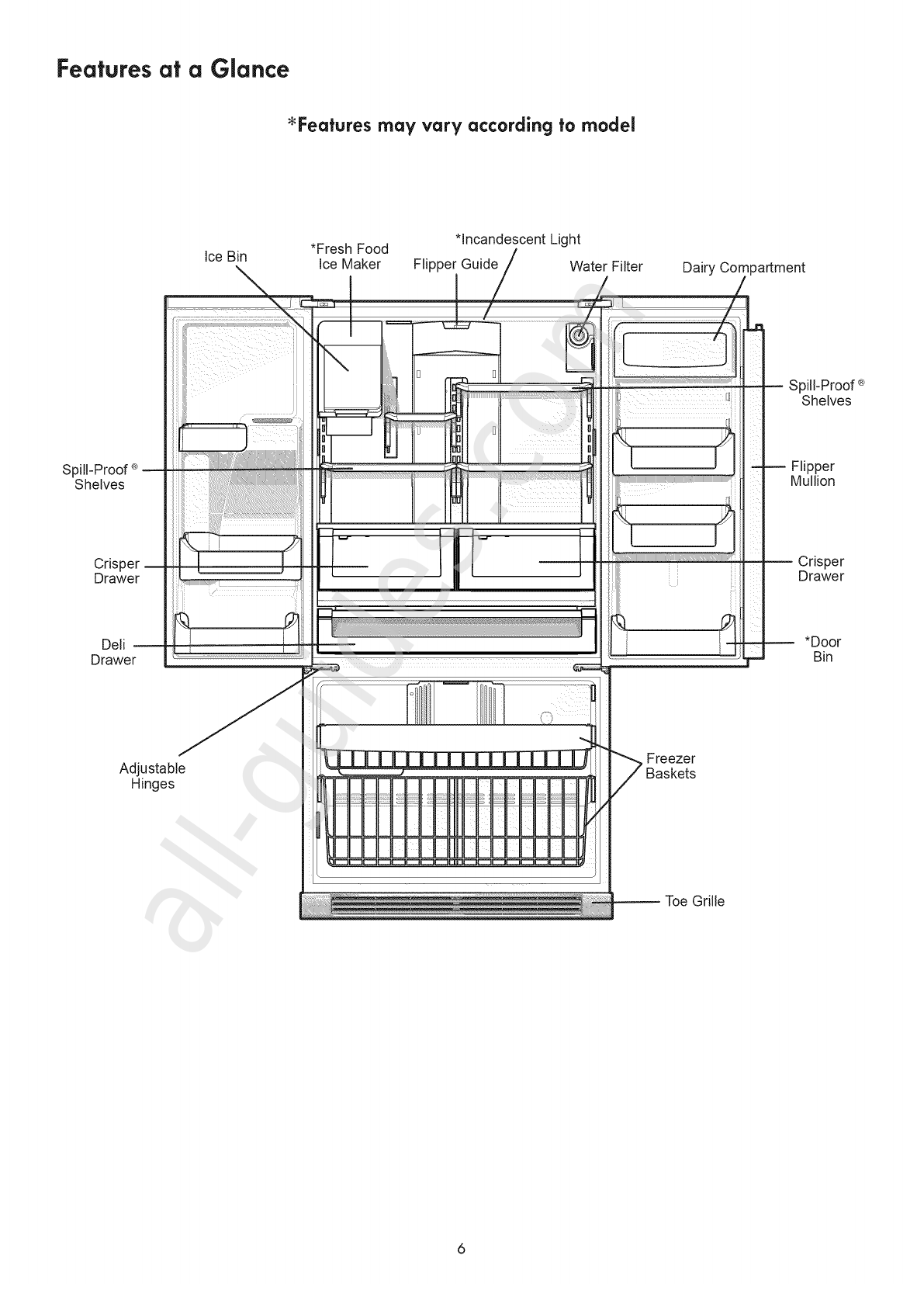

Features at a Glance
_Features may vary according to model
Spill-Proof
Shelves
Crisper
Drawer
Dell
Drawer
Ice Bin *Fresh Food
Ice Maker Flipper Guide
*Incandescent Light
Water Filter Dairy Compartment
S
m Spill-Proof ®
Shelves
Flipper
Mullion
Crisper
Drawer
_J_ -- *Door
Bin
Adjustable
Hinges
Freezer
Toe Grille
All manuals and user guides at all-guides.com
all-guides.com

Installation
Required Tools
You will need the following tools:
Components Provided:
Top Hinge Top Hinge
Cover Front Cover Rear
_ Screw
s.... S_?eoe
Tools Necessary:
Phillip
#2 Square Drive
Head 3/8" Fixed
Wrench
This Use & Care Guide provides general installation and
operating instructions for your model. We recommend using
a service or kitchen contracting professional to install your
refrigerator. Use the refrigerator only as instructed in this Use
& Care Guide. Before starting the refrigerator_ follow these
important first steps.
Location
*Choose a place that is near a grounded_ non-OFCI,
electrical outlet. Do Not use an extension cord or an
adapter plug.
* If possible, place the refrigerator out of direct sunlight and
away from the ranger dishwasher_ or other heat sources.
*The refrigerator must be installed on a floor that is level and
strong enough to support a fully loaded refrigerator.
* Consider water supply availability for models equipped
with an automatic ice maker.
CAUTION
Do no| install lhe refrigerator where the temperature
will drop below 55°F (13°C) or rise above 110°F (43°C).
The compressor will not be able to maintain proper
temperatures inside the refrigerator.
Do not block the toe grille on the lower front of your
refrigerator. Sumclent air circulation is essential for the
proper operation of your refrigerator.
Installation
•Allow the following clearances for ease of installation_
proper air circulation_ and plumbing and electrical
connections:
Sides & Top 3/8inch (9.5 mm)
Back 1 inch (25.4 mm)
NOTE
If your refrigerator is placed with the door hinge side
against a wall_ you may have to allow additional space so
the door can be opened wider.
Door Opening
Your refrigerator should be positioned to allow easy access
to a counter when removing food. For best use of refrigerator
drawers and freezer baskets_ the refrigerator should be in a
position where both can be fully opened.
7
All manuals and user guides at all-guides.com

Installation (Continued)

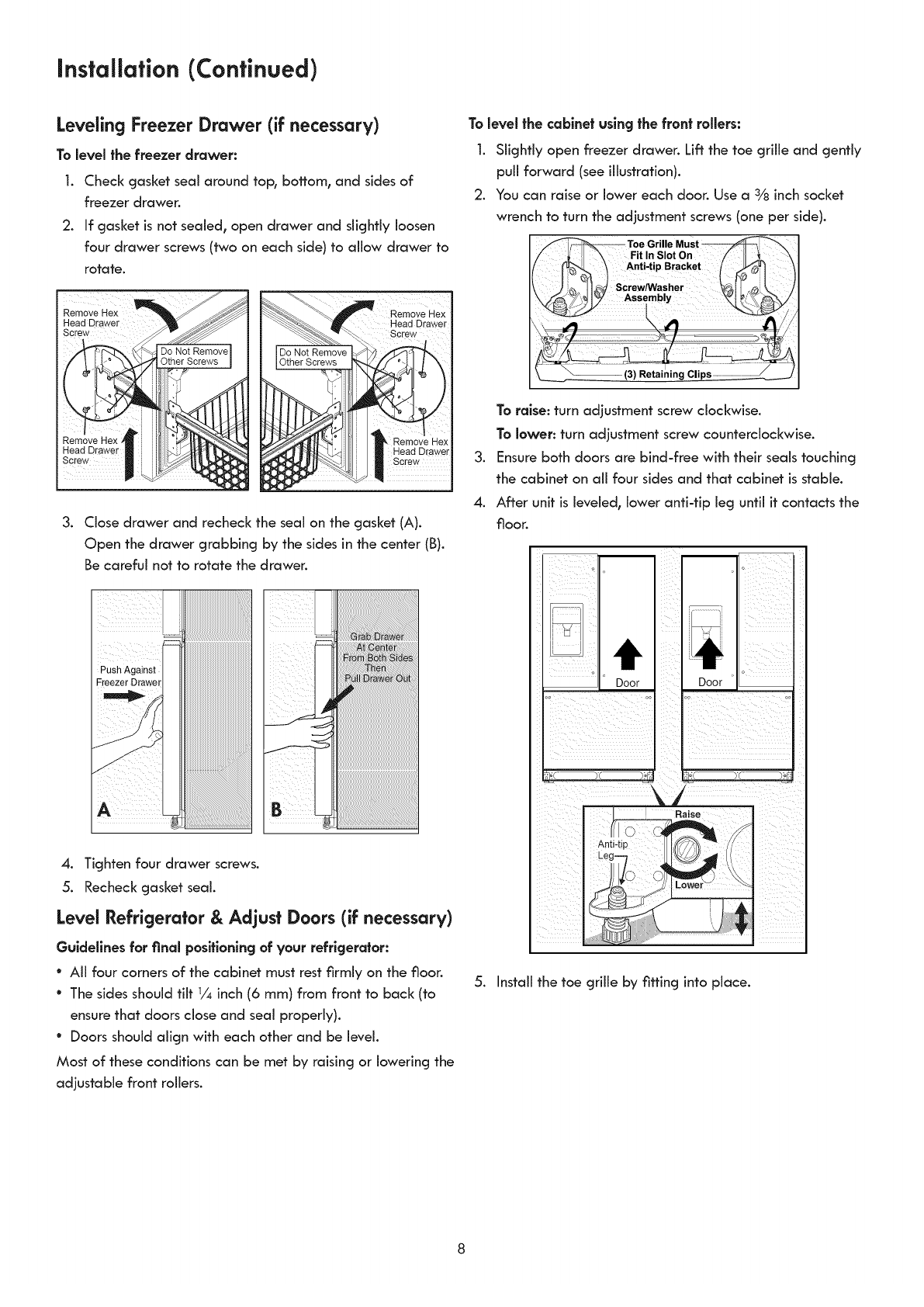

Leveling Freezer Drawer (if necessary)
To level the freezer drawer:
]. Check gasket seal around top, bottom, and sides of
freezer drawer.
2. If gasket is not sealed, open drawer and slightly loosen
four drawer screws (two on each side) to allow drawer to
rotate.
_ "_. _ " Remove Hex
s eadwD!a er
_'_, _- -2 i
I Do Not Remove _'_ _----_-'_-.
m Head Drawer
_ i Screw
"fq
3. Close drawer and recheck the seal on the gasket (A).
Open the drawer grabbing by the sides in the center (B).
Be careful not to rotate the drawer.
/
Push Against
Freezer Drawer
4. Tighten four drawer screws.
5. Recheck gasket seal.
Level Refrigerator & Adjust Doors (if necessary)
Guidelines for final positioning of your refrigerator:
°All four corners of the cabinet must rest firmly on the floor.
°The sides should tilt 1/4inch (6 mm) from front to back (to
ensure that doors close and seal properly).
°Doors should align with each other and be level.
Most of these conditions can be met by raising or lowering the
adjustable front rollers.
To level the cabinet using the front rollers:
1. Slightly open freezer drawer. Lift the toe grille and gently
pull forward (see illustration).
2. You can raise or lower each door. Use a 3/8inch socket
wrench to turn the adjustment screws (one per side).
.
4.
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw counterclockwise.
Ensure both doors are bind=free with their seals touching
the cabinet on all four sides and that cabinet is stable.
After unit is leveled, lower anti-tip leg until it contacts the
fioor.
m
ooDoor
= --
o
Door
5. Install the toe grille by fitting into place.
All manuals and user guides at all-guides.com

Installation (Continued)
To adjust the door stop:
Door stop is adjustable between 85 to 145 degrees.
NOTE
View shown is looking up at the bottom of the refrigerator
door.
/op00
Adjustable Door Stop
1. Open door to provide access to screw.
2. Loosen screw.
3. Adjust door to desired location.
6. Ensure door stops in desired location before resuming
normal use.
Set Screw
0
Reficjhten Screw
To level the doors using the adjustable lower hinge (select
models):
1. Remove all food items from door bins on door being
adjusted.
2. Open doors to 90 degrees.
Bottom of Door
Adjustincj Door
4. Rotate door stop until it makes contact with the lower
hinge.
5. Refighten screw.
NOTE
Adjustable hinge should only be used after doors have been
leveled with rollers.
All manuals and user guides at all-guides.com

Installation (Continued)
.
poor
Lift the door while adjusting the washer. To raise the door,
rotate washer clockwise (when viewed from the bottom).
To lower door, rotate washer counterclockwise (when
viewed from the bottom). /
ii
Raising/Lowering Door
To adjust the flipper mulllon:
1. Loosen the screw located on the flipper mullion hinge.
i i i
ill _ii
FliPPe_
Mu ion_
Hinge
i i i
J
J
J
J
J
J
L
Adjusting Flipper Mullion Screw
,_--Flipper
.Adjust flipper mullion height. For proper connection with
the flipper mullion guide, there should be a separation
about the thickness of a coin (0.060 inches, or 1.5 mm)
between the guide and flipper mullion.
3. Retighten screw.
Adjusting Flipper Mullion Height
10
All manuals and user guides at all-guides.com

Door Removal instructions
Getting Through Narrow Spaces
If your refrigerator will not fit through an entrance area_ you
can remove the doors. Check first by measuring the entrance.
To prepare for removing the doors:
1. Make sure the electrical power cord isunplugged from
the wall outlet.
2. Open the freezer drawer and remove the toe grille (see
"Installation" section).
3. Remove any food from the door shelves and close the
doors.
To remove the top hinge covers:
1. Remove the two screws from each cover over the top
door hinges.
2. Lift inside edge of hinge cover and tilt back.
Rear ,CoverScrew
NOTE
DO NOT remove the ground screw from hinge.
To remove the refrigerator doors:
1. Trace lightly around the door's top hinges with a pencil.
This makes reinstallation easier.
.Disconnect the harness by grasping both sides of the
connector firmly, depress the Jatch_and pull apart.
Remove the two screws from the top hinge. Lift the door
off: of the bottom hinge and set it aside.
.Detach the water tube from the connector located behind
the refrigerator and pull the tube back out to the front of
the unit. The connector releases when you press inward
on the outer sleeve while pushing the tube toward the
connector then while continuing to hold in the sJeeve_pull
the tube away.
NOTE
Use care while pulling the water tube from the unit to be
sure you do not kink it.
11
5Feet
All manuals and user guides at all-guides.com
all-guides.com

Door Removal instructions (Continued)
NOTE
You wiii be pulling approximately five feet of water tube
from the back of the refrigerator.
4. Unscrew the three lower hinge screws and hinge if
necessary,
Toreinstall the right door, reverse the above steps.
Lower Hinge Removal
Once both doors are in place, ensure they are aligned with
each other and level (Please see the "Installation" section for
more details), and replace the top hinge cover.
_CAUTION
Be sure doors are set aside in asecure position where they
cannot fall and cause personal injury, or damage to the
doors or handles. When relnserfing the water tube and
replacing the top hinge cover, use care to be sure you do
not kink the tube.
Removing Freezer Drawer
1. Open freezer drawer.
2. Remove drawer screws on right and left sides (two screws
on each side).
Remove Hex
Head Drawer
Remove Hex
Head Drawer
Screw
_CAUTION
Drawer isheavy. Use caution when lifting.
3. Lift drawer up and out to remove.
Installlng Freezer Drawer
1. With lower slides pulled out, hang drawer onto slide
brackets ensuring pins on each side are fully inserted into
slots on each side.
Drawer {_
Assembly
Pin
>
_ i.................................................._iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii¸
Fully Extend
Drawer Slides
_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiB_
Sl°tz ,_ iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
!..................._ iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
.Reinstall four drawer screws (two per side), tighten down,
and close drawer (C).
Install Screws
(2) Each Side
,
4,
,
Check gasket seal around top, bottom, and sides of
freezer drawer.
If gasket is not sealed, open drawer and slightly loosen
four drawer screws (two on each side) to allow drawer to
rotate.
Close drawer and recheck the seal on the gasket (A).
Open the drawer grabbing by the sides in the center (B).
Be careful not to rotate the drawer.
_i i i i
il ii _ i
Push Against
Freezer Drawer
A ¸
_x
ii iii
ii'i_ili!i!iiii!i!i!i
6. Tighten four drawer screws.
7. Recheck gasket seal.
8. Install the toe grille by fitting into place.
12
All manuals and user guides at all-guides.com

Installing Door Handles
Door Hancfle Mounting instructions
CAUTION
Wear gloves and safety goggles. Use ex|rerne CAUTION when installing these handles. The rounded end of the handles
may be sharp.
1. Remove handles from carton and any other protective packaging.
2. Position fresh food handle end over upper and lower pre-instaiied shoulder bolts (A) that are fastened into the doors
ensuring the holes for the set screws are facing towards the opposite door.
3. While holding handle firmly against door° fasten upper and lower Alien set screws (B) with supplied Alien wrench.
4. Repeat steps two and three to install opposite handle. Ensure the holes for the set screws are facing towards the first door.
5. Position freezer handle end over left and right pre-instaiied handle mounts that are fastened to the door° ensuring the holes
for the set screws are facing down.
6. While holding handle firmly against door° loosely tighten far right Alien set screw (B) with supplied Alien wrench until there
is no gap between handle and door.
7. Still holding the handle firmly to the door, firmly tighten far left Alien set screw (B) with supplied Alien wrench.
8. Return to the far right Alien set screw (B) and firmly tighten with supplied Alien wrench.
NOTE
Aii set screws should be tightened so that the screw is below the surface of the handle. The handles should be drawn tight to
freezer and refrigerator doors with no gaps. Opening the opposite door while tightening the Alien screw makes installation
easier.
The door handle may loosen over time. If this happens, tighten the set screws on the handles.
Mounting Refrigerator Handles Mounting Freezer Handles
m
13
All manuals and user guides at all-guides.com

Connecting the Water Supply
WARNING
To avoid electric shock, which can cause death or severe
personal injury, disconnect the refrigerator from elecfrlcal
power before connecting awafer supply llne fo the
refrigerator.
_CAUTION
To Avoid Property Damage:
* Copper or StainlessSteel braided tubing isrecommended
for the wafer supply llne. Wafer supply tubing made of IA
inch plastic isnot recommended to be used. Plastictubing
greaffy increases the potential for wafer leaks, and the
manufacturer will not be responsible for any damage if
plastic fublng isused for the supply line.
* DO NOT install wafer supply tubing in areas where
temperatures fall below freezing.
* Chemicals from a malfunctioning softener can damage
the ice maker, if the ice maker is connected fo soft
wafer, ensure fhaf the softener is malnfalned and
working properly.
iMPORTANT
Ensure that your water supply line connections comply with
all local plumbing codes.
Before installing The Wafer Supply Line, You Will Need:
•Basic Tools: adjustable wrench, flat-blade screwdriver, and
Phlllips TM screwdriver
°Access to a household cold water line with water pressure
between 30 and 100 psi.
°A water supply line made of 1/4inch (6.4 mm) OD, copper
or stainless steel tubing. To determine the length of tubing
needed, measure the distance from the ice maker inlet
valve at the back of the refrigerator to your cold water
pipe. Then add approximately 7feet (2.1 meters), so the
refrigerator can be moved out for cleaning (as shown).
°A shutoff valve to connect the water supply line to your
household water system. DO NOT use a self-piercing type
shutoff valve.
°Do not reuse compression fitting or use thread seal tape.
°A compression nut and ferrule (sleeve) for connecting a
copper water supply line to the ice maker inlet valve.
NOTE
Check with your local building authority for
recommendations on water lines and associated materials
prior to installing your new refrigeraton
To Connect Wafer Supply Line To Ice Maker Inlet Valve
1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or bucket. Turn
ON water supply and flush supply line until water isclean
Turn OFF water supply at shutoff valve.
3. Remove plastic cap from water valve inlet and discard cap.
4. If you use copper tubing - Slide brass compression nut, then
ferrule (sleeve) onto water supply line. Pushwater supply
line into water valve inlet as far as it will go (1/4inch/6.4
mm). Slide ferrule (sleeve) into valve inlet and finger tighten
compression nut onto valve. Tighten another half turn with
awrench; DO NOT overtighten. See Figure 1.
If you use stainless steel tubing - The nut and ferrule are
already assembled on the tubing. Slide compression nut
onto valve inlet and finger tighten compression nut onto
valve. Tighten another half turn with a wrench; DO NOT
overtighten. See Figure 2.
5. With steel clamp and screw, secure water supply line
(copper tubing only) to rear panel of refrigerator as shown.
6. Coil excess water supply line (copper tubing only), about
21/2 turns, behind refrigerator as shown and arrange coils
so they do not vibrate or wear against any other surface.
7. Turn ON water supply at shutoff valve and tighten any
connections that leak.
8. Reconnect refrigerator to electrica! power source.
Plastic Water tubing
to ice Maker
_1 _bteel
_" Clamp
Brass
I_Nu tCompression
_ Ferrule
(Sleeve)
_e
\iliX w_erv.Jv0
_//_ "%-" Bracket
_J _'-__:a _lVeVnlet
ter alve
g In ioo_ {o allow
mowng refrigerator out for cleaning,
Figure 1
_Steel
Plastic Water Tubing [_ Clamp
to ice Maker
I I
_3:_ I stonl
W;ster Valve
///
/// -vo,ve,nl°
ater Valve
6ft. Stainless Steel water line
./_" from household water supply
Figure 2
IMPORTANT
After connecting the water supply, refer to "How to Prime
the Water Supply System" for important information about
priming an empty water supply system.
Your refrigerator's water supply system includes several
tubing lines, a water fllter_ a water valve, and a water tank.
To ensure that your water dispenser works properly, this
system must be completely filled with water when your
refrigerator is first connected to the household water supply
line.
14
All manuals and user guides at all-guides.com

Controls
iceoff
(Fresh Food
Ice Maker)
Pressandholdfor threesecondstoturnthe
icemaker"ON" or "OFF".Theicemakeris
turnedoff whentheLEDabovethe "Ice Off"
iconisilluminated.
NOTE
For freezer ice maker_ see Automatic Ice Maker-Freezer
section.
light
controllock
water filter
displayon-off
c/F
power
On/Off
Pressandholdfor threesecondsto activate
and deactivate.Thisrestrictsundesired
changestotherefrigerator'ssettingsand
preventsuseof theiceand waterdispenser.
Touchtodisplayfilter conditionstatus.Press
and how far threesecondstoresetafter
filterchange.
TogglesthetemperaturedisplaysOnand
Off.
TouchtotoggledisplayfromFahrenheitto
Celsius.
Pressand holdfar threesecondstoturn off
the coolingsystemtocleanthe refrigerator.
italsoturnsoff theicemaker,all dispenser
functions.Thetemperaturedisplaywill read
OFF.
Your refrigerator isequipped with a touch control panel. It is
only necessary to gently touch the control panel. There are
three dispenser modes:
1. Water
2. Ice Cubes
3. Crushed Ice
An indicator light will be illuminated above the active feature.
IMPORTANT
Pressing the power on/off icon does not turn off power to
your refrigeraton Youmust unplug the power cord from the
wall outlet.
15
All manuals and user guides at all-guides.com

Controls (Continued)
Setting coollng temperatures
1. Down (v) and Up (A) indicators are located beside the
displayed temperatures.
2. Press the (v) or (A) indicator to adjust the temperature to
the desired setting. The temperature display will begin to
blink with the first touch. After five seconds of inactivity,
the display will beep to accept the new temperature.
After ten seconds, the display times out and returns to the
basic display.
Sabbath Mode
The Sabbath Mode is a feature that disables portions of the
refrigerator and its controls in accordance with observance
of the weekly Sabbath and religious holidays within the
Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by pressing and
holding both the freezer " v " and refrigerator " A "
indicators for five seconds. The display shows "Sb" while in
Sabbath mode.
For further assistance, guidelines for proper usage and a
complete list of models with the Sabbath feature,
please visit the web at http:\\www.star-k.org.
NOTE
While in Sabbath Mode, neither the lights, dispenser,
nor the control panel will work until Sabbath Mode is
deactivated.
Refrigerator stays in Sabbath Mode after power failure
recovery. It must be deactivated with the buttons on the
control panel.
NOTE
Although you have entered the Sabbath Mode, the ice
maker wiii complete the cycle it had already initiated. The
ice cube compartment wiii remain cold and new ice cubes
can be made with standard trays.
16
All manuals and user guides at all-guides.com
all-guides.com

Automatic ice & Water Dispenser
Priming the Water Supply System
_CAUTION
For proper dispenser operation, recommended water
supply pressure should fall between 30 psl and 100 psi.
Excessive pressure may cause wafer filter fo malfunction.
1. Begin filling the tank by pressing and holding a drinking
glass against the water
dispenser paddle.
2. Keep the glass in this
position until water comes
out of the dispenser.
It may take about 11/2
minutes.
3. Continue dispensing water
for about three minutes
to flush the system and
plumbing connections of any impurities (stopping to
empty the glass as necessary).
NOTE
The water dispenser has a Built-in device that shuts off: the
water flow after three minutes of continuous use. To reset
this shutoff: device, simply release the dispenser paddle.
Ice Maker Operation & Care
After the refrigerator is installed properly and has cooled for
several hours, the ice maker can produce ice within 24 hours.
The ice maker will fill the ice bin from the rear. You must
dispense some ice to force the ice forward in the bin. This will
allow the bin to flil completely.
IMPORTANT
Your ice maker is turned on at the factory so it can work as
soon as you install your refrigeraton If you cannot connect
a water supply, set the ice maker's On/Off icon to Off:
and turn off: the water supply valve; otherwise, the ice
maker's fill valve may make a loud chattering noise when it
attempts to operate without water.
Turning the Fresh Food Ice Maker On and Off
Ice production iscontrolled by the ice maker's On/Off icon
on the control panel. Pressand hold the "Ice Off" icon for
three seconds to turn the ice maker "ON" or "OFF". The ice
maker isturned off: when the LED above the "Ice Off" icon is
illuminated.
NOTE
The ice maker also has a built-in plastic signal bale arm
that automatically stops ice production when the ice bin is
full. This signal arm should not be used to manually stop the
ice maker.
Using the Ice Maker after InstallaEon
Before making ice for the first time, be sure to prime the water
supply system. Air in new plumbing lines can result in two or
three empty ice maker cycles. Furthermore, if the system is not
flushed, the first ice cubes may be discolored or have an odd
flavor.
IMPORTANT
On occasion, unusually small ice cubes may be noticed in
the bucket or in dispensed ice. This could occur in normal
operation of the ice maker. If you start seeing these more
frequently, it may be an indication of low water pressure
or the water filter needs to be replaced. As the water filter
nears the end of its useful life and becomes clogged with
particles, less water is delivered to the ice maker during
each cycle. Remember, if it's been six months or longer since
you last changed your water filter, replace the water filter
with a new one. Poor quality household water may require
the filter to be changed more frequently.
17
All manuals and user guides at all-guides.com

Automatic ice & Water Dispenser (Continued)
ice Maker/Dispenser Tips
*If your refrigerator is not connected to a water supply or
the water supply isturned of]:, turn of]: the ice maker by
holding the On/Off soft-touch icon for three seconds.
*The following sounds are normal when the ice maker is
operating:
- Motor running
Ice dropping into ice bin
- Water valve opening or closing
- Running water
When dispensing ice, you wiii hear a snapping or clicking
sound when the ice chute opens and closes.
*If you need a large quantity of ice at one time, it is best to
get cubes directly from the ice bin.
* Ice cubes stored too long may develop an odd flavor.
Empty the ice bin as explained below.
* When dispensing cubed ice, it is normal to have a small
quantity of little pieces along with the whole cubes.
CAUTION
if the water supply |o your refrigerator is softened, be sure
the softener is properly maintained. Chemicals from a
water softener can damage the ice maker.
Cleaning the ice Maker
Clean the ice maker and ice bin at regular intervals,
especially prior to vacation or moving.
1. Turn off the ice maker.
2. Remove the ice bin by
pulling straight out.
3. Empty and carefully clean
the ice bin with mild
detergent. Do not use harsh
or abrasive cleaners. Rinse
with clear water.
4. Allow the ice bin to
dry completely before
replacing in the freezer. Removing Ice Bin
5. Replace the ice bin. Turn the ice maker on.
Remove and empty the ice bin if:
*An extended power failure (one hour or longer) causes ice
cubes in the ice bin to melt and freeze together, jamming
the dispenser mechanism.
You do not use the ice dispenser frequently. Ice cubes
wiii freeze together in the bin, jamming the dispenser
mechanism.
Remove the ice bin and shake to loosen the cubes or clean as
explained above.
CAUTION
NEVER use an ice pick or similar sharp instrument to
break up the ice. This could damage the ice bin and
dispenser mechanism.
To loosen stuck ice, use warm water. Before replacing the
ice bin, make sure it is completely dry.
iMPORTANT
When removing or replacing the ice bin, DO NOT rotate
the auger in the ice bin. If the auger is accidentally rotated,
you must realign the auger by turning it in 45 degree turns
(see below) until the ice bin fits into place with the drive
mechanism. If the auger is not properly aligned when
replacing the ice bin, the refrigerator wiii not dispense ice.
The fresh food door also may not close properly causing
warm air to leak into the fresh food compartment.
Adjusting Ice Bin Auger
18
All manuals and user guides at all-guides.com

Storage Features
CAUTION
To avoid personal injury or property damage, handle
tempered glass shelves carefully. Shelves may break
suddenly if nicked, scratched, or exposed to sudden
temperature change. Allow the glass shelves to stabilize
to room temperature before cleaning. Do not wash in
dishwasher.
Drawers
Your refrigerator includes a variety of storage drawers. These
drawers are located in fixed positions at the bottom of the
fresh food compartment.
Crispers
Crisper drawers are designed for storing fruits_ vegetables_
and other fresh produce.
NOTE
Features may vary according to model.
Your refrigerator includes Spill=ProofTM glass shelves that are
designed to catch and hold accidental spills.
You can easily adjust shelf positions in the fresh food
compartments to suit your needs, The shelves have mounting
brackets that attach to slotted supports at the rear of each
compartment.
To Change the Position of a Shelf:
1. Remove aii food from shelf.
2. Lift the front edge up and puii the shelf out.
3. Replace by inserting the mounting bracket hooks into the
desired support slots.
4. Lower the shelf and lock into position.
Shelf features
Full Splll=Proof TM Shelf
TM
Half Spill=Proof Shelf
Opening Crisper Drawer
Crisper Humidity Control
Crisper drawers include a sliding control for adjusting the
humidity inside the crisper. Leafy vegetables keep best when
stored with the Humidity Control set on Higher Humidity. Fresh
fruits keep best when stored with the Humidity Control set on
Lower Humidity.
hi ............. [0
'gh Lower
Humidity Humidity
Adjusting Crisper Humidity
To Remove the Crisper Drawer for Cleaning:
1. Pull the drawer out until it stops.
2. Lift the front slightly and remove the drawer.
Removing Crisper Drawer
19
All manuals and user guides at all-guides.com

Storage Features (Continued)
Dell Drawer
Ideal for storage of dell meats and cheese.
Doors
Storage Bins
The doors to your fresh food compartment use a system of
modular storage bins. All of these bins are removable for easy
cleaning. Some of them have fixed positions, while others can
be adjusted to your needs.
Door bins are ideal for storing jars, bottles, cans, and
large drink containers. They also enable quick selection of
frequently used items.
To change the position of an adjustable door bin:
1. Remove aii food from door bin.
2. Grip the bin firmly with both hands and lift it upward.
3. Remove the bin.
4. Place the bin just above desired position.
5. Lower the bin onto supports until !ocked in place.
Adjustable Door Bin
lii;_
Accessories (varies by model)
Dairy Compartment
Use the dairy compartment, at the top of the fresh food
compartment door, for short-term storage of cheese, spreads,
or butter. The dairy compartment is designed to be warmer
than the open area and includes a lift-up cover and a dairy
divider (select models).
iill _ i_ ii
Dairy Compartment
Freezer Features (varies by model)
Retainer
Clips
Stabilizer B_
Two Freezer Baskets
ii
To Remove Upper Basket
1. Remove aii items from basket.
2. Remove basket by pulling baskets out to their full
extension and lift out.
jr
Removing Upper Basket
To reinstall upper basket, position basket onto the retainer
clips making sure the front of the basket rests in the retainer
clips on the stabilizer bar.
20
All manuals and user guides at all-guides.com
