seasmart B120 User manual

Folding cleat. Aluminium / Stainless steel
rev. 09-2018 | P. 01 |
CAUTION. Read all instructions carefully before installing and using this product.
Folding cleat: B120, B175, B240, B320, B400, B175X, B240X, B320X, B400X, B500X, BE175X, BE240X.
1. REQUIRED FOR INSTALLATION.
Installation instruction
Template
T Allen key or screwdriver
Threadlocker
Drill
Non acidic degreaser
Anti-corrosion lubricant
Hole saw
Polyurethane marine sealant

| P. 02 |
Folding cleat. Aluminium / Stainless steel
Installation instruction

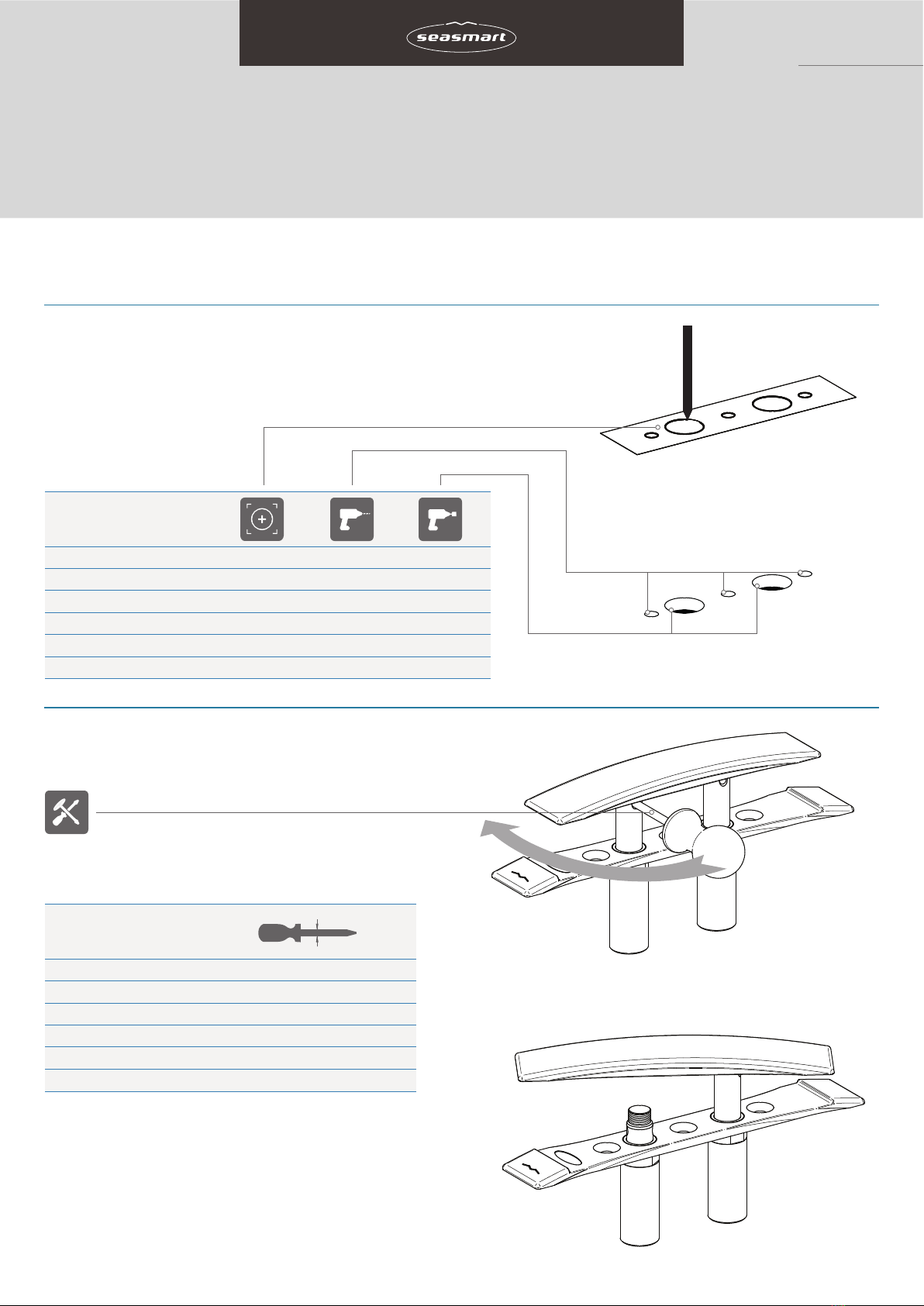

1. TEMPLATE.
Choose the right template of the cleat to be fitted
and mark position of cylinders and screws on
the deck (see templates at page 05, 06, 07, 08).
Use a hole saw to cut holes for cylinders and a
drill bit to cut holes for screws.
2. CLEAT PREPARATION.
Use a screw driver and turn clockwise to unscrew
one of the pistons, then turn the cleat 90°.
CAUTION: to disassemble the cleat, use only tools
with a diameter indicated in the table.
B120
B175 / B175X / BE175X
B240 / B240X / BE240X
B320 / B320X
B400 / B400X
Type
print P.05
print P.05
print P.06
print P.06
print P.07
Ø 6,5 mm
Ø 6,5 mm
Ø 10,5 mm
Ø 12,5 mm
Ø 12,5 mm
Ø 19 mm
Ø 25 mm
Ø 30 mm
Ø 44 mm
Ø 53 mm
B500X print P.08
B120
B175 / B175X / BE175X
B240 / B240X / BE240X
B320 / B320X
B400 / B400X
Type
Ø 5 mm
Ø 5 mm
Ø 8 mm
Ø 6 mm
Ø 8 mm
B500X Ø 8 mm
Ø 16,5 mm Ø 61 mm
rev. 09-2018

| P. 03 |
Installation instruction
3. PREPARING THE BASE.
Carefully clean the bottom side of the base, apply
a small bead of marine sealant under the flange,
into the groove.
4. INSTALLATION
Place the base on the deck and let the cylinders go into
the holes. Then place the screws (we recommend to
use anti-corrosion lubricant into the screw holes).
Use washers (or backing plate, if needed) between screws
and nuts and tighten firmly. Caution: keep the cleat flat,
avoiding torsion or bending.
OPTIONAL
Folding cleat. Aluminium / Stainless steel
rev. 09-2018

| P. 04 |
Installation instruction
5. CLEAT ASSEMBLY.
Screw again the piston to the cleat.
turning counter-clockwise - looking at the cleat from the top.
B120
Type
15
30
30
40
40
Tightening torque (N·m)
50
B175
B240
B320
B400
B500
Folding cleat. Aluminium / Stainless steel
rev. 09-2018

| P. 05 |
B175
B175X
BE175X
55 mm
55 mm
60 mm
B120
45 mm
45 mm 45 mm
rev. 09-2018

80 mm
B320
B320X
rev. 09-2018 | P. 06 |
70 mm70 mm
B240
B240X
BE240X
110 mm110mm
110 mm

B400
B400X
| P. 07 |
150
50 100
100
rev. 09-2018

B500X
rev. 09-2018 | P. 08 |
200
12080120
