LPGSTOVE OWNER’S MANUAL
PRINCESS GOURMET SERIES
INCLUDES 2&3BURNER CONFIGURATIONS
Model Number
Serial Number
IMPORTANTSAFETY INSTRUCTIONS
WARNING
Seaward Products recommends that a qualified person or electrician install this product.
SeawardProducts accepts no responsibilityorliability fordamage to equipment, injury, or
deaththatmayresult fromimproperinstallation oroperation ofthis product. Whenusing
electricalappliances, basic safety precautionsto reducethe risk offire,electricalshock, or
injuryto persons should befollowed.
1. READ ALLINSTRUCTIONS THOROUGHLYBEFORE USING THISGAS STOVE.
2. Savethe Owner’s Manual/Installation instructionsforlocalinspector’s use.INSTALLER:
Provide this manualto the vehicle owner.VEHICLEOWNER: Keep this manualforfuture
reference.
3. NEVERUSE FLAME TOCHECK FOR LEAKS.LPGis heavierthan air and ifallowed to
settle or accumulate,and ifignited,ITWILL CAUSE AN EXPLOSION!!
4. Install or locate this stove onlyin accordancewith the provided installation instructions.
5. Use this stove only for its intended useasdescribed in this manual.
6. As withanyappliance,close supervisionis necessary whenused bychildren
7. THE FEATURES COVEREDIN THISMANUALARE FOR VARIOUS MODELSTOVES.
PLEASE DISREGARD PORTIONS PERTAINING TO FEATURES THATARE NOT ON
YOUR PARTICULARMODELSTOVE.

2
LPG FUEL TANK INSTALLATION
REFERENCE:STANDARD #A-1
AMERICAN BOAT & YACHTCOUNCIL
3069 SOLOMON’S ISLAND ROAD
EDGEWATER,MD 21037

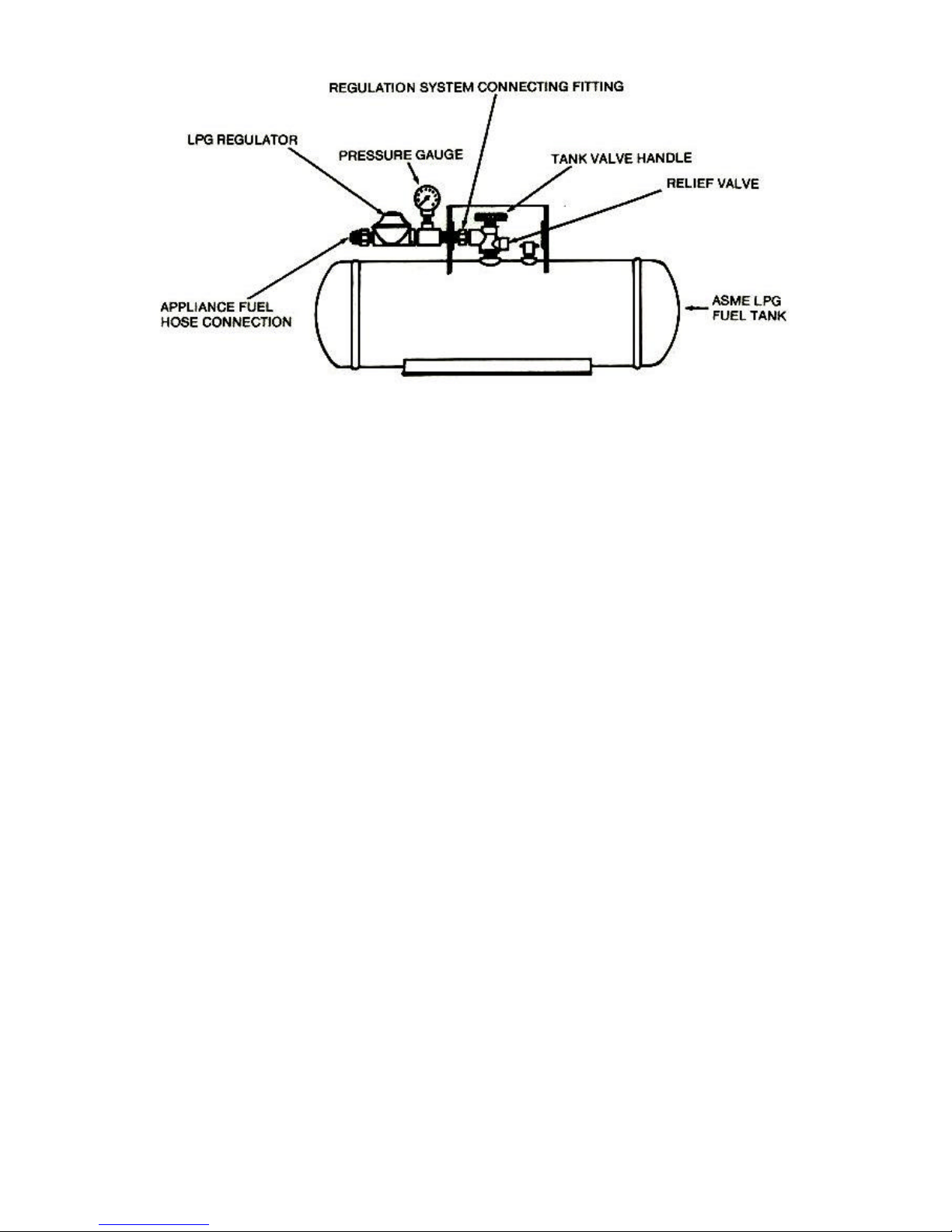

LPG TANK WITH REGULATION SYSTEM
1. Locatethe tankand regulatoron deck, cabin top orin avaportightcompartment, insulated
fromthe hull interiorand protected fromclimatic extremes by a housing vented to the open
air.The ventshould be atthe bottomofthe compartmentso thatif the LPGshould leak
fromthe system,it will drainoverboard
NOTE: LPGis heavierthanair and if allowedtosettle or accumulate,and if ignited, IT
WILL CAUSE AN EXPLOSION!!
2. The LPGtankshould be securely bolted downbythe tankfeetandin the position inwhich
the tankwasdesigned.LPGis atwo-phase(liquid/vapor) fueland only vaporwithdrawal
fromthe tankis safe.Liquid withdrawal fromthe tank could be dangerous.
3. IMPORTANT: The LPGtankvalveoutletfitting andregulatorsystemnut, bylaw,must
haveleft-hand threads. The nutis somarked withaslot.
4. The LPGtankvalveoutlet fitting does notrequirepipe dope orTeflon tape and shouldbe
attachedtothe regulation systemnutdry andclean to keep foreign materials outofthe
system.Whenassembling the regulation system,use ahigh quality sealantonly on all
male pipe threads.
5. The regulatormust havea0to 300 psi pressuregauge located on the tank pressureside of
the regulator.
6. If the LPGtankis to be located on deck orexposed to waterspray,pointthe regulator
systemso that watercannotrun intothe regulatorventportlocated just abovethe LPG
outletconnection,or into the bodyofthe pressuregauge.
7. Affix the caution labelsupplied with the stovein the immediate vicinityofthe tankwherethe
label will be plainly visible.(Referto ABYC Standard#A-1)
8. The LPGsupply line should be U.L.listed hose with machine-crimped fittings. Asingle
continuoushose withoutcouplingsorteesis strongly recommended.Keep the numberof
fittings to an absoluteminimum.Everyconnection is a potential leak!
9. Run the hose fromthe LPGregulation systemto the appliance with6inch minimumradius
turns, so the hosedoesnot kink, cutting off the fuelsupply to the appliance.Note:Fuel
pressureis less than ½ psi.
10.Keephose away from heator abrasion.Use plastic ties orclamps tosecurethe hose to the
boatstructureor bulkhead.

SUMMARYFOR CHECKINGLPG SYSTEMAND LPG APPLIANCE
1. After the LPGtankhasbeeninstalled,the regulation systemconnected,the hose run and
connected to both the applianceand the regulator,slowly crack open the LPGtankvalve
and observethe pressuregauge on the regulation system. The gauge should read
approximately 110 psi at70°F. (Higherif warmer,orlowerif cooleratmospheric
temperature.)
2. Close the LPGtankvalveandobservethe pressuregauge.It should hold aconstant
pressurereading.If you can detect afalling in pressureovera3minuteperiod oftime,
thereis aleak.
LEAKS CAN BE DANGEROUS!!
a. If aleak occurs, check all appliance burnerstosee ifin “Off”position.
b. Make surethe ovencontrol is in “Off”position.
c. Check all fittings withasoap and water solution.
NEVER USE FLAMETOCHECK FOR LEAKS.
3. If you cannotfind the leak, contact SeawardProducts promptly.
4. PRESSURE GAUGE:The primaryfunction ofthe pressuregauge atthe regulatoris to
check for leaks,butit mayalso behelpful in determining the fuel level in the tank.When the
liquid propanein the tanknearsthe empty state,the gauge will indicatealow pressure.
Since the vaporpressureofthe propane varieswith the ambientand the temperature,
using the gauge asafuellevelindicatormayrequiresomeexperience.In general, when
the gauge shows below40 psi, you should consider refilling the tank.
SPECIALNOTE ABOUT YOUR LPGREGULATOR: It is recommended thatonly ahigh
quality LPGregulatorbe used with anyofSeawardProducts LPGappliances.It is imperative
thatthe regulator be setat11-inchwatercolumnso thatthe oven operatescorrectly,andthe

4
flame heighton the top burnerscooks efficiently.If the regulatorpressureis greaterthan 11-
inch watercolumn, the flamecan impinge on the top burnerbowl causing discoloration on
stainless bowls andmaychip the porcelainon the porcelainbowls.
OPERATINGINSTRUCTIONSSUMMARYFOR ALPG SYSTEM
1. Close tank valveimmediatelyin anyemergency.
2. Besureall appliancevalves areclosed beforeopening tank valve.
3. Close tank valvewhenever applianceis notinuse.
4. Testsystem for leakage atleast twice amonthand after anyemergencyinaccordance with
the following procedure:
Withappliancevalvesclosed, and the tankvalveopen,notepressureon the gauge.Close
cylindervalve.If the pressuredrops,asindicated onthe gauge,this tells you thereis a leak
in the system.Locate leakage byapplication ofaliquid detergentorsoap andwater
solution toall connections. Afterleakhasbeen repaired,recheck systemby repeating the
abovetest. If leakcannotbe repaired,close the tankvalveimmediately anddo not use this
system.Remember LPGis heavier thanair and if allowed to reachbilges, machineryspace
or other enclosed spaces,it can be extremely dangerous.
5. It is always a good idea to havean approved ABC type fireextinguisher in the galleyarea.
LPGSTOVE WITH
IGNITER
TOLIGHT TOP BURNERS WITH SAFETYSYSTEM
1. Pushinknob and turnto “IGN” (Ignite)position.
2. Hold knob in andpress the “BURNER IGNITE”button.
3. Hold knobinfor5to 10 secondsuntil the thermocouple is hot. This will activate the safety
magnet.
4. Release knob and setto desired setting.If the flamedoesnotstayon,the thermocouple is
nothotenough.(RepeatSteps1-3).
SPARK FROM THE ELECTRODE HAS TO CUT ACROSS THE GAS TO IGNITE
READILY.IF THE SPARK IS JUMPING BELOWTHE BURNERPORTSMAKE
SURE THE POINT OF THE ELECTRODE IS CLEANSOTHATTHE SPARKS WILL
JUMP ABOVE THE PORTS.

5
EXPLODED VIEW AND PARTSLIST
MODELS:2575 & 3575
ReplacementParts
Replacement partslisted hereinmay be ordered through Seaward
Products,SeawardDistributors and Dealers,orDealer’sAuthorized
Service Centers. Allpartswill be shipped at prevailing prices. When
ordering repairparts, pleasegivethe following information:
(1) Model number
(2) Serial number
(3) Partnumber
(4) Partdescription
The model numberand serial number of the stove can be found onthe
rating platelocated on the back panel.For the Authorized Service
Center nearestyou, please contact SeawardProducts.
PAR
T
S L
I
S
T
F
O
R
2
-
B
R
AN
D 3
-
B
R
M
O
DE
LS
ITEM#
QTYPART#DESCRIPTION
12/373420 GRATE,BLACK PORCELAIN
22/375710 BURNER CAP
32/375711 BURNER BASE
42/375712 BURNER BODY
52/380777 SPILL BOWL
72257 2-BR MAIN TOP, STAINLESS STEEL
6 172251 3-BR MAIN TOP, STAINLESS STEEL
72/375718 TOP BURNER VALVE
75762 2-BR FACEPLATE
8 175660 3-BR FACEPLATE
2-BR PUSH BUTTONIGNITION
9 1 75659 3-BR PUSH BUTTONIGNITION
10 2/373594 KNOBS

6
STAINLESS STEEL SCREWS
PROVIDED TO SECURE
COOK TOP TO COUNTER.
MOUNTING HOLES
CUTOUT INFORMATION
MODEL WIDTH DEPTH HEIGHT
2575 20 7/16” 14 11/16” 5 13/16”
3575 20 7/16” 18 7/8” 5 13/16”
STOVE INSTALLATION
1. CUT COUNTER TO THE APPROPRIATE SIZE FOR
YOUR MODEL STOVE.
2. SLIDE STOVE INTO COUNTER AND HOOK UP FUEL
LINE.
3. SECURE STOVE TO COUNTER USING 4 MOUNTING
SCREWS PROVIDED.
24" MIN
20 7/16"
1/2"
21 13/16"
DEPTH

CAREAND
CLEANING
Regularcleaning with asoft cloth and awarm detergentsolution isgenerally enough to keep
youroven clean and beautiful. This is done whenthe range is cool. Use adry cloth orpaper
towel to cleansplattersandspills whensurfaces arewarm.
PORCELAIN ENAMEL-Porcelainenamel is glass fused on steelatveryhigh temperatures. It
is notextremely delicate,butmust be treated as glass. Sharpblows, radical changes in
temperature,etc., will cause the enamel to chip or crack. Somefoods contain acid which will
dull the finish ofenamel. Vinegar,lemon juice,tomatoes,and milk areafew.Toavoid this
happening,simply wipe surfaceclean immediately whenanyfood is spilled on the enamel.
Remember,the surfaceis glass and must be given consideration incleaning.Steel wool pads
and coarse grittycleansing powders or chemical grease remover will do agood job andyetnot
harm the finish.
NOTICE: Whenthe unit is in operation,the outside surfaceswill becomehotand caremust be
taken toavoid contact with panelsurfaces. Handlesand knobswill remain comfortable tothe
touch.
CHROMEAND STAINLESSSTEEL-The best wayto clean metal surfaceson your range is
to wipe themwith adampcloth,then drythoroughly.Stubbornspots caused byspillage and
discoloration fromheatmaybe removed bythe use oflemon juice,vinegar,or chromepolish.
Caremustbe used tokeep theseawayfrom porcelainenamel surfaces.
NEVERusecoarse cleansers, steelwoolscouring padsormetalbrushestoclean chrome.
These will make deep scratcheson the chrome.The scratchescannotbe removed.

LIMITED TWO YEAR WARRANTY
SEAWARD PRODUCTSwarrants the products delivered will be:
A. Free from(1) encumbrances and (2) defects inmaterial and workmanship under the normal
use and service.
B. Will meetapplicable specificationsand descriptionsattimeofdeliveryto BUYER.
The obligation ofSEAWARD underthis warranty is limited to the repair,rework, or
replacement, atSEAWARD’Soption,any partorcomponentthereof, which examination
disclosesto oursatisfaction to havebeen nonconforming ordefective.SEAWARD, after
establishing customer’s purchase date and determining problemtobe underwarranty,will
eitherrepair the product attheir factoryorauthorized service centerandallow laborandparts
fortwo(2)yearsfrompurchasedate.Transportation chargesarethe responsibility ofthe
customer.Conditions notcovered under warrantyare:
(1) Porcelain enamel
(2) Glass
(3) Routine maintenancethatmaybe required
The foregoing warranty andcondition shall apply to anyrepaired,reworked,orreplaced
products,partorcomponentsupplied by SEAWARD and shall in no eventbe liable to BUYER
orBUYER’S customersforanyincidental or consequentialdamages, orloss ofuse,orother
losses, however occasioned.
Implied warrantiesofmerchantability andofthe fitness ofthe product forany purpose are
warranted for a period oftwoyears onparts and labor.
SEAWARD makes no warranties,expressed or impliedafter thattime.
Somestatesdo notallowlimitation on howlongan implied warranty lasts or forthe
exclusion orlimitationsofincidental orconsequentialdamages, therefore,the abovelimitations
maynotapply to you.
This warranty is extended to the originalpurchaseronly,unless purchased forpurpose of
resale.This warrantygivesyou specific legalrights, andyou may alsohaveotherrightswhich
varyfromstateto state.Seaward
Products
SeawardProducts
